This document discusses integration testing for microservices using Spring Boot. It covers: 1) the complexities of testing microservice architectures, 2) the anatomy of a microservice, and 3) an effective approach using Spring Boot to implement unit, integration, and component tests. Integration tests with Spring Boot can verify service integration with external dependencies like databases and APIs. Component tests isolate services by mocking external dependencies with tools like WireMock. Additional levels of testing are needed for microservices, and integration testing with containers provides benefits like reliability, configurability and speed.

1. 1
INTEGRATION TESTING FOR
MICROSERVICES WITH SPRING BOOT
Oleksandr Romanov
2 – 3 March 2018
Kyiv, Ukraine

2. 2
WHAT I WILL COVER?
1) Microservices architecture and it’s testing complexities
2) Anatomy of microservice
3) Effective integration testing with Spring Boot
4) Component tests with spring-boot-test-containers
5) Conclusions

3. 3
WHO AM I
6+ years as Test Automation Engineer
Worked with Java / C# web applications
/ backend systems from CMS to enterprise
Working now as QA Automation Lead
at Playtika

4. 4

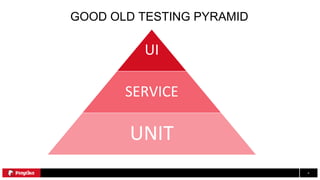

GOOD OLD TESTING PYRAMID
UI
SERVICE
UNIT

5. 5

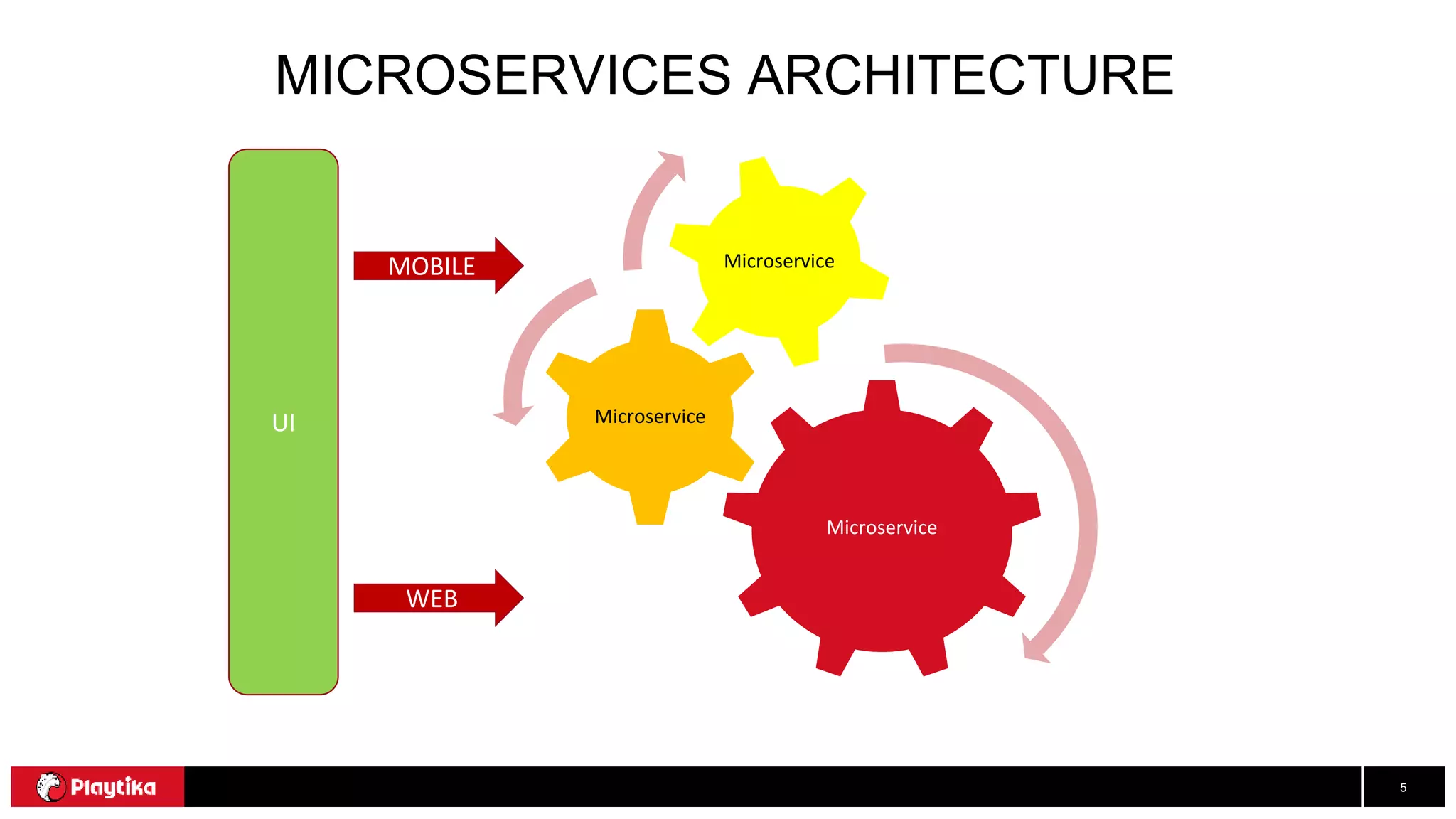

MICROSERVICES ARCHITECTURE
Microservice
Microservice
Microservice
UI
WEB
MOBILE

6. 6

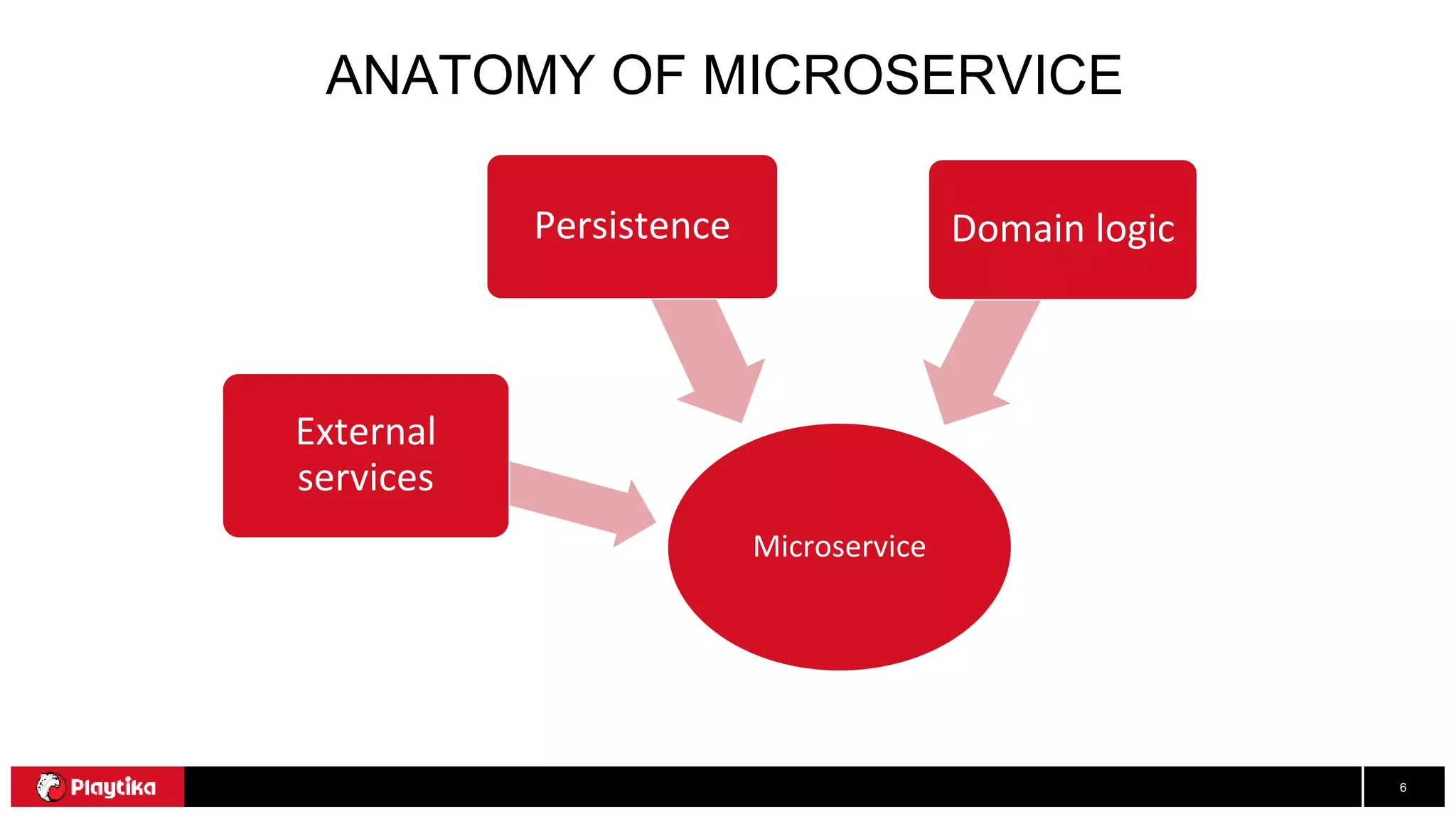

ANATOMY OF MICROSERVICE
Microservice
External
services
Persistence Domain logic

7. 7

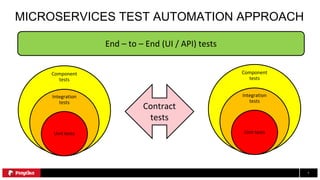

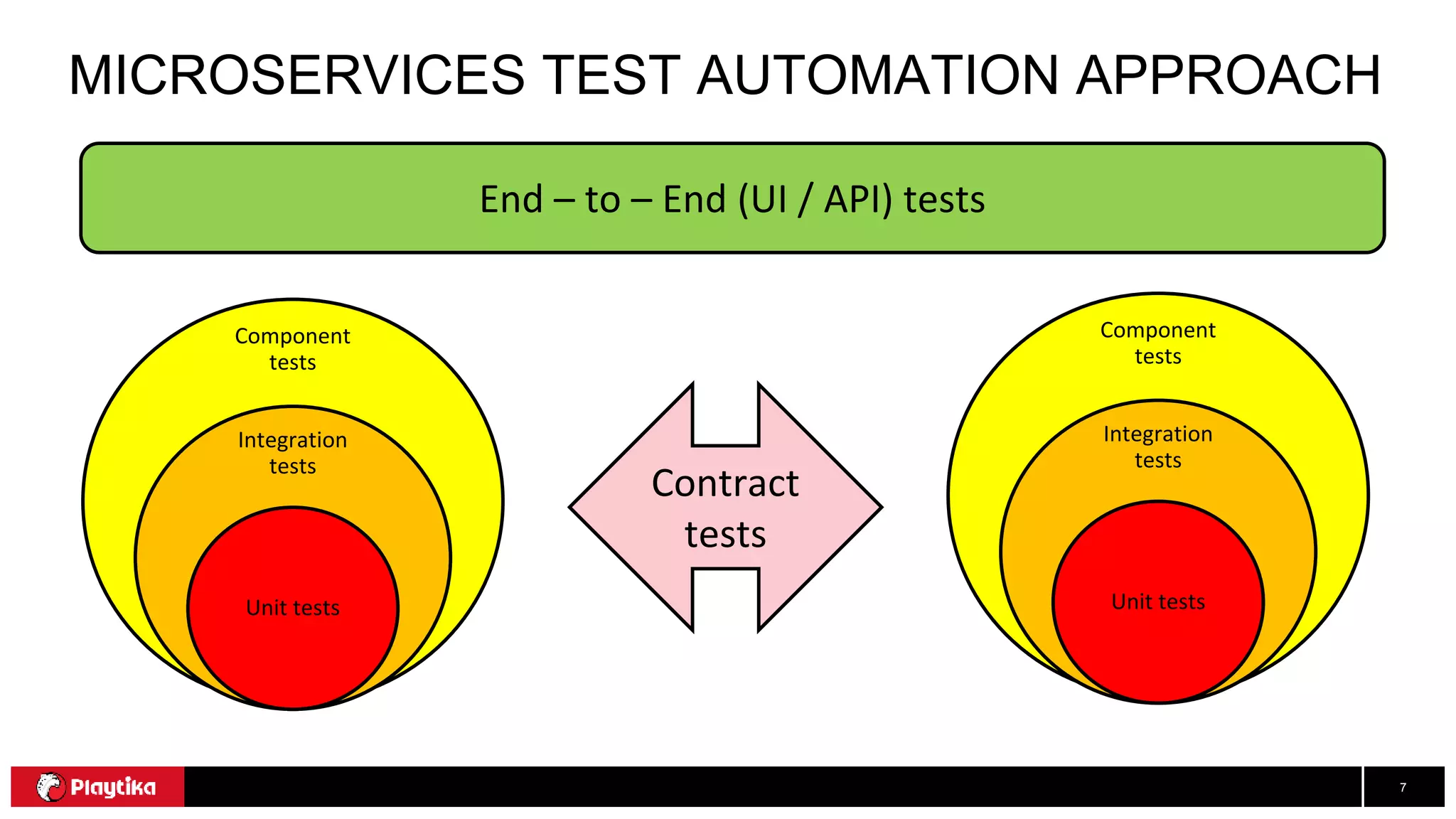

MICROSERVICES TEST AUTOMATION APPROACH
End – to – End (UI / API) tests
Contract
tests
Component
tests
Integration
tests
Unit tests
Component
tests
Integration
tests
Unit tests

8. 8

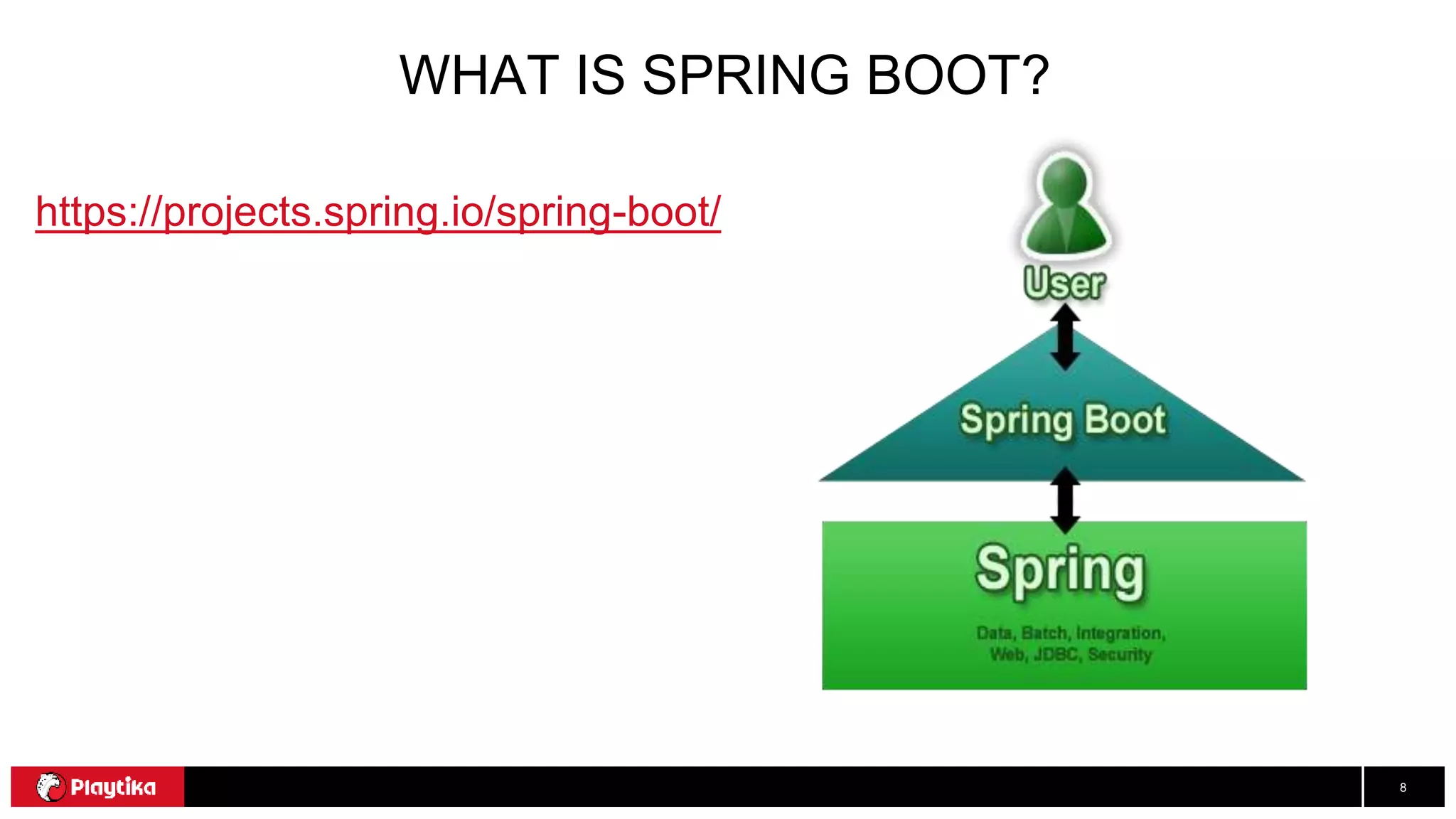

WHAT IS SPRING BOOT?
https://projects.spring.io/spring-boot/

9. 9

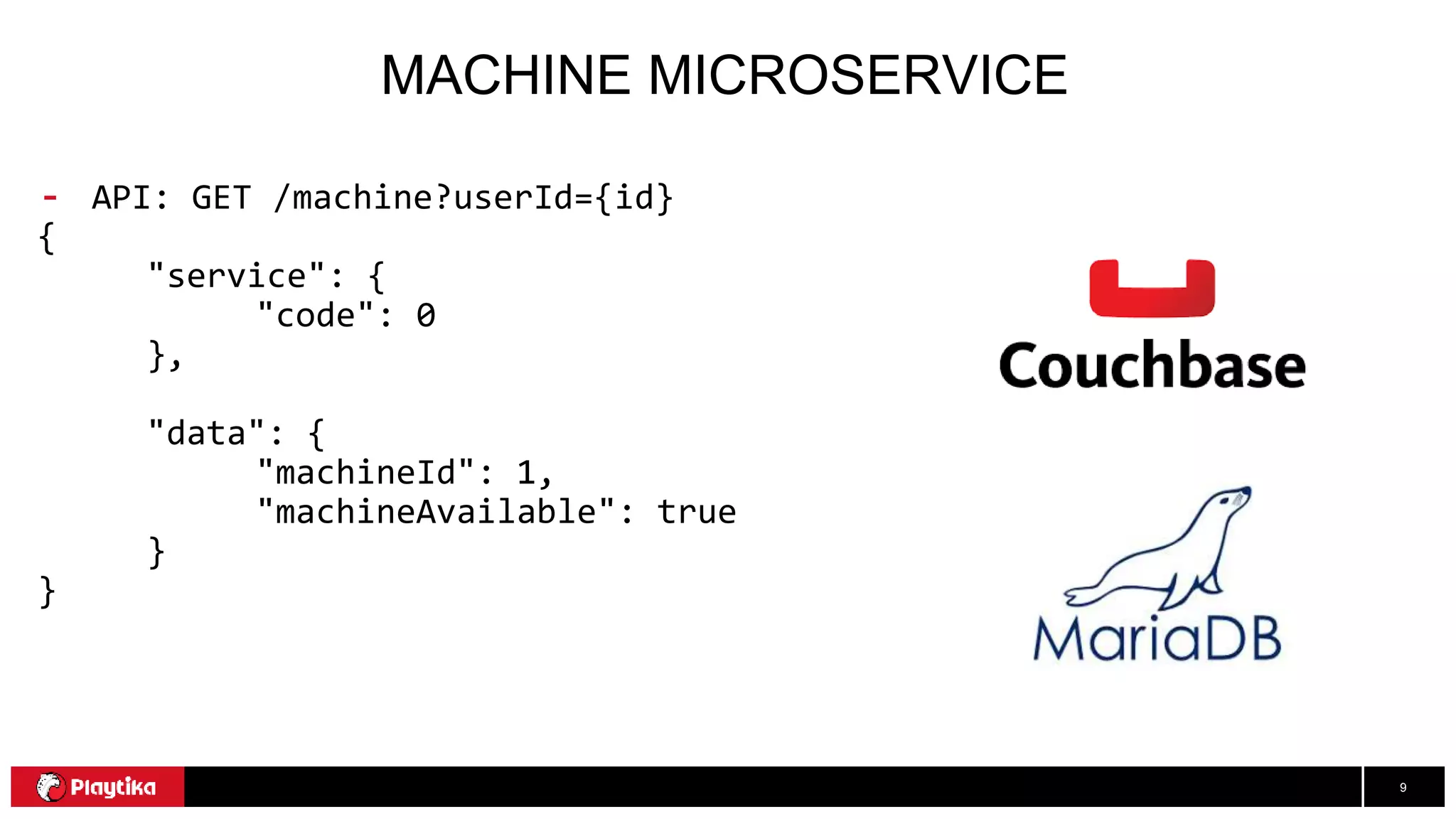

MACHINE MICROSERVICE
- API: GET /machine?userId={id}
{
"service": {
"code": 0
},
"data": {
"machineId": 1,
"machineAvailable": true
}
}

10. 10

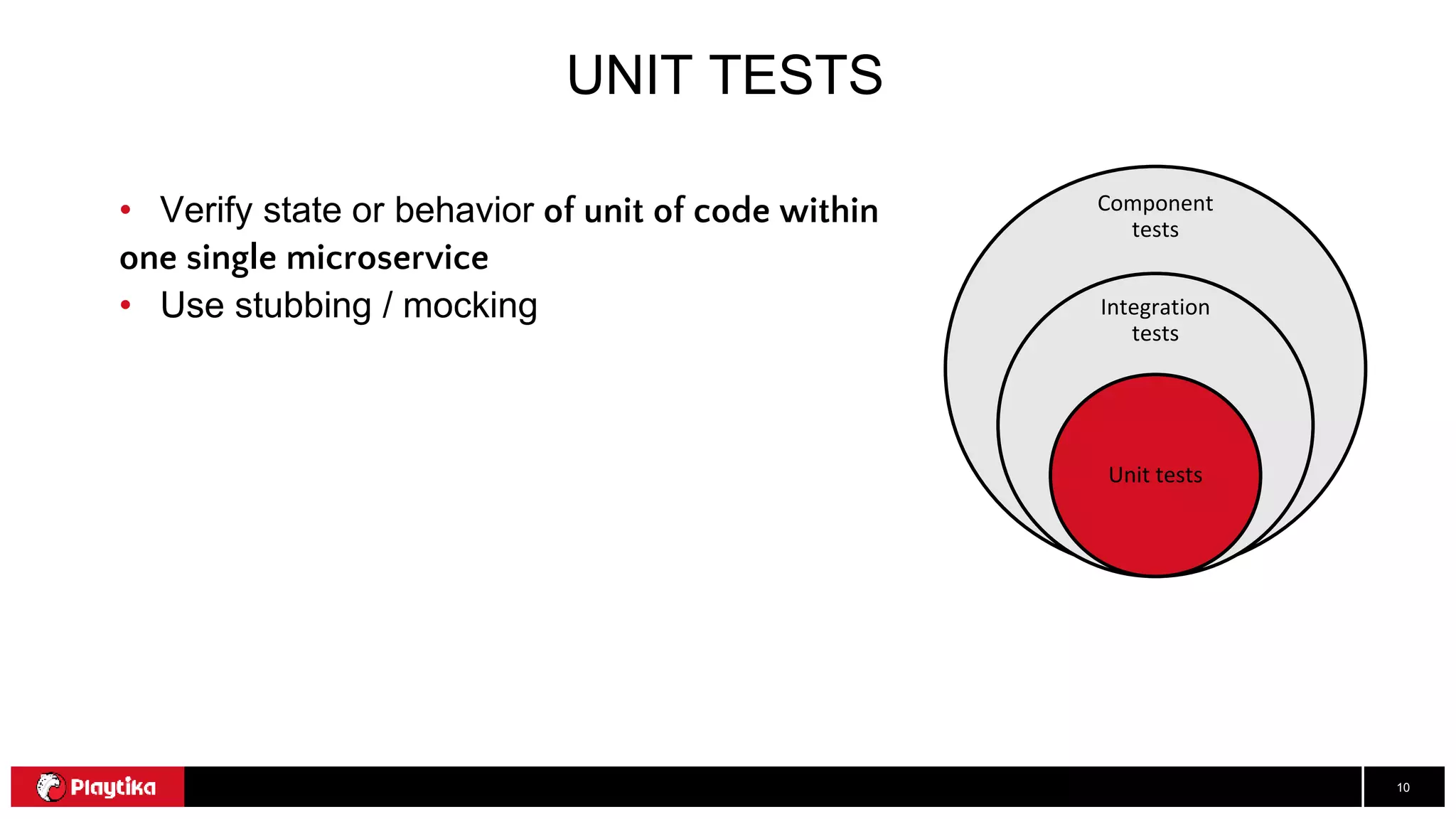

UNIT TESTS
• Verify state or behavior of unit of code within
one single microservice
• Use stubbing / mocking
Component
tests
Integration
tests
Unit tests

11. 11

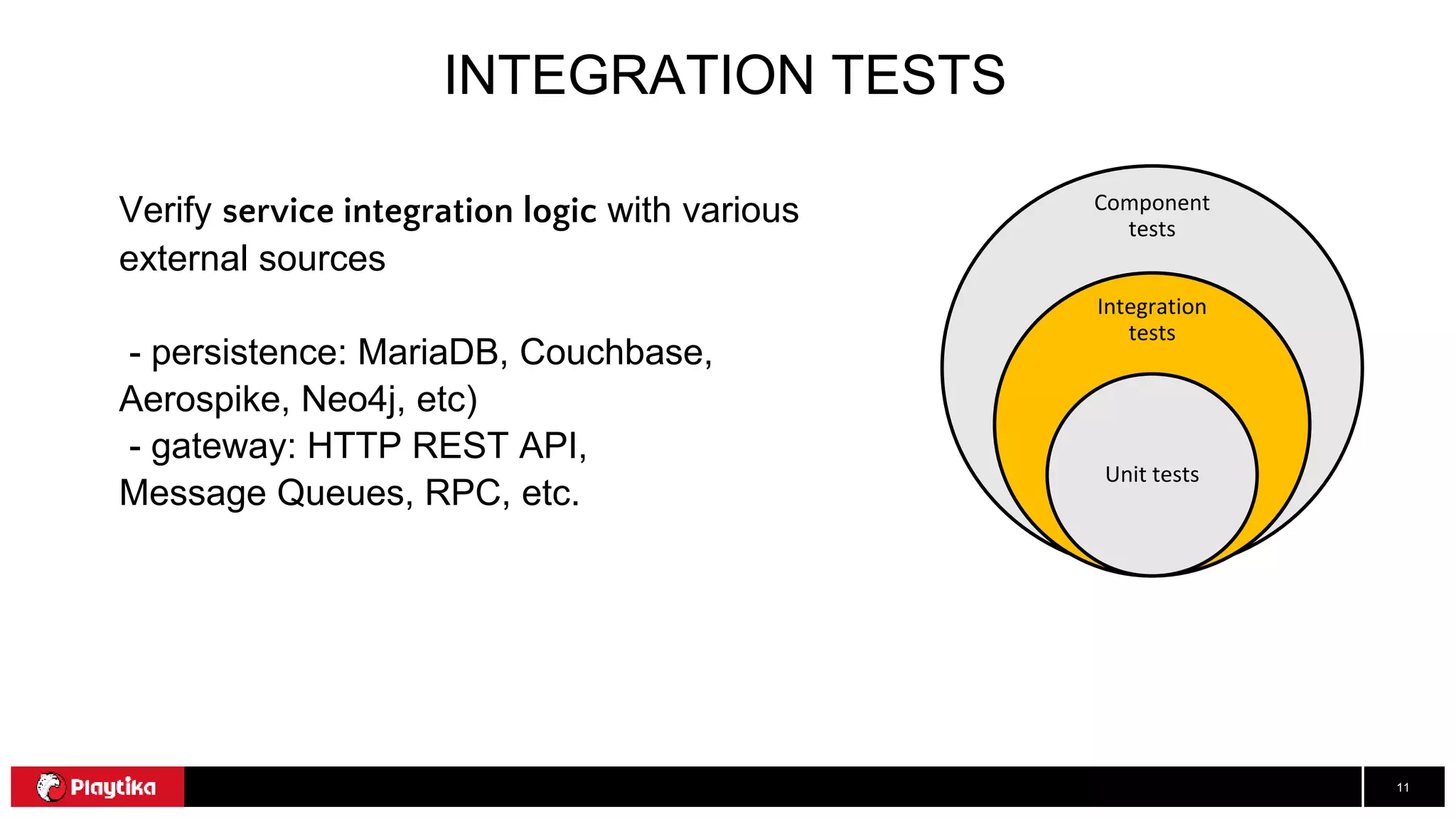

INTEGRATION TESTS
Verify service integration logic with various
external sources
- persistence: MariaDB, Couchbase,
Aerospike, Neo4j, etc)
- gateway: HTTP REST API,
Message Queues, RPC, etc.
Component
tests
Integration
tests
Unit tests

12. 12

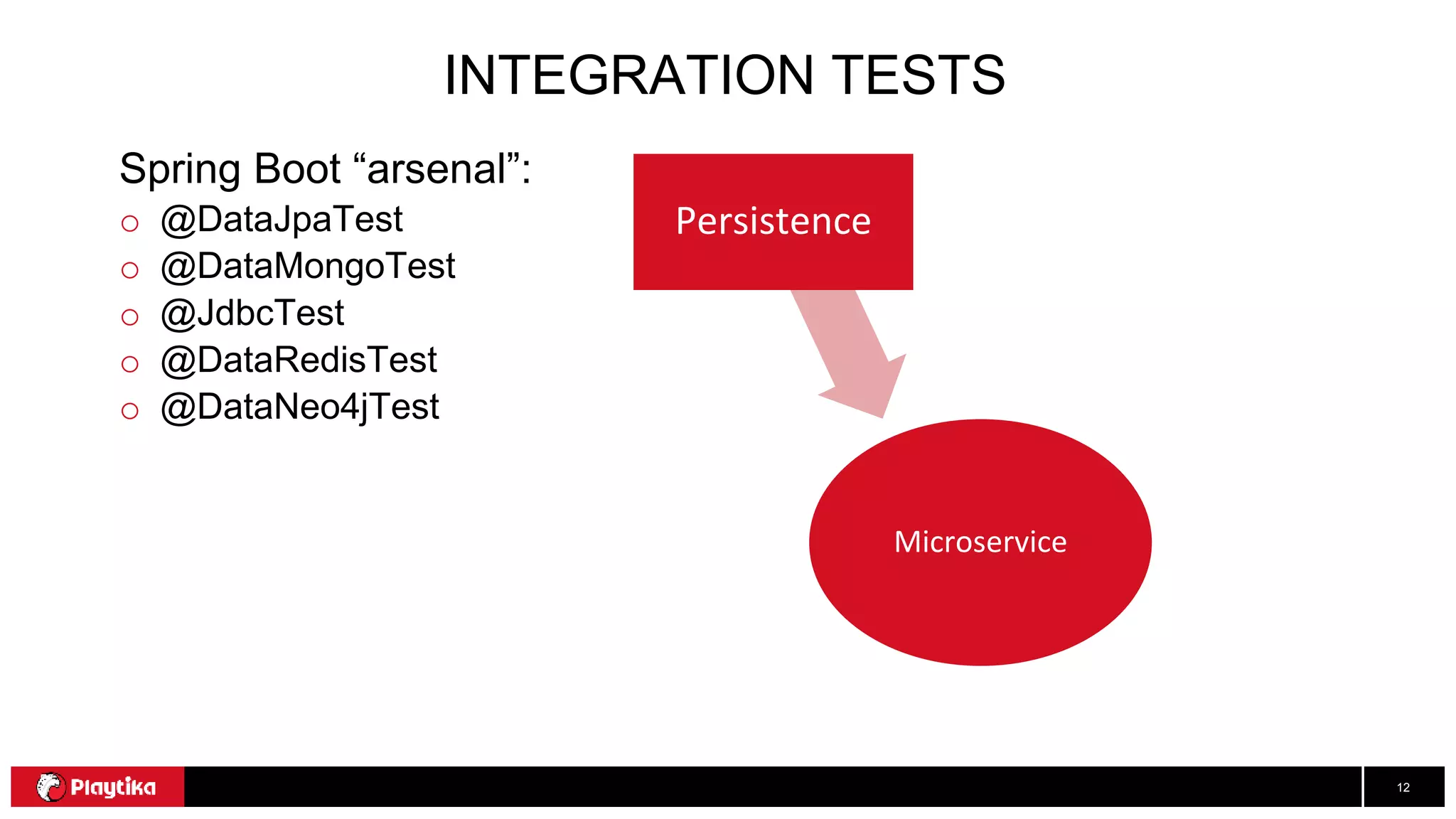

INTEGRATION TESTS
Spring Boot “arsenal”:
o @DataJpaTest
o @DataMongoTest
o @JdbcTest
o @DataRedisTest
o @DataNeo4jTest
Microservice
Persistence

13. 13

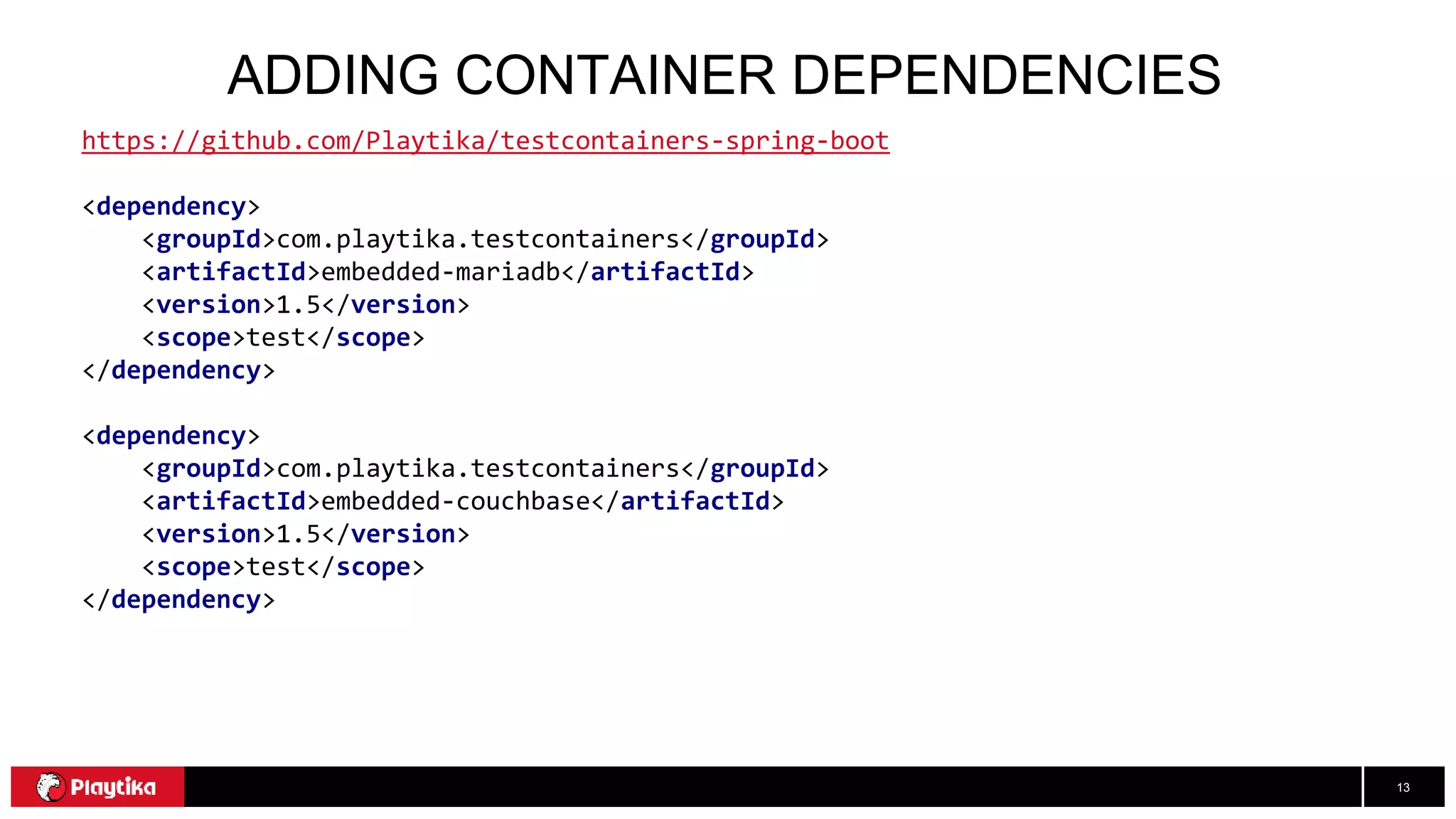

ADDING CONTAINER DEPENDENCIES
https://github.com/Playtika/testcontainers-spring-boot
<dependency>
<groupId>com.playtika.testcontainers</groupId>
<artifactId>embedded-mariadb</artifactId>
<version>1.5</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>com.playtika.testcontainers</groupId>
<artifactId>embedded-couchbase</artifactId>
<version>1.5</version>
<scope>test</scope>
</dependency>

14. 14

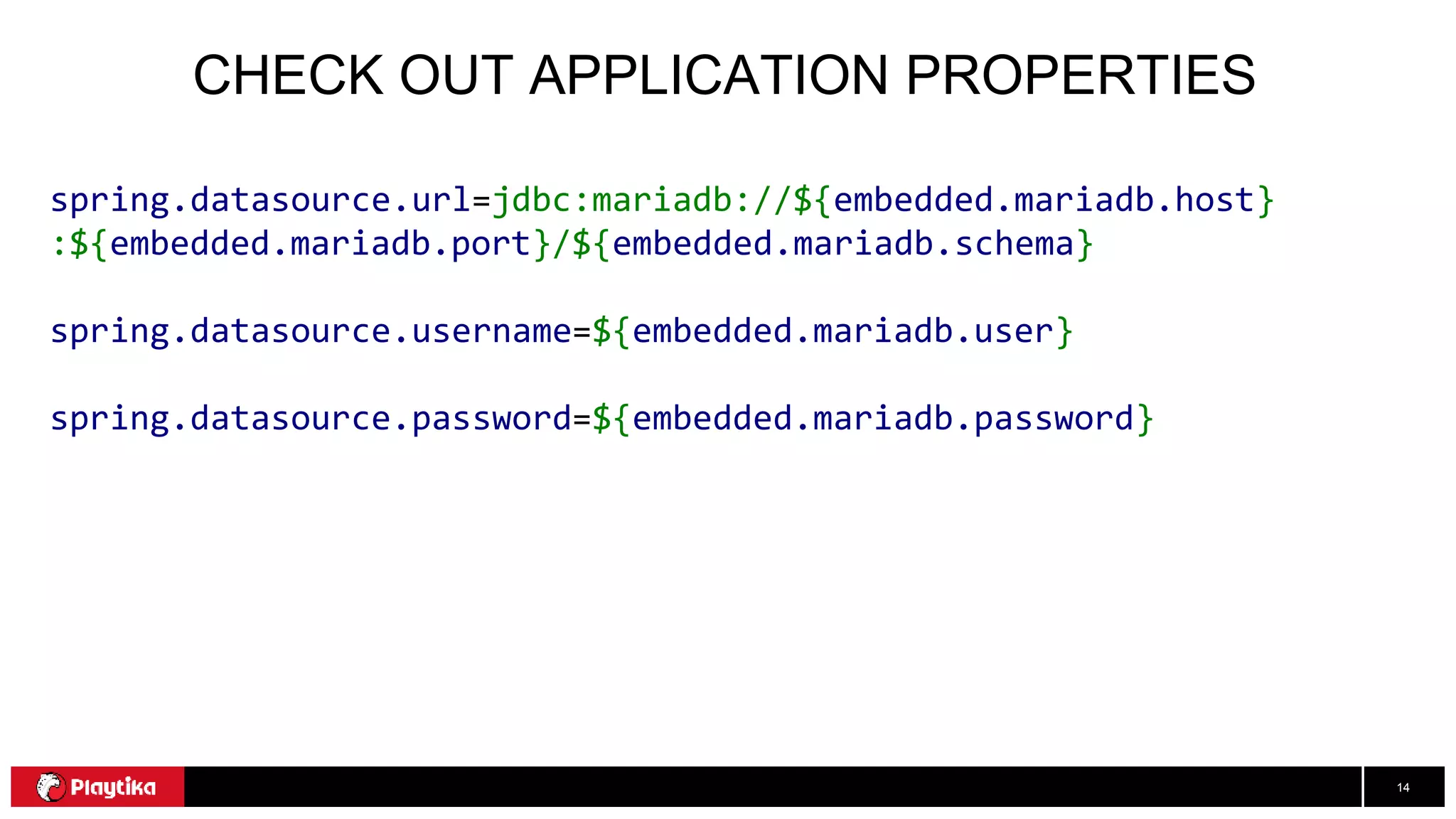

CHECK OUT APPLICATION PROPERTIES
spring.datasource.url=jdbc:mariadb://${embedded.mariadb.host}
:${embedded.mariadb.port}/${embedded.mariadb.schema}
spring.datasource.username=${embedded.mariadb.user}
spring.datasource.password=${embedded.mariadb.password}

15. 15

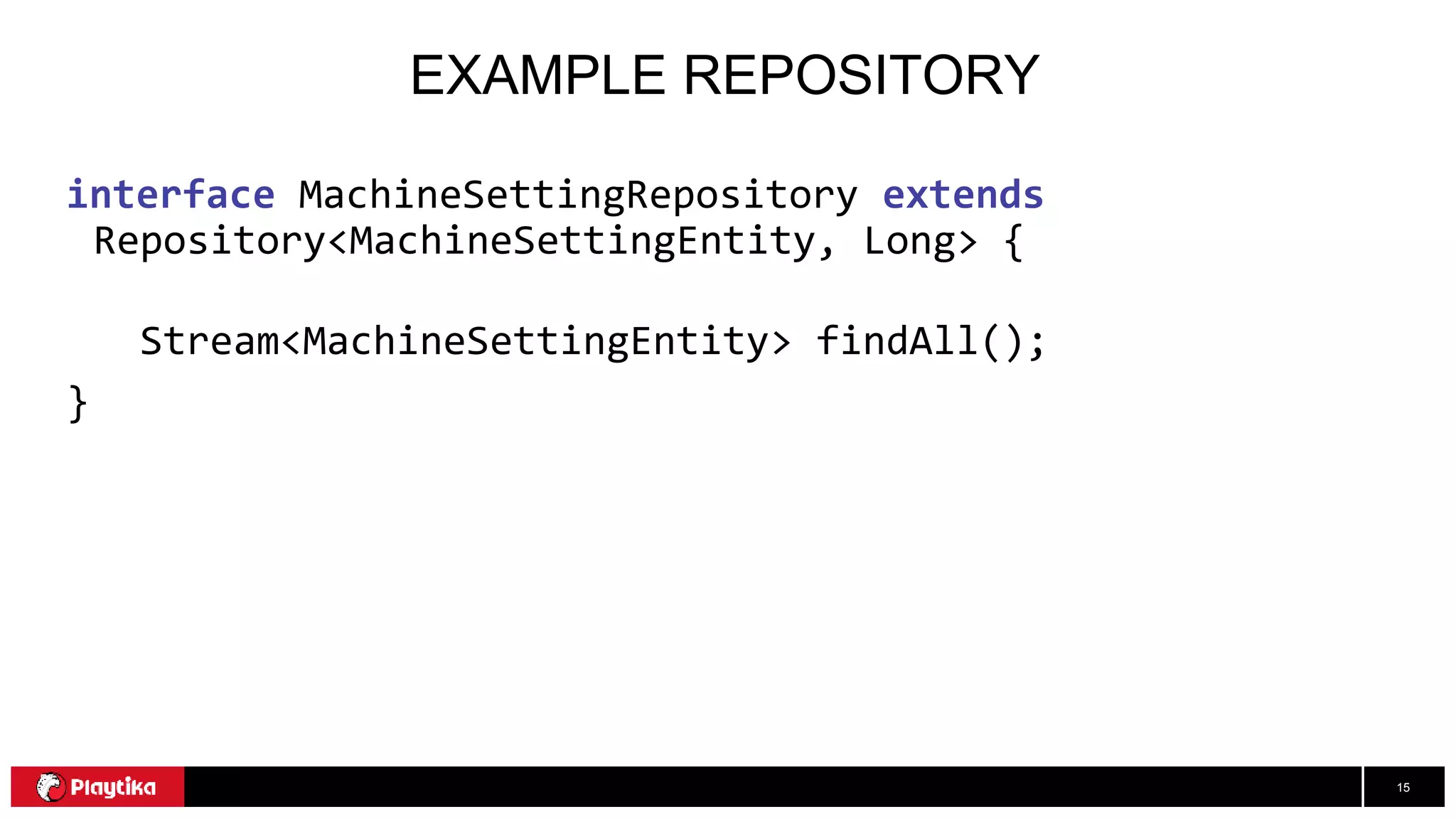

EXAMPLE REPOSITORY
interface MachineSettingRepository extends
Repository<MachineSettingEntity, Long> {
Stream<MachineSettingEntity> findAll();
}

16. 16

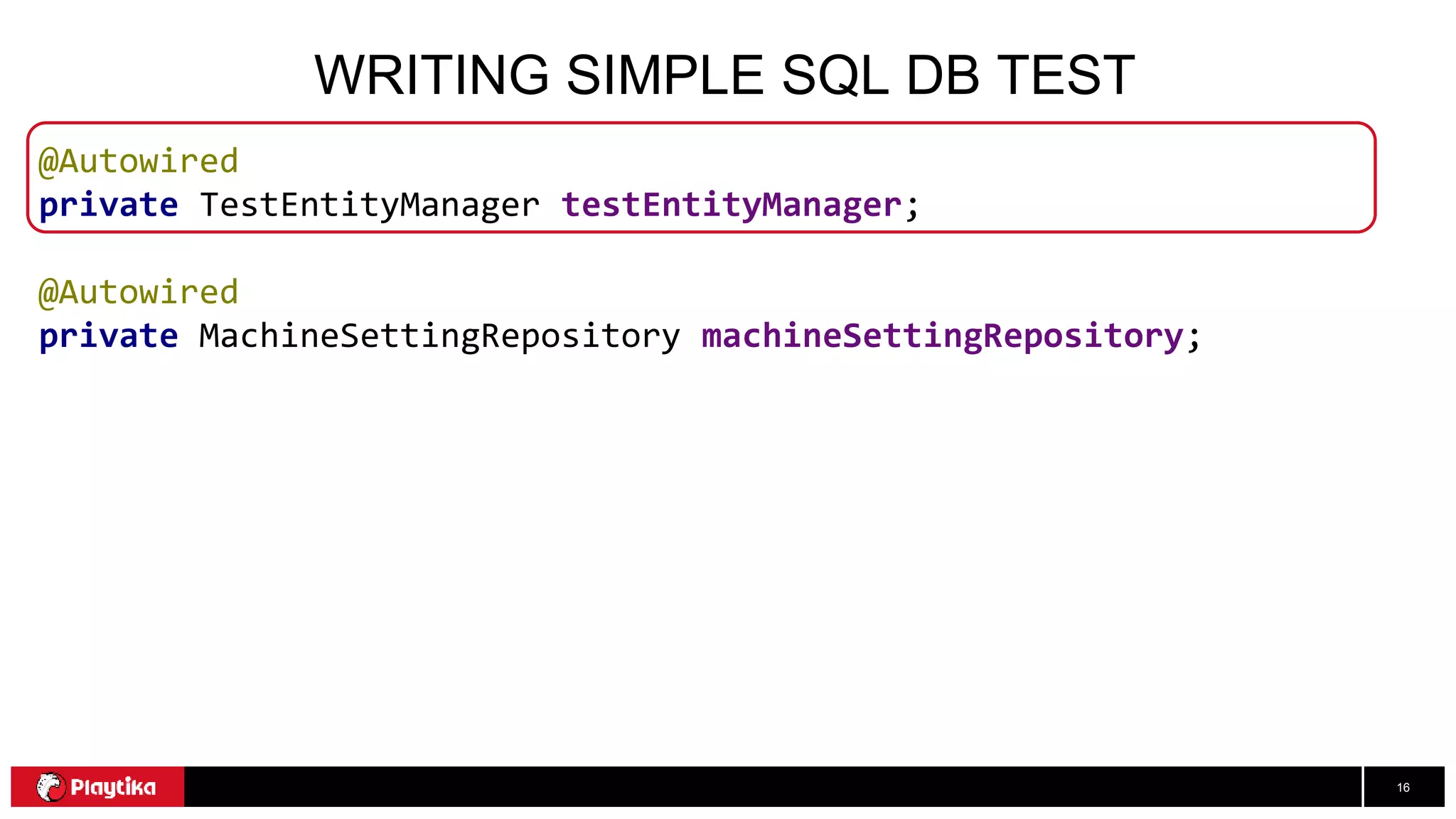

WRITING SIMPLE SQL DB TEST
@Autowired
private TestEntityManager testEntityManager;
@Autowired
private MachineSettingRepository machineSettingRepository;

17. 17

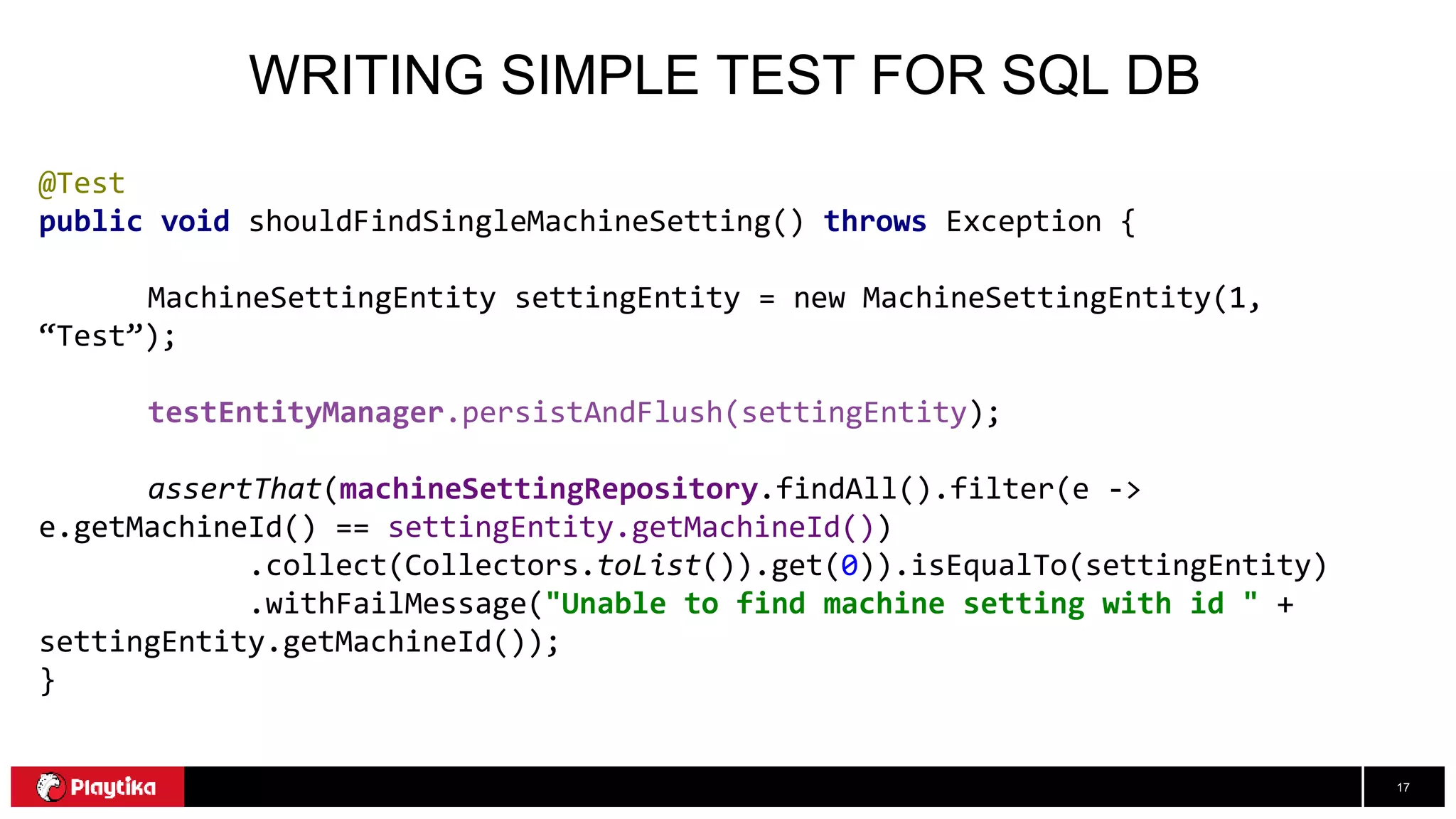

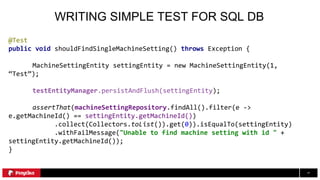

WRITING SIMPLE TEST FOR SQL DB
@Test
public void shouldFindSingleMachineSetting() throws Exception {
MachineSettingEntity settingEntity = new MachineSettingEntity(1,
“Test”);
testEntityManager.persistAndFlush(settingEntity);
assertThat(machineSettingRepository.findAll().filter(e ->
e.getMachineId() == settingEntity.getMachineId())
.collect(Collectors.toList()).get(0)).isEqualTo(settingEntity)
.withFailMessage("Unable to find machine setting with id " +
settingEntity.getMachineId());
}

18. 18

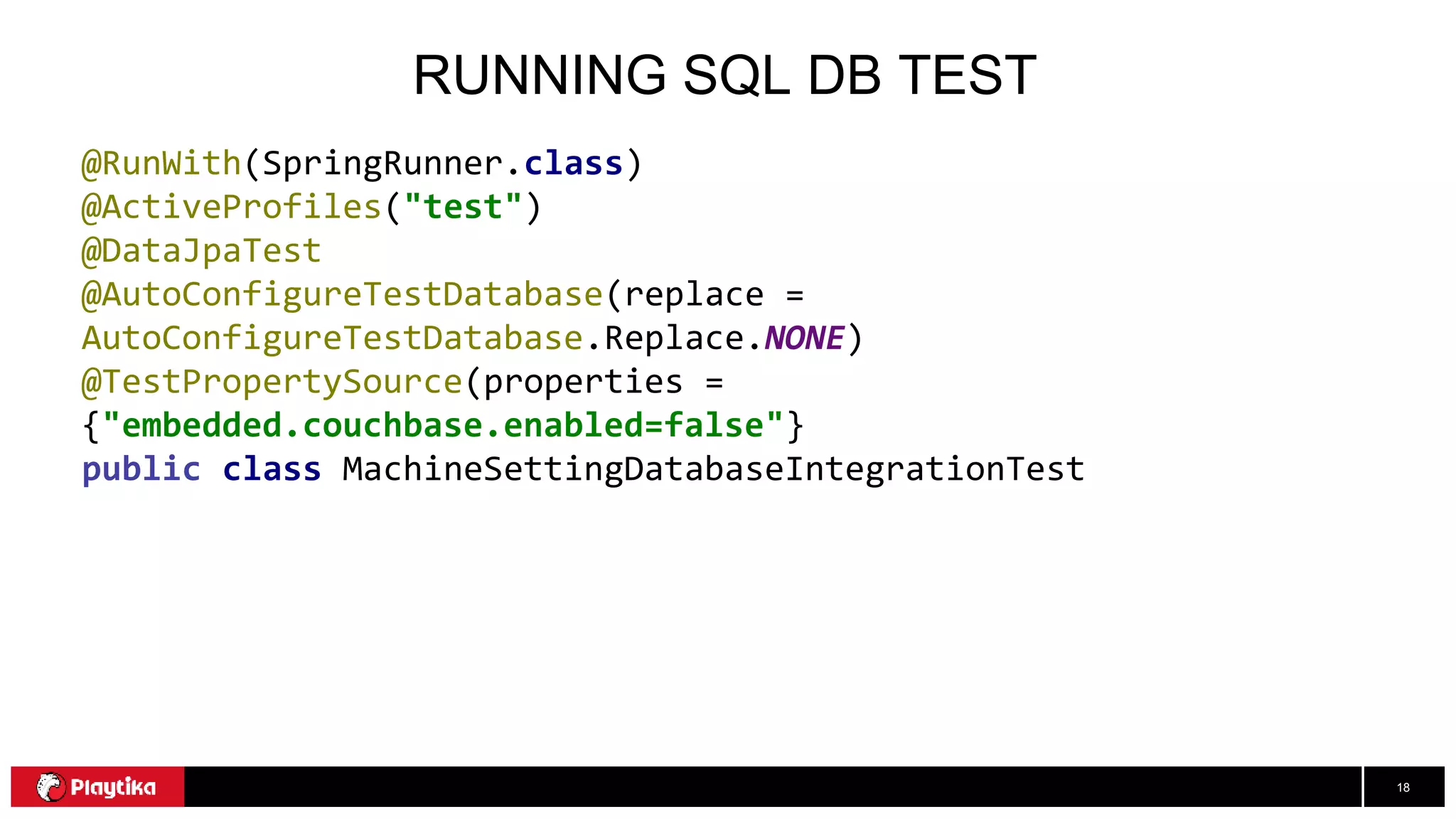

RUNNING SQL DB TEST
@RunWith(SpringRunner.class)
@ActiveProfiles("test")
@DataJpaTest
@AutoConfigureTestDatabase(replace =
AutoConfigureTestDatabase.Replace.NONE)
@TestPropertySource(properties =
{"embedded.couchbase.enabled=false"}
public class MachineSettingDatabaseIntegrationTest

19. 19

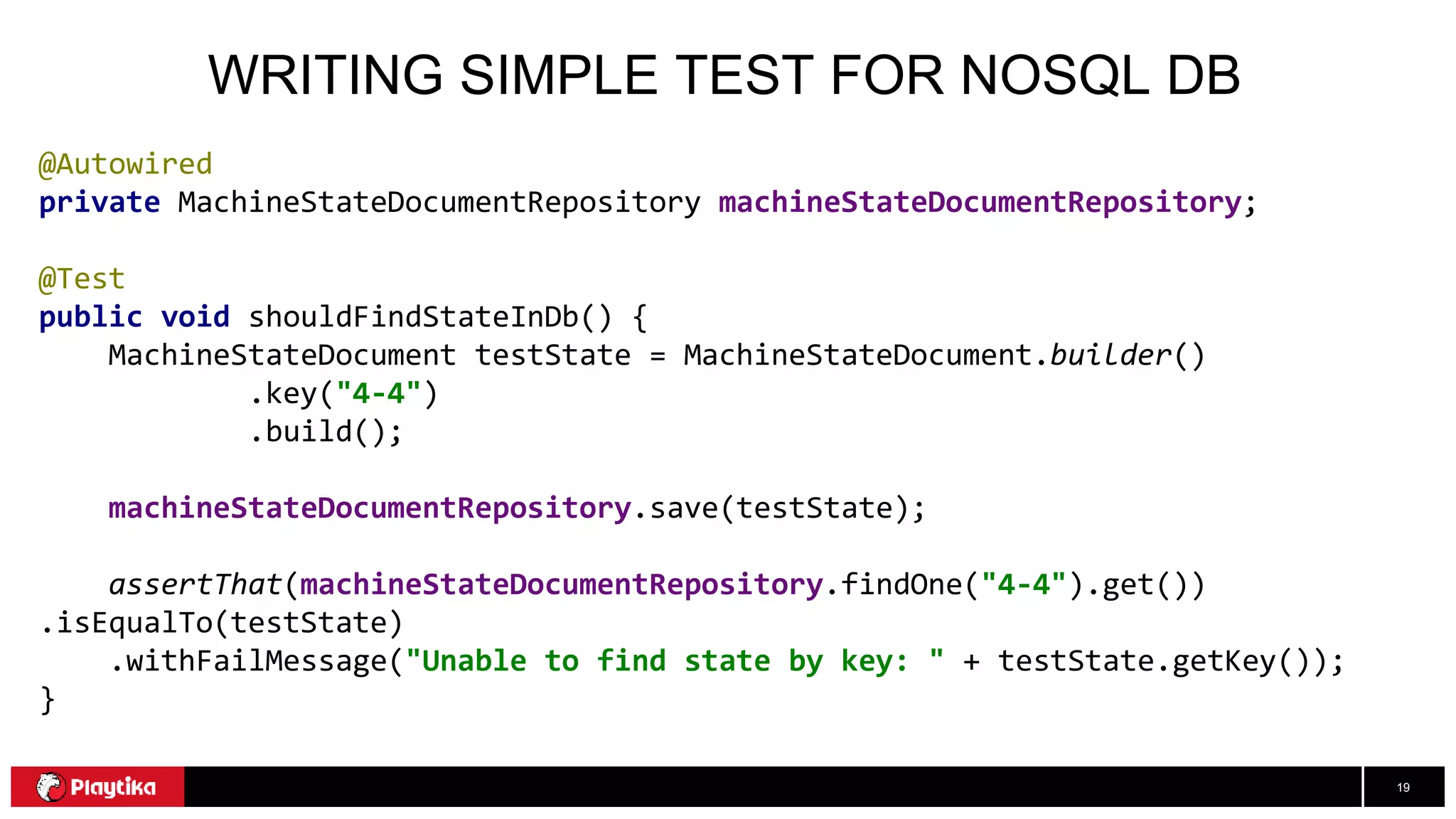

WRITING SIMPLE TEST FOR NOSQL DB
@Autowired
private MachineStateDocumentRepository machineStateDocumentRepository;
@Test
public void shouldFindStateInDb() {
MachineStateDocument testState = MachineStateDocument.builder()
.key("4-4")
.build();
machineStateDocumentRepository.save(testState);
assertThat(machineStateDocumentRepository.findOne("4-4").get())
.isEqualTo(testState)
.withFailMessage("Unable to find state by key: " + testState.getKey());
}

20. 20

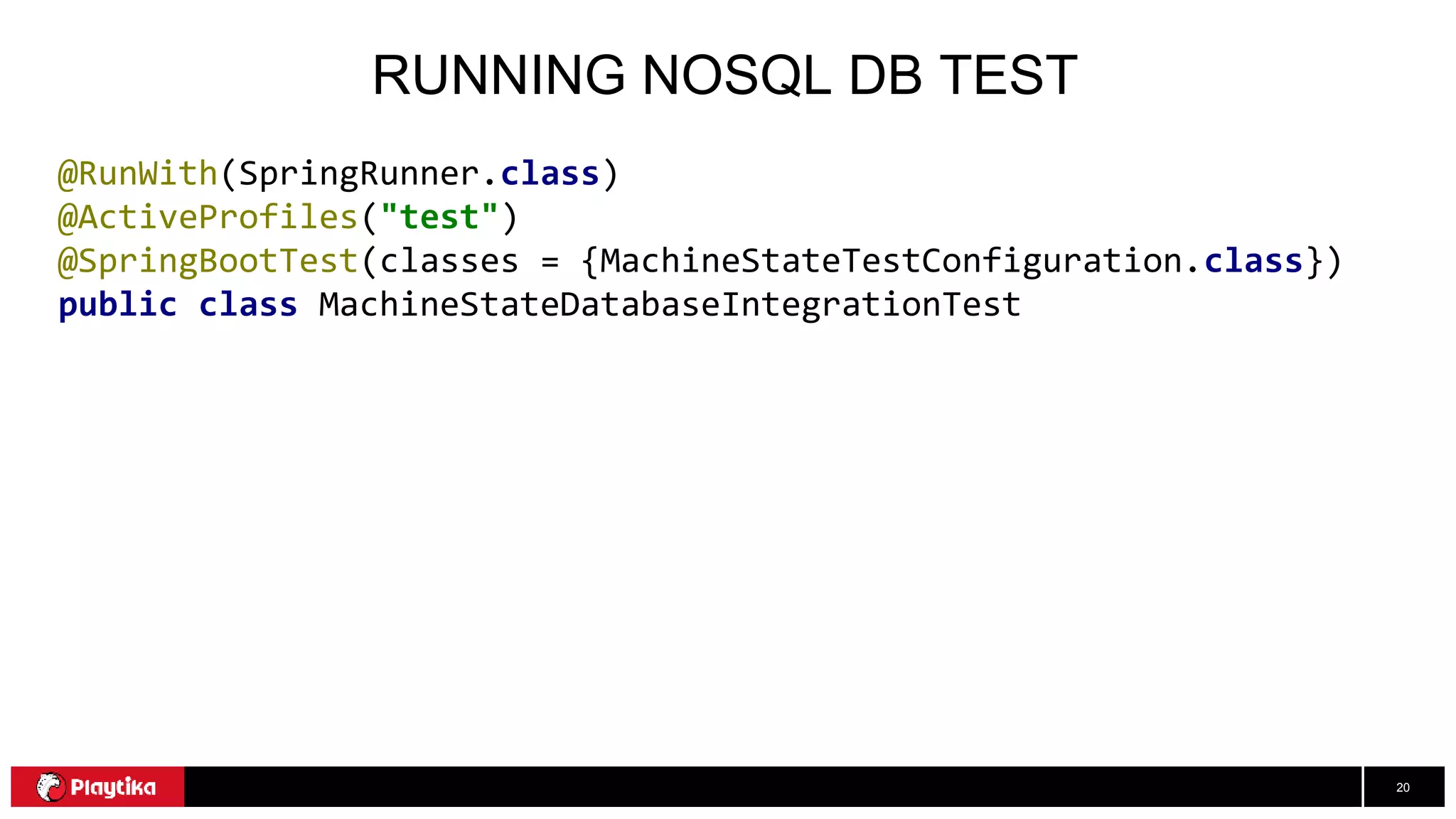

RUNNING NOSQL DB TEST
@RunWith(SpringRunner.class)
@ActiveProfiles("test")
@SpringBootTest(classes = {MachineStateTestConfiguration.class})
public class MachineStateDatabaseIntegrationTest

21. 21

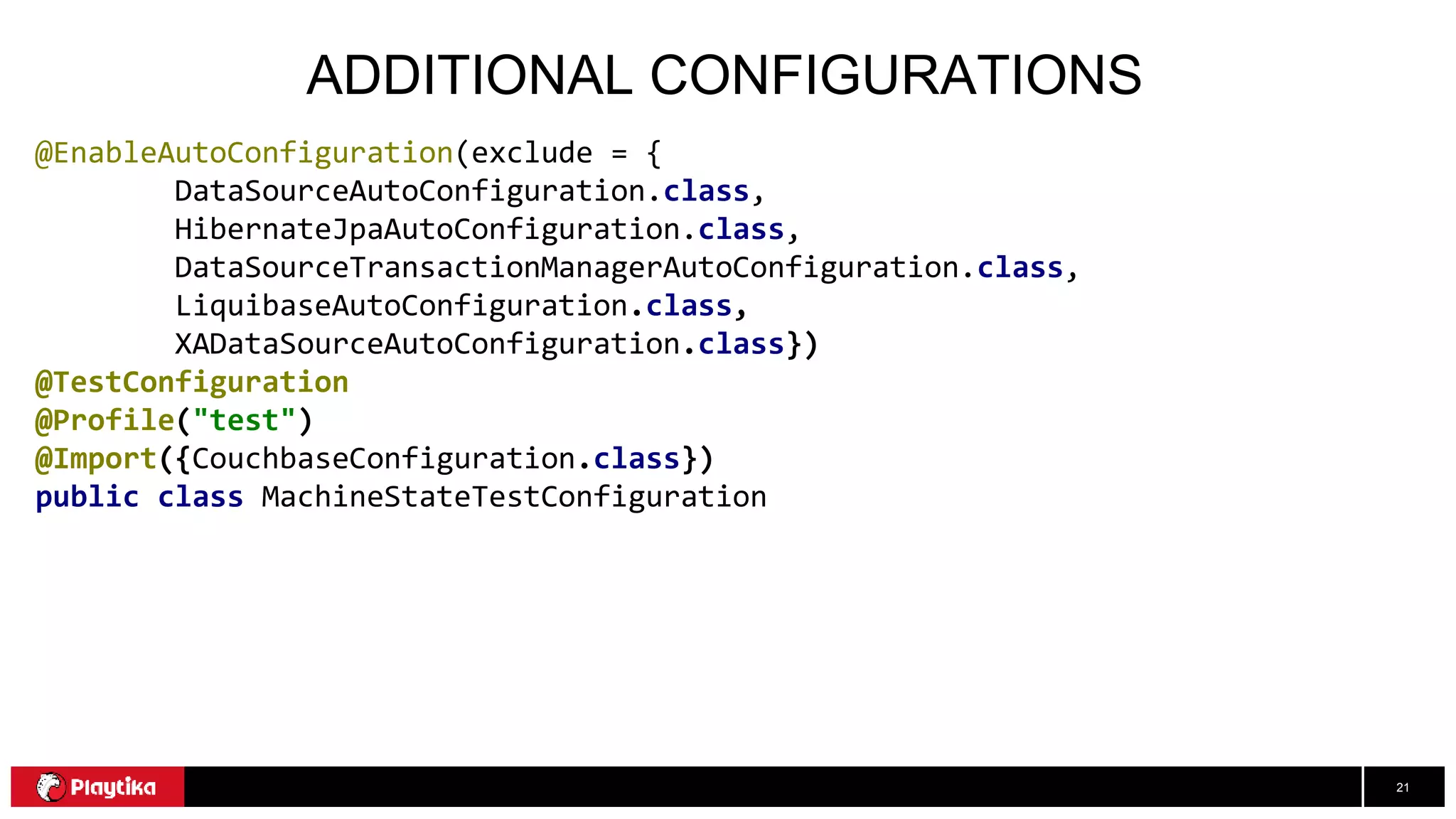

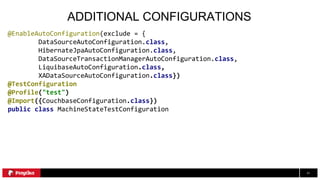

ADDITIONAL CONFIGURATIONS
@EnableAutoConfiguration(exclude = {
DataSourceAutoConfiguration.class,
HibernateJpaAutoConfiguration.class,
DataSourceTransactionManagerAutoConfiguration.class,
LiquibaseAutoConfiguration.class,
XADataSourceAutoConfiguration.class})
@TestConfiguration
@Profile("test")
@Import({CouchbaseConfiguration.class})
public class MachineStateTestConfiguration

22. 22

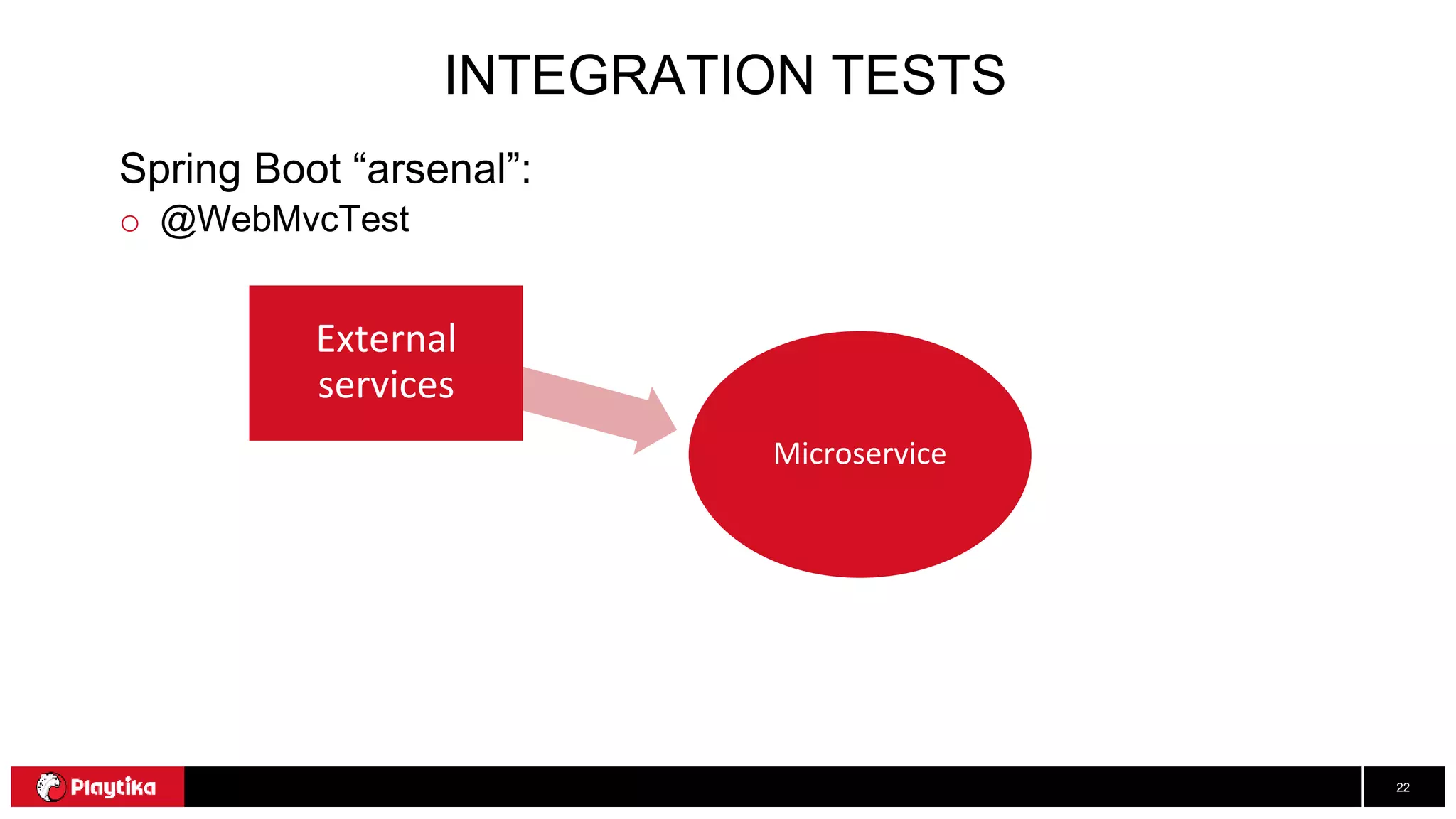

INTEGRATION TESTS
Spring Boot “arsenal”:
o @WebMvcTest
Microservice
External
services

23. 23

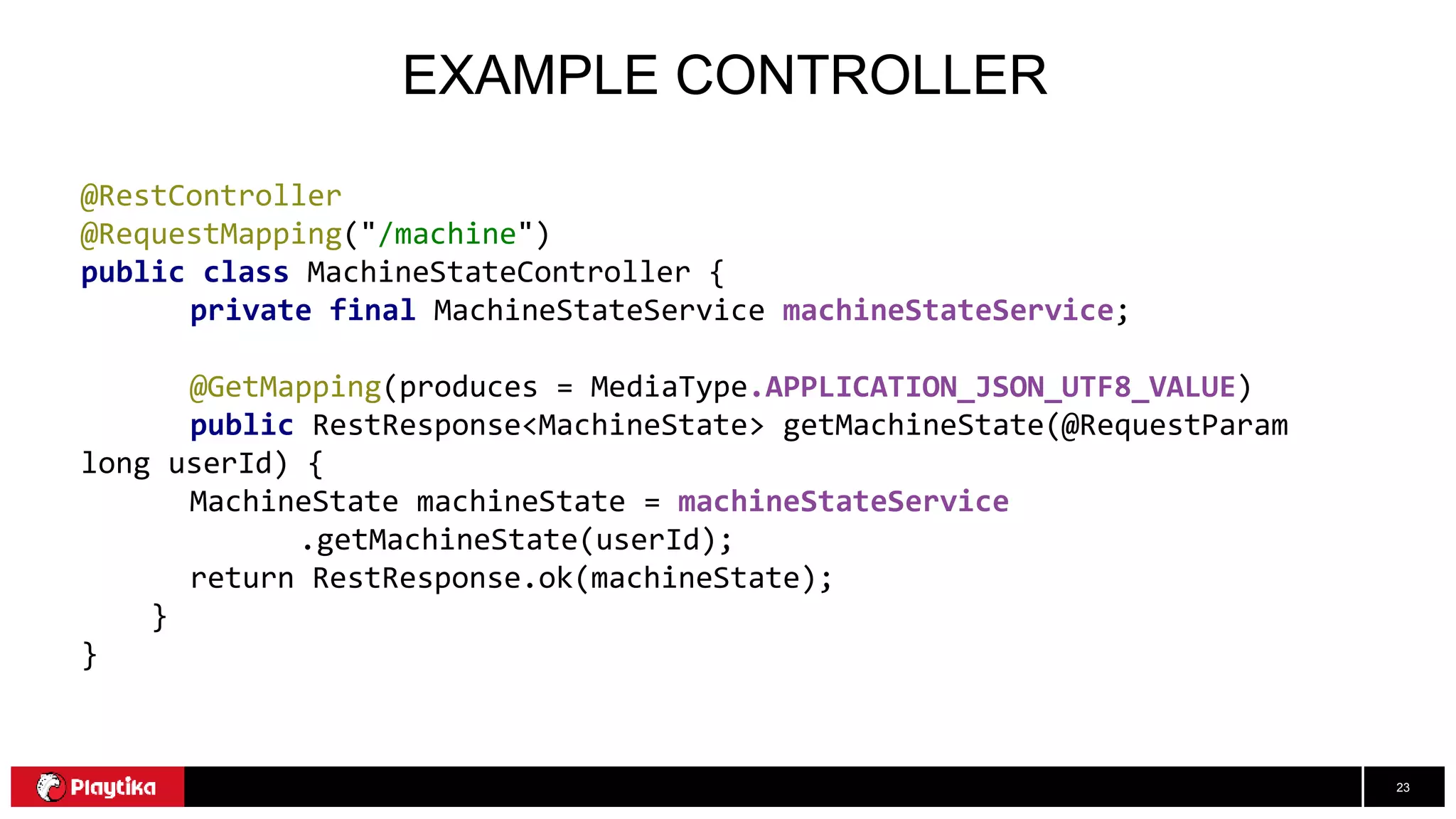

EXAMPLE CONTROLLER
@RestController
@RequestMapping("/machine")
public class MachineStateController {
private final MachineStateService machineStateService;
@GetMapping(produces = MediaType.APPLICATION_JSON_UTF8_VALUE)
public RestResponse<MachineState> getMachineState(@RequestParam
long userId) {
MachineState machineState = machineStateService
.getMachineState(userId);
return RestResponse.ok(machineState);
}
}

24. 24

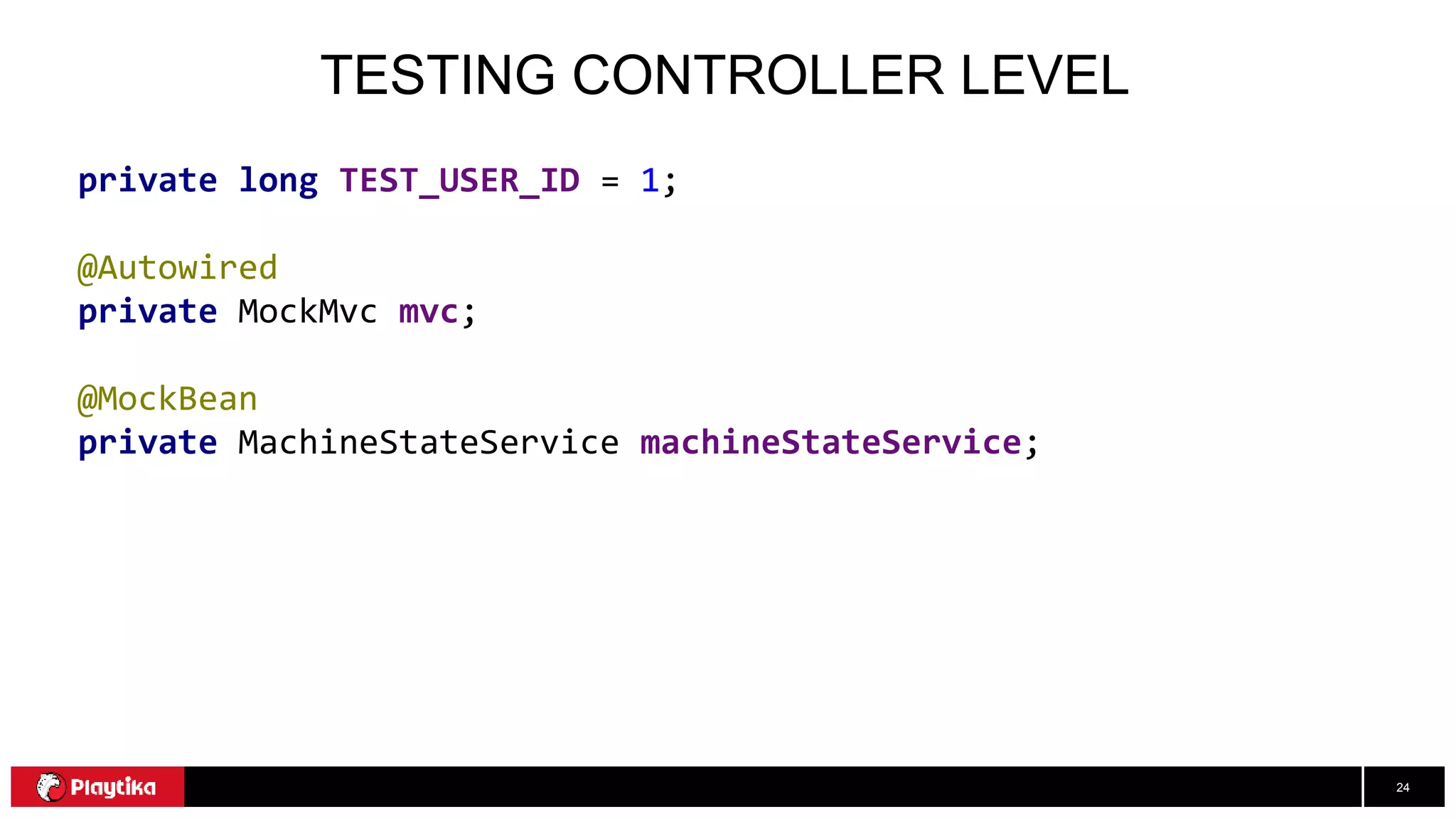

TESTING CONTROLLER LEVEL
private long TEST_USER_ID = 1;
@Autowired
private MockMvc mvc;
@MockBean
private MachineStateService machineStateService;

25. 25

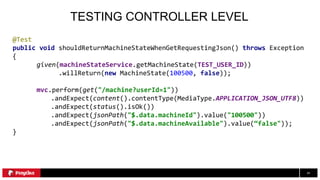

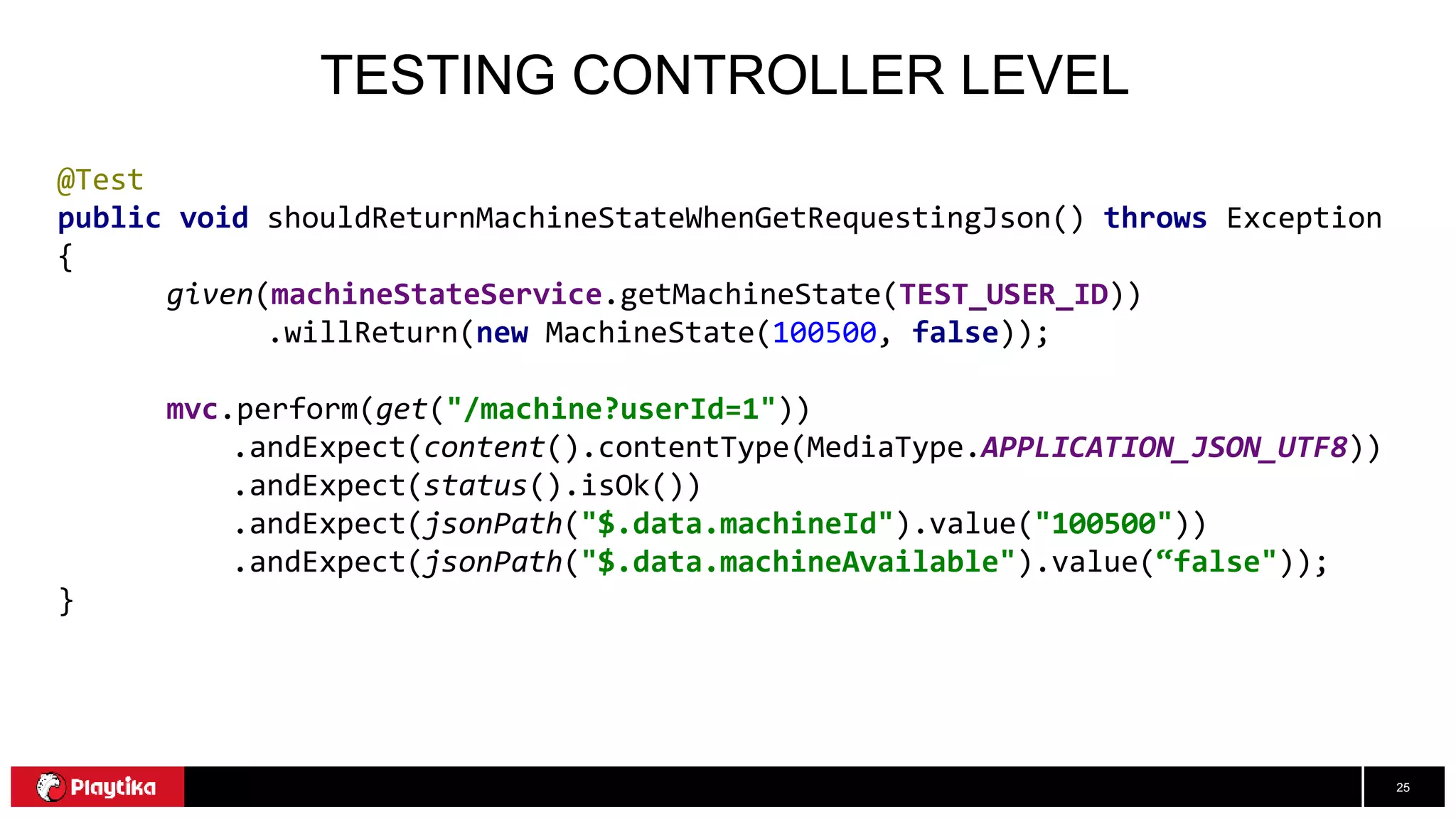

TESTING CONTROLLER LEVEL
@Test
public void shouldReturnMachineStateWhenGetRequestingJson() throws Exception
{
given(machineStateService.getMachineState(TEST_USER_ID))
.willReturn(new MachineState(100500, false));
mvc.perform(get("/machine?userId=1"))
.andExpect(content().contentType(MediaType.APPLICATION_JSON_UTF8))
.andExpect(status().isOk())
.andExpect(jsonPath("$.data.machineId").value("100500"))
.andExpect(jsonPath("$.data.machineAvailable").value(“false"));
}

26. 26

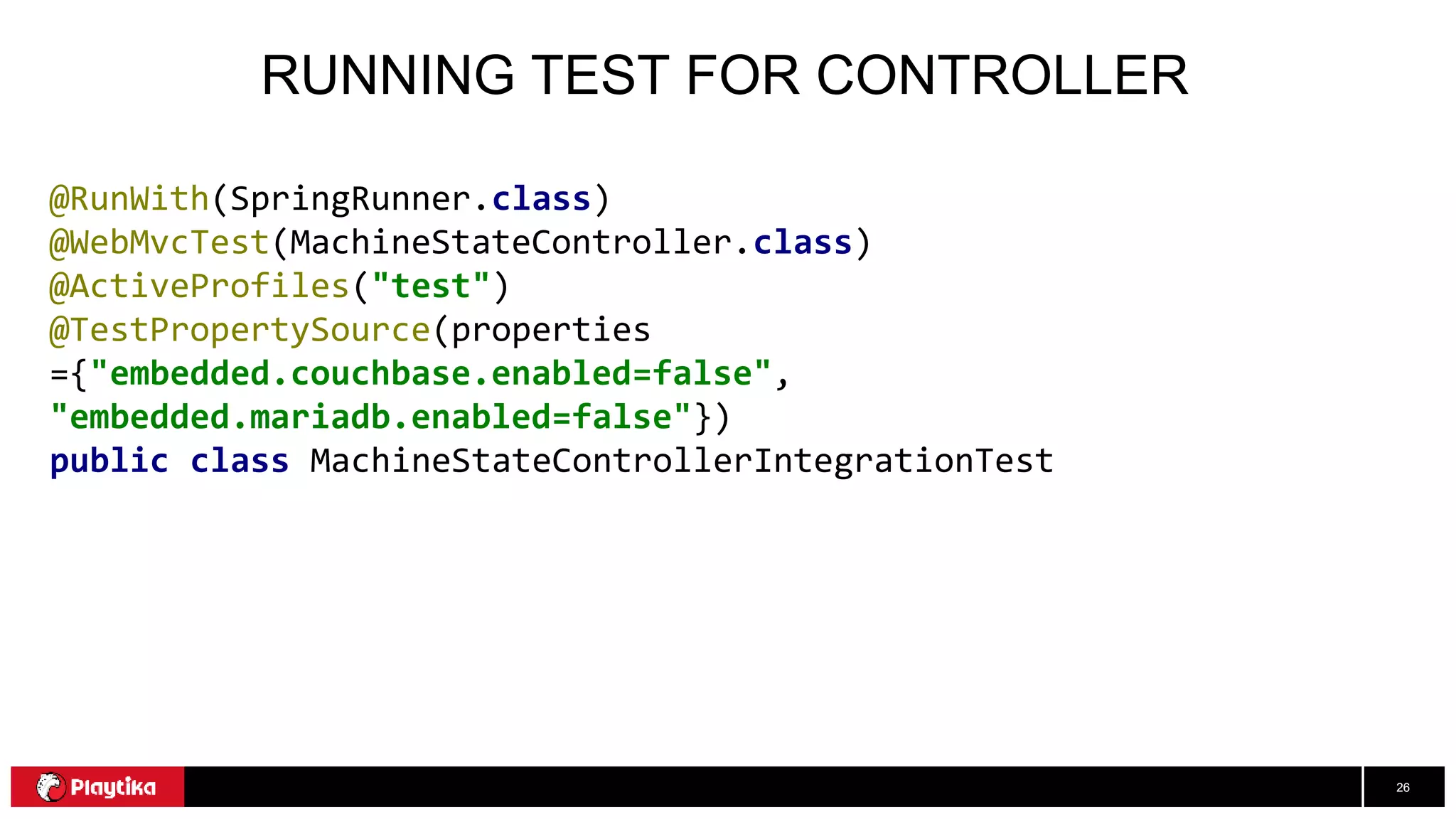

RUNNING TEST FOR CONTROLLER
@RunWith(SpringRunner.class)
@WebMvcTest(MachineStateController.class)
@ActiveProfiles("test")
@TestPropertySource(properties
={"embedded.couchbase.enabled=false",
"embedded.mariadb.enabled=false"})
public class MachineStateControllerIntegrationTest

27. 27

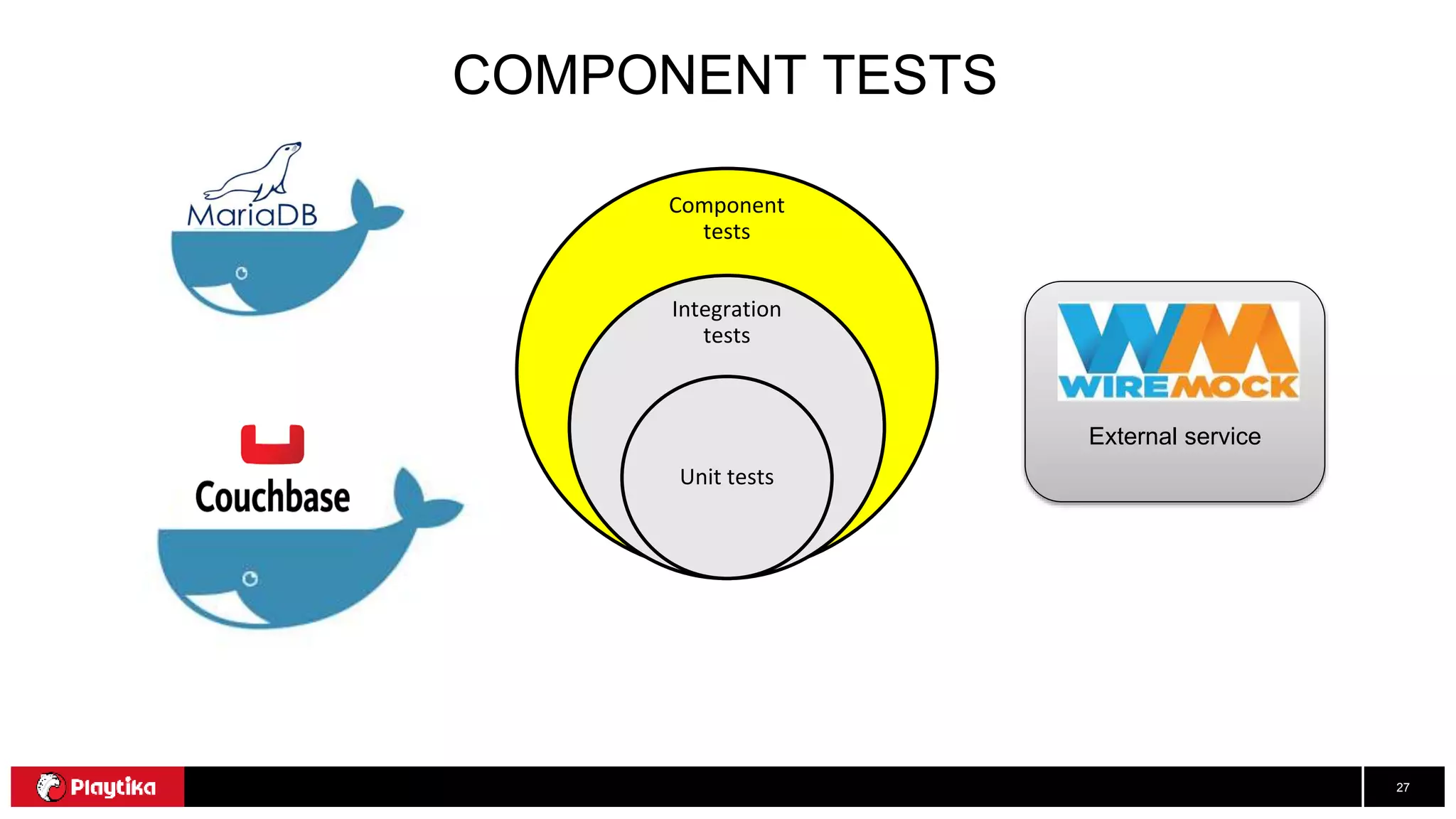

COMPONENT TESTS
Component
tests
Integration
tests
Unit tests
External service

28. 28

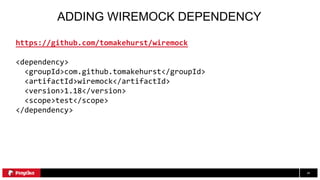

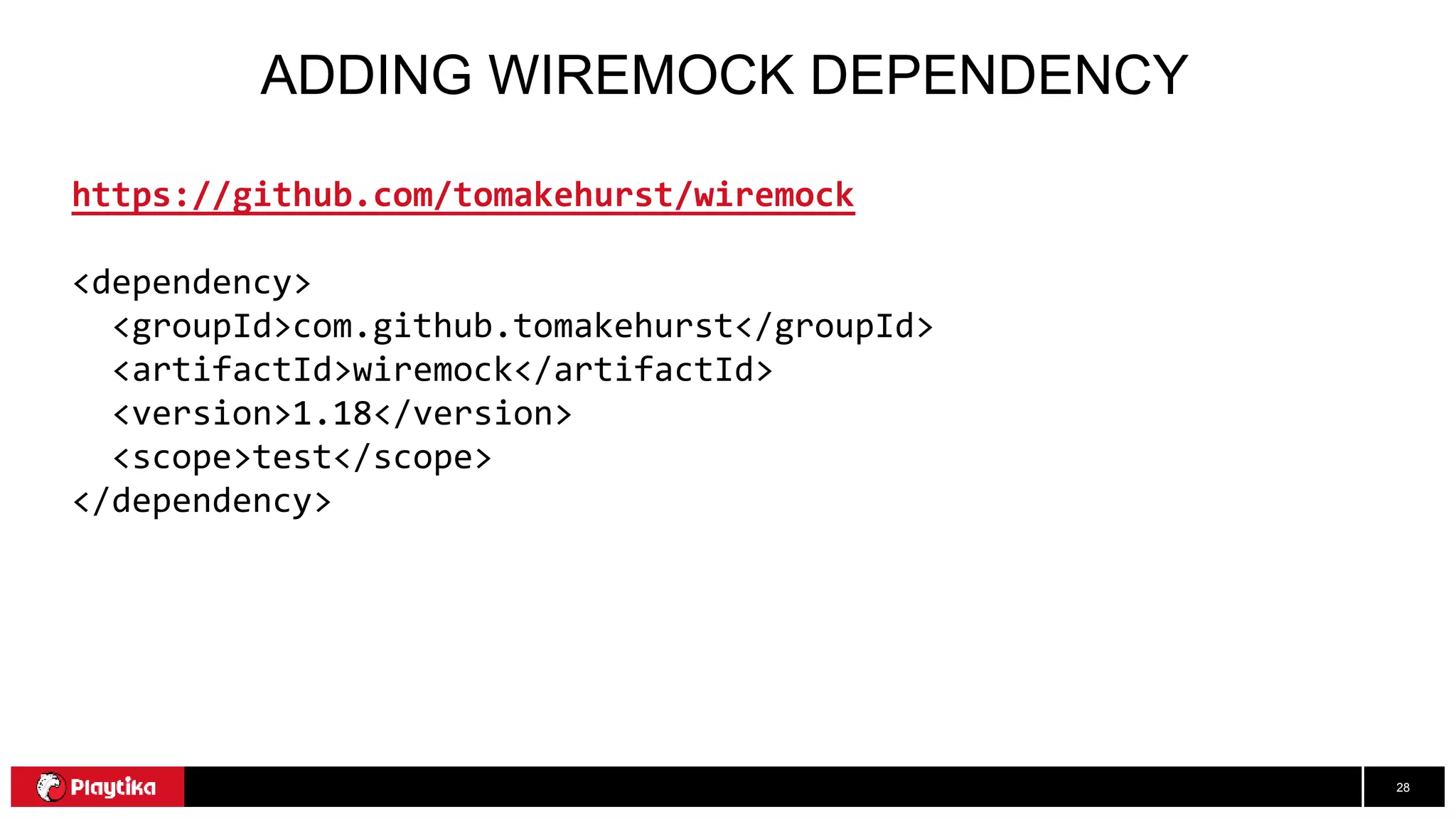

ADDING WIREMOCK DEPENDENCY
https://github.com/tomakehurst/wiremock
<dependency>
<groupId>com.github.tomakehurst</groupId>
<artifactId>wiremock</artifactId>
<version>1.18</version>
<scope>test</scope>
</dependency>

29. 29

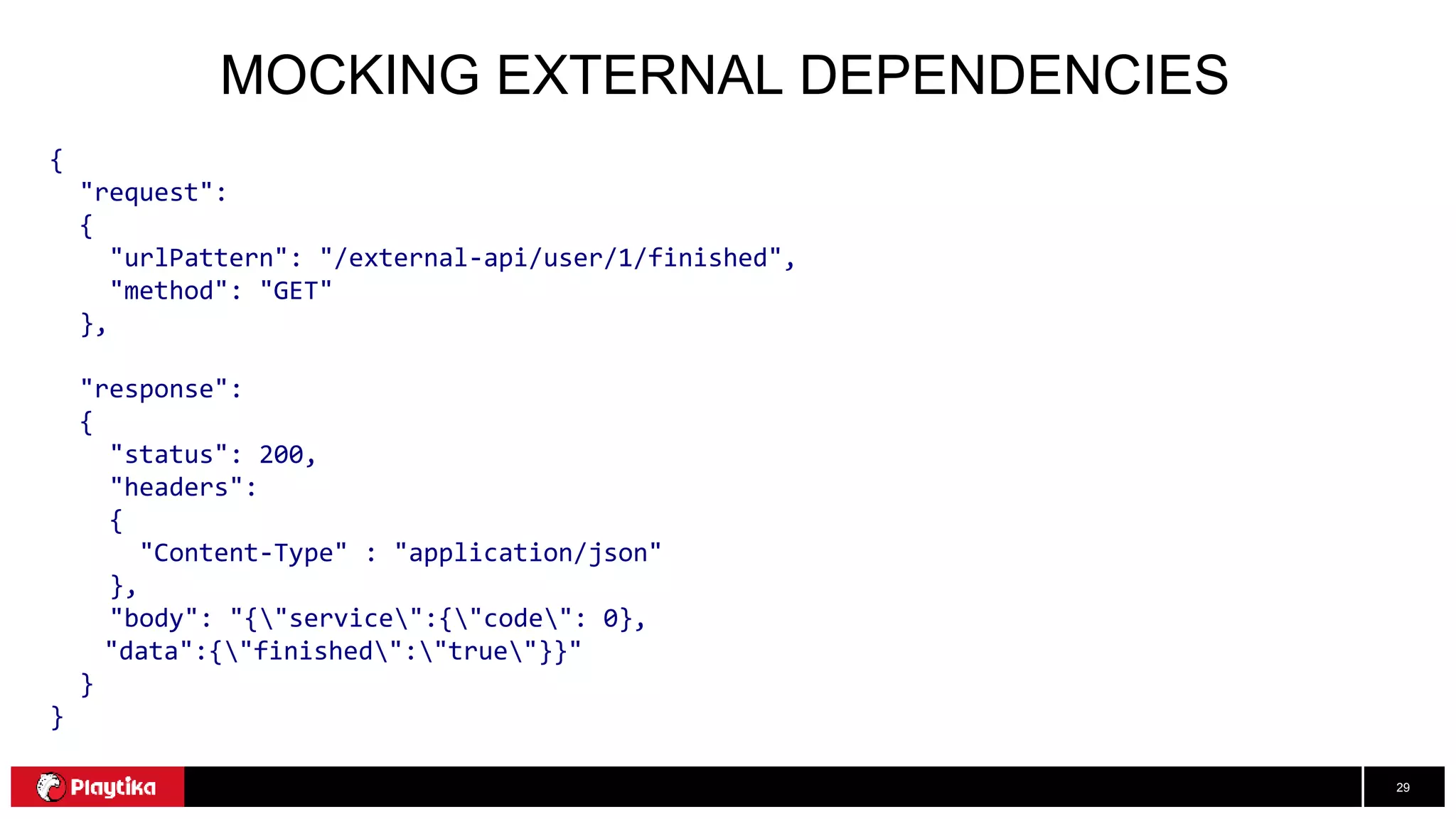

MOCKING EXTERNAL DEPENDENCIES
{
"request":
{
"urlPattern": "/external-api/user/1/finished",
"method": "GET"
},
"response":
{
"status": 200,
"headers":
{
"Content-Type" : "application/json"
},
"body": "{"service":{"code": 0},
"data":{"finished":"true"}}"
}
}

30. 30

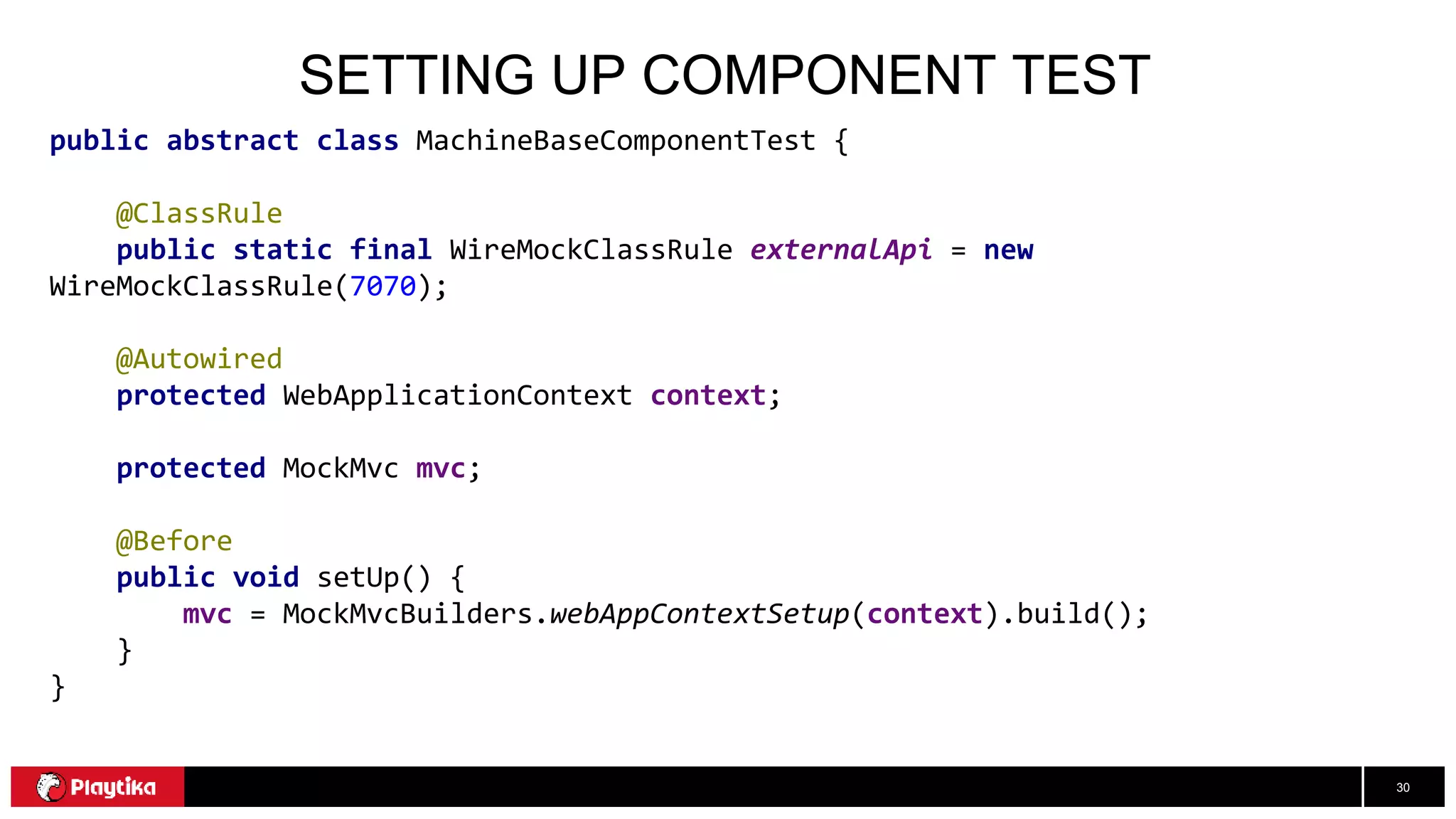

SETTING UP COMPONENT TEST
public abstract class MachineBaseComponentTest {
@ClassRule
public static final WireMockClassRule externalApi = new
WireMockClassRule(7070);
@Autowired
protected WebApplicationContext context;
protected MockMvc mvc;
@Before
public void setUp() {
mvc = MockMvcBuilders.webAppContextSetup(context).build();
}
}

31. 31

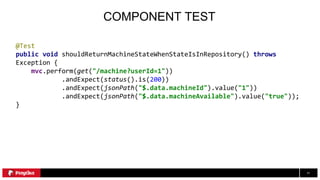

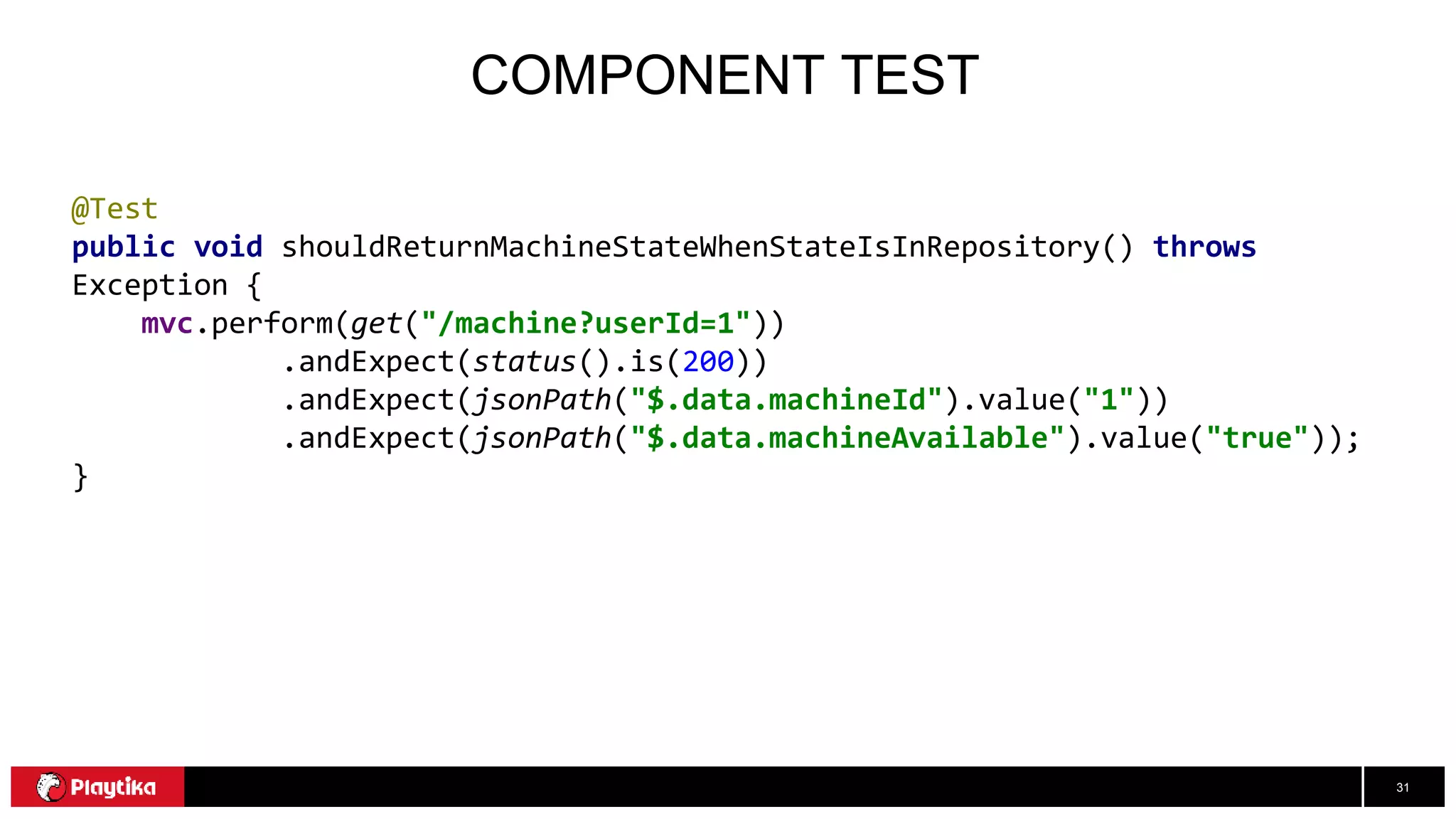

COMPONENT TEST
@Test
public void shouldReturnMachineStateWhenStateIsInRepository() throws
Exception {
mvc.perform(get("/machine?userId=1"))
.andExpect(status().is(200))
.andExpect(jsonPath("$.data.machineId").value("1"))
.andExpect(jsonPath("$.data.machineAvailable").value("true"));
}

32. 32

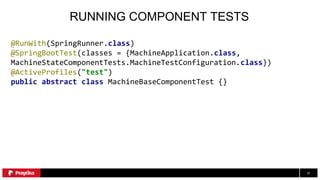

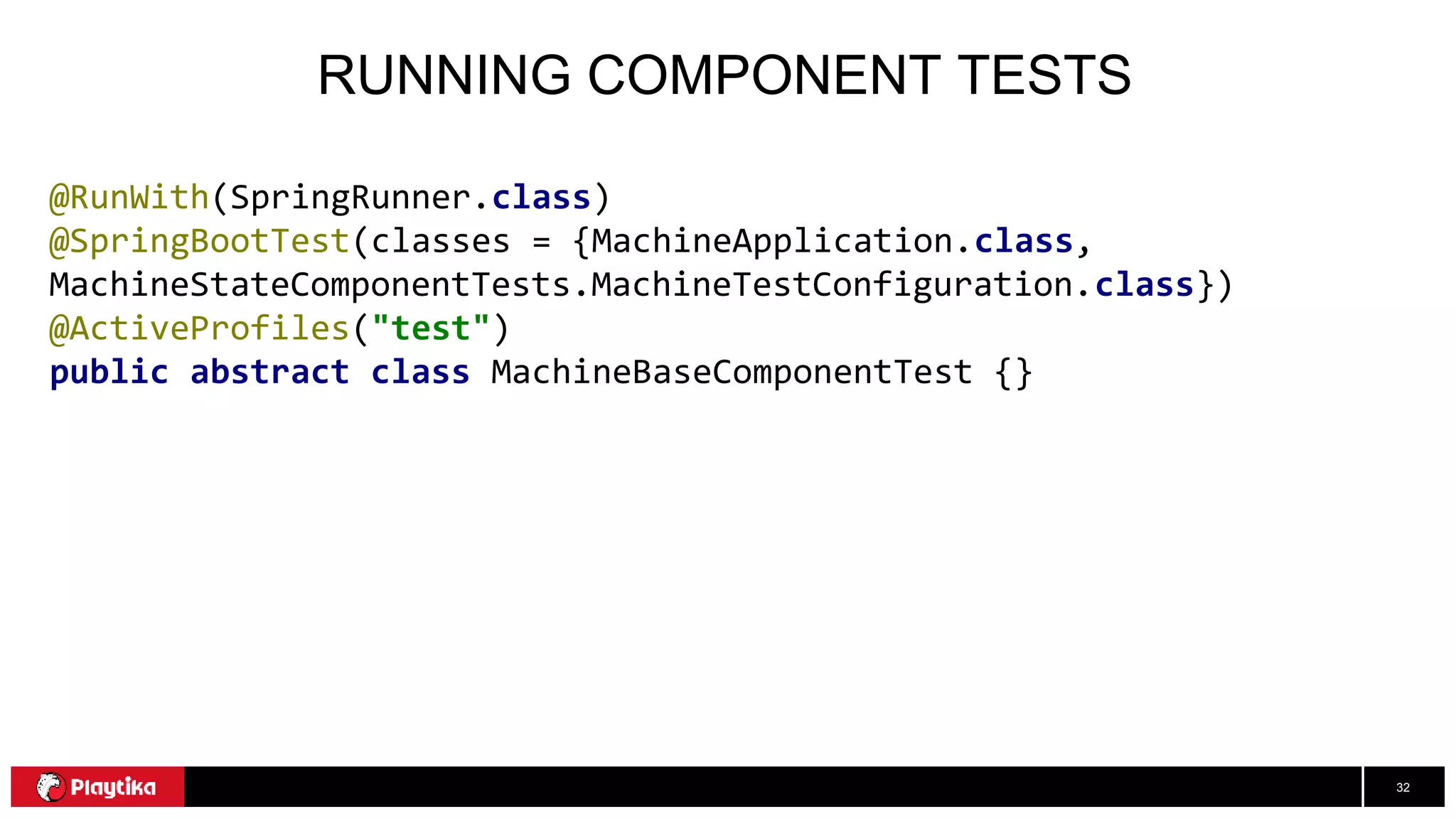

RUNNING COMPONENT TESTS
@RunWith(SpringRunner.class)
@SpringBootTest(classes = {MachineApplication.class,
MachineStateComponentTests.MachineTestConfiguration.class})
@ActiveProfiles("test")
public abstract class MachineBaseComponentTest {}

33. 33

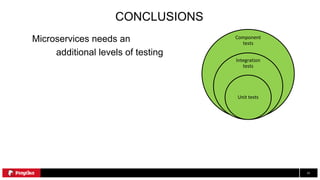

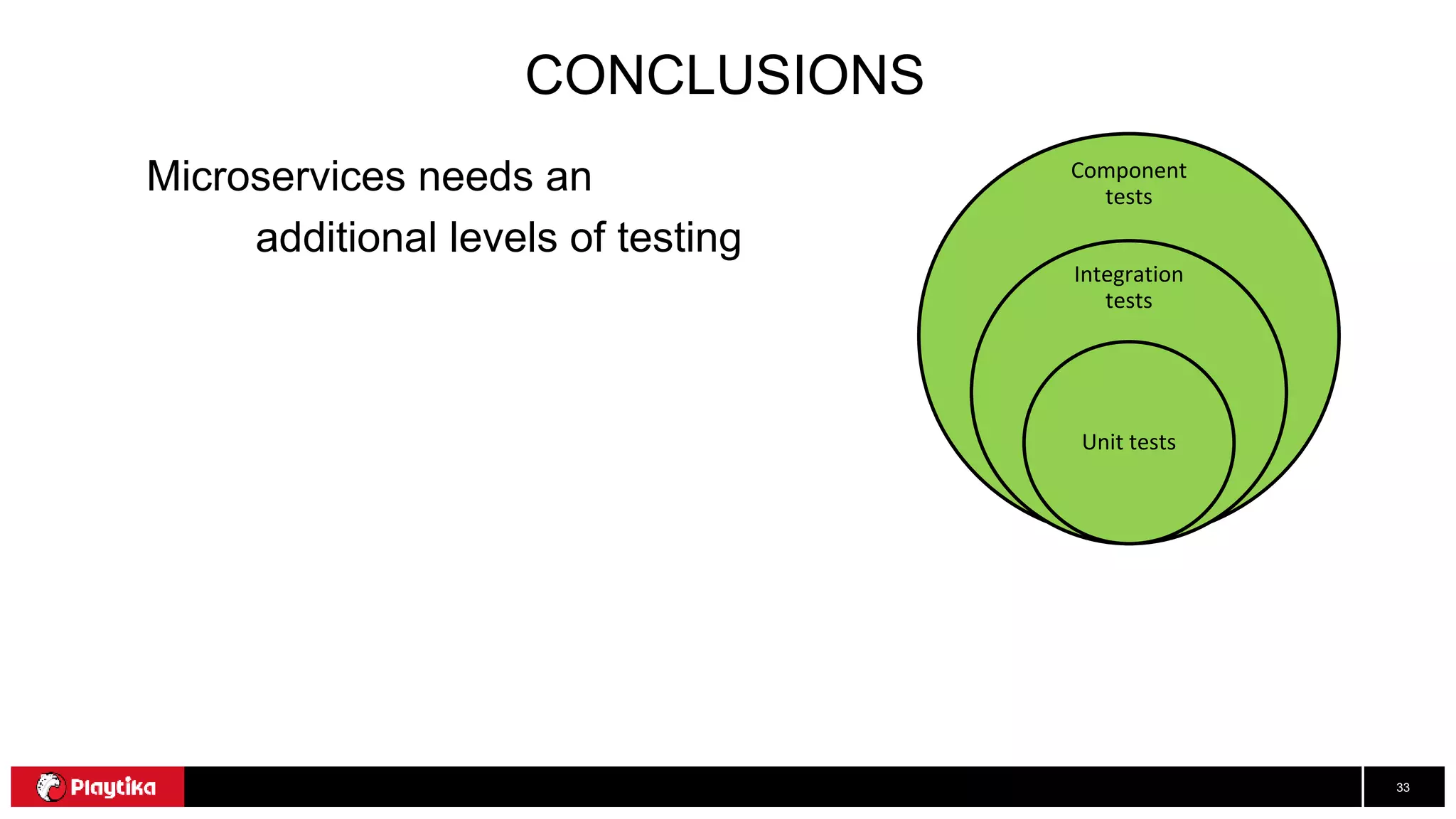

CONCLUSIONS
Microservices needs an
additional levels of testing
Component
tests
Integration
tests
Unit tests

34. 34

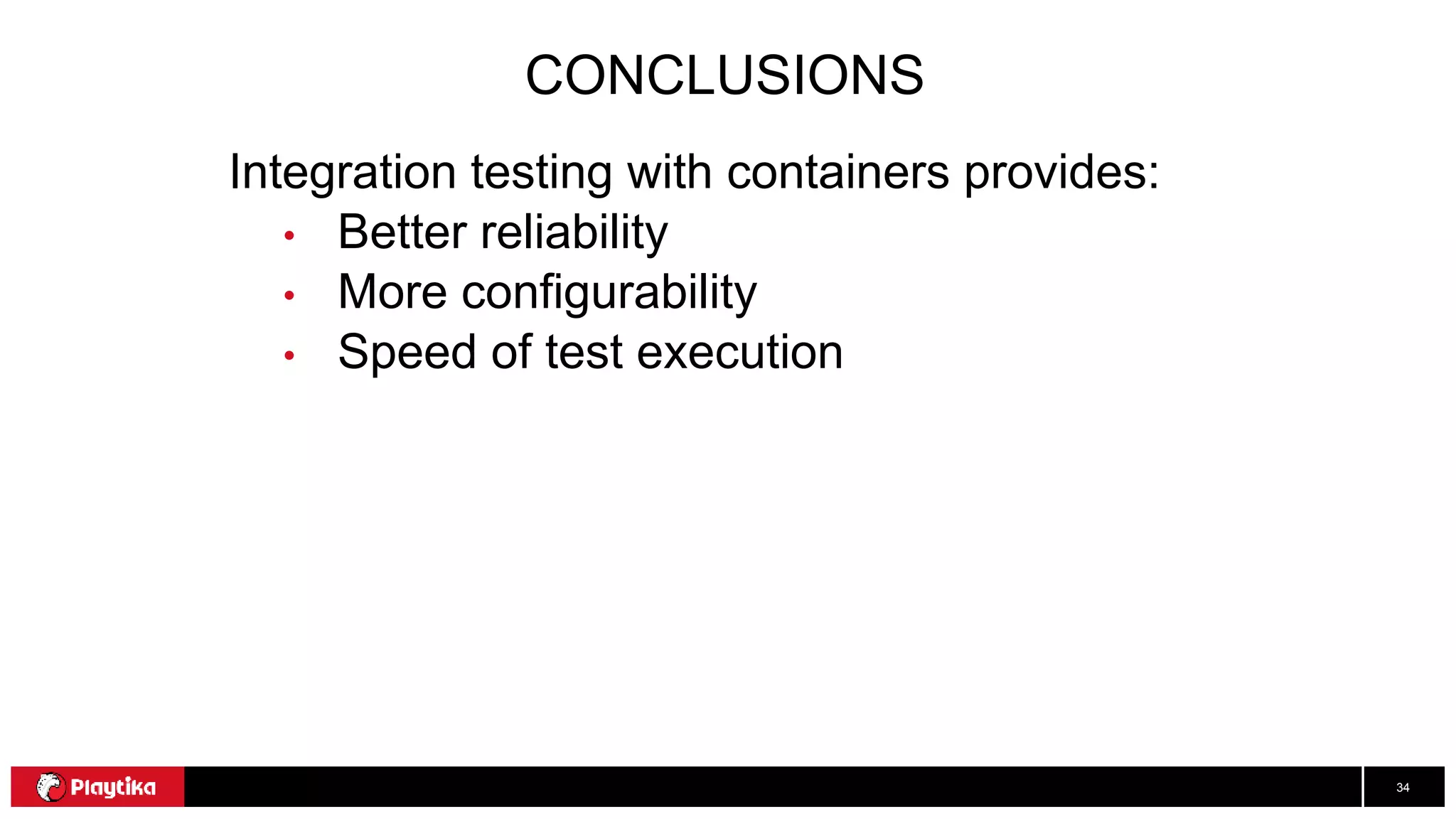

CONCLUSIONS
Integration testing with containers provides:
• Better reliability
• More configurability
• Speed of test execution

35. 35© 2017 Playtika Ltd. All Rights Reserved
THANK YOU!
Oleksandr Romanov
twitter: @al8xr
mail: al8x.romanov@gmail.com
