The document introduces arm-x, an ARM firmware emulation framework aimed at facilitating the analysis, reverse engineering, fuzzing, and exploit development for IoT devices. It outlines the boot process of an IoT device, hardware and software requirements for emulation, and steps to add new devices to the arm-x environment. Additionally, it provides insights on firmware extraction and offers a link for further resources and challenges.

1. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
INSIDE
SAUMIL SHAH
@therealsaumil
7 November 2019
COUNTERMEASURE|2019

2. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
# WHO AM I
Saumil Shah
CEO, Net Square
@therealsaumil
educating, entertaining
and exasperating
audiences since 1999

3. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
Introducing ARM-X
• An ARM Firmware Emulation Framework.
• Ultimate Goal - create an IoT VM!
• A Virtual IoT device makes for easy
– runtime analysis
– reverse engineering
– fuzzing
– exploit development
• Great insight into embedded hardware by
trying to emulate it.

4. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

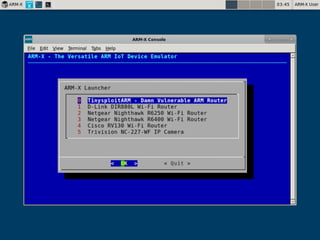

5. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

6. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

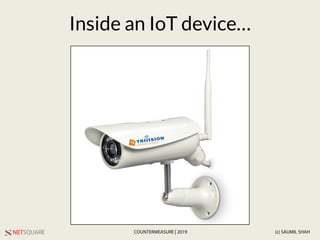

Inside an IoT device…

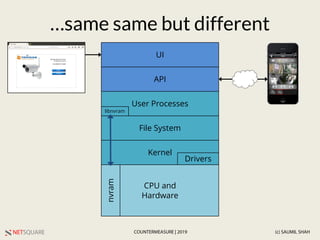

7. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
CPU and
Hardware
Kernel
Drivers
File System
nvram
User Processes
API
UI
libnvram
…same same but different

8. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
compressed FS
CPU
Kernel
Boot Loader
mounted
FS
nvram
init
scripts
Services
Apps
libnvram

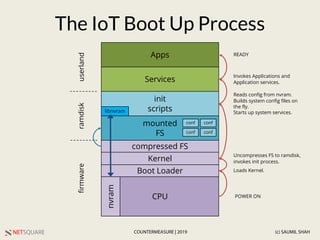

The IoT Boot Up Process
conf
conf
conf
conf
firmware
Loads Kernel.
Uncompresses FS to ramdisk,
invokes init process.
ramdiskuserland
Reads config from nvram.
Builds system config files on
the fly.
Starts up system services.
Invokes Applications and
Application services.
READY
POWER ON

9. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
QEMU
CPU and
Limited
Hardware
Kernel
Drivers
uncompressed
Filesystem
emulated
nvram
init scripts
Services
Apps
libnvram

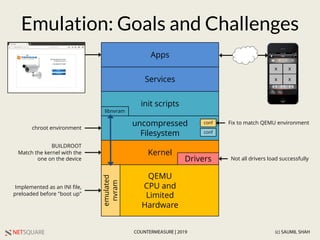

Emulation: Goals and Challenges
x
x
x
x
BUILDROOT
Match the kernel with the
one on the device
chroot environment
Implemented as an INI file,
preloaded before "boot up"
conf
conf
Fix to match QEMU environment
Not all drivers load successfully

10. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

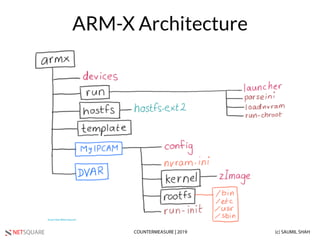

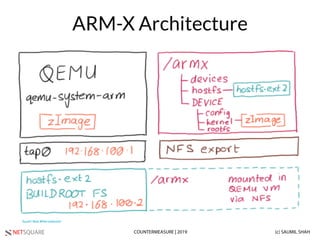

ARM-X Architecture

11. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
ARM-X Architecture

12. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

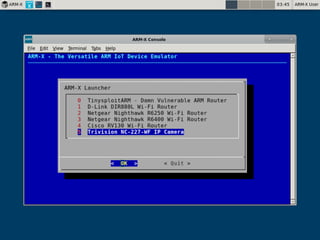

Starting an ARM-X device

13. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

14. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

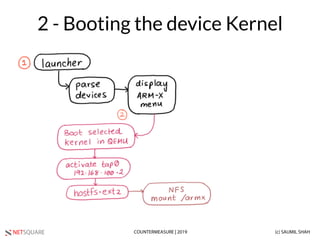

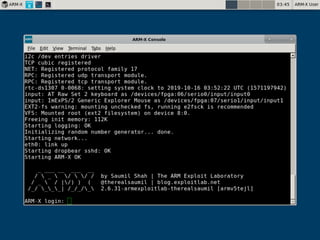

2 - Booting the device Kernel

15. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

16. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
QEMU
CPU and
Limited
Hardware
Kernel

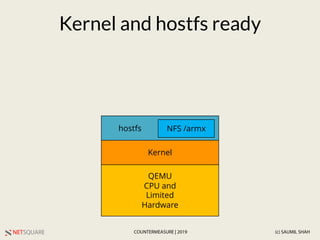

Kernel and hostfs ready
hostfs NFS /armx

17. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

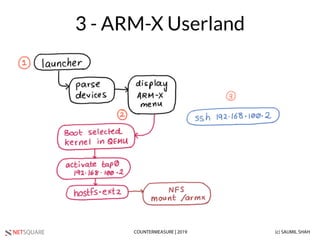

3 - ARM-X Userland

18. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

19. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
4 - nvram and userland init

20. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
QEMU
CPU and
Limited
Hardware
Kernel
Drivers
NFS /armx
emulated
nvram

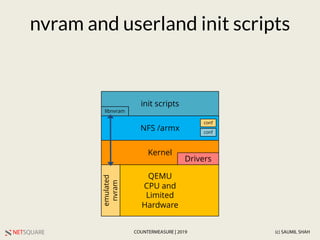

nvram and userland init scripts
conf
conf
init scripts
libnvram

21. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

22. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
QEMU
CPU and
Limited
Hardware
Kernel
Drivers
NFS /armx
emulated
nvram
init scripts
Services
Apps
libnvram
ARM-X: Device "booted up"
x
x
x
x
conf
conf

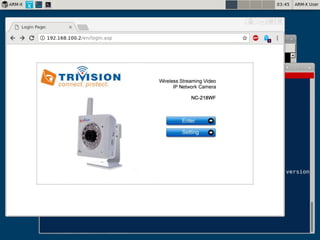

23. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

24. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

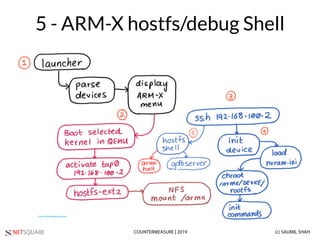

5 - ARM-X hostfs/debug Shell

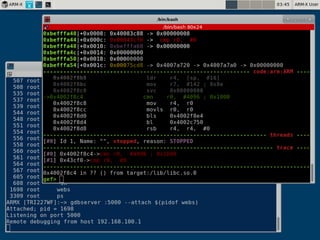

25. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

26. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

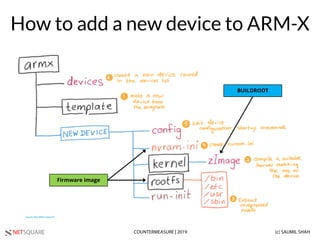

How to add a new device to ARM-X
BUILDROOT
Firmware image

27. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

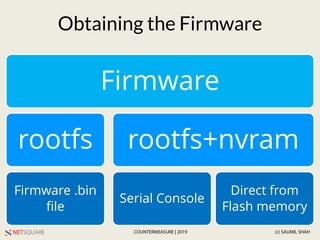

Obtaining the Firmware
Firmware
rootfs
Firmware .bin
file
rootfs+nvram
Serial Console
Direct from
Flash memory

28. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

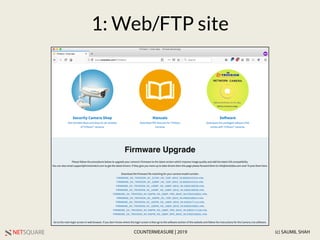

1: Web/FTP site

29. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

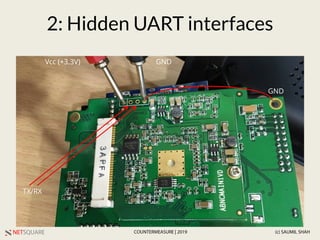

2: Hidden UART interfaces
Vcc (+3.3V) GND
TX/RX
GND

30. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

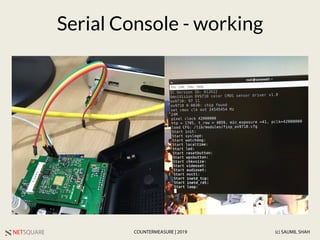

Serial Console - working

31. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

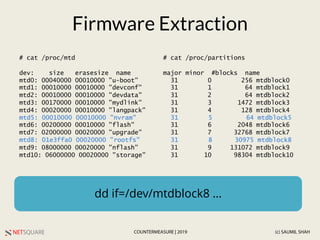

# cat /proc/partitions
major minor #blocks name
31 0 256 mtdblock0
31 1 64 mtdblock1
31 2 64 mtdblock2
31 3 1472 mtdblock3
31 4 128 mtdblock4
31 5 64 mtdblock5
31 6 2048 mtdblock6
31 7 32768 mtdblock7
31 8 30975 mtdblock8
31 9 131072 mtdblock9
31 10 98304 mtdblock10
Firmware Extraction
# cat /proc/mtd
dev: size erasesize name
mtd0: 00040000 00010000 "u-boot"
mtd1: 00010000 00010000 "devconf"
mtd2: 00010000 00010000 "devdata"
mtd3: 00170000 00010000 "mydlink"
mtd4: 00020000 00010000 "langpack"
mtd5: 00010000 00010000 "nvram"
mtd6: 00200000 00010000 "flash"
mtd7: 02000000 00020000 "upgrade"
mtd8: 01e3ffa0 00020000 "rootfs"
mtd9: 08000000 00020000 "nflash"
mtd10: 06000000 00020000 "storage"
dd if=/dev/mtdblock8 …

32. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019

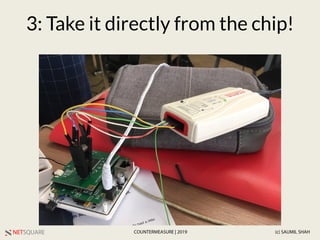

3: Take it directly from the chip!

33. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
DEMO TIME!

34. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
HERE BE THE GOODS
Downloads: https://armx.exploitlab.net/
!
Announcements: @therealsaumil
IP Camera CTF Challenge - blog.exploitlab.net

35. NETSQUARE (c) SAUMIL SHAHCOUNTERMEASURE | 2019
Thank you
and … QUESTIONS?
@therealsaumil
COUNTERMEASURE|2019
