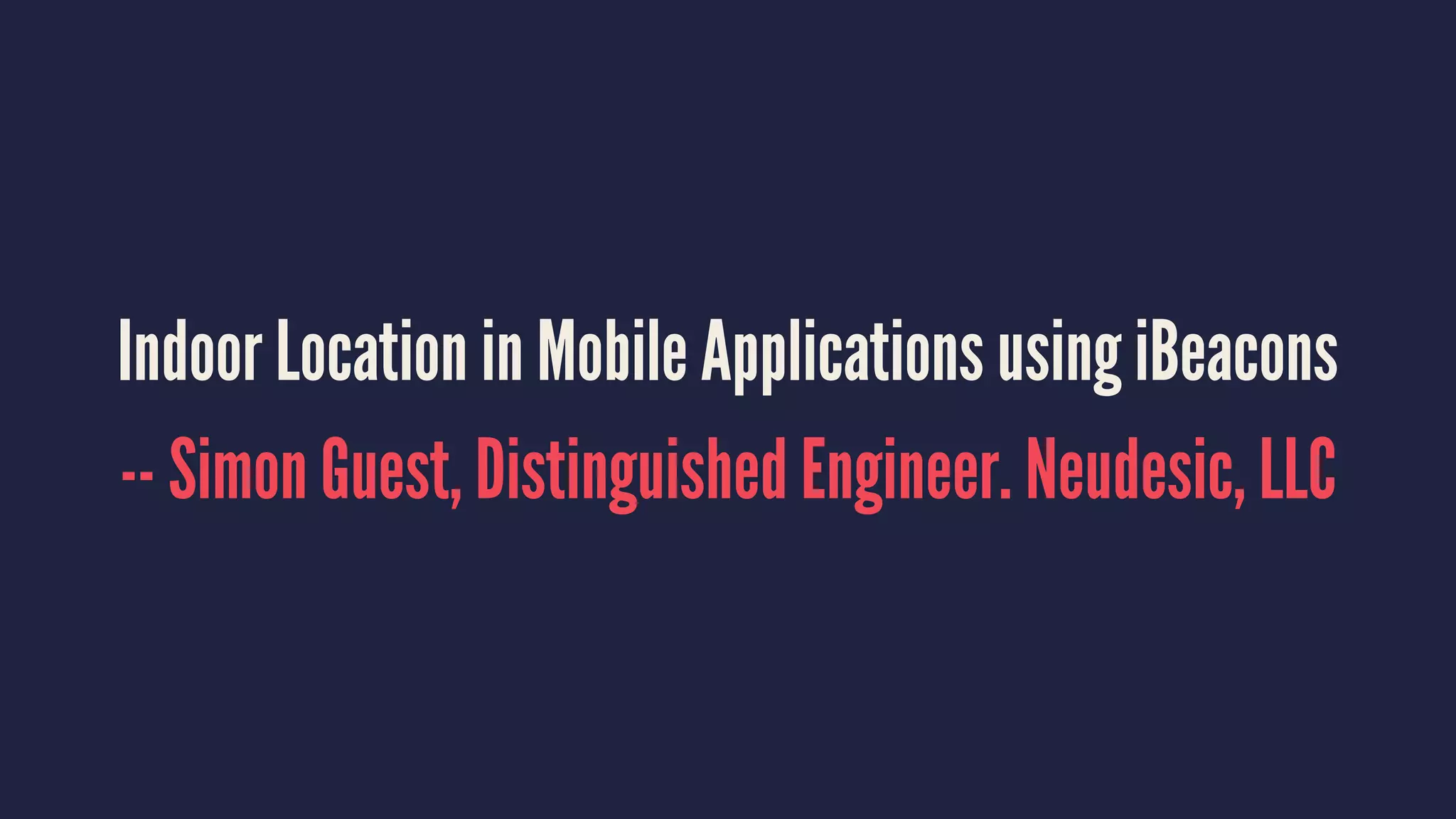

- 1. Indoor Location inMobile Applications using iBeacons -- Simon Guest, Distinguished Engineer. Neudesic, LLC
- 2.
- 3. WHEN YOU AREOUTDOORS

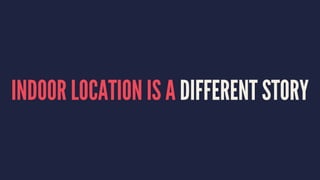

- 4. INDOOR LOCATION ISA DIFFERENT STORY

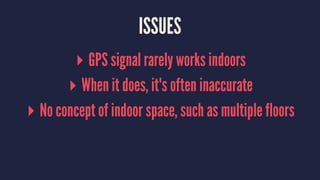

- 5. ISSUES ▸ GPS signalrarely works indoors ▸ When it does, it's often inaccurate ▸ No concept of indoor space, such as multiple floors

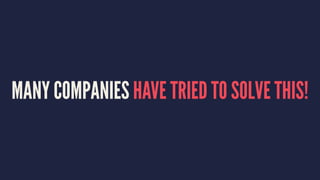

- 6. MANY COMPANIES HAVETRIED TO SOLVE THIS!
- 7.
- 8.

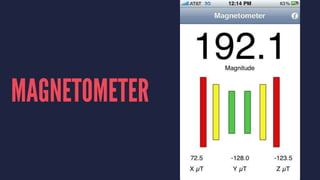

- 9.

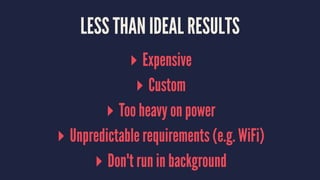

- 10. LESS THAN IDEALRESULTS ▸ Expensive ▸ Custom ▸ Too heavy on power ▸ Unpredictable requirements (e.g. WiFi) ▸ Don't run in background
- 11.
- 12.
- 13. GOAL OF THISSESSION ▸ What are iBeacons? ▸ Developing iOS and Android applications ▸ Pushing the boundaries
- 15.
- 16. BLUETOOTH LOW ENERGY(BLE)

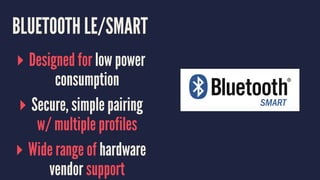

- 17. BLUETOOTH LE/SMART ▸ Designedfor low power consumption ▸ Secure, simple pairing w/ multiple profiles ▸ Wide range of hardware vendor support
- 18. HOW DOES IBEACONRELATE?

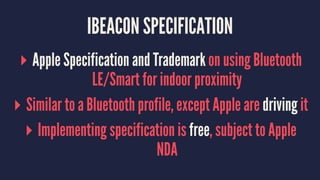

- 19. IBEACON SPECIFICATION ▸ AppleSpecification and Trademark on using Bluetooth LE/Smart for indoor proximity ▸ Similar to a Bluetooth profile, except Apple are driving it ▸ Implementing specification is free, subject to Apple NDA

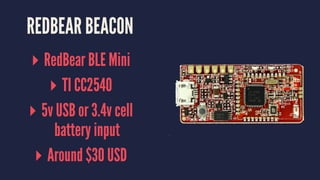

- 20. REDBEAR BEACON ▸ RedBearBLE Mini ▸ TI CC2540 ▸ 5v USB or 3.4v cell battery input ▸ Around $30 USD
- 21. HOW DO IBEACONSWORK?

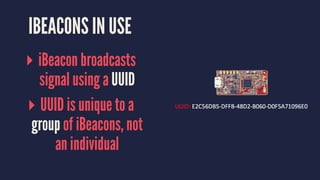

- 22. IBEACONS IN USE ▸iBeacon broadcasts signal using a UUID ▸ UUID is unique to a group of iBeacons, not an individual
- 23. IBEACONS IN USE ▸Beacon identifies itself in the group using a Major and Minor number ▸ For example, Major: 1, Minor 2

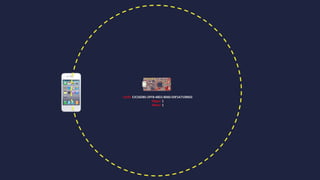

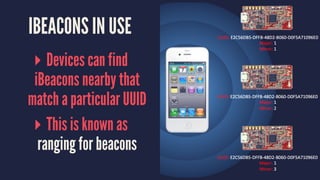

- 24. IBEACONS IN USE ▸Devices can find iBeacons nearby that match a particular UUID ▸ This is known as ranging for beacons
- 25. IBEACONS IN USE ▸Once found, device can detemine power level of signal from the beacon ▸ Which in turn can approximate the distance

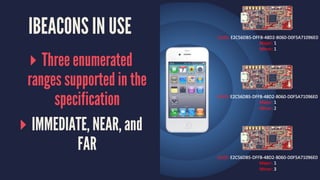

- 26. IBEACONS IN USE ▸Three enumerated ranges supported in the specification ▸ IMMEDIATE, NEAR, and FAR
- 27.
- 28. RETAIL STORE: PRODUCTPROMOTION AND LOCATION
- 29.

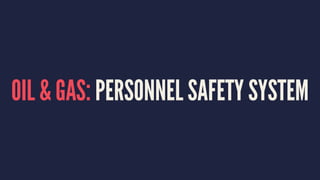

- 30. OIL & GAS:PERSONNEL SAFETY SYSTEM
- 31. REAL ESTATE: OPENHOUSE WALKTHROUGH
- 32. REMEMBER, IBEACONS ARENOT SMART!

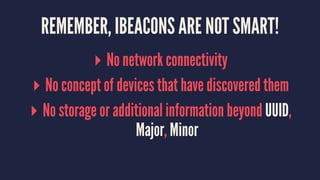

- 33. REMEMBER, IBEACONS ARENOT SMART! ▸ No network connectivity ▸ No concept of devices that have discovered them ▸ No storage or additional information beyond UUID, Major, Minor
- 34.

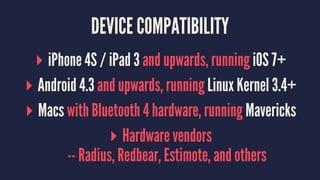

- 35. DEVICE COMPATIBILITY ▸ iPhone4S / iPad 3 and upwards, running iOS 7+ ▸ Android 4.3 and upwards, running Linux Kernel 3.4+ ▸ Macs with Bluetooth 4 hardware, running Mavericks ▸ Hardware vendors -- Radius, Redbear, Estimote, and others
- 36. DEVELOPING APPLICATIONS THATSUPPORT IBEACONS

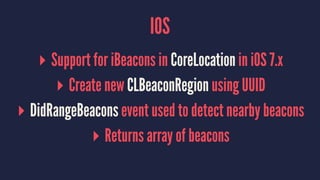

- 37. IOS ▸ Support foriBeacons in CoreLocation in iOS 7.x ▸ Create new CLBeaconRegion using UUID ▸ DidRangeBeacons event used to detect nearby beacons ▸ Returns array of beacons

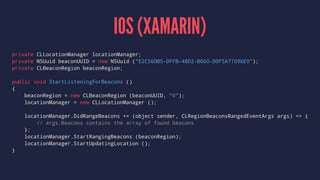

- 38. IOS (XAMARIN) private CLLocationManagerlocationManager; private NSUuid beaconUUID = new NSUuid ("E2C56DB5-DFFB-48D2-B060-D0F5A71096E0"); private CLBeaconRegion beaconRegion; public void StartListeningForBeacons () { beaconRegion = new CLBeaconRegion (beaconUUID, "0"); locationManager = new CLLocationManager (); locationManager.DidRangeBeacons += (object sender, CLRegionBeaconsRangedEventArgs args) => { // args.Beacons contains the array of found beacons }; locationManager.StartRangingBeacons (beaconRegion); locationManager.StartUpdatingLocation (); }

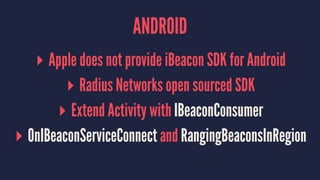

- 39. ANDROID ▸ Apple doesnot provide iBeacon SDK for Android ▸ Radius Networks open sourced SDK ▸ Extend Activity with IBeaconConsumer ▸ OnIBeaconServiceConnect and RangingBeaconsInRegion
- 40. ANDROID (XAMARIN) private readonlyIBeaconManager iBeaconManager; private readonly Region monitoringRegion; private readonly Region rangingRegion; private const string UUID = "e2c56db5dffb48d2b060d0f5a71096e0"; public MainActivity () { iBeaconManager = IBeaconManager.GetInstanceForApplication (this); monitorNotifier = new MonitorNotifier (); rangeNotifier = new RangeNotifier (); monitoringRegion = new Region ("r2MonitoringUniqueId", UUID, null, null); rangingRegion = new Region ("r2RangingUniqueId", UUID, null, null); }
- 41. ANDROID (XAMARIN) public voidOnIBeaconServiceConnect () { iBeaconManager.SetMonitorNotifier (monitorNotifier); iBeaconManager.SetRangeNotifier (rangeNotifier); iBeaconManager.StartMonitoringBeaconsInRegion (monitoringRegion); iBeaconManager.StartRangingBeaconsInRegion (rangingRegion); } private void RangingBeaconsInRegion (object sender, RangeEventArgs e) { // beacons returned in e.Beacons }
- 42.

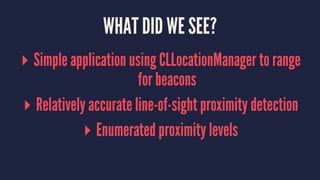

- 43. WHAT DID WESEE? ▸ Simple application using CLLocationManager to range for beacons ▸ Relatively accurate line-of-sight proximity detection ▸ Enumerated proximity levels
- 44.
- 45. RUNNING IBEACONS INTHE BACKGROUND

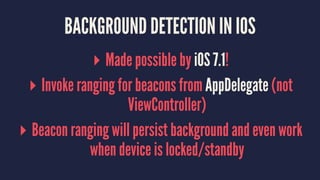

- 46. BACKGROUND DETECTION INIOS ▸ Made possible by iOS 7.1! ▸ Invoke ranging for beacons from AppDelegate (not ViewController) ▸ Beacon ranging will persist background and even work when device is locked/standby

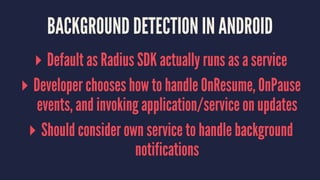

- 47. BACKGROUND DETECTION INANDROID ▸ Default as Radius SDK actually runs as a service ▸ Developer chooses how to handle OnResume, OnPause events, and invoking application/service on updates ▸ Should consider own service to handle background notifications

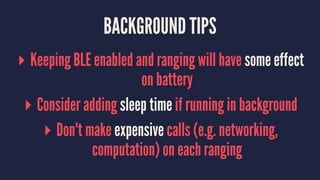

- 48. BACKGROUND TIPS ▸ KeepingBLE enabled and ranging will have some effect on battery ▸ Consider adding sleep time if running in background ▸ Don't make expensive calls (e.g. networking, computation) on each ranging
- 49.
- 50. BETTER ACCURACY OFINDOOR LOCATION
- 54.

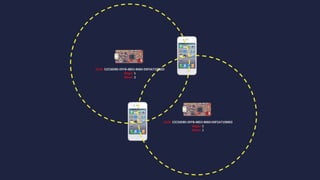

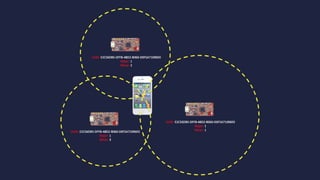

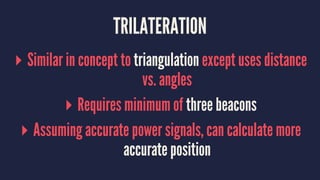

- 55. TRILATERATION ▸ Similar inconcept to triangulation except uses distance vs. angles ▸ Requires minimum of three beacons ▸ Assuming accurate power signals, can calculate more accurate position
- 56.

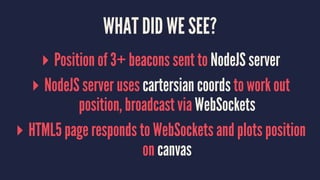

- 57. WHAT DID WESEE? ▸ Position of 3+ beacons sent to NodeJS server ▸ NodeJS server uses cartersian coords to work out position, broadcast via WebSockets ▸ HTML5 page responds to WebSockets and plots position on canvas
- 58.

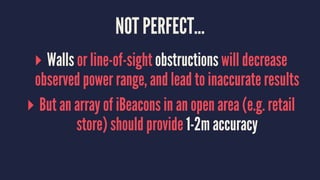

- 59. NOT PERFECT... ▸ Wallsor line-of-sight obstructions will decrease observed power range, and lead to inaccurate results ▸ But an array of iBeacons in an open area (e.g. retail store) should provide 1-2m accuracy
- 60.
- 61.

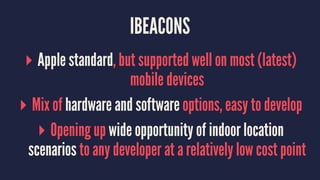

- 62. IBEACONS ▸ Apple standard,but supported well on most (latest) mobile devices ▸ Mix of hardware and software options, easy to develop ▸ Opening up wide opportunity of indoor location scenarios to any developer at a relatively low cost point
- 63.
- 64. Q&A ▸ Simon Guest,Distinguished Engineer, Neudesic LLC ▸ simonguest.com (@simonguest) ▸ http://github.com/simonguest/gids ▸ http://slideshare.net/simonguest
