1. Quick Reference Card
Please consult your spa user manual for complete info on the features of your spa system.
in.k600 with in.xm
full-function keypad that gives
complete control to wet fingers!
Aeware's advanced in.k600 keypad features a low
profile with a large LCD display, streamlined interface
and raised keys that let users easily control all in.xm
functions and programming directly from spa side,
creating a true and unique user experience.
"Plus" Key
Light icon Pump icons Blower icon
"Light" Key "Ok" Key "Program" Key
Function Description
Time, temperature AM/PM (˚F/ ˚C)
& message digits
Set point icon
Progress bar icon
Service icon
"Pump" Keys "Minus" Key "Standby" Key
"Left" Key "Right" Key
Program icon Heating icon Filtering icon Smart winter
mode icon
Spa Functions
Standby Mode Pump 1 key Pump 2 key
When this feature is activated, it In order to warn the user, the spa Press Pump 1 key to turn Pump 1 on Press Pump 2 key to turn Pump 2 on
allows to stop all pumps at the same light will flash for a few seconds at low speed. Press a second time at high speed.
time by a simple click of a button! before the exit of Standby mode to turn pump at high speed. Press a
and restart the pumps. The "Stby" third time to turn pump off. Press a second time to turn
Use Standby key to pause all message is also displayed during pump off.
pumps. Standby mode. A built-in timer automatically
turns pump off after 20 minutes, A built-in timer automatically
Progress bar will display the remaining time unless pump has been manually turns pump off after 20 minutes,
before the system automatically exits Standby
mode (user can also exit Standby mode at any deactivated first. unless pump has been manually
time by pressing again on Standby key). deactivated first.
Pump 3 key Blower key Light key /- keys
Press Pump 3 key to turn Press Blower key to turn Press Light key to turn light on. Use (+) or (-) key to set desired
Pump 3 on at high speed. blower on. water temperature. The tempe-
Press a second time to turn light off. rature setting will be displayed for
Press a second time to turn Press a second time to turn 5 seconds to confirm your new
pump off. blower off. A built-in timer automatically turns selection.
light off after 2 hours, unless it has
A built-in timer automatically A built-in timer automatically been manually deactivated first. The "Set Point" icon indicates that
turns pump off after 20 minutes, turns blower off after 20 minutes, the display shows the desired
unless pump has been manually unless blower has been manually temperature, NOT the current
deactivated first. deactivated first. water temperature!
http://www.MyPoolSpas.com Wholesale Pool and Spa Parts 920-925-3094

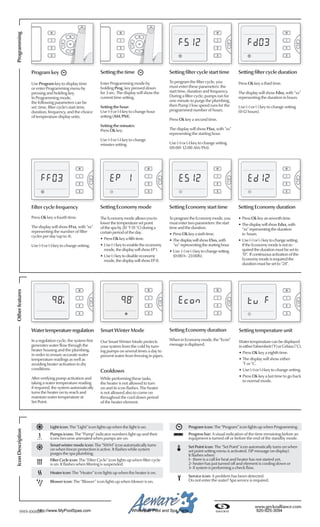

2. Programming
Program key Setting the time Setting filter cycle start time Setting filter cycle duration
Use Program key to display time Enter Programming mode by To program the filter cycle, you Press Ok key a third time.
or enter Programming menu by holding Prog. key pressed down must enter these parameters: the
pressing and holding key. for 3 sec. The display will show the start time, duration and frequency. The display will show Fdxx, with “xx”
In Programming mode, current time setting. During a filter cycle, pumps run for representing the duration in hours.
the following parameters can be one minute to purge the plumbing,
set: time, filter cycle’s start time, Setting the hour: then Pump 1 low speed runs for the Use (+) or (-) key to change setting
duration, frequency, and the choice Use (+) or (-) key to change hour programmed number of hours. (0-12 hours).
of temperature display units. setting (AM/PM).
Press Ok key a second time.
Setting the minutes:
Press Ok key. The display will show FSxx, with "xx"
representing the starting hour.
Use (+) or (-) key to change
minutes setting. Use (+) or (-) key to change setting
(01:00- 12:00 AM/PM).
Filter cycle frequency Setting Economy mode Setting Economy start time Setting Economy duration
Press Ok key a fourth time. The Economy mode allows you to To program the Economy mode, you • Press Ok key an seventh time.
lower the temperature set point must enter two parameters: the start • The display will show Edxx, with
The display will show FFxx, with "xx" of the spa by 20 °F (11 °C) during a time and the duration. “xx” representing the duration
representing the number of filter certain period of the day. • Press Ok key a sixth time. in hours.
cycles per day (up to 4).
• Press Ok key a fifth time. • The display will show ESxx, with • Use (+) or (-) key to change setting.
Use (+) or (-) key to change setting. • Use (+) key to enable the economy “xx” representing the starting hour. If the Economy mode is not re-
mode, the display will show EP 1. • Use (+) or (-) key to change setting quired the duration must be set to
• Use (-) key to disable economy (0:00 h - 23:00h). “0”. If continuous activation of the
mode, the display will show EP 0. Economy mode is required the
duration must be set to “24”.
Other features
Water temperature regulation Smart Winter Mode Setting Economy duration Setting temperature unit
In a regulation cycle, the system first Our Smart Winter Mode protects When in Economy mode, the “Econ” Water temperature can be displayed
generates water flow through the your system from the cold by turn- message is displayed. in either Fahrenheit (˚F) or Celsius (˚C).
heater housing and the plumbing, ing pumps on several times a day to • Press Ok key a eighth time.
in order to ensure accurate water prevent water from freezing in pipes.
temperature readings as well as • The display will show either
avoiding heater activation in dry ˚F or ˚C.
conditions. • Use (+) or (-) key to change setting.
Cooldown
• Press Ok key a last time to go back
After verifying pump activation and While performing these tasks,
taking a water temperature reading
to normal mode.
the heater is not allowed to turn
if required, the system automatically on and its icon flashes. The heater
turns the heater on to reach and is not allowed also to come on
maintain water temperature at throughout the cool down period
Set Point. of the heater element.
Light icon: The "Light" icon lights up when the light is on. Program icon: The "Program" icon lights up when Programming.
Icon Description
Pumps icons: The "Pump" indicator numbers light up and their Progress bar: A visual indication of the time remaining before an
icons become animated when pumps are on. equipment is turned off or before the end of the standby mode.
Smart winter mode icon: The "SWM" icon automatically turns Set Point icon: The "Set Point" icon automatically turns on when
on when freeze protection is active. It flashes while system set point setting menu is activated. (SP message on display).
purges the spa plumbing. It flashes when:
Filter Cycle icon: The "Filter Cycle" icon lights up when filter cycle 1- there is a call for heat and heater has not started yet,
is on. It flashes when filtering is suspended. 2- heater has just turned off and element is cooling down or
3- if system is performing a check flow.
Heater icon: The "Heater" icon lights up when the heater is on.
Service icon: A problem has been detected.
Blower icon: The “Blower” icon lights up when blower is on. Do not enter the water! Spa service is required.
