Passwords are often reused and breached, exposing users to risk. While hashing passwords provides some protection, attackers can still crack passwords using GPUs, ASICs, and password lists from previous breaches. Public-key cryptography avoids sending passwords over networks but early approaches were still vulnerable. New password-authenticated key exchange (PAKE) protocols use blinding techniques and oblivious transfers to allow password-derived keys while preventing offline cracking. Implementation requires integration with operating systems and browsers, but proof-of-concepts demonstrate the potential to significantly improve password security.

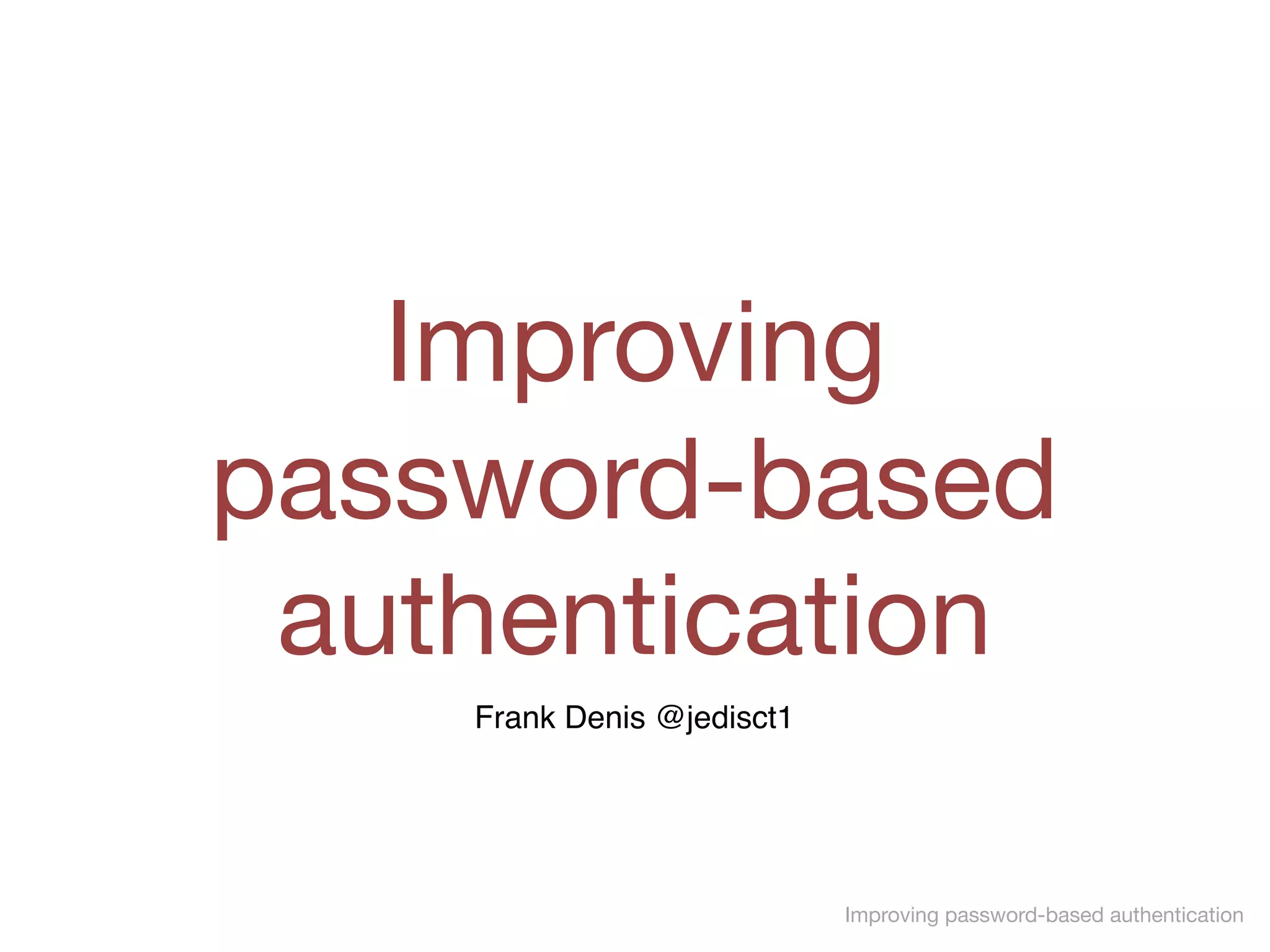

1. Improving password-based authentication
Improving
password-based
authentication
Frank Denis @jedisct1

2. Improving password-based authentication

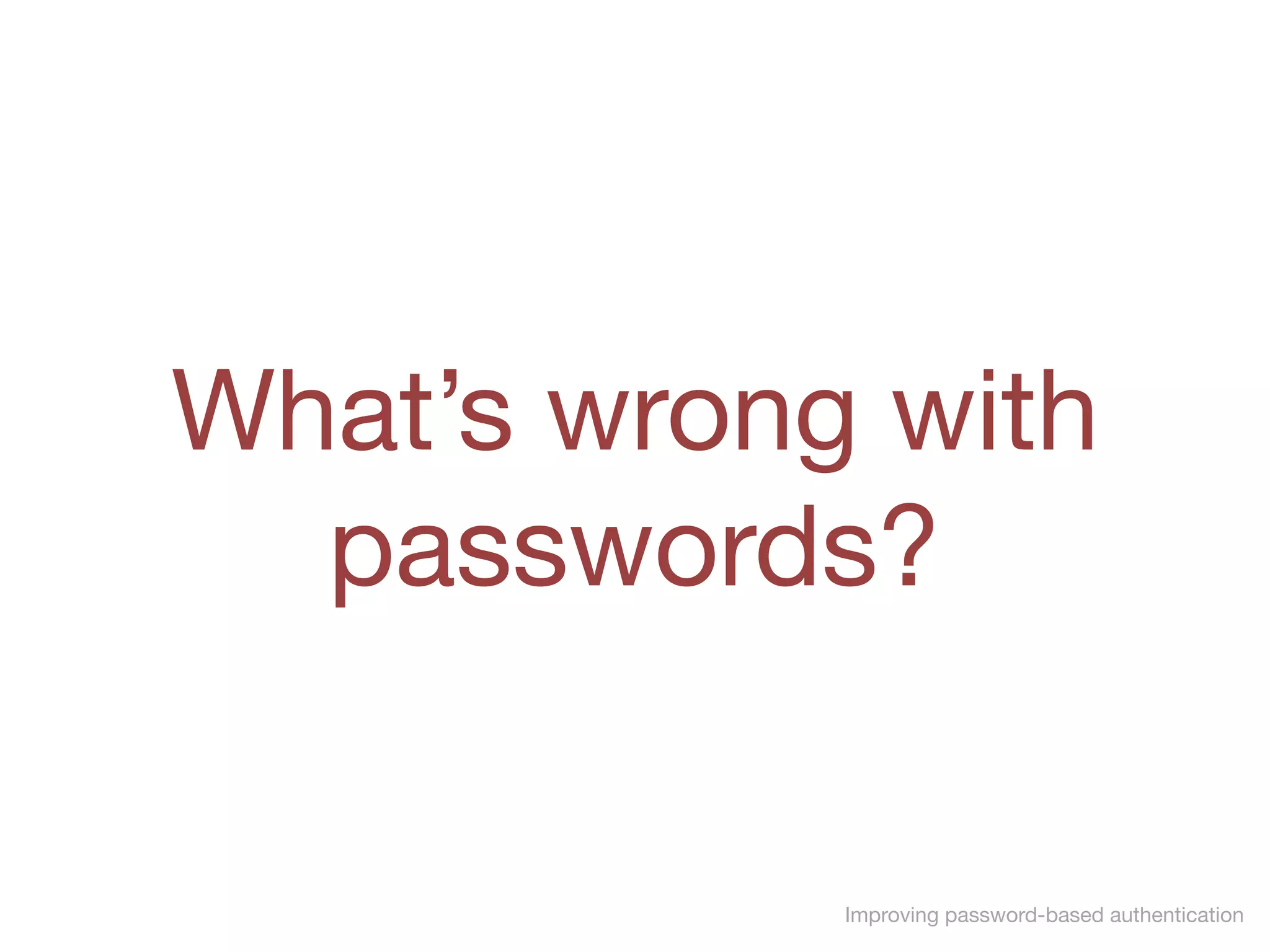

What’s wrong with
passwords?

3. Improving password-based authentication
Passwords are reused: find one, pwn many.
Companies don’t always communicate
about a breach until they are forced to.
Which can have side effects if discovered
when you are negotiating an acquisition
by Verizon.
Breaches happen all the time, even big
corporations and banks cannot be trusted.

4. Improving password-based authentication
API keys are passwords, too.
Committed to public repositories.
Present on present and past employees
laptops.
Long-term, shared secrets.
Intentionally leaked by customers because
you asked them to!

5. Improving password-based authentication
OpenDNS
support
forum

6. Improving password-based authentication
Password!
https://support.opendns.com/hc/en-us/community/posts/220033527-OpenDNS-Blocking-never-set-it-up
Many more leaks happen due to bad design.
Ex: HTTP_REFERER

7. Improving password-based authentication
Face it: passwords are here to stay
Convenient, universal way to log in from
anywhere, on any device.
Today’s passwords might be less terrible
than 10 years ago.
This is something you know, not something
that you have. Stealing them requires a $5
wrench.

8. Improving password-based authentication
How to survive a
password breach

9. Improving password-based authentication
Database encryption
Useless against other threats we are going
to talk about soon.
Useless if the key is leaked.
Useless if passwords are leaked using a
post-decryption vulnerability.

10. Improving password-based authentication
Hashing
Gives a false sense of security
Deterministic
Can be broken by using Google.

11. Improving password-based authentication
Hashing with a salt
Defeats rainbow tables.
This is not enough.

12. Improving password-based authentication
Hashing with a salt
Every time a new breach is announced,
about 70% of the passwords were already
present in previous lists.
Lists of > 500 million passwords from
previous breaches can be freely
downloaded.
What about the remaining 30%?

13. Improving password-based authentication
Hashing with a salt
A personal cracking rig can run 100 billion
guesses per second.
An exhaustive search of all the possible 8
characters passwords can be performed by
a single rig in less than a day.
But wait… it gets worse…

14. Improving password-based authentication
Hashing with a salt
Password entropy is almost always
overestimated.

15. Improving password-based authentication
Hashing with a salt
Humans are bad at generating randomness.

16. Improving password-based authentication
Hashing with a salt
Modern password crackers use
permutations, substitutions, Markov chains,
and neural networks in order to efficiently
probe the key space.
Smart contracts can reward people for
cracking passwords.

17. Improving password-based authentication
CPU-hard hash functions
PBKDF2, bcrypt
Can be massively parallelized
A perfect fit for GPUs and ASICs
We’d like to minimize the advantage
attackers have over defenders.

18. Improving password-based authentication
Memory-hard hash functions
scrypt
Require a lot of memory: each iteration
requires data from previous iterations.
TMTO attacks.

19. Improving password-based authentication
2013-2015: password hashing competition
Winner: Argon2
For a given set of parameters, computing a
hash requires a fixed amount of silicon
(transistors, capacitors, routing).

20. Improving password-based authentication
2015-2019: Argon2 adoption
libsodium, libargon2
Now available for all programming
languages.
Quickly adopted by cryptocurrencies and
applications.
Not a good fit for JavaScript, though.

21. Improving password-based authentication
2019
We realized that some practical
requirements had been overlooked.
What we may need is cache-hard functions
instead of memory-hard functions.
Due to CPU caches, Argon2 is actually
worse than bcrypt for some parameters.

22. Improving password-based authentication
2019
Still, if you use any of the functions from the
previous slides, you’ll be in a far better
position than virtually everyone else in the
industry.
Yes, even with random parameters.

23. Improving password-based authentication
It could have been the
last slide, but…

24. Improving password-based authentication
Password hashing is an expensive
operation, done server-side.
Introduces a DoS vector.
Choosing optimal parameters is hard.

25. Improving password-based authentication
Client Server
password over TLS

26. Improving password-based authentication
Client Server
password over TLS
TLS termination

27. Improving password-based authentication
Client ServerEnterprise security gateway
SSL added and removed here!

28. Improving password-based authentication
Client ServerISP

29. Improving password-based authentication
Passwords can be found in application
logs, displayed on error pages.
Sent to 3rd party services (New Relic,
Datadog…)
Affected Facebook and Twitter.
Password hashing doesn’t do anything.

30. Improving password-based authentication
Insider threats. Cloud providers.
This is a stealth, passive attack.
Password hashing doesn’t do anything.
Running tcpdump on a production server
can be all it takes.

31. Improving password-based authentication
Passwords should not
be sent over a network
any more.

32. Improving password-based authentication
Public-key cryptography to the rescue
Passwordless SSH
Client certificates are widely supported by
web servers and browsers, but they’re
barely usable.
Private keys stay on the clients. Their public
counterparts being leaked is no big deal.

33. Improving password-based authentication
Deterministic keys from passwords
Derive keys from passwords; servers can
then use public keys for authentication.
h ← H(pwd)
(pk, sk) ← H2KP(h)
The client does the hard work (or a part of
it): no more DoS vector!
But this is deterministic; public keys can be
precomputed from password dictionaries.

34. Improving password-based authentication
h ← H(s, pwd)
(pk, sk) ← H2KP(h)
But how does the client get the salt?
Deterministic keys from passwords
Client ServerS(sk, n)
Client ServerV(pk, S(sk, n))
Client Servern

35. Improving password-based authentication
h ← H(s, pwd)
(pk, sk) ← H2KP(h)
Client Servern, s
Client ServerS(sk, n)
Client ServerV(pk, S(sk, n))
Client Servername
But wait…

36. Improving password-based authentication
Now, the salt is public
Not secure against targeted
precomputation

37. Improving password-based authentication
A B?
A B?
x
?f(x)
Oblivious transfer

38. Improving password-based authentication
A Bg(xr
)
A Bxr
(mod p)
x, r g
f(x) = g(xr
)1/r
(mod p)
(V)OPRFs
blind(x)

39. Improving password-based authentication
A Bg(xr
)
A Bxr
x, r k
f(x) = g(xr
)1/r
(V)OPRFs
g(x) = xk
blind(x)
random oracle for A

40. Improving password-based authentication
Client Serverg ∘ blind(s)
Client Serverblind(s)
OPAQUE blind salts
h′ ← H′(pwd)
s ← H2S(h′)
s′ ← g(s)

41. Improving password-based authentication
Client Serverg ∘ blind(s)
Client Serverblind(s)
OPAQUE blind salts
s′ ← g(s)
h ← H(s, pwd)
(pk, sk) ← H2KP(h)
h′ ← H′(pwd)
s ← H2S(h′)

42. Improving password-based authentication
Client Serverg ∘ blind(s), n
Client ServerS(sk, n)
Client ServerV(pk, S(sk, n))
Client Servername, blind(s)
A shared session key can also be
computed.
User enumeration can be prevented.

43. Improving password-based authentication
The server doesn’t know the salt.
Defeats precomputation.
Every attempt requires an interaction with
the server.
Knowing the salt requires knowing the
password.
Proof of concept implemented for
Terrarium.

44. Improving password-based authentication
PAKEs

45. Improving password-based authentication
PAKEs
Password-based authentication.
Use cases:
More generally: secure key exchange from
low-entropy secrets. Ex: Magic Wormhole,
biometric authentication, pairing IoT devices,
QRCode-based pairing…
Bootstraping a PKI

46. Improving password-based authentication
The PAKE selection process
SRP and SCRAM can be improved.

47. Improving password-based authentication
Deployment
Requires tight coupling with operating
systems and web browsers.
Integration into TLS 1.3 is being considered.
May be a solid defense against phishing.
Browser vendors haven’t been involved yet.

48. Improving password-based authentication

49. Improving password-based authentication
Dependencies

50. Improving password-based authentication
Dependencies

51. Improving password-based authentication
Dependencies

52. Improving password-based authentication
Terrarium demo - Shows that PAKEs need
shared code between clients and servers, and
that WebAssembly can help with that.
SPAKE2+EE implementation for libsodium.
Now in libsodium 1.0.18 and wasm-crypto:
- hash-to-curve
- ristretto
- arithmetic to implement (V)OPRFs.
https://github.com/jedisct1/wasm-crypto https://sk.tl/66AuXfXS

53. Improving password-based authentication
Thanks!
