ICST/SBFT Tool Competition 2025 - UAV Testing Track
The 18th Workshop on Search-Based and Fuzz Testing - ICST/SBFT Tool Competition 2025UAV Testing Track
More Related Content
Similar to ICST/SBFT Tool Competition 2025 - UAV Testing Track
ICST/SBFT Tool Competition 2025 - UAV Testing Track
- 1. ICST/SBFT Tool Competition2025 UAV Testing Track The 18th Workshop on Search-Based and Fuzz Testing 27 April Sajad Khatiri Prasun Saurabh Tahereh Zohdinasab Dmytro Humeniuk Sebastiano Panichella
- 2. • ` Unmanned AerialVehicles (UAVs) 2
- 3. o Reality Gap oReproducible oScalable & Automatable o Affordable o Safe oSimulation-based Test Generation vs. Simulation-based Testing o Reliable o Not Reproducible oLimited Test Scenarios o Expensive & Time Consuming o Unsafe 3 Field Testing
- 4.
- 5. Aerialist UAV Test Bench 5 "Simulation-basedtesting of unmanned aerial vehicles with Aerialist“, ICSE 2024 Khatiri, Sajad, Sebastiano Panichella, and Paolo Tonella UAV Config. Env. Config. Commands Expectation Test Description

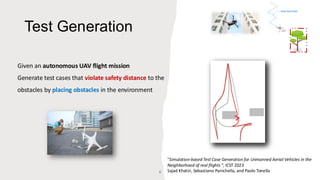

- 6. Given an autonomousUAV flight mission Generate test cases that violate safety distance to the obstacles by placing obstacles in the environment 6 Test Generation "Simulation-based Test Case Generation for Unmanned Aerial Vehicles in the Neighborhood of real flights “, ICST 2023 Sajad Khatiri, Sebastiano Panichella, and Paolo Tonella
- 7. 7 First Edition SBFT@ICSE 2024 "SBFTTool Competition 2024 - CPS-UAV Test Case Generation Track “, SBFT@ICSE 2024 Sajad Khatiri , et al. • 6 competing test generation tools • 1 baseline approach • Generated tests for 6 flight missions • 5 competing test generation tools • 3 at ICST • 2 at SBFT Joint ICST/SBFT call for the second edition

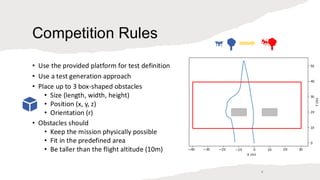

- 8. Competition Rules • Usethe provided platform for test definition • Use a test generation approach • Place up to 3 box-shaped obstacles • Size (length, width, height) • Position (x, y, z) • Orientation (r) • Obstacles should • Keep the mission physically possible • Fit in the predefined area • Be taller than the flight altitude (10m) 8
- 9. 9 github.com/skhatiri/UAV-Testing-Competition github.com/skhatiri/Aerialist mazras@usi.ch Sajad Khatiri • Pseudo-Random •OptObstacles • Surrealist Competing Tools

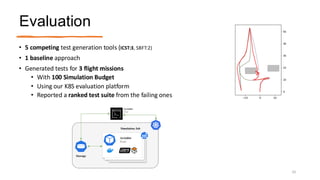

- 10. Evaluation • 5 competingtest generation tools (ICST:3, SBFT:2) • 1 baseline approach • Generated tests for 3 flight missions • With 100 Simulation Budget • Using our K8S evaluation platform • Reported a ranked test suite from the failing ones 10

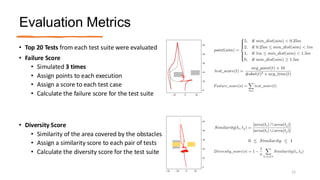

- 11. Evaluation Metrics • Top20 Tests from each test suite were evaluated • Failure Score • Simulated 3 times • Assign points to each execution • Assign a score to each test case • Calculate the failure score for the test suite • Diversity Score • Similarity of the area covered by the obstacles • Assign a similarity score to each pair of tests • Calculate the diversity score for the test suite 11

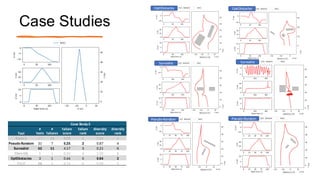

- 12. Case Studies 12 Case Study2 Tool # tests # failures failure score failure rank diversity score diversity rank Evolv-1 57 12 9.02 1 0.88 3 Pseudo-Random 31 7 5.25 2 0.87 4 Surrealist 52 11 4.17 3 0.21 6 TGen-UQ 5 1 0.50 4 1.00 1 OptObstacles 3 1 0.44 5 0.94 2 PALM 58 1 0.14 6 0.58 5 Surrealist OptObstacles OptObstacles Pseudo-Random Pseudo-Random Surrealist
- 13. Case Studies 13 Case Study4 Tool # tests # failures failure score failure rank diversity score diversity rank Pseudo-Random 66 12 9.30 1 0.88 3 PALM 82 20 3.59 2 0.42 5 Surrealist 9 3 1.94 3 0.21 6 TGen-UQ 6 1 1.45 4 0.95 1 Evolv-1 22 2 1.08 5 0.83 4 OptObstacles 7 0 0.00 6 0.92 2 Surrealist Surrealist OptObstacles OptObstacles Pseudo-Random Pseudo-Random

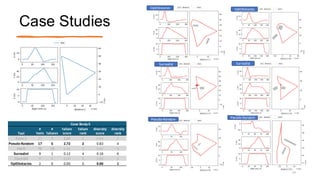

- 14. Case Studies 14 Case Study5 Tool # tests # failures failure score failure rank diversity score diversity rank Evolv-1 37 6 2.94 1 0.86 3 Pseudo-Random 17 5 2.72 2 0.83 4 PALM 76 19 0.80 3 0.47 5 Surrealist 9 1 0.12 4 0.18 6 TGen-UQ 6 0 0.00 5 0.90 2 OptObstacles 2 0 0.00 5 0.90 1 Surrealist OptObstacles OptObstacles Pseudo-Random Pseudo-Random Surrealist

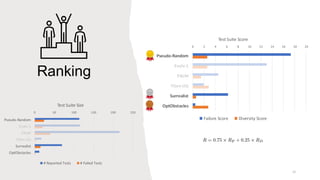

- 15. Ranking 15 0 50 100150 200 250 Pseudo-Random Evolv-1 PALM TGen-UQ Surrealist OptObstacles Test Suite Size # Reported Tests # Failed Tests 0 2 4 6 8 10 12 14 16 18 20 Pseudo-Random Evolv-1 PALM TGen-UQ Surrealist OptObstacles Test Suite Score Failure Score Diversity Score
- 16. 16 github.com/skhatiri/UAV-Testing-Competition github.com/skhatiri/Aerialist mazras@usi.ch Sajad Khatiri 0 24 6 8 10 12 14 16 18 20 Pseudo-Random Evolv-1 PALM TGen-UQ Surrealist OptObstacles Test Suite Score Failure Score Diversity Score
- 17.
- 18.
