1. ICSP Programmer Adapter for Microchip
PICKIT2/ PICKIT3
VISUAL USER GUIDE

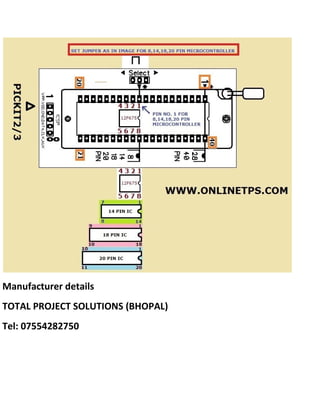

1.SELECT SWITCH IS JUMPER TYPE SWITCH THAT CONNECT
TWO PIN. FOR 8,14,18,20 PIN MICROCONTROLLER PLACE
JUMPER LEFT SIDE (CENTER AND NON STAR PIN), FOR 28,40
PIN MICROCONTROLLER PLACE JUMPER RIGHT SIDE
(CENTER AND STAR PIN)
2.FOR 28, 40 PIN MCU PIN NO. 1 IS SAME FOR MCU AND ZIF
THAT IS 1 INSIDE BLUE RECTANGLE

2. 3.FOR 8,14,18,20 PIN MCU PIN NO. 11 OF ZIF SOCKET IS THE
PIN NO. 1 OF MCU (MICROCONTROLLER UNIT)
4.ZIF LOCK IS OPEN WHEN IT IS VIRTICAL AND CLOSED WHEN
HORIZONTAL
5.TRIANGLE SIGN PIN ON PICKIT2/3 IS PIN 1 OF ICSP PINS **

3. Manufacturer details
TOTAL PROJECT SOLUTIONS (BHOPAL)
Tel: 07554282750
