This document provides information on ICP DAS power monitoring and management solutions including their Power Meter Concentrator (PMC-5151), various power meters, current transformers, and benefits of the solution such as built-in web-based analysis and reporting, data logging, and mobile access. It also presents a new application story for their solution in a semiconductor factory to monitor the power of top equipment.

1. ICP DAS
Training on Power Monitoring
and Management Solution

2. Power Meter Concentrator
— Collect 24 power meters (include max. of 4x PM-4324)
— 4GB micro SD card for data logging up to six months
PMD-2201 (7”)
Available in Dec.
PMC-5151

3. Built-in Web-based Analysis & Report

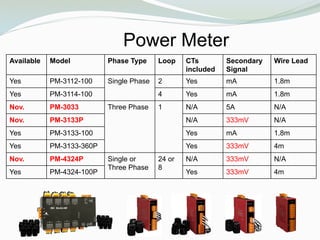

6. Power Meter
Available Model Phase Type Loop CTs
included
Secondary
Signal
Wire Lead
Yes PM-3112-100 Single Phase 2 Yes mA 1.8m
Yes PM-3114-100 4 Yes mA 1.8m
Nov. PM-3033 Three Phase 1 N/A 5A N/A
Nov. PM-3133P N/A 333mV N/A
Yes PM-3133-100 Yes mA 1.8m
Yes PM-3133-360P Yes 333mV 4m
Nov. PM-4324P Single or
Three Phase
24 or
8
N/A 333mV N/A
Yes PM-4324-100P Yes 333mV 4m

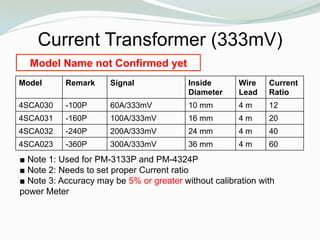

7. Current Transformer (333mV)
Model Remark Signal Inside
Diameter
Wire
Lead
Current
Ratio
4SCA030 -100P 60A/333mV 10 mm 4 m 12
4SCA031 -160P 100A/333mV 16 mm 4 m 20
4SCA032 -240P 200A/333mV 24 mm 4 m 40
4SCA023 -360P 300A/333mV 36 mm 4 m 60
■ Note 1: Used for PM-3133P and PM-4324P
■ Note 2: Needs to set proper Current ratio
■ Note 3: Accuracy may be 5% or greater without calibration with
power Meter
Model Name not Confirmed yet

8. CT Inside Diameter

9. Current Transformer Selection
■ Solid Core CTs：
Place over conductor prior to inserting in the breaker.
Secondary output is 1A or 5A.
Solid Core CT:800A/5A

10. ■ Clip on (Hinged) CTs:
Open the clip, place around conductor and snap closed.
I
Easy to install

11. Difference between PM-3133-100 and PM-3033
PM-3033 can connect to 5A
secondary output of Solid
Core CT

12. Important Notice
Unless a load (i.e. meters, relays, etc.) is connected to the CT,
current transformers should always be shorted across the
secondary terminals. The reason is very high voltages will be
induced at the terminals.
Secondary Side
Safety Design
■ CTs comes with PM-3133-100 (mA signal)
built-in diode to avoid high voltage introduced.
■ CTs comes with PM-3133-360P (333mV signal)
built-in diode and resister to avoid high voltage introduced.
conform EC60950-1 SELV（Safety Extra-low Voltage Circuit)

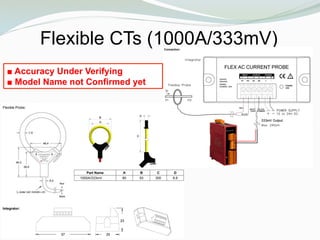

13. Flexible CTs (1000A/333mV)
■ Accuracy Under Verifying
■ Model Name not Confirmed yet

14. Benefit of PM-4324
1. Monitoring max.8x 3 phase or 24x single phase,
or combinaPon of single or three phase .
2. Easy wiring for
■ RS-485
■ Reference Power Input
■ Power Supply
3. Directly use AC power supply

15. An extra 24VDC power supply is not needed
R
S
T
3P3W Mode
220V
220V

16. Benefit of ICP DAS solution
— HW, compared to panel mounting
— DIN-rail mounting saves installation cost and time
— SW, compared to SCADA
— Save license fee
— Save time to develop
— Built-in function of parameter setting, smart chart and report
engine, data storage and can backup to a FTP server
— Support complete PC webpage and simplified cell phone
webpage
— Permissions control function to support a system
administrator and five general users simultaneously log in

17. PMC-5151：Browse and monitor power
data by cell phone

18. New Application Story
for Semiconductor Industry
— Target:
— FAB: Collect power information of TOP1 equipments (ie, CVD,
Chemical Vapor Deposition)
— Parking Lot
— Dormitory
— Equipment Bought for FAB
— 17x PMC-5151
— 3x PM-4323-160P, over 50x PM-3033 & PM-3133
— Why choose ICP DAS
— Web based HMI for easy operation. (SCADA is not needed)
— Built-in data logger and analysis report
— PMC Data Server to export data to MS SQL

19. Reference
— Web Site http://pmms.icpdas.com/en/index.html
— Live Demo:
— http://rd3demo.icpdas.com/
— Password: Admin, User
— Solid Core CTs
— http://www.omega.com/pptst/MFO_RCT.html
