The document discusses techniques for locating concerns in source code. It introduces the concept of a concern as anything that affects program implementation, like features or requirements. Locating concerns is difficult because the relationship between concerns and code elements is usually undocumented. The document proposes an approach called Cerberus that combines three concern location techniques - information retrieval, execution tracing, and prune dependency analysis - to more effectively determine this relationship. Future work is discussed to improve the techniques, especially prune dependency analysis and Cerberus' accuracy.

2. Motivation
□ >50% of maintenance time spent trying to
understand the program
Marc Eaddy ICPC 2008 2

3. Motivation
□ >50% of maintenance time spent trying to
understand the program
□ Where are the features,
reqs, etc. in the code?
Marc Eaddy ICPC 2008 3

4. Motivation
□ >50% of maintenance time spent trying to
understand the program
□ Where are the features,
reqs, etc. in the code?
□ What is this code for?
Marc Eaddy ICPC 2008 4

5. Motivation
□ >50% of maintenance time spent trying to
understand the program
□ Where are the features,
reqs, etc. in the code?
□ What is this code for?
□ Why is it hard to
understand and change
the program?
Marc Eaddy ICPC 2008 5

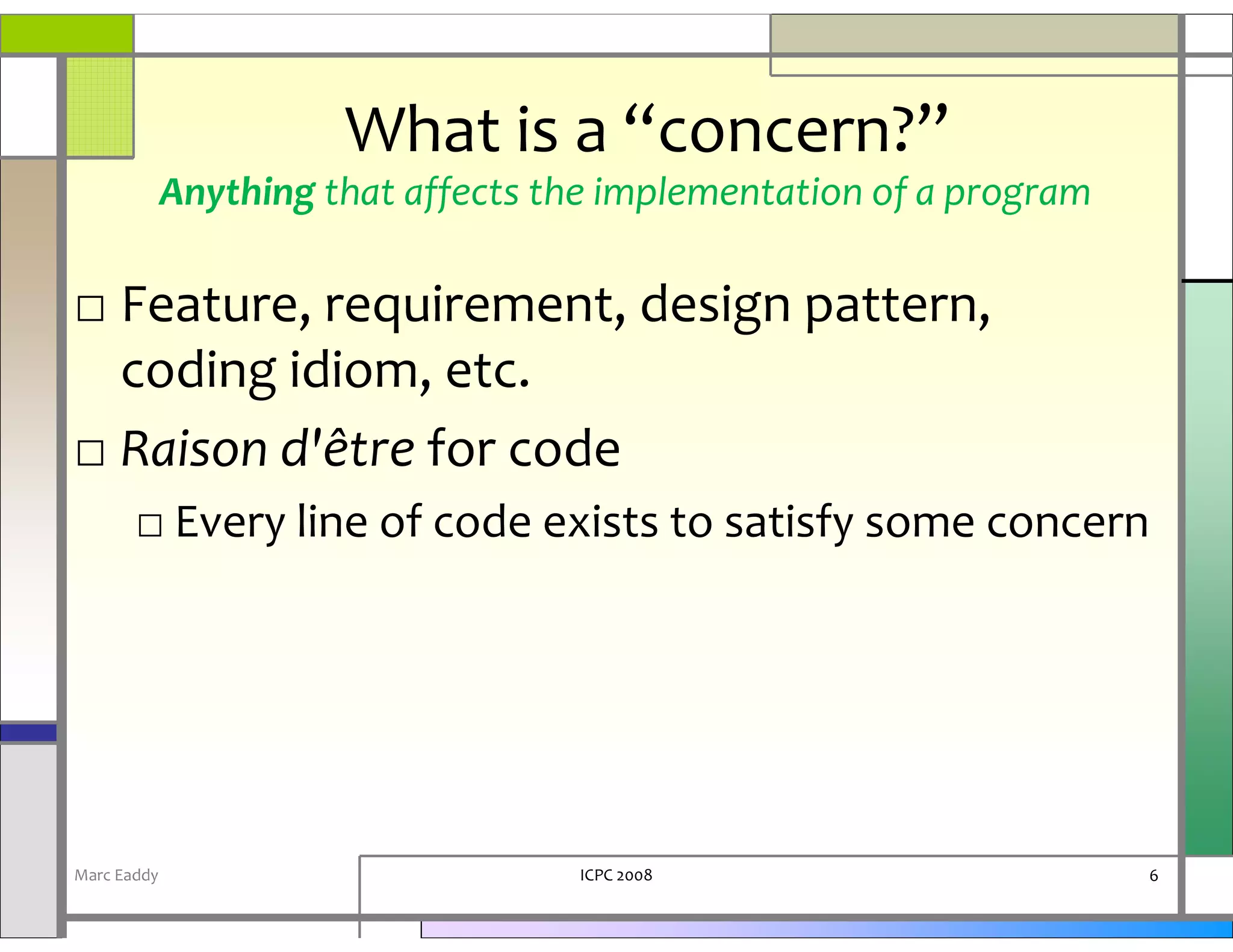

6. What is a “concern?”
Anything that affects the implementation of a program
□ Feature, requirement, design pattern,
coding idiom, etc.
□ Raison d'être for code
□ Every line of code exists to satisfy some concern
Marc Eaddy ICPC 2008 6

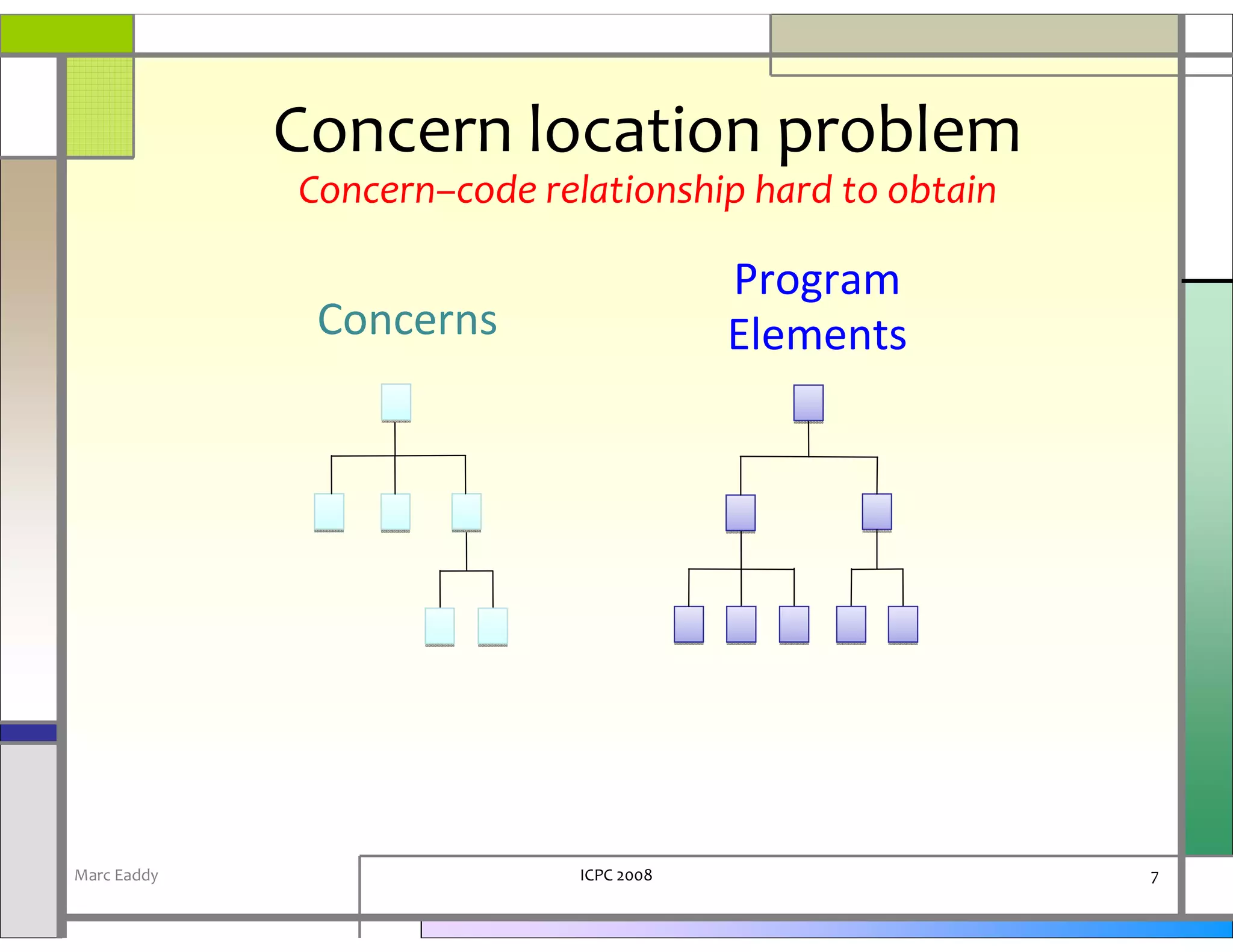

7. Concern location problem
Concern–code relationship hard to obtain
Program
Concerns Elements
Marc Eaddy ICPC 2008 7

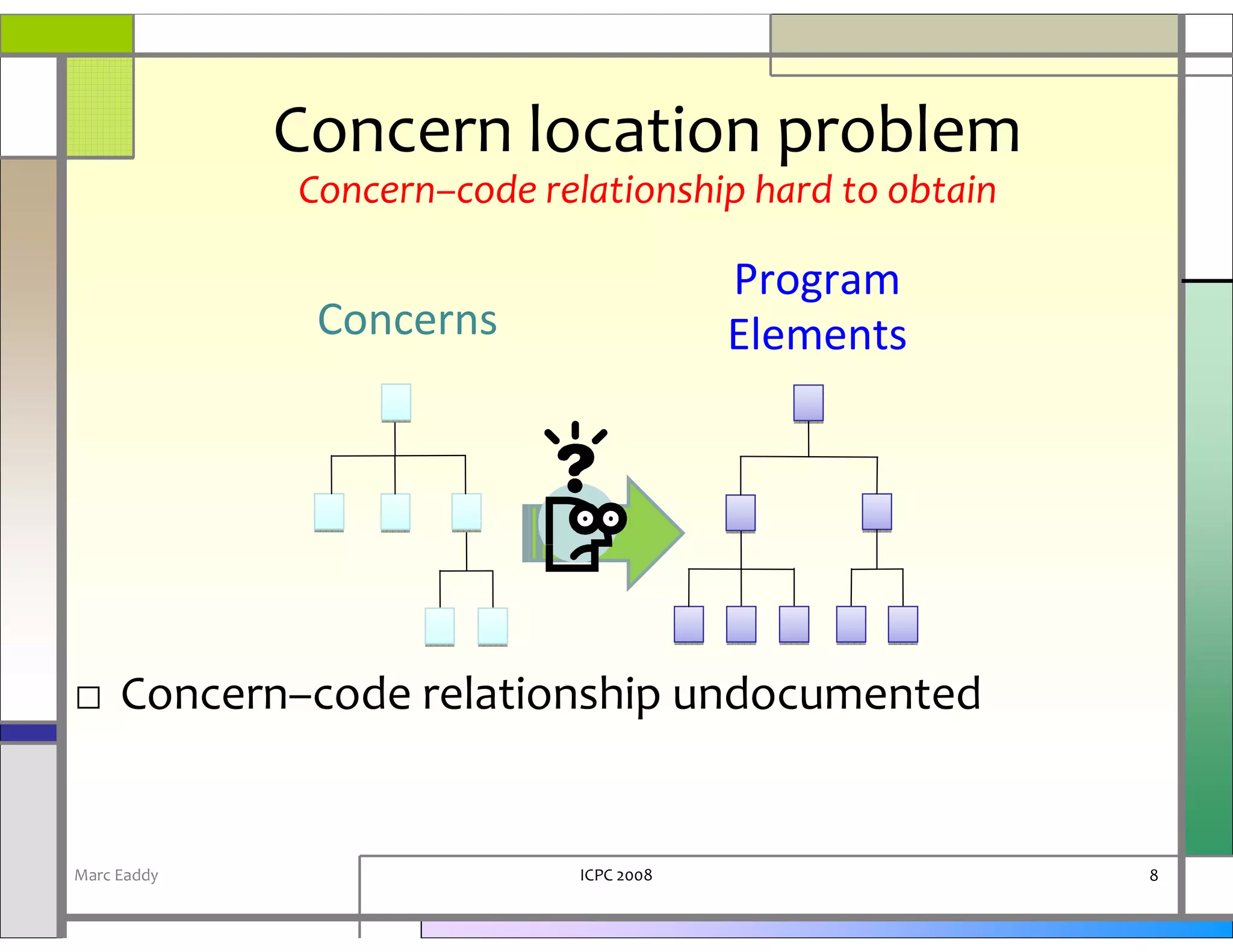

8. Concern location problem
Concern–code relationship hard to obtain
Program
Concerns Elements
□ Concern–code relationship undocumented
Marc Eaddy ICPC 2008 8

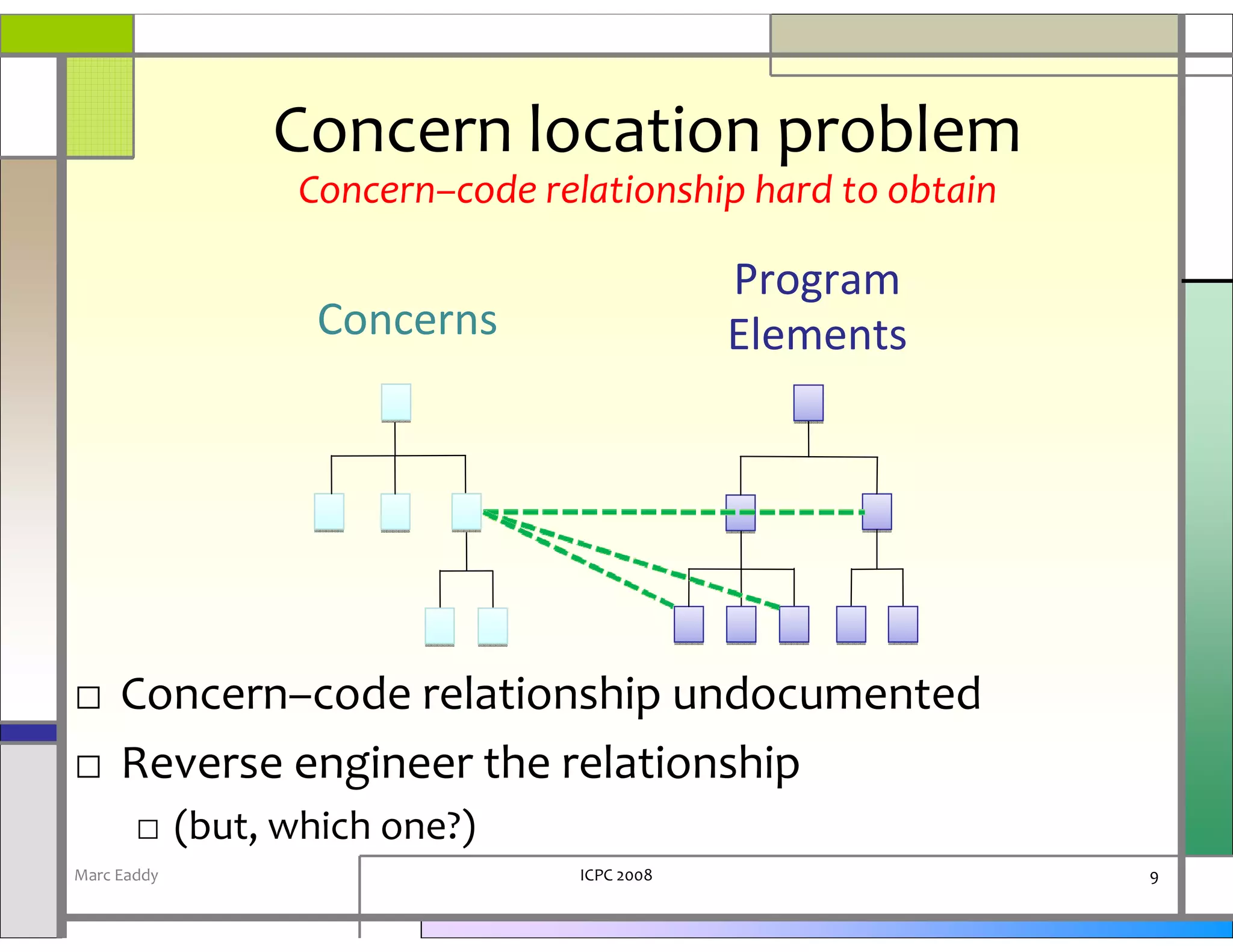

9. Concern location problem
Concern–code relationship hard to obtain
Program
Concerns Elements
□ Concern–code relationship undocumented
□ Reverse engineer the relationship
□ (but, which one?)
Marc Eaddy ICPC 2008 9

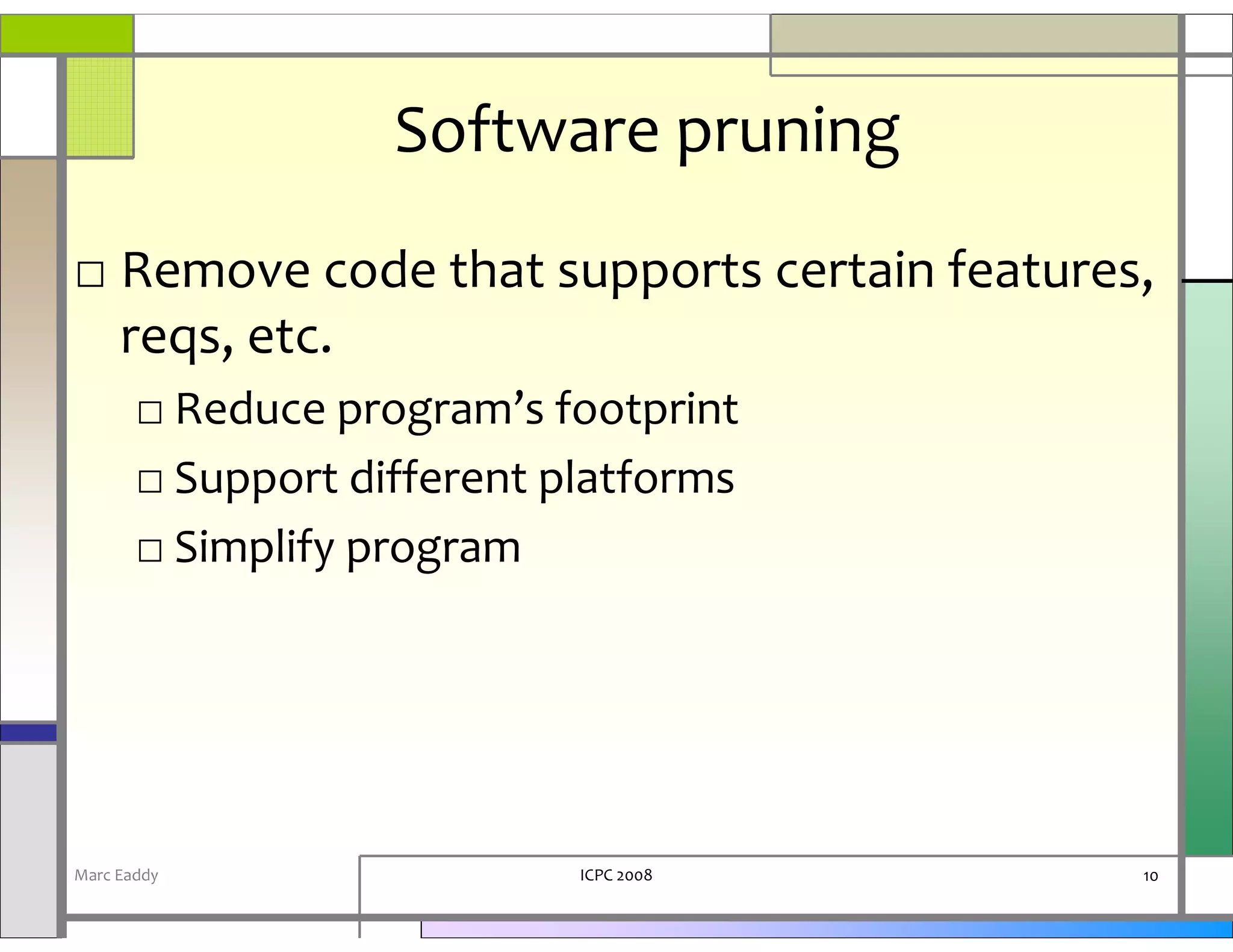

10. Software pruning
□ Remove code that supports certain features,
reqs, etc.
□ Reduce program’s footprint
□ Support different platforms
□ Simplify program
Marc Eaddy ICPC 2008 10

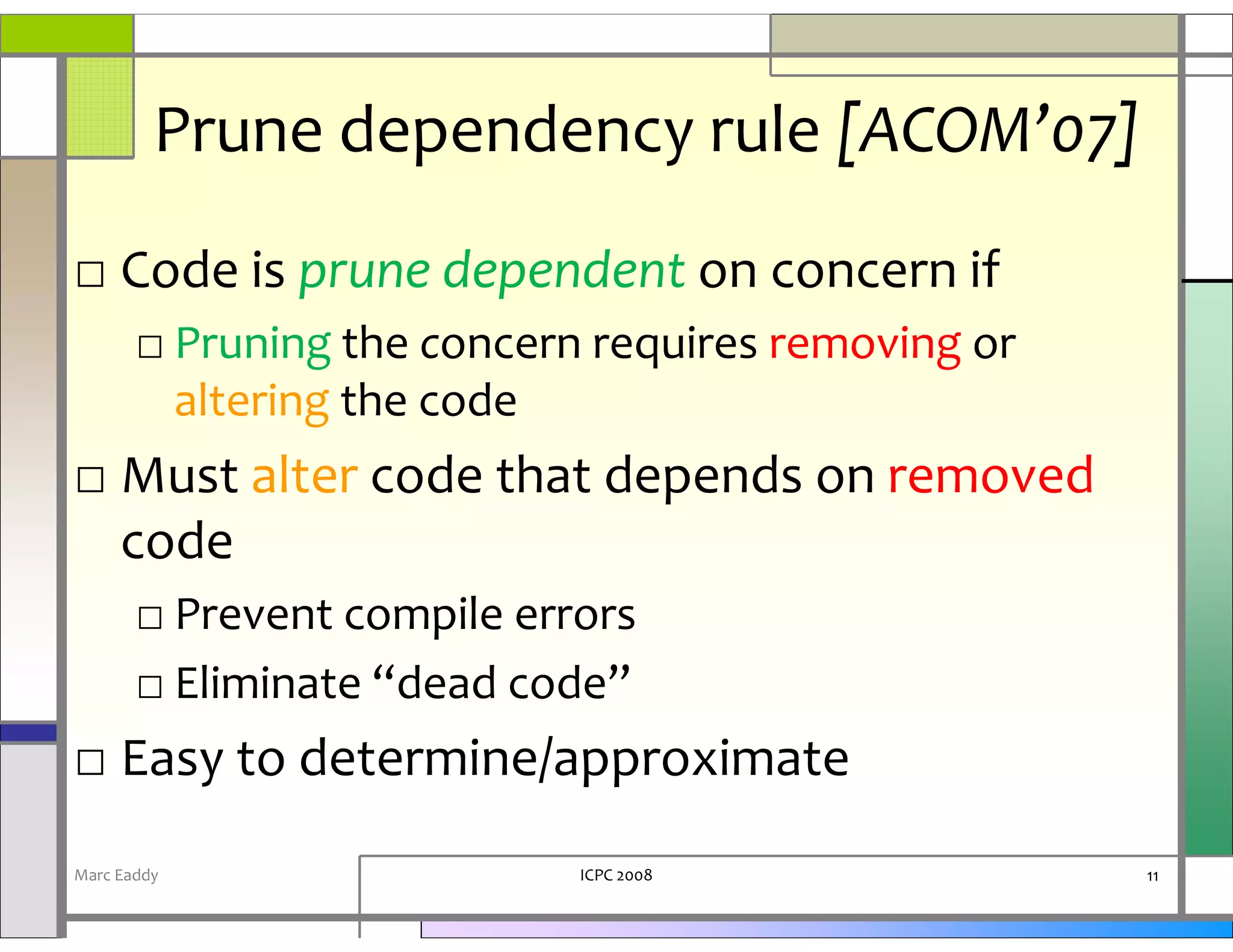

11. Prune dependency rule [ACOM’07]
□ Code is prune dependent on concern if
□ Pruning the concern requires removing or
altering the code
□ Must alter code that depends on removed
code
□ Prevent compile errors
□ Eliminate “dead code”
□ Easy to determine/approximate
Marc Eaddy ICPC 2008 11

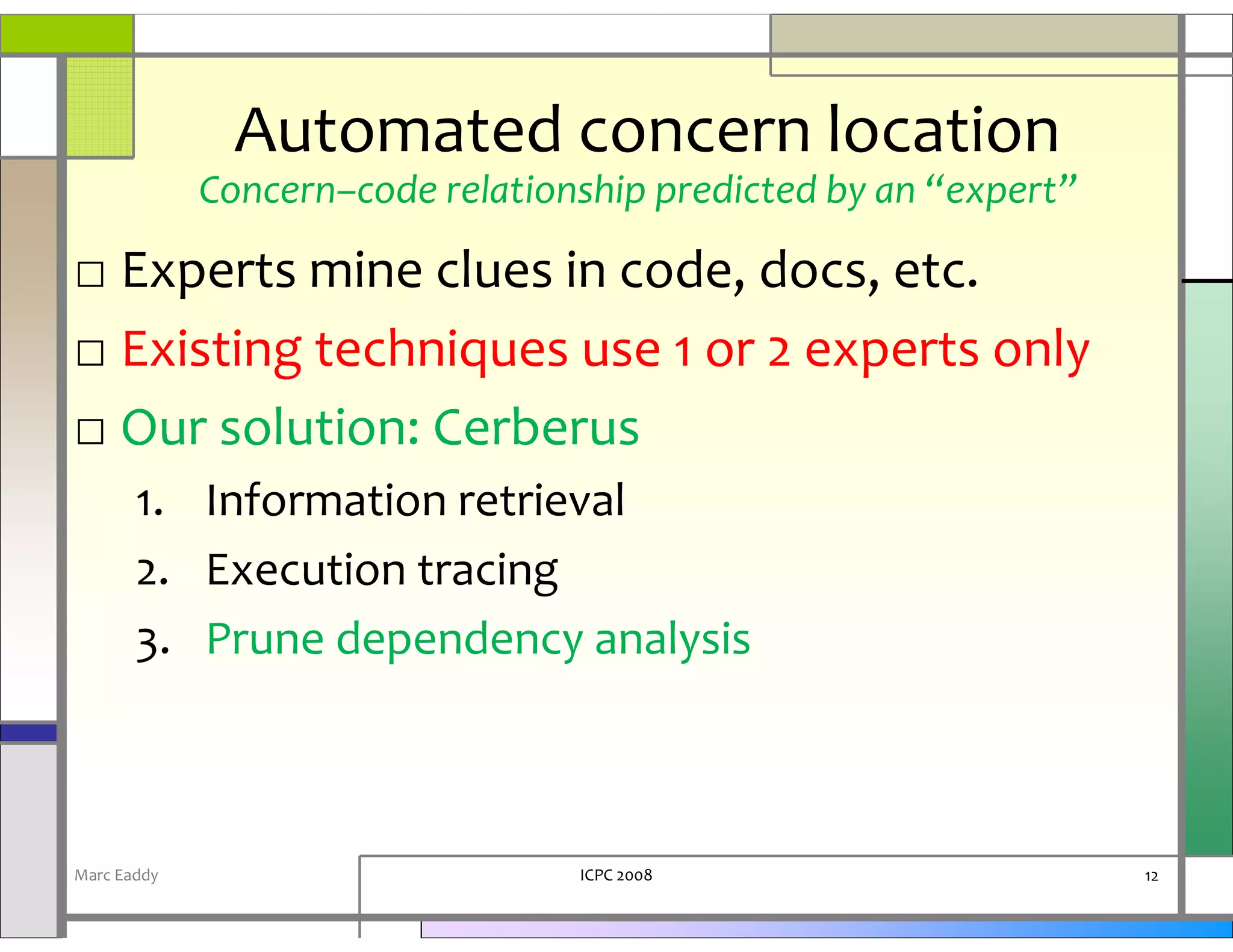

12. Automated concern location
Concern–code relationship predicted by an “expert”
□ Experts mine clues in code, docs, etc.
□ Existing techniques use 1 or 2 experts only
□ Our solution: Cerberus
1. Information retrieval
2. Execution tracing
3. Prune dependency analysis
Marc Eaddy ICPC 2008 12

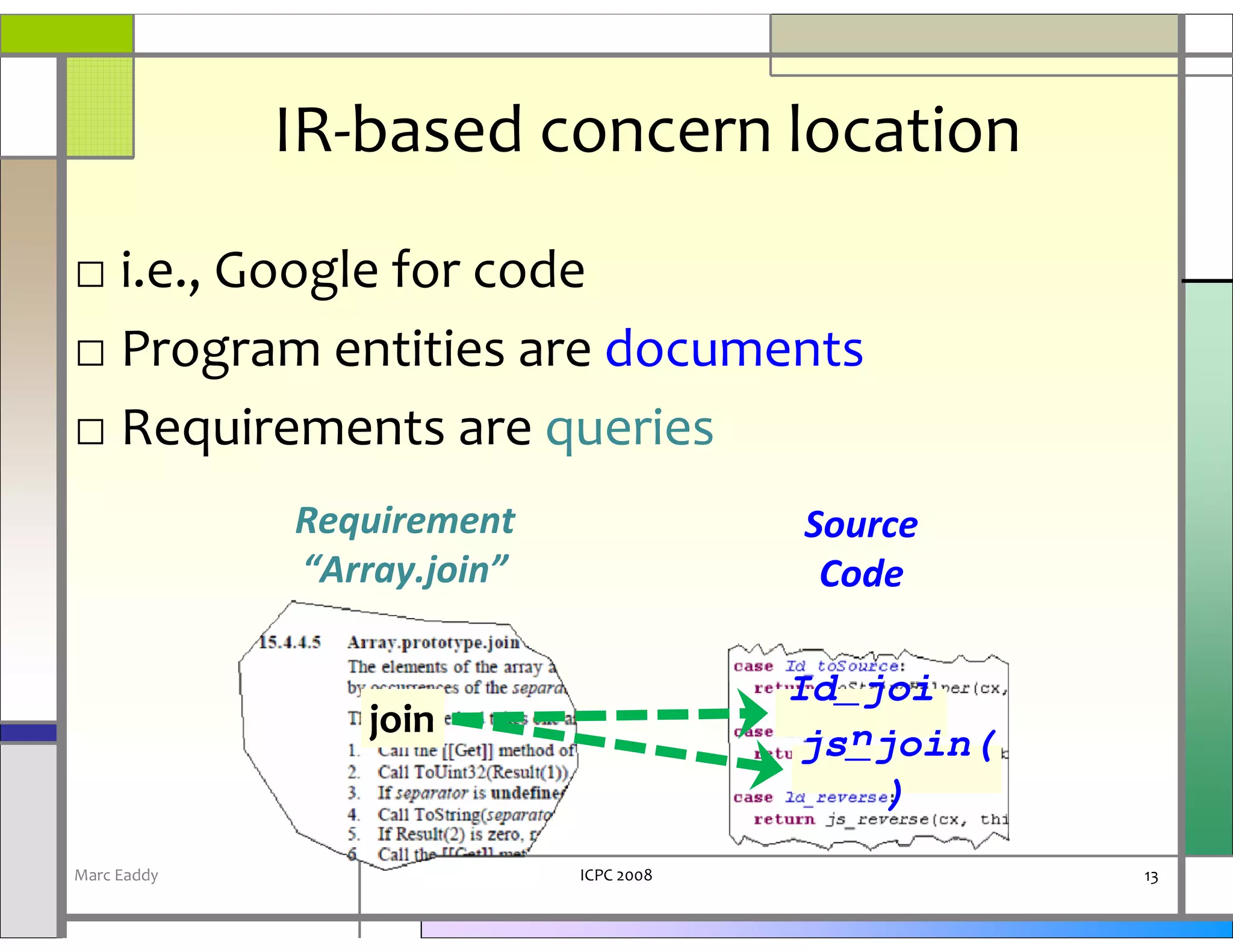

13. IR-based concern location
□ i.e., Google for code
□ Program entities are documents
□ Requirements are queries
Requirement Source
“Array.join” Code
Id_joi
join n
js_join(
)
Marc Eaddy ICPC 2008 13

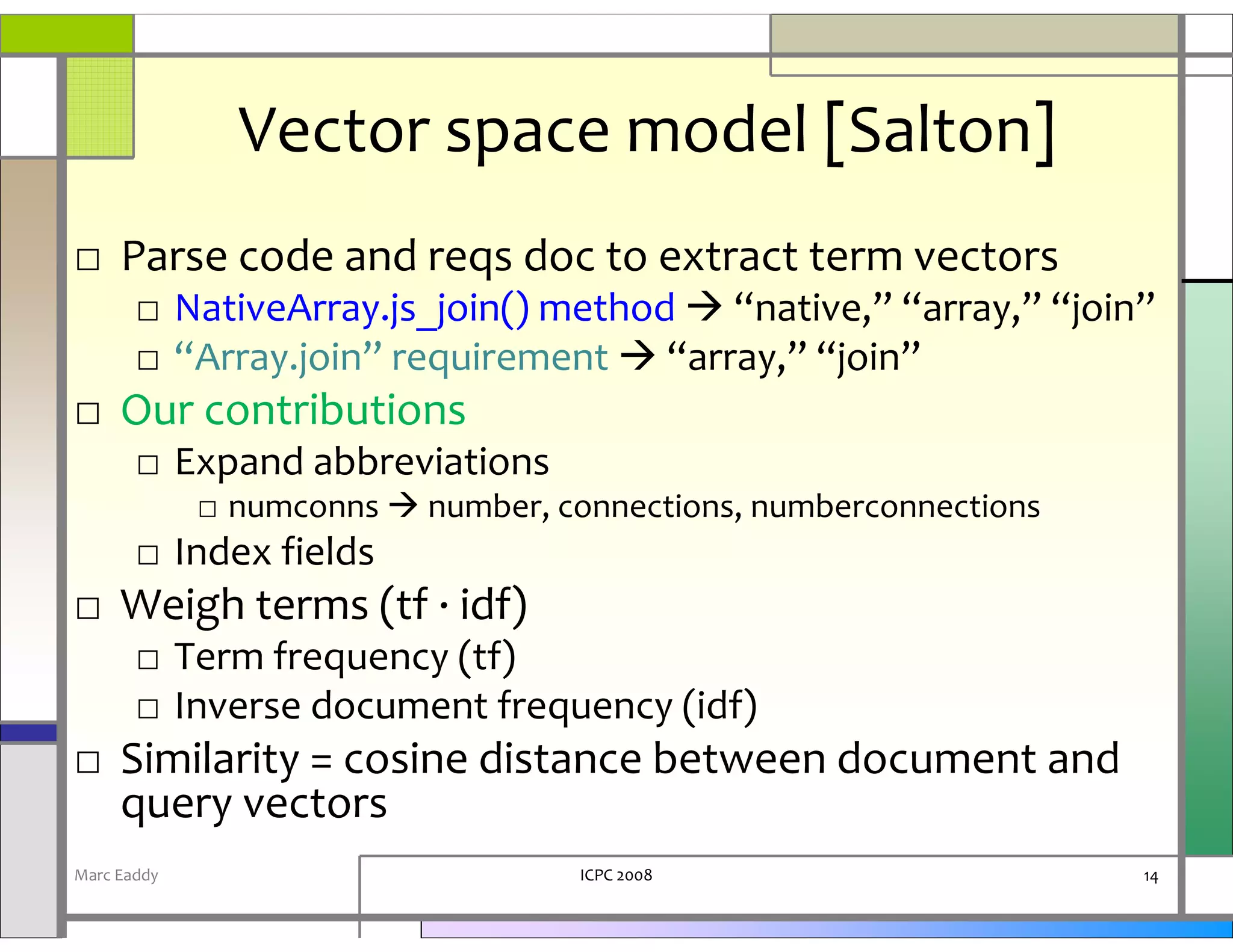

14. Vector space model [Salton]
□ Parse code and reqs doc to extract term vectors
□ NativeArray.js_join() method “native,” “array,” “join”
□ “Array.join” requirement “array,” “join”
□ Our contributions
□ Expand abbreviations
□ numconns number, connections, numberconnections
□ Index fields
□ Weigh terms (tf · idf)
□ Term frequency (tf)
□ Inverse document frequency (idf)
□ Similarity = cosine distance between document and
query vectors
Marc Eaddy ICPC 2008 14

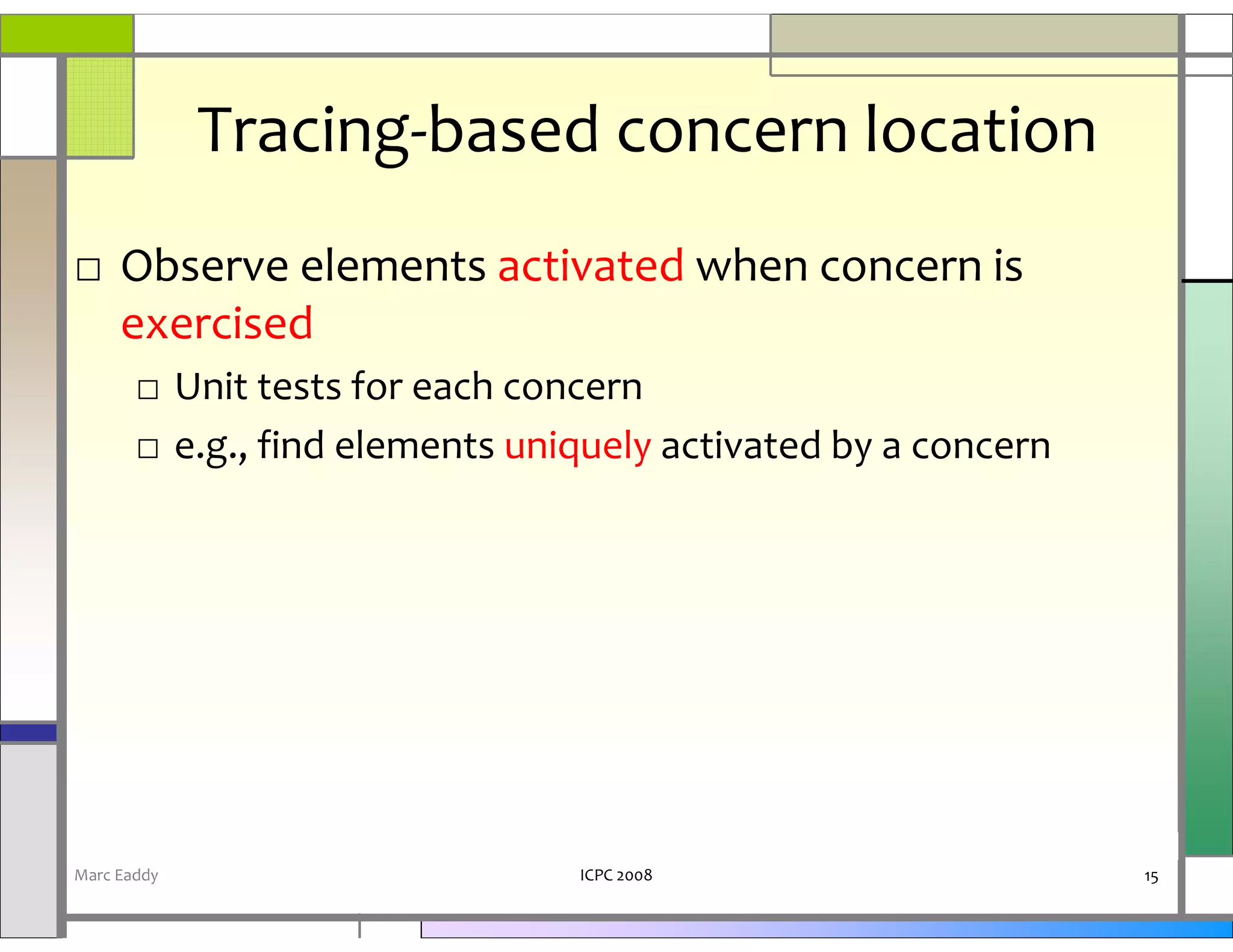

15. Tracing-based concern location
□ Observe elements activated when concern is
exercised
□ Unit tests for each concern
□ e.g., find elements uniquely activated by a concern
Marc Eaddy ICPC 2008 15

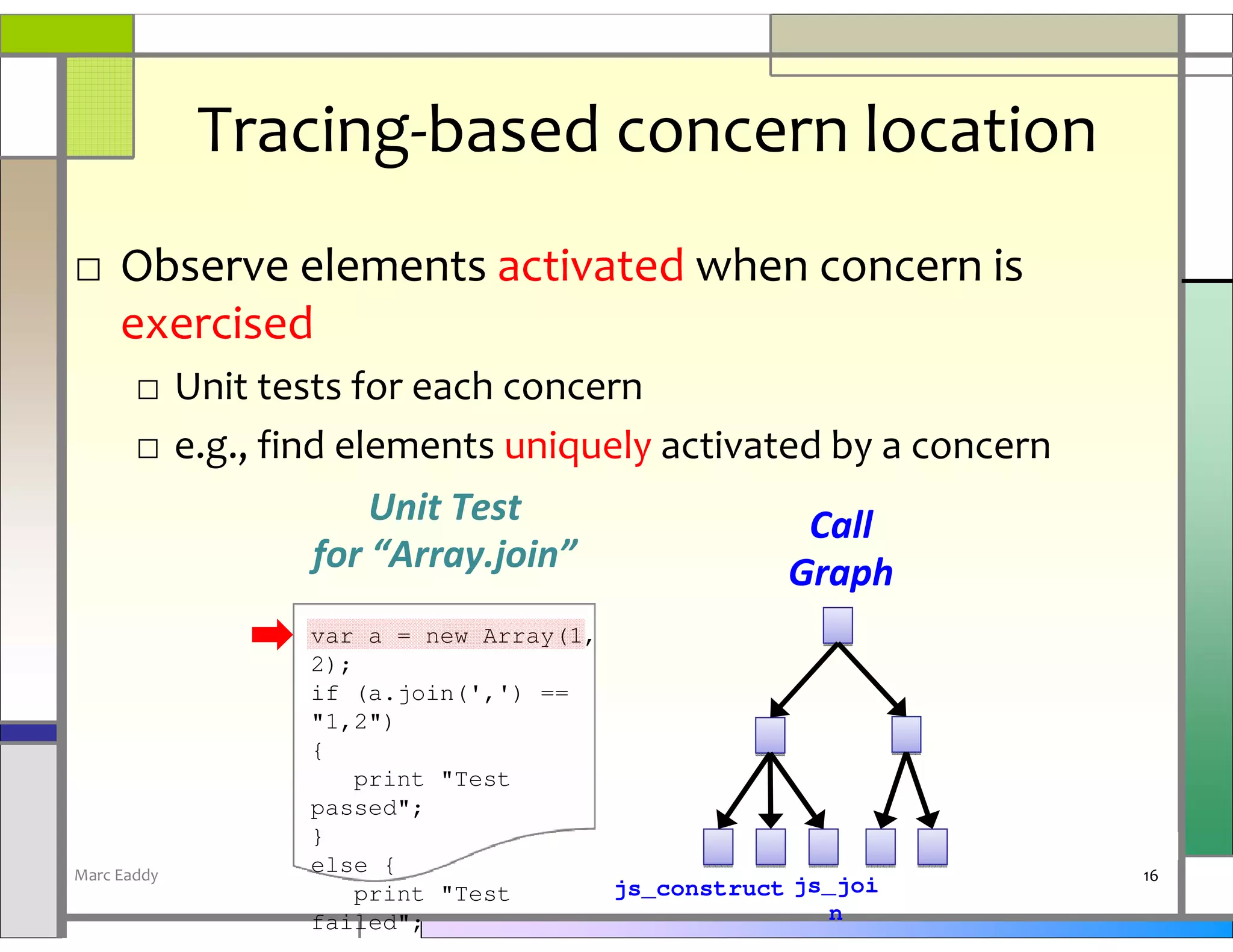

16. Tracing-based concern location
□ Observe elements activated when concern is
exercised
□ Unit tests for each concern
□ e.g., find elements uniquely activated by a concern
Unit Test Call
for “Array.join” Graph
var a = new Array(1,
2);
if (a.join(',') ==
"1,2")
{
print "Test
passed";
}
Marc Eaddy else { 16
print "Test js_construct js_joi
failed"; n

17. Tracing-based concern location
□ Observe elements activated when concern is
exercised
□ Unit tests for each concern
□ e.g., find elements uniquely activated by a concern
Unit Test Call
for “Array.join” Graph
var a = new Array(1,
2);
if (a.join(',') ==
"1,2")
{
print "Test
passed";
}
Marc Eaddy else { 17
print "Test js_construct js_joi
failed"; n

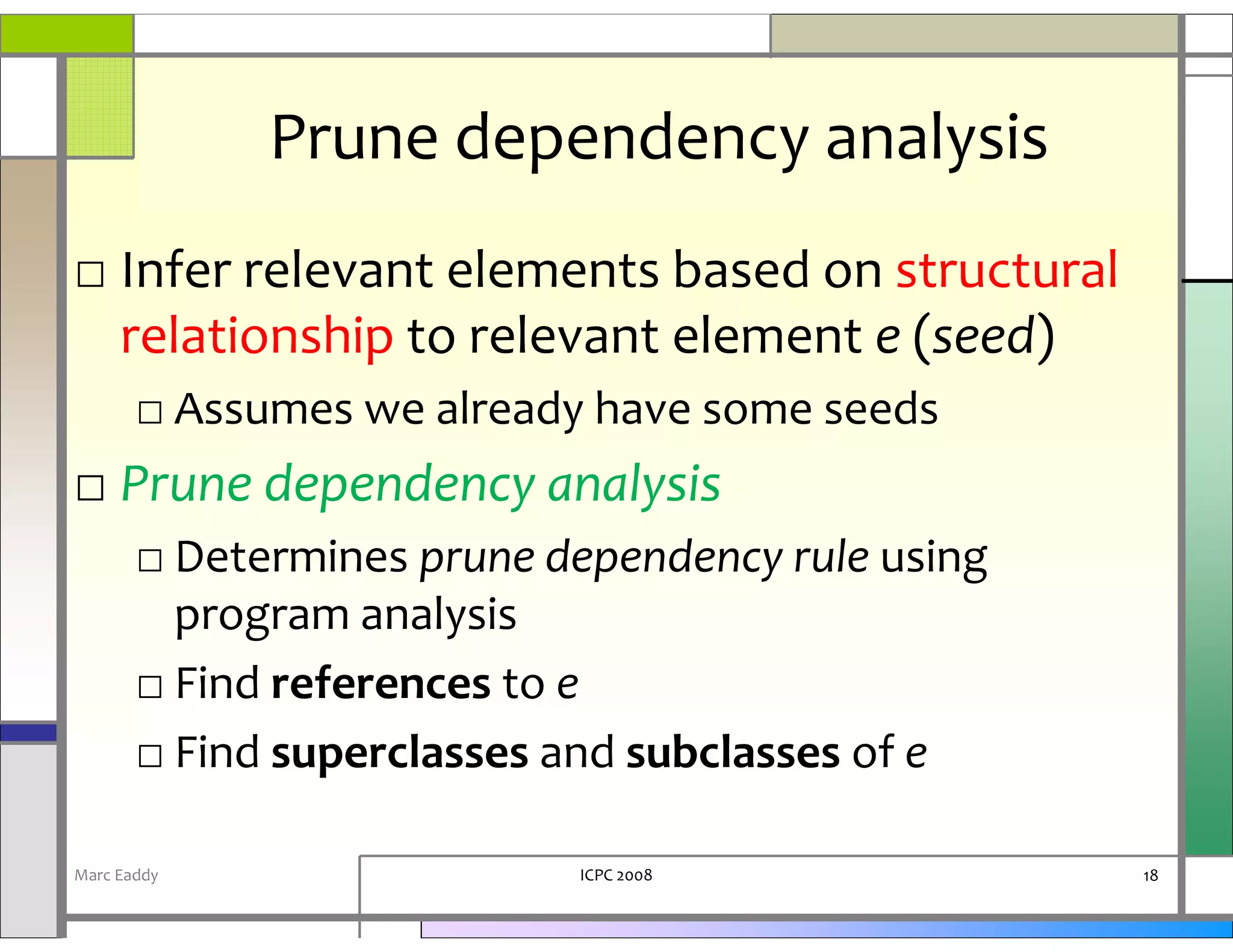

18. Prune dependency analysis
□ Infer relevant elements based on structural
relationship to relevant element e (seed)
□ Assumes we already have some seeds
□ Prune dependency analysis
□ Determines prune dependency rule using
program analysis
□ Find references to e
□ Find superclasses and subclasses of e
Marc Eaddy ICPC 2008 18

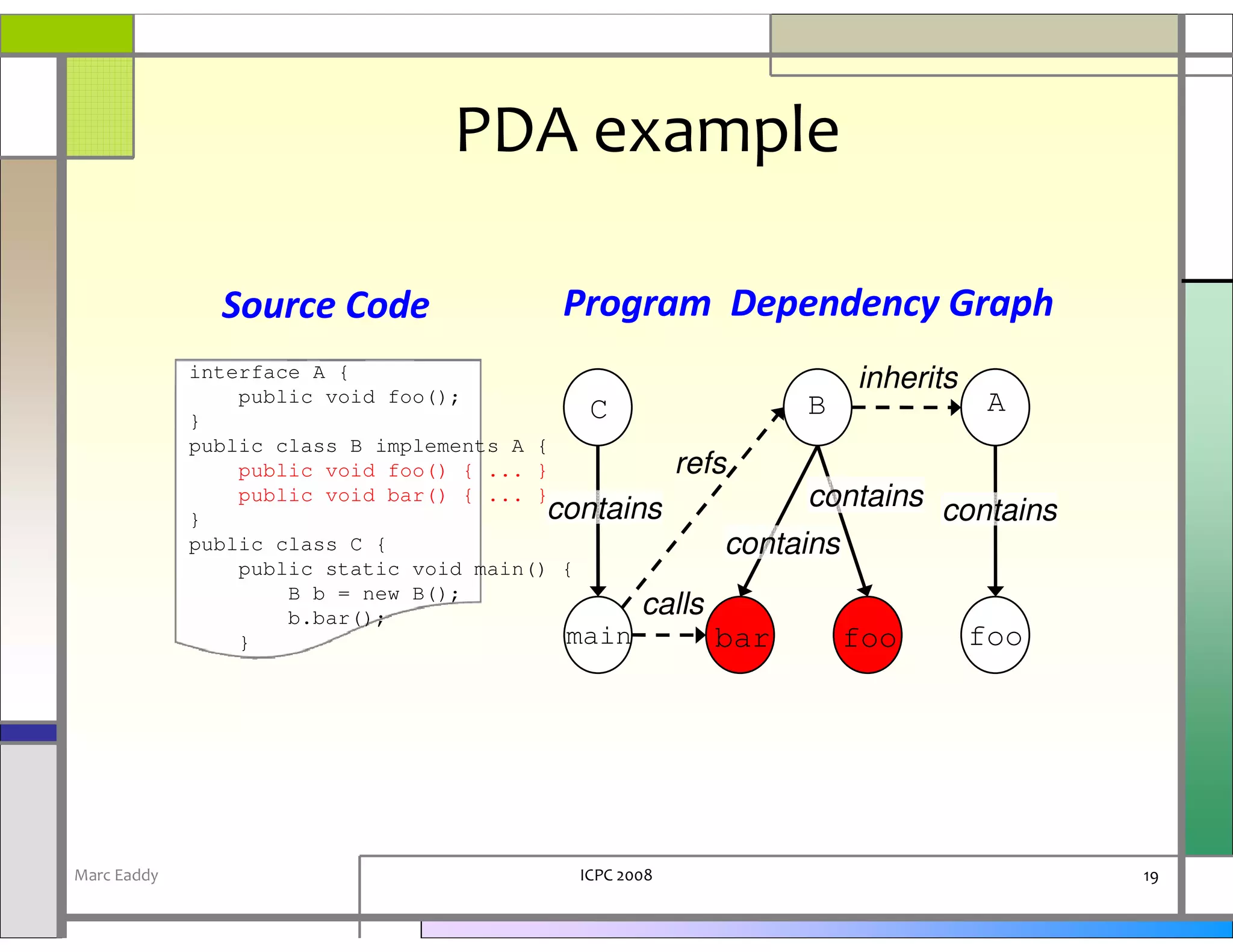

19. PDA example
Source Code Program Dependency Graph
interface A { inherits
public void foo(); A
} C B
public class B implements A {
public void foo() { ... } refs
public void bar() { ... }
contains contains contains
}
public class C { contains
public static void main() {
B b = new B();
b.bar(); calls
} main bar foo foo
Marc Eaddy ICPC 2008 19

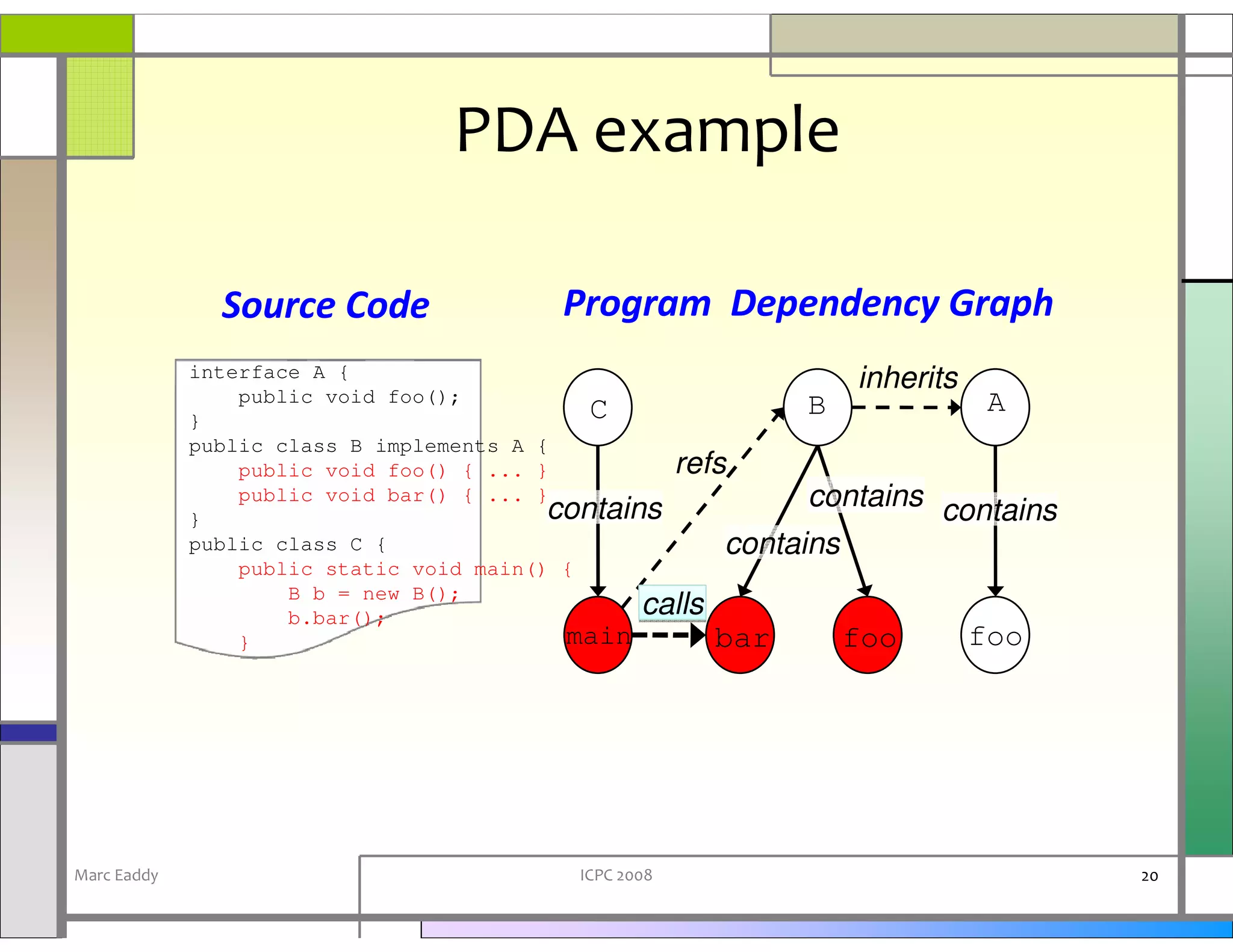

20. PDA example
Source Code Program Dependency Graph
interface A { inherits
public void foo(); A
} C B
public class B implements A {
public void foo() { ... } refs
public void bar() { ... }
contains contains contains
}
public class C { contains
public static void main() {
B b = new B();
b.bar(); calls
} main bar foo foo
Marc Eaddy ICPC 2008 20

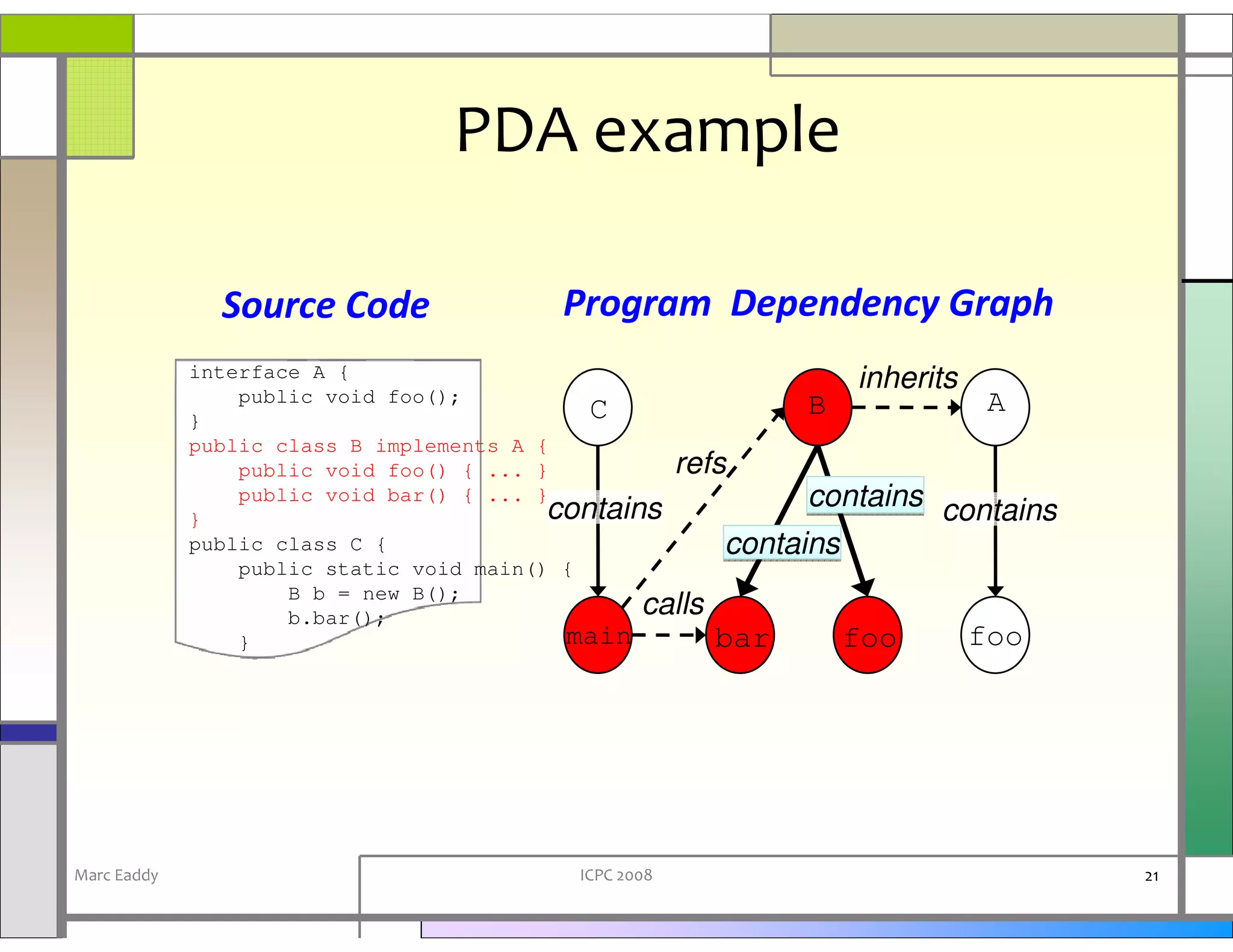

21. PDA example
Source Code Program Dependency Graph
interface A { inherits
public void foo(); A
} C B
public class B implements A {
public void foo() { ... } refs
public void bar() { ... }
contains contains contains
}
public class C { contains
public static void main() {
B b = new B();
b.bar(); calls
} main bar foo foo
Marc Eaddy ICPC 2008 21

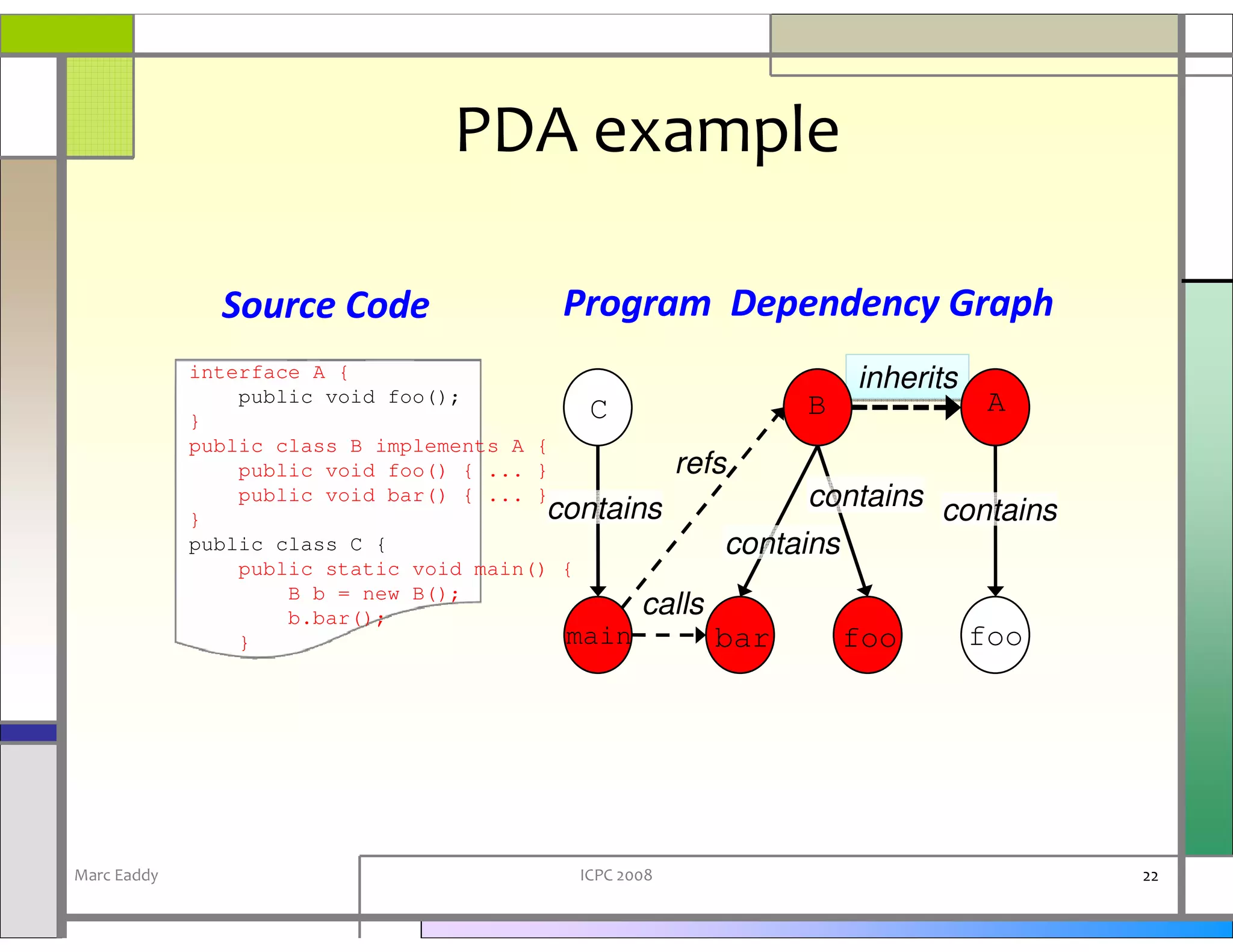

22. PDA example
Source Code Program Dependency Graph
interface A {
public void foo();
inherits
C B A
}
public class B implements A {
public void foo() { ... } refs
public void bar() { ... }
contains contains contains
}
public class C { contains
public static void main() {
B b = new B();
b.bar(); calls
} main bar foo foo
Marc Eaddy ICPC 2008 22

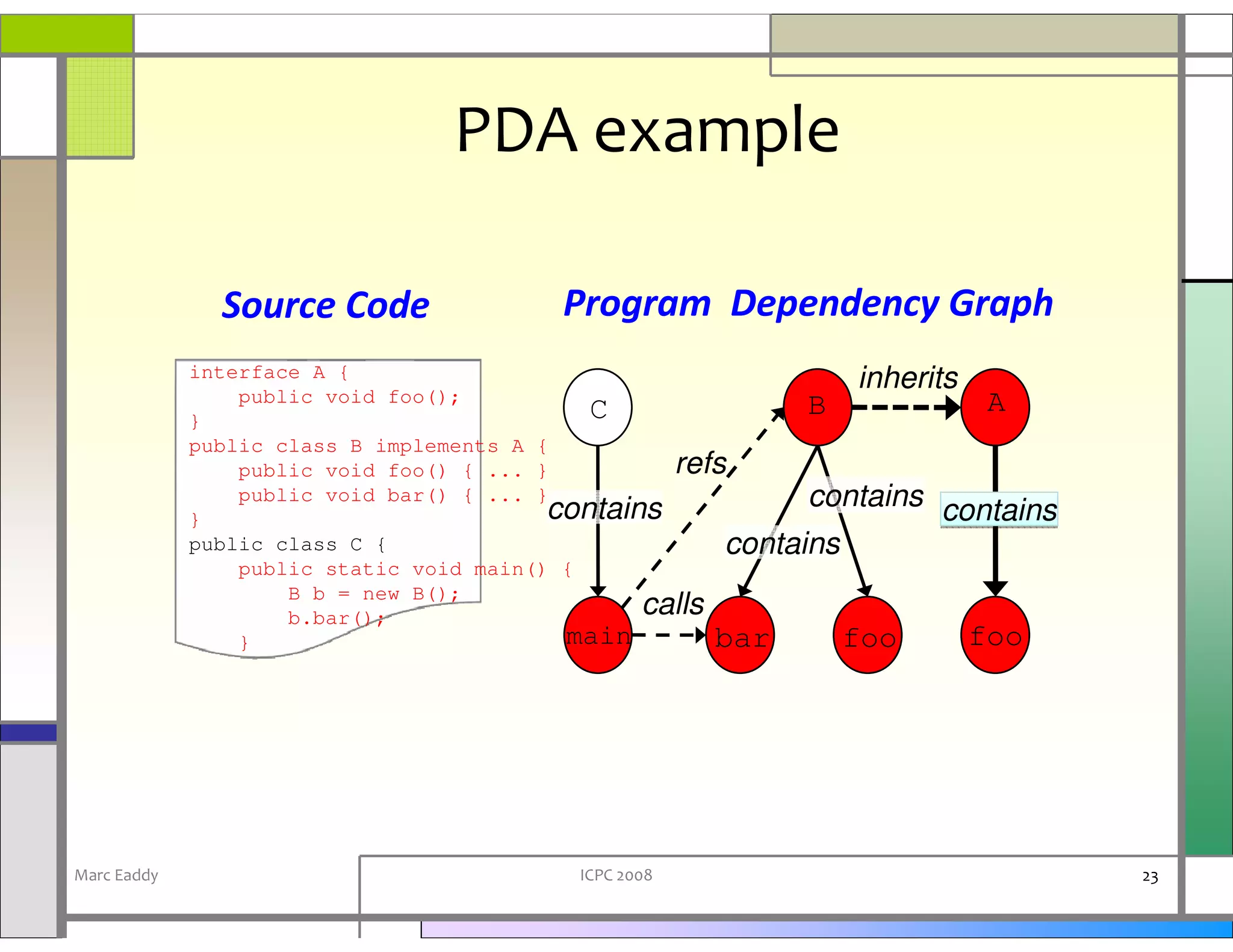

23. PDA example
Source Code Program Dependency Graph
interface A { inherits
public void foo(); A
} C B
public class B implements A {
public void foo() { ... } refs
public void bar() { ... }
contains contains contains
}
public class C { contains
public static void main() {
B b = new B();
b.bar(); calls
} main bar foo foo
Marc Eaddy ICPC 2008 23

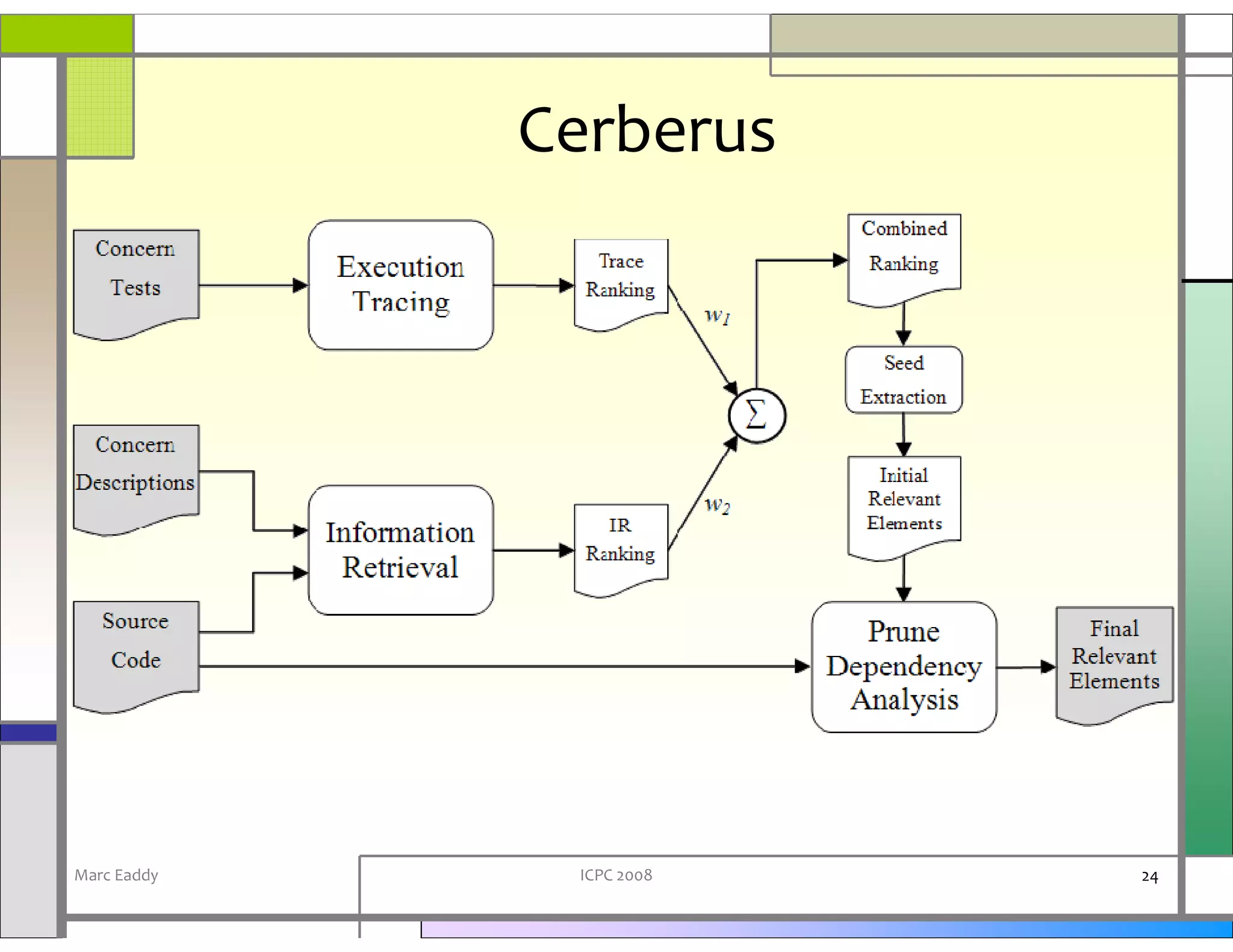

24. Cerberus
Marc Eaddy ICPC 2008 24

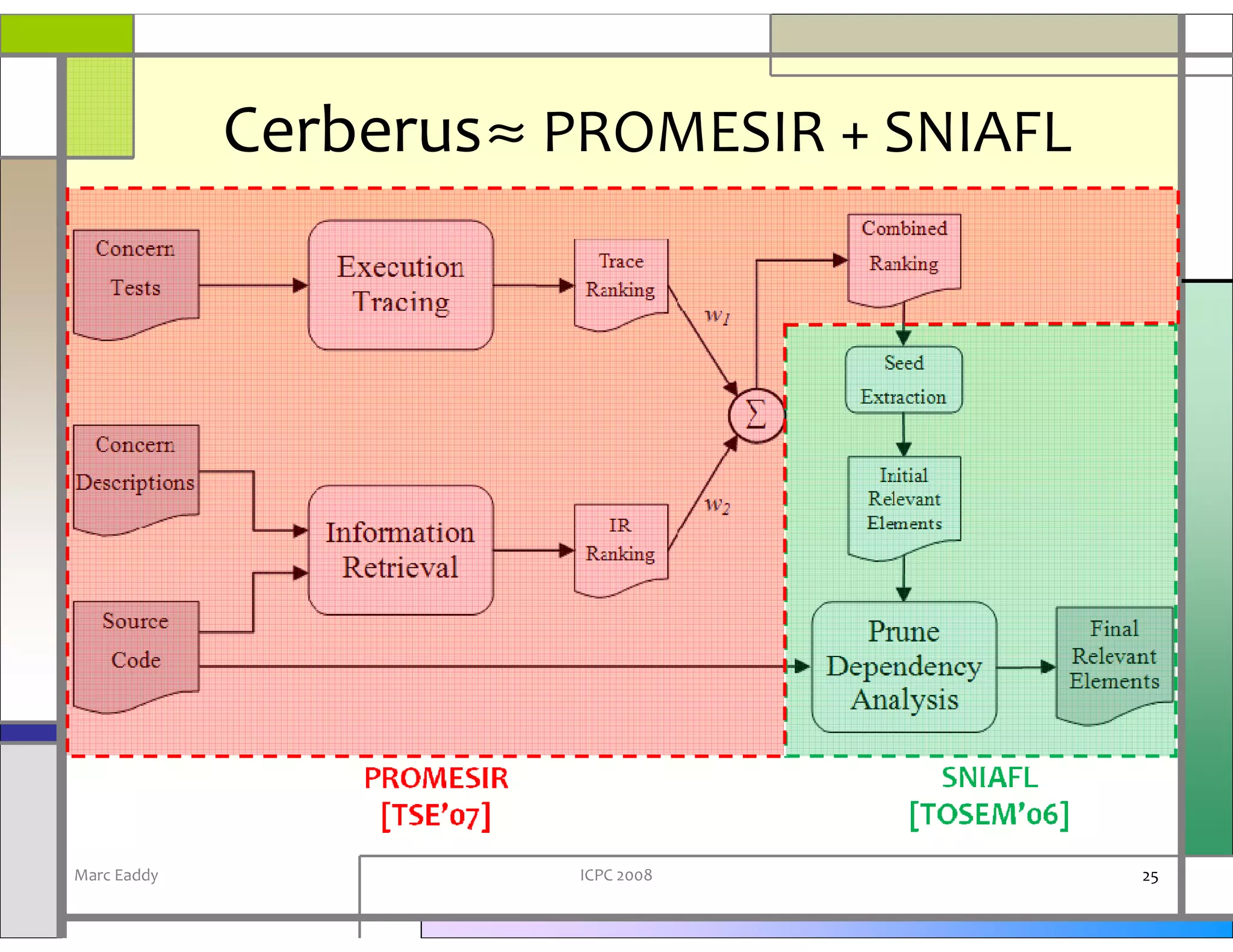

25. Cerberus ≈ PROMESIR + SNIAFL
Marc Eaddy ICPC 2008 25

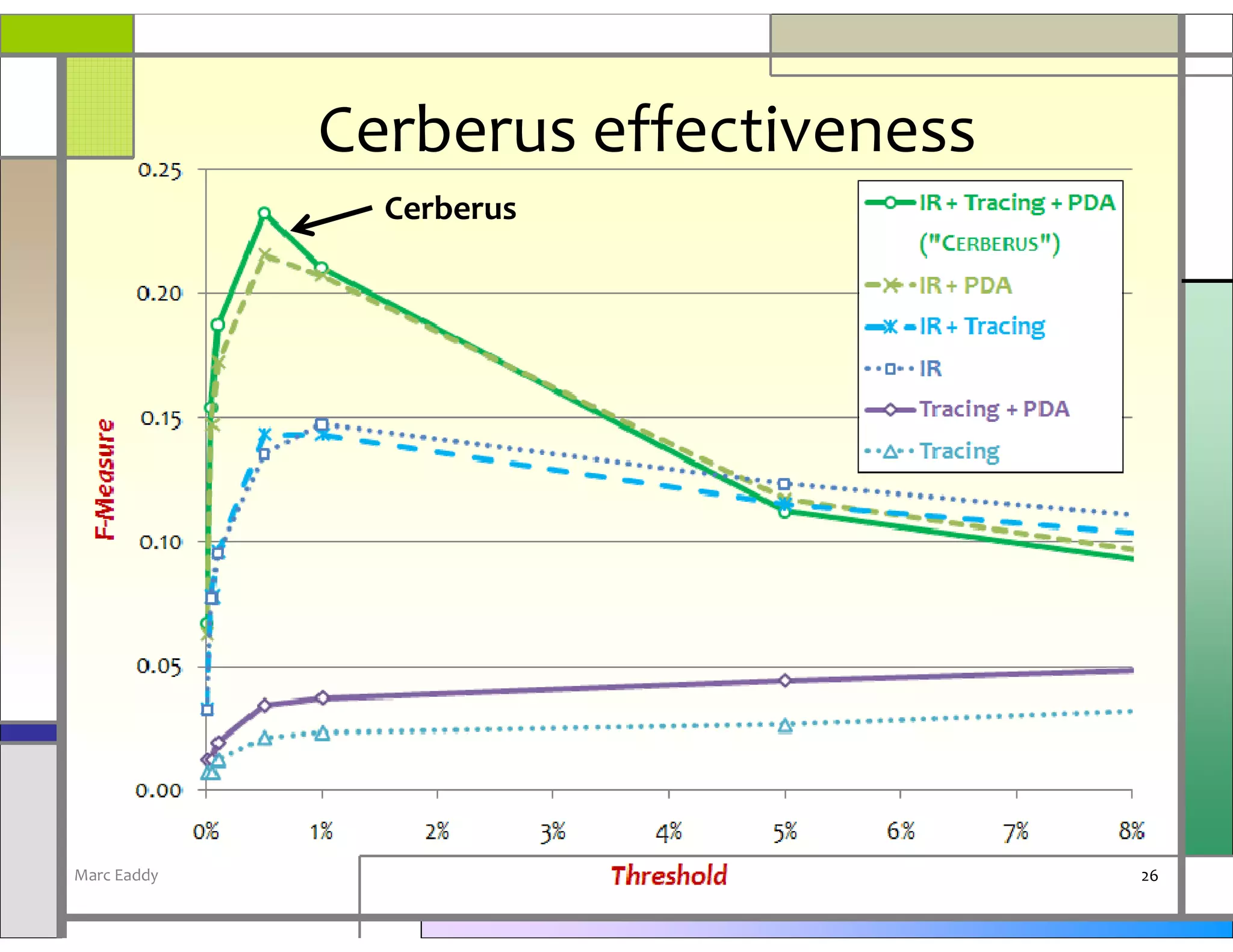

26. Cerberus effectiveness
Cerberus
Marc Eaddy 26

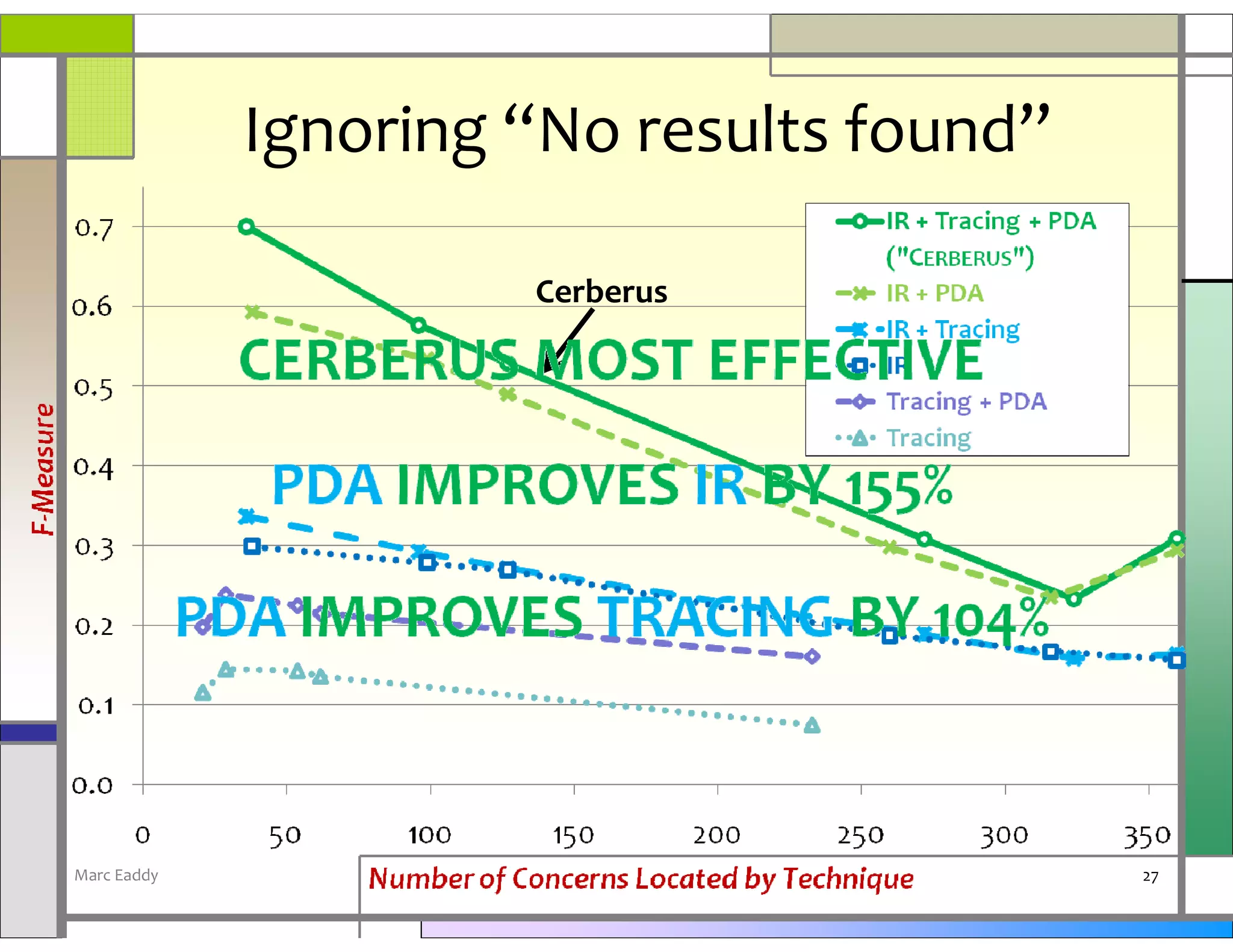

27. Ignoring “No results found”
Cerberus
Marc Eaddy 27

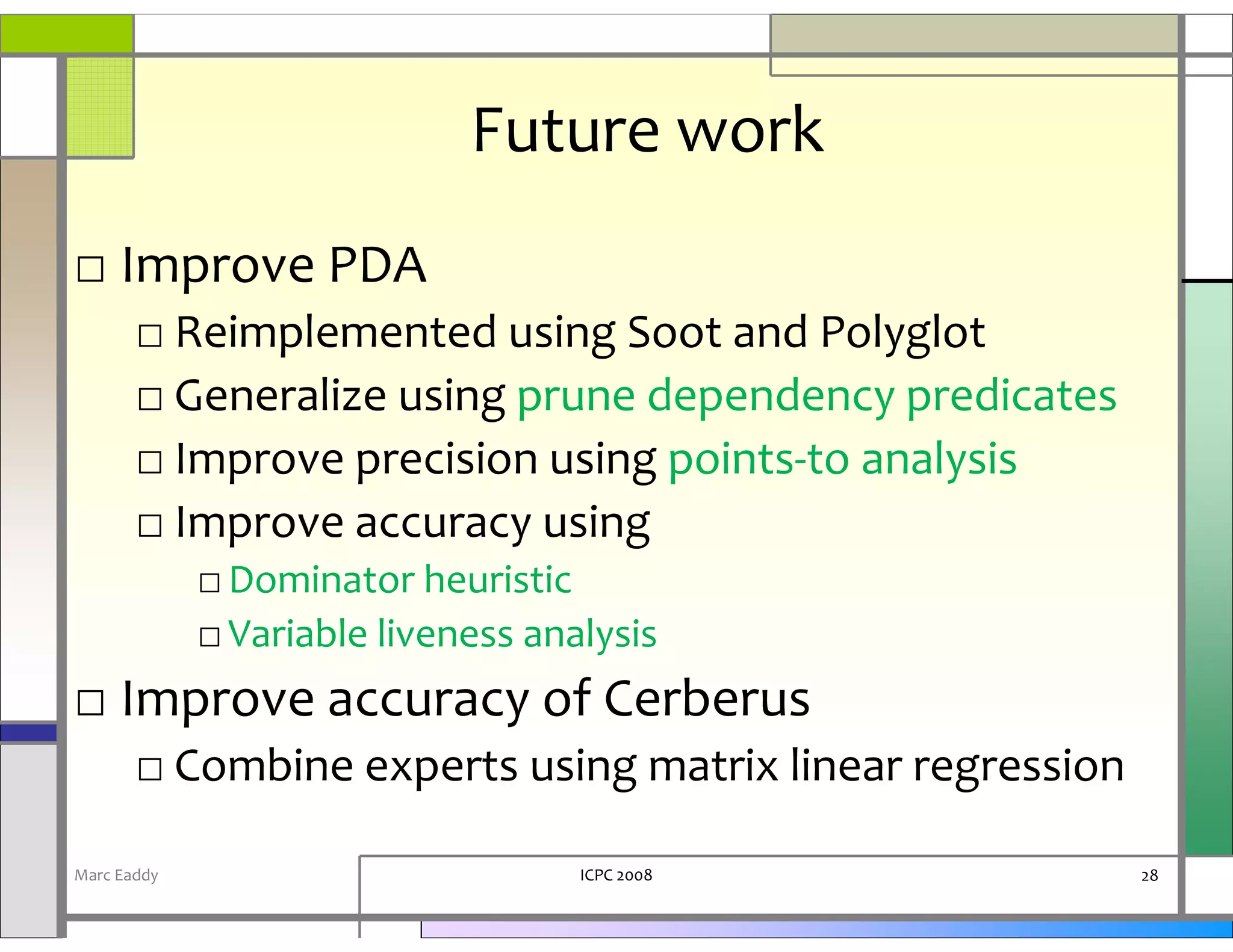

28. Future work
□ Improve PDA
□ Reimplemented using Soot and Polyglot
□ Generalize using prune dependency predicates
□ Improve precision using points-to analysis
□ Improve accuracy using
□ Dominator heuristic
□ Variable liveness analysis
□ Improve accuracy of Cerberus
□ Combine experts using matrix linear regression
Marc Eaddy ICPC 2008 28

29. Cerberus contributions
□ Effectively combined 3
concern location techniques
□ PDA boosts performance of Source Code
interface A {
public void foo();
Program Dependency Graph
C B A
other techniques
}
public class B implements A {
public void foo() { ... } refs
public void bar() { ... }
contains contains contains
}
public class C { contains
public static void main() {
B b = new B();
b.bar();
calls
} main bar foo foo
Marc Eaddy ICPC 2008 29

30. Questions?
Marc Eaddy
Columbia University
eaddy@cs.columbia.edu
Marc Eaddy ICPC 2008 30
