iCharge & iStand

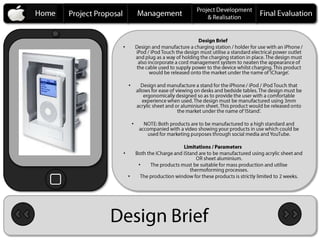

- 1. iCharge & iStand Lucy Usien
- 3. • • • • • •
- 4.
- 5. Key Words Definition Key Words Definition To plan & fashion the form & structure Designed to minimize physical effort Design of something (e.g. an object). Ergonomically Designed & discomfort, & hence maximize Developing & outlining an idea. efficiency. A thin, flat piece of a transparent The making of goods or wares by Acrylic Sheet plastic. Manufacture manual labour or by machinery. Making &/or producing. A thin, flat piece of a silvery metallic Sheet Aluminium An item that holds an iPod whilst it is element. Charging Station/Holder being recharged The production or manufacture of A portable music player. iPhone is a Mass Production goods in large quantities. iPhone/iPod/iPod Touch mobile phone which includes a music player. Standard Electrical Power The typical power point/plug used in Forming of the thermoplastic sheet Outlet Australia. Thermoforming Processes by heating it & then pulling it down onto a surface to mould & shape it. A method that neatly holds & tidies Plug Cord Management System cords. The creation of an item whilst it is in A frame or platform that supports and Production Window Stand high demand/in the peak period. holds an item. Analysis Of Brief
- 6. •Does it incorporatea generic iPod •Does it work on flat surfaces charger •Is it ergonomically appropriate for •Does it use a standard electrical power viewing outlet/plug •Is it able to support the weight of an •Does it incorporate a cord management iPod system •Does it work when the iPod is landscape Functional Criteria •Is it able to support the weight of an iPod Functional Criteria and portrait •Is it space efficient •Is it stable • Is the design minimalist? • Does it incorporate a cord • Is the design minimalist? management system? • Does the design appeal to the • Does the design appeal to the target audience? target audience? • Is the design easy to understand Aesthetic Criteria • Is the design easy to understand & use? & use? Aesthetic Criteria Criteria To Evaluate Success
- 7. •Receive project Note: Manufacturing must be done •Read over project between 25th & 7th •Manufacture products •Highlight key points of project 8th – 14th 17th July •Develop time/action plan August Note: Manufacturing must be done •Identification – find the product need, product purpose, target •Manufacture products market & target market between 25th & 7th •Create graphic design that markets both products •Analyse design brief – find the key word/s and their definitions 18th – 24th 15th – 21st •Create promotional video that includes both products •Develop criteria to evaluate success – include function & (30 seconds in length) July aesthetic criteria August •Research ergonomics •Research existing designs Note: Not finished, do next week. •Evaluate products in both aesthetic & function •Do a PMI for 3 existing designs •Analyse of impact the products have on society & the •Develop 3 ideas for each product 22nd – 23rd environment 25th – 31st •Do a PMI for each of the ideas •Conclude & evaluate overall project July •Select a design for each product & explain why I choose it August •Create developed designs in Rhino •Create a prototype of each design out of cardboard &/or foam •Folio & products due. 1st – 7th •Create a rendered drawing of each product design that 24th August August includes dimensions Time/Action Plan
- 8. • – – –
- 9. Product Name iStuck Designer Fred & Friends Source http://www.amazon.com/Fred-Friends-ISTUCK-Bubble-Phone/dp/B004XT9M1W • Fun, unique design • Humorous Plus • Works when the device is horizontal & vertical • Can be used with other devices (e.g. different brand mobile phones) • Requires two materials to manufacture Minus • Only suitable for a particular target audience • The design incorporates humour Interesting • Product name is humorous and relevant Existing Design - Stands
- 10. Product Name iPlunge Designer Homade Source http://www.worldwidefred.com/iplunge.htm • Works when the device is horizontal & vertical • Can be used with other devices (e.g. different brand mobile phones) Plus • Fun, unique design • Humorous • Small & light = easy to carry & transport • Sturdy • Only suitable for a particular target Minus audience • Requires two materials to manufacture • Product name is humorous and relevant Interesting • The design incorporates humour Existing Design - Stands
- 11. Product Name Spiderpodium Designer Breffo Source http://www.breffo.com/#/buy • Minimalist design • Works with different kinds of Apple products (iPhone, iPod Touch, iPod) Plus • Design could be marketed at a large target audience • Can be adjusted to any angle • Can be placed on any surface (e.g. car headrest, bike) • Design would be difficult to manufacture Minus • Piece of the leg could easily break off • The product work in any angles & position Interesting • A simple design which can be used in multiple environments Existing Design - Stands
- 12. Product Name WallDock Designer DLO Source http://dlo.com/products/view/WallDock_ipod_iphone • Minimalist design • Works with different kinds of Apple products (iPhone, iPod Touch, iPod) Plus • Sturdy • Uses the surrounding environment • Design could be marketed at a large target audience • Does not incorporate a cord management system Minus • iPod could easily be knocked over – design would be safer if it were flat or horizontal • The use of the wall as a support – Interesting something to consider when designing my product Existing Design - Chargers
- 13. Product Name reviveLITE Designer Scosche Source http://www.scosche.com/consumer-tech/product/1676 • Minimalist design • Works with different kinds of Apple products (iPhone, iPod Touch, iPod) Plus • Incorporates a night light • Uses the surrounding environment • Design could be marketed at a large target audience • Does not require a cord • iPod could easily be knocked over – design would be safer if it were flat or horizontal Minus • Night light turns on automatically – could be annoying • The product extends to the side of the power Interesting point rather than sitting the iPod in front of it Existing Design - Chargers
- 14. Product Name WALdok Designer Hernetics Source http://hernkim.com/waldok/ • Minimalist design • Works with different kinds of Apple products (iPhone, iPod Touch, iPod) Plus • Incorporates a speaker • Design could be marketed at a large target audience • Does not require a cord • Taller iPods could easily be knocked over – design would be safer if it were flat or Minus horizontal • The design incorporates multiple materials which would increase the manufacturing cost • The product uses the function of the iPod Interesting whilst charging Existing Design - Chargers
- 15. • Simple, minimalistdesign • Sleek & professional aesthetics • Easy to manufacture Plus • Ergonomically designed • Suitable for a large target audience • Only holds iPod vertically • Design is quite simple, too simple? Minus • Could be unbalanced • Acrylic might not stay glued together • Easy to mass produce • Simple yet effective design Interesting • Uses the same base shape stacked together to create thickness iStand Design One
- 16. • Works whenthe device is horizontal & vertical • Minimalist design • Sleek & professional aesthetics Plus • Easy to manufacture • Ergonomically designed • Suitable for a large target audience • Sturdy • Only works for one device (can’t Minus work for both iPhone & iTouch) • Design is quite simple, too simple? • Easy to mass produce Interesting • Simple yet effective design iStand Design Two
- 17. • Works whenthe device is horizontal & vertical • Can be used with other devices (e.g. different brand mobile phones) Plus • Simple, minimalist design • Easy to manufacture • Suitable for a large target audience • Ergonomically designed • Very basic design, perhaps over simple Minus • Potentially the design could fall over due to uneven distribution of weight • Simple yet effective design Interesting • Easy to mass produce iStand Design Three
- 18. • Simple design– easy to manufacture Plus • Can be mass-produced • Uses interesting leaf markings • Doesn’t really suit target audience Minus • Limited target audience appeal – would appeal more to females than males • Could completely cut out the leaf Interesting markings – potentially interesting design idea iCharge Design One
- 19. • Minimalist design • Simple design – easy to Plus manufacture • Can be mass-produced • Suitable for a large target audience • Very simple design – too simple? Minus • Similar designs exist • Matches with iCube iStand design – Interesting could produce a set iCharge Design Two
- 20. • Minimalist design • Simple design – easy to manufacture Plus • Can be mass-produced • Suitable for a large target audience • Very space efficient design • Very simple design – too simple? • Similar designs exist Minus • Potentially unstable • iPod could easily be knocked over • Uses the environment around it to Interesting support the iPod iCharge Design Three
- 22. Hole 1 Cube Length = 80mm Height = 90mm Width = 60mm Depth = 3mm Bends = 90° Hole 3 Hole 4 Holes Length = 62mm Height = 10mm Depth = 3mm Hole 1 15mm from back Hole 2 Hole 2 15mm from front Hole Depth Hole 3 25mm from top 15mm from side 45° angle Hole 4 25mm from top 15mm from side 45° angle
- 23. Base Length = 110mm Width = 55mm Depth = 3mm Curve = 90° 10mm Support Length = 110mm Width 1 = 70mm Width 2 = 55mm Width 3 = 50mm Depth = 3mm Width 1 Hole Width = 50mm Height = 50mm Depth = 3mm Width 2 Support Width 3 Base
- 24.
- 25. Final Design -iStand
- 26. Working Drawing -iStand
- 27. Final Design -iCharge
- 28. Working Drawing -iCharge
- 29. Final Product -iStand
- 30. Final Product -iCharge
- 31. Marketing - A4Advertisement
- 32. Marketing - VideoAdvertisement
