NON IBM OFFICIAL SLIDE DECK - Just my point of view if the IBM System Networking Portfolio Update as of June 2014

1. Jun 2014
IBM System Networking
Angel Villar Garea - System Networking Presales, SPGI
angel.villar@es.ibm.com @AVillarGarea

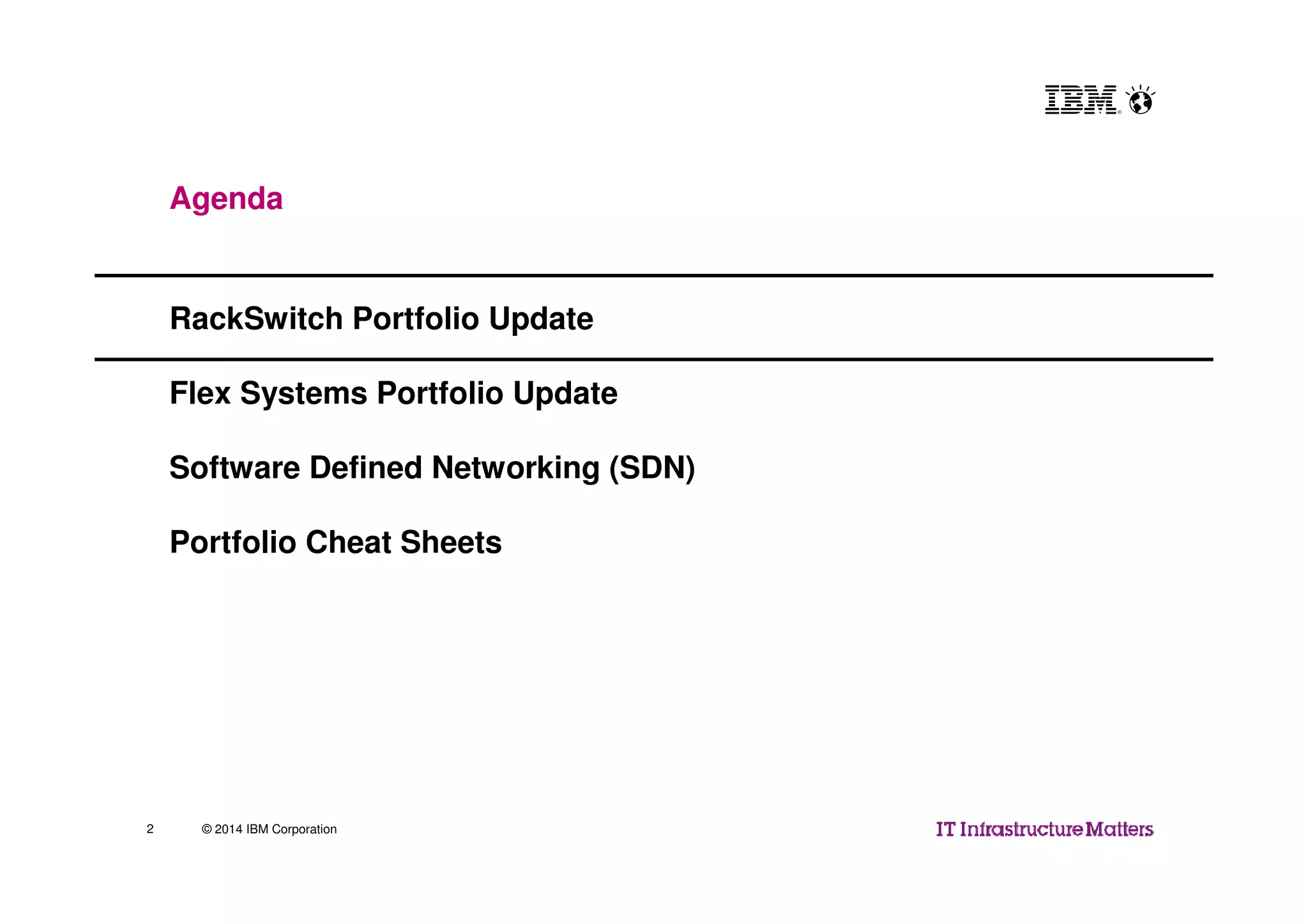

2. © 2014 IBM Corporation2
RackSwitch Portfolio Update
Flex Systems Portfolio Update
Software Defined Networking (SDN)
Portfolio Cheat Sheets
Agenda

3. © 2014 IBM Corporation3
IBM RackSwitch G7028

4. © 2014 IBM Corporation4
IBM RackSwitch G7028
Learn more!!
G7028 info: http://www.redbooks.ibm.com/abstracts/tips1133.html
IBMRackSwitchG7028
Cost Effective 1GbE Layer 2 Switch
– For Small and Medium-Sized DCs
– 10GbE to upstream network
– Matches System x, Power System and Flex System airflow
Hardware details
– 24 x 1Gb RJ45 ports
– 4 x 10GE SFP+ uplink ports
– Optional external power source providing redundancy
– Non-blocking, cut-through architecture, wire-speed
Member of System Networking Family
– Same consistent IBM System Networking Operating System
– IBM standard 3-year hardware and software warranty

5. © 2014 IBM Corporation5
• 17.3” wide, 15” deep, 1 RU high
• 1 RS232 Serial Console Port
• USB port
• Out of band (OOB) Ethernet management port
1U
Fan hole 1Fan holes 2 & 3RPS to G7028 DC
connector
AC inlet
• Internal Power Supply
• Internal single PSU, 90V to 265V AC, 47 to 63 Hz.
• Optional external redundant power supply
• 90V to 265V AC, 47 to 63Hz
24x RJ45 port support 10/100/1000 Mbps 4x SFP/SFP+
port support
1/10 Gbps
OOB Ethernet port
RS232 console port
G7028 – Front Panel
USB port
Reset button
System Status LED
1U
G7028 – Rear Panel
IBM RackSwitch G7028 Specifications

6. © 2014 IBM Corporation6
• IBM’s RPS can support up to four G7028 switches
• Two DC-to-DC cables come standard
• Additional DC to DC cables can be ordered
AC power
cable for
redundant
power supply
system
Four DC-to-DC Power Cables
(Connects redundant power
supply to G7028 )
Redundant power
supply (RPS)
IBM RackSwitch G7028 Redundant Power Supply (RPS)

7. © 2014 IBM Corporation7
IBM RackSwitch G8332

8. © 2014 IBM Corporation8
IBM System Networking RackSwitch G8332 – Front View
24 QSFP+ Ports (Support 40GbE or break
out into 4x10Gb connections)
1U
RJ-45 Port
USB Port
System Status LEDs
Reset ButtonRS-232 Port
USB port
Reset button
System Status LED
8 Dedicated QSFP+
PortsG8332
• 32 QSFP+ ports, 40GbE
• One 10/100/1000 Ethernet RJ45 port for out-of-band management
• One USB port for mass storage device connection
• One fixed mini-USB Console port
• DCB/CEE

9. © 2014 IBM Corporation9
IBM RackSwitch G8332 – Rear View - Power & Cooling
• Low power
• Hot swappable, redundant power supplies standard (Two)
– Front-to-Rear & Rear-to-Front versions
– Designed to keep power cabling at one side of the rack
• Hot swappable, redundant Fans
– 3 required, 4 for redundancy (all come standard)
– Server like airflow (Front-to-Rear & Rear-to-Front versions)

10. © 2014 IBM Corporation10
Agenda
RackSwitch Portfolio Update
Flex Systems Portfolio Update
Software Defined Networking (SDN)
Portfolio Cheat Sheets

11. © 2014 IBM Corporation11
Flexible Port Mapping – Starting with IBM Networking OS 7.8
Bay1 – Base license = 24 ports
Bay2 – Base license = 24 ports
1 2 3 4 5 6 7 8 9 10 11 12 13 14
1 2 3 4 5 6 7 8 9 10 11 12 13 14
4-port Node
Bay 1
* Flexible port mapping is not available in Stacking mode
Applies to EN2092, EN4093R, CN4093, SI4093
Reassign ports as needed:
• Each license is a pool of ports
• Assign internal and external 10 GbE ports as needed
• Trade off four 10 GbE ports for the use of an external 40 GbE port

12. © 2014 IBM Corporation12
Flex System Interconnect Fabric
What is it?…
Simple Ethernet Fabric cluster
Loop free design with no spanning tree
Scalable multi-chassis, multi-rack interconnect fabric infrastructure
Server-to-server traffic stays inside the chassis
Importance…
Rapidly deploy additional chassis or racks – configure the Fabric once
95%1 reduction in the nº of network devices required to manage a 9 chassis, 3 rack configuration
ZERO2 down time for service upgrades
ZERO3 additional Flex System CAPEX – use existing SI4093 and G8264CS Flex System HW
Support for Ethernet, iSCSI and FCoE protocols
Proven interoperability with 3rd party core network like Cisco and Juniper
Simplified Fabric Infrastructure to accelerate deployment with optimum efficiency
1
One G8264CS Switch vs 20 Devices (2 G8264CS’s and 18 SI4093’s)
2
Master switch provides in service upgrades to all 18 devices
3
G8264CS and SI4093 are the only modules enabled for the fabric infrastructure
Learn more!!
FSIF info: http://www.redbooks.ibm.com/Redbooks.nsf/RedbookAbstracts/tips1183.html

13. © 2014 IBM Corporation13
IBM Flex System Interconnect Fabric Connectivity
Fabric

14. © 2014 IBM Corporation14
IBM Flex System Interconnect Fabric Connectivity

15. © 2014 IBM Corporation15
VM migration and network performance vs UCS
DOWNLOAD LINK:
http://public.dhe.ibm.com/common/ssi/ecm/en/qcl12382usen/QCL12382USEN.PDF

16. © 2014 IBM Corporation16
Agenda
RackSwitch Portfolio Update
Flex Systems Portfolio Update
Software Defined Networking (SDN)
Portfolio Cheat Sheets

17. © 2014 IBM Corporation17
Advances in technology and computing intelligence are reshaping the IT
landscape and creating new market dynamics
Mobile
Cloud
Social
Internet of things

18. © 2014 IBM Corporation18
Information technology requirements have changed
Increasing
Complexity
Heterogeneous environments
Organizational silos
Skill gaps
Massive
Scale
Users, transactions, data
Rapid demand cycles
Unpredictable
Rapid
Pace
Evolving ecosystem
Minimize time to value
Accelerating business needs

19. © 2014 IBM Corporation19
Storage
Firewall
Web
Server
Database
Application
Server
Intrusion
Prevention
Hours
to Days
Tenant 1 cloud
Network Hypervisor
Tenant 2 cloud
Site A Site B
Minutes
Were are we today?

20. © 2014 IBM Corporation20
Software Defined Environments
Software
Defined
Networking
Software
Defined
Networking
Software
Defined
Storage
Software
Defined
Storage
Software
Defined
Compute
Software
Defined
Compute

21. © 2014 IBM Corporation21
Physical
Network
Configuring the physical network
Manual physical network configuration change
Time consuming network provisioning
Server virtualization gated by network provisioning
Existing Network
VMVMVMVM

22. © 2014 IBM Corporation22
Networking is an anchor
Statically provisioned – slow
Box level scale
Limited mobility
PhD in vendor hardware
Hardware dependent
Underutilized & overly redundant
VM VM VM VM VM
Virtual Machines aren’t just connected to the physical network,
they are chained to it!!!

23. © 2014 IBM Corporation23
IBM SDN VE – Overlays
SDN VE
Environment
Underlay IP Network
VM VM
IBM SDN VE vSwitch
VM
Hypervisor
VM
Hypervisor
VM VM
IBM SDN VE vSwitch
VMVM
SDN VE Routing
DMAC
(VM)
SMAC
(VM)
SIP DIP Payload
Application
Data
Payload for physical network: Regular packet
SDN VE Header
(VXLAN)
Virtual L2
network
DMAC
(Physical)
SMAC
(Physical)
SIP
(Physical IP)
DIP
(Physical IP)
UDP
Switching/Routing in physical network
Virtual Appliance
IBM SDN VE
Management
Console

24. © 2014 IBM Corporation24
IBM SDN VE - Unified SDN Architecture
OpenFlowNetwork Virtualization
Unified Network ControllerSDN VE
Platform
Unified North Bound API
IP Network OpenFlow Network
Physical network independent virtualization:
IP or OpenFlow network
Multi-hypervisor network
virtualization
OpenFlow network Control
OpenStack
Integration (Neutron)
SDN Apps (IBM or ecosystem)

25. © 2014 IBM Corporation25
A family of products for a simplified SDN experience
• Unified architecture combining the benefits of network virtualization and OpenFlow fabrics
• Built on open standards – OpenDaylight
• Enabled for integration with OpenStack managers like SmartCloud Orchestrator
• An extensible software platform for delivering network solutions by an ecosystem of
collaborating partners
Learn more!!
http://www.ibm.com/systems/networking/sdn/

26. © 2014 IBM Corporation26
IBM SDN Partner Ecosystem
OpenFlowNetwork Virtualization
Unified Network AbstractionSDN VE
Platform
SDN Apps (IBM or ecosystem)
Unified North Bound API
Firewalls
VPN
Load Balancers
Application Delivery
SDN Solutions
SDN
Solutions
Routers
Optical SDN
Network
Monitoring
Intrusion Detection

27. © 2014 IBM Corporation27
IBM SDN Partner Ecosystem
SDN
Solution
Partners
Firewalls
VPN
Load Balancers
Application Delivery
Intrusion Detection
Routers
Optical SDN
Network
Monitoring
SDN
Solutions
SDN Solutions
Learn more!!
http://www.ibm.com/systems/networking/sdn/solutions.html

28. © 2014 IBM Corporation28
Agenda
RackSwitch Portfolio Update
Flex Systems Portfolio Update
Software Defined Networking (SDN)
Portfolio Cheat Sheets

29. © 2014 IBM Corporation29
IBM RackSwitch
G8000
IBM RackSwitch
G8052
R & F models R & F models
• 44 ports 1G, RJ-45
• 4 ports 1G, SFP
• 4 SFP+ uplinks optional
• Redundant fans and
power supplies
• Stacking
• Line-rate performance,
176 Gbps (full duplex)
• 3 year warranty and 3
year SW upgrade license
• RIP, OSPF, BGP, IPv6
IBM RackSwitch
G8124E
R & F models
IBM RackSwitch
G8264
R & F models
• 48 ports 1G, RJ-45
• 4 ports 10G, SFP+
uplinks standard
• 1.8 microseconds
latency
• Hot-swap redundant
fans & power supplies
• Line-rate performance,
176 Gbps (full-duplex)
• 3 year warranty and 3
year SW upgrade
license
• RIP, OSPF, BGP, IPv6
• 24 ports SFP+ 1/10G
• Low Latency – 570ns
• Redundant fans and
power supplies
• Line rate throughput
480Gbps
• 3yr warranty and SW
upgrade license
• RIP, OSPF, BGP, IPv6
• 48 ports 1/10G SFP+
• 4 ports 40G QSFP+
• Low Latency < 1 microsec
• Hot-swap redundant fans
& power supplies
• Line rate throughput 1.28Tb
• 3yr warranty and SW
upgrade
• RIP, OSPF, BGP, IPv6
• OpenFlow
VMready: The industry’s 1st
automated Virtual Machine-aware networking
Energy Efficient, Choice of Front-to-Rear or Rear-to-Front Airflow
Lossless Ethernet (CEE/DCB)
1Gb/10Gb 10Gb 10Gb/40Gb
• 24 ports 1G, RJ-45
• 4 ports 10G, SFP+
uplinks standard
• Layer-2 only
• 3.3 microseconds
• Optional external
redundant power
• 3 year warranty & 3 year
SW upgrade license
IBM RackSwitch
G7028
Rear-to-Front only
Layer-2 only
Entry level
IBM Virtual Fabric
IBM RackSwitch Cheat Sheet 1/2

30. © 2014 IBM Corporation30
VMready
VMready &
Virtual Fabric
Energy Efficient, Choice of Front-to-Rear or Rear-to-Front Airflow
Lossless Ethernet (CEE/DCB)
IBM RackSwitch
G8316
R & F models
• 16 ports 40G QSFP+
(option: 64x10Gb ports)
• Low Latency < 1 microsec
• Hot-swap redundant fans &
power supplies
• Line rate thoughput 1.28Tb
• 1yr warranty and SW upgrade
license
• RIP, OSPF, BGP, IPv6
• Openflow
IBM RackSwitch
G8264CS
R & F models
• 12 OmniPorts (10GbE or
8Gb FC)
• 36 SFP+ Ports (10Gb/1Gb)
• 4 QSFP+ ports (40Gb/10Gb)
• FCoE, iSCSI
• Line rate Ethernet
• FF-BB-5 Compliant
• Full Fabric Support
• NPIV Transparent mode
• Hot-swap redundant fans &
power supplies
• 3yr warranty and SW
upgrade
• RIP, OSPF, BGP, IPv6
10Gb/40Gb
IBM RackSwitch
G8264T
R & F models
IBM RackSwitch
G8332
R & F models
• 32 ports 40G QSFP+
(Supports up to 96x10Gb)
• Low Latency < 600 nanosec
• Hot-swap redundant fans &
power supplies
• Line rate throughput 2.56Tb
• 1yr warranty and SW upgrade
license
• RIP, OSPF, BGP, IPv6
• OpenFlow
• VXLAN Gateway
40Gb
• 48 10GBaseT RJ45 ports
• 4 ports 40G QSFP+
• Latency 3.2 microsec
• Hot-swap redundant fans
& power supplies
• Line rate throughput 1.28Tb
• 3yr warranty and SW
upgrade
• RIP, OSPF, BGP, IPv6
• OpenFlow
IBM RackSwitch Cheat Sheet 2/2

31. © 2014 IBM Corporation31
EN4093/EN4093R
10Gb Scalable Switch
CN4093
10Gb Converged Scalable Switch
Base =
10x 10GbE SFP+
#2 =
4x10GbE
#1 =
2x40GbE
1GbE
Mgmt
• Triple Density 64-port switch
• 42 internal 10Gb ports and 22
external 10Gb ports
• Base: 14 internal 10Gb ports; 10
external SFP+ 10Gb ports
• Upgrade 1: 14 internal 10Gb ports; 2x
40Gb uplinks that can be used as 4x
10Gb ports
• Upgrade 2: 14 internal 10Gb ports; 4
external SFP+ 10Gb ports
• Upgrade 2 requires Upgrade 1
• VMready and 802.1Qbg EVB
• VLAG and Stacking
• CEE/DCB/FCoE
• Triple Density 64-port switch
• Up to 12 external programmable IBM
Omm Omni Ports internal
• Base: 14 internal 10 GbE ports; 2
external 10 GbE SFP+ ports and 6
external Omni Ports
• Upgrade 1: 14 additional internal ports and
2 external 40 GbE QSFP+ uplink ports
• Upgrade 2: 14 additional internal ports and
6 additional external Omni Ports
• Upgrades can be applied independently
• vNICs and 802.1Qbg EVB
• CEE/DCB/FCoE
• Direct attach FCoE,
FCoE multi-hop, FC Forwarder
• FC Features: NPIV, FC Services, N Port, F
port, E port, Native FC connectivity to FC
SANs (using NPIV mode)
Base =
2x 10GbE SFP+
6x OmniPorts
#1 =
2x40GbE
#2 =
6x OmniPorts
SI4093
10Gb System Interconnect
Base =
10x 10GbE SFP+
#2 =
4x10GbE
#1 =
2x40GbE
1GbE
Mgmt
• Triple Density 64-port module
• 42 internal 10Gb ports and 22
external 10Gb ports
• Base: 14 internal 10Gb ports; 10
external SFP+ 10Gb ports
• Upgrade 1: 14 internal 10Gb ports; 2x
40Gb uplinks that can be used as 4x
10Gb ports
• Upgrade 2: 14 internal 10Gb ports; 4
external SFP+ 10Gb ports
• Upgrade 2 requires Upgrade 1
• Loop-free. No STP.
• Flex chassis like one big server
• CEE/DCB/FCoE
Flex Systems Portfolio Cheat Sheet 1/3

32. © 2014 IBM Corporation32
EN6131
40Gb Ethernet Switch
• Single Density 40GbE switch
• 14 internal & 18 external 40GbE ports
• Layer-2 only
• Low-latency < 0.7 µs
• Ideal for high speed trading, Web 2.0,
virtualization and cloud computing
EN2092
1Gb Scalable Switch
• Dual Density 52-port switch
• 28 internal 1Gb ports and 20 external
1Gb ports plus 4 external 10Gb ports
• Base: 14 internal 1Gb ports and 10x
1Gb RJ45 uplinks
• Upgrade 1: 14 internal 1Gb ports and
10 external 1Gb RJ45 ports
• Upgrade 2: 4x 10Gb uplinks
• Upgrades can be applied independently
• 10Gb SFP+ uplinks can function at 1Gb
or 10Gb
• L2/L3 Ethernet functionality
• VMReady
BASE: 10x RJ-45
1GbE uplink Ports #1 – 4x 10Gb#2 – 10x 1Gb
Brocade EN4023
10GbE Switch
• Brocade VCS switch
• 42 x10Gb internal ports
• 14 x10Gb and 2 x 40Gb external ports
• Dynamic Ports on Demand (DPOD),
ports are licensed as they come online
• Upgrades can be applied in any order
Flex Systems Portfolio Cheat Sheet 2/3

33. © 2014 IBM Corporation33
Cisco Fabric Extender B22
• Cisco Nexus B22 Fabric Extender for
IBM Flex System
• 14 x 10Gb internal ports
• 8 x 10Gb uplinks
• Requires upstream Nexus 5548/96 or
6004
EN4091
Unmanaged Passthru
• Unmanaged 10GbE Pass-through
module
• 14 Internal 1/10Gb server ports
• 14 External SFP+ ports (1/10Gb)
Flex Systems Portfolio Cheat Sheet 3/3

34. © 2014 IBM Corporation34
ibm.com/networking
Thank You!
Angel Villar Garea - System Networking Presales, SPGI
angel.villar@es.ibm.com @AVillarGarea
