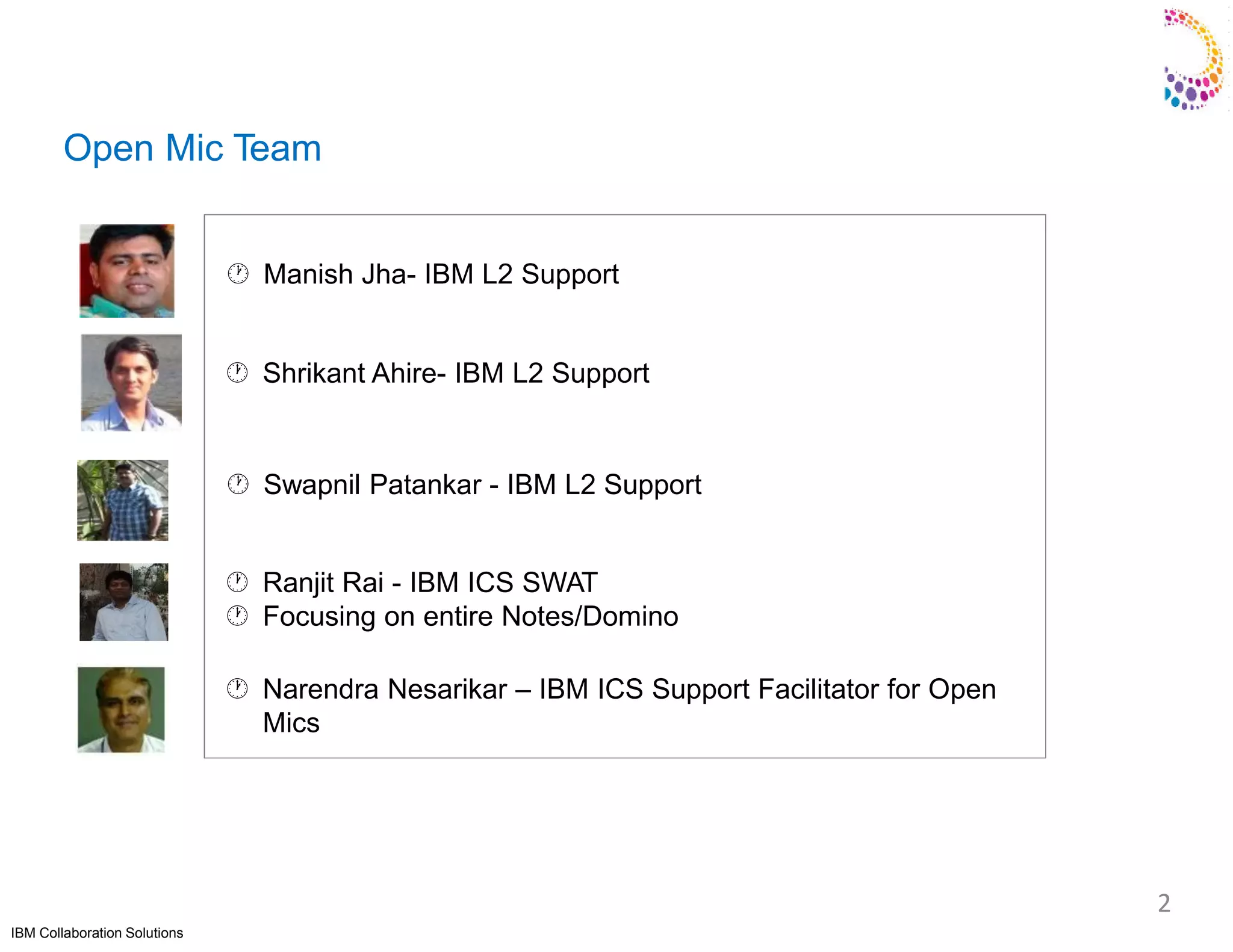

2. Open Mic Team
Ranjit Rai - IBM ICS SWAT
Focusing on entire Notes/Domino
Narendra Nesarikar – IBM ICS Support Facilitator for Open
Mics
IBM Collaboration Solutions
Swapnil Patankar - IBM L2 Support
2
Manish Jha- IBM L2 Support
Shrikant Ahire- IBM L2 Support
3. Agenda
About IMSMO for On premises & Features
Prerequisites for IMSMO
Architecture information on working of IMSMO
IMSMO Server Installation details with snaps and server side configuration
Installing Client side IMSMO Plugin Setting up Outlook Client & How to use
features in Outlook
Information on basic troubleshooting and some common issues.
IBM Collaboration Solutions
3
4. About IMSMO for On premises & Features
The solution provides you with Mail, Calendar, and Contacts capabilities that
allow you to work with your IBM Notes mail directly in your Microsoft Outlook
interface.
List of features available in Microsoft Outlook using IMSMO :
Mail with unread mark and folder synchronization capability
Calendar synch with free time look and scheduling
Contacts synch with your Notes Mail File
Setting up Out of Office for Notifying people when you're out of the office
Delegation feature to Give someone access to your mail file
Mail Quota indicator to See how close your mail file is to the size limit
Encrypting or signing messages using Notes ID Encryption
IBM Collaboration Solutions
4
5. Prerequisites for Installing IBM Mail Support for Microsoft
Outlook
Server Software Requirement :
64-bit IBM Domino® 9.0.1 with Fix Pack 6 or later.
Server Hardware Requirement :
Supported on Windows , AIX and Linux operating systems.
Detailed information on OS available :
http://www.ibm.com/support/knowledgecenter/en/SSKTMJ_9.0.1/admin_imsmo/
adm_domino_reqs.html
IBM Collaboration Solutions
5
6. IMSMO Server & Client Software Details for download
IMSMO Server: IBM mail Add-on to be installed on Domino Server
IMSMO Client: IBM mail Add-in to be installed on end user Outlook Client
IBM Mail Support for Microsoft Outlook 2.0.0.2 Release Notes Multiplatform
English
Servers
IBM mail Add-on 2.0.0.2 (for IMSMO) Windows 64 bit Multilingual
IBM mail Add-on 2.0.0.2 (for IMSMO) AIX 64 bit Multilingual
IBM mail Add-on 2.0.0.2 (for IMSMO) Linux 64 Multilingual
Client
IBM mail Add-in 2.0.0.2 (for IMSMO) Windows 32/64 bit Multilingual
http://www-01.ibm.com/support/docview.wss?uid=swg21989448
IBM Collaboration Solutions
6
7. Architecture information on working of IMSMO
IMSMO has to be installed on top of Domino Server.
End user connecting to IMSMO server should have replica of his/her database
on IMSMO Server.
Microsoft Outlook Client connects to IMSMO over HTTP protocol.
It is mandatory to have SSL setup on IMSMO Server.
A valid internet address and internet password, set in the user's person
document.
Similar to IBM Notes Traveler , IMSMO stores user synch information details in
derby database.
IBM Collaboration Solutions
7
8. • Outlook clientOutlook data store (.ost)
IBM mail sync
IBM mail
add-in
IBM mail
add-in
LDAP
SyncML
Domino mail
server + IMSA
Corporate
directory
Key
Microsoft code IBM code
• Server remains essentially the same.
• SyncML used instead of EAS
(Exchange ActiveSync)
• IBM mail sync and freebusy DLLs are
added to the client.
IMSA (http)
Mailfile
Architecture information on working of IMSMO
8
9. IMSMO Server Installation details with snaps and server side
configuration
Running the Windows installer
Important: Be sure to back up your NOTES.INI file before running the IMSA server
installer.
Obtain and run the file IMSA_W64.exe. As you step through the installer,
Please note that the Temporary install files are saved to a local directory
IBM Collaboration Solutions
9
10. You can choose to install to partitioned servers, if your Domino® servers have
been set up that way.
Note : For the current release, IMSMO does not allow install on a single partition. For
Windows, all Domino partitions have to be at the same version, using the same program
directory.
IBM Collaboration Solutions
IMSMO Server Installation details with snaps and server side
configuration
10
11. The installer will add and configure the required sync and REST services to your
Domino server
IBM Collaboration Solutions
IMSMO Server Installation details with snaps and server side
configuration
11
12. The Microsoft Outlook tab in the server document is hidden by default in Domino®
9.0.1; either a "Traveler" tab is visible or the "Microsoft Outlook" tab, but never
both.
Note : Traveler and IMSMO cannot exist on same server
Upon installation of the IMSMO server, during server startup, an adminp request
will be issued to enable the Microsoft Outlook tab:
IBM Collaboration Solutions
IMSMO Server Installation details with snaps and server side
configuration
12
13. Configuration Settings
Optional: Click the Microsoft Outlook tab and on the Basics tab, optionally specify
a value in the Password management URL field:
Sample : Use the following format: https://mycompany.com/profile/password
IBM Collaboration Solutions
IMSMO Server Installation details with snaps and server side
configuration
13
14. Configuration Settings:
Personalize access to define which users are allowed to connect to the
IMSMO server, or create explicit denial lists for users that should be denied
access to the server. Populate either the Access Server or Not Access Server
field with the names of users and groups
IBM Collaboration Solutions
IMSMO Server Installation details with snaps and server side
configuration
14
15. Configuration Settings
If IMSMO is running on a server with multiple NIC cards, you must specify
the parameter NTS_HOST_IP_ADDR=[ip_address] in your Notes.INI file to
tell the server which IP address to use.
You must specify the parameter
NTS_EXTERNAL_URL=https://[proxy_server_name]/traveler in your
Notes.INI file.
Note: Problems may occur due to an incorrect URL setting
IBM Collaboration Solutions
IMSMO Server Installation details with snaps and server side
configuration
15
16. Configuration Settings
Servers in a Domino domain where IMSMO is installed must have this
variable set to Disabled - if this setting is enabled, it forces MIME messages
to be routed over SMTP, which will affect the ability of Outlook users to read
encrypted mail.
Router/SMTP - Basics tab and set the variable "SMTP allowed within the local
internet domain" to Disabled
IBM Collaboration Solutions
IMSMO Server Installation details with snaps and server side
configuration
16
17. Installing Client side IMSMO Plugin & Configuring Outlook Client
IBM Collaboration Solutions
17
18. Installing IMSMO Plugin for Microsoft Outlook Client
Install the IBM mail add-in, run the IMSMO_client.exe file that your administrator
provided to you
IBM Collaboration Solutions
18
20. Create a new profile in Microsoft Outlook that syncs with your IBM® Notes® mail
IBM Collaboration Solutions
Configuring Outlook Client with IMSMO Plugin
20
21. Adding Profile for outlook
To begin the setup, complete the steps that apply to your situation:
IBM Collaboration Solutions
Configuring Outlook Client with IMSMO Plugin
21
22. Select Manual setup or additional server types, and click Next.
IBM Collaboration Solutions
Configuring Outlook Client with IMSMO Plugin
22
23. In the IBM Mail Sync Configuration window:
In the Your Name field, enter the name to be shown in the Microsoft Outlook
interface.
Email Address field, enter your email address, for example,
sdaryn@mail.renovations.com.
In the Server Type field, select My Company's Mail Server.
In the Server Name field, enter your mail server name, for example,
mail.renovations.com.
Click Next.
IBM Collaboration Solutions
Configuring Outlook Client with IMSMO Plugin
23
24. A prompt to enter password.
A window is shown with Green check marks indicating that each step in
connecting is successful. Click through the dialog boxes to open your new
profile.
IBM Collaboration Solutions
Note : If using self signed SSL certificate on IMSMO server, please import the
certificate to the browser
Configuring Outlook Client with IMSMO Plugin
24
28. Support for Encrypted and Signed Messages
An option to Sign or encrypt messages is available now using Microsoft Outlook
client using IBM Mail Synch.
Note : You must Configure ID vault or have Notes ID imported to user mail to utilize this
functionality
IBM Collaboration Solutions
IMSMO Mail Sync features in Microsoft Outlook
28
30. Syncing Contacts
You can now synch Contacts from your mail file to outlook
type-ahead recent contacts are also pre-populated, based on mail file content
IBM Collaboration Solutions
IMSMO Mail Sync features in Microsoft Outlook
30
32. Setting Automatic reply to notify people when you are Out of office
Browse to Microsoft Outlook File Click IBM mail
Click Automatic Replies (Out of Office) Select Send automatic replies
Choose the date and OOO text and Click Ok.
IBM Collaboration Solutions
IMSMO Mail Sync features in Microsoft Outlook
32
33. Setting Delegation to your Mail file
Browse to Microsoft Outlook File Click IBM mail
Click Delegation And assign Delegates and permissions
IBM Collaboration Solutions
IMSMO Mail Sync features in Microsoft Outlook
33
34. Setting Delegation to your Mail file
IBM Collaboration Solutions
Note : Only delegation access can be provided. User cannot open delegated mail
database using this feature.
IMSMO Mail Sync features in Microsoft Outlook
34
35. Check your Mail quota and manage your mail database free space
Browse to Microsoft Outlook File Click IBM mail
Click Mail quota and check allocated quota and current utilized space
IBM Collaboration Solutions
IMSMO Mail Sync features in Microsoft Outlook
35
36. How to work with logging in MS Outlook for IMSMO
File IBM Mail IBM Mail help
We explore available options here one by one.
IBM Collaboration Solutions
How to collect the logs from IMSMO client machine
36
37. Diagnostics
It shows various information on
• IBM Mail Sync version
• Server
• Device ID
• Trace level
• Log path on your local machine
• Include confidential data in logs.
• Report a Problem ( Button )
**Please note that confidential data may consist of your email details ( a small chunk of
session information for troubleshooting purpose )
IBM Collaboration Solutions
How to collect the logs from IMSMO client machine
37
38. Reporting a problem
From Outlook, Click File File IBM Mail Diagnostics (Report a Problem)
For Trace level, select Verbose (Default is Verbose ).
Note: If you changed the level, restart Outlook before you continue.
If you are willing to include confidential information, which can help with troubleshooting,
select Include confidential data in logs. ( Default selected).
Click Report a problem, provide as much detail as possible about the issue and click Send.
Or the user can send the log files manually from the path as shown in the Diagnostic
window.
Note: If you do not disable Outlook logging, log files on your desktop can grow quite large.
IBM Collaboration Solutions
How to collect the logs from IMSMO client machine
38
39. Manual log collection.
Below is the path where it stores logs.
C:UsersJohnDoeAppDataLocalTemp
Go to this path to collect logs manually.
There are two folder gets created under the
above path.
IBM_Mail_Sync
IBM_Mail_Sync_Misc
For troubleshooting we recommend to
provide IBM_Mail_Sync folder which would
have all the relative details.
Files inside IBM_Mail_Sync folder shows
details logs collected.
You can zip the folder and provide it IBM
support through PMR.
IBM Collaboration Solutions
How to collect the logs from IMSMO client machine
39
40. Re-Sync Content
You can correct the document sync issues by re-
syncing contents from the server copy.
Re-Sync content has following options
• Reset Mail
• Reset Calendar
• Reset Contacts
**Please Note:
Use the reset when it is necessary as this steps
will correct the sync issue
Choosing this option will take much longer time
to complete as it will create and re-index the
mail file data you have on local machine
So if user has big mailfile then it will take ample
amount of time to complete these step
Troubleshooting basic sync issues with IMSMO Outlook profile
IBM Collaboration Solutions
40
41. IBM mail support for Microsoft Outlook (Administering)
http://www.ibm.com/support/knowledgecenter/SSKTMJ_9.0.1/admin_imsmo/adm_toc.html
Setting up IBM mail support for Microsoft Outlook
http://www.ibm.com/support/knowledgecenter/SSKTMJ_9.0.1/user_imsmo/use_IMSMO_s
etting_up.html
Connecting to your corporate directory:
http://www.ibm.com/support/knowledgecenter/SSKTMJ_9.0.1/user_imsmo/usr_set_ldap_di
r.html
References
IBM Collaboration Solutions
41
