IBM Datapower Security Scenario with JWS & JWE
- 1. An Architects Hands-onExperience in Securing Microservices with JSON Web Security using IBM Datapower Sandip Gupta Senior Client Architect Cloud & Cognitive BU, IBM India 31st Mar 2020

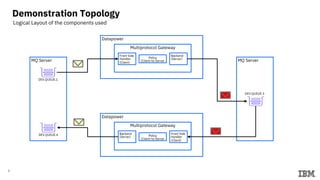

- 2. Demonstration Topology 2 Datapower Multiprotocol Gateway FrontSide Handler (Client) Policy (Client-to-Server Backend (Server) MQ Server DEV.QUEUE.1 Datapower Multiprotocol Gateway Backend (Server) Policy (Client-to-Server Front Side Handler (Client) DEV.QUEUE.4 MQ Server DEV.QUEUE.3 Logical Layout of the components used
- 3. Laptop Deployment Topology 3 Datapower Container MultiprotocolGateway Front Side Handler (Client) Policy (Client-to-Server Backend (Server) MQ Server Container DEV.QUEUE.1 https://mqserver:9443/ibmmq/console https://mqserver:9090/dp/login MQ Admin Tool Host: mqserver mqserver:1414 DEV.ADMIN.SVRCONN QM1 Client Key Client Certificate Server Key Server Certificate Physical Layout of the components used and their interactions
- 4.

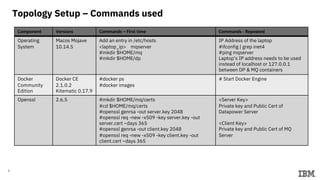

- 5. 5 Topology Setup –Commands used Component Versions Commands – First time Commands - Repeated Operating System Macos Mojave 10.14.5 Add an entry in /etc/hosts <laptop_ip> mqserver #mkdir $HOME/mq #mkdir $HOME/dp IP Address of the laptop #ifconfig | grep inet4 #ping mqserver Laptop’s IP address needs to be used instead of localhost or 127.0.0.1 between DP & MQ containers Docker Community Edition Docker CE 2.1.0.2 Kitematic 0.17.9 #docker ps #docker images # Start Docker Engine Openssl 2.6.5 #mkdir $HOME/mq/certs #cd $HOME/mq/certs #openssl genrsa -out server.key 2048 #openssl req -new -x509 -key server.key -out server.cert –days 365 #openssl genrsa -out client.key 2048 #openssl req -new -x509 -key client.key -out client.cert –days 365 <Server Key> Private key and Public Cert of Datapower Server <Client Key> Private key and Public Cert of MQ Server
- 6. 6 Topology Setup –Contd… Component Versions Commands – First time Commands - Repeated Datapower Developer Edition 2018.1.10 #docker pull ibmcom/datapower:latest #cd $HOME/dp #git clone https://github.com/ibm- datapower/datapower-tutorials.git #cd $HOME/dp/datapower-tutorials/getting- started # docker run -it -v $PWD/config:/drouter/config -v $PWD/local:/drouter/local -e DATAPOWER_ACCEPT_LICENSE=true -e DATAPOWER_INTERACTIVE=true -p 9090:9090 -p 9022:22 -p 5554:5554 -p 8000-8010:8000-8010 --name idg ibmcom/datapower configure; web-mgmt 0 9090 9090; Exit the container Start IDG container using Kitematic #docker run –it idg #docker ps #docker inspect <dp_container> | grep IPAddress <WebConsole> URL: https://mqserver:9090/dp/login User: admin:admin

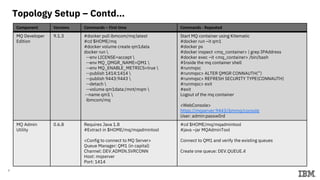

- 7. 7 Topology Setup –Contd… Component Versions Commands – First time Commands - Repeated MQ Developer Edition 9.1.3 #docker pull ibmcom/mq:latest #cd $HOME/mq #docker volume create qm1data docker run --env LICENSE=accept --env MQ_QMGR_NAME=QM1 --env MQ_ENABLE_METRICS=true --publish 1414:1414 --publish 9443:9443 --detach --volume qm1data:/mnt/mqm --name qm1 ibmcom/mq Start MQ container using Kitematic #docker run –it qm1 #docker ps #docker inspect <mq_container> | grep IPAddress #docker exec –it <mq_container> /bin/bash #Inside the mq container shell #runmqsc #runmqsc> ALTER QMGR CONNAUTH(‘’) #runmqsc> REFRESH SECURITY TYPE(CONNAUTH) #runmqsc> exit #exit Logout of the mq container <WebConsole> https://mqserver:9443/ibmmq/console User: admin:passw0rd MQ Admin Utility 0.6.8 Requires Java 1.8 #Extract in $HOME/mq/mqadmintool <Config to connect to MQ Server> Queue Manager: QM1 (in capital) Channel: DEV.ADMIN.SVRCONN Host: mqserver Port: 1414 #cd $HOME/mq/mqadmintool #java –jar MQAdminTool Connect to QM1 and verify the existing queues Create one queue: DEV.QUEUE.4

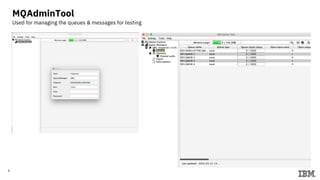

- 8. 8 MQAdminTool Used for managingthe queues & messages for testing

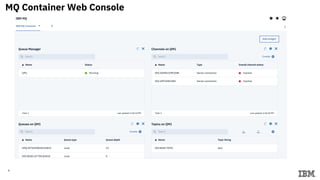

- 9. 9 MQ Container WebConsole
- 10.

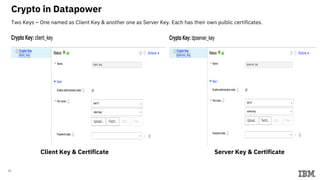

- 11. 11 Crypto in Datapower TwoKeys – One named as Client Key & another one as Server Key. Each has their own public certificates. Client Key & Certificate Server Key & Certificate
- 12. 12 Multi-Protocol Gateway Servicesin Datapower Created two multi-protocol gateway services mq_to_mq: For creation of the JWS/JWE messages mq_to_mq_verify: For validation of the JWS/JWE messages
- 13. 13 Security Policy inDatapower - 1

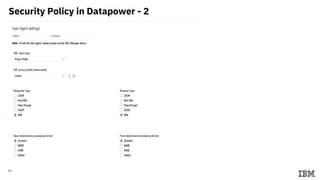

- 14. 14 Security Policy inDatapower - 2

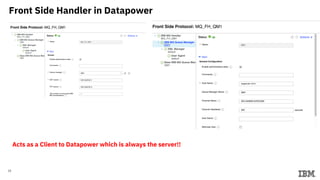

- 15. 15 Front Side Handlerin Datapower Acts as a Client to Datapower which is always the server!!
- 16. 16 JSON Web Encryption& Decryption (JWE) using IBM Datapower

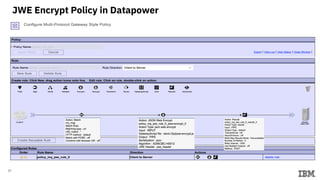

- 17. 17 JWE Encrypt Policyin Datapower
- 18. 18 Matching Rules inDatapower
- 19. 19 Matching Rules inDatapower

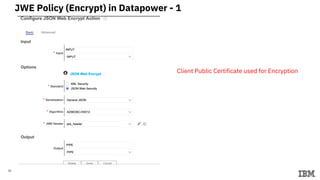

- 20. 20 JWE Policy (Encrypt)in Datapower - 1 Client Public Certificate used for Encryption

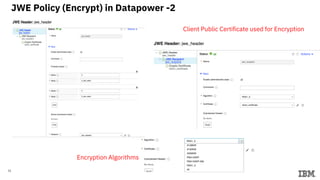

- 21. 21 JWE Policy (Encrypt)in Datapower -2 Client Public Certificate used for Encryption Encryption Algorithms

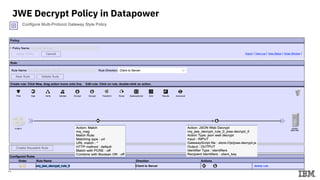

- 22. 22 JWE Decrypt Policyin Datapower

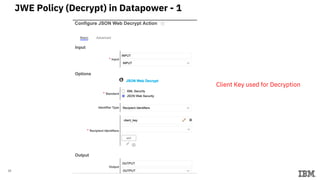

- 23. 23 JWE Policy (Decrypt)in Datapower - 1 Client Key used for Decryption

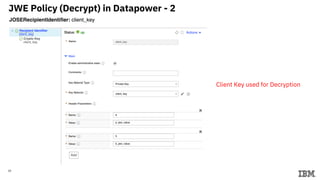

- 24. 24 JWE Policy (Decrypt)in Datapower - 2 Client Key used for Decryption
- 25. 25 JSON Web Signing& Verification (JWS) using IBM Datapower
- 26. 26 JWS Sign Policyin Datapower
- 27. 27 Matching Rules inDatapower

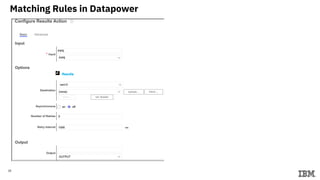

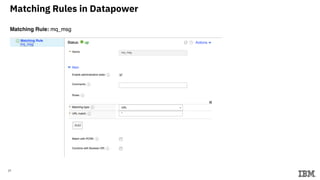

- 28. 28 Matching Rules inDatapower

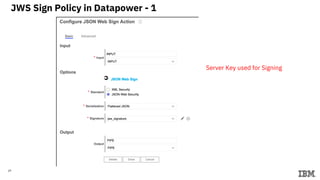

- 29. 29 JWS Sign Policyin Datapower - 1 Server Key used for Signing

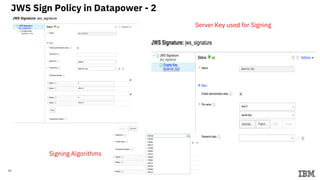

- 30. 30 JWS Sign Policyin Datapower - 2 Server Key used for Signing Signing Algorithms

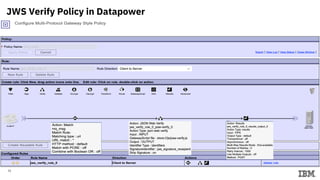

- 31. 31 JWS Verify Policyin Datapower

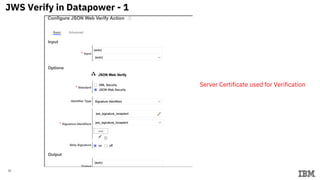

- 32. 32 JWS Verify inDatapower - 1 Server Certificate used for Verification

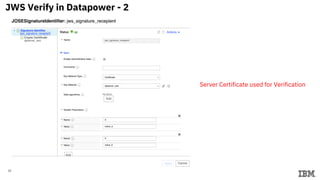

- 33. 33 JWS Verify inDatapower - 2 Server Certificate used for Verification
- 34. 34 Testing of thePolicy

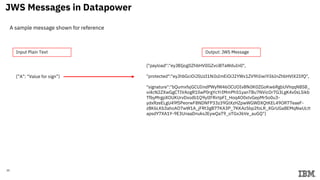

- 35. 35 {”A”: “Value forsign”} {"payload":"eyJBIjogIlZhbHVlIGZvciBTaWduIn0", "protected":"eyJhbGciOiJSUzI1NiIsImEiOiJ2YWx1ZV9hIiwiYiI6InZhbHVlX2IifQ", "signature":"bQumxfsjGCUIindPWyfW46OCUOIv8fk0K0ZGoKw6RgbUVhqqN8S8_ vi4cN2ZXwGgCTIVAogR1llwP0rgYcYrIMmPh51yanTBu7NVicOr7G3LgK4v0sLSikb TfbyMrgpXOUKUrvDxsdb1Q9ylIFRirtpFI_Hoq4O0xtvGepMr5o0u3- ydxRzeELgU49fSPeorwF8NDNFP33z39GtXzHZpwWGWDXQtKEL49OR77eaeF- z8K6LKb3ahoAO7wW1A_jFRt3gB77KA3P_7KKAz5bp2foLR_XGrUGa8EMqNwULtt apsdY7XA1Y-9E3UnaaDnuksJEywQaT9_oTGxJ6Ve_auGQ"} JWS Messages in Datapower Output: JWS MessageInput Plain Text A sample message shown for reference
- 36. 36 JWS Messages inDatapower Message Trace enabled in the Datapower console
- 37. 37 JWS Messages inDatapower Testing of the sample message in jwt.io external website

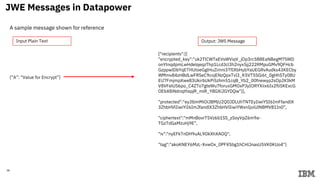

- 38. 38 JWE Messages inDatapower Output: JWS MessageInput Plain Text A sample message shown for reference {"recipients":[{ "encrypted_key":"uk2TlCWTaEVsWViqV_jOp3rc5B8EaNBegM75WD onYtnqdpmLwHdelqeqzThp1LcdJcl3h2nyx5jj222RMpuGMv9QFHcb GzppwlDbYqETHUtoeGglHuZimni3TfIXbHybYaUEGRvAudks43KECby WMmv84zHBdLwFRSeC9cojENzQpxTvl3_K5VT5SGi6t_0gHhSTy08U EU7FmjmpXwe83UkirbUkPi5zhm51cqB_Yb2_00fnewyp2sOpJX3kM V8VFelUS6po_C4ZTo7gteWu7foruxGMOxPJyIORYXiix6Ix2fliSKExcG OEbX8iNdnqthspjR_miR_Y8GXiJGYDQw"}], "protected":"eyJlbmMiOiJBMjU2Q0JDLUhTNTEyIiwiYSI6ImFfandlX 3ZhbHVlIiwiYiI6ImJfandlX3ZhbHVlIiwiYWxnIjoiUlNBMV81In0", "ciphertext":"mMnBovrT5Vz6b1SS_zSoyVpZ6m9a- TGzTdGaMzuHj9E", "iv":"nyEFkTnDH9uAL9OkXhXAOQ", "tag":"akoKNEY6MzL-XvwOx_0PFX5bg1hCHlJnasU5VK0KUo4"} {”A”: “Value for Encrypt”}
- 39. 39 JWE Messages inDatapower Message Trace enabled in the Datapower console

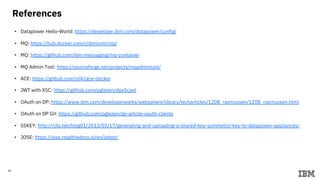

- 40. 40 References • Datapower Hello-World:https://developer.ibm.com/datapower/config/ • MQ: https://hub.docker.com/r/ibmcom/mq/ • MQ: https://github.com/ibm-messaging/mq-container • MQ Admin Tool: https://sourceforge.net/projects/mqadmintool/ • ACE: https://github.com/ot4i/ace-docker • JWT with X5C: https://github.com/pglezen/dpx5cjwt • OAuth on DP: https://www.ibm.com/developerworks/websphere/library/techarticles/1208_rasmussen/1208_rasmussen.html • OAuth on DP Git: https://github.com/pglezen/dp-article-oauth-clients • SSKEY: http://rcbj.net/blog01/2012/03/17/generating-and-uploading-a-shared-key-symmetric-key-to-datapower-appliances/ • JOSE: https://jose.readthedocs.io/en/latest/
