Adhere Solutions is a Google Enterprise Partner providing products and services that help organizations accelerate their adoption of Google technologies. Adhere's team of consultants help customers leverage Google's Enterprise Search products, Google Maps, and Google Apps to improve access to information, productivity, and collaboration. Through our All Access Connector Suite, Adhere Solutions has a portfolio of over 30 Google Search Appliance indexing connectors for major enterprise content management applications, including EMC, Documentum, eRoom, IBM FileNet, Lotus Notes, Interwoven's TeamSite and Work Site, Microsoft Sharepoint, SQL, Opentext, Oracle Stellent, Xerox Docushare and more.. With the All Access Connector Suite companies can now access all of their enterprise data and intelligence from one search box. The All Access Connector suite for the Google Search Appliance allows users to find information stored in disparate data sources and applications with Google's user interface, relieving users from having to separately search within each application and database. The Google Search Appliance combined with the All Access Connector empowers companies to efficiently unify information access and help users quickly find information to effectively perform their job.

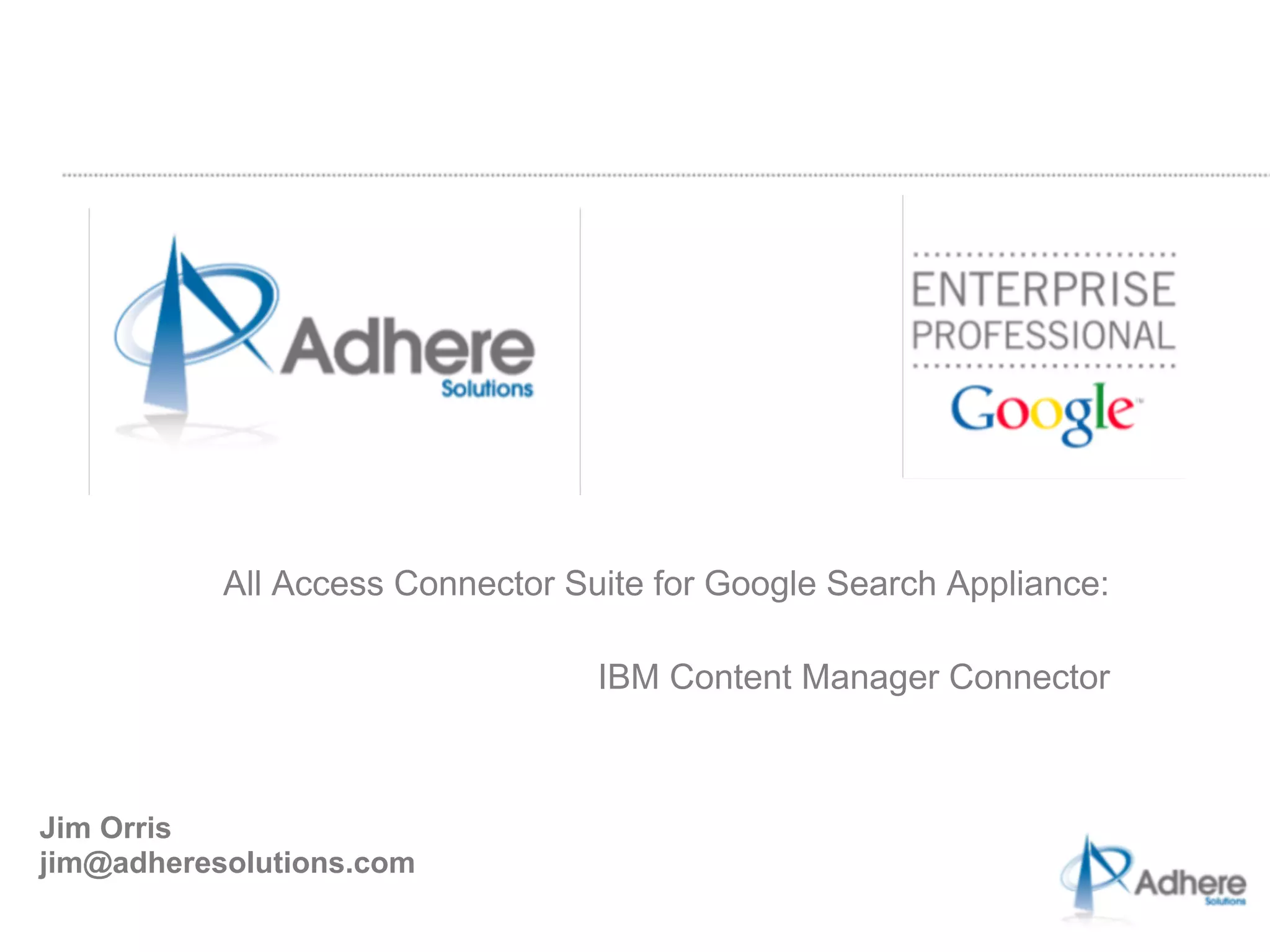

1. All Access Connector Suite for Google Search Appliance:
IBM Content Manager Connector
Jim Orris
jim@adheresolutions.com

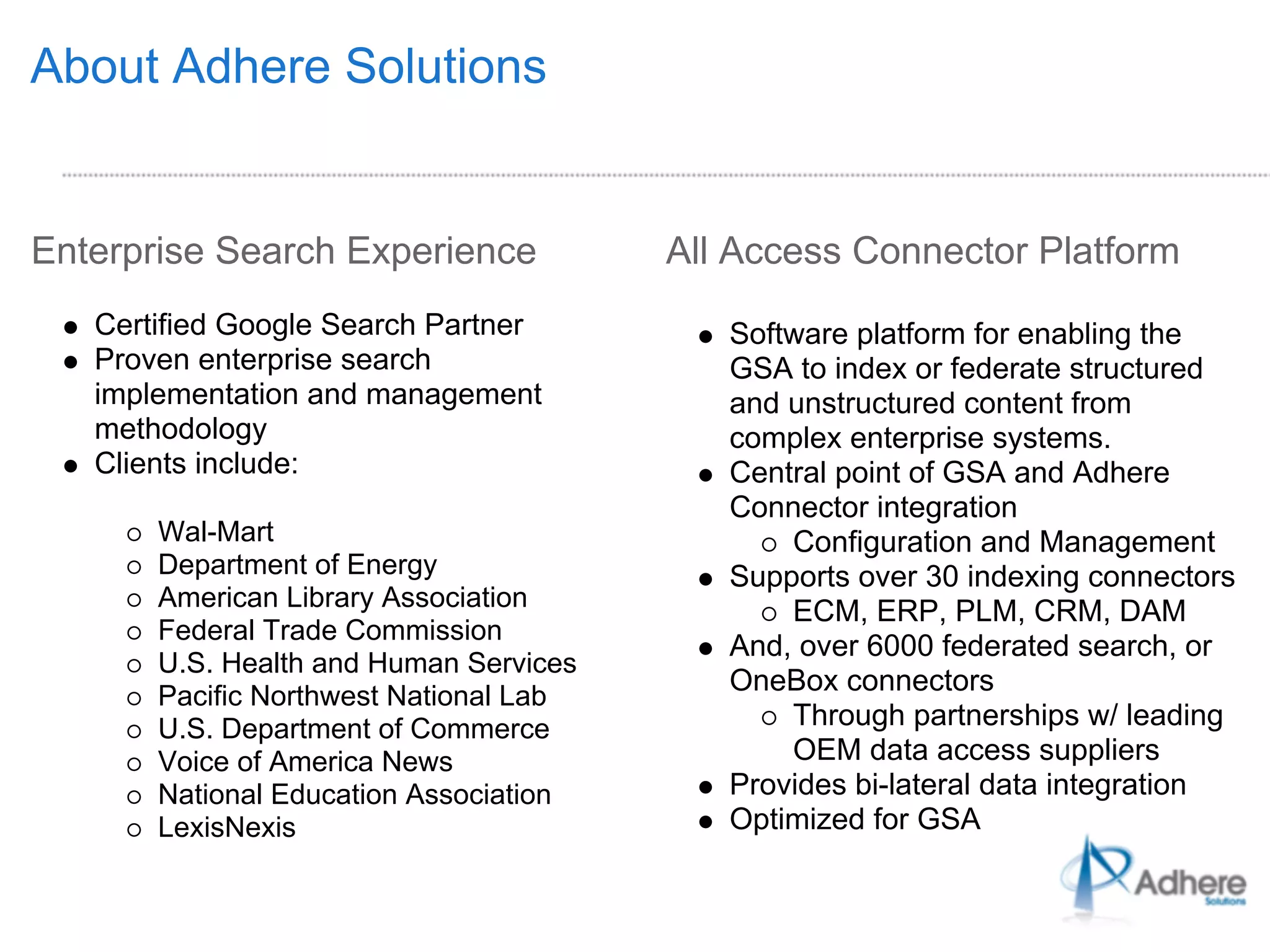

2. About Adhere Solutions
Enterprise Search Experience All Access Connector Platform
Certified Google Search Partner Software platform for enabling the
Proven enterprise search GSA to index or federate structured
implementation and management and unstructured content from
methodology complex enterprise systems.
Clients include: Central point of GSA and Adhere
Connector integration
Wal-Mart Configuration and Management
Department of Energy Supports over 30 indexing connectors
American Library Association ECM, ERP, PLM, CRM, DAM
Federal Trade Commission
And, over 6000 federated search, or
U.S. Health and Human Services
Pacific Northwest National Lab
OneBox connectors
U.S. Department of Commerce Through partnerships w/ leading
Voice of America News OEM data access suppliers
National Education Association Provides bi-lateral data integration
LexisNexis Optimized for GSA

3. All Access Connector Platform
Old model of accessing information

4. Background: IBM Content Manager Connector
Core technology developed by leading OEM supplier of
information access and content integration tools
Battle tested: same technology is built in to major enterprise
search and ECM systems
Supplier only writes and maintains connectors, expert in the
practice
Licensed by Adhere Solutions and optimized for GSA
Leveraging Google's connector framework
Plug and play, configurable from GSA web browser interface
Supports IBM Content Manager 8.3 or later versions

5. The GSA Connector GSA Admin

6. Value: IBM Content Manager Connector for GSA
Extends the simplicity and familiarity of Google Search to
Livelink content
Google Keyword search, result page interface
Delivers a single point of access, to data stored in ECM
applications along with disparate systems and file shares
indexed by the Google Search Appliance
GSA can index 200+ file types and enterprise systems,
but not all ECM and other enterprise systems
Provides a platform for accessing and distributing
contextually relevant content both with in, and outside of
business applications
Search box integrated with in a portal or team space
Search box as a toolbar, or separate search page

7. The GSA Connector Framework
Common Steps:
1. The GSA provides a feed interface from
which the search appliance receives
documents to index.
2. The AAC communicates with the search
appliance over HTTP and with the
connectors, and creates feed sources from
the documents, metadata, and URLs from a
content management system (CMS).
3. The AAC creates instances of a connector
through its service provider interface (SPI)
and then calls the classes and methods of The All Access Connector is a suite of Java
the connector to perform work.
applications containing methods and classes
4. The connector communicates through the
API to the CMS to acquire documents, that Google's connector manager calls to
metadata on each document, and a URLs perform the tasks of acquiring documents
that point to a document's location in the from a content system and authenticates and
content management system. authorizes end users to view search results
5. The connector communicates through the
API over HTTP to the web client on the
content management system.
6. A CMS also provides a content server that
stores documents in a storage system known
as a repository.

8. Connector Crawl Status Report

9. Features: IBM Content Manager Connector for GSA
Supports all item types, whatever their classification
Resource, Document or Document Part, Type, Item
Can discover description of unknown types at runtime.
Hidden views do not appear by default, but can be
exposed
Supports Attribute Groups and Child Components (to
one level)
Deep search of an item in a folder is not supported
Connector does not support links between items

10. Installation: IBM Content Manager Connector
Must run on the same server as Content Manager
Leverages IBM Information Integration for Content
(II4C)
Needs to be installed on server
The files cmbcm.jar and cmbicm.jar from II4C must
be present in the class path of the connector
Supports remote access and RMI

11. Defining a Repository
Repository Name: A unique identifier for this repository.
Display Name: A name displayed to user.
Library Server: The name of the Library server to connect to

12. The GSA Connector GSA Admin

13. Mapping Permissions
IBM Content Manager Connector Permission
Item Query View Properties
Item Delete Delete
Item Add Write Properties
Item User Set Write Properties
Item Add Write Content
Item Add Link Create Subfolders

14. Security: General Notes
It is possible through our connector API to retrieve the ACL of each item of the
repository (document or folder).
Provided that the connector supports security
The ACL lists every user and group that has some permissions on the item,
along with the granted rights.
The connector takes care of repository-specific security features, like
Security inheritance, shared ACLs, superuser/administrator roles, etc. so
that the returned list is the effective ACL of the item.
Repository-specific permissions are mapped onto well-known permissions
such as "view content", "write content", "delete", etc.
The connector API provides methods to navigate group membership to find
out which groups a given user, or group, is a member.
When replicating ACLs (early binding), the list of user and groups that can
view the document is stored in each document metadata.
It is also possible to replicate the user directory (users and groups). At
runtime, when a user performs a search, the system can obtain the list of
groups of which the user is a member, and use this list to perform the search,
thus limiting the results to what the user is authorized to see.
