IBM Cloud Private is a Kubernetes platform that allows organizations to develop modern applications using microservices architectures within their own datacenters. It includes Kubernetes for container orchestration, Cloud Foundry for application development and deployment, and Terraform for infrastructure provisioning on public and private clouds. IBM Cloud Private provides middleware, analytics and other services through Helm charts as well as core operational services for security, DevOps and hybrid integration. It can run on existing infrastructure from IBM, Dell, Cisco, NetApp, Lenovo and others.

1. IBM CLOUD PRIVATE
Erwan Maréchal erwan.marechal@fr.ibm.com
Hervé Grange hgrange@fr.ibm.com

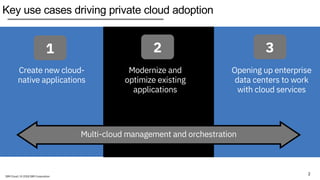

2. 2
Key use cases driving private cloud adoption
Multi-cloud management and orchestration
Modernize and
optimize existing
applications
Opening up enterprise
data centers to work
with cloud services
Create new cloud-
native applications
1 2 3
IBM Cloud / © 2018 IBM Corporation

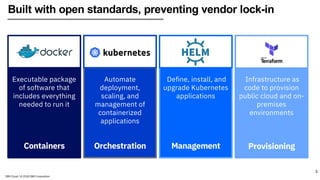

3. Built with open standards, preventing vendor lock-in
3
Automate
deployment,
scaling, and
management of
containerized
applications
Define, install, and
upgrade Kubernetes
applications
Executable package
of software that
includes everything
needed to run it
Text or image Text or image Text or image
Containers Orchestration Management
Infrastructure as
code to provision
public cloud and on-
premises
environments
Text or image
Provisioning
IBM Cloud / © 2018 IBM Corporation

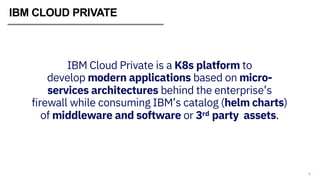

4. 4
IBM Cloud Private is a K8s platform to
develop modern applications based on micro-
services architectures behind the enterprise’s
firewall while consuming IBM’s catalog (helm charts)
of middleware and software or 3rd party assets.
IBM CLOUD PRIVATE

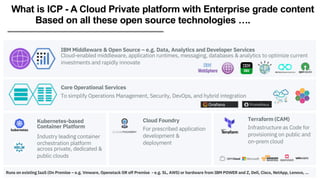

5. 5Runs on existing IaaS (On Premise – e.g. Vmware, Openstack OR off Premise - e.g. SL, AWS) or hardware from IBM POWER and Z, Dell, Cisco, NetApp, Lenovo, …
Kubernetes-based
Container Platform
Industry leading container
orchestration platform
across private, dedicated &
public clouds
Cloud Foundry
For prescribed application
development &
deployment
Terraform (CAM)
Infrastructure as Code for
provisioning on public and
on-prem cloud
IBM Middleware & Open Source – e.g. Data, Analytics and Developer Services
Cloud-enabled middleware, application runtimes, messaging, databases & analytics to optimize current
investments and rapidly innovate
Core Operational Services
To simplify Operations Management, Security, DevOps, and hybrid integration
What is ICP - A Cloud Private platform with Enterprise grade content
Based on all these open source technologies ….

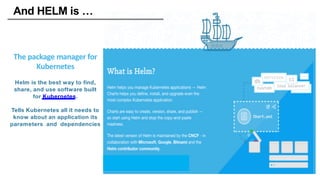

6. And HELM is …
The package manager for
Kubernetes
Helm is the best way to find,
share, and use software built
for Kubernetes.
Tells Kubernetes all it needs to
know about an application its
parameters and dependencies

7. Demo
7

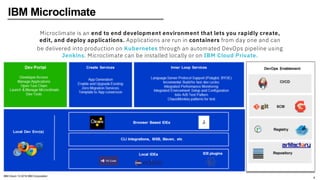

8. IBM Cloud / © 2018 IBM Corporation
8
Microclimate is an end to end development environment that lets you rapidly create,
edit, and deploy applications. Applications are run in containers from day one and can
be delivered into production on Kubernetes through an automated DevOps pipeline using
Jenkins. Microclimate can be installed locally or on IBM Cloud Private.
IBM Microclimate

9. Demo
9

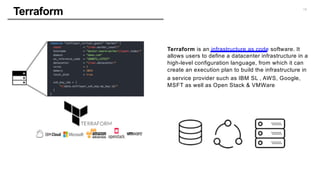

10. 10
Terraform
Terraform is an infrastructure as code software. It
allows users to define a datacenter infrastructure in a
high-level configuration language, from which it can
create an execution plan to build the infrastructure in
a service provider such as IBM SL , AWS, Google,
MSFT as well as Open Stack & VMWare

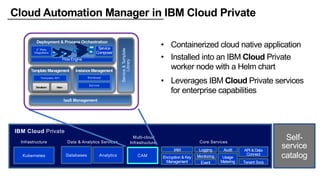

11. Cloud Automation Manager in IBM Cloud Private
• Containerized cloud native application
• Installed into an IBM Cloud Private
worker node with a Helm chart
• Leverages IBM Cloud Private services
for enterprise capabilities
IBM Cloud Private
Core Services
LoggingIAM
Encryption & Key
Management
API & Data
Connect
Usage
Metering
Monitoring
Event
Audit
Data & Analytics Services
Databases Analytics
Tenant Svcs
Kubernetes
Infrastructure
Self-
service
catalog
Multi-cloud
Infrastructure
CAM
Public, Private & Hybrid Clouds
Deployment & Process Orchestration
FlowEngine
3rd
Party
Integrations
Service
Composer
Template Management
Template API
Terraform
Instance Management
Workload
Service
IaaS Management
Helm
Service&Template
Library

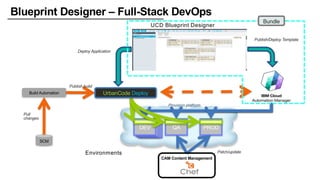

12. SCM
Build Automation
QA PROD
Provision platform
Patch/update
Publish build
Pull
changes
CAM Content Management
Environments
DEVDEVDEVDEV
UrbanCode Deploy
UCD Blueprint Designer
Blueprint Designer – Full-Stack DevOps
Deploy Application
Publish/Deploy Template
Bundle

13. Demo
13

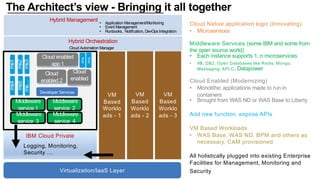

14. Hybrid Management • Application Management/Monitoring
• Event Management
• Runbooks, Notification, DevOps Integration
ms1
ms2
ms4
ms5
ms3ms…
Middleware
service 2
Middleware
service 1
Hybrid Orchestration
Cloud Automation Manager
IBM Cloud Private
Virtualization/IaaS Layer
Cloud Native application logic (Innovating)
• Microservices
Middleware Services (some IBM and some from
the open source world)
• Each instance supports 1..n microservices
• IIB, DB2, Open Databases like Redis, Mongo,
Messaging, API C, Datapower
Cloud Enabled (Modernizing)
• Monolithic applications made to run in
containers
• Brought from WAS ND or WAS Base to Liberty
Add new function, expose APIs
VM Based Workloads
• WAS Base, WAS ND, BPM and others as
necessary, CAM provisioned
All holistically plugged into existing Enterprise
Facilities for Management, Monitoring and
Security
Middleware
service 3
Middleware
service 4
Cloud enabled
app 1
Cloud
enabled 2
Cloud
enabled
…
Logging, Monitoring,
Security …
VM
Based
Worklo
ads - 1
VM
Based
Worklo
ads - 2
VM
Based
Worklo
ads - 3
Developer Services
ms
ms
The Architect’s view - Bringing it all together

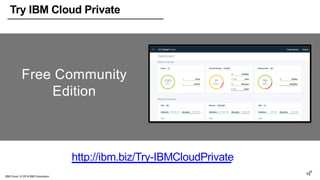

15. 15
1515
Free Community
Edition
Try IBM Cloud Private
IBM Cloud / © 2018 IBM Corporation
http://ibm.biz/Try-IBMCloudPrivate

16. MERCI
16
