This document discusses developing and deploying microservices on IBM Cloud Private. It provides an overview of IBM Cloud Private including its architecture, editions, and included content. It also covers Kubernetes concepts like pods and services. Helm is introduced as a tool for managing Kubernetes applications and charts. Finally, an example application called Stock Trader is presented to demonstrate how a hybrid cloud application could be built on IBM Cloud Private.

1. Discover. Collaborate. Deploy.
Developing and Deploying
Microservices to
IBM Cloud private
Shikha Srivastava (ssriva@us.ibm.com
Greg Hintermeister (gregh@us.ibm.com )
John Alcorn (jalcorn@us.ibm.com )
Erica Brown (ericabr@us.ibm.com )

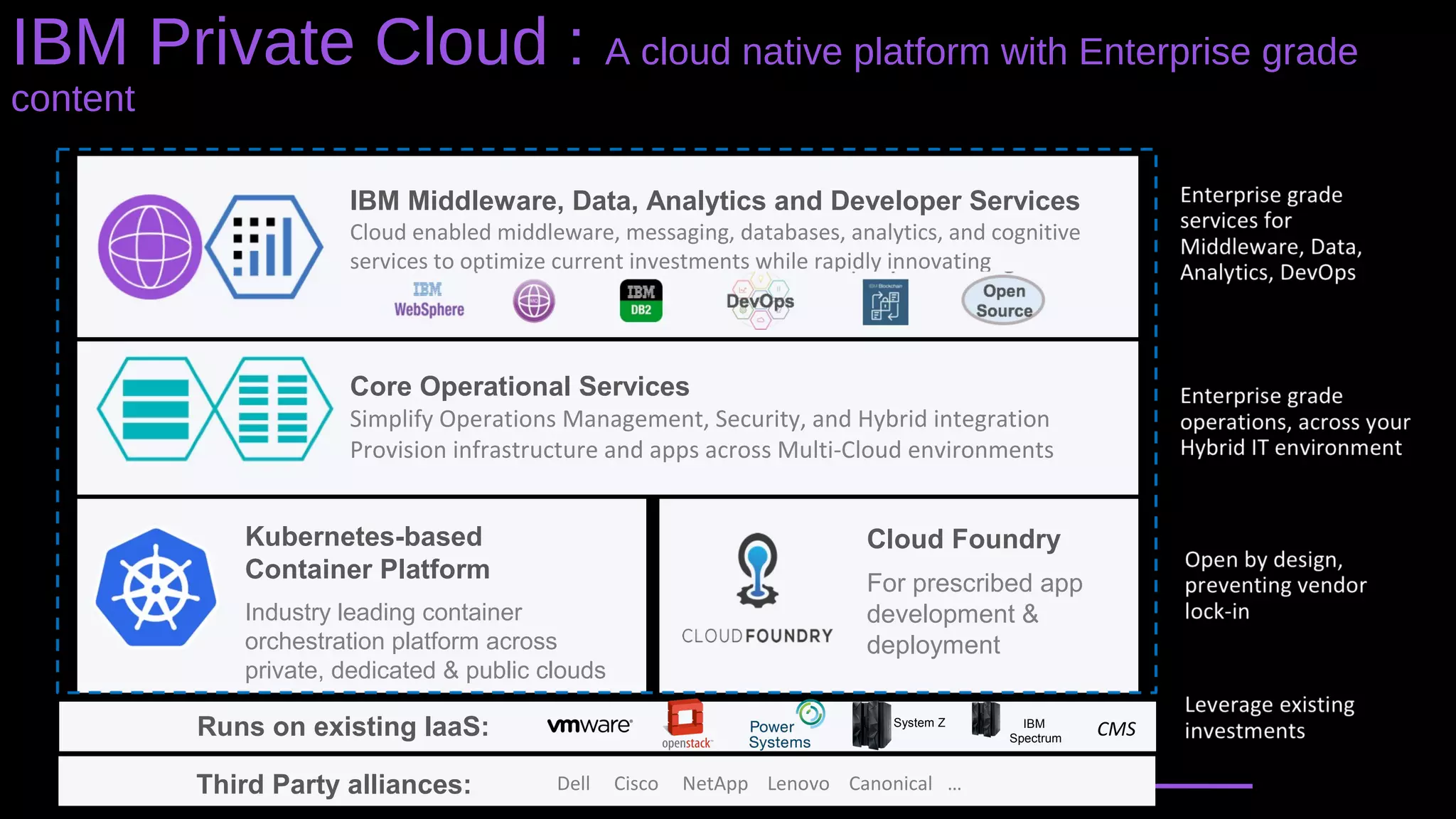

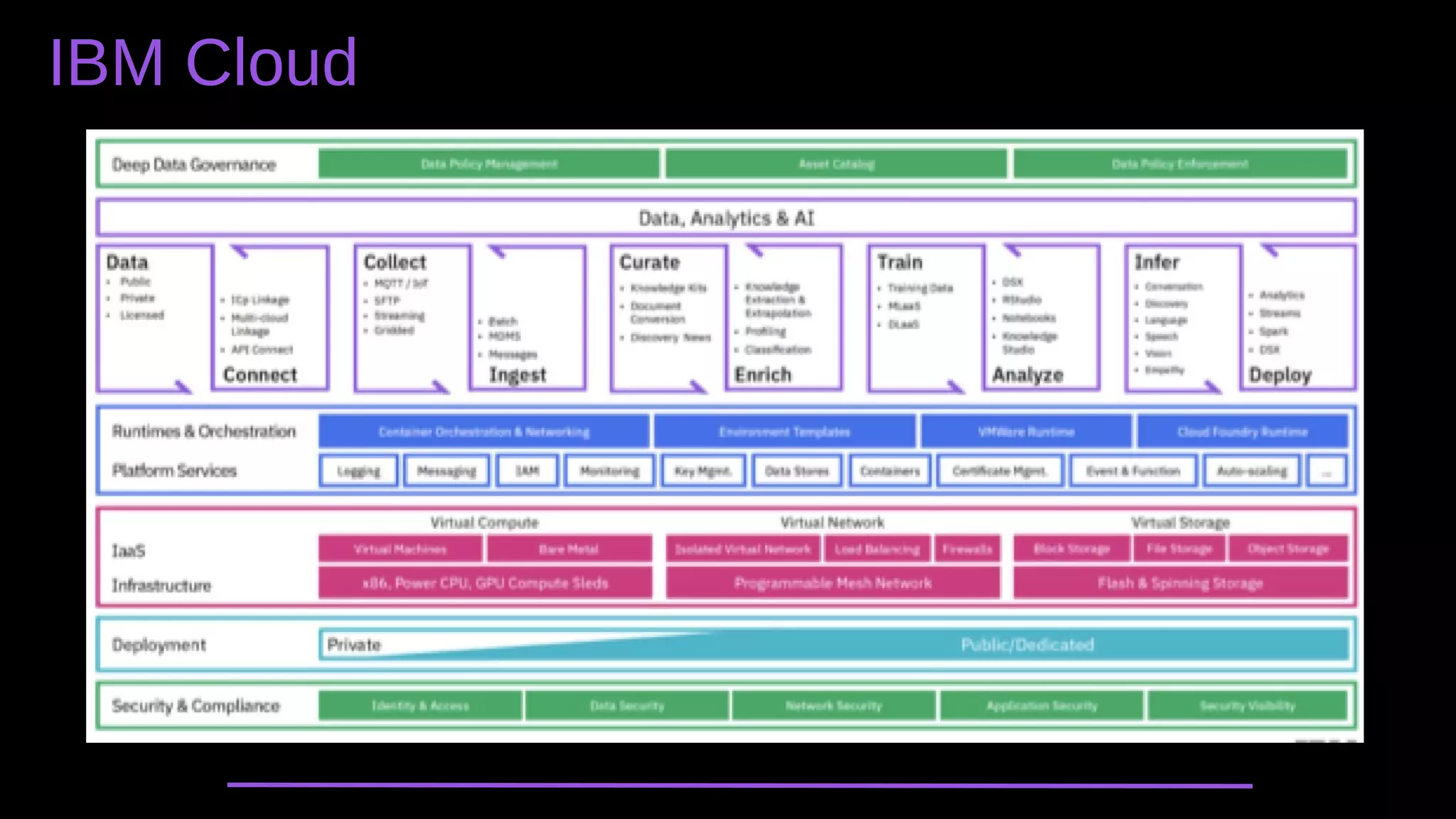

2. IBM Cloud

3. IBM Middleware, Data, Analytics and Developer Services
Cloud enabled middleware, messaging, databases, analytics, and cognitive
services to optimize current investments while rapidly innovating
Core Operational Services
Simplify Operations Management, Security, and Hybrid integration
Provision infrastructure and apps across Multi-Cloud environments
Kubernetes-based
Container Platform
Industry leading container
orchestration platform across
private, dedicated & public clouds
Cloud Foundry
For prescribed app
development &
deployment
Runs on existing IaaS: System Z IBM
Spectrum
Third Party alliances: Dell Cisco NetApp Lenovo Canonical …
CMS
IBM Private Cloud : A cloud native platform with Enterprise grade
content

4. Everyone’s container journey starts with one container…

5. At first the growth is easy to handle….

6. But soon it is overwhelming… chaos reigns

7. Regain control with Kubernetes

8. What is Kubernetes?
• Container orchestrator
• Runs and manages containers
• Supports multiple cloud and bare-metal environments
• Inspired and informed by Google's experiences and internal systems
• 100% Open source, written in Go
• Manage applications, not machines
• Rich ecosystem of plug-ins for scheduling, storage, networking
/* Discover. Collaborate. Deploy. */ 8

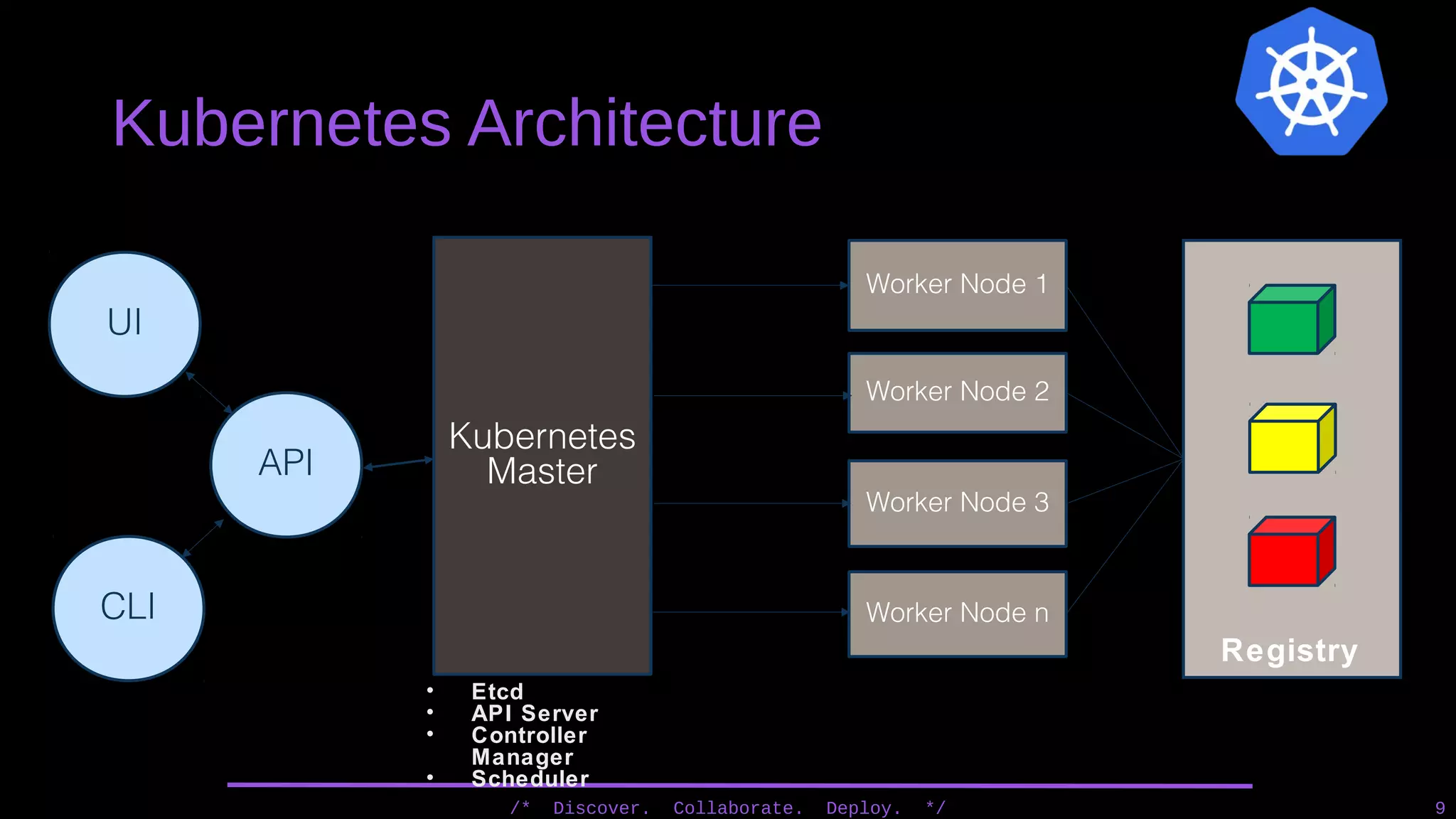

9. Kubernetes Architecture
/* Discover. Collaborate. Deploy. */ 9
API
UI
CLI
Kubernetes
Master
Worker Node 1
Worker Node 2
Worker Node 3
Worker Node n
Registry
• Etcd
• API Server
• Controller
Manager
• Scheduler

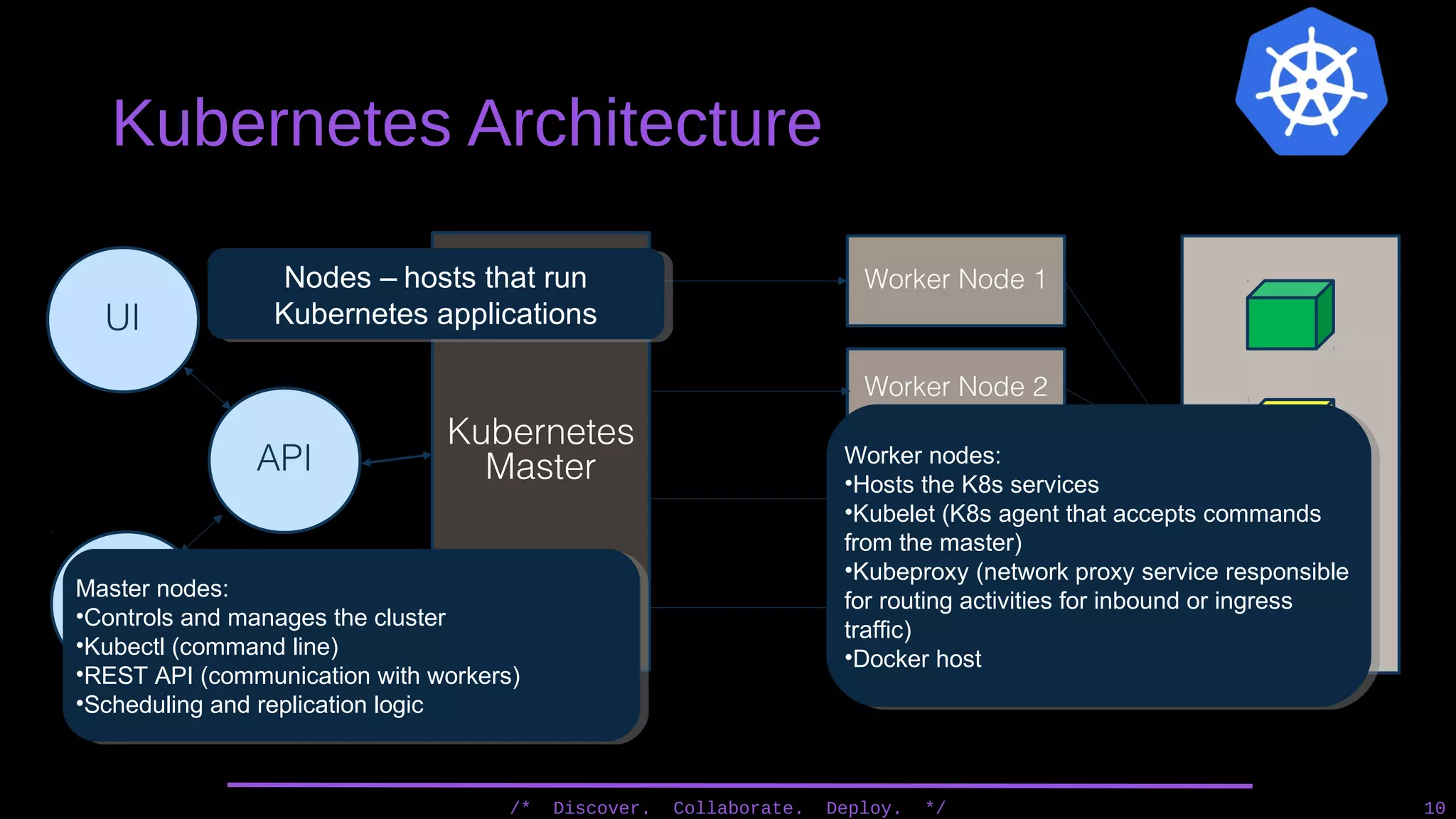

10. Kubernetes Architecture
/* Discover. Collaborate. Deploy. */ 10
API
UI
CLI
Kubernetes
Master
Worker Node 1
Worker Node 2
Worker Node 3
Worker Node n
Registry
Nodes – hosts that run
Kubernetes applications
Master nodes:
•Controls and manages the cluster
•Kubectl (command line)
•REST API (communication with workers)
•Scheduling and replication logic
Worker nodes:
•Hosts the K8s services
•Kubelet (K8s agent that accepts commands
from the master)
•Kubeproxy (network proxy service responsible
for routing activities for inbound or ingress
traffic)
•Docker host

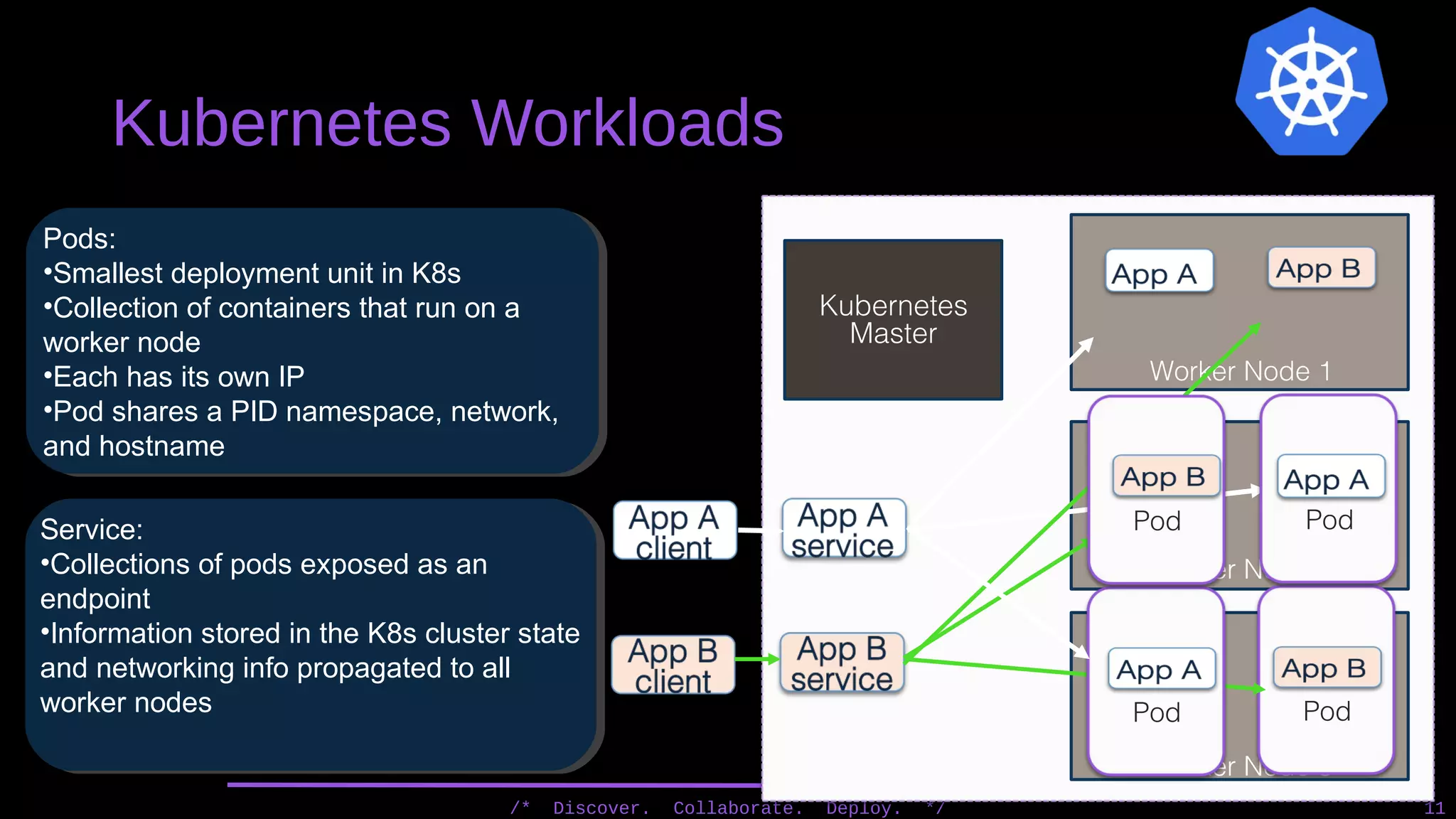

11. Kubernetes Workloads
/* Discover. Collaborate. Deploy. */ 11
Pods:
•Smallest deployment unit in K8s
•Collection of containers that run on a
worker node
•Each has its own IP
•Pod shares a PID namespace, network,
and hostname
Service:
•Collections of pods exposed as an
endpoint
•Information stored in the K8s cluster state
and networking info propagated to all
worker nodes
Kubernetes
Master
Worker Node 1
Worker Node 2
Worker Node 3
Pod
Pod
Pod
Pod

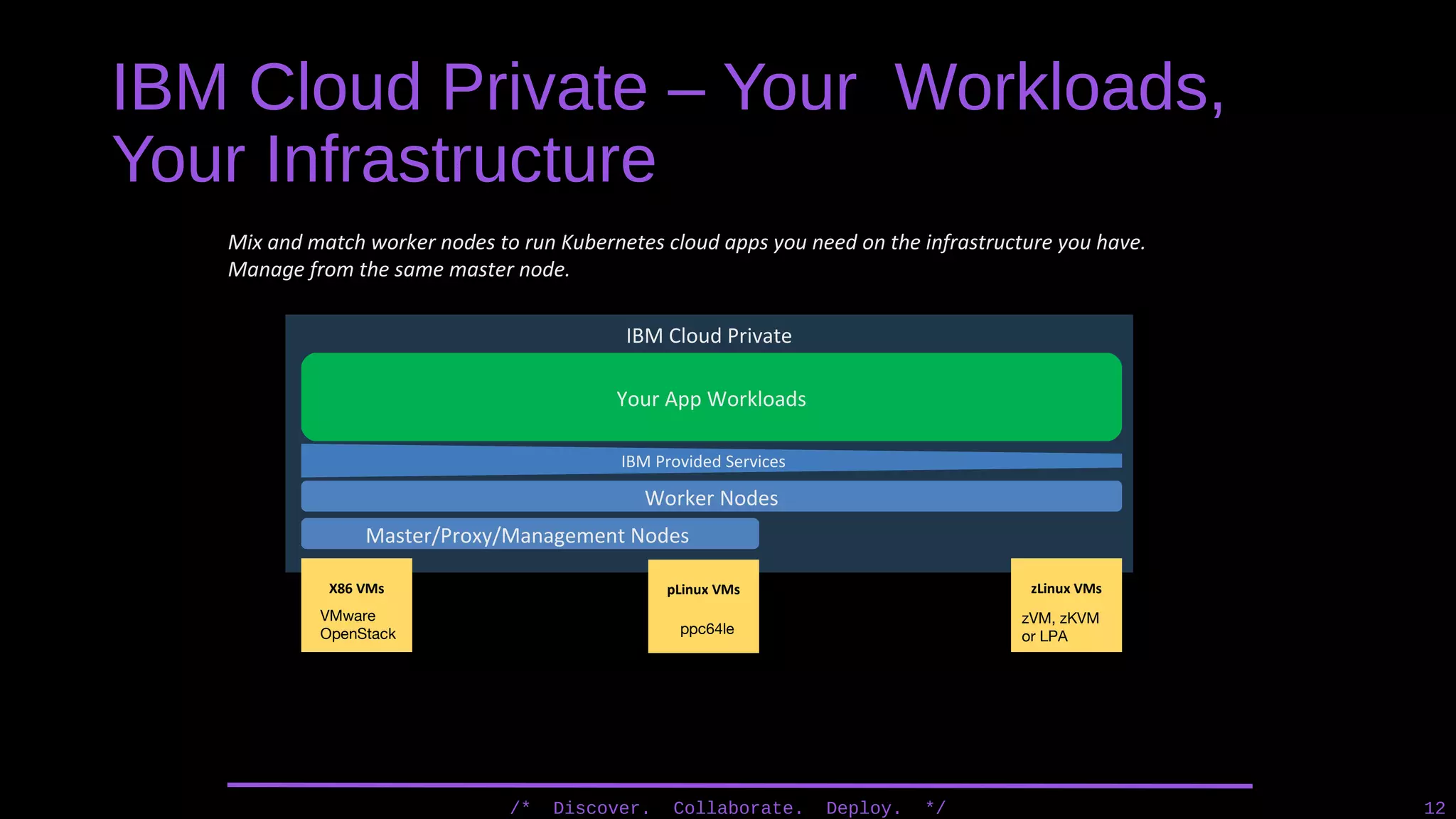

12. IBM Cloud Private – Your Workloads,
Your Infrastructure
/* Discover. Collaborate. Deploy. */ 12
IBM Cloud Private
Mix and match worker nodes to run Kubernetes cloud apps you need on the infrastructure you have.
Manage from the same master node.
X86 VMs pLinux VMs zLinux VMs
Master/Proxy/Management Nodes
Worker Nodes
Your App Workloads
IBM Provided Services
VMware
OpenStack ppc64le
zVM, zKVM
or LPA

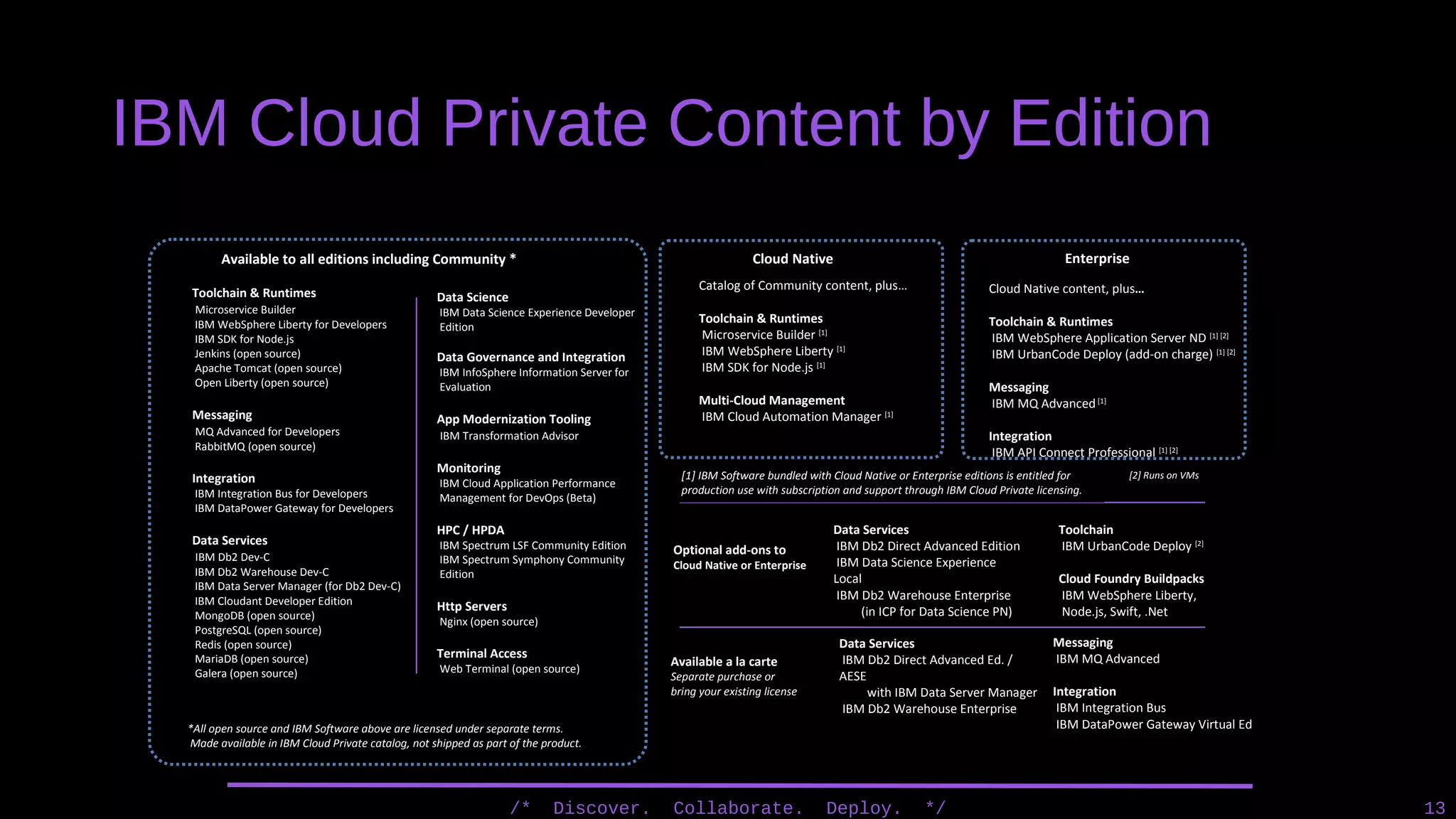

13. IBM Cloud Private Content by Edition
/* Discover. Collaborate. Deploy. */ 13
Data Science
IBM Data Science Experience Developer
Edition
Data Governance and Integration
IBM InfoSphere Information Server for
Evaluation
App Modernization Tooling
IBM Transformation Advisor
Monitoring
IBM Cloud Application Performance
Management for DevOps (Beta)
HPC / HPDA
IBM Spectrum LSF Community Edition
IBM Spectrum Symphony Community
Edition
Http Servers
Nginx (open source)
Terminal Access
Web Terminal (open source)
Catalog of Community content, plus…
Toolchain & Runtimes
Microservice Builder [1]
IBM WebSphere Liberty [1]
IBM SDK for Node.js [1]
Multi-Cloud Management
IBM Cloud Automation Manager [1]
Available a la carte
Separate purchase or
bring your existing license
EnterpriseCloud Native
Cloud Native content, plus…
Toolchain & Runtimes
IBM WebSphere Application Server ND [1] [2]
IBM UrbanCode Deploy (add-on charge) [1] [2]
Messaging
IBM MQ Advanced[1]
Integration
IBM API Connect Professional [1] [2]
Available to all editions including Community *
Messaging
IBM MQ Advanced
Integration
IBM Integration Bus
IBM DataPower Gateway Virtual Ed*All open source and IBM Software above are licensed under separate terms.
Made available in IBM Cloud Private catalog, not shipped as part of the product.
[1] IBM Software bundled with Cloud Native or Enterprise editions is entitled for
production use with subscription and support through IBM Cloud Private licensing.
Optional add-ons to
Cloud Native or Enterprise
Data Services
IBM Db2 Direct Advanced Edition
IBM Data Science Experience
Local
IBM Db2 Warehouse Enterprise
(in ICP for Data Science PN)
Toolchain
IBM UrbanCode Deploy [2]
Cloud Foundry Buildpacks
IBM WebSphere Liberty,
Node.js, Swift, .Net
Data Services
IBM Db2 Direct Advanced Ed. /
AESE
with IBM Data Server Manager
IBM Db2 Warehouse Enterprise
[2] Runs on VMs
Toolchain & Runtimes
Microservice Builder
IBM WebSphere Liberty for Developers
IBM SDK for Node.js
Jenkins (open source)
Apache Tomcat (open source)
Open Liberty (open source)
Messaging
MQ Advanced for Developers
RabbitMQ (open source)
Integration
IBM Integration Bus for Developers
IBM DataPower Gateway for Developers
Data Services
IBM Db2 Dev-C
IBM Db2 Warehouse Dev-C
IBM Data Server Manager (for Db2 Dev-C)
IBM Cloudant Developer Edition
MongoDB (open source)
PostgreSQL (open source)
Redis (open source)
MariaDB (open source)
Galera (open source)

14. Helm- Introduction
/* Discover. Collaborate. Deploy. */ 14
Helm helps you manage Kubernetes applications — Helm Charts helps you define,
install, and upgrade even the most complex Kubernetes application.

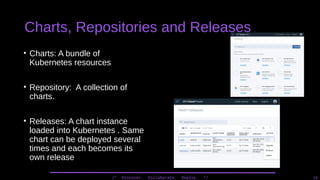

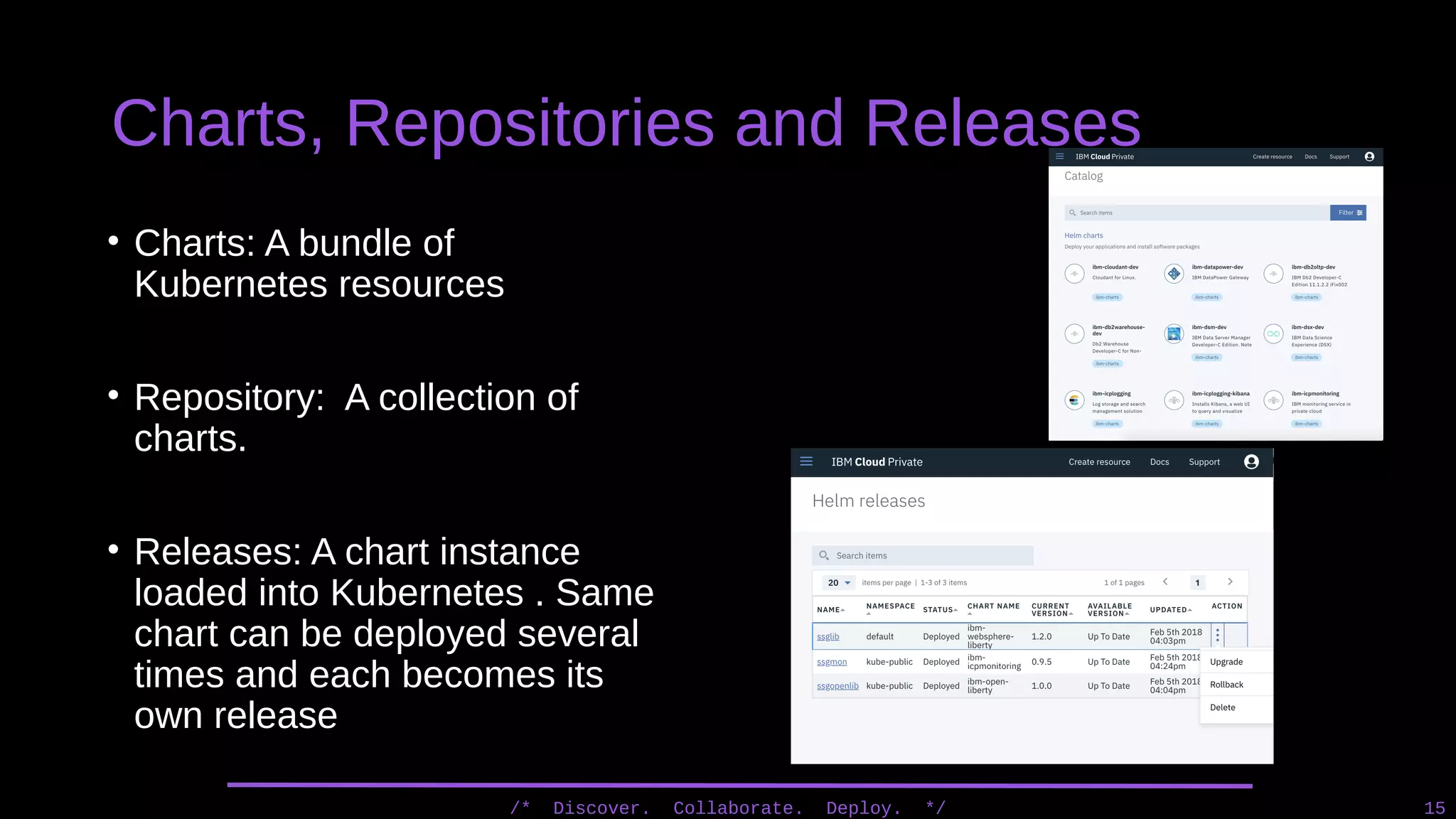

15. Charts, Repositories and Releases
/* Discover. Collaborate. Deploy. */ 15
• Charts: A bundle of
Kubernetes resources
• Repository: A collection of
charts.
• Releases: A chart instance
loaded into Kubernetes . Same
chart can be deployed several
times and each becomes its
own release

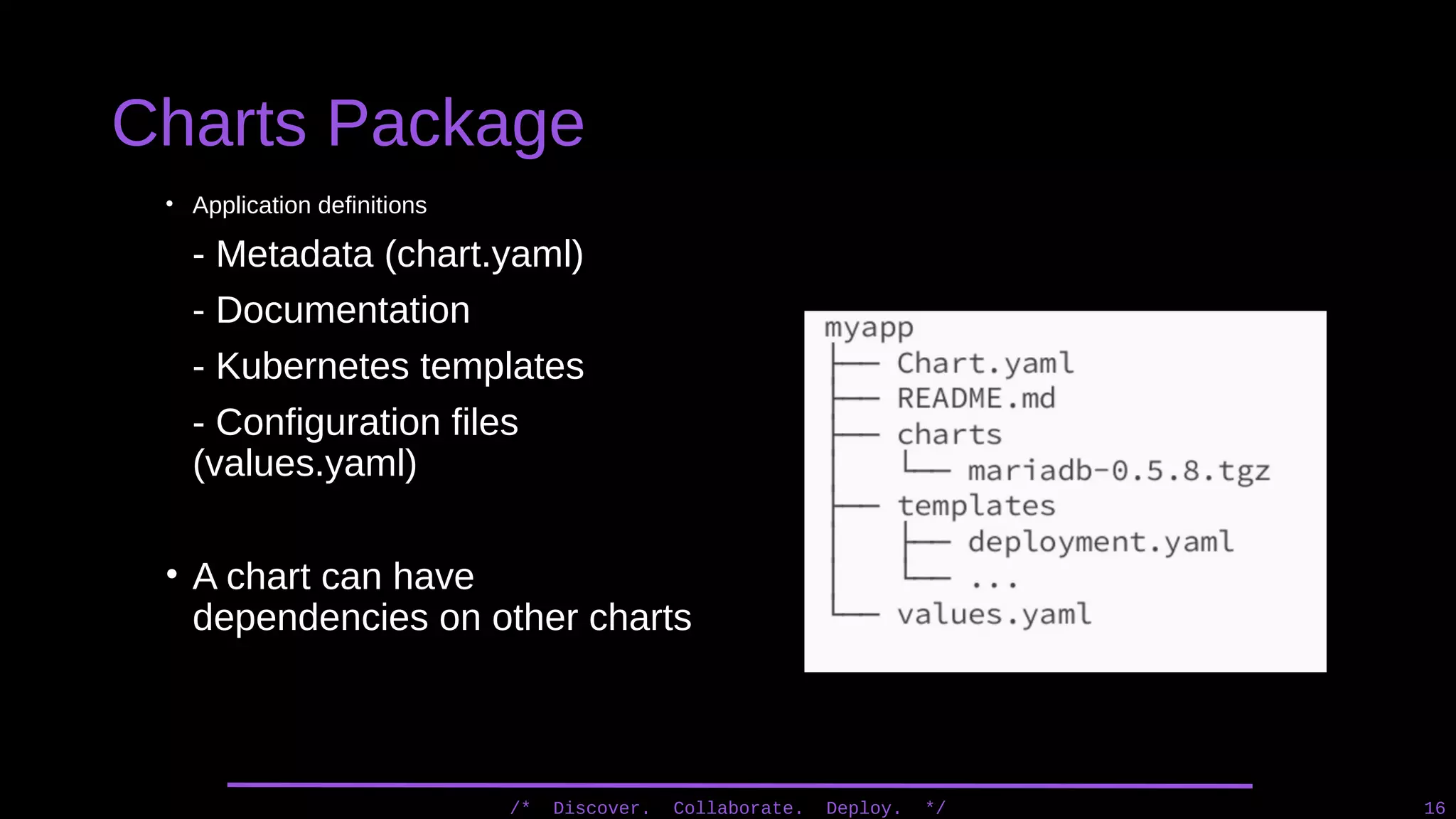

16. Charts Package
/* Discover. Collaborate. Deploy. */ 16
• Application definitions
- Metadata (chart.yaml)
- Documentation
- Kubernetes templates
- Configuration files
(values.yaml)
• A chart can have
dependencies on other charts

17. IBM Cloud Private transforms the way IT
operations and developers work
/* Discover. Collaborate. Deploy. */ 17
Todd
Operations / Admin
Responsible for infrastructure, security, and
management of the environment.
Jane
Enterprise Developer
Responsible for modernizing existing applications and
creating new Cloud Native Workloads.
IT Operations and Administrators
•Quickly set up a modern, flexible,
and compliant private cloud
•Integrate with existing
management tools and processes
Developers
•Rapidly create new cloud-native
applications, optimize existing
ones, and securely connect their
applications with data and services
across all clouds

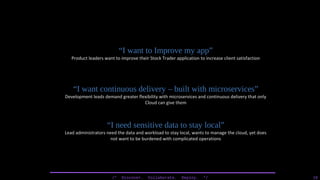

18. /* Discover. Collaborate. Deploy. */ 18
“I want to Improve my app”
Product leaders want to improve their Stock Trader application to increase client satisfaction
“I want continuous delivery – built with microservices”
Development leads demand greater flexibility with microservices and continuous delivery that only
Cloud can give them
“I need sensitive data to stay local”
Lead administrators need the data and workload to stay local, wants to manage the cloud, yet does
not want to be burdened with complicated operations

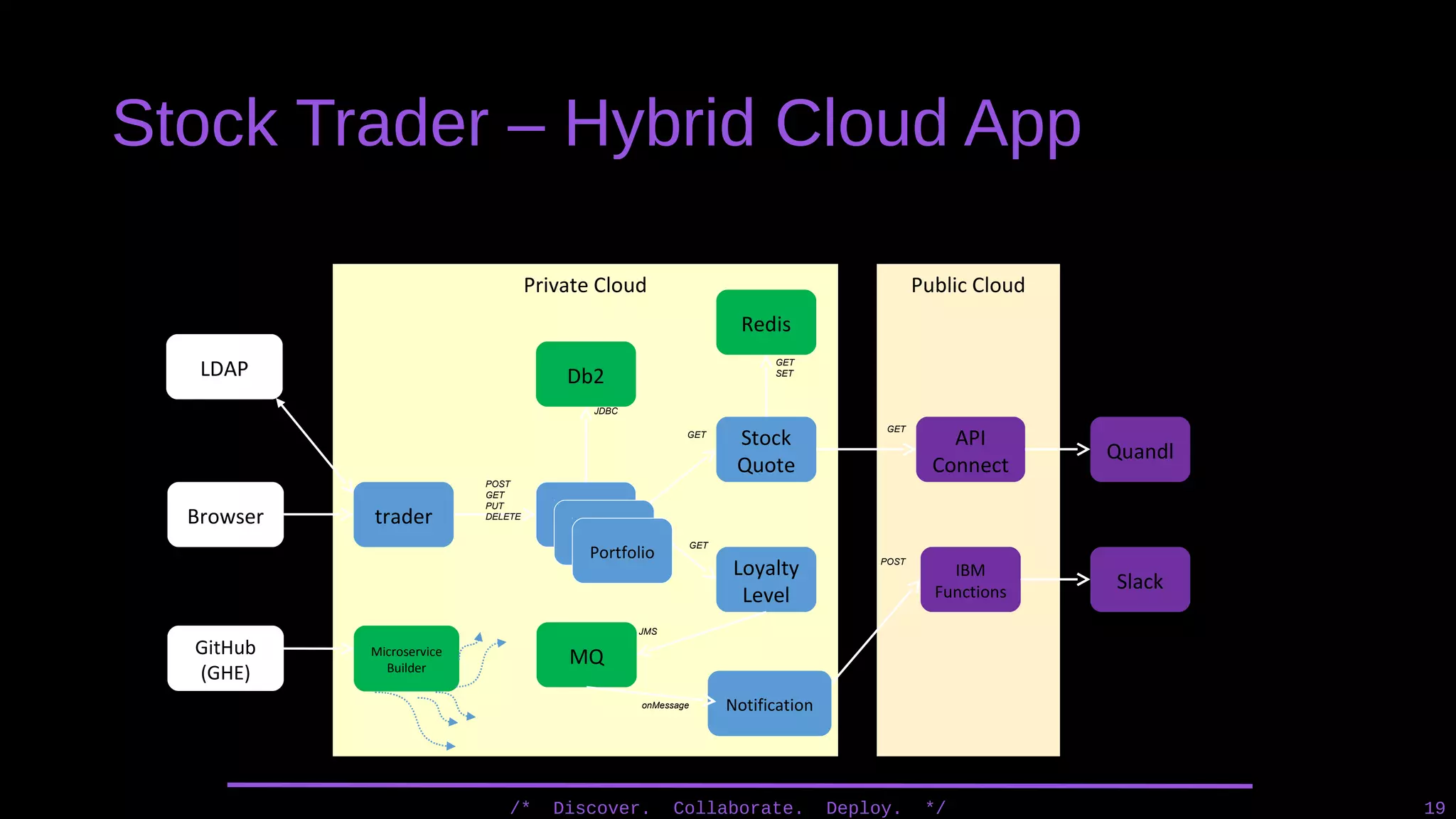

19. Stock Trader – Hybrid Cloud App
/* Discover. Collaborate. Deploy. */ 19
Public CloudPrivate Cloud
trader Portfolio
Stock
Quote
Loyalty
Level
Quandl
Slack
Browser
POST
GET
PUT
DELETE
API
Connect
IBM
Functions
GET
GET
GET
POST
Db2
MQ
JMS
NotificationonMessage
JDBC
Redis
GET
SET
Portfolio
Portfolio
GitHub
(GHE)
Microservice
Builder
LDAP

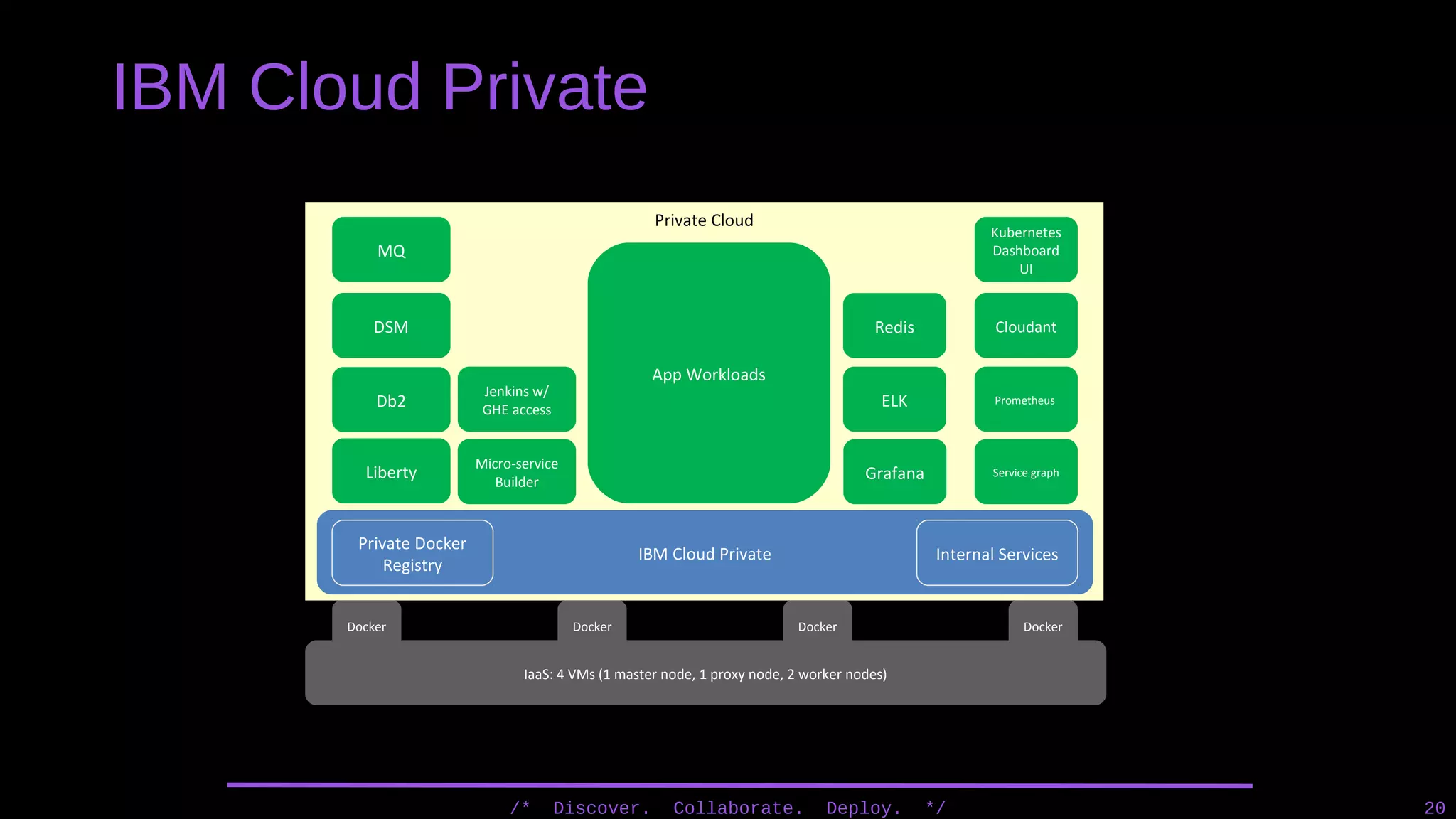

20. IBM Cloud Private
/* Discover. Collaborate. Deploy. */ 20
IaaS: 4 VMs (1 master node, 1 proxy node, 2 worker nodes)
Private Cloud
IBM Cloud Private
Db2
MQ
Redis
Docker Docker DockerDocker
Liberty
Micro-service
Builder
Kubernetes
Dashboard
UI
ELK
DSM
Grafana
Prometheus
Jenkins w/
GHE access
Service graph
Private Docker
Registry
Cloudant
App Workloads
Internal Services

21. • Videos
• How we Build Stock Trader In IBM Cloud Private
• IBM Cloud Private – Playlist
• Blogs
• Intro to IBM Cloud Private
• Build and Continuously Deliver Java Microservices in IBM Cloud Private
• Developing Microservices for IBM Cloud Private
• Recipes
• Use Kubernetes Secrets to make your app portable
• Running Istio on IBM Cloud Private
• Deploy MQ into IBM Cloud Private
• Deploy Db2 into IBM Cloud Private
• Knowledge Center
• IBM Cloud Private
Resources

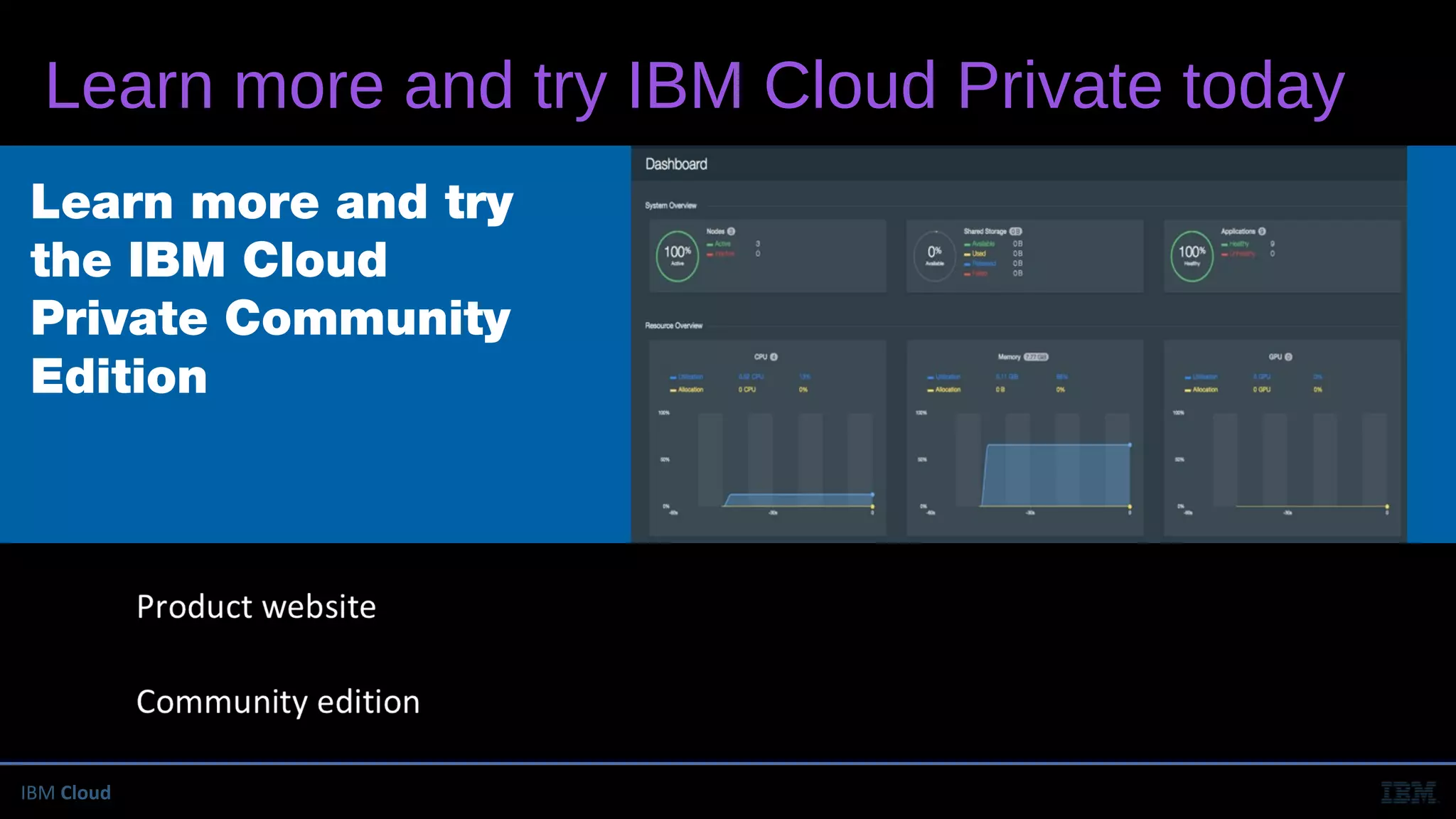

22. IBM Cloud
Learn more and try
the IBM Cloud
Private Community
Edition
http://ibm.biz/IBM-Cloud-Private
https://hub.docker.com/r/ibmcom/icp-inception/
Learn more and try IBM Cloud Private today
