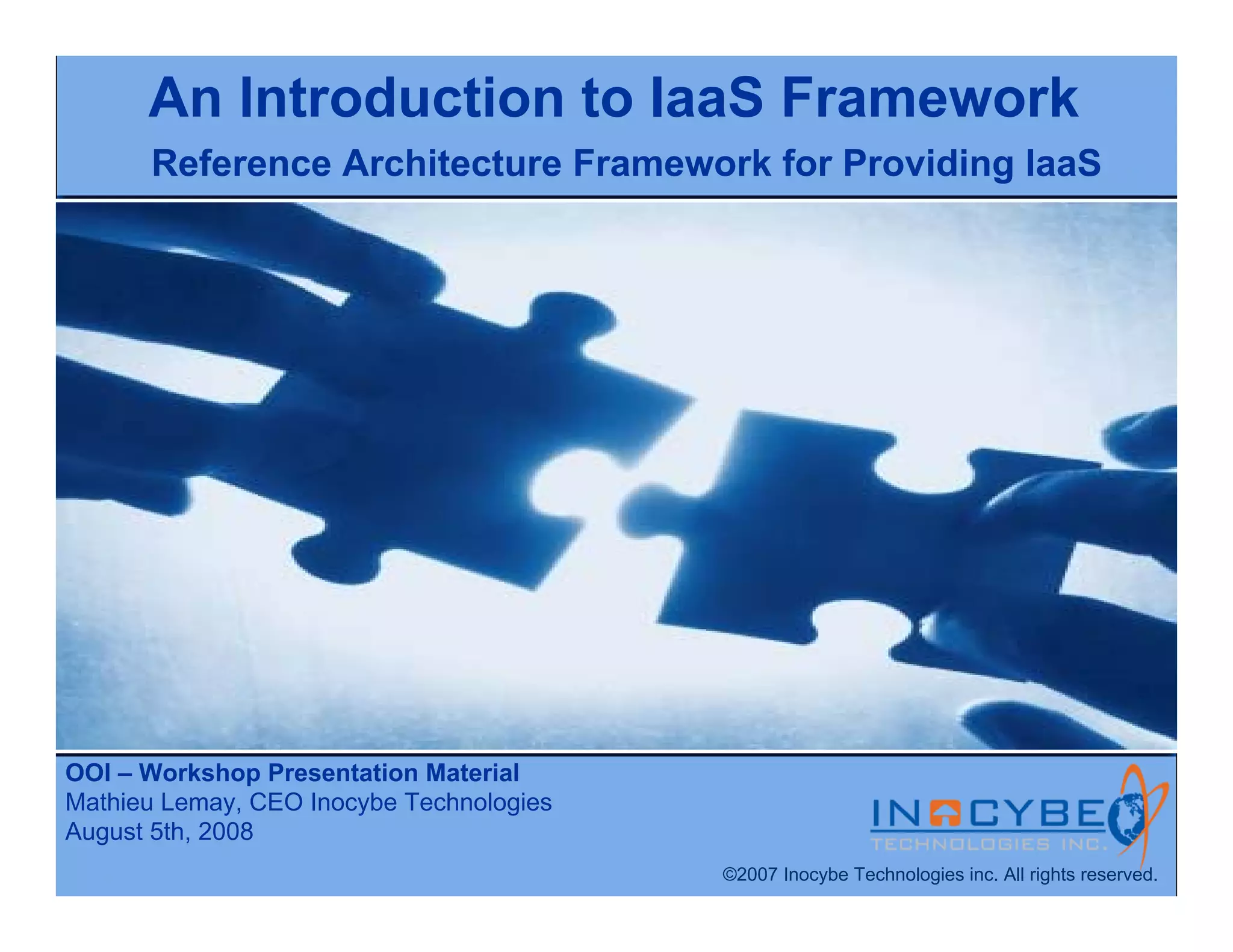

An Introduction to IaaS Framework

An Introduction to IaaS Framework
Reference Architecture Framework for Providing IaaS

OOI – Workshop Presentation Material
Mathieu Lemay, CEO Inocybe Technologies
August 5th, 2008
©2007 Inocybe Technologies inc. All rights reserved.

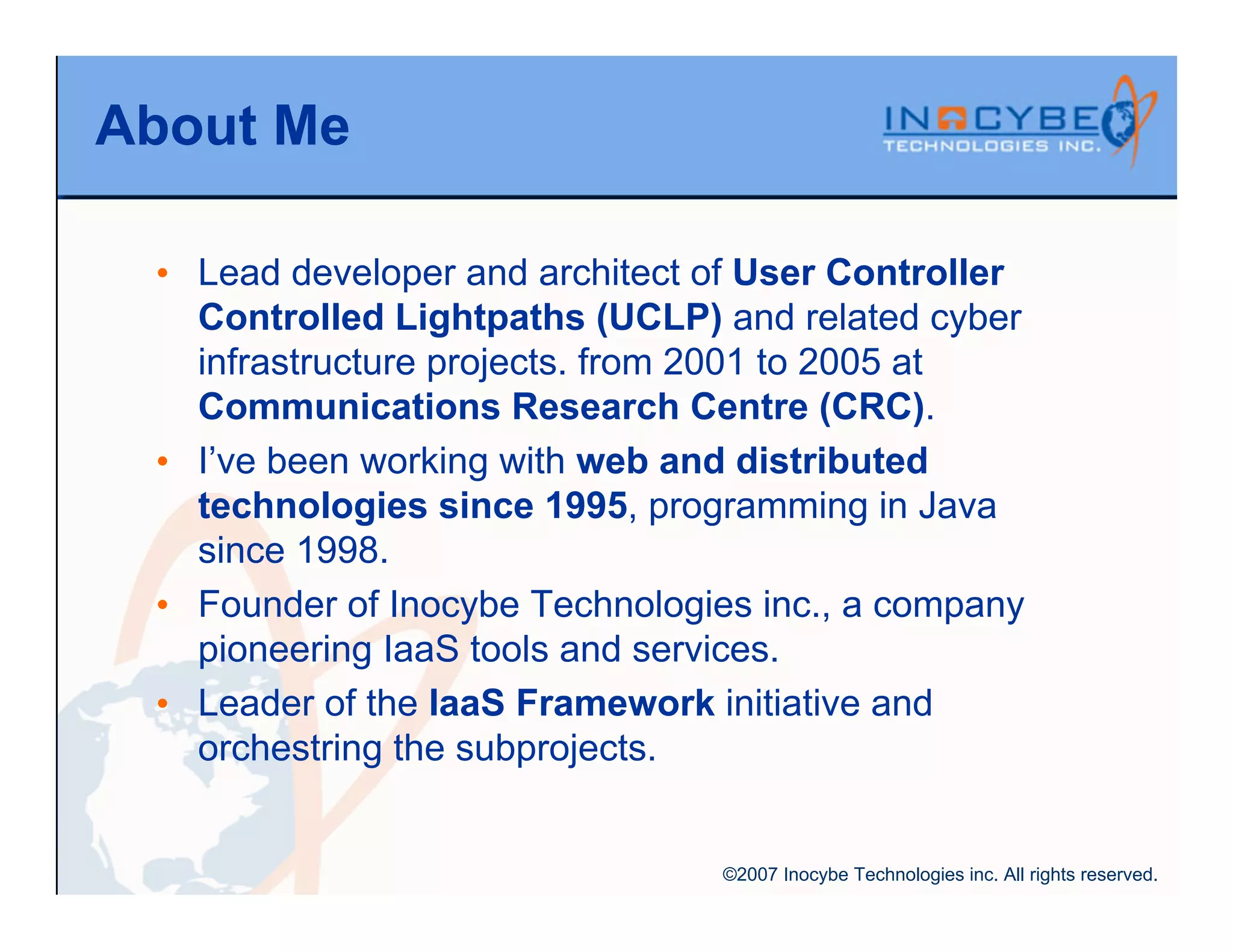

About Me

• Lead developer and architect of User Controller
Controlled Lightpaths (UCLP) and related cyber
infrastructure projects. from 2001 to 2005 at
Communications Research Centre (CRC).
• I’ve been working with web and distributed
technologies since 1995, programming in Java
since 1998.
• Founder of Inocybe Technologies inc., a company
pioneering IaaS tools and services.
• Leader of the IaaS Framework initiative and
orchestring the subprojects.

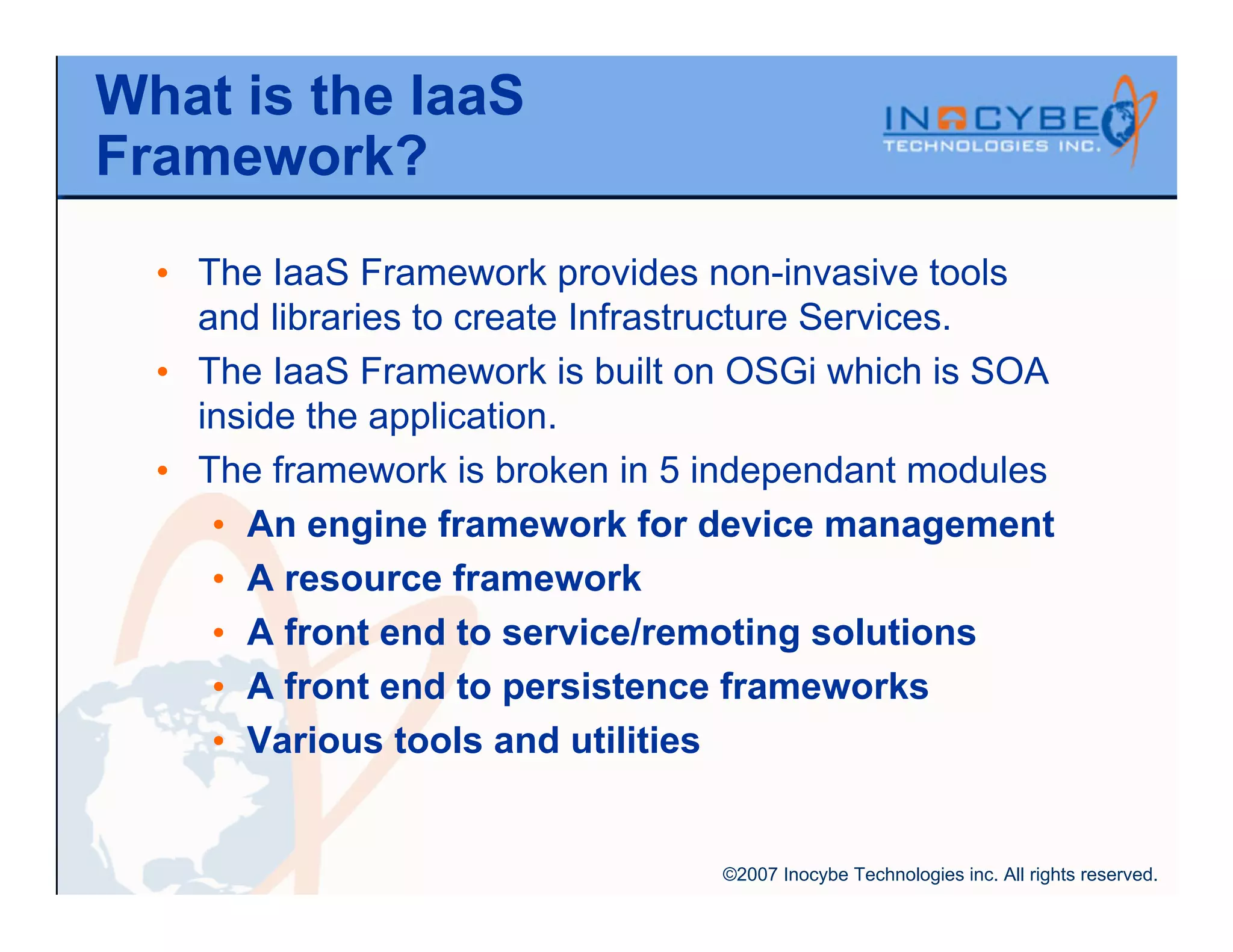

What is the IaaS
Framework?
• The IaaS Framework provides non-invasive tools
and libraries to create Infrastructure Services.
• The IaaS Framework is built on OSGi which is SOA
inside the application.
• The framework is broken in 5 independant modules
• An engine framework for device management
• A resource framework
• A front end to service/remoting solutions
• A front end to persistence frameworks
• Various tools and utilities

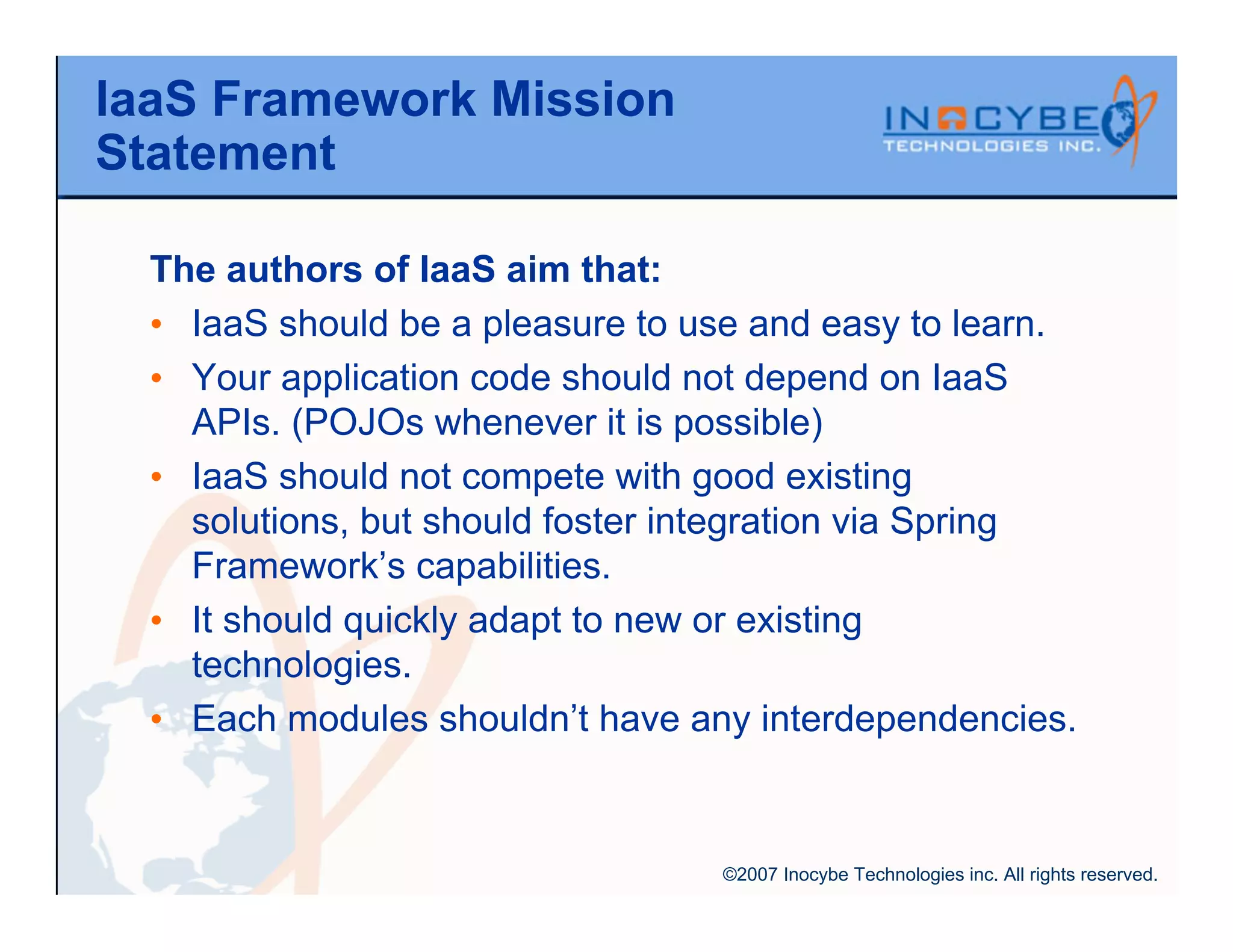

IaaS Framework Mission
Statement

The authors of IaaS aim that:
• IaaS should be a pleasure to use and easy to learn.
• Your application code should not depend on IaaS
APIs. (POJOs whenever it is possible)
• IaaS should not compete with good existing
solutions, but should foster integration via Spring
Framework’s capabilities.
• It should quickly adapt to new or existing
technologies.
• Each modules shouldn’t have any interdependencies.

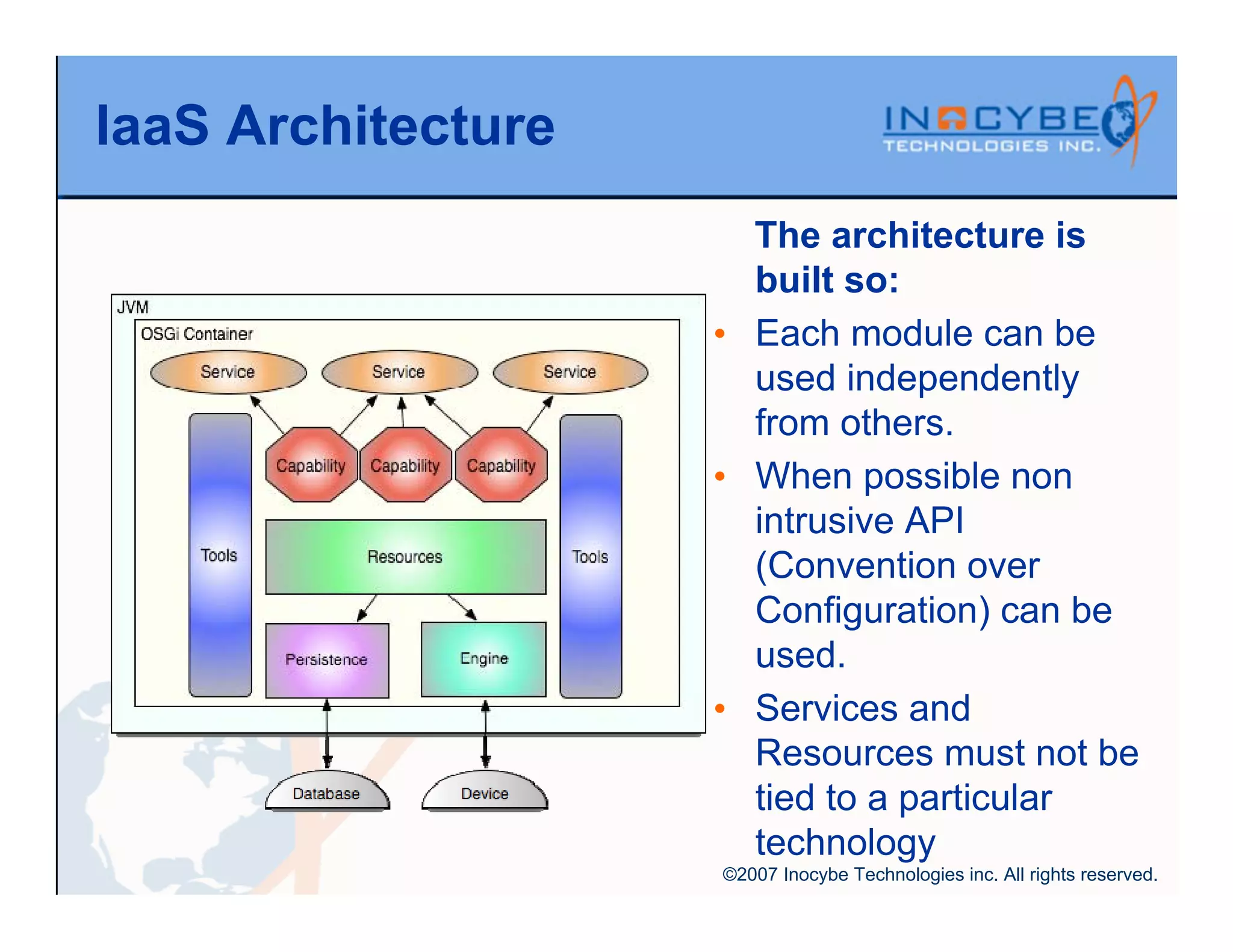

IaaS Architecture
The architecture is
built so:
• Each module can be
used independently
from others.
• When possible non
intrusive API
(Convention over
Configuration) can be
used.
• Services and
Resources must not be
tied to a particular
technology

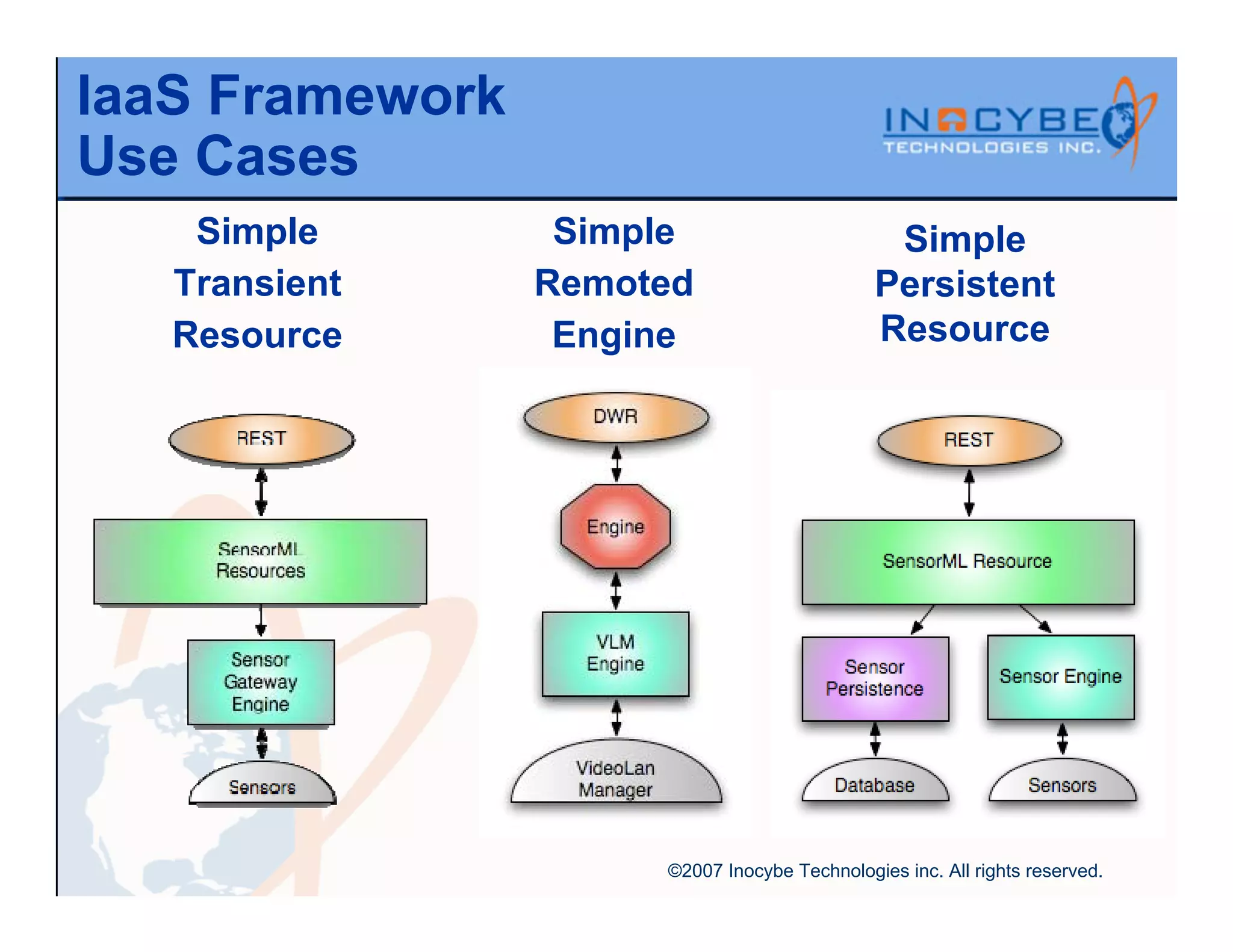

IaaS Framework
Use Cases
Simple Simple Simple
Transient Remoted Persistent
Resource Engine Resource

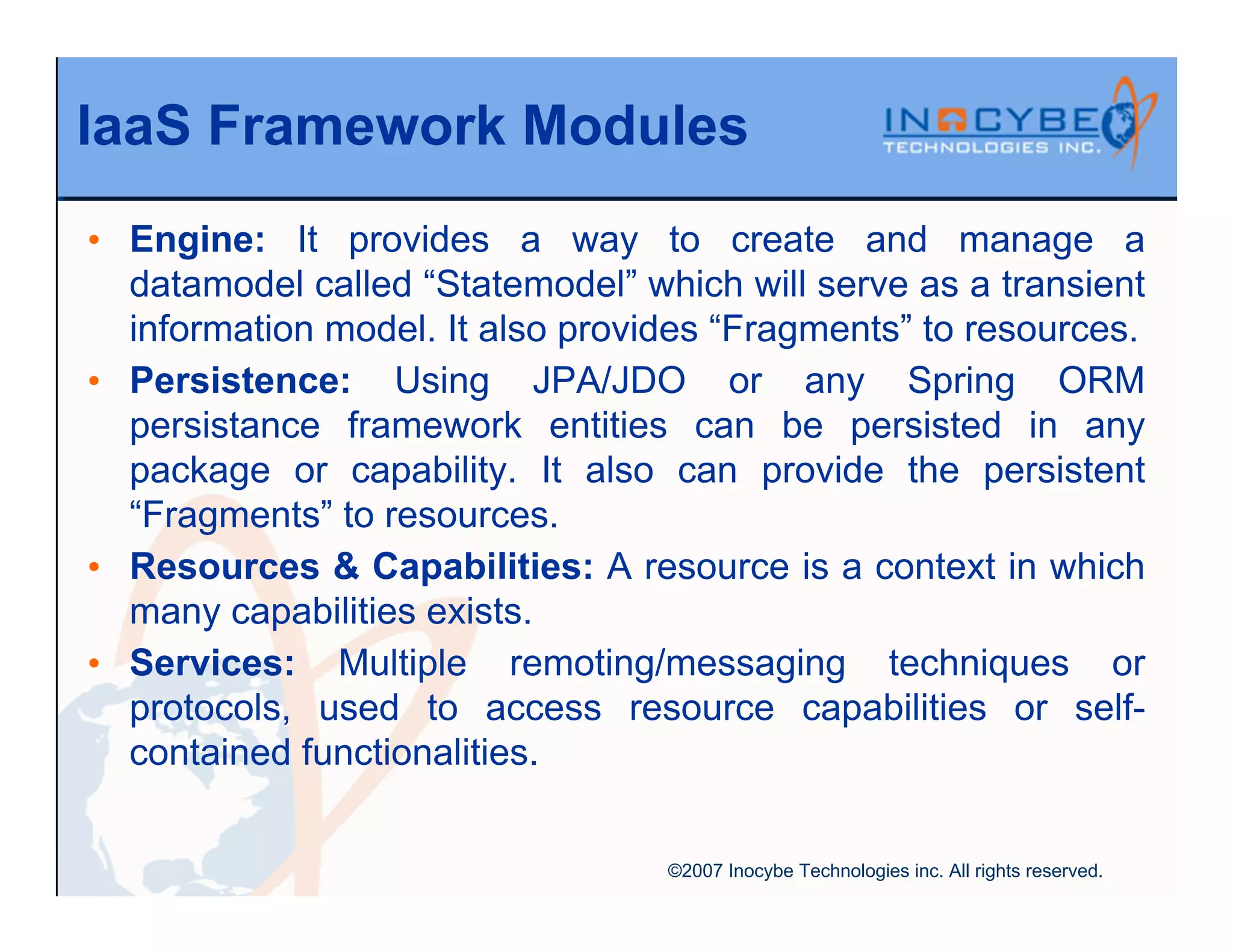

IaaS Framework Modules
• Engine: It provides a way to create and manage a
datamodel called “Statemodel” which will serve as a transient
information model. It also provides “Fragments” to resources.
• Persistence: Using JPA/JDO or any Spring ORM
persistance framework entities can be persisted in any
package or capability. It also can provide the persistent
“Fragments” to resources.
• Resources & Capabilities: A resource is a context in which
many capabilities exists.
• Services: Multiple remoting/messaging techniques or
protocols, used to access resource capabilities or self-
contained functionalities.

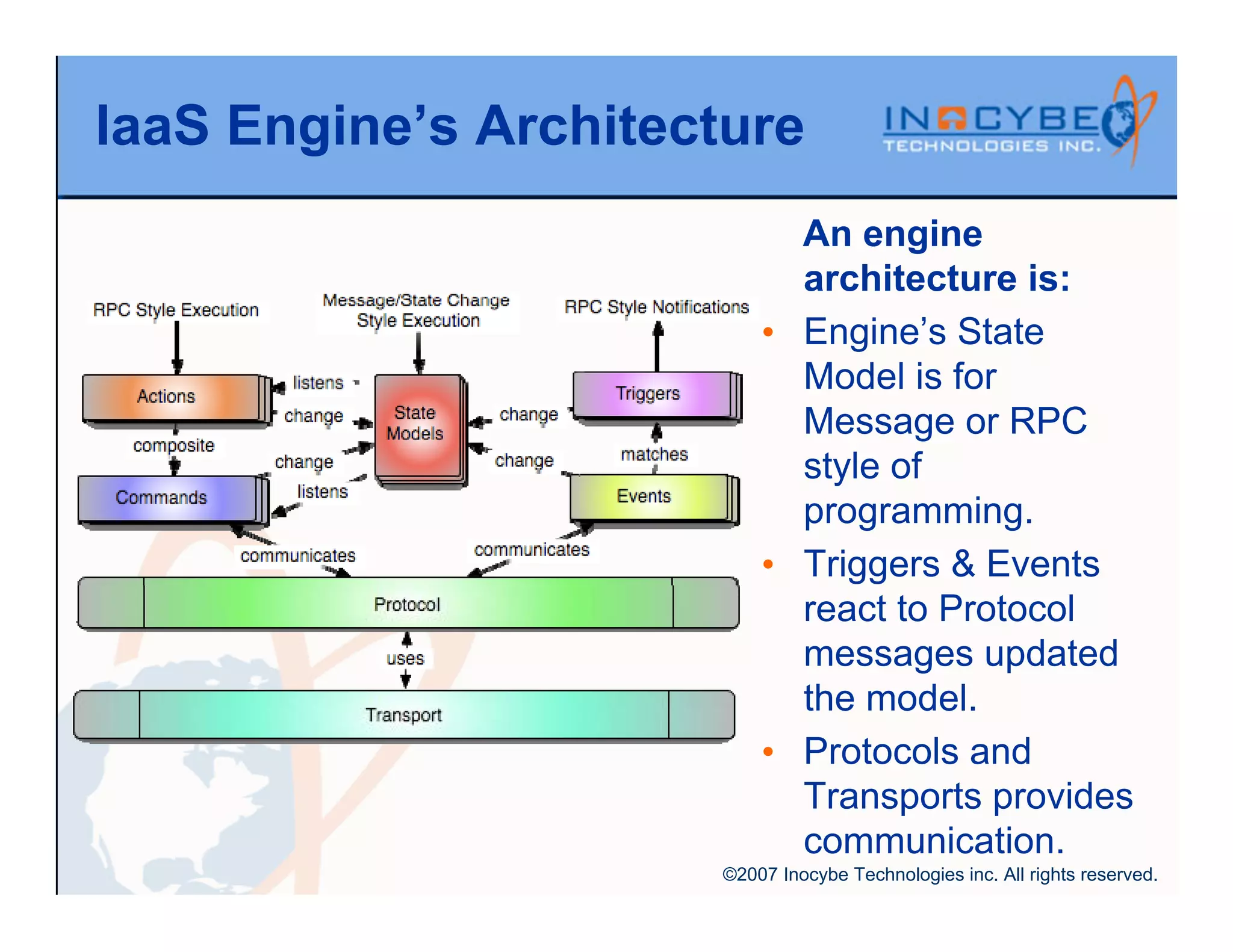

IaaS Engine’s Architecture
An engine
architecture is:
• Engine’s State
Model is for
Message or RPC
style of
programming.
• Triggers & Events
react to Protocol
messages updated
the model.
• Protocols and
Transports provides
communication.

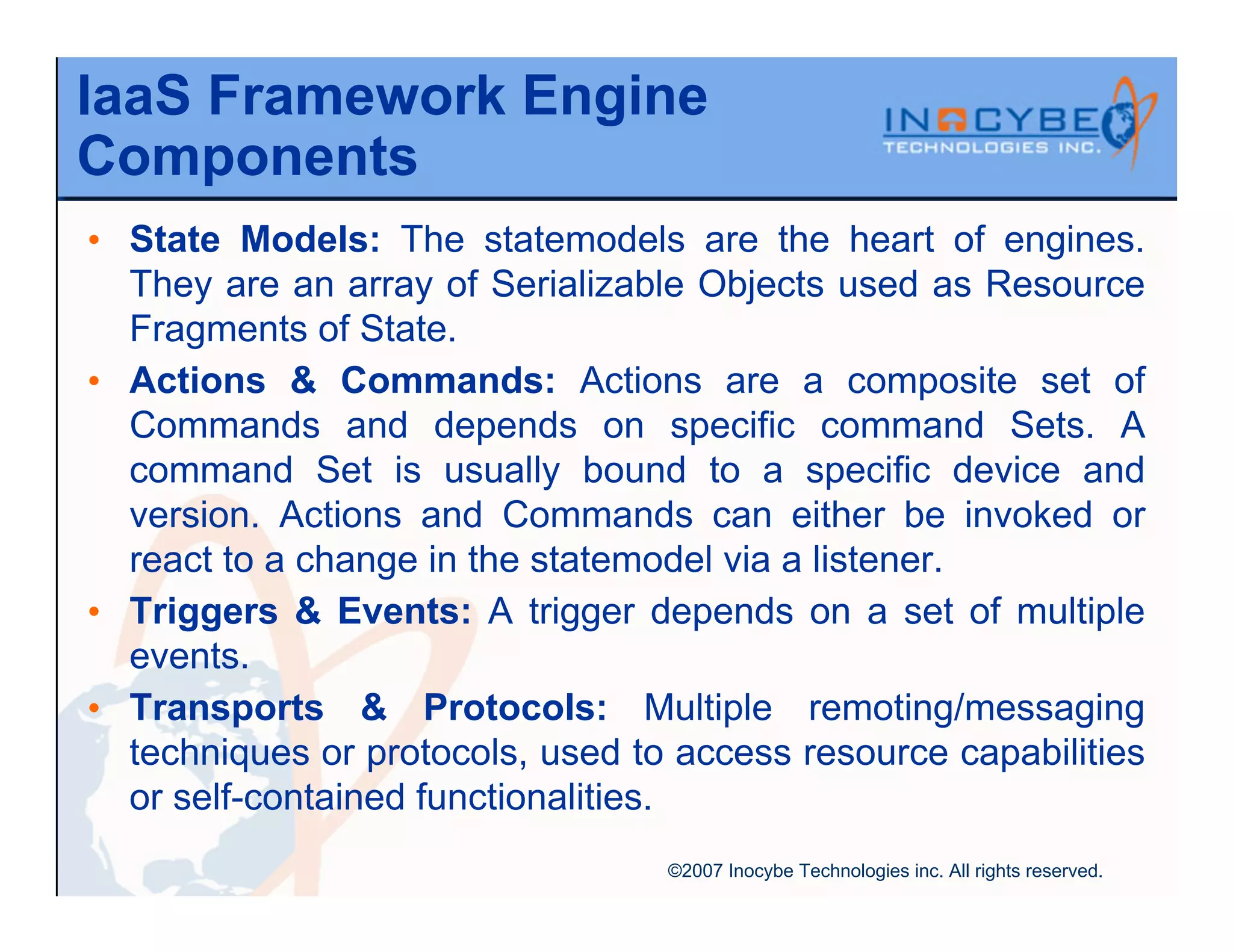

IaaS Framework Engine
Components
• State Models: The statemodels are the heart of engines.
They are an array of Serializable Objects used as Resource
Fragments of State.
• Actions & Commands: Actions are a composite set of
Commands and depends on specific command Sets. A
command Set is usually bound to a specific device and
version. Actions and Commands can either be invoked or
react to a change in the statemodel via a listener.
• Triggers & Events: A trigger depends on a set of multiple
events.
• Transports & Protocols: Multiple remoting/messaging
techniques or protocols, used to access resource capabilities
or self-contained functionalities.

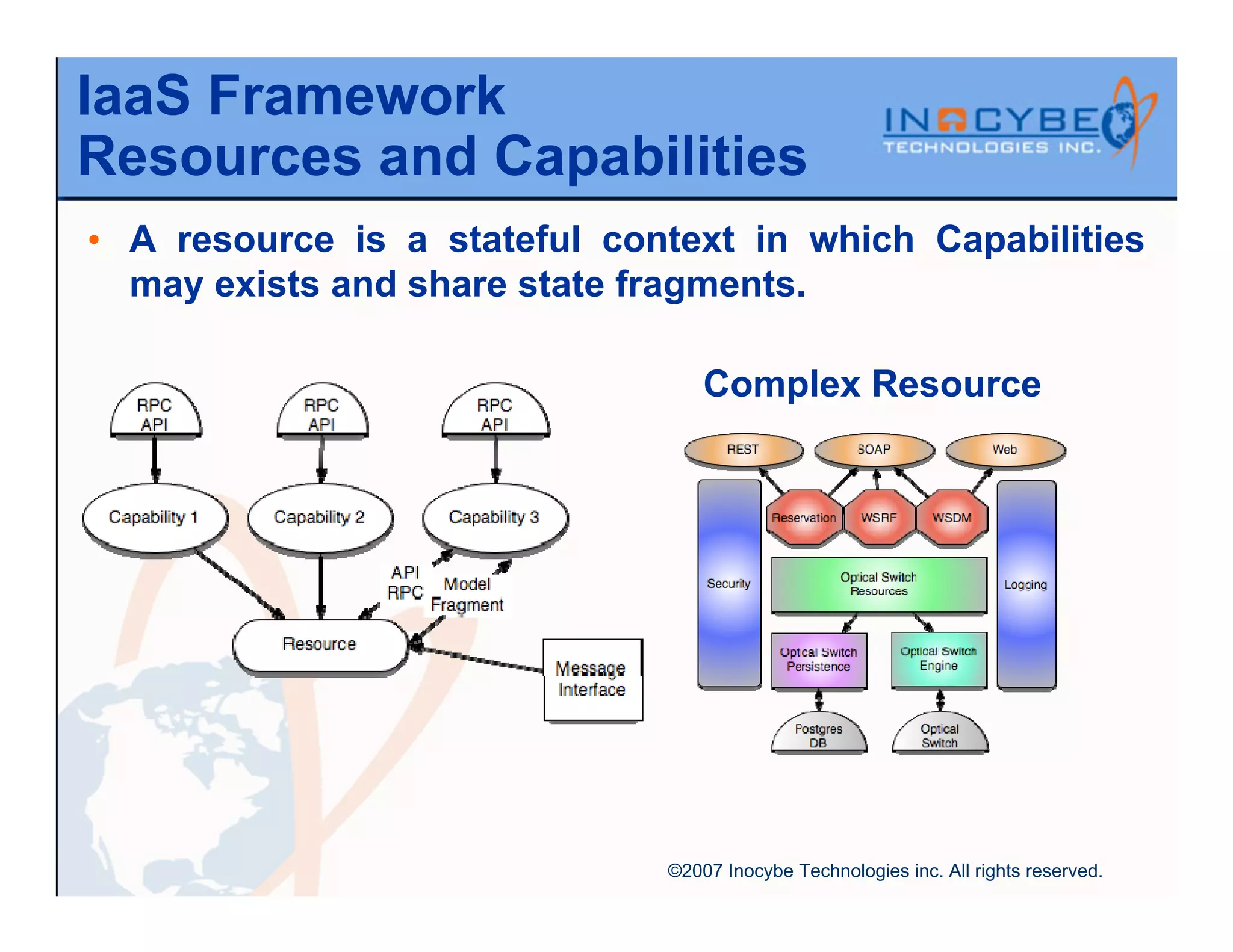

IaaS Framework
Resources and Capabilities
• A resource is a stateful context in which Capabilities
may exists and share state fragments.

Complex Resource

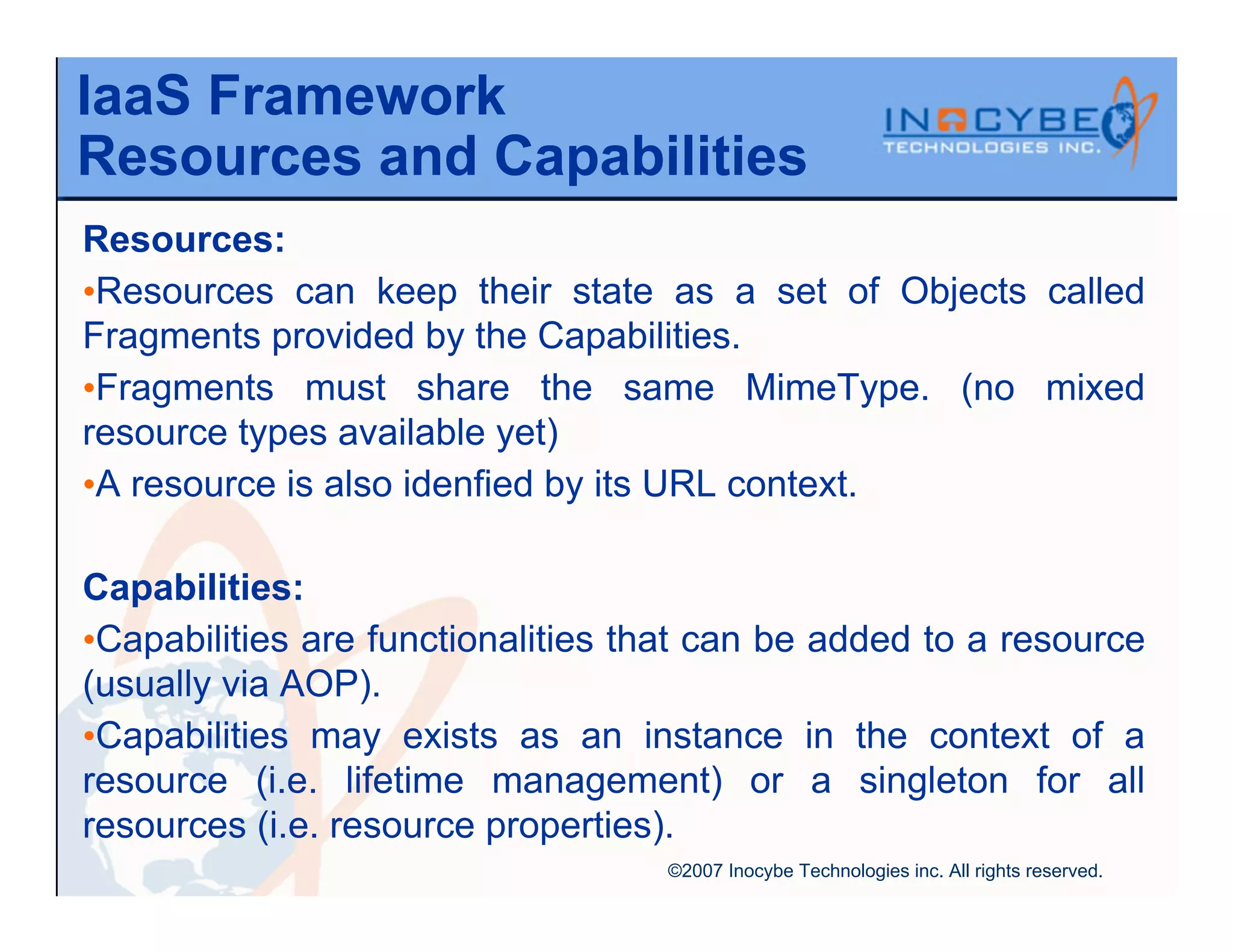

IaaS Framework
Resources and Capabilities
Resources:
•Resources can keep their state as a set of Objects called
Fragments provided by the Capabilities.
•Fragments must share the same MimeType. (no mixed
resource types available yet)
•A resource is also idenfied by its URL context.

Capabilities:
•Capabilities are functionalities that can be added to a resource
(usually via AOP).
•Capabilities may exists as an instance in the context of a
resource (i.e. lifetime management) or a singleton for all
resources (i.e. resource properties).

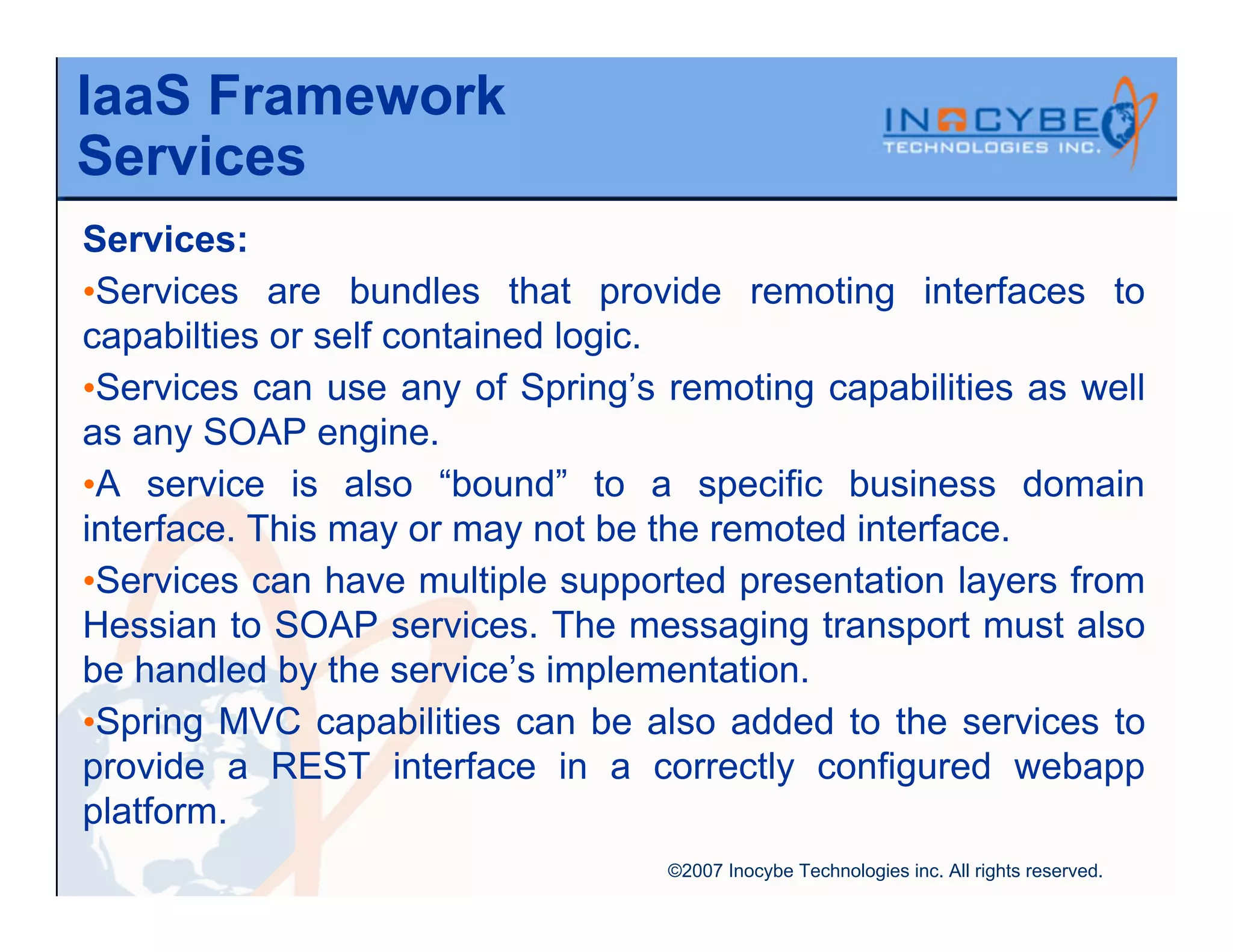

IaaS Framework
Services
Services:
•Services are bundles that provide remoting interfaces to
capabilties or self contained logic.
•Services can use any of Spring’s remoting capabilities as well
as any SOAP engine.
•A service is also “bound” to a specific business domain
interface. This may or may not be the remoted interface.
•Services can have multiple supported presentation layers from
Hessian to SOAP services. The messaging transport must also
be handled by the service’s implementation.
•Spring MVC capabilities can be also added to the services to
provide a REST interface in a correctly configured webapp
platform.

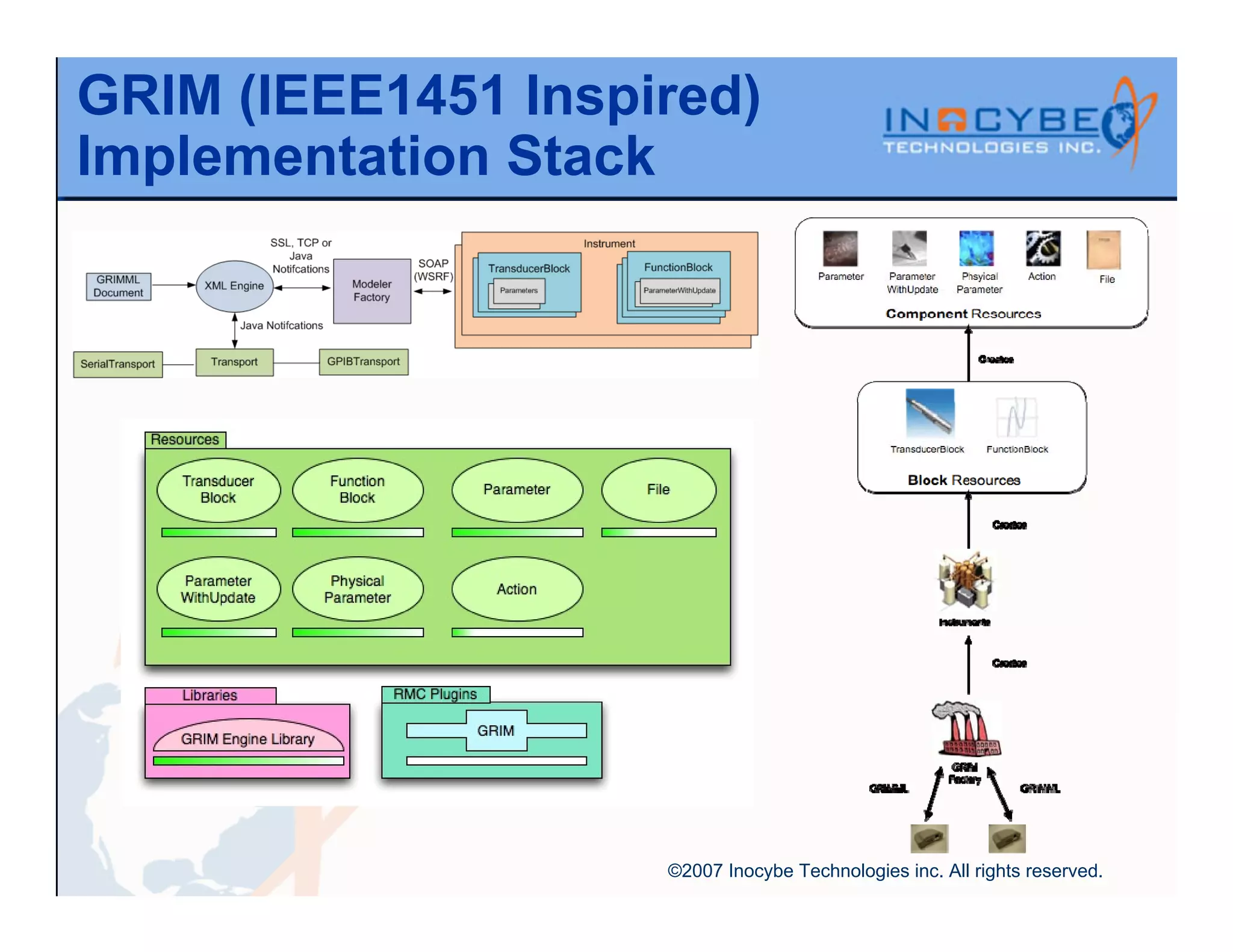

GRIM (IEEE1451 Inspired)
Implementation Stack

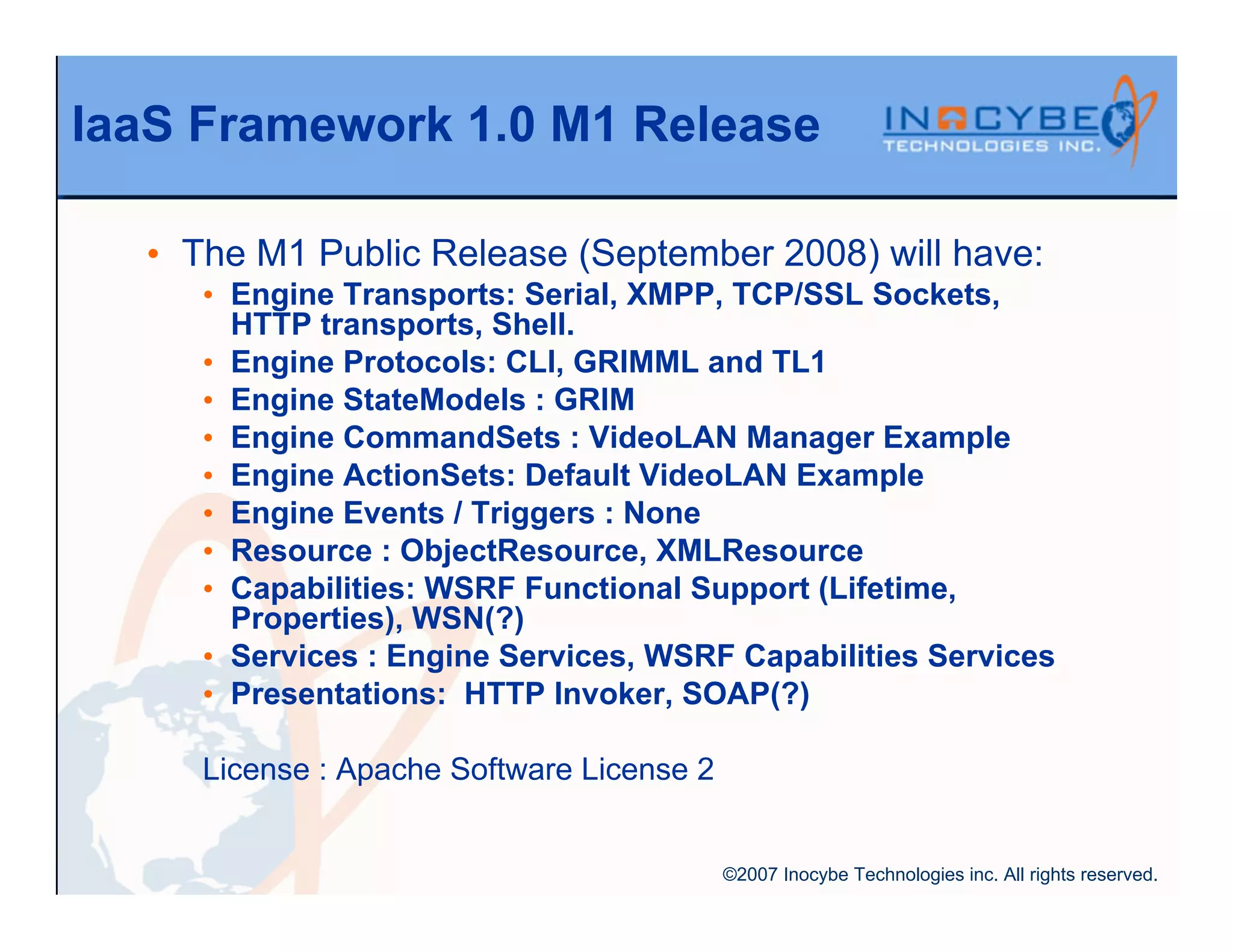

IaaS Framework 1.0 M1 Release

• The M1 Public Release (September 2008) will have:
• Engine Transports: Serial, XMPP, TCP/SSL Sockets,
HTTP transports, Shell.
• Engine Protocols: CLI, GRIMML and TL1
• Engine StateModels : GRIM
• Engine CommandSets : VideoLAN Manager Example
• Engine ActionSets: Default VideoLAN Example
• Engine Events / Triggers : None
• Resource : ObjectResource, XMLResource
• Capabilities: WSRF Functional Support (Lifetime,
Properties), WSN(?)
• Services : Engine Services, WSRF Capabilities Services
• Presentations: HTTP Invoker, SOAP(?)

License : Apache Software License 2

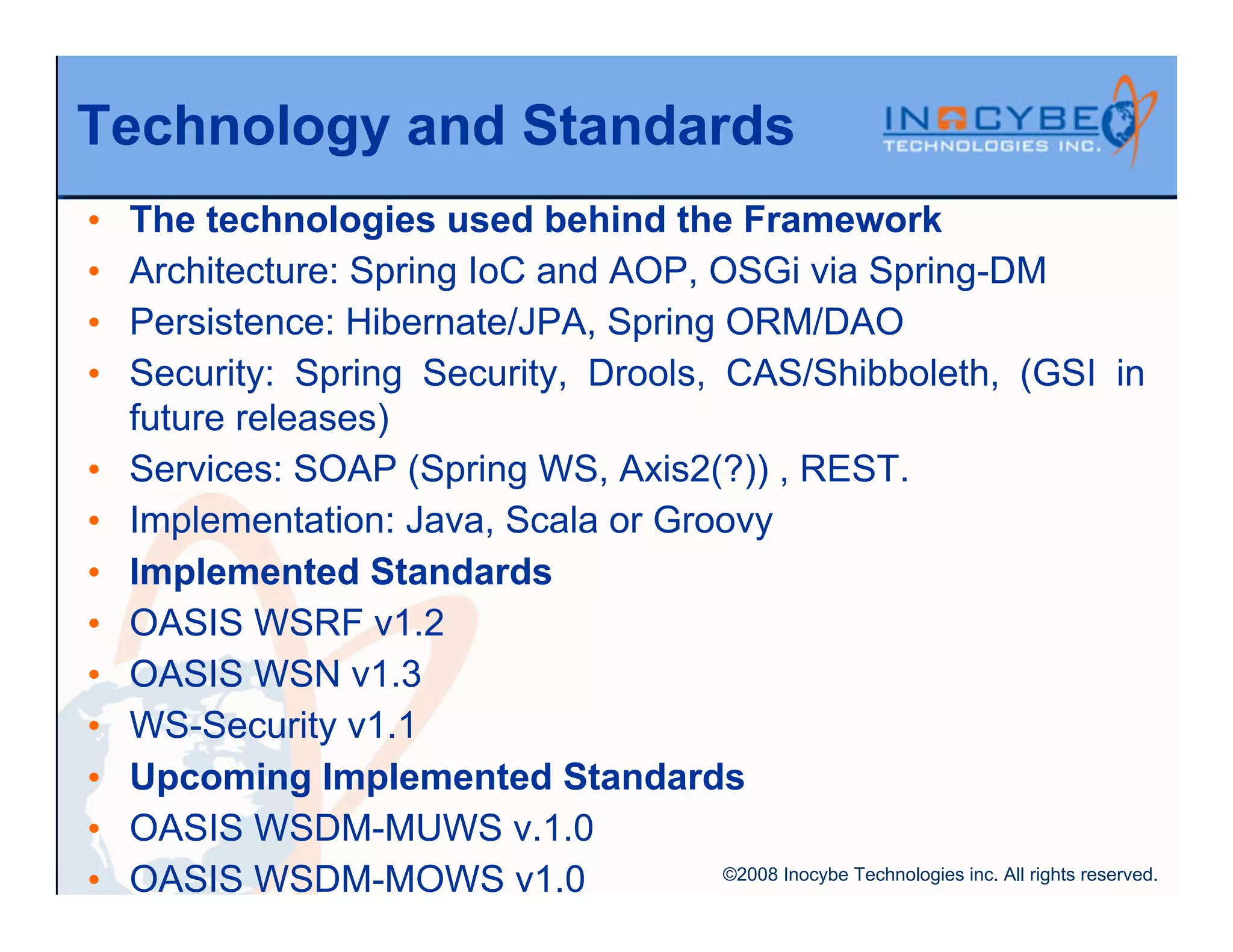

Technology and Standards
• The technologies used behind the Framework
• Architecture: Spring IoC and AOP, OSGi via Spring-DM
• Persistence: Hibernate/JPA, Spring ORM/DAO
• Security: Spring Security, Drools, CAS/Shibboleth, (GSI in
future releases)
• Services: SOAP (Spring WS, Axis2(?)) , REST.
• Implementation: Java, Scala or Groovy
• Implemented Standards
• OASIS WSRF v1.2
• OASIS WSN v1.3
• WS-Security v1.1
• Upcoming Implemented Standards
• OASIS WSDM-MUWS v.1.0
• OASIS WSDM-MOWS v1.0 ©2008 Inocybe Technologies inc. All rights reserved.

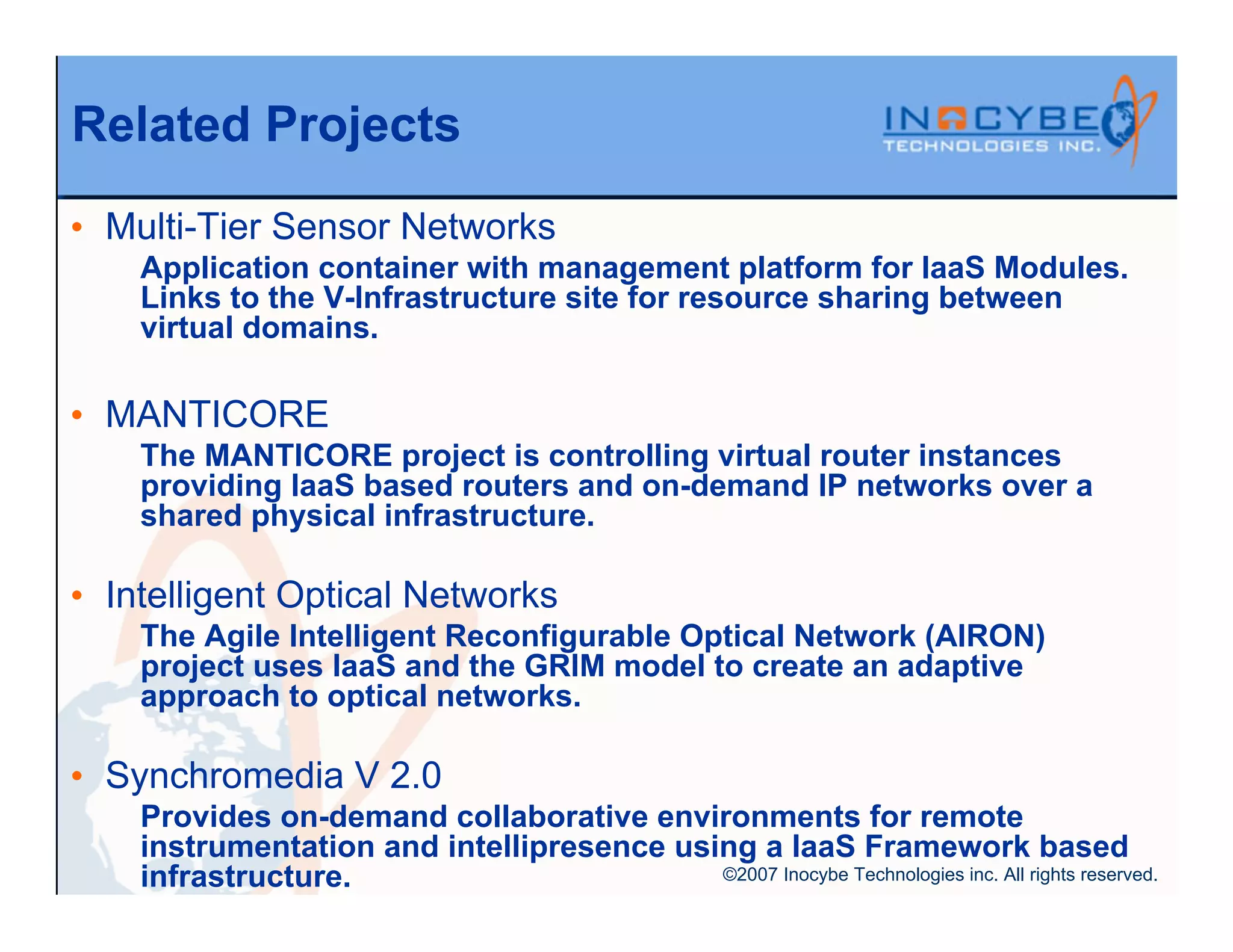

Related Projects
• Multi-Tier Sensor Networks
Application container with management platform for IaaS Modules.
Links to the V-Infrastructure site for resource sharing between
virtual domains.

• MANTICORE
The MANTICORE project is controlling virtual router instances
providing IaaS based routers and on-demand IP networks over a
shared physical infrastructure.

• Intelligent Optical Networks
The Agile Intelligent Reconfigurable Optical Network (AIRON)
project uses IaaS and the GRIM model to create an adaptive
approach to optical networks.

• Synchromedia V 2.0
Provides on-demand collaborative environments for remote
instrumentation and intellipresence using a IaaS Framework based
infrastructure. ©2007 Inocybe Technologies inc. All rights reserved.

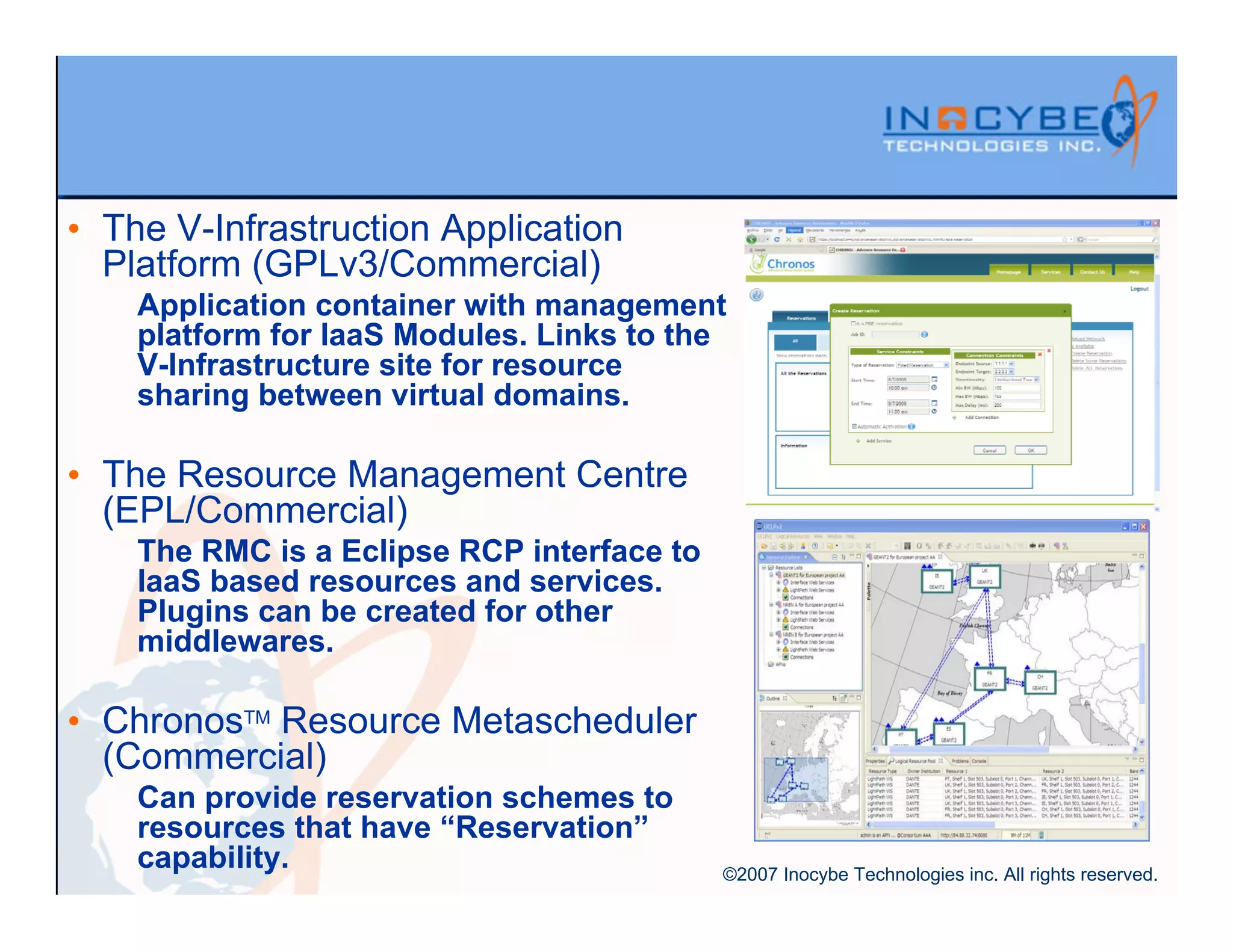

• The V-Infrastruction Application
Platform (GPLv3/Commercial)
Application container with management
platform for IaaS Modules. Links to the
V-Infrastructure site for resource
sharing between virtual domains.

• The Resource Management Centre
(EPL/Commercial)
The RMC is a Eclipse RCP interface to
IaaS based resources and services.
Plugins can be created for other
middlewares.

• ChronosTM Resource Metascheduler
(Commercial)
Can provide reservation schemes to
resources that have “Reservation”
capability. ©2007 Inocybe Technologies inc. All rights reserved.

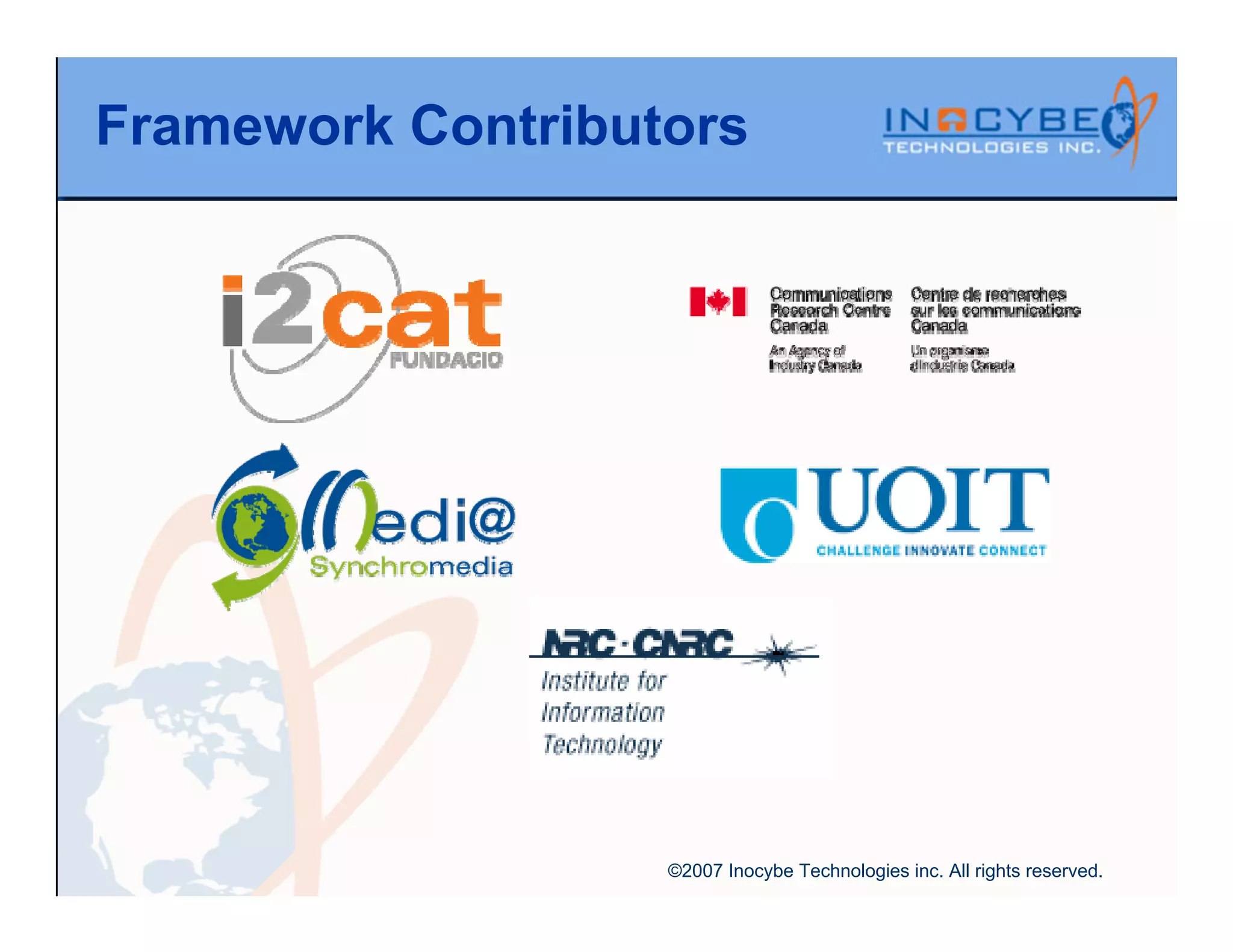

Framework Contributors
