Microservices und Container
Donnerstag | 15. Februar 2018 | 10:00 Uhr
Man braucht die richtigen Werkzeuge, wenn man agil entwickeln und
Microservices schnell und oft ausbringen will. Das Paketieren in Containern ist
heute oft Mittel der Wahl, unterstützt durch die breite Palette an offenen
Lifecycle-Management und Orchestrierungswerkzeugen. Die umfassenden
Möglichkeiten der Oracle Cloud für vollautomatisiertes, Container-basiertes CI/CD
werden vorgestellt.
Wolfgang
Weigend
Oacle

Microservices und
Container
Wolfgang Weigend
Sen. Leitender Systemberater
Java Technology and Architecture

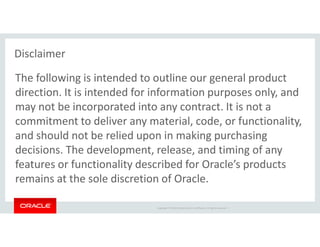

The following is intended to outline our general product
direction. It is intended for information purposes only, and
may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality,
and should not be relied upon in making purchasing
decisions. The development, release, and timing of any
features or functionality described for Oracle’s products
remains at the sole discretion of Oracle.
Disclaimer

Container Native Enterprise Java/DB
Cloud Native PaaS Visual/Low Code
Entwicklungsmuster für Applikationen
Serverless
f(x)

Container Centric
User: DevOps / SRE
granular control
highly scriptable
deep introspection
open
PaaS
User: Web/Mobile Dev
limited control
prescriptive
limited introspection
short/efficient onramp
affixed to environment
Enterprise Java/DB
User: Operations
tightly controlled for
consistency
uniform tooling
designed for seamlessness
Visual/Low Code
User: Line of Business
no exposure to
controls
intuitive / UI based
integrated into a suite
low/no complexity

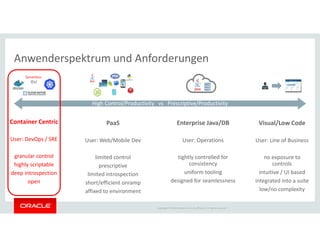

Anwenderspektrum und Anforderungen
Serverless
f(x)
High Control/Productivity vs Prescriptive/Productivity

Copyright © 2018 Oracle and/or its affiliates. All rights reserved. |Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

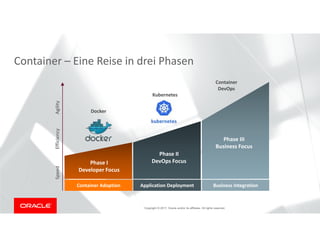

Container – Eine Reise in drei Phasen
Phase I
Developer Focus
Phase II
DevOps Focus
Phase III
Business Focus
Container Adoption Application Deployment Business Integration
SpeedEfficiencyAgility
Docker
Kubernetes
Container
DevOps

7

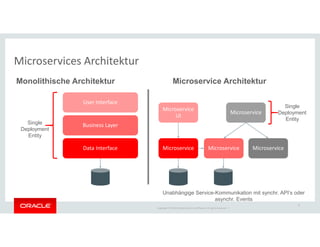

Microservices Architektur
Monolithische Architektur Microservice Architektur
Unabhängige Service-Kommunikation mit synchr. API’s oder
asynchr. Events
Microservice Microservice Microservice
Microservice
Microservice
UI
Single
Deployment
Entity
User Interface
Business Layer
Data Interface
Single
Deployment
Entity

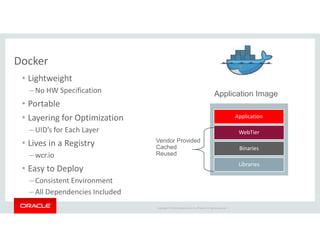

Docker
• Lightweight
– No HW Specification
• Portable
• Layering for Optimization
– UID’s for Each Layer
• Lives in a Registry
– wcr.io
• Easy to Deploy
– Consistent Environment
– All Dependencies Included
Application
WebTier
Binaries
Libraries
Application Image
Vendor Provided
Cached
Reused

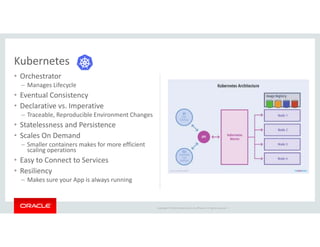

Kubernetes
• Orchestrator
– Manages Lifecycle
• Eventual Consistency
• Declarative vs. Imperative
– Traceable, Reproducible Environment Changes
• Statelessness and Persistence
• Scales On Demand
– Smaller containers makes for more efficient
scaling operations
• Easy to Connect to Services
• Resiliency
– Makes sure your App is always running

Cluster

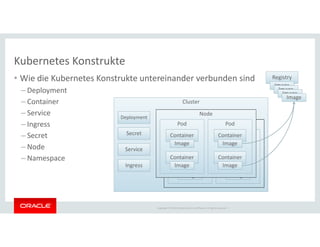

Kubernetes Konstrukte
• Wie die Kubernetes Konstrukte untereinander verbunden sind
– Deployment
– Container
– Service
– Ingress
– Secret
– Node
– Namespace
Registry
Node
Pod
Container
Container
Pod
Container
Container
Node
Pod
Container
Container
Pod
Container
Container
Service
Ingress
Secret
Deployment

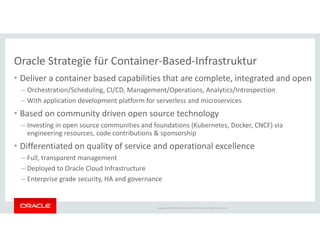

Oracle Strategie für Container-Based-Infrastruktur
• Deliver a container based capabilities that are complete, integrated and open
– Orchestration/Scheduling, CI/CD, Management/Operations, Analytics/Introspection
– With application development platform for serverless and microservices
• Based on community driven open source technology
– Investing in open source communities and foundations (Kubernetes, Docker, CNCF) via
engineering resources, code contributions & sponsorship
• Differentiated on quality of service and operational excellence
– Full, transparent management
– Deployed to Oracle Cloud Infrastructure
– Enterprise grade security, HA and governance

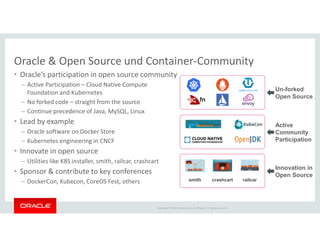

Oracle & Open Source und Container-Community
• Oracle’s participation in open source community
– Active Participation – Cloud Native Compute
Foundation and Kubernetes
– No forked code – straight from the source
– Continue precedence of Java, MySQL, Linux
• Lead by example
– Oracle software on Docker Store
– Kubernetes engineering in CNCF
• Innovate in open source
– Utilities like K8S installer, smith, railcar, crashcart
• Sponsor & contribute to key conferences
– DockerCon, Kubecon, CoreOS Fest, others
fn
railcarsmith crashcart
Innovation in
Open Source
Active
Community
Participation
Un-forked
Open Source

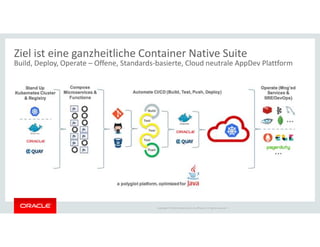

Ziel ist eine ganzheitliche Container Native Suite
Build, Deploy, Operate – Offene, Standards-basierte, Cloud neutrale AppDev Plattform

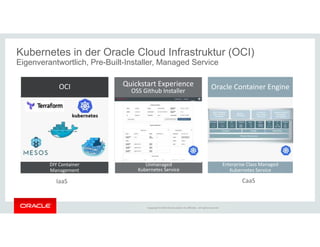

Kubernetes in der Oracle Cloud Infrastruktur (OCI)
Eigenverantwortlich, Pre-Built-Installer, Managed Service
Quickstart Experience
OSS Github Installer
OCI Oracle Container Engine
DIY Container
Management
Unmanaged
Kubernetes Service
Enterprise Class Managed
Kubernetes Service
IaaS CaaS
Copyright © 2018 Oracle and/or its affiliates. All rights reserved

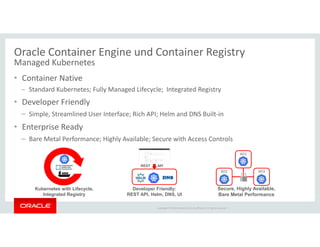

Oracle Container Engine und Container Registry
Managed Kubernetes
• Container Native
– Standard Kubernetes; Fully Managed Lifecycle; Integrated Registry
• Developer Friendly
– Simple, Streamlined User Interface; Rich API; Helm and DNS Built-in
• Enterprise Ready
– Bare Metal Performance; Highly Available; Secure with Access Controls
AD2
Secure, Highly Available,
Bare Metal Performance
AD1
AD3
Kubernetes with Lifecycle,
Integrated Registry
Developer Friendly:
REST API, Helm, DNS, UI
DNSDNSDNSDNS
APIREST

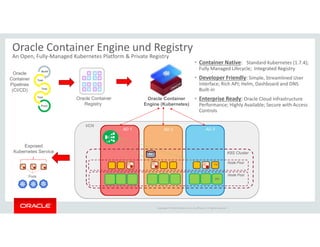

Oracle Container Engine und Registry
An Open, Fully-Managed Kubernetes Platform & Private Registry
Oracle
Container
Pipelines
(CI/CD)
Oracle Container
Registry
AD 1 AD 3
Node Pool
K8S Cluster
Node Pool
BM
VM
VCN
PV
AD 2
Exposed
Kubernetes Service
• Container Native: Standard Kubernetes (1.7.4);
Fully Managed Lifecycle; Integrated Registry
• Developer Friendly: Simple, Streamlined User
Interface; Rich API; Helm, Dashboard and DNS
Built-in
• Enterprise Ready: Oracle Cloud Infrastructure
Performance; Highly Available; Secure with Access
Controls
Build
Test
Test
Test
Push
Oracle Container
Engine (Kubernetes)
Pods
LB

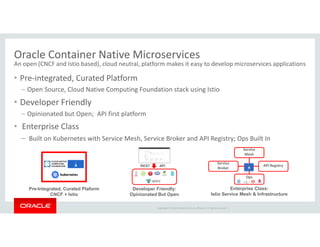

Oracle Container Native Microservices
An open (CNCF and Istio based), cloud neutral, platform makes it easy to develop microservices applications
• Pre-integrated, Curated Platform
– Open Source, Cloud Native Computing Foundation stack using Istio
• Developer Friendly
– Opinionated but Open; API first platform
• Enterprise Class
– Built on Kubernetes with Service Mesh, Service Broker and API Registry; Ops Built In
Service
Broker
Enterprise Class:
Istio Service Mesh & Infrastructure
Service
Mesh
API Registry
Pre-Integrated, Curated Plaform
CNCF + Istio
Developer Friendly:
Opinionated But Open
APIREST
Ops

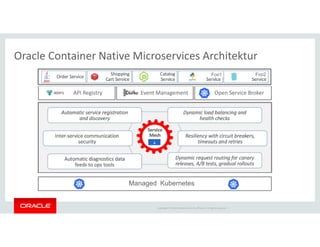

Oracle Container Native Microservices Architektur
Managed Kubernetes
Open Service BrokerEvent ManagementAPI Registry
Foo1 Foo2

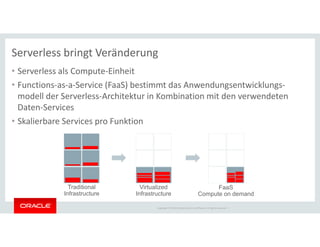

Serverless bringt Veränderung
• Serverless als Compute-Einheit
• Functions-as-a-Service (FaaS) bestimmt das Anwendungsentwicklungs-
modell der Serverless-Architektur in Kombination mit den verwendeten
Daten-Services
• Skalierbare Services pro Funktion
Traditional
Infrastructure
Virtualized
Infrastructure
FaaS
Compute on demand

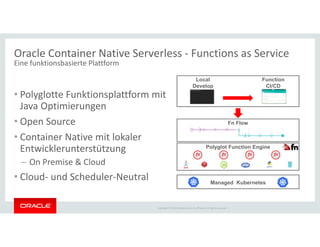

Oracle Container Native Serverless - Functions as Service
Eine funktionsbasierte Plattform
• Polyglotte Funktionsplattform mit
Java Optimierungen
• Open Source
• Container Native mit lokaler
Entwicklerunterstützung
– On Premise & Cloud
• Cloud- und Scheduler-Neutral
Function
CI/CD
Local
Develop
Fn Flow
Polyglot Function Engine
fn fn fn fn
Managed Kubernetes

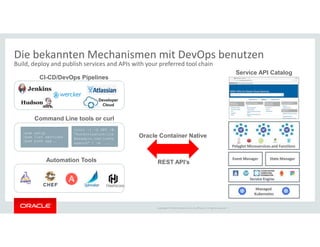

Die bekannten Mechanismen mit DevOps benutzen
Build, deploy and publish services and APIs with your preferred tool chain
Oracle Container Native
REST API’s
Service API Catalog
Command Line tools or curl
>psm setup
>psm list services
>psm push app …
>curl -i -X GET -H
"Authorization:joe
@example.com:joePa
ssword" -H ...
Automation Tools
Hashicorp
CI-CD/DevOps Pipelines
Developer
Cloud

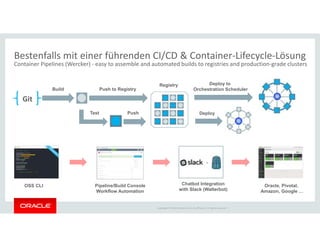

Bestenfalls mit einer führenden CI/CD & Container-Lifecycle-Lösung
Container Pipelines (Wercker) - easy to assemble and automated builds to registries and production-grade clusters
Git
Build Push to Registry
PushTest
Deploy to
Orchestration Scheduler
Deploy
Registry
OSS CLI Pipeline/Build Console
Workflow Automation
Oracle, Pivotal,
Amazon, Google …
Chatbot Integration
with Slack (Walterbot)

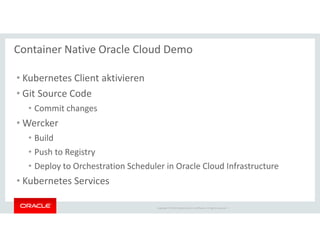

Container Native Oracle Cloud Demo
• Kubernetes Client aktivieren
• Git Source Code
• Commit changes
• Wercker
• Build
• Push to Registry
• Deploy to Orchestration Scheduler in Oracle Cloud Infrastructure
• Kubernetes Services

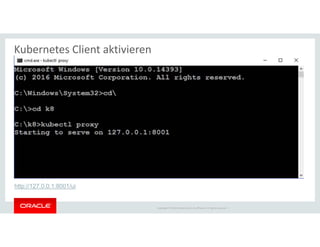

Kubernetes Client aktivieren
http://127.0.0.1:8001/ui

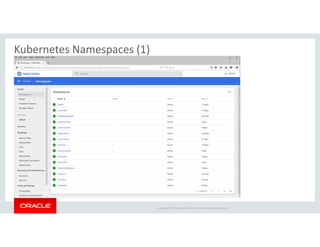

Kubernetes Namespaces (1)

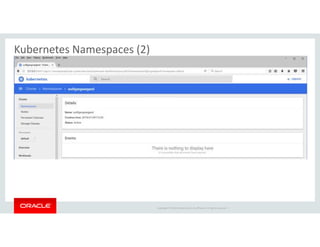

Kubernetes Namespaces (2)

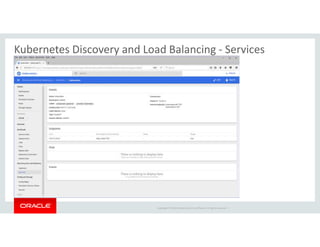

Kubernetes Discovery and Load Balancing - Services

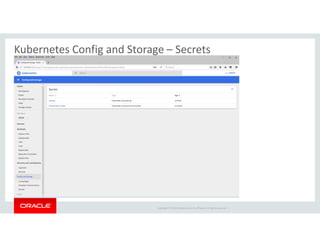

Kubernetes Config and Storage – Secrets

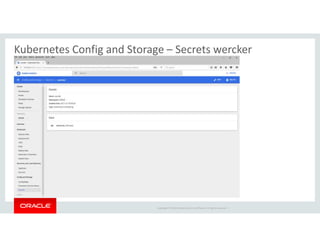

Kubernetes Config and Storage – Secrets wercker

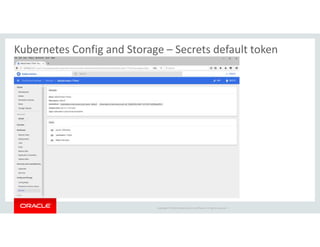

Kubernetes Config and Storage – Secrets default token

Application access: https://129.213.76.133/wolfgangweigend/
C:k8> kubectl --namespace=wolfgangweigend get pods
NAME READY STATUS RESTARTS AGE
rest-jscreditscore-769817735-qbsh5 1/1 Running 0 1h
C:k8> kubectl --namespace=shared-ingress get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default-http-backend ClusterIP 10.96.147.81 <none> 80/TCP 22d
nginx-ingress-controller LoadBalancer 10.96.118.173 129.213.76.133 80:30021/TCP,443:30022/TCP 22d

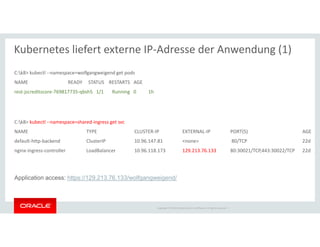

Kubernetes liefert externe IP-Adresse der Anwendung (1)

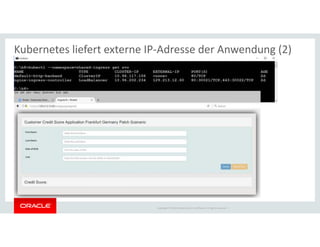

Kubernetes liefert externe IP-Adresse der Anwendung (2)

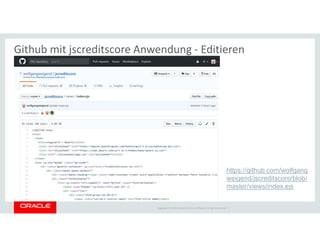

Github mit jscreditscore Anwendung - Editieren
https://github.com/wolfgang
weigend/jscreditscore/blob/
master/views/index.ejs

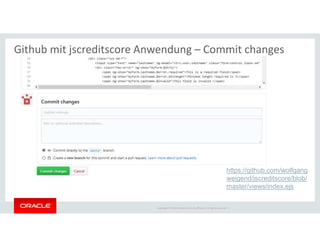

Github mit jscreditscore Anwendung – Commit changes
https://github.com/wolfgang
weigend/jscreditscore/blob/
master/views/index.ejs

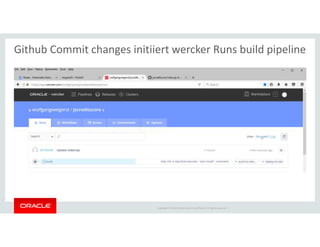

Github Commit changes initiiert wercker Runs build pipeline

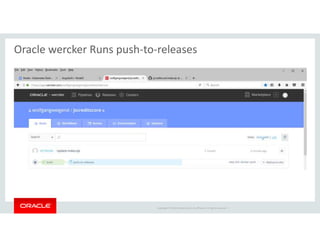

Oracle wercker Runs push-to-releases

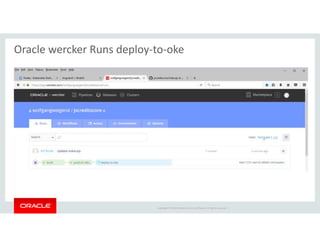

Oracle wercker Runs deploy-to-oke

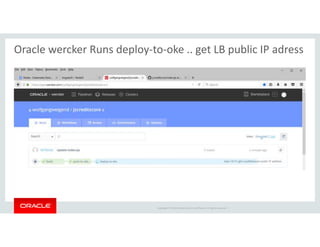

Oracle wercker Runs deploy-to-oke .. get LB public IP adress

Oracle wercker Runs deploy-to-oke .. fertig gestellt

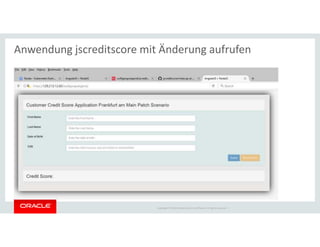

Anwendung jscreditscore mit Änderung aufrufen

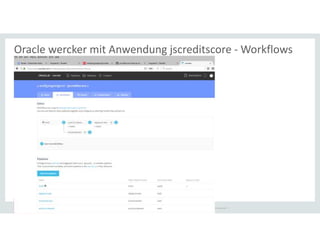

Oracle wercker mit Anwendung jscreditscore - Workflows

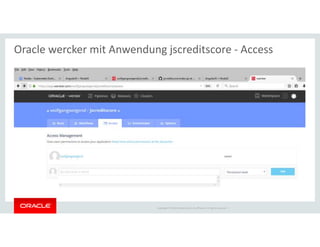

Oracle wercker mit Anwendung jscreditscore - Access

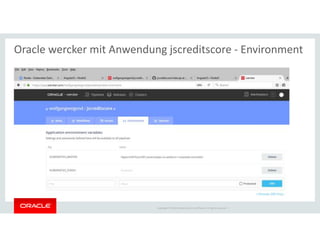

Oracle wercker mit Anwendung jscreditscore - Environment

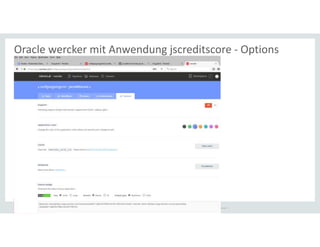

Oracle wercker mit Anwendung jscreditscore - Options

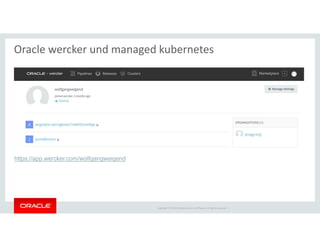

Oracle wercker und managed kubernetes
https://app.wercker.com/wolfgangweigend

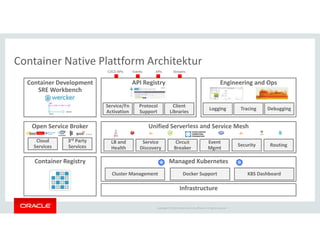

Container Native Plattform Architektur
Managed KubernetesContainer Registry
Container Development
SRE Workbench
Cluster Management K8S DashboardDocker Support
Engineering and Ops
Logging Tracing Debugging
API Registry
Service/Fn
Activation
Protocol
Support
Client
Libraries
APIsEvents StreamsCI/CD APIs
Infrastructure
Open Service Broker
Cloud
Services
3rd Party
Services
Unified Serverless and Service Mesh
Routing
Event
Mgmt
Circuit
Breaker
Service
Discovery
LB and
Health
fnfn…
Security

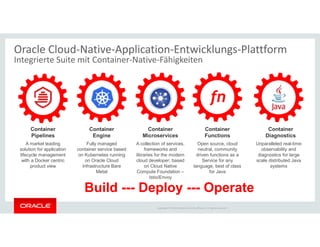

Oracle Cloud-Native-Application-Entwicklungs-Plattform
Integrierte Suite mit Container-Native-Fähigkeiten
Container
Functions
Open source, cloud
neutral, community
driven functions as a
Service for any
language, best of class
for Java
Container
Microservices
A collection of services,
frameworks and
libraries for the modern
cloud developer; based
on Cloud Native
Compute Foundation –
Istio/Envoy
Container
Pipelines
A market leading
solution for application
lifecycle management
with a Docker centric
product view
Container
Engine
Fully managed
container service based
on Kubernetes running
on Oracle Cloud
Infrastructure Bare
Metal
Container
Diagnostics
Unparalleled real-time
observability and
diagnostics for large
scale distributed Java
systems
fn
Build --- Deploy --- Operate

Git
Build Push to Registry
PushTest
Deploy
to
Kubernetes
Container Pipelines
Wercker CI/CD Service
Container Registry - "Releases"
Private Registry Service
Container Engine - "Clusters"
Fully-Managed Kubernetes Service
Managed HA Control Plane
Bare Metal and VM Shapes
Kubernetes ClustersKubernetes Clusters
Orchestrate Your App
Enterprise Grade Performance & Security
Integrated Developer Experience UI
Kubernetes
Dashboard
Full REST
API
kubectl
CLI
Team
Access
Container-Native-Application-Entwicklungs-Plattform

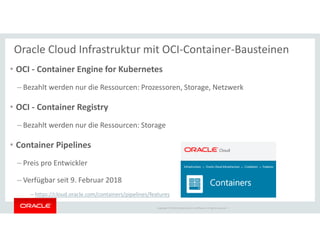

Oracle Cloud Infrastruktur mit OCI-Container-Bausteinen
• OCI - Container Engine for Kubernetes
– Bezahlt werden nur die Ressourcen: Prozessoren, Storage, Netzwerk
• OCI - Container Registry
– Bezahlt werden nur die Ressourcen: Storage
• Container Pipelines
– Preis pro Entwickler
– Verfügbar seit 9. Februar 2018
– https://cloud.oracle.com/containers/pipelines/features

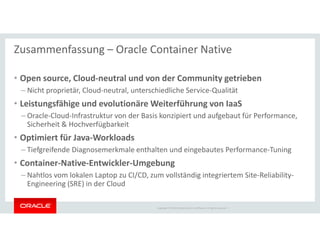

Zusammenfassung – Oracle Container Native
• Open source, Cloud-neutral und von der Community getrieben
– Nicht proprietär, Cloud-neutral, unterschiedliche Service-Qualität
• Leistungsfähige und evolutionäre Weiterführung von IaaS
– Oracle-Cloud-Infrastruktur von der Basis konzipiert und aufgebaut für Performance,
Sicherheit & Hochverfügbarkeit
• Optimiert für Java-Workloads
– Tiefgreifende Diagnosemerkmale enthalten und eingebautes Performance-Tuning
• Container-Native-Entwickler-Umgebung
– Nahtlos vom lokalen Laptop zu CI/CD, zum vollständig integriertem Site-Reliability-
Engineering (SRE) in der Cloud

Danke!
Wolfgang Weigend
Sen. Leitender Systemberater
Java Technology and Architecture

Microservices and Container

More Related Content

What's hot

Similar to Microservices and Container

More from Wolfgang Weigend

Recently uploaded

Microservices and Container
