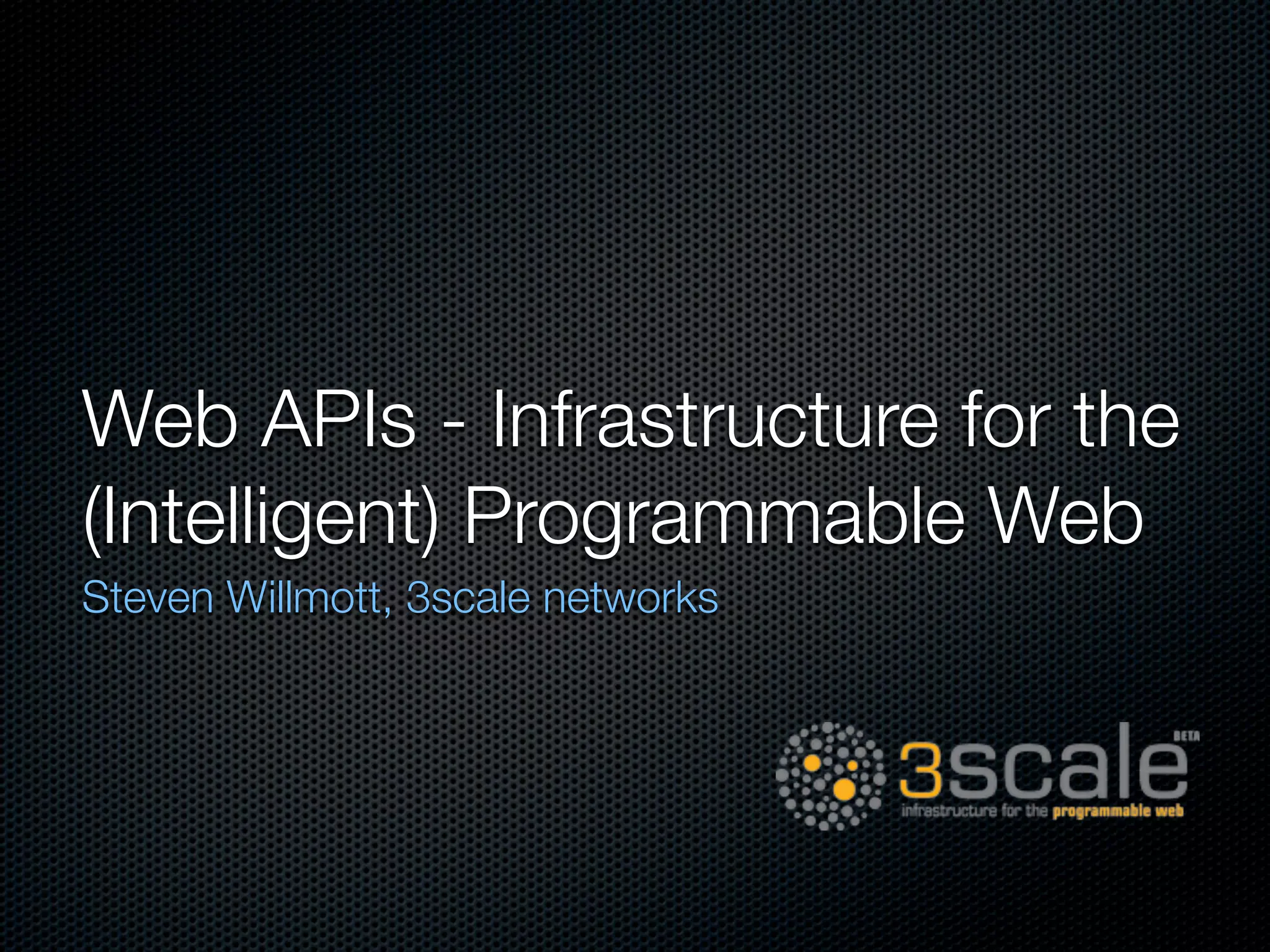

1. Web APIs - Infrastructure for the
(Intelligent) Programmable Web
Steven Willmott, 3scale networks

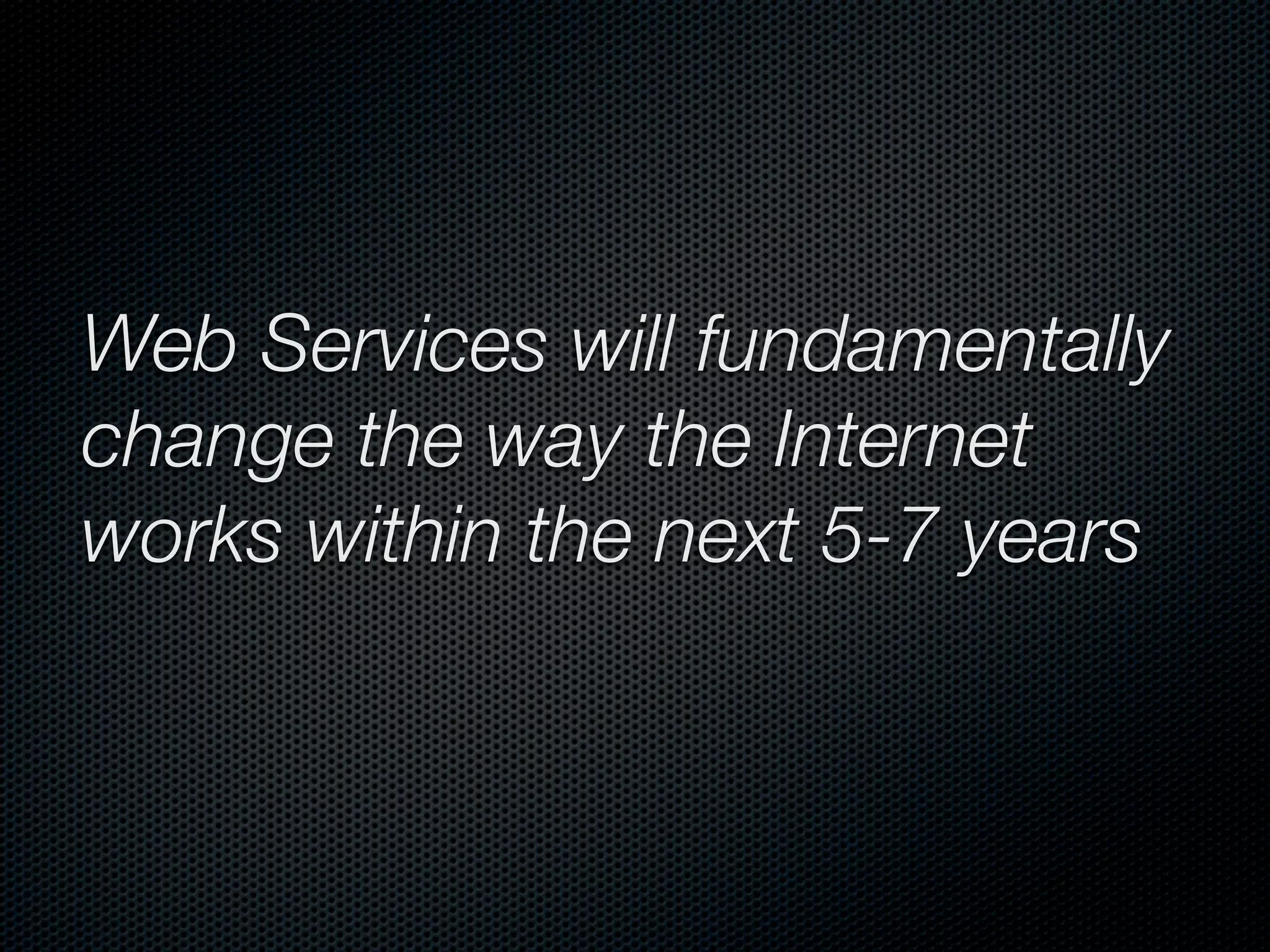

2. Web Services will fundamentally
change the way the Internet
works within the next 5-7 years

3. Web Services will fundamentally
change the way the Internet
works within the next 5-7 years
(and much of that change will happen
in the next 2-3)

4. Change in what way?
Web applications will be totally different
The way content is generated, manipulated and
consumed will be totally different
Revenue streams and business models will be totally
different

5. “The adoption of Amazon's Web services is currently
driving more network activity than everything
Amazon does through their traditional Web sites.”
Jeff Bar (Amazon evangelist) / Dion Hinchcliffe (Journalist)
“60% of all listings on eBay are added via their
API’s – and eBay services over 6 billion API calls
per month”
John Musser (Programmable Web)
“The API which has easily 10 times more traffic than
the website, has been really very important to us.”
Biz Stone (co-founder, Twitter)

6. Social Network Apps

7. Social Network Apps
Image: Steve O’Hear / ZDNET

8. Social Network Apps
Facebook
OpenSocial
Platform API + Backend
Rapid growth
Image: Steve O’Hear / ZDNET

9. Mobile (& Desktop) Widgets

10. Mobile (& Desktop) Widgets
Image: NinjaTech4u / FLICKR

11. Mobile (& Desktop) Widgets
Small Application
Not browsers
Arbitrary Data
Synchronous or Asynchronous
Image: NinjaTech4u / FLICKR

12. Web Data Streams

13. Web Data Streams

14. Web Data Streams
Example: Xignite
50+ data streams of financial information
All by Web Service / API

15. How many services?

16. How many services?

17. How many services?
programmableweb.com
1500+ APIS
4000+ Mashups
70-80% REST APIs
Growing Fast
Hugely Diverse

18. What Changed?
SOAP gave way to REST
APIs became easy to build
APIs became easy(ier) to
use
APIs became incredibly
useful

19. What Changed?
SOAP gave way to REST
APIs became easy to build
APIs became easy(ier) to
use
APIs became incredibly
useful
Image: Peta M / Flickr

20. What more is changing?
Javascript is accelerating
HTML5 is coming
Widgets are taking off
Partnering is getting serious

21. Why 5-7 years?
Several generations of technology
Today’s leading Web Services will have had
transformative effects
Almost all segment followers will have launched Web
Services
Internet experience will have caught up for users
No time for 3 or 4 complex 5 year R&D
Projects!

22. Technology

23. Web Services (APIS...)
Programmable Web:
SOAP Web Services
REST Web Services
Plain HTML Forms
They can all be manipulated programatically to produce
an effect

24. RESTfull Web Services
Resources
Resource Identifiers (URIs)
Representations
Operators
Response Codes
REST powers the (new) programmable web

25. Operators

26. Operators
GET
Get Information about a resource
POST
Create : create new elements in a resource
Update : modify a resource
PUT
Create : Create a new resource
Update : Modify a resource
DELETE
Remove a resource

27. Operators
GET
Get Information about a resource
POST
Manipulating
Create : create new elements in a resource
Update : modify a resource
PUT Data Objects
Create : Create a new resource
Update : Modify a resource
DELETE
Remove a resource

28. REST

29. REST
70-80% of current Web
APIs
Very Wide Range of
Applications
SOAP Seems unlikely to
catch up any time soon

30. REST
70-80% of current Web
APIs
Very Wide Range of
Applications
SOAP Seems unlikely to
catch up any time soon
Great Rest Presentation: Alex Puig / Softonic / Slideshare
http://www.slideshare.net/apuig75/desarrollando-un-api-con-rest

31. REST
70-80% of current Web
An Example:
APIs
Very Wide Range of
Applications
SOAP Seems unlikely to
catch up any time soon
Great Rest Presentation: Alex Puig / Softonic / Slideshare
http://www.slideshare.net/apuig75/desarrollando-un-api-con-rest

33. Example APIs: Twitter
Microblogging Service
45-50 Million users
worldwide
10x traffic on their API v’s
Web Page
Large numbers of client and
partner applications
REST API

34. cURL
curl http://twitter.com/statuses/public_timeline.rss
curl http://twitter.com/statuses/public_timeline.xml
curl --head -u username:password http://twitter.com/
statuses
curl -u username:password -d status="Playing around
with the twitter API (sent via the API)" http://twitter.com/
statuses/update.json

35. What happened to...
?
Governance?
Semantics?
WSDL?
Trust?

36. Intelligence in the
Programmable Web

37. Two trends

38. Two trends
User

39. Two trends
More time on Well
User Known
Properties

40. Two trends
More new ways to More time on Well
access content User Known
sources Properties

41. Two trends
More new ways to More time on Well
access content User Known
sources Properties
APIs to feed
widgets

42. Two trends
More new ways to More time on Well
access content User Known
sources Properties
APIs to feed APIs to feed
widgets platforms

43. Two trends
More new ways to More time on Well
access content User Known
sources Properties
APIs to feed APIs to feed
widgets platforms
Web Applications will get inc. interconnected

44. The rules change
The Web Page is no longer King
Service to Service relationships are Business to
Business relationships
People care about wether Web Services work
People care that applications built on Web Services
work

45. Key Concepts
Agency: the components you depend on are not
owned/operated by you, they are beyond your control.
Contracts: individual interactions need to be mediated
by expectations, agreements and (potentially)
consequences.
Norms: relationships are long running and require
defaults, frameworks and other constructs to make
them efficient.

46. IST FP6 Project: Contract
(an experiment in how notions of contracts and autonomy
can power new service ecosystems)
Full Credit - Javier Vazquez, UPC
and others from http://www.ist-contract.org/

47. IST-CONTRACT Project Parameters
 ISTFramework 6 STREP  Area:Digital Business
Project Ecosystems
 Funded from the 5th Call IST  Costs:
 Focus:  Total Cost: 2,509,156 Euro
 Contracts for Distributed  Req. Cont: 1,850,000 Euro
Applications Engineering
 Dates:
 Contracts as a basis for formal
verification  Start: 1st Sept 2006
 e-business applications  End: 31st May 2009
 Project ID: FP6-034418
26

48. IST-CONTRACT Project Partners
 Universitat Politècnica
de Catalunya
 Fujitsu EST Gmbh
 Czech Technical University
of Prague
 King's College London
 Imperial College London
 3scale Networks S. L.
 CertiCon A. S.
 Lostwax Media Ltd.
 Y‘All B. V.
27

49. The problem: Engineering applications in Cross
Organisational Service Oriented Computing environments
 The behaviour of a software application depends upon:
 Code, Execution Context (environment), Inputs
 In a multi-organisational Distributed Business Application
application:
 No-one has access to all the code
 No-one has access to all the execution context
 (Possibly) no-one has access to all inputs
 Question:How do you predict the potential run-time
behaviour of such applications?
28

50. Project Core Idea
 Normal Verification approaches for software will not work
without full source code access. In Contract:
Instead of predicting actions w.r.t code,
predict actions w.r.t obligations, rights, permissions
in Contracts
 Impacts:
 Short term: application design tool
 Longer term: formal verification of distributed business
applications
29

51. Where are the Contracts?
 Contracts:
 Are the explicit, tangible representation of service interdependencies
 Make explicit the obligations of each of the parties in the transactions
 Make explicit what each system can expect from another
 Bind together:
 The electronic interaction (web services) with
 The business obligation with
 Prediction as to whether the system will function to get the job done
30

52. What does the Project Deliver?
 Contract Framework – formal theoretical framework for
distributed business application modelling based on the
interchange of (electronic) contracts
 Contracting Language – specifications of how the actors
should interact electronically and how they should
communicate
 Contract Execution Environment for Web services – to
create and execute contract-mediated business
interactions
 Verification,
Monitoring and Analysis tools – to analyze
and inspect deployed systems
31

53. Overall Contract Framework
32

54. Contracting Language Communication Model

55. Contracting Language Communication Model
Context Layer
Interaction Protocol Layer
Message Layer
Message Content Layer
Contract Layer
Domain Ontology Layer

56. Contracting Language Communication Model
Context Layer
Interaction Protocol Layer
Message Layer
Message Content Layer
Contract Layer
Domain Ontology Layer
33

57. Contracting Language Communication Model
Interaction
uest
Context Layer context: Req S2
Protocol
handling: S1 A gree
Interaction Protocol Layer
Message envelope + intentionality:
from service S1 to service S2 …
Contractual Message Layer Request[cancel(contract C1)]
Ontology
Statements / actions related to
contracts:
Message Content Layer cancel(contract C1)
A contract:
“the workshop is obliged to
Contract Layer repair the car in 2 days”
Domain Domain terms: car, workshop, repair
Ontology Domain Ontology Layer
33

58. Electronic Contracts: components
34

59. Electronic Contracts: components
34

60. Electronic Contract: example
<ISTContract>
ContractName="AftercareContract"
StartingDate="2007-01-01T00:00:00+01:00"
EndingDate="2008-01-01T00:00:00+01:00"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="http://www.ist-contract.org/schemas/ISTContract.xsd">
<Contextualization>
...
</Contextualization>
<Definitions>
...
</Definitions>
<Clauses>
...
</Clauses>
</ISTContract>
35

61. Electronic Contract: example
<ISTContract>
ContractName="AftercareContract"
<ContractParties>
StartingDate="2007-01-01T00:00:00+01:00"
<Agent AgentName="KLM">
EndingDate="2008-01-01T00:00:00+01:00"
< AgentReference>http://www.ist-contract.org:8080/services/KLM
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
</AgentReference>
xsi:noNamespaceSchemaLocation="http://www.ist-contract.org/schemas/ISTContract.xsd">
<AgentDescription>Royal Dutch Airlines</AgentDescription>
<Contextualization> </Agent>
... …
</Contextualization> </ContractParties>
<Definitions> …
... <RoleEnactmentList>
</Definitions> <RoleEnactmentElement AgentName="KLM"
<Clauses> RoleName=“Operator"/>
... …
</Clauses> </RoleEnactmentList>
</ISTContract>
35

62. Electronic Contract: example
<Clause>
<ISTContract> …
ContractName="AftercareContract"
<ExplorationCondition>
<ContractParties>
StartingDate="2007-01-01T00:00:00+01:00"
<BooleanExpression>
<Agent AgentName="KLM">
EndingDate="2008-01-01T00:00:00+01:00"
Before(2007-07-1T15:30:30+01:00)
< AgentReference>http://www.ist-contract.org:8080/services/KLM
</BooleanExpression>
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
</AgentReference>
</ExplorationCondition> Dutch Airlines</AgentDescription>
xsi:noNamespaceSchemaLocation="http://www.ist-contract.org/schemas/ISTContract.xsd">
<AgentDescription>Royal
<DeonticStatement>
<Contextualization> </Agent>
... <Modality><OBLIGATION></Modality>
…<Who> <RoleName>Operator</RoleName> </Who>
</Contextualization> </ContractParties>
<What>
<Definitions> … <ActionExpression>
... <RoleEnactmentList>
PayForEngine(amount, engine, Operator, EngineManufacturer)
</Definitions> <RoleEnactmentElement AgentName="KLM"
</ActionExpression>
<Clauses> </What> RoleName=“Operator"/>
... …</DeonticStatement>
</Clauses> </Clause>
</RoleEnactmentList>
</ISTContract>
35

63. Example of deployment
36

64. Verification Tool
 Off-line
tool implements verification mechanisms for
contract-governed systems.
 Capableto verify system behaviours through notions of
compliance/violations of intended behaviours.
 Based
in the formal framework and the contract language
semantics.
 Ability to check systems with large state spaces
 Capable to generate counterexamples when dangerous or
conflicting situations are detected
 User friendly GUI
37

65. Verification Tool components/process
38

66. Example: Modular Certification Testing
39

67. What does this give you?
System interactions are described in terms of
obligations, permissions, prohibitions etc.
Agents can act according to expected behaviour
You never have to verify actual code
Seems like SciFi now - but these concepts will
be fundamental in 5, 10, 20 years.

68. Beyond Contracts
Still need to figure out how to actually build an systems
which fulfill your contracts (!)
Contracts need to be connected to something - a
context or an organisation - in order to have force - we
might want to model that too
We can even go further...

69. Key Concepts
Projects:
Contract: http://www.ist-contract.org/
Alive: http://www.ist-alive.eu/
More Challenges:
Individual rational actions?
Autonomy v’s Control?
Interaction with Business / Legal Frameworks?

70. Business Relevance
Sounds business
relationships are
critical
Quality of Service
Management of
Autonomy and
Dependencies will be
Mandatory

71. Some Final Thoughts

72. Web Services will fundamentally
change the way the Internet
works within the next 5-7 years

73. Web Services will fundamentally
change the way the Internet
works within the next 5-7 years
(and much of that change will happen
in the next 2-3)

74. Web Services will fundamentally
change the way the Internet
works within the next 5-7 years
(and much of that change will happen
in the next 2-3)
Not Convinced Yet?

75. Conclusions
The programmable web is coming - faster than you
might think
Huge challenges lie ahead in:
Making it work
Making it intelligent
Techniques from AI, Autonomous Systems, Multi-agent
and the Semantic Web will be key to understanding the
resulting ecosystems
