Translocation detection in lung cancer using mate-pair sequencing and iVIGS
The document describes a study that used mate-pair sequencing and two structural variation detection tools (iVIGS and delly) to detect translocations in lung cancer samples. Mate-pair reads from 35 lung cancer patients were analyzed with iVIGS, while 32 samples were analyzed with delly. Both tools identified translocation breakpoints by clustering paired reads and using split reads. iVIGS estimated breakpoint positions with kernel density estimation, while delly reassembled split reads. Results varied between the tools. iVIGS showed better reproducibility and identified an average of 35 translocations per sample. Potential gene fusions involving known cancer genes were also identified. Future work will include validation of predicted gene fusions and examining
Translocation detection in lung cancer using mate-pair sequencing and iVIGS

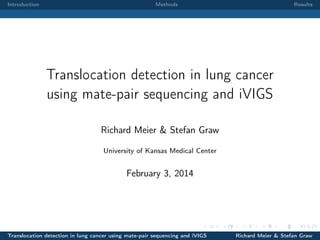

- 1. Introduction Methods Results Translocation detection inlung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw University of Kansas Medical Center February 3, 2014 Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

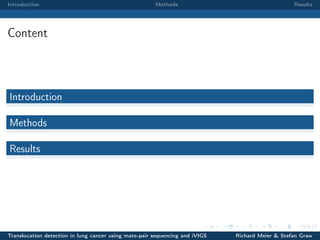

- 2. Introduction Methods Results Content Introduction Methods Results Translocation detection inlung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

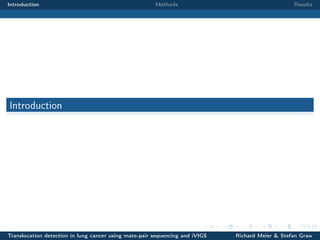

- 3. Introduction Methods Results Introduction Translocation detection inlung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

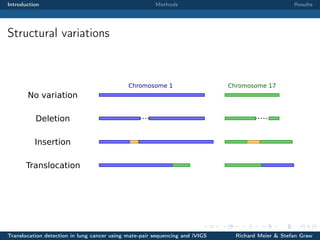

- 4. Introduction Methods Results Structural variations Chromosome 1 Chromosome17 No variation Deletion Insertion Translocation Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

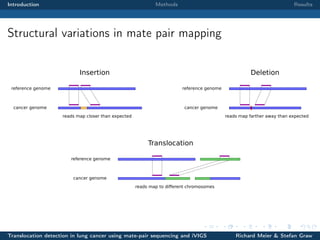

- 5. Introduction Methods Results Structural variations inmate pair mapping Insertion Deletion reference genome reference genome cancer genome cancer genome reads map closer than expected reads map farther away than expected Translocation reference genome cancer genome reads map to different chromosomes Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

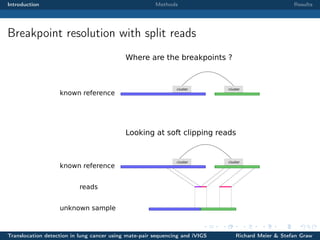

- 6. Introduction Methods Results Breakpoint resolution withsplit reads Where are the breakpoints ? known reference cluster cluster Looking at soft clipping reads known reference cluster cluster reads unknown sample Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

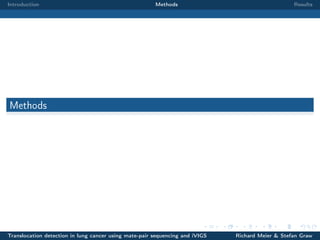

- 7. Introduction Methods Results Methods Translocation detection inlung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

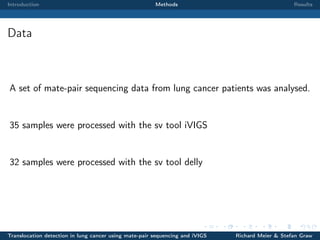

- 8. Introduction Methods Results Data A set ofmate-pair sequencing data from lung cancer patients was analysed. 35 samples were processed with the sv tool iVIGS 32 samples were processed with the sv tool delly Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

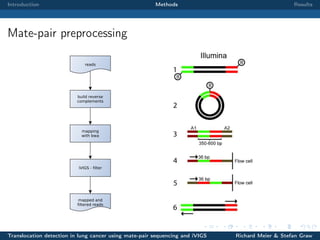

- 9. Introduction Methods Results Mate-pair preprocessing Translocation detectionin lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw
- 10. Introduction Methods Results Translocation analysis: generalstrategy Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

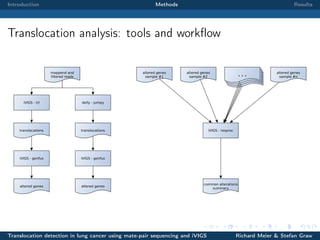

- 11. Introduction Methods Results Translocation analysis: toolsand workflow Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

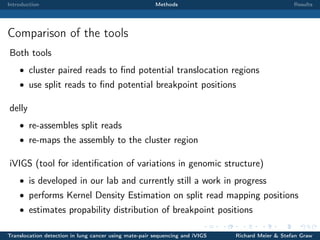

- 12. Introduction Methods Results Comparison of thetools Both tools • cluster paired reads to find potential translocation regions • use split reads to find potential breakpoint positions delly • re-assembles split reads • re-maps the assembly to the cluster region iVIGS (tool for identification of variations in genomic structure) • is developed in our lab and currently still a work in progress • performs Kernel Density Estimation on split read mapping positions • estimates propability distribution of breakpoint positions Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw
- 13. Introduction Methods Results Results Translocation detection inlung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

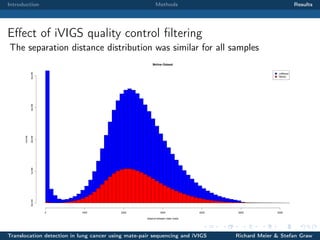

- 14. Introduction Methods Results Effect of iVIGSquality control filtering The separation distance distribution was similar for all samples 4e+06 Molina−Dataset 2e+06 0e+00 1e+06 counts 3e+06 unfiltered filtered 0 1000 2000 3000 4000 5000 6000 distance between mate−reads Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

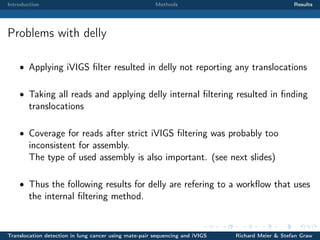

- 15. Introduction Methods Results Problems with delly •Applying iVIGS filter resulted in delly not reporting any translocations • Taking all reads and applying delly internal filtering resulted in finding translocations • Coverage for reads after strict iVIGS filtering was probably too inconsistent for assembly. The type of used assembly is also important. (see next slides) • Thus the following results for delly are refering to a workflow that uses the internal filtering method. Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw
- 16. Introduction Methods Results Selection of breakpointdistributions calculated by iVIGS Kernel Density Estimation Kernel Density Estimation 27735000 27740000 || | | | 135500000 | 0.00010 breakpoint density | 135496000 0.00000 0.0000 ||||||||||||||||||| ||||||||||| |||||||||||||||| ||||| || ||||||||||||||| ||||||||| ||||||||||| ||||||||| || |||| | | | | | | 27730000 0.00005 0.0010 breakpoint density 0.0005 2e−04 0e+00 1e−04 breakpoint density 3e−04 0.0015 0.00015 4e−04 Kernel Density Estimation | 135504000 135508000 | | 33970000 | || || || ||| | || | | || | 33975000 base position Kernel Density Estimation Kernel Density Estimation | 121484000 121486000 base position 121488000 0.015 breakpoint density 0.010 || 190194000 190198000 | || || | || 190202000 base position Translocation detection in lung cancer using mate-pair sequencing and iVIGS 0.000 0.005 0.0005 0.0000 |||||| | || |||||||||| | | | 121482000 0.020 0.025 0.0020 0.0015 breakpoint density 0.0010 1e−03 8e−04 6e−04 4e−04 2e−04 breakpoint density | 33980000 Kernel Density Estimation 0e+00 121480000 || | | || base position 0.030 base position | 61792000 |||| | 61794000 61796000 61798000 base position Richard Meier & Stefan Graw

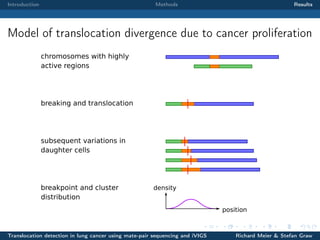

- 17. Introduction Methods Results Model of translocationdivergence due to cancer proliferation chromosomes with highly active regions breaking and translocation subsequent variations in daughter cells breakpoint and cluster distribution density position Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw
- 18. Introduction Methods Results Error sources • Adaptercontamination (before filtering approximately 15% of all reads are contaminated.) • Ligation errors • PCR bias • Sequencing errors Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw
- 19. Introduction Methods Results General information • Estimatedbreakpoint positions were highly variable (spanning up to several thousand base positions in difference) • Translocations were found to almost always overlap with potential deletion or insertion cluster regions (estimated by iVIGS). • In most cases around 35 translocations per sample were estimated 0.02 0.00 0.01 Density 0.03 0.04 translocation discovery of iVIGS 20 30 40 50 60 70 80 number of estimated translocations per sample Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

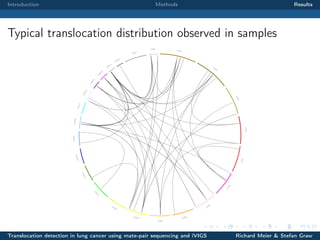

- 20. Introduction Methods Results Typical translocation distributionobserved in samples CHRY CHR1 CHRX CH R2 R2 2 1 CH CH R2 0 R2 CH R1 8 CH R1 9 CH CH CHR16 CHR1 7 R3 CHR4 CHR15 4 CHR5 CHR1 R1 CH CH R6 3 CH R1 2 CH R1 R7 CH 1 CHR1 CHR8 0 CHR9 Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw
- 21. Introduction Methods Results Occuring genes alteredby a translocation Genes used for the diagram were altered in one or more samples delly 108 41 158 iVIGS Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw
- 22. Introduction Methods Results Potential gene fusions Genesused for the diagram were altered in one or more samples delly 32 11 73 iVIGS Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

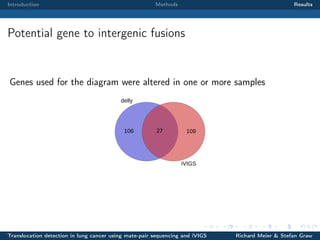

- 23. Introduction Methods Results Potential gene tointergenic fusions Genes used for the diagram were altered in one or more samples delly 106 27 109 iVIGS Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw
- 24. Introduction Methods Results Reproducibility: delly Gene alterations sample_A1 13 1 2 sample_A2 Translocationdetection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw
- 25. Introduction Methods Results Reproducibility: iVIGS Gene alterations sample_A1 11 15 10 sample_A2 Translocationdetection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

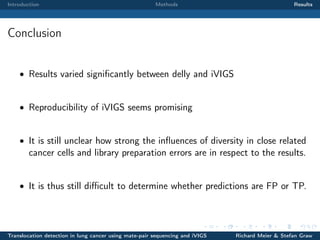

- 26. Introduction Methods Results Conclusion • Results variedsignificantly between delly and iVIGS • Reproducibility of iVIGS seems promising • It is still unclear how strong the influences of diversity in close related cancer cells and library preparation errors are in respect to the results. • It is thus still difficult to determine whether predictions are FP or TP. Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw

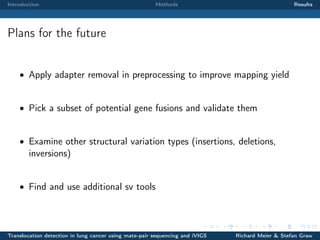

- 27. Introduction Methods Results Plans for thefuture • Apply adapter removal in preprocessing to improve mapping yield • Pick a subset of potential gene fusions and validate them • Examine other structural variation types (insertions, deletions, inversions) • Find and use additional sv tools Translocation detection in lung cancer using mate-pair sequencing and iVIGS Richard Meier & Stefan Graw
