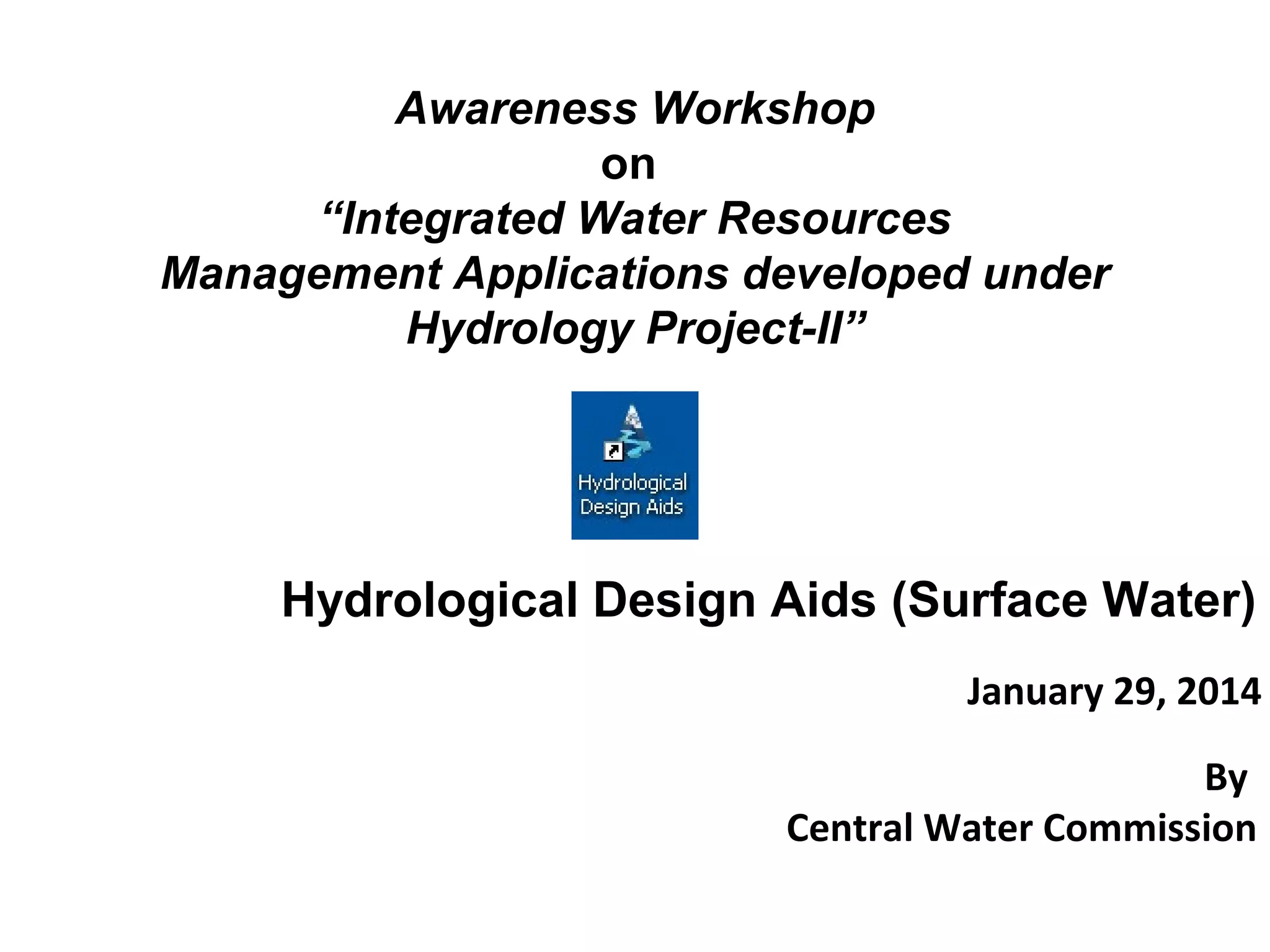

1. Awareness Workshop
on
“Integrated Water Resources
Management Applications developed under
Hydrology Project-II”
January 29, 2014
By
Central Water Commission
Hydrological Design Aids (Surface Water)

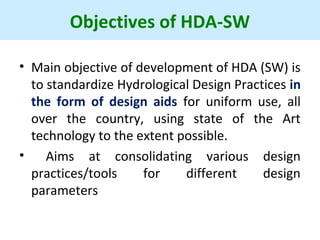

2. Objectives of HDA-SW
• Main objective of development of HDA (SW) is
to standardize Hydrological Design Practices in
the form of design aids for uniform use, all
over the country, using state of the Art
technology to the extent possible.
• Aims at consolidating various design
practices/tools for different design
parameters

3. Components of HDA
As required in hydrological study of any project, the
HDA includes following three modules:
 HDA-Y: Assessment of Water Resource Potential-
Availability/Yield Assessment
 HDA-F: Estimation of Design Flood
 HDA- S: Sedimentation rate estimation
Apart from various analytical tools, the project also
includes preparation of reference manuals and
design aids to produce the hydrology chapter of the
DPR as per standard guidelines of MoWR

4. HDA Framework
Models
database
Design Aids/
Guidelines
Assess
Hydrological
Design
parameters and
produce
DPR Hydrology
Chapter

5. HDA Software–Architecture
Data Layer
Manages the physical storage and
retrieval of data
 Relational tables
 Stored Procedures
 Triggers
 Indexes for faster data access
 DB configuration for faster data
processing
 Storage of spatial and textual data
 Data Export
 DB backup & restore
Data type in HDA
 Regular Series data
 Irregular series data
 Paired data
 Physical parameters
 Spatial data
Windows Forms (Code Behind)
Windows Forms (UI)

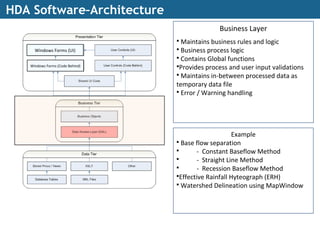

6. HDA Software–Architecture
Business Layer
 Maintains business rules and logic
 Business process logic
 Contains Global functions
Provides process and user input validations
 Maintains in-between processed data as
temporary data file
 Error / Warning handling
Example
 Base flow separation
 - Constant Baseflow Method
 - Straight Line Method
 - Recession Baseflow Method
Effective Rainfall Hyteograph (ERH)
 Watershed Delineation using MapWindow
Windows Forms (Code Behind)
Windows Forms (UI)

7. HDA Software–Architecture
Presentation Layer
Houses the user interface and related
presentation code
Operation friendly user interfaces
 Validation of user inputs
 Ease of navigation
 Interactive graphs with data
 Standard buttons
 Standard messages
 Supporting operations help
 Standard icons for individual processes
Example
 User navigation buttons with icons
 Data in grid
 Interactive Unit Hydrograph
 Data modification facility
 Delineated Watershed in embedded
MapWindow
 Reports
Windows Forms (Code Behind)
Windows Forms (UI)
• Lets proceed with the HDA software

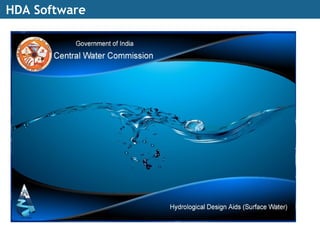

8. HDA Software

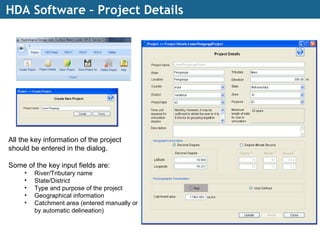

9. HDA Software – Project Details
All the key information of the project
should be entered in the dialog.
Some of the key input fields are:
• River/Tributary name
• State/District
• Type and purpose of the project
• Geographical information
• Catchment area (entered manually or
by automatic delineation)

10. HDA – Watershed Delineation

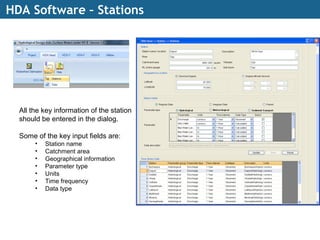

11. HDA Software – Stations
All the key information of the station
should be entered in the dialog.
Some of the key input fields are:
• Station name
• Catchment area
• Geographical information
• Parameter type
• Units
• Time frequency
• Data type

12. HDA Software – Stations Data Entry

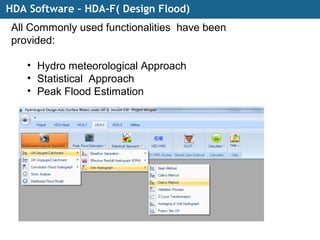

13. HDA Software – HDA-F( Design Flood)
All Commonly used functionalities have been
provided:
• Hydro meteorological Approach

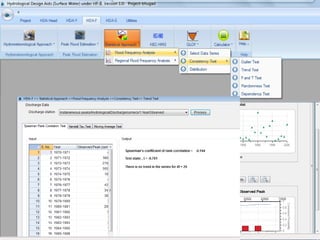

• Statistical Approach
• Peak Flood Estimation

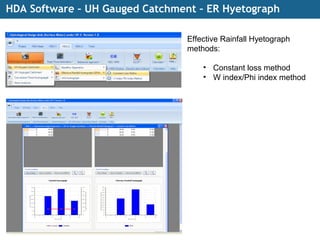

14. HDA Software – UH Gauged Catchment – ER Hyetograph
Effective Rainfall Hyetograph
methods:
• Constant loss method
• W index/Phi index method

15. HDA Software – UH Gauged Catchment – Unit Hydrograph
Effective Unit Hydrograph methods:
• Nash method
• Collin’s method
• Clark’s method
• Calibration process
• S-curve transformation
• Averaging of unit hydrograph
• Project site UH

16. HDA Software – UH Ungauged Catchment – FER Method
Flood Estimation Report (FER)
method:
• SUG parameters and UG
Ordinates
• Smoothening of UG ordinates
and graph

17. HDA Software – UH Ungauged Catchment – GIUH Method
Geomorphological Instantaneous Unit
Hydrograph (GIUH) method:
• Click on menu item
• Select outlet point from dropdown and
click “Calculate Morphological
Parameters”
• Go to “GIUH” tab
• Define/calculate velocity
• Click “Generate GIUH”

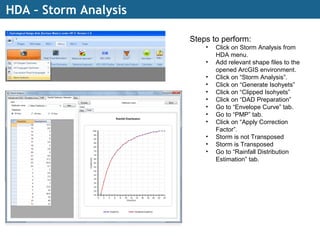

18. HDA – Storm Analysis
Steps to perform:
• Click on Storm Analysis from
HDA menu.
• Add relevant shape files to the
opened ArcGIS environment.
• Click on “Storm Analysis”.
• Click on “Generate Isohyets”
• Click on “Clipped Isohyets”
• Click on “DAD Preparation”
• Go to “Envelope Curve” tab.
• Go to “PMP” tab.
• Click on “Apply Correction
Factor”.
• Storm is not Transposed
• Storm is Transposed
• Go to “Rainfall Distribution
Estimation” tab.

20. HDA Software – Peak Flood Estimation
Peak Flood Estimation methods:
• Empirical formulae
• Dickens
• Ryves
• Inglis
• Nawab Jung Bahadur
• W. P. Creagers
• Jarvi’s
• Myer’s
• Dredge and Burge’s
• Pettis
• Etc.
• Rational method
• Calculate Tc
• Rainfall Intensity – FER
• Rainfall Intensity – Rambabu and
other
• Rainfall Intensity – Raudkivi
equation
• Rainfall intensity– User-defined
• Rainfall intensity – Generate IDF
• Calculate Peak Discharge

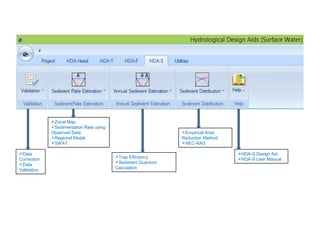

23. Data
Correction
Data
Validation
Zonal Map

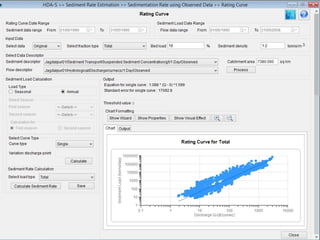

Sedimentation Rate using
Observed Data
Regional Model
SWAT
Trap Efficiency

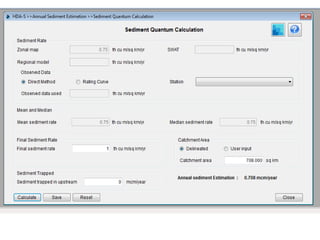

Sediment Quantum
Calculation

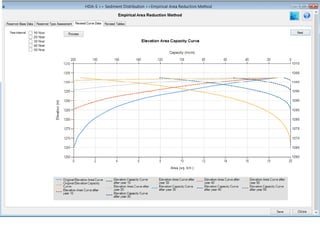

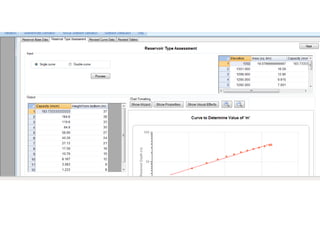

Empirical Area
Reduction Method
HEC-RAS
HDA-S Design Aid
HDA-S User Manual

30. R
E
P
O
R
T
G
E
N
E
R
A
T
I
O
N
R
E
P
O
R
T
G
E
N
E
R
A
T
I
O
N
WRAP-HYD
WRAP-HYD
FlowFlow
NaturalizationNaturalizationFNM
FNM
BasinBasin
SimulationSimulationWRAP-SIM
Q
Snowmelt
Simulation
Time SeriesTime Series
SimulationSimulation
MWSWAT Model E REGM PROM
Rainfall – RunoffRainfall – Runoff
SimulationSimulation
Software Configuration :
HDA-1
MWSWAT
WINSRM
ProcessedProcessed DataData
TSM
Interface
With
eSWIS
ArcGIS
HYMOS
RIBASIM
MIKE11
MIKEBASIN
Interface
With
eSWIS
ArcGIS
HYMOS
RIBASIM
MIKE11
MIKEBASIN
HDA-Y ( Water Availability )

31. Primary validation
Screening and
Graphical
inspection
Fill-in missing
data and Data
Correction
Homogeneity
Test
Stage
-Discharge
Relation
Data Compilation
and Report
Generation
Evapo-
transpiration
Estimation
Statistical
Analysis
Data Validation
Secondary
validation

32. The Regional Models four river systems for water
availability are also being developed as part of TOR
North- Satluj River basin
North East- Lohit and Barak basins
South- Godavari River Basin
West- West Coast ( Damanaganga and and
Kannadipuzha) and Tapi River basin
Objective
Develop relationships to enable computation of monthly yield
series for Monsoon season for an ungauged sub-basin using data
on climatic parameters, catchment Characteristic, Land use etc.
Status – Work of Tapi basin and Damanganga has been
completed and work of Godavari basin is in progress
Regional study : HDA-Y

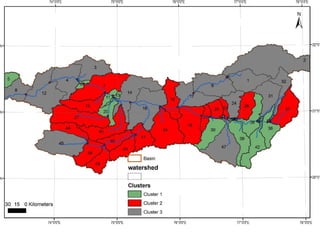

34. Empirical Relations
• Developed empirical equations for the formed
clusters were both, month-wise and monsoon
season relate the dependent variable discharge
(Qsim) with the independent variables namely
Precipitation (PCPM), Temperature(TEMPM),
Relief (RL), “% Crop Area (%CA), “% Forest Area
(%FA) and Unit Area of the sub basin (UA).
Qsim= 0.739×(PCPM) + 19.686×(TEMPM) + 0.041×(UA) -
0.089×(RL) + 1.28×(%CA) -1085.98
Correlation coefficient (R) : 0.94

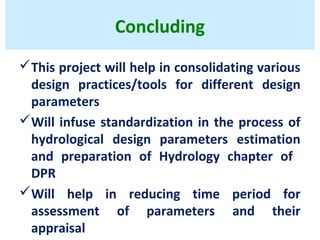

35. Concluding
This project will help in consolidating various
design practices/tools for different design
parameters
Will infuse standardization in the process of
hydrological design parameters estimation
and preparation of Hydrology chapter of
DPR
Will help in reducing time period for
assessment of parameters and their
appraisal
