1. 1
Dr Viswalekshmi R M
Final yr PG
Dept of Prosthodontics
Hybrid Prosthesis
Guided by: Dr Nandakumar
Approved by: Dr Radhi
08/07/2024

2. 2
Hybrid
08/07/2024

3. 3

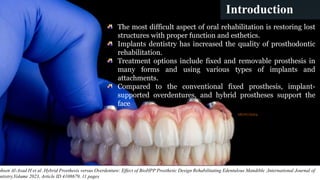

Introduction
The most difficult aspect of oral rehabilitation is restoring lost
structures with proper function and esthetics.
Implants dentistry has increased the quality of prosthodontic
rehabilitation.
Treatment options include fixed and removable prosthesis in
many forms and using various types of implants and
attachments.
Compared to the conventional fixed prosthesis, implant-
supported overdentures, and hybrid prostheses support the
face
ohsen Al-Asad H et al .Hybrid Prosthesis versus Overdenture: Effect of BioHPP Prosthetic Design Rehabilitating Edentulous Mandible ;International Journal of
ntistry,Volume 2023, Article ID 4108679, 11 pages
08/07/2024

4. 4

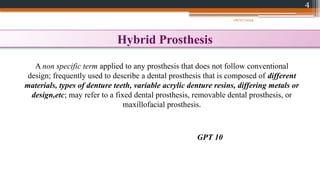

Hybrid Prosthesis
A non specific term applied to any prosthesis that does not follow conventional
design; frequently used to describe a dental prosthesis that is composed of different
materials, types of denture teeth, variable acrylic denture resins, differing metals or
design,etc; may refer to a fixed dental prosthesis, removable dental prosthesis, or
maxillofacial prosthesis.
GPT 10
08/07/2024

5. 5

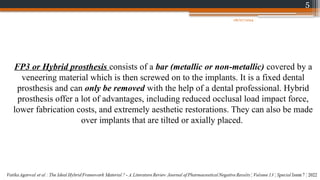

FP3 or Hybrid prosthesis consists of a bar (metallic or non-metallic) covered by a
veneering material which is then screwed on to the implants. It is a fixed dental
prosthesis and can only be removed with the help of a dental professional. Hybrid
prosthesis offer a lot of advantages, including reduced occlusal load impact force,
lower fabrication costs, and extremely aesthetic restorations. They can also be made
over implants that are tilted or axially placed.
08/07/2024

6. 6

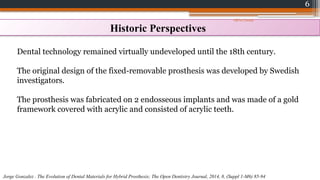

Historic Perspectives
Dental technology remained virtually undeveloped until the 18th century.
The original design of the fixed-removable prosthesis was developed by Swedish
investigators.
The prosthesis was fabricated on 2 endosseous implants and was made of a gold
framework covered with acrylic and consisted of acrylic teeth.
Jorge Gonzalez . The Evolution of Dental Materials for Hybrid Prosthesis; The Open Dentistry Journal, 2014, 8, (Suppl 1-M6) 85-94
08/07/2024

7. 7
The high cost of noble alloys, hence alternative materials such as
cobalt-chromium, silver-palladium and titanium alloys were
explored.
However, due to the expansion and contraction that occurs
during the casting process, cast metal frameworks are prone to
porosity and distortion.
CAD-CAM dentistry allowed us to fabricate prosthesis with
greater accuracy, homogeneity at lower costs
Allowed us to explore other non-metallic bar options such as
zirconia and peek.
Vatika Agarwal et al : The Ideal Hybrid Framework Material ? - A Literature Review Journal of Pharmaceutical Negative Results ¦ Volume 13 ¦ Special Issue
7 ¦ 2022
08/07/2024

8. 8
Concepts Of Designing Hybrid Denture Framework
Drago et al (10) described guidelines for hybrid prosthesis stating that “framework must be
fabricated from materials and protocols that allow passive and accurate fit between frameworks
and implants and/or abutments.”
Zarb and Jansson described two methods of fabrication of the framework:
• Metallic frameworks - bulk of the prostheses, artificial teeth and minimal denture bases -
non-metallic components.
• Implant fixed prostheses - acrylic resin denture bases (wraparound design) and artificial
teeth, with minimally sized metal frameworks
Vatika Agarwal et al : The Ideal Hybrid Framework Material ? - A Literature Review Journal of Pharmaceutical Negative Results ¦ Volume 13 ¦
Special Issue 7 ¦ 2022
08/07/2024

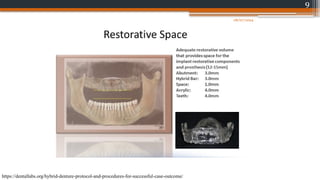

9. 9
https://dentallabs.org/hybrid-denture-protocol-and-procedures-for-successful-case-outcome/
08/07/2024

10. 10

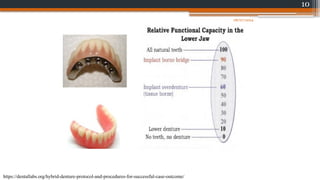

https://dentallabs.org/hybrid-denture-protocol-and-procedures-for-successful-case-outcome/
08/07/2024

11. 11

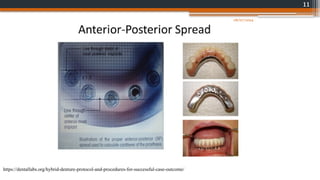

https://dentallabs.org/hybrid-denture-protocol-and-procedures-for-successful-case-outcome/
08/07/2024

12. 12

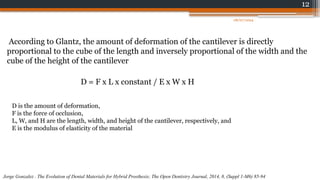

According to Glantz, the amount of deformation of the cantilever is directly
proportional to the cube of the length and inversely proportional of the width and the
cube of the height of the cantilever
D = F x L x constant / E x W x H
D is the amount of deformation,
F is the force of occlusion,
L, W, and H are the length, width, and height of the cantilever, respectively, and
E is the modulus of elasticity of the material
Jorge Gonzalez . The Evolution of Dental Materials for Hybrid Prosthesis; The Open Dentistry Journal, 2014, 8, (Suppl 1-M6) 85-94
08/07/2024

13. 13

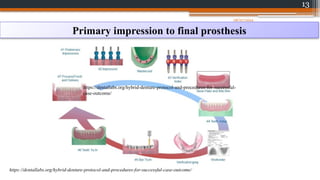

Primary impression to final prosthesis
https://dentallabs.org/hybrid-denture-protocol-and-procedures-for-successful-
case-outcome/
https://dentallabs.org/hybrid-denture-protocol-and-procedures-for-successful-case-outcome/
08/07/2024

14. 14

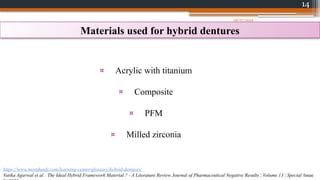

Materials used for hybrid dentures
¤ Acrylic with titanium
¤ Composite
¤ PFM
¤ Milled zirconia
https://www.meetdandy.com/learning-center/glossary/hybrid-dentures/
Vatika Agarwal et al : The Ideal Hybrid Framework Material ? - A Literature Review Journal of Pharmaceutical Negative Results ¦ Volume 13 ¦ Special Issue
08/07/2024

15. 15

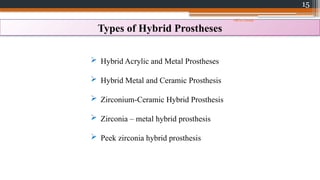

Types of Hybrid Prostheses
 Hybrid Acrylic and Metal Prostheses
 Hybrid Metal and Ceramic Prosthesis
 Zirconium-Ceramic Hybrid Prosthesis
 Zirconia – metal hybrid prosthesis
 Peek zirconia hybrid prosthesis
08/07/2024

16. 16

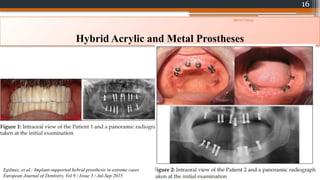

Hybrid Acrylic and Metal Prostheses
Egilmez, et al.: Implant-supported hybrid prosthesis in extreme cases
European Journal of Dentistry, Vol 9 / Issue 3 / Jul-Sep 2015
08/07/2024

17. 17
Egilmez, et al.: Implant-supported hybrid prosthesis in extreme cases
European Journal of Dentistry, Vol 9 / Issue 3 / Jul-Sep 2015
08/07/2024

18. 18
Egilmez, et al.: Implant-supported hybrid prosthesis in extreme cases European Journal of Dentistry, Vol 9 / Issue 3 / Jul-Sep 2015
08/07/2024

19. 19

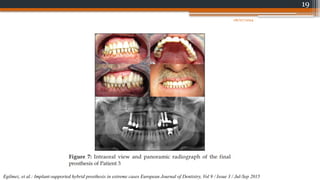

Egilmez, et al.: Implant-supported hybrid prosthesis in extreme cases European Journal of Dentistry, Vol 9 / Issue 3 / Jul-Sep 2015
08/07/2024

20. 20

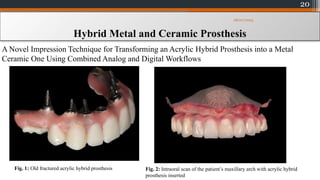

Hybrid Metal and Ceramic Prosthesis
A Novel Impression Technique for Transforming an Acrylic Hybrid Prosthesis into a Metal
Ceramic One Using Combined Analog and Digital Workflows
Fig. 1: Old fractured acrylic hybrid prosthesis Fig. 2: Intraoral scan of the patient’s maxillary arch with acrylic hybrid
prosthesis inserted
08/07/2024

21. 21

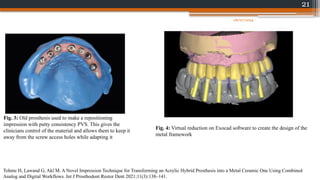

Fig. 3: Old prosthesis used to make a repositioning
impression with putty consistency PVS. This gives the
clinicians control of the material and allows them to keep it
away from the screw access holes while adapting it
Fig. 4: Virtual reduction on Exocad software to create the design of the
metal framework
Tohme H, Lawand G, Akl M. A Novel Impression Technique for Transforming an Acrylic Hybrid Prosthesis into a Metal Ceramic One Using Combined
Analog and Digital Workflows. Int J Prosthodont Restor Dent 2021;11(3):138–141.
08/07/2024

22. 22

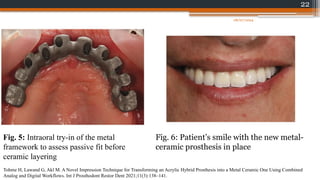

Fig. 5: Intraoral try-in of the metal
framework to assess passive fit before
ceramic layering
Fig. 6: Patient’s smile with the new metal-
ceramic prosthesis in place
Tohme H, Lawand G, Akl M. A Novel Impression Technique for Transforming an Acrylic Hybrid Prosthesis into a Metal Ceramic One Using Combined
Analog and Digital Workflows. Int J Prosthodont Restor Dent 2021;11(3):138–141.
08/07/2024

23. 23

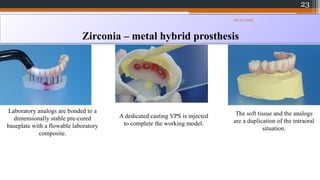

Zirconia – metal hybrid prosthesis
The soft tissue and the analogs
are a duplication of the intraoral
situation.
A dedicated casting VPS is injected
to complete the working model.
Laboratory analogs are bonded to a
dimensionally stable pre-cured
baseplate with a flowable laboratory
composite.
08/07/2024

24. 24

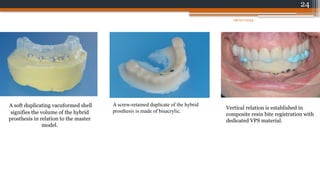

A soft duplicating vacuformed shell
signifies the volume of the hybrid
prosthesis in relation to the master
model.
A screw-retained duplicate of the hybrid
prosthesis is made of bisacrylic.
Vertical relation is established in
composite resin bite registration with
dedicated VPS material.
08/07/2024

25. 25

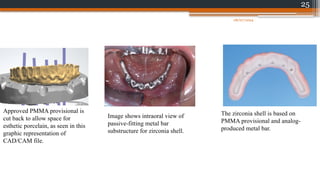

Approved PMMA provisional is
cut back to allow space for
esthetic porcelain, as seen in this
graphic representation of
CAD/CAM file.
Image shows intraoral view of
passive-fitting metal bar
substructure for zirconia shell.
The zirconia shell is based on
PMMA provisional and analog-
produced metal bar.
08/07/2024

26. 26

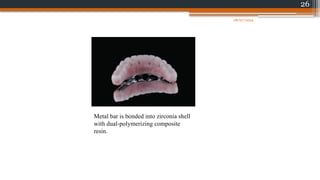

Metal bar is bonded into zirconia shell
with dual-polymerizing composite
resin.
08/07/2024

27. 27

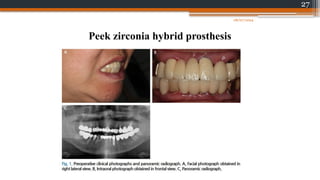

Peek zirconia hybrid prosthesis
08/07/2024

28. 28
08/07/2024

29. 29
08/07/2024

30. 30
08/07/2024

31. 31
08/07/2024

32. 32

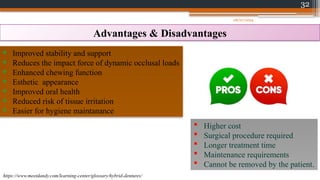

⁕ Improved stability and support
⁕ Reduces the impact force of dynamic occlusal loads
⁕ Enhanced chewing function
⁕ Esthetic appearance
⁕ Improved oral health
⁕ Reduced risk of tissue irritation
⁕ Easier for hygiene maintanance
Advantages & Disadvantages
 Higher cost
 Surgical procedure required
 Longer treatment time
 Maintenance requirements
 Cannot be removed by the patient.
https://www.meetdandy.com/learning-center/glossary/hybrid-dentures/
08/07/2024

33. 33

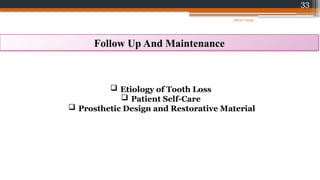

Follow Up And Maintenance
 Etiology of Tooth Loss
 Patient Self-Care
 Prosthetic Design and Restorative Material
08/07/2024

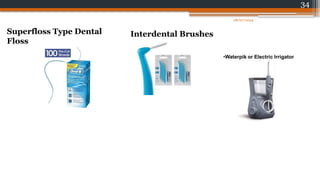

34. 34
Superfloss Type Dental
Floss
Interdental Brushes
08/07/2024

35. 35

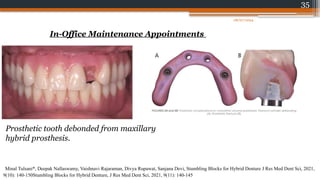

In-Office Maintenance Appointments
Prosthetic tooth debonded from maxillary
hybrid prosthesis.
Minal Tulsani*, Deepak Nallaswamy, Vaishnavi Rajaraman, Divya Rupawat, Sanjana Devi, Stumbling Blocks for Hybrid Denture J Res Med Dent Sci, 2021,
9(10): 140-150Stumbling Blocks for Hybrid Denture, J Res Med Dent Sci, 2021, 9(11): 140-145
08/07/2024

36. 36

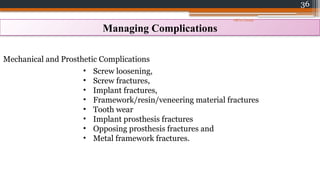

Managing Complications
Mechanical and Prosthetic Complications
• Screw loosening,
• Screw fractures,
• Implant fractures,
• Framework/​
resin/​
veneering material fractures
• Tooth wear
• Implant prosthesis fractures
• Opposing prosthesis fractures and
• Metal framework fractures.
08/07/2024

37. 37

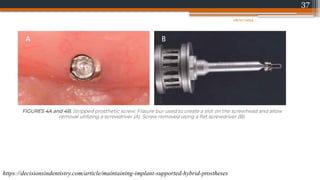

https://decisionsindentistry.com/article/maintaining-implant-supported-hybrid-prostheses
08/07/2024

38. 38

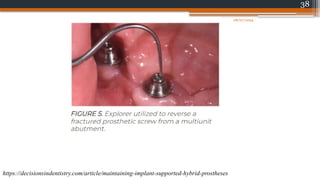

https://decisionsindentistry.com/article/maintaining-implant-supported-hybrid-prostheses
08/07/2024

39. 39

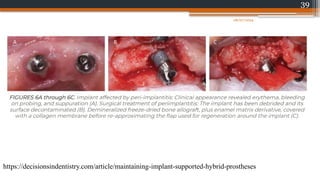

https://decisionsindentistry.com/article/maintaining-implant-supported-hybrid-prostheses
08/07/2024

40. 40

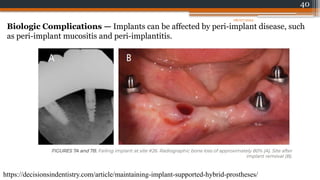

Biologic Complications — Implants can be affected by peri-implant disease, such
as peri-implant mucositis and peri-implantitis.
https://decisionsindentistry.com/article/maintaining-implant-supported-hybrid-prostheses/
08/07/2024

41. 41

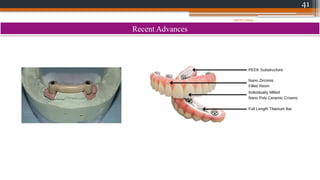

Recent Advances
08/07/2024

42. 42
https://digitaldentalfusion.com/polypeek/
08/07/2024

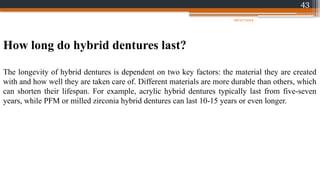

43. 43
How long do hybrid dentures last?
The longevity of hybrid dentures is dependent on two key factors: the material they are created
with and how well they are taken care of. Different materials are more durable than others, which
can shorten their lifespan. For example, acrylic hybrid dentures typically last from five-seven
years, while PFM or milled zirconia hybrid dentures can last 10-15 years or even longer.
08/07/2024

44. 44

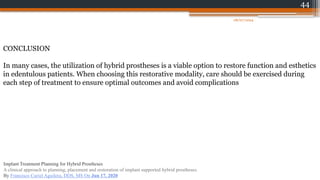

CONCLUSION
In many cases, the utilization of hybrid prostheses is a viable option to restore function and esthetics
in edentulous patients. When choosing this restorative modality, care should be exercised during
each step of treatment to ensure optimal outcomes and avoid complications
08/07/2024
Implant Treatment Planning for Hybrid Prostheses
A clinical approach to planning, placement and restoration of implant supported hybrid prostheses.
By Francisco Curiel Aguilera, DDS, MS On Jun 17, 2020

45. 45

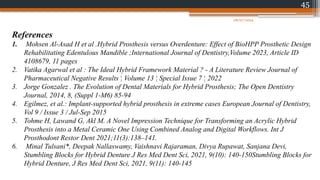

References
1. Mohsen Al-Asad H et al .Hybrid Prosthesis versus Overdenture: Effect of BioHPP Prosthetic Design
Rehabilitating Edentulous Mandible ;International Journal of Dentistry,Volume 2023, Article ID
4108679, 11 pages
2. Vatika Agarwal et al : The Ideal Hybrid Framework Material ? - A Literature Review Journal of
Pharmaceutical Negative Results ¦ Volume 13 ¦ Special Issue 7 ¦ 2022
3. Jorge Gonzalez . The Evolution of Dental Materials for Hybrid Prosthesis; The Open Dentistry
Journal, 2014, 8, (Suppl 1-M6) 85-94
4. Egilmez, et al.: Implant-supported hybrid prosthesis in extreme cases European Journal of Dentistry,
Vol 9 / Issue 3 / Jul-Sep 2015
5. Tohme H, Lawand G, Akl M. A Novel Impression Technique for Transforming an Acrylic Hybrid
Prosthesis into a Metal Ceramic One Using Combined Analog and Digital Workflows. Int J
Prosthodont Restor Dent 2021;11(3):138–141.
6. Minal Tulsani*, Deepak Nallaswamy, Vaishnavi Rajaraman, Divya Rupawat, Sanjana Devi,
Stumbling Blocks for Hybrid Denture J Res Med Dent Sci, 2021, 9(10): 140-150Stumbling Blocks for
Hybrid Denture, J Res Med Dent Sci, 2021, 9(11): 140-145
08/07/2024

46. 46

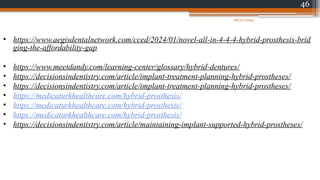

• https://www.aegisdentalnetwork.com/cced/2024/01/novel-all-in-4-4-4-hybrid-prosthesis-brid
ging-the-affordability-gap
• https://www.meetdandy.com/learning-center/glossary/hybrid-dentures/
• https://decisionsindentistry.com/article/implant-treatment-planning-hybrid-prostheses/
• https://decisionsindentistry.com/article/implant-treatment-planning-hybrid-prostheses/
• https://medicaturkhealthcare.com/hybrid-prosthesis/
• https://medicaturkhealthcare.com/hybrid-prosthesis/
• https://medicaturkhealthcare.com/hybrid-prosthesis/
• https://decisionsindentistry.com/article/maintaining-implant-supported-hybrid-prostheses/
08/07/2024

47. 47
08/07/2024
Cross reference
1. Bidra AS. Three-dimensional esthetic analysis in treatment planning for implant-supported fixed
prosthesis in the edentulous maxilla: review of the esthetics literature. J Esthet Restor Dent.
2011;23:219–236.
2. Misch CE. St. Louis, MO: Mosby Elsevier; 2008. Contemporary Implant Dentistry
3. Sertgöz A, Güvener S. Finite element analysis of the effect of cantilever and implant length on
stress distribution in an implant-supported fixed prosthesis. J Prosthet Dent. 1996;76:165–9.

48. 48
08/07/2024
