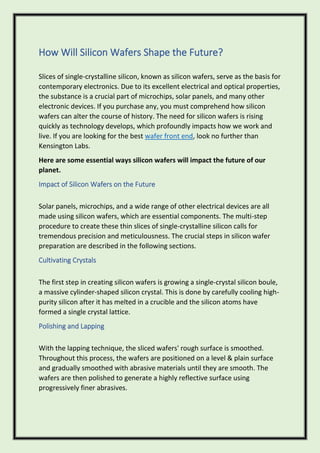

1. How Will Silicon Wafers Shape the Future?
Slices of single-crystalline silicon, known as silicon wafers, serve as the basis for
contemporary electronics. Due to its excellent electrical and optical properties,
the substance is a crucial part of microchips, solar panels, and many other
electronic devices. If you purchase any, you must comprehend how silicon
wafers can alter the course of history. The need for silicon wafers is rising
quickly as technology develops, which profoundly impacts how we work and
live. If you are looking for the best wafer front end, look no further than
Kensington Labs.
Here are some essential ways silicon wafers will impact the future of our
planet.
Impact of Silicon Wafers on the Future
Solar panels, microchips, and a wide range of other electrical devices are all
made using silicon wafers, which are essential components. The multi-step
procedure to create these thin slices of single-crystalline silicon calls for
tremendous precision and meticulousness. The crucial steps in silicon wafer
preparation are described in the following sections.
Cultivating Crystals
The first step in creating silicon wafers is growing a single-crystal silicon boule,
a massive cylinder-shaped silicon crystal. This is done by carefully cooling high-
purity silicon after it has melted in a crucible and the silicon atoms have
formed a single crystal lattice.
Polishing and Lapping
With the lapping technique, the sliced wafers' rough surface is smoothed.
Throughout this process, the wafers are positioned on a level & plain surface
and gradually smoothed with abrasive materials until they are smooth. The
wafers are then polished to generate a highly reflective surface using
progressively finer abrasives.

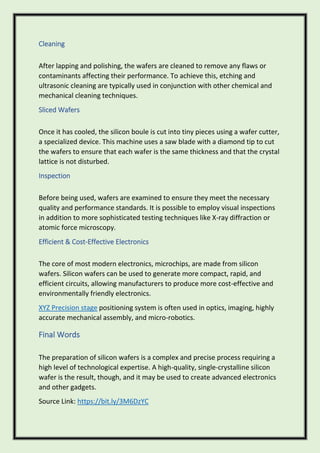

2. Cleaning
After lapping and polishing, the wafers are cleaned to remove any flaws or
contaminants affecting their performance. To achieve this, etching and
ultrasonic cleaning are typically used in conjunction with other chemical and
mechanical cleaning techniques.
Sliced Wafers
Once it has cooled, the silicon boule is cut into tiny pieces using a wafer cutter,
a specialized device. This machine uses a saw blade with a diamond tip to cut
the wafers to ensure that each wafer is the same thickness and that the crystal
lattice is not disturbed.
Inspection
Before being used, wafers are examined to ensure they meet the necessary
quality and performance standards. It is possible to employ visual inspections
in addition to more sophisticated testing techniques like X-ray diffraction or
atomic force microscopy.
Efficient & Cost-Effective Electronics
The core of most modern electronics, microchips, are made from silicon
wafers. Silicon wafers can be used to generate more compact, rapid, and
efficient circuits, allowing manufacturers to produce more cost-effective and
environmentally friendly electronics.
XYZ Precision stage positioning system is often used in optics, imaging, highly
accurate mechanical assembly, and micro-robotics.
Final Words
The preparation of silicon wafers is a complex and precise process requiring a
high level of technological expertise. A high-quality, single-crystalline silicon
wafer is the result, though, and it may be used to create advanced electronics
and other gadgets.
