1. Oct 21, 2020
Toronto MuleSoft Meetup Group
How to use Salesforce composite request connector
in Mule

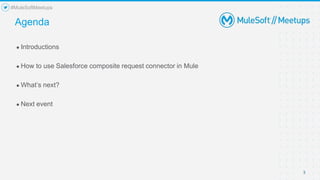

2. 3
● Introductions
● How to use Salesforce composite request connector in Mule
● What’s next?
● Next event
Agenda
#MuleSoftMeetups

3. 4
Organizers
#MuleSoftMeetups
Alexandra Martinez
Senior MuleSoft Developer
at Bits In Glass
MuleSoft Ambassadress
Founder and Content
Creator at ProstDev
3+ years using MuleSoft
5x MuleSoft certified
Mahesh Pujari
MuleSoft Developer
at Mackenzie Investments
Around 6 years of
integration expertise
Pravallika Nagaraja
Senior MuleSoft Developer
at Roche
Overall 10 years of
experience developing
integration solutions using
MuleSoft and other
integration technologies
3+ years using MuleSoft
4x MuleSoft certified
Content Creator at
ProstDev
Kishore Reddy Paluri
Senior Consultant
at MuleSoft
Certified Solutions Architect
14+ years of experience
building Integration, ESB,
SOA, API, Security and
Middleware solutions on
Cloud, On-Prem, and
Hybrid environments

4. Rajiv Mishra
Associate at Cognizant Technology Solutions
How to use Salesforce composite
request connector in Mule

5. 6
● Introductions
● What is Salesforce composite connector?
● What exactly sObject Tree , sObjectCollection , BATCH & Execute composite request
operation?
● How composite request operation works in MULE .
● Advantages of using composite connector.
● Q&A.
Agenda

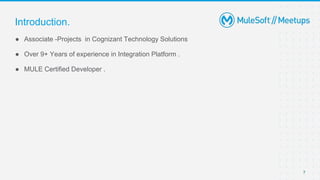

6. 7
● Associate -Projects in Cognizant Technology Solutions
● Over 9+ Years of experience in Integration Platform .
● MULE Certified Developer .
Introduction.

7. 8
● The Anypoint Connector for Salesforce Composite provides a way to integrate with Salesforce
Composite API which enables MULE to use a single API call to access several individual
Salesforce services .
● The connector exposes convenient methods for preparing sub-requests, execute them in one
batch and parse the results.
● The response bodies and HTTP status of the requests are returned in a single response body.
The entire series of requests counts as a single call toward your API limits.
● The requests in a composite call are called subrequests.
● All subrequests are executed in the context of the same user.
Composite connector.

8. 9

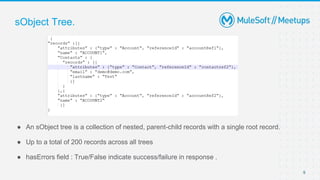

● An sObject tree is a collection of nested, parent-child records with a single root record.
● Up to a total of 200 records across all trees
● hasErrors field : True/False indicate success/failure in response .
sObject Tree.

9. 10

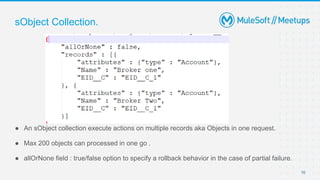

● An sObject collection execute actions on multiple records aka Objects in one request.
● Max 200 objects can processed in one go .
● allOrNone field : true/false option to specify a rollback behavior in the case of partial failure.
sObject Collection.

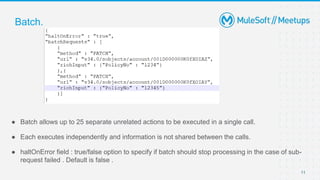

10. 11
● Batch allows up to 25 separate unrelated actions to be executed in a single call.
● Each executes independently and information is not shared between the calls.
● haltOnError field : true/false option to specify if batch should stop processing in the case of sub-
request failed . Default is false .
Batch.

11. 12

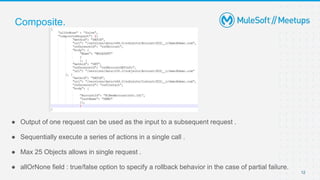

● Output of one request can be used as the input to a subsequent request .
● Sequentially execute a series of actions in a single call .
● Max 25 Objects allows in single request .
● allOrNone field : true/false option to specify a rollback behavior in the case of partial failure.
Composite.

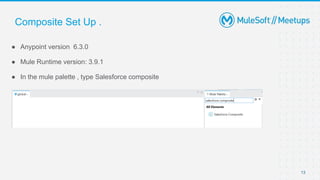

12. 13
● Anypoint version 6.3.0
● Mule Runtime version: 3.9.1
● In the mule palette , type Salesforce composite
Composite Set Up .

13. 14

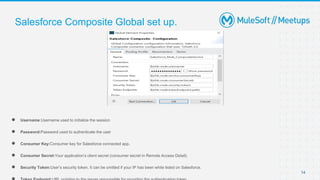

● Username:Username used to initialize the session
● Password:Password used to authenticate the user
● Consumer Key:Consumer key for Salesforce connected app.
● Consumer Secret:Your application’s client secret (consumer secret in Remote Access Detail).
● Security Token:User’s security token. It can be omitted if your IP has been white listed on Salesforce.
Salesforce Composite Global set up.

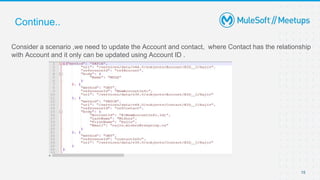

14. 15
Consider a scenario ,we need to update the Account and contact, where Contact has the relationship
with Account and it only can be updated using Account ID .
Continue..

15. 16

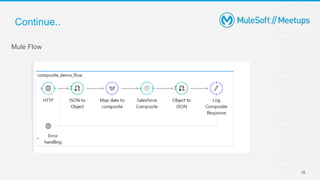

Mule Flow
Continue..

16. 17

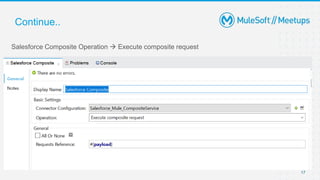

Salesforce Composite Operation  Execute composite request
Continue..

17. 18

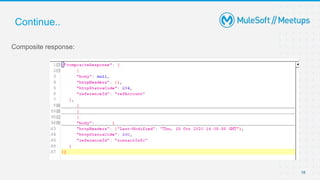

Composite response:
Continue..

18. 19
Consider same scenario without using composite .
The flow will look like something like this
Continue..

19. 20

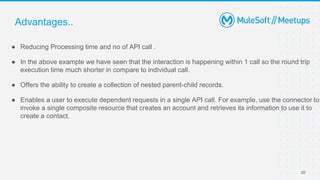

● Reducing Processing time and no of API call .
● In the above example we have seen that the interaction is happening within 1 call so the round trip
execution time much shorter in compare to individual call.
● Offers the ability to create a collection of nested parent-child records.
● Enables a user to execute dependent requests in a single API call. For example, use the connector to
invoke a single composite resource that creates an account and retrieves its information to use it to
create a contact.
Advantages..

20. Quiz time!

21. How does the quiz work?
1. Organizers show the question.
2. Organizers read the question out loud.
3. Organizers will write in the chat the following message: “Answers from question n start
here” after reading the question.
4. Only answers that appear after this message will be taken into account.
5. A final raffle, with the people that answered the quiz correctly, will take place after the quiz,
where the 3 lucky winners will receive a training or certification voucher.
6. The 3 winners will send their email in the chat so we can contact them for further steps.
22
#MuleSoftMeetups

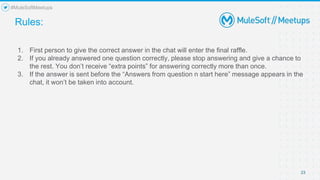

22. Rules:
1. First person to give the correct answer in the chat will enter the final raffle.
2. If you already answered one question correctly, please stop answering and give a chance to
the rest. You don’t receive “extra points” for answering correctly more than once.
3. If the answer is sent before the “Answers from question n start here” message appears in the
chat, it won’t be taken into account.
23
#MuleSoftMeetups

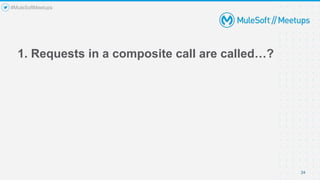

23. 1. Requests in a composite call are called…?
24
#MuleSoftMeetups

24. 1. Requests in a composite call are called…?
A: Subrequests
25
#MuleSoftMeetups

25. 2. For sObject tree what is the field name which
indicates success/failure in the response?
26
#MuleSoftMeetups

26. 2. For sObject tree what is the field name which
indicates success/failure in the response?
A: hasErrors
27
#MuleSoftMeetups

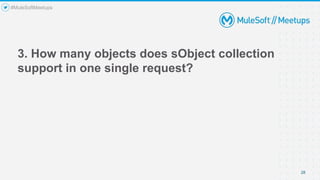

27. 3. How many objects does sObject collection
support in one single request?
28
#MuleSoftMeetups

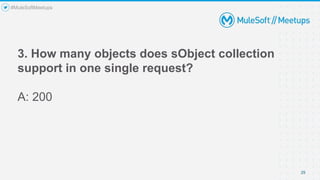

28. 3. How many objects does sObject collection
support in one single request?
A: 200
29
#MuleSoftMeetups

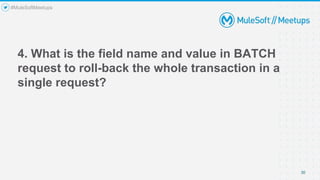

29. 4. What is the field name and value in BATCH
request to roll-back the whole transaction in a
single request?
30
#MuleSoftMeetups

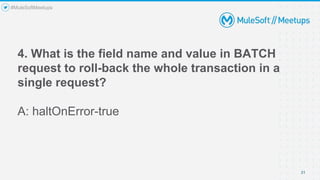

30. 4. What is the field name and value in BATCH
request to roll-back the whole transaction in a
single request?
A: haltOnError-true
31
#MuleSoftMeetups

31. 5. What is max Object limit of CompositeRequest?
32
#MuleSoftMeetups

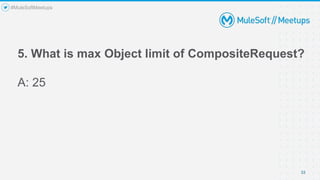

32. 5. What is max Object limit of CompositeRequest?
A: 25
33
#MuleSoftMeetups

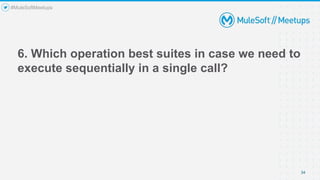

33. 6. Which operation best suites in case we need to
execute sequentially in a single call?
34
#MuleSoftMeetups

34. 6. Which operation best suites in case we need to
execute sequentially in a single call?
A: Composite
35
#MuleSoftMeetups

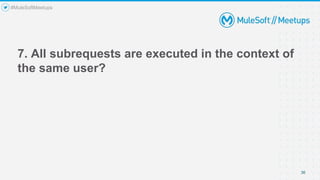

35. 7. All subrequests are executed in the context of
the same user?
36
#MuleSoftMeetups

36. 7. All subrequests are executed in the context of
the same user?
A: True
37
#MuleSoftMeetups

37. 8. Is the Consumer Secret a mandatory parameter
to setup the Composite connector in Mule?
38
#MuleSoftMeetups

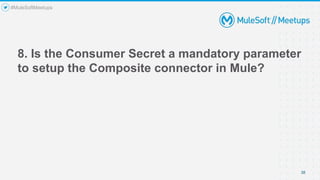

38. 8. Is the Consumer Secret a mandatory parameter
to setup the Composite connector in Mule?
A: True
39
#MuleSoftMeetups

39. 40
● Share:
○ Tweet using the hashtag #MuleSoftMeetups
○ Invite your network to join: https://meetups.mulesoft.com/toronto/
● Feedback:
○ Fill out the survey feedback and suggest topics for upcoming events
○ Contact MuleSoft at meetups@mulesoft.com for ways to improve the program
What’s next?
#MuleSoftMeetups

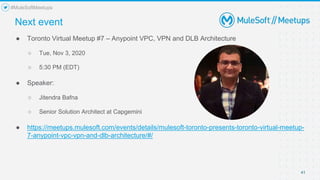

40. 41
● Toronto Virtual Meetup #7 – Anypoint VPC, VPN and DLB Architecture
○ Tue, Nov 3, 2020
○ 5:30 PM (EDT)
● Speaker:
○ Jitendra Bafna
○ Senior Solution Architect at Capgemini
● https://meetups.mulesoft.com/events/details/mulesoft-toronto-presents-toronto-virtual-meetup-
7-anypoint-vpc-vpn-and-dlb-architecture/#/
Next event
#MuleSoftMeetups

41. Thank you
