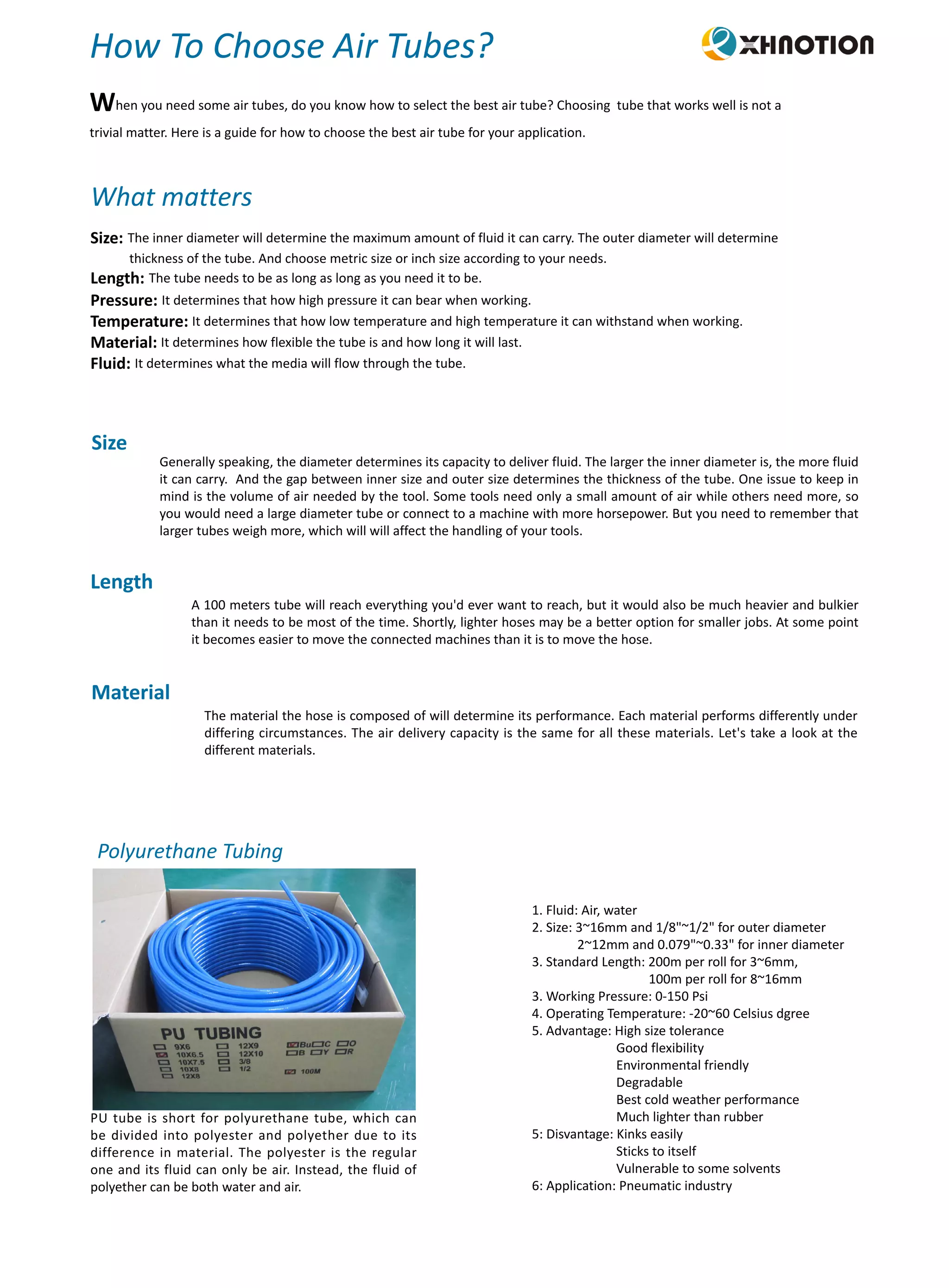

1. How To Choose Air Tubes?
When you need some air tubes, do you know how to select the best air tube? Choosing tube that works well is not a
trivial matter. Here is a guide for how to choose the best air tube for your application.
Polyurethane Tubing
1. Fluid: Air, water
2. Size: 3~16mm and 1/8"~1/2" for outer diameter
2~12mm and 0.079"~0.33" for inner diameter
3. Standard Length: 200m per roll for 3~6mm,
100m per roll for 8~16mm
3. Working Pressure: 0-150 Psi
4. Operating Temperature: -20~60 Celsius dgree
5. Advantage: High size tolerance
Good flexibility
Environmental friendly
Degradable
Best cold weather performance
Much lighter than rubber
5: Disvantage: Kinks easily
Sticks to itself
Vulnerable to some solvents
6: Application: Pneumatic industry
What matters
Size: The inner diameter will determine the maximum amount of fluid it can carry. The outer diameter will determine
thickness of the tube. And choose metric size or inch size according to your needs.
Length: The tube needs to be as long as long as you need it to be.
Pressure: It determines that how high pressure it can bear when working.
Temperature: It determines that how low temperature and high temperature it can withstand when working.
Material: It determines how flexible the tube is and how long it will last.
Fluid: It determines what the media will flow through the tube.
Size
Generally speaking, the diameter determines its capacity to deliver fluid. The larger the inner diameter is, the more fluid
it can carry. And the gap between inner size and outer size determines the thickness of the tube. One issue to keep in
mind is the volume of air needed by the tool. Some tools need only a small amount of air while others need more, so
you would need a large diameter tube or connect to a machine with more horsepower. But you need to remember that
larger tubes weigh more, which will will affect the handling of your tools.
Length
A 100 meters tube will reach everything you'd ever want to reach, but it would also be much heavier and bulkier
than it needs to be most of the time. Shortly, lighter hoses may be a better option for smaller jobs. At some point
it becomes easier to move the connected machines than it is to move the hose.
Material
The material the hose is composed of will determine its performance. Each material performs differently under
differing circumstances. The air delivery capacity is the same for all these materials. Let's take a look at the
different materials.
PU tube is short for polyurethane tube, which can
be divided into polyester and polyether due to its
difference in material. The polyester is the regular
one and its fluid can only be air. Instead, the fluid of
polyether can be both water and air.

2. The two layers tubing is also called
flame resistant tubing for its high
flame gradeof VW-1.
1. Material: TPU for inner layer
PVC for outer layer
2. Advantage: Flame resistant
3: Application: Welding industry
Two Layers Tubing
(Flame Resistant Tubing)
Double Row Tubing
If you need transfer different medium at the same time,
it can fit you well.
Advantage: 1. Twin-row or multi-row are available.
2. Different size can be combined.
3. Different medium can be combined.
4. Close knit and fine pressure resistance.
Polyethylene Tubing
1. Fluid: Air, water
2. Size: 3~16mm and 1/8"~1/2" for outer diameter
2~12mm and 0.079"~0.33" for inner diameter
3. Standard Size: 200m per roll for 3~6mm,
100m per roll for 8~16mm
3. Working Pressure: 0-120 Psi
4. Operating Temperature: 0~40 Celsius degree
5. Advantage: High strength impact at low temperature
Most economical among these 7 material
6. Disvantage: Poor flexibility
Bad to environment
7. Application: Pneumatic industry
Water fountain
PE tube is also named polyethylene tube with its
fluid being air and water. Generally speaking, the
polyethylene in PE tubes means LDPE ( Low Density
Polyethylene ).
Spiral Tubes
The Spiral tubing can avoid the hurt and
crease brought by excessive bending.
Under polyurethane, there are many other types to meet different needs.
PU Braided Tubes
1. Working Pressure:0-300 Psi
2. Application: Mainly used for pneumatic tools
Tips: It is also called reinforced tubes. So if you
need polyurethane tubing for higher working
presure, the PU braided tubing is a good choice
for you!

3. 1. Fluid: Air, water, oil, corrosion fluid, steam
2. Size: 2~16mm and 1/16"~3/4" for outer diameter
1~12mm and 1/32~1/2" for inner diameter
3. Standard Length: Upon request
3. Working Pressure: 0-150 Psi
4. Operating Temperarure: -100~260 Celsius degree
5. Advantage: Well performance at both low and high
temperature
Corrosion resistance
6. Disvantage: Low toughness
Crease easily when being folded
Twice weight of other tubes
7. Application: Pneumatic industry
Chemical industry
PTFE Tubing
Silicone Tubing 1. Fluid: Air, water, ozone
2. Size: 2~16mm and 1/16"~3/4" for outer diameter
1~12mm and 1/32"~5/8" for inner diameter
3. Standard Length: Upon request
4. Working Pressure: 0-120 Psi
5. Operating Temperarure: -60~200 Celsius degree
6. Advantage: Excellent elasticity
Ozone resistance
Environment friendly
Non-toxic
Tasteless
Good physical stability
7. Disvantage: Poor pressure resistance
8. Application: Pneumatic industry
Food industryThe silicone tube is considered as food graded tube for it being
non-toxic, tasteless and physically stable.
The material of PTFE tubes is teflon, which enjoys the "plastic
king" laudatory title for its great corrosion function.
Rubber Tubing
Rubber hoses are the traditional choice. Most hoses in use
today are made from rubber, as they are suitable for a variety
of applications.
1. Fluid: Air, water, oil, gas
2. Size: 6~25mm for inner diameter
3. Standard Length: 25m,50m or 100m as your request
4. Working Pressure: 0-120 Psi
5. Operating Temperarure: -20~45 Celsius degree
6. Advantage: Lies flat
Does not kink
Commonly available
7. Disvantage: Heavy
Mediocre cold weather performance
8. Application: Pneumatic industry
Agricultural industry
Hydraulic industry

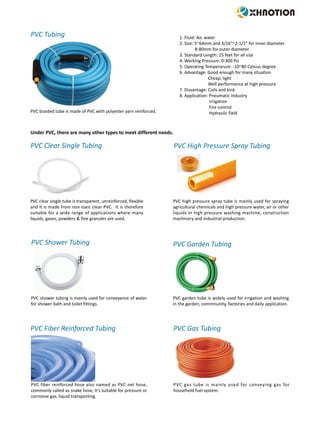

4. PVC braided tube is made of PVC with polyester yarn reinforced.
1. Fluid: Air, water
2. Size: 5~64mm and 3/16"~2-1/2" for inner diameter
8-80mm for outer diameter
3. Standard Length: 25 feet for all size
4. Working Pressure: 0-300 Psi
5. Operating Temperarure: -10~80 Celsius degree
6. Advantage: Good enough for many situation
Cheap, light
Well performance at high pressure
7. Disvantage: Coils and kink
8. Application: Pneumatic industry
Irrigation
Fire control
Hydraulic field
PVC Tubing
Under PVC, there are many other types to meet different needs.
PVC Clear Single Tubing
PVC clear single tube is transparent, unreinforced, flexible
and it is made from non-toxic clear PVC. It is therefore
suitable for a wide range of applications where many
liquids, gases, powders & fine granules are used.
PVC Shower Tubing
PVC shower tubing is mainly used for conveyance of water
for shower bath and toilet fittings.
PVC Fiber Reinforced Tubing
PVC fiber reinforced hose also named as PVC net hose,
commonly called as snake hose, it's suitable for pressure or
corrosive gas, liquid transporting.
PVC Garden Tubing
PVC garden tube is widely used for irrigation and washing
in the garden, commnunity, factories and daily application.
PVC High Pressure Spray Tubing
PVC high pressure spray tube is mainly used for spraying
agricultural chemicals and high pressure water, air or other
liquids in high pressure washing machine, construction
machinery and industrial production.
PVC Gas Tubing
PVC gas tube is mainly used for conveying gas for
household fuel system.

5. Model PU tubing PE tubing Nylon tubing Silicone tubing PTFE tubing Rubber tubing PVC tubing
Fluid air, water air, water air, water, oil air, water, ozone
air, water,
oil,corrosion fluid,
steam
air, water, oil, gas air, water
Working Pressure(Psi) 0-150 0~120 0~360 0~120 0-~150 0~120 0~300
Operating
Temperature(℃ )
-20~60 0~40 -40~120 -60~200 -100~260 -20~45 -10~80
Flexibility least flexible most flexible
Corrosion Resistance no no no yes yes no no
Environment Friendly yes no yes yes yes no no
Weight lightest heaviest
Price most expensive cheapest
Please email to sales@xhnotion.com to request a quotation.
Nylon tube is also called polyamide tube with 3
different materials of PA12, PA11 and PA6.For the
quality, the PA11 is the best and the PA6 is the worst in
comparision.
1. Fluid: Air, water, oil
2. Size: 3~18mm and 1/8"~1/2" for outer diameter
2~15mm and 0.079"~0.33" for inner diameter
3. Standard length: 100m per roll for all size
4. Working Pressure: 0-360 Psi
4. Operating Temperarure: -40~120 Celsius degree
5. Advantage: Maintains its tension,
Great for coils
Placed on the ceiling a coil can create a
weightless feel at the tool
Well performance at high pressure
6. Disvantage: Kinks very easily
Less durable than the other materials
7. Application: Pneumatic industry
Auto industry ( used as air brake tube
and trailer electrical coil)
Nylon Tubing
Remarks: Normally, we produce Nylon tubing of PAL material. But if you need PHLY material and HIPHL material, we can also
manufacture it for you. In comparison with PAL material, HIPHL material is more bearable at low temperature (-60 ℃ ), and PHLY
material plays better performance at low temperature (-60℃ ) and high pressure.
