1. UNIT.1
Chapter.1
Introduction to Fluid Power
JCOE,KURAN (Gorade N.B)

2. Fluid Power Basics
1. Prime mover
2. Pump
3. Control Volume
4. Actuator
5. Fluid Energy
6. Mechanical Energy
JCOE,KURAN (Gorade N.B)

3. Layout of Fluid Power System
JCOE,KURAN (Gorade N.B)

4. Components of FPS
• Major components
1. Prime mover
2. Pump or compressor
3. Control valves
4. Actuators
5. Piping system
6. Fluid
JCOE,KURAN (Gorade N.B)

5. Components of FPS
• Supporting Components
1. Filters
2. Strainer
3. Storage tank
4. Heat Exchanger
5. Pressure Guages
6. Sensors
7. Protective Devices
8. Control Devices
9. Accumulators
JCOE,KURAN (Gorade N.B)

6. Advantages
1. Easy of Conveyance
2. Large actuating force could be achieved
3. Absence of Linkages
4. Division of Energy much Easier
5. Self cushioning Effect
6. Self Lubricating
7. Smooth and jerky free operation
8. Multiplication of force
9. Reversibility
10.Compact and simple
11.Accuracy
12.Long linear motion
13.Heat transfer Characteristics
14.Monitoring is easy
15.Less noisy
•
JCOE,KURAN (Gorade N.B)

7. Drawbacks of FPS
1. Leakage
2. Frictional Losses
3. Oil is fire Hazards
4. Variation of viscosity
5. Bursting of pipe lines
JCOE,KURAN (Gorade N.B)

8. Comparison in HPS and PPS
JCOE,KURAN (Gorade N.B)

9. Application of FPS
1.Machine tool and Production
2.Material Handling
3.Hydraulics Press
4.Mobile and stationary Machines
5.Clamping Devices
JCOE,KURAN (Gorade N.B)

10. Hydraulic Transmission
1.Static or Hydrostatic Transmission
2.Dynamic or Hydrodynamic Transmission
JCOE,KURAN (Gorade N.B)

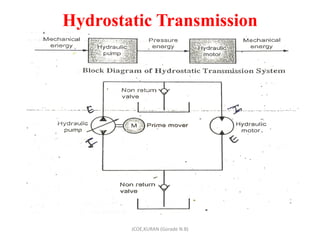

11. Hydrostatic Transmission
JCOE,KURAN (Gorade N.B)

12. Hydrodynamic Transmission
JCOE,KURAN (Gorade N.B)

13. Pascal's Law
• In a body of equally dense fluid at rest the
pressure is the same for all points in the fluid
so long as those points are at same depth
below the fluid surface
JCOE,KURAN (Gorade N.B)

14. Pascal`s Law
JCOE,KURAN (Gorade N.B)

15. Hydraulic Press
JCOE,KURAN (Gorade N.B)

16. Types of Fluid Power System
1.Hydraulic System
2.Pneumatic System
3.Open Circuit
4.Closed Circuit
JCOE,KURAN (Gorade N.B)

17. Open and Closed Circuit
JCOE,KURAN (Gorade N.B)

18. UNIT 1
Chapter 2
Fluids for Hydraulic System
JCOE,KURAN (Gorade N.B)

19. Introduction
• Four Basic Functions
1. Transmitting power
2. Moving Parts
3. Sealing gaps
4. Cooling and dissipation heat
JCOE,KURAN (Gorade N.B)

20. Classification
1.Petroleum based
2.Water based
3.Synthetic based
JCOE,KURAN (Gorade N.B)

21. Essential Qualities of Fluid
1. Prevent Rust
2. Prevent formation of sludge
3. Depress foaming tendency
4. Stability
5. Uniform properties
6. Prevent corrosion
7. Avoid damaging of seals
8. Avoid mixing with water
JCOE,KURAN (Gorade N.B)

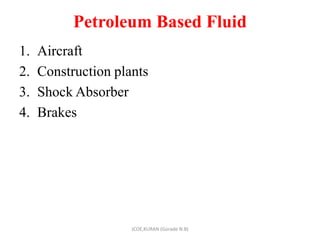

22. Petroleum Based Fluid
1. Aircraft
2. Construction plants
3. Shock Absorber
4. Brakes
JCOE,KURAN (Gorade N.B)

23. Advantages
• Protection against rust
• Better sealing property
• Better heat dissipating property
• Easy to keep clean system
• Low density and light weight
JCOE,KURAN (Gorade N.B)

24. Disadvantages
1. High Cost
2. Low flash points and fire points
3. Highly inflammable
JCOE,KURAN (Gorade N.B)

25. Synthetic based fluid
1. Laboratory prepared fluids
2. Not contain any water or volatile materials
3. Chemical stability very good and high
pressure and temperature working
• Eg. Phosphate Easters
• Halogenated hydrocarbons
• Silicon synthetic fluid
JCOE,KURAN (Gorade N.B)

26. UNIT 1
Chapter 2
Fluids for Hydraulic System
JCOE,KURAN (Gorade N.B)

27. Advantages
• Less inflammable
• Can operate at high temperature
• Suitable for high pressure system
JCOE,KURAN (Gorade N.B)

28. Disadvantages
1. Attack and spoil paints
2. Performance is poor at low temperature
3. VI is very low
4. Sp.gravity is high
5. Develop acidity during operation
6. Cost is very high
JCOE,KURAN (Gorade N.B)

29. Water Based Fluid
• Advantages
• Disadvantages
JCOE,KURAN (Gorade N.B)

30. High Water Based Fluid (HWBF)
• As per ANSI it is HWCF (American National
Standard Institute)
• Proportion of additives:
1. Water-90-95%
2. Additives-5-10%
a) First Generation-Soluble oil cutting fluids
b) Second Generation-High water content oil
c) Third Generation-Micro emulsion
d) Fourth Generation-Thickened micro emulsion
JCOE,KURAN (Gorade N.B)

31. Advantages
1. High flash point
2. Good cooling characteristics
3. Biodegradable hence eco friendly
4. Cleanliness
5. Viscosity constant
6. Low cost
7. Ease to storage
8. Easy transportation
JCOE,KURAN (Gorade N.B)

32. Disadvantages
• High density –contamination-difficult to filter
• Very high corrosion
• Foaming tendency
• High evaporation rate
• High rate of leakage
JCOE,KURAN (Gorade N.B)

33. Types of HWCF
• Water glycol mixture
• Water glycol
JCOE,KURAN (Gorade N.B)

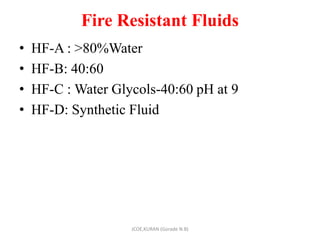

34. Fire Resistant Fluids
• HF-A : >80%Water
• HF-B: 40:60
• HF-C : Water Glycols-40:60 pH at 9
• HF-D: Synthetic Fluid
JCOE,KURAN (Gorade N.B)

35. Properties of Hydraulic Fluid
1. Viscosity
2. Viscosity Index (VI)
3. Lubricating Property (Lubricity)
4. Chemical Stability
5. Freedom from acidity
6. Flash Point
7. Fire Point
8. Toxicity
9. Density
10. Compressibility
11. Good Heat Dissipation
12. Foaming Tendency
13. Low Volatility
14. Low coefficient of expansion
15. Cleanliness
16. Rust Prevention Capability
JCOE,KURAN (Gorade N.B)

36. Selection of Fluids
1. Speed and Accuracy
2. Surrounding conditions
3. Economic Consideration
4. Pressure Levels
5. Operating temp Level
6. Lubricity
7. Safety of operators
8. Expected service life
JCOE,KURAN (Gorade N.B)

37. Additives and Inhibitors
1. Anti foaming
2. Corrosion inhibitors
3. Anti wear resistant chemicals
4. Biocide
5. Emulsifier
6. Lubrication agent
7. Deionisation agent
8. Oxidation agents
JCOE,KURAN (Gorade N.B)

38. Effect of Temp.and Pressure on
Hydraulic Fluid
JCOE,KURAN (Gorade N.B)

39. VI and Temp Vs Viscosity
JCOE,KURAN (Gorade N.B)

40. UNIT 1
Chapter 3
Seal and Sealing Materials
JCOE,KURAN (Gorade N.B)

41. Functions of Seal
• To avoid leakages
JCOE,KURAN (Gorade N.B)

42. Basic Requirements of Seals
1. Effective Sealing
2. Durable
3. Compatible With any Fluids
JCOE,KURAN (Gorade N.B)

43. Causes of Leakages
1. Irregularities in surface
2. Increase in clearance
3. Loosing of joints
4. Excessive operating pressure
5. Fluid contamination
6. Damaged or worn out seal
JCOE,KURAN (Gorade N.B)

44. Classification of Seals
1. Static seals
2. Dynamic Seal
JCOE,KURAN (Gorade N.B)

45. Static Seal
• When no relative motion between two moving
parts
• Also called gaskets
JCOE,KURAN (Gorade N.B)

46. Dynamic Seal
JCOE,KURAN (Gorade N.B)

47. Classification Based on methods of Sealing
1. Positive
2. Non-Positive
JCOE,KURAN (Gorade N.B)

48. Based on working conditions
1. Pressure
2. Environmental conditions
3. Fluid Medium
4. Dynamic and static condition
5. Temperature of system
6. Functional reliability and expected life
JCOE,KURAN (Gorade N.B)

49. Based on shapes
1. T seals
2. V
3. U cups
4. U-Packing
JCOE,KURAN (Gorade N.B)

50. Properties
1. Hardness
2. Volume change-Swelling and Shrinkage
3. Compression Set
4. Tensile Strength
5. Permanent Set
6. Adhesion
7. Aniline Point
8. Squeeze
JCOE,KURAN (Gorade N.B)

51. Sealing Material
1. Cork
2. Leather
3. Metal
4. Rubber
5. Asbestos
6. Elastomeric seal material
JCOE,KURAN (Gorade N.B)

52. UNIT 1
Chapter 4
Types of Pipes and Hoses
JCOE,KURAN (Gorade N.B)

53. Functions of Pipes and Hoses
1. To transport energy through closed conduits
2. Provide flexibility and strength to high
pressure system
JCOE,KURAN (Gorade N.B)

54. Classification of Fluid Power Lines
Fluid Power
Lines
Pipe(Rigid)
Tubes(Semi
Rigid)
Hoses
(Flexible)
JCOE,KURAN (Gorade N.B)

55. Properties of Fluid Power Conduits
1. Mechanical Strength
2. Supporting Strength
3. Terminal Points
4. Damping Capability
5. Smoothness of Surface
JCOE,KURAN (Gorade N.B)

56. Pipe Materials
1. Steel
2. Copper
3. Brass
4. Aluminium
5. Stainless steel
JCOE,KURAN (Gorade N.B)

57. Selection of Pipe Dimensions
Three important Dimensions
1. Outer Diameter (OD)
2. Inner Diameter (ID)
3. Wall Thickness
• Selection of ID
1. Flow rate of fluid
2. Permissible friction losses
JCOE,KURAN (Gorade N.B)

58. Schedule of Pipes
• ANSI Specifies it
• It varies from 10 to 160
• Wall thickness is expressed as SCHEDULED
NUMBER
JCOE,KURAN (Gorade N.B)

59. Tubes and Tubing
• More flexible as compared to pipes
• Manufacture by precision drawing
• Tubing Size :
• Designated by OD.Eg 5/8 Inch tube
JCOE,KURAN (Gorade N.B)

60. Hoses
• Made up by flexible materials
• Permit relative motion between components
JCOE,KURAN (Gorade N.B)

61. Constructions of Hoses
JCOE,KURAN (Gorade N.B)

62. Hose Materials
• Inner Tube
1. Synthetic Rubber
2. Plastics
3. Nylon
4. Braided Nylon
5. Teflon
6. Homogeneous Synthetic Rubber
7. Neoprene
8. Butyl
9. Natural Rubber
• Hose Reinforcement Materials
1.Steel Wires
2.Nylon
3.Rayon
4.Synthetic Yarn
• Outer Protective Cover Materials
1.Neoprene
2.Cotton Yarn
3.Nylon
JCOE,KURAN (Gorade N.B)

63. Tube Joints and Fittings
• 370 flare fitting/450 flare fitting
• Ferrule compression fitting
• Straight threaded connector
• O ring compression fittings
• Sleeve compression fitting
JCOE,KURAN (Gorade N.B)

64. Flare Fittings
JCOE,KURAN (Gorade N.B)

65. Ferrule Fittings
JCOE,KURAN (Gorade N.B)

66. Straight Threaded Connectors
JCOE,KURAN (Gorade N.B)

67. Sleeve Compression fitting
JCOE,KURAN (Gorade N.B)

68. Quick Action Coupling
JCOE,KURAN (Gorade N.B)

69. O Rings Compression Fittings
JCOE,KURAN (Gorade N.B)

70. Pressure Drop in Hoses/Pipes
• Hydraulic energy loss due to friction and
leakages
1.Losses due to friction increase with increase in
viscosity
2.Losses due to leakages decrease with increase
in viscosity
• Head Loss,
• Hp= λ*(v/d*g*l/d)
JCOE,KURAN (Gorade N.B)

71. UNIT 1
Chapter 5
Fluid Conditioning
JCOE,KURAN (Gorade N.B)

72. Introduction
• For smooth, Efficient and trouble free function
• The method of maintaining the quality of fluid
is called fluid conditioning
JCOE,KURAN (Gorade N.B)

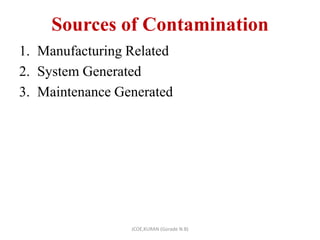

73. Sources of Contamination
1. Manufacturing Related
2. System Generated
3. Maintenance Generated
JCOE,KURAN (Gorade N.B)

74. Types of Contamination
• Particulate Contamination
1.Organic Contamination
2.Metallic Solid Contamination
3.Inorganic Solid Contamination
• Fluid Contamination
1.Water Contamination
2.Solvent Contamination
3.Foreign Liquid Contamination
4.Air Contamination
JCOE,KURAN (Gorade N.B)

75. Causes of Contamination
1. Particles originally contained in the system
2. Particles introduced from outside source
3. Particles created within system
 Mechanical particles
 Chemical particles
4. Particles introduced by foreign liquids
JCOE,KURAN (Gorade N.B)

76. Contamination Control
• Fluid maintained within permissible limit of
particulate matter
• Cleaning of all parts ,drying
• Hydraulic Fluid Sampling
JCOE,KURAN (Gorade N.B)

77. Filters
• The devices which is used for trapping the
insoluble contaminants by some porous
medium
• Micron Rating- It indicates smallest size of
particles that filter can retained
• Strainer-Without depth ,Less efficiency as
compared to filters
• Fluid Cleaning Mechanism:
• Sedimentation and Settling tanks
JCOE,KURAN (Gorade N.B)

78. Filter Materials
1.Metal Elements (Sintered Particles)
2.Edge Type
3.Mesh and Cloth Type
4.Non Metals Elements
• Felted
• Woven Cloth
• Wound Yarn
JCOE,KURAN (Gorade N.B)

79. Location of Filters
1. Return Line Filter
2. Suction line filter
3. Pressure filter
4. Combination of suction and pressure filter
JCOE,KURAN (Gorade N.B)

80. Return Line Filter
JCOE,KURAN (Gorade N.B)

81. Suction Line Filter
JCOE,KURAN (Gorade N.B)

82. Pressure Filter
JCOE,KURAN (Gorade N.B)

83. Combination of Suction and
Pressure Line Filter
JCOE,KURAN (Gorade N.B)

84. Filter Housing
JCOE,KURAN (Gorade N.B)

85. Multipass Test Rig
JCOE,KURAN (Gorade N.B)

86. Testing of Filter Contamination
Level and Standardisation
1. Necessity for filter rating
2. Filter Performance
3. Multi-pass test Rig
JCOE,KURAN (Gorade N.B)

87. Beta Rating of Filters
• Degree of Separation
• βx=ni/no
• A system requires 10 micron level filtration
• ni=15000
• no=200
JCOE,KURAN (Gorade N.B)

88. Types of Filter
1. Surface Filter
2. Depth Filter
3. Full Flow Filter
4. Bypass Filter
JCOE,KURAN (Gorade N.B)

89. Full Flow Filter
JCOE,KURAN (Gorade N.B)

90. Bypass Filter
JCOE,KURAN (Gorade N.B)

91. End of Unit I
Thank You
PROF.Gorade Nishigandh B.
9970721118
nishigandh1992@gmail.com
Jaihind College of Engineering ,Kuran
JCOE,KURAN (Gorade N.B)
