The Open Source document analysis platform Or, how IKANOW uses to help organizations solve really big problems Infinit.e is an open source document discovery and analysis platform developed by IKANOW. It uses a number of open source tools like MongoDB to ingest, enrich, analyze, and visualize structured and unstructured documents at scale. MongoDB is well-suited for Infinit.e because it allows for flexible schema-less storage of documents, supports the common JSON format, and is highly scalable for large document workloads. Infinit.e demonstrates how document analysis of tweets about a MongoDB conference can provide insight into who is tweeting, how people are connected, what topics are being discussed, and sentiment analysis

1. The Open Source document analysis platform
Or, how IKANOW uses
to help organizations solve really big problems

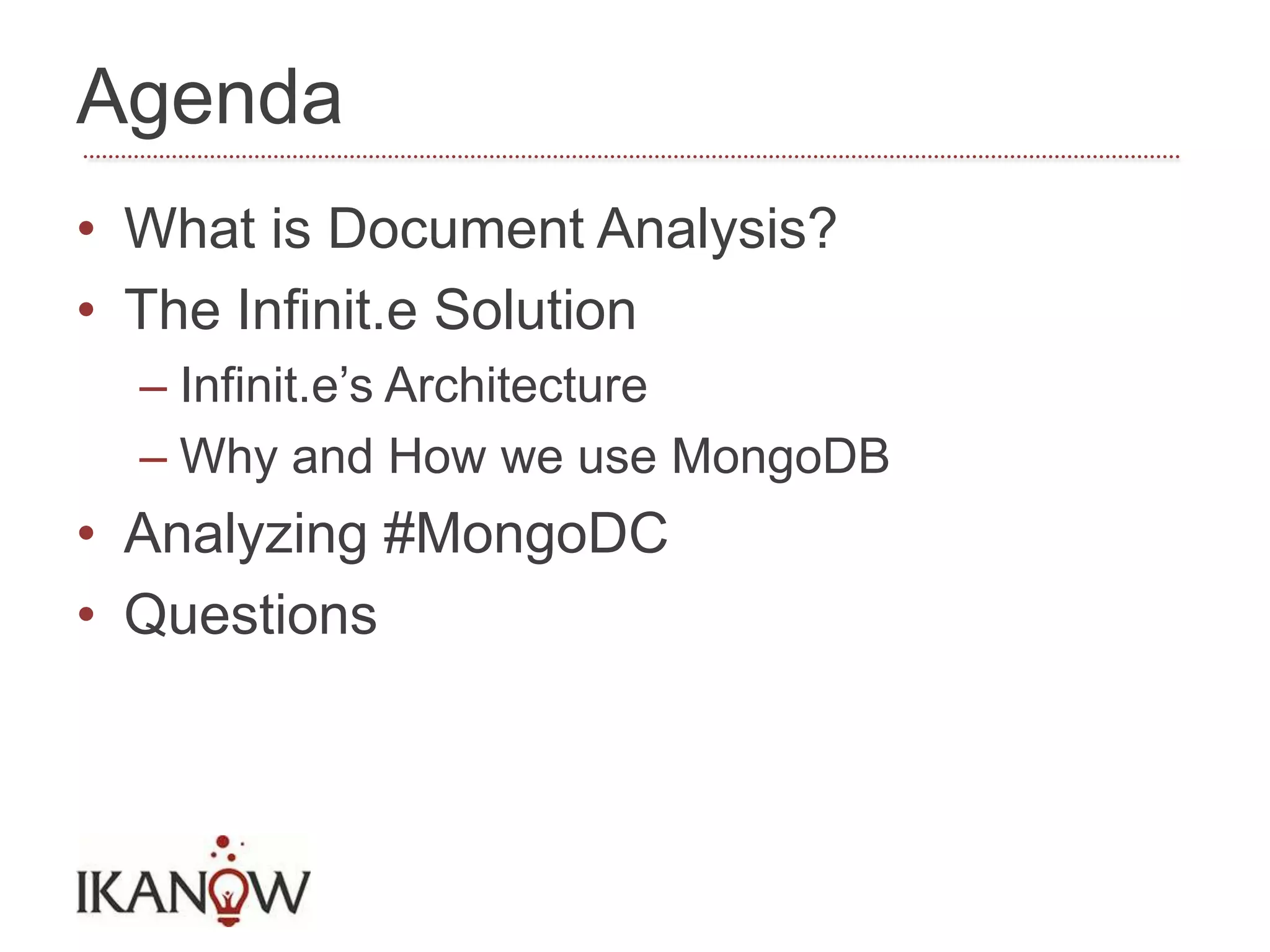

2. Agenda
• What is Document Analysis?
• The Infinit.e Solution
– Infinit.e’s Architecture
– Why and How we use MongoDB
• Analyzing #MongoDC
• Questions

3. This is what Big Data Looks Like
Shamelessly stolen from:
http://techbuddha.wordpress.com/2011/09/04/big-data-are-you-creating-a-garbage-dump-or-mountains-of-gold/

4. What is Document Analysis?
"Document Analysis refers to
computer-assisted analysis of large numbers
of documents in order to answer questions
about the content of a document set.”
Source: http://www.text-tech.com/docanalysis/definition.html

5. Document Analysis
• Common document source formats:
RSS JSON XML
HTML PDF TXT
RTF Word PPT
Multimedia Files RDBMS Records ETC.

6. Document Analysis
• The goal is to:
– Extract Entities (people, places, things)
– Create Associations between entities (in the
form of noun-verb-noun), e.g.:
• John Doe lives in Washington, D.C
• John Doe is married to Jane Doe
• John Doe is a Virgo
• John Doe traveled to Mexico on July 6th, 2011
• And…

7. Document Analysis
• Turn Who, What, When and
Where into a unified data structure that
supports data analytics and visualization.
Who When
people, organizations, past, present, future
facilities, company dates
What Where
events, summaries, city, state, country,
facts, themes coordinate

8. The Infinit.e Solution
• Infinit.e is an Open Source
document discovery and
analysis platform that has
these very cool Open Source
tools lurking under the hood.
github.com/ikanow/Infinit.e

9. The Infinit.e Solution
Infinit.e is a
scalable
framework for Visualizing
Analyzing
Retrieving
Enriching
Storing
Collecting
Structured and
Unstructured Documents

10. IkanMeow

11. Document Collection
• Infinit.e harvests documents from:
– URLs
– File Shares
– Databases

12. Sample RSS Document
<rss version="2.0">
<channel>
…
<item>
<title>Mediterranean conference seeks to flourish tourism in Egypt, Tunisia… </title>
<link>http://www.pressreleasebureau.com/mediterranean-conference-seeks-to-flourish- tourism-in-
egypt-tunisia-report-by-egyptlastminute-com-13613.html</link>
<description>Report by egyptlastminute.com CAIRO: On Monday, the countries of the
Mediterranean opened a conference seeking to enhance the future of tourism in the region. The
conference focuses on the countries of Egypt and Tunisia the most …
</description>
<dc:publisher>Latest Press Releases | Press Release Bureau</dc:publisher>
<dc:creator>unknown</dc:creator>
<dc:date>Sat, 21 Apr 2012 00:00:00 GMT</dc:date>
</item>
…
</channel>
</rss>

13. Full Text Source

14. Source Ingestion Data Flow

15. Document DBs and Collections

16. Document Metadata
• doc_metadata.metadata
{
"_id" : ObjectId("4f93638e0cf212156d0559d2"),
"title" : "Mediterranean conference seeks to flourish tourism in Egypt, Tunisia ...",
"url" : "http://www.pressreleasebureau.com/mediterranean-conference-seeks-to-flourish-tourism-
in-egypt-tunisia-report-by-egyptlastminute-com-13613.html"
"description" : "Report by egyptlastminute.com CAIRO: On Monday, the countries of the
Mediterranean opened a conference seeking to enhance the future of tourism in the region. The
conference focuses on the countries of Egypt and Tunisia; the most ...",
"created" : ISODate("2012-04-22T01:49:02Z"),
“metadata” : {…},
"associations" : […],
"entities" : […],
...
}

17. Harvested Document Metadata
• doc_metadata.metadata.metadata
"metadata" : {
"location" : [
{ Note: It is okay to laugh at this
"region" : "South Asia",
"citystateprovince" : {
"stateprovince" : "Rolpa”, "city" : "Newang"
},
"country" : "Nepal"
}
],
"icn" : [ "200573487" ],
"incidentdate" : [ "07/25/2005" ],
"organization" : [
"Communist Party of Nepal (Maoist)/United People's Front”
],
...
},

18. Document Enrichment
• Infinit.e supports the extraction of entities
and creation of associations using a
combination of built in enrichment libraries
and 3rd party NLP APIs including:

19. Harvested Entities
• feature.entity
{
"_id" : ObjectId("4f9189d48baf188282a1c9ef"),
"alias" : [
"Zine el Abidine Ben Ali",
"Zine El Abidine Ben Ali",
"Zine el Abidine ben Ali"
],
"batch_resync" : true,
"communityId" : ObjectId("4f8f138103644ee8003bf518"),
"db_sync_doccount" : NumberLong(143),
"db_sync_time" : "1338751174988",
"dimension" : "Who",
"disambiguated_name" : "Zine El Abidine Ben Ali",
"doccount" : 152,
"index" : "zine el abidine ben ali/person",
"totalfreq" : 353,
"type" : "Person"
}

20. Harvested Entities

21. Harvested Associations
• feature.association
{
"_id" : ObjectId("4f9189d48baf188282a1ca24"),
"assoc_type" : "Fact",
"communityId" : ObjectId("4f8f138103644ee8003bf518"),
"db_sync_doccount" : NumberLong(70),
"db_sync_time" : "1338491609281",
"doccount" : NumberLong(73),
"entity1" : [
"zine el abidine ben ali",
"zine el abidine ben ali/person"
],
"entity1_index" : "zine el abidine ben ali/person",
"entity2" : ["president”,"president/position”],
"entity2_index" : "president/position",
"index" : "5e3fff27ddb78d6873ccfc77cf05c52f",
"verb" : ["career”,"current”,"past”],
"verb_category" : "career"
}

22. Harvested Associations

23. Geolocation of Entities/Events
• feature.geo
{
"_id" : ObjectId("4d8bb5efbe07bb4f7036c82e"),
"search_field" : "cairo",
"country" : "Egypt",
"country_code" : "EG",
"city" : "cairo",
"region" : "Al Qahirah",
"region_code" : "EG11",
"population" : 7734602,
"latitude" : "30.05",
"longitude" : "31.25",
"geoindex" : {
"lat" : 30.05,
"lon" : 31.25 Note: MongoDB 2d Index
}
}

24. Geolocation of Entities/Events

25. Who, What, Where and When

26. Why MongoDB? – Reason #1
Document-Oriented Storage
• MongoDB’s document-oriented storage
(i.e. schema-less) is perfectly suited to the
data design requirements of a system that
needs to ingest a wide variety of
structured and unstructured document
formats and normalize them into one
unified, semi-structured format

27. Why MongoDB? – Reason #2
JSON
• The standard language of open document
analysis
– JSON is a common interchange format supported
by tools like elasticsearch and SaaS NLP engines
– BSON (Binary JSON) is MongoDB’s native data
format
– Infinit.e ingests and exports JSON
natively via the REST based API
Note: Infinit.e uses Google’s GSON JAVA library to convert
JSON to POJOs and back
This is the JSON logo

28. Why MongoDB? – Reason #3
MongoDB Is Web Scale*
*Shards are the secret ingredients in the web scale sauce. They just work.

29. Why MongoDB? – Reason #3
Scalability
• Seriously, MongoDB Scales
– Harvesting and enriching documents requires
a lot of disk space
– MongoDB scales to arbitrary sizes in both
read/write dimensions
– Sophisticated sharding keys provide
powerful/flexible balancing
 BUT building an initial cluster can be complex
and managing cluster changes is “fiddly”

30. Why MongoDB? – Reason #4
Integration with Apache Hadoop
• Hadoop is rapidly becoming the de-facto standard for
data analytics
– Open Source, very customizable
– Proven scalability
– Java libraries
• The MongoDB Hadoop Adaptor allows Hadoop to read
from and write to MongoDB instead of HDFS
+ =

31. Tweeting about MongoDC
• Source:
http://search.twitter.com/search.rss?q=mongodc
– Who’s Tweeting?
– What are they Tweeting?
– What does basic document analysis of these
Tweets tell us?

32. Who’s Tweeting about MongoDC?

33. How are Tweeter’s Connected?

34. What are they Tweeting About?

35. Sentiment?

36. Twitter has its Limits…

37. Thank You!
Craig Vitter
www.ikanow.com
