This document summarizes a presentation given by Jun Park and Arghya Banerjee on how Adobe has built an OpenStack cloud. It discusses Adobe's OpenStack architecture including private and external networks, storage using Ceph, and challenges faced with networking components like Open vSwitch and storage components like Ceph. It also demonstrates using Mesos and Marathon on OpenStack via Heat templates and discusses new efforts in OpenStack like the Product Working Group.

1. How Adobe Has Built An OpenStack
CloudJun Park (Ph.D, MBA), Solutions Architect At Adobe
Arghya Banerjee, Sr. Systems Engineer At Adobe
OpenStack Utah Meetup, Sept 24

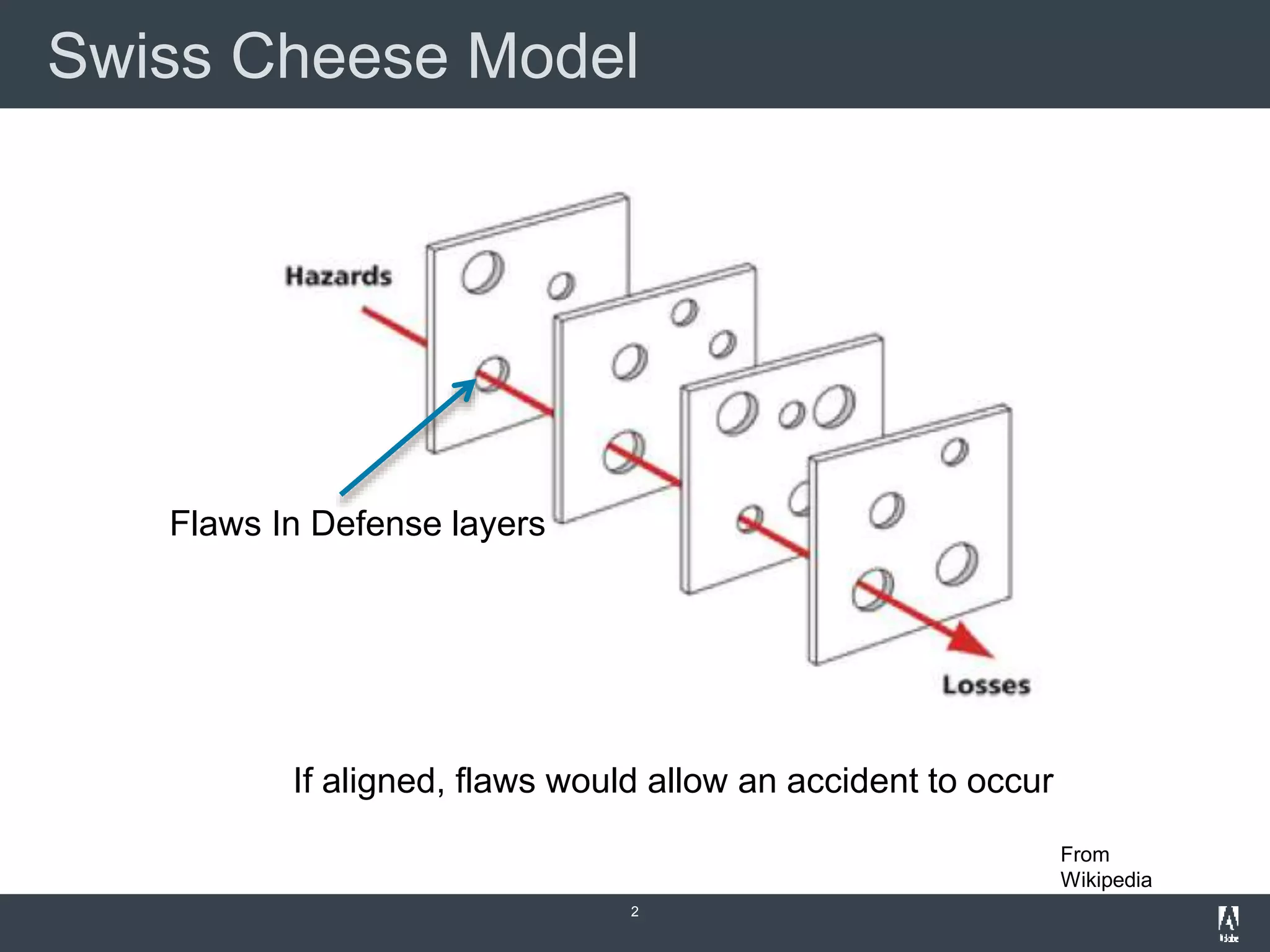

2. Swiss Cheese Model
2
From
Wikipedia
If aligned, flaws would allow an accident to occur
Flaws In Defense layers

3. Two More Factors That Complicate
Things
3
SpaceTime Continuum
- Einstein
Interactions,
Higgs Field & Boson
From
Wikipedia
From
Youtube

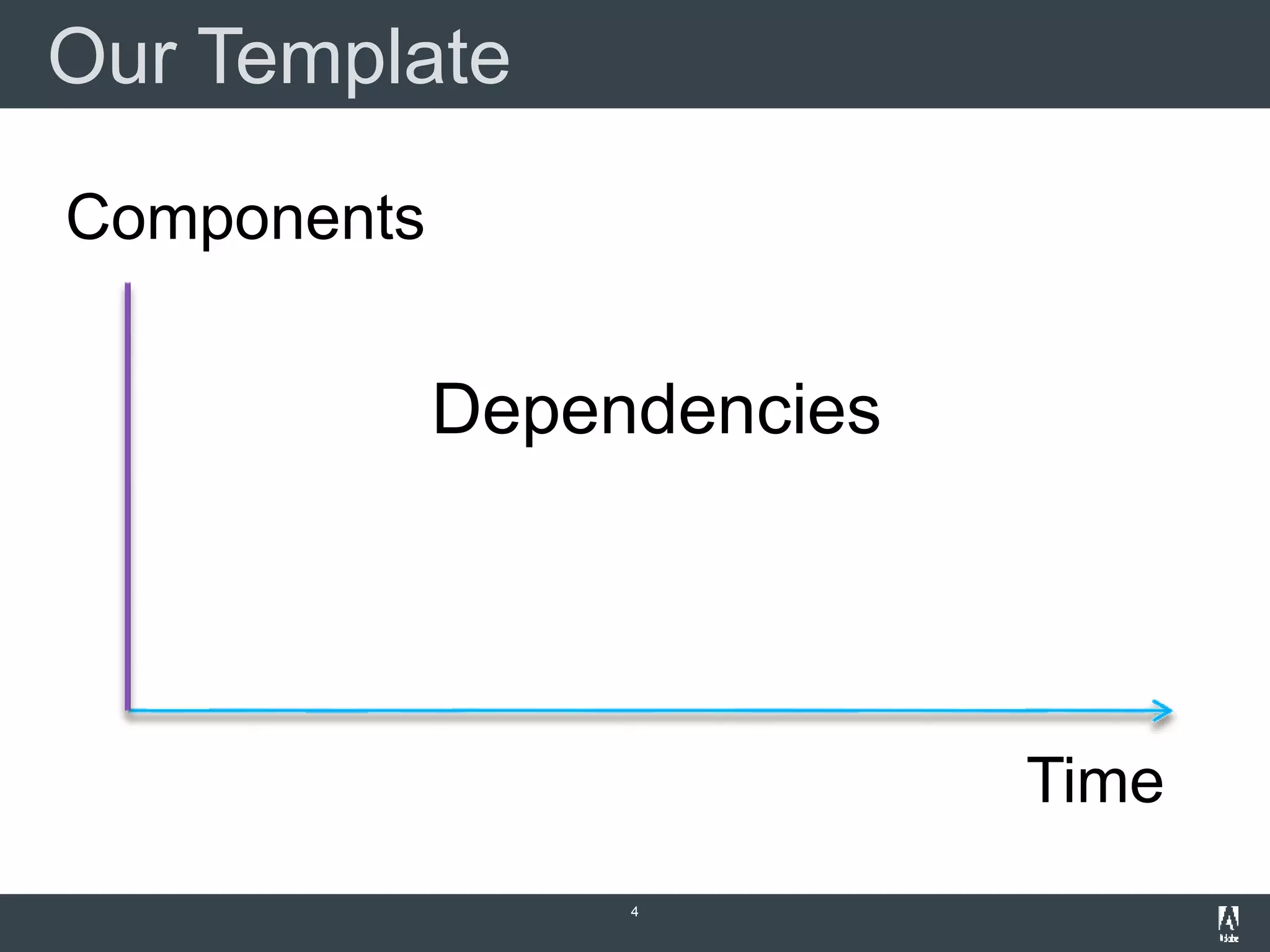

4. Our Template
4
Time
Components
Dependencies

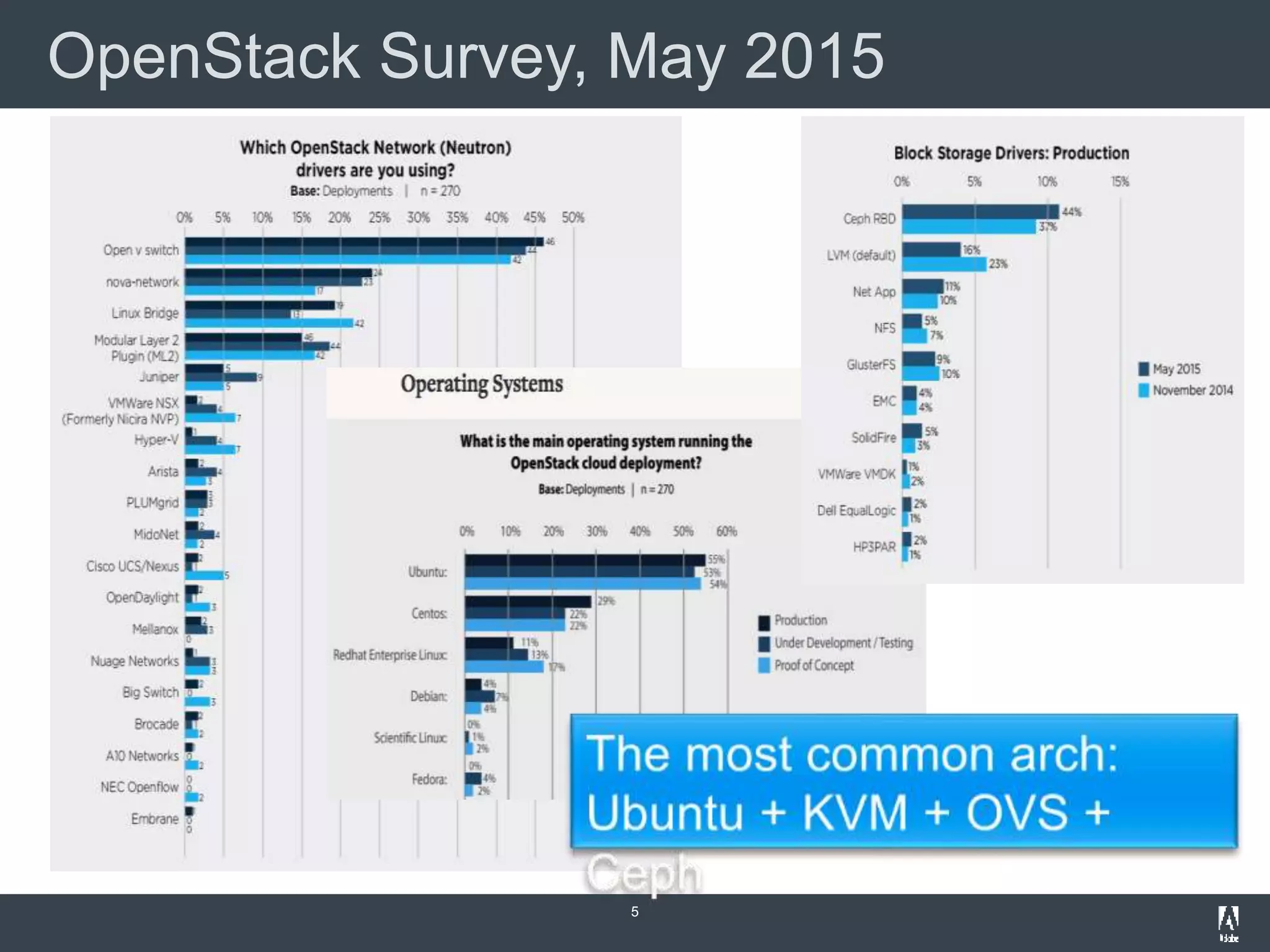

5. OpenStack Survey, May 2015
5

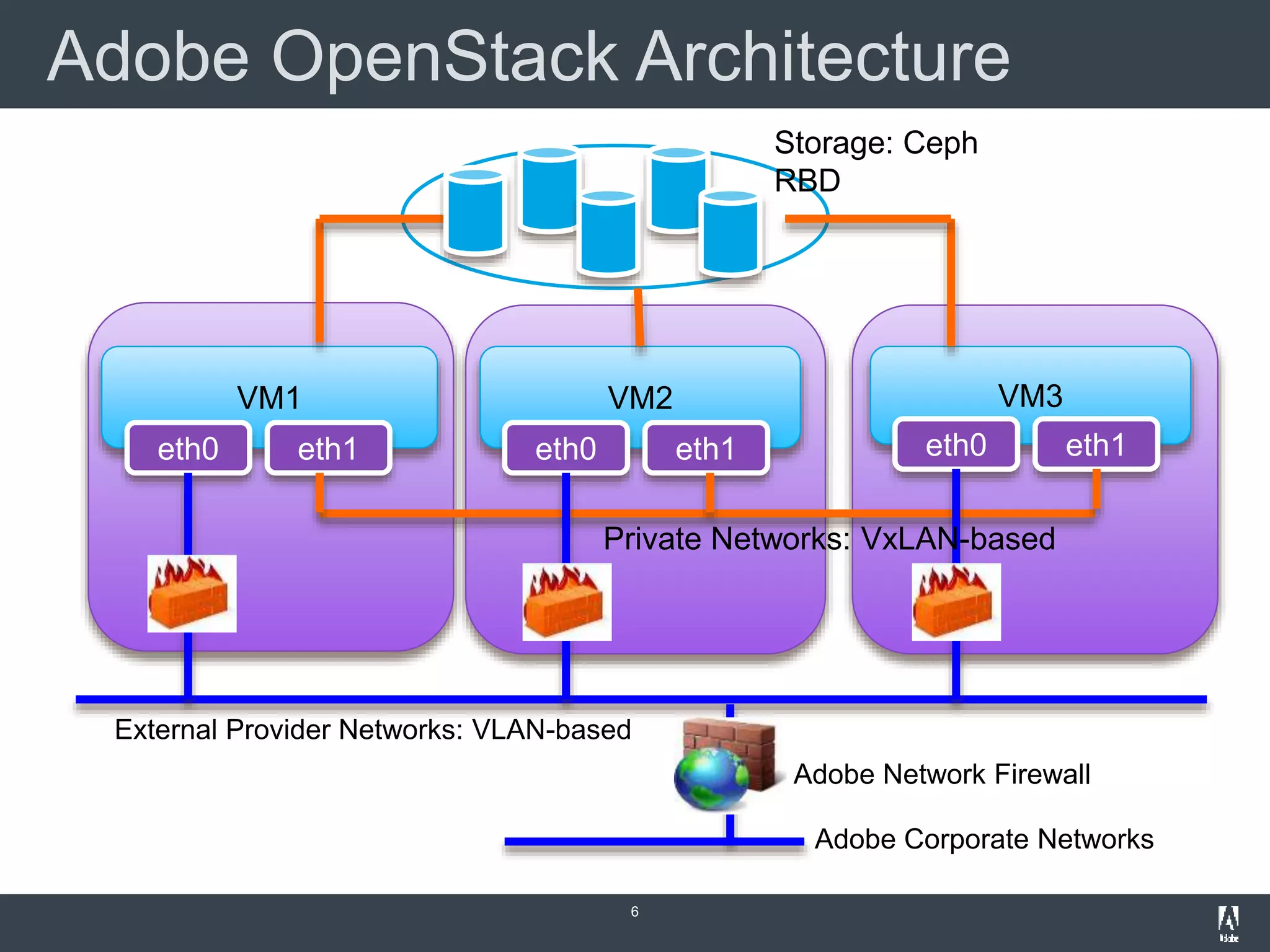

6. Adobe OpenStack Architecture
6
VM1 VM2
eth0 eth1 eth0 eth1
VM3
eth0 eth1
Private Networks: VxLAN-based
External Provider Networks: VLAN-based
Adobe Network Firewall
Adobe Corporate Networks
Storage: Ceph
RBD

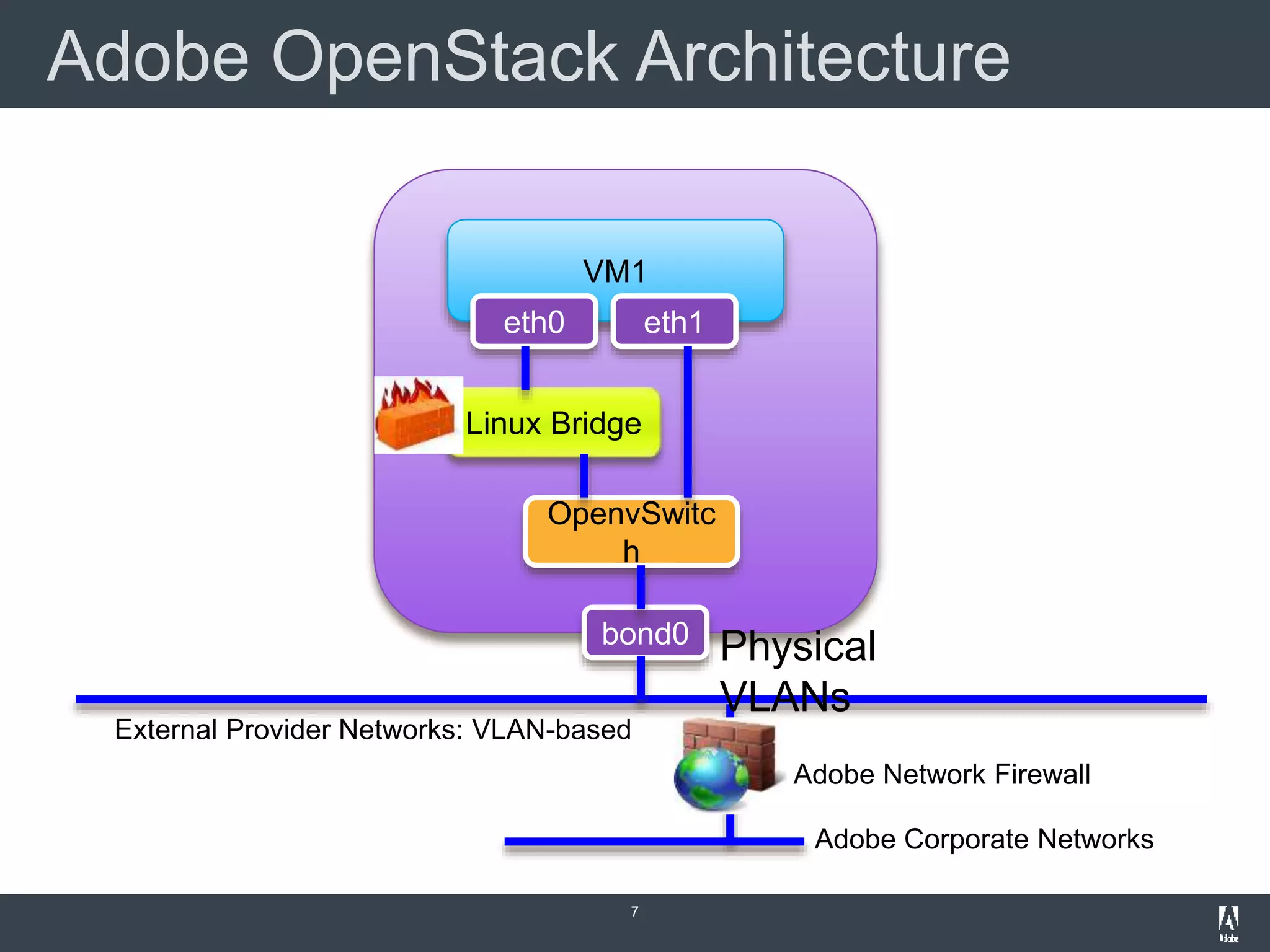

7. Adobe OpenStack Architecture
7
VM1
eth0 eth1
External Provider Networks: VLAN-based
Adobe Network Firewall
Adobe Corporate Networks
Linux Bridge
OpenvSwitc
h
bond0
Physical
VLANs

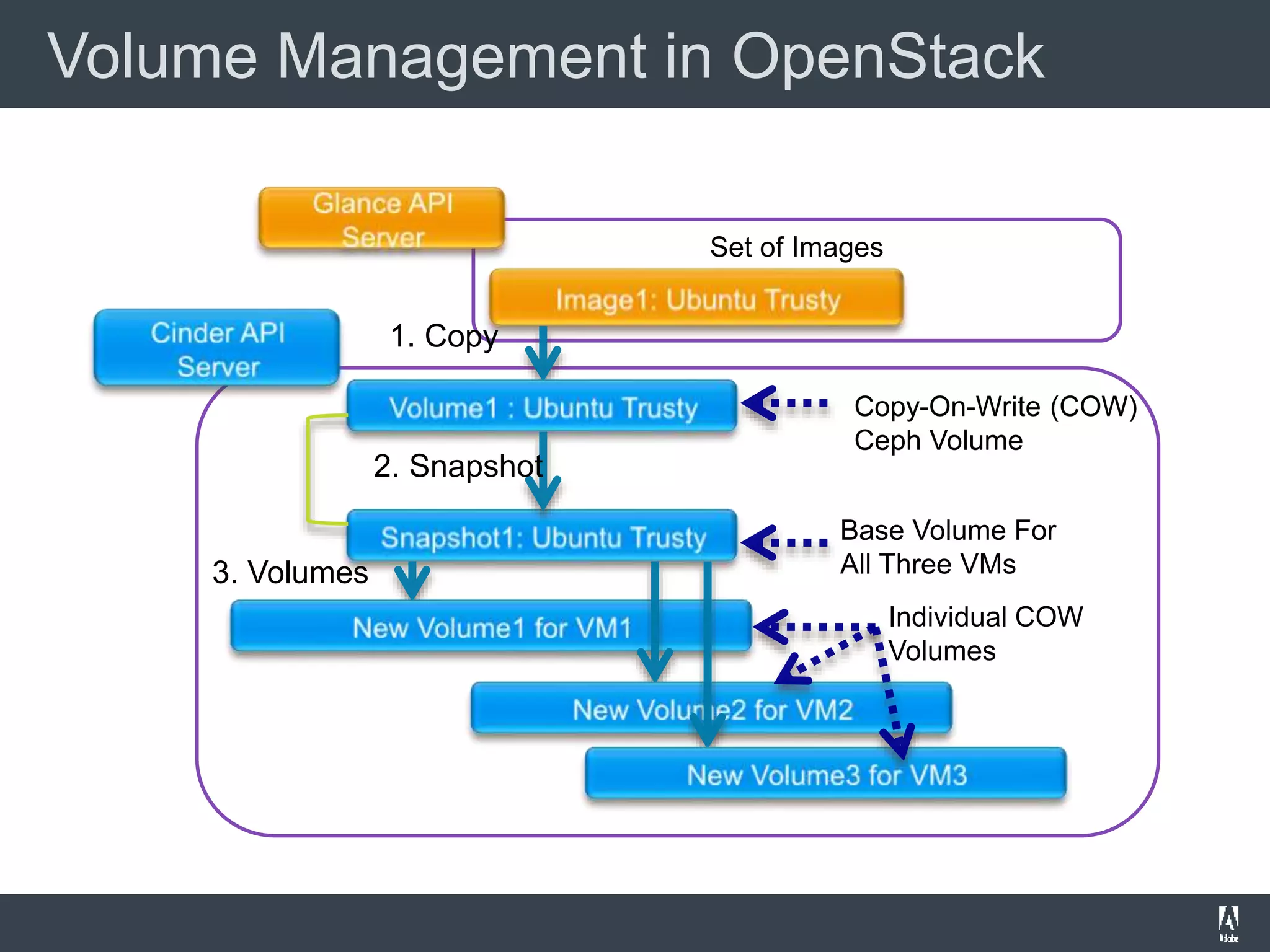

8. Set of Images
Copy-On-Write (COW)
Ceph Volume
Base Volume For
All Three VMs
Individual COW
Volumes
Volume Management in OpenStack
2. Snapshot
3. Volumes
1. Copy

9. Live Demo
9

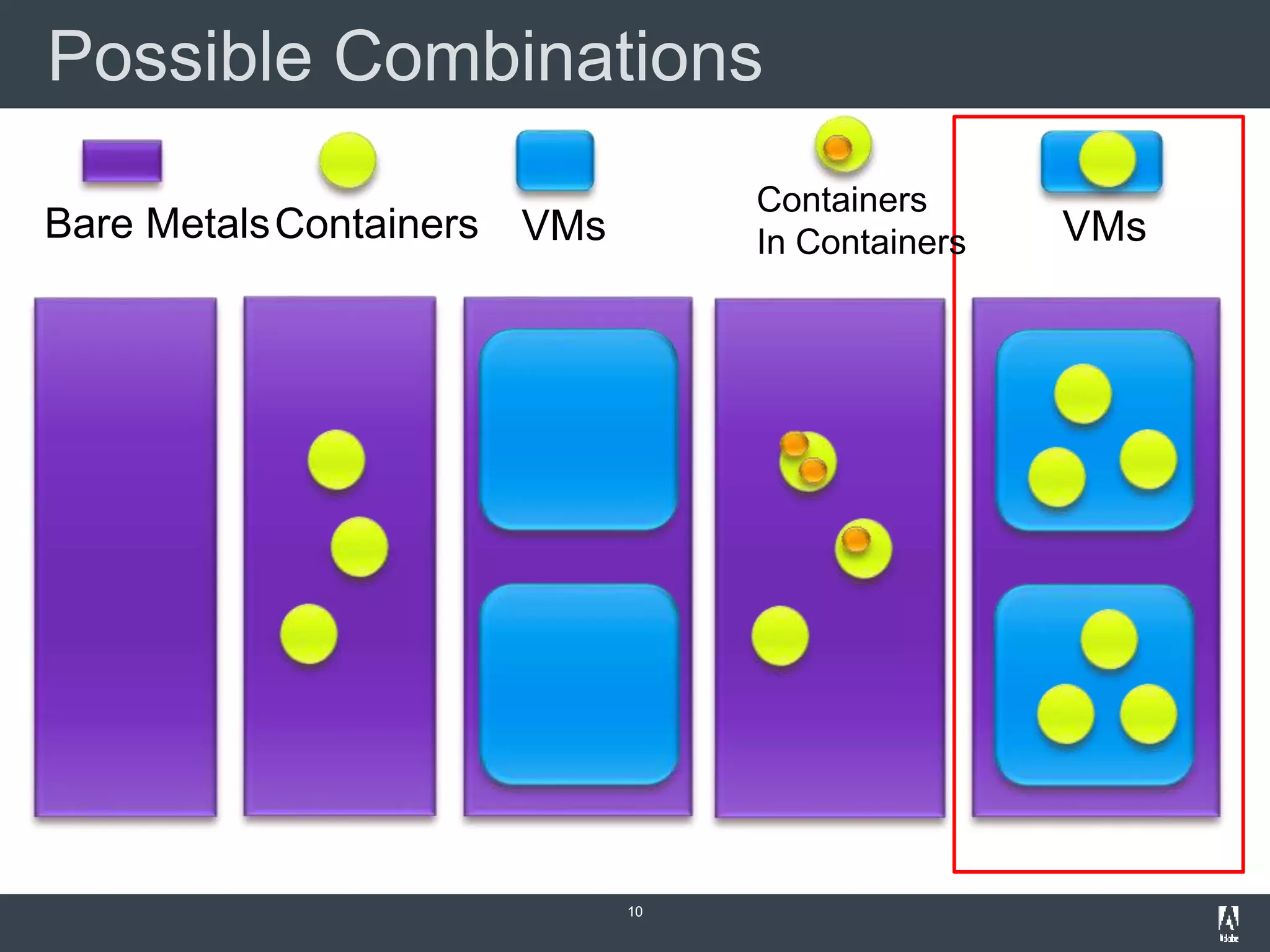

10. Possible Combinations
10
Containers VMsBare Metals
Containers
In ContainersVMs

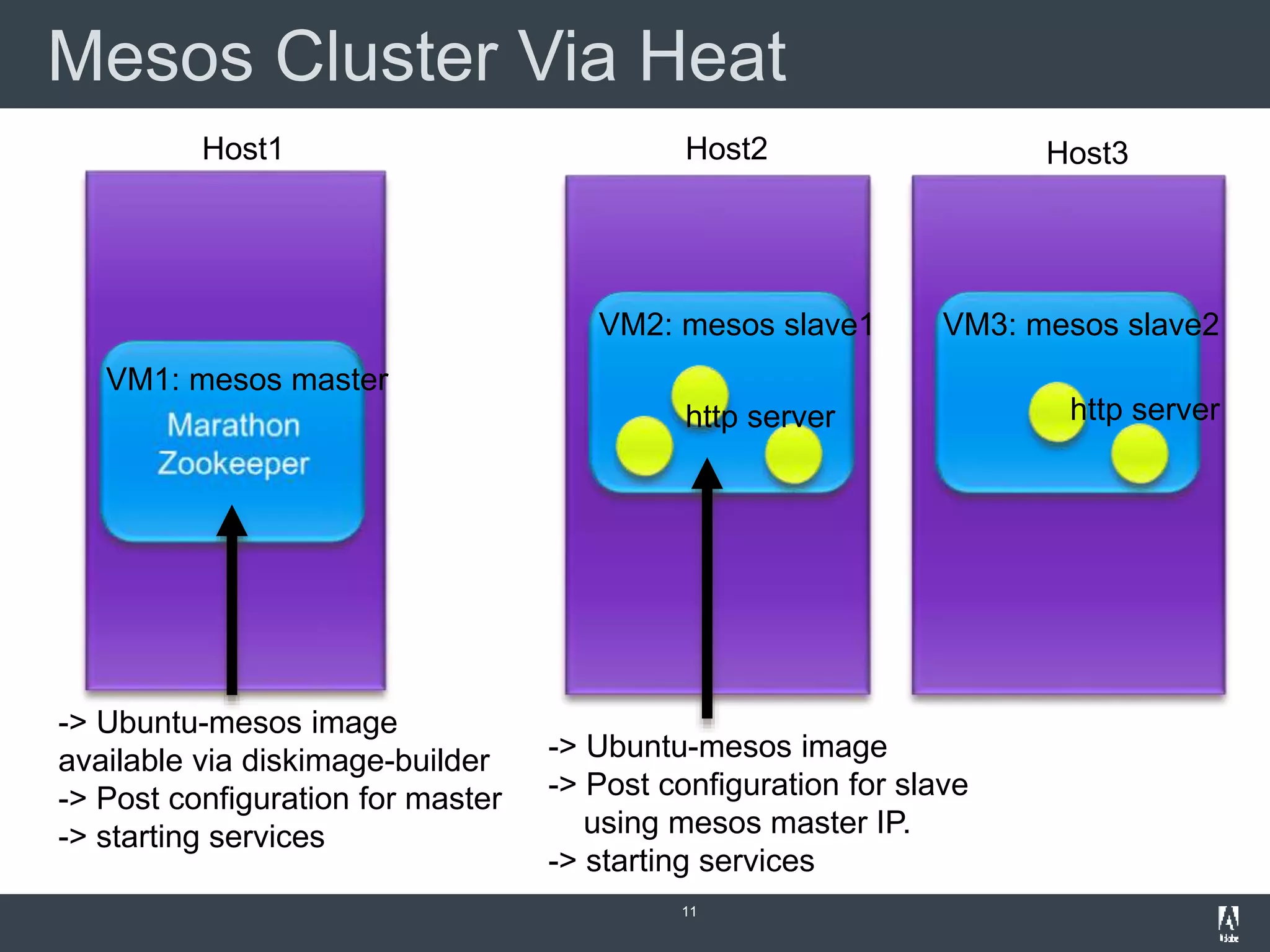

11. Mesos Cluster Via Heat
11
VM1: mesos master
VM2: mesos slave1 VM3: mesos slave2
http server http server
Host1 Host2 Host3
-> Ubuntu-mesos image
available via diskimage-builder
-> Post configuration for master
-> starting services
-> Ubuntu-mesos image
-> Post configuration for slave
using mesos master IP.
-> starting services

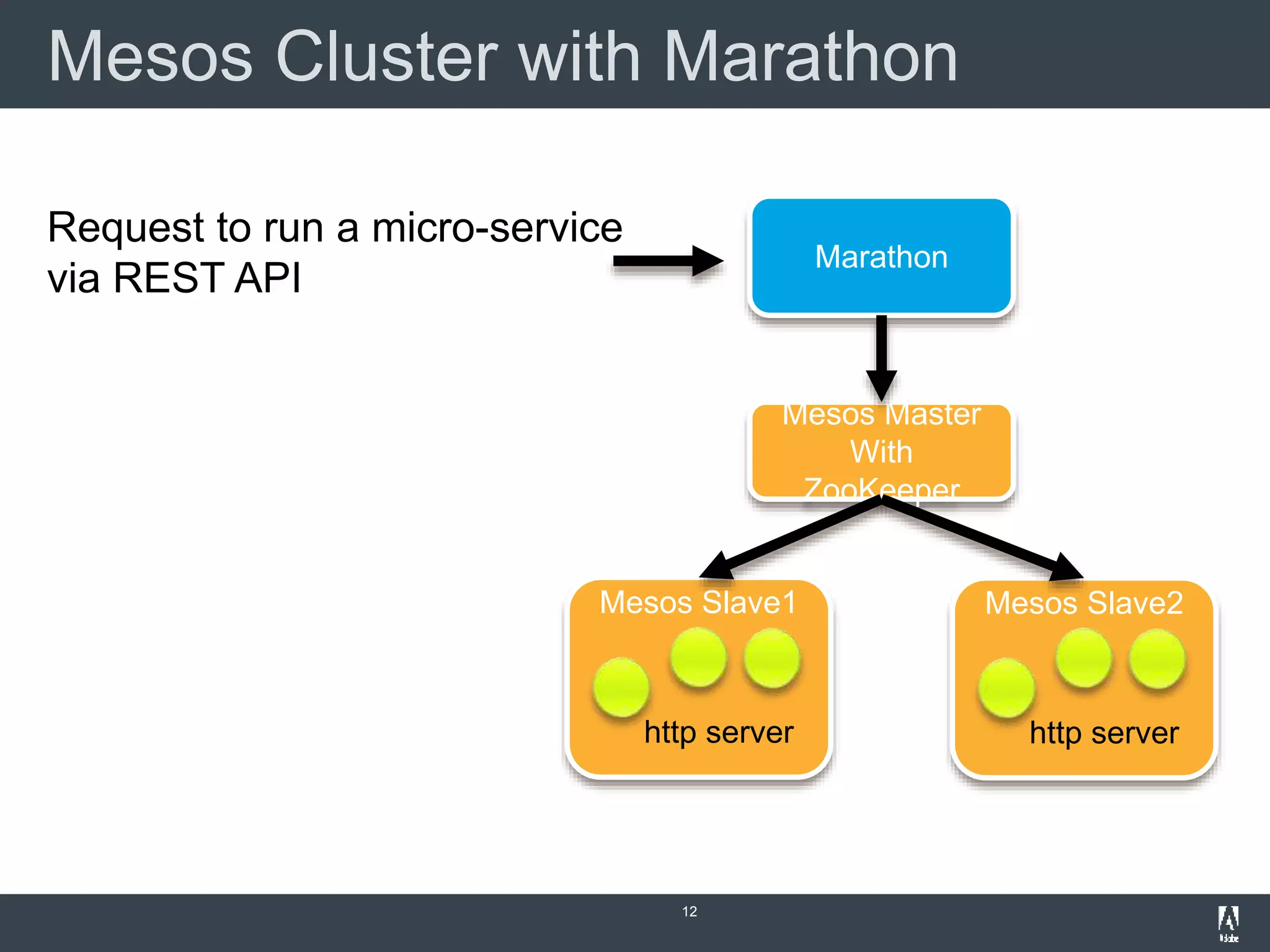

12. Mesos Cluster with Marathon
12
Marathon
Mesos Slave2
http server
Mesos Master
With
ZooKeeper
Request to run a micro-service
via REST API
Mesos Slave1
http server

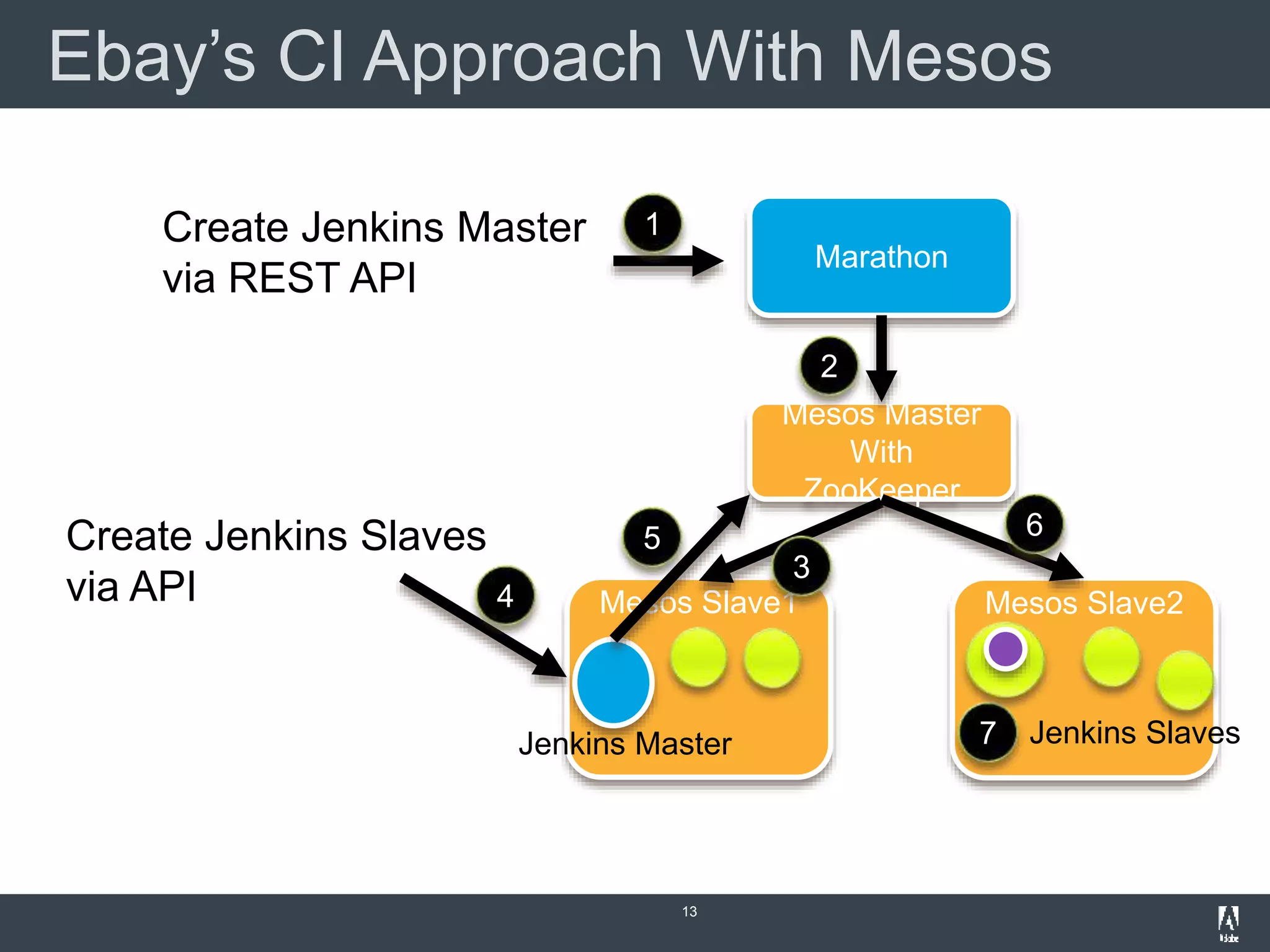

13. Ebay’s CI Approach With Mesos
13
Marathon
Mesos Slave2
Jenkins Slaves
Mesos Master
With
ZooKeeper
Create Jenkins Master
via REST API
Mesos Slave1
Jenkins Master
Create Jenkins Slaves
via API
1
2
3
4
6
7
5

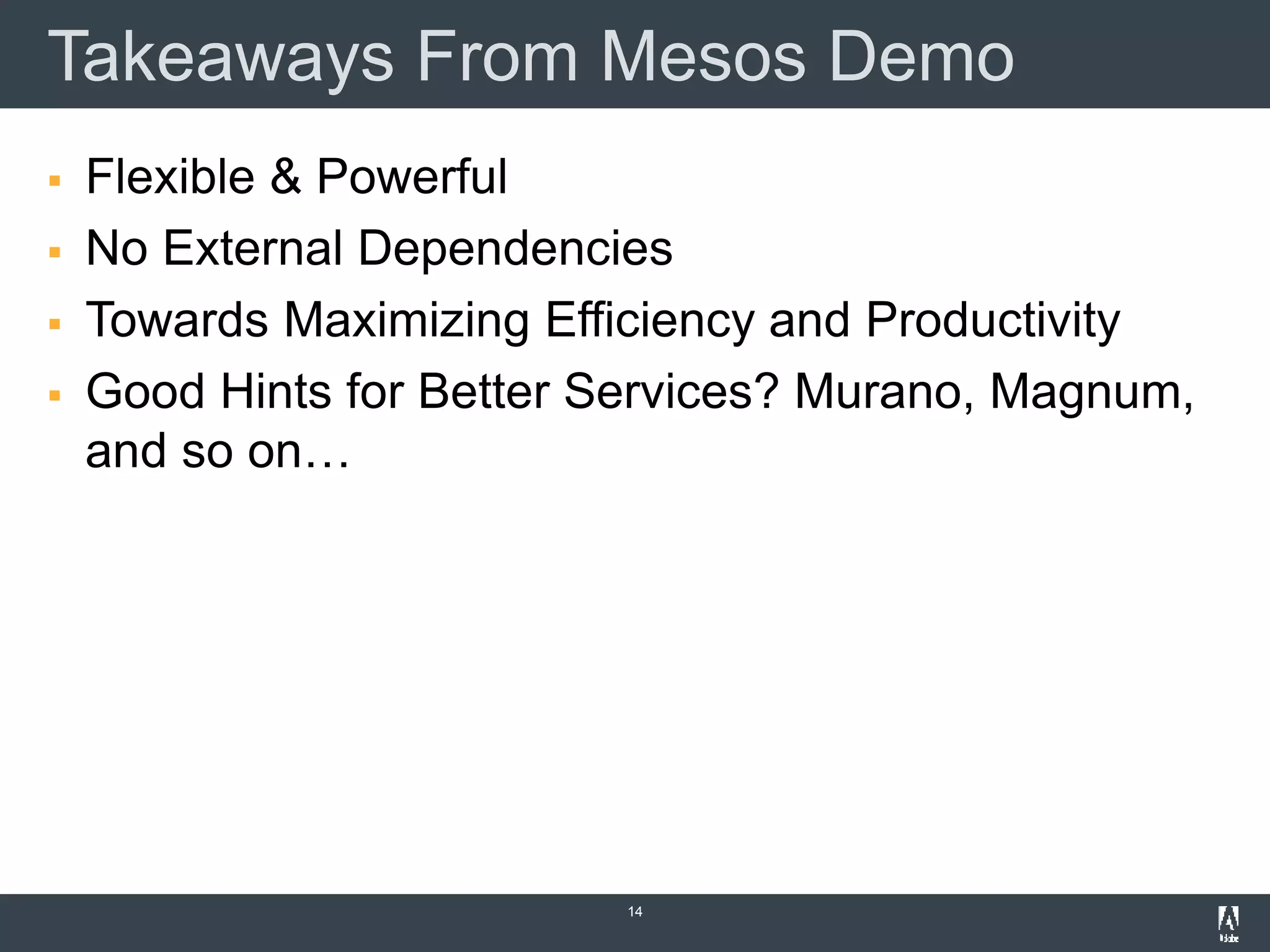

14. Takeaways From Mesos Demo
 Flexible & Powerful
 No External Dependencies
 Towards Maximizing Efficiency and Productivity
 Good Hints for Better Services? Murano, Magnum,
and so on…
14

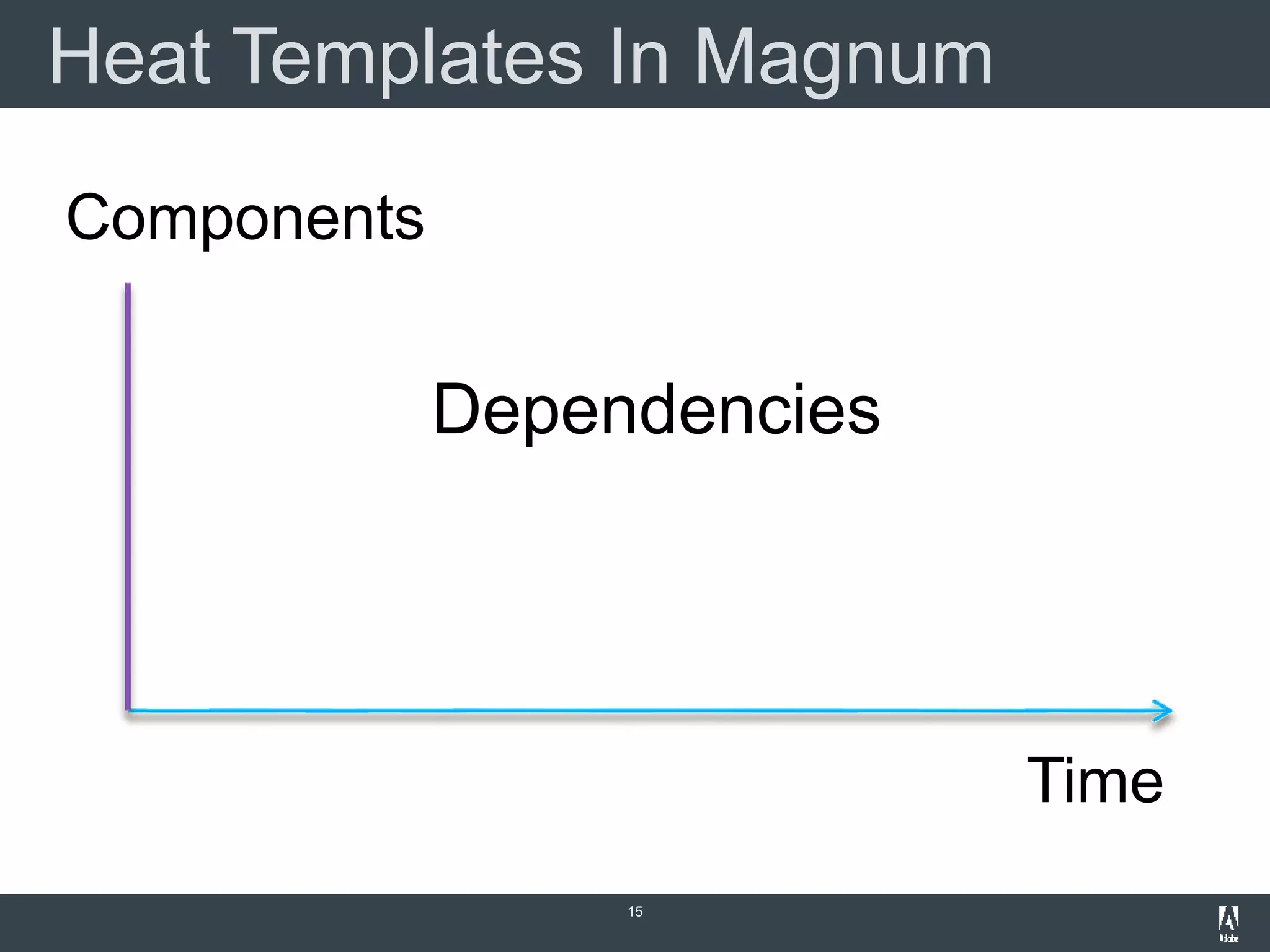

15. Heat Templates In Magnum
15
Time
Components
Dependencies

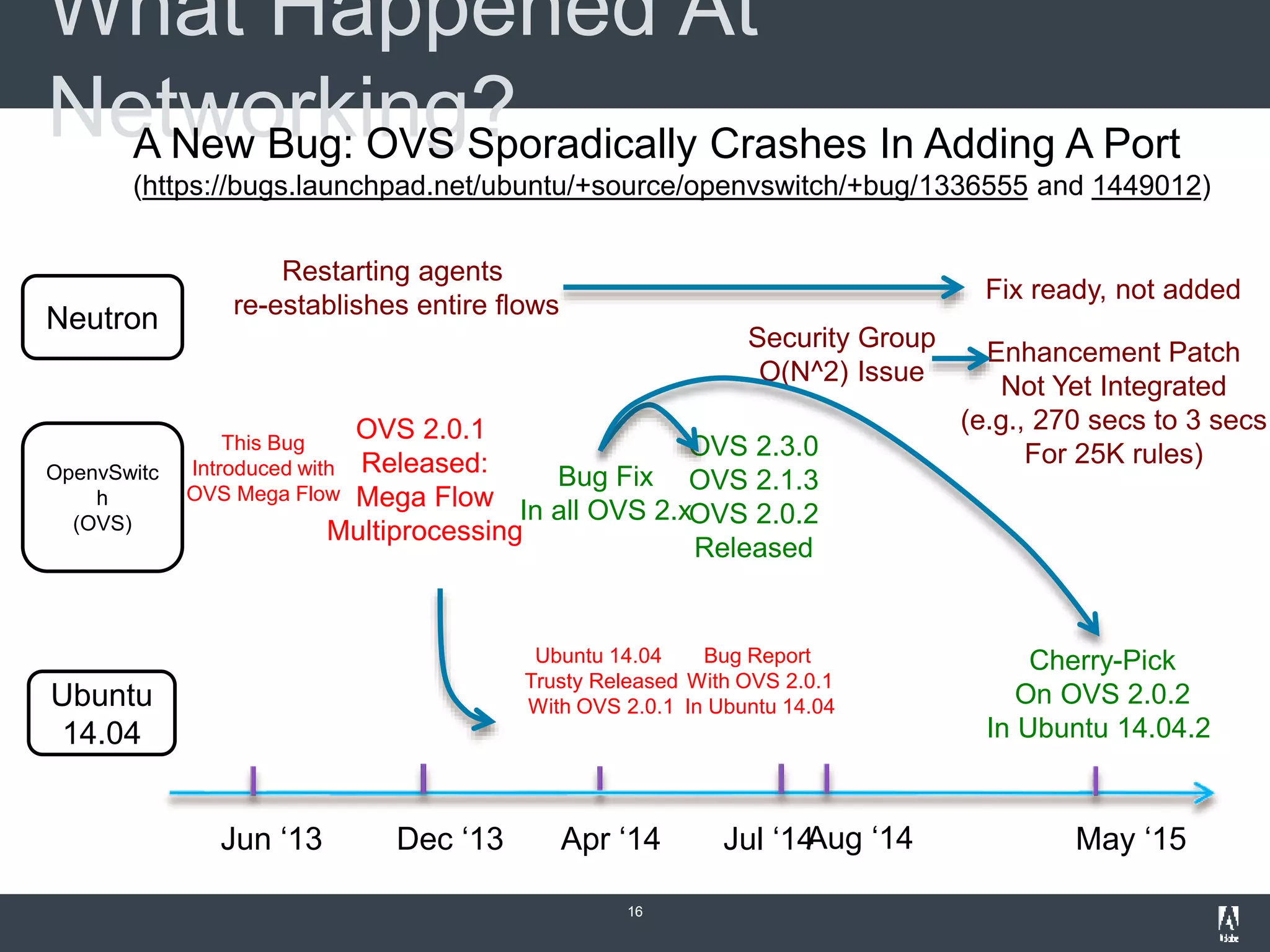

16. What Happened At
Networking?
16
May ‘15Jul ‘14Apr ‘14
Ubuntu 14.04
Trusty Released
With OVS 2.0.1
Bug Report
With OVS 2.0.1
In Ubuntu 14.04
Cherry-Pick
On OVS 2.0.2
In Ubuntu 14.04.2
Ubuntu
14.04
OpenvSwitc
h
(OVS)
Bug Fix
In all OVS 2.x
Jun ‘13
This Bug
Introduced with
OVS Mega Flow
Aug ‘14
OVS 2.3.0
OVS 2.1.3
OVS 2.0.2
Released
A New Bug: OVS Sporadically Crashes In Adding A Port
(https://bugs.launchpad.net/ubuntu/+source/openvswitch/+bug/1336555 and 1449012)
OVS 2.0.1
Released:
Mega Flow
Multiprocessing
Dec ‘13
Enhancement Patch
Not Yet Integrated
(e.g., 270 secs to 3 secs
For 25K rules)
Neutron
Security Group
O(N^2) Issue
Restarting agents
re-establishes entire flows
Fix ready, not added

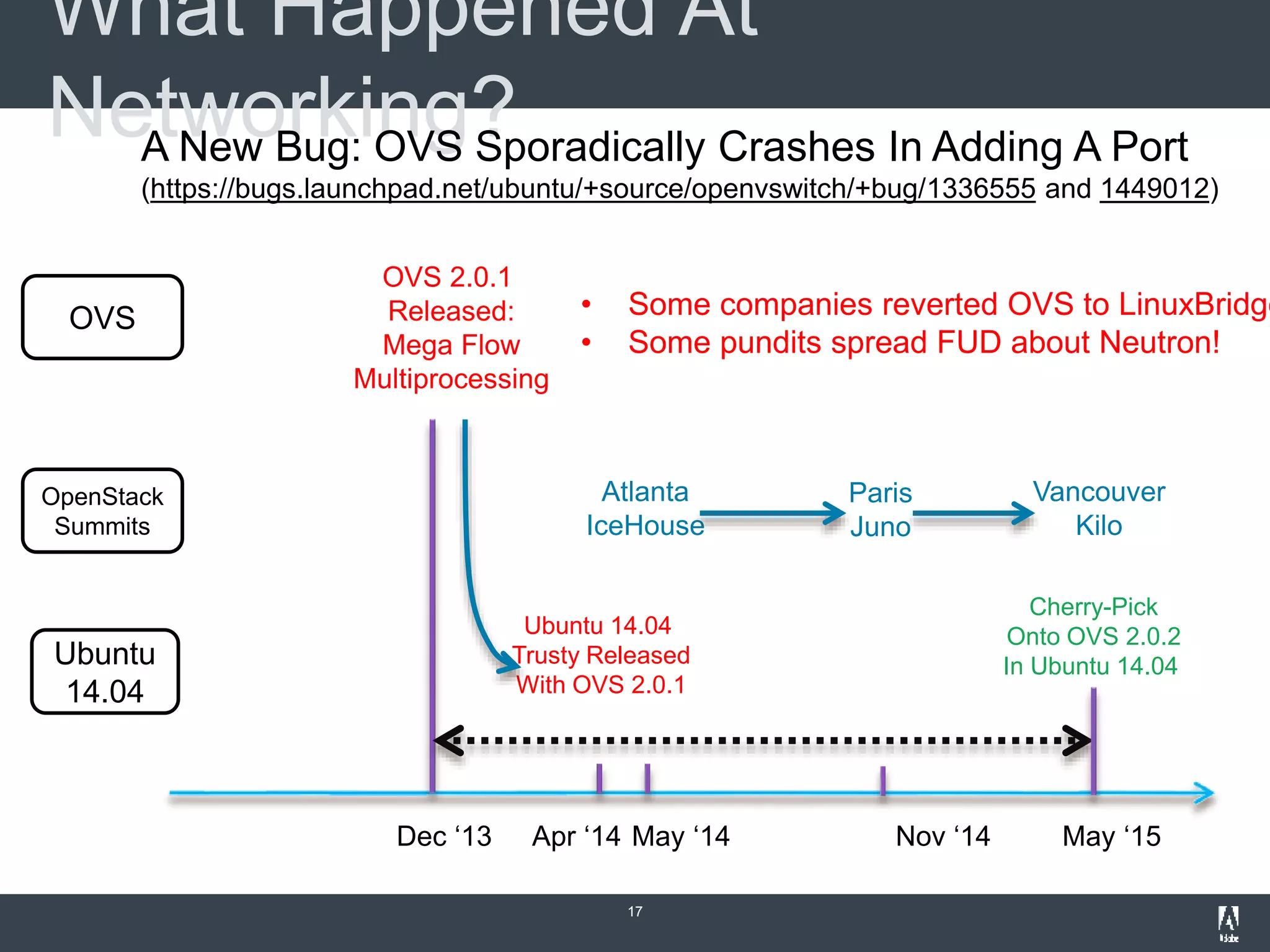

17. What Happened At
Networking?
17
May ‘15Nov ‘14
Cherry-Pick
Onto OVS 2.0.2
In Ubuntu 14.04Ubuntu
14.04
OpenStack
Summits
A New Bug: OVS Sporadically Crashes In Adding A Port
(https://bugs.launchpad.net/ubuntu/+source/openvswitch/+bug/1336555 and 1449012)
OVS 2.0.1
Released:
Mega Flow
Multiprocessing
Dec ‘13
OVS
Paris
Juno
Vancouver
Kilo
• Some companies reverted OVS to LinuxBridge
• Some pundits spread FUD about Neutron!
Atlanta
IceHouse
May ‘14Apr ‘14
Ubuntu 14.04
Trusty Released
With OVS 2.0.1

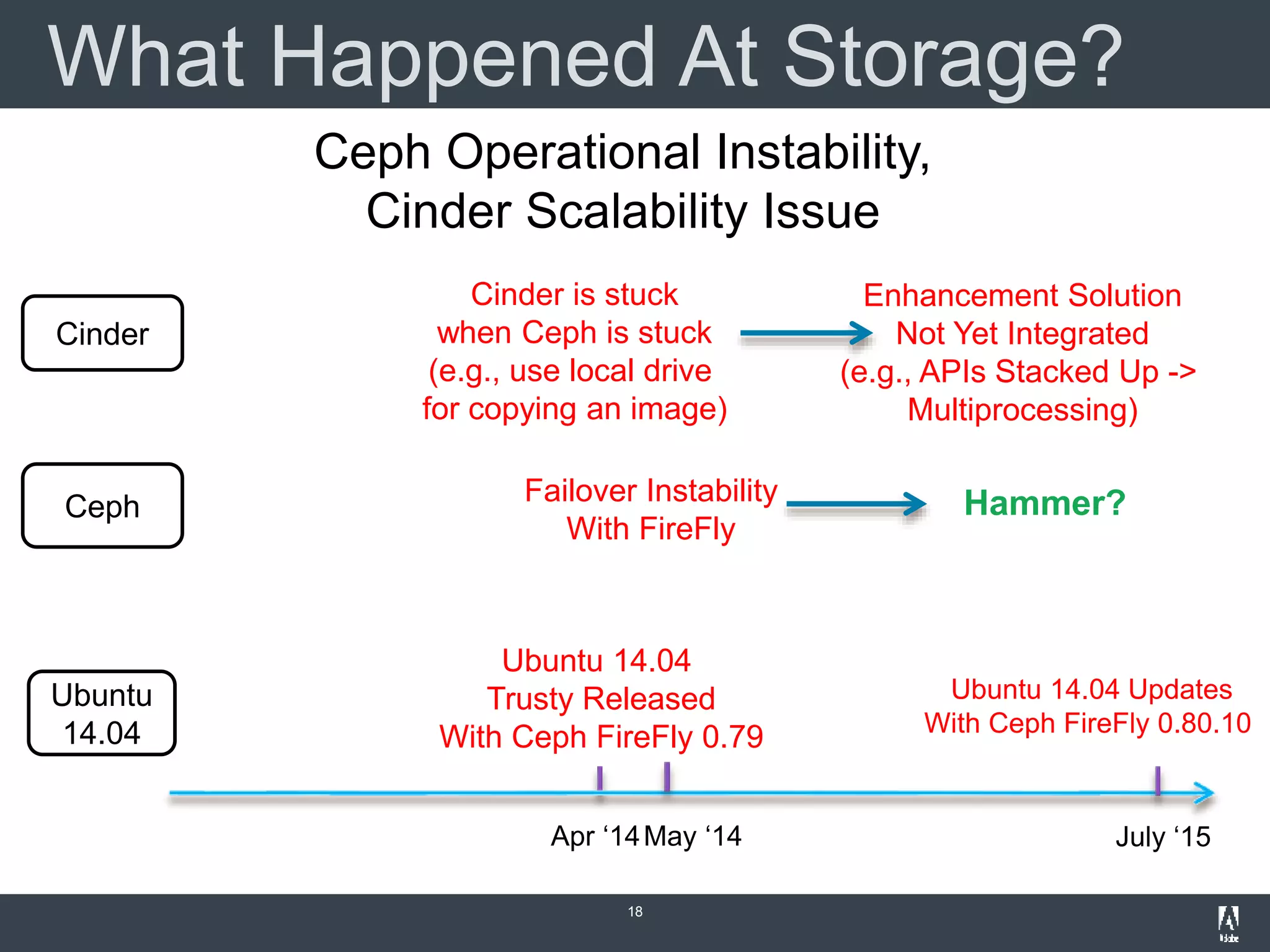

18. What Happened At Storage?
18
July ‘15Apr ‘14
Ubuntu 14.04
Trusty Released
With Ceph FireFly 0.79
Ubuntu 14.04 Updates
With Ceph FireFly 0.80.10
Ubuntu
14.04
Ceph
Failover Instability
With FireFly
Hammer?
Ceph Operational Instability,
Cinder Scalability Issue
Enhancement Solution
Not Yet Integrated
(e.g., APIs Stacked Up ->
Multiprocessing)
Cinder
Cinder is stuck
when Ceph is stuck
(e.g., use local drive
for copying an image)
May ‘14

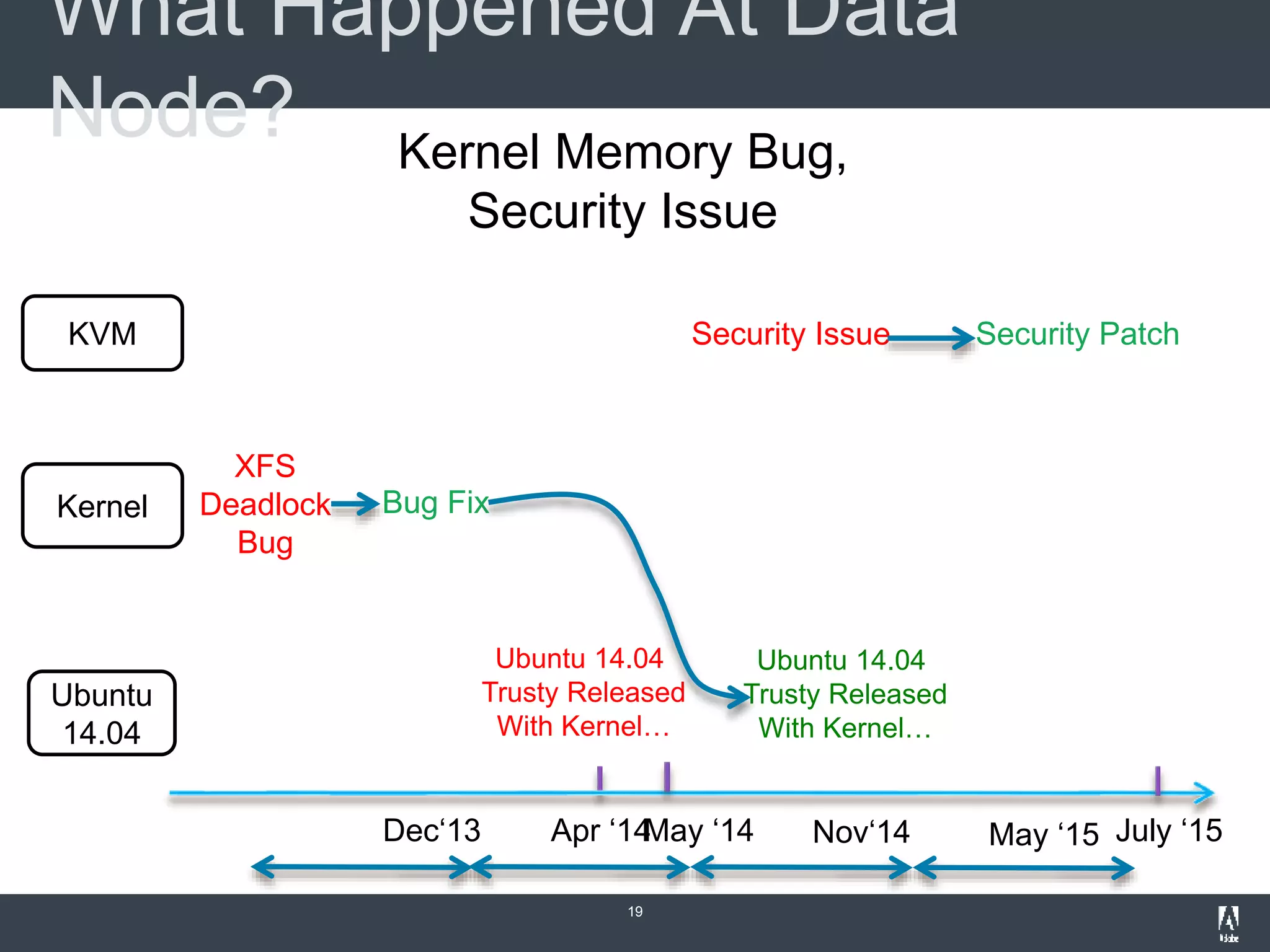

19. What Happened At Data
Node?
19
July ‘15Apr ‘14
Ubuntu 14.04
Trusty Released
With Kernel…
Ubuntu
14.04
Kernel
XFS
Deadlock
Bug
Kernel Memory Bug,
Security Issue
Security PatchKVM Security Issue
May ‘14 Nov‘14
Bug Fix
Dec‘13
Ubuntu 14.04
Trusty Released
With Kernel…
May ‘15

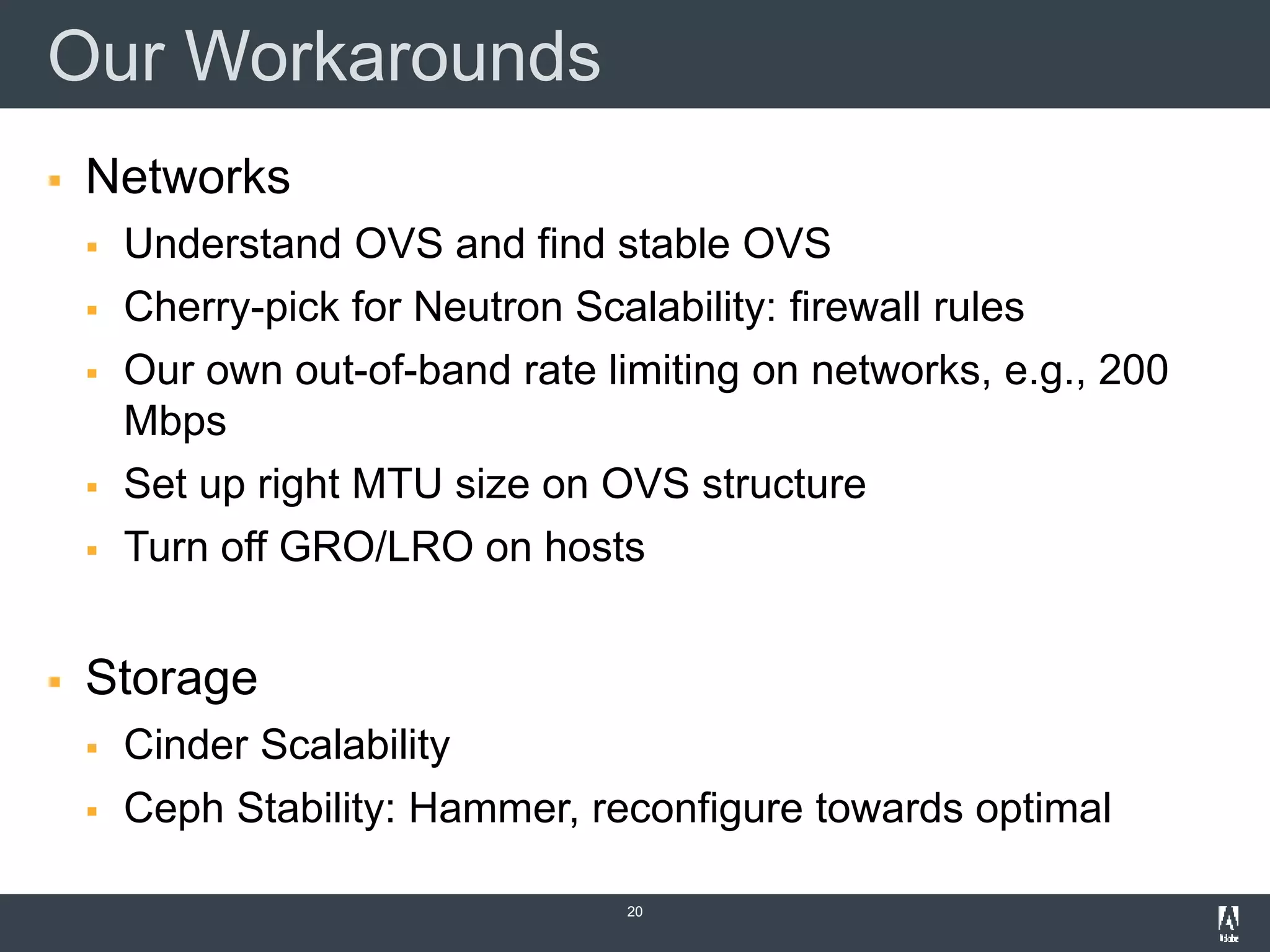

20. Our Workarounds
 Networks
 Understand OVS and find stable OVS
 Cherry-pick for Neutron Scalability: firewall rules
 Our own out-of-band rate limiting on networks, e.g., 200
Mbps
 Set up right MTU size on OVS structure
 Turn off GRO/LRO on hosts
 Storage
 Cinder Scalability
 Ceph Stability: Hammer, reconfigure towards optimal
20

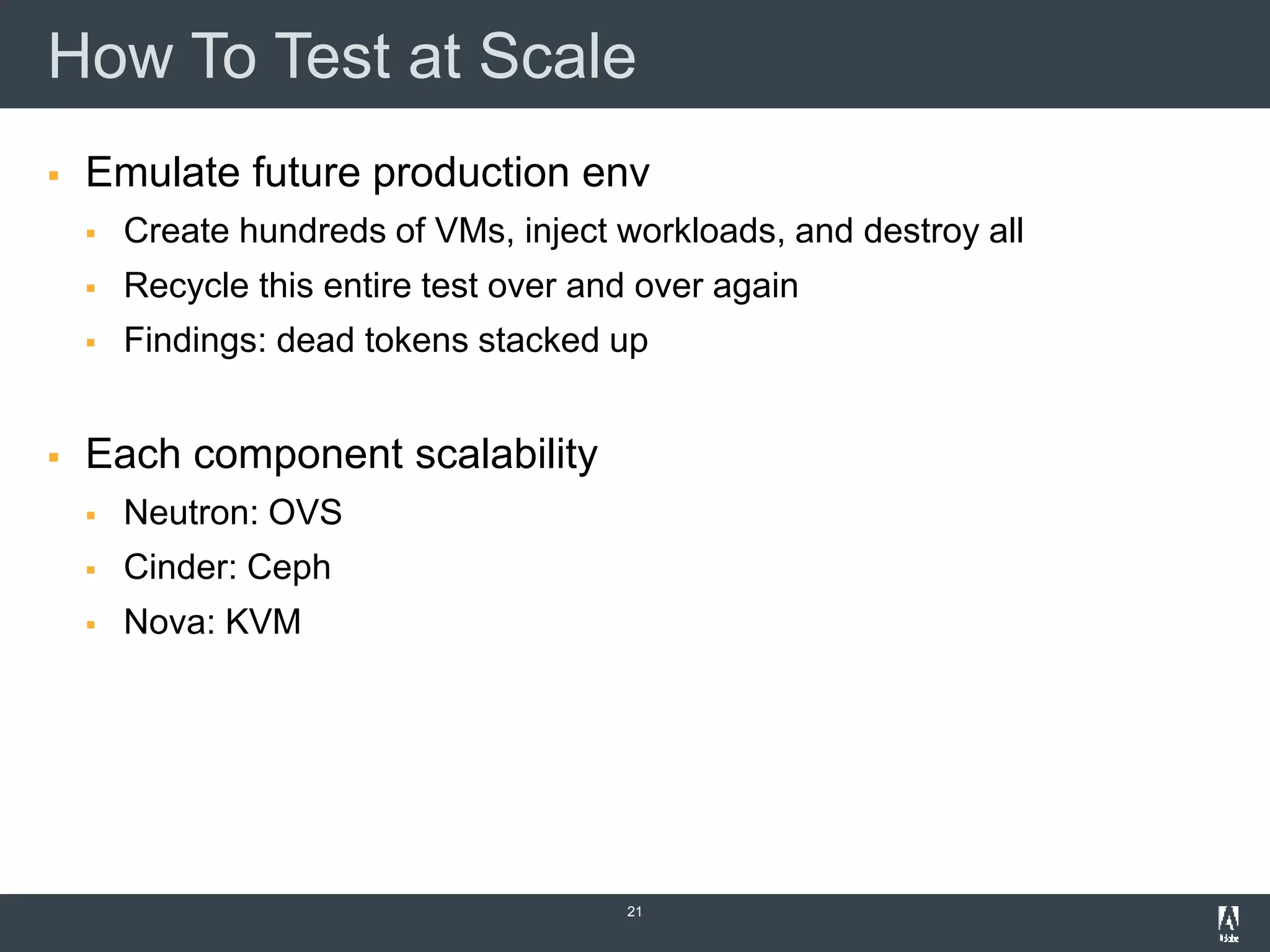

21. How To Test at Scale
 Emulate future production env
 Create hundreds of VMs, inject workloads, and destroy all
 Recycle this entire test over and over again
 Findings: dead tokens stacked up
 Each component scalability
 Neutron: OVS
 Cinder: Ceph
 Nova: KVM
21

22. Have We Done Enough?
4?
3?

23. 23
It's not that I'm so smart, it's just
that I stay with problems longer.
- Albert Einstein

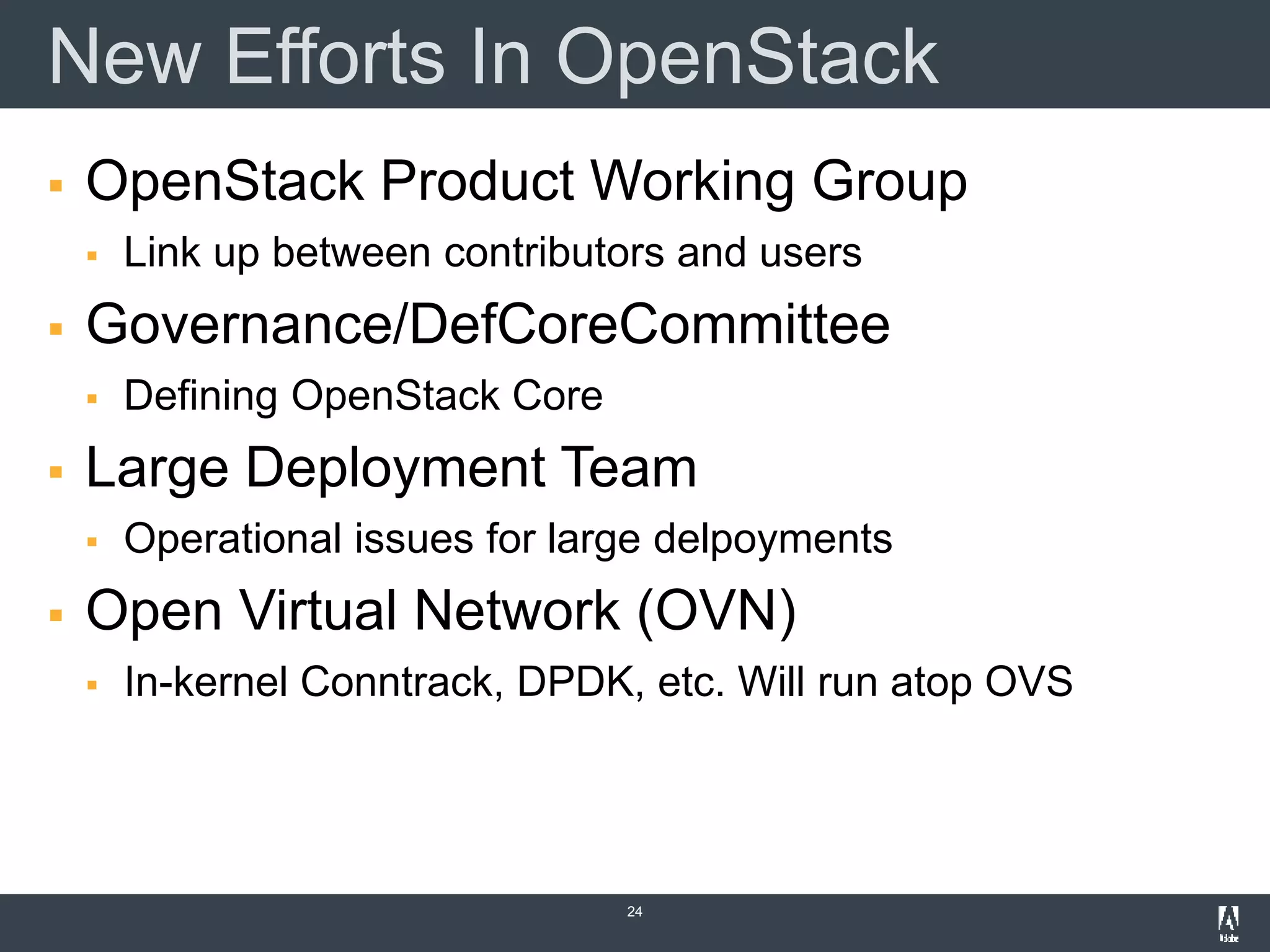

24. New Efforts In OpenStack
 OpenStack Product Working Group
 Link up between contributors and users
 Governance/DefCoreCommittee
 Defining OpenStack Core
 Large Deployment Team
 Operational issues for large delpoyments
 Open Virtual Network (OVN)
 In-kernel Conntrack, DPDK, etc. Will run atop OVS
24

25. Milestone
 Murano
 Application Catalog service: CloudFoundry, Kubernetes,
Jenkins, Tomcat, etc.
 Magnum
 Docker Swarm, Kubernetes, and Mesos (for our live
demo)
 Advanced Networking
 DVR, Load Balancer, IPv6
25
