1. HOUSING in DELHI
HOUSING in DELHI

2. HOUSING SCENARIO IN DELHI
HOUSING in DELHI

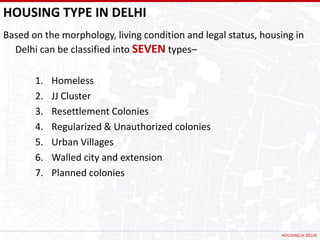

3. HOUSING TYPE IN DELHI
Based on the morphology, living condition and legal status, housing in
Delhi can be classified into SEVEN types–
1. Homeless
2. JJ Cluster
3. Resettlement Colonies
4. Regularized & Unauthorized colonies
5. Urban Villages
6. Walled city and extension
7. Planned colonies
HOUSING in DELHI

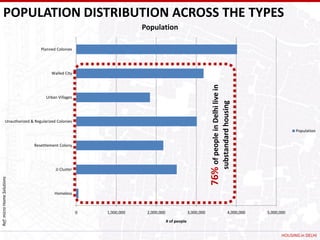

4. POPULATION DISTRIBUTION ACROSS THE TYPES
Population
Planned Colonies
Walled City
76% of people in Delhi live in
Urban Villages
substandard housing
Unauthorized & Regularized Colonies
Population
Resettlement Colony
JJ Cluster
Ref: micro Home Solutions
Homeless
0 1,000,000 2,000,000 3,000,000 4,000,000 5,000,000
# of people
HOUSING in DELHI

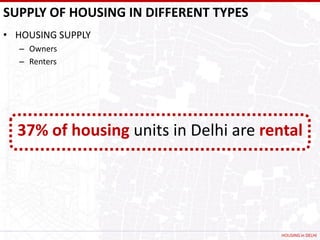

5. SUPPLY OF HOUSING IN DIFFERENT TYPES
• HOUSING SUPPLY
– Owners
– Renters
37% of housing units in Delhi are rental
HOUSING in DELHI

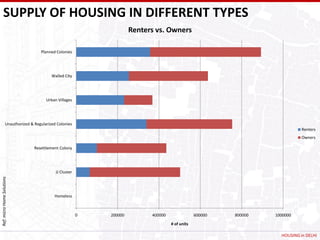

6. SUPPLY OF HOUSING IN DIFFERENT TYPES
Renters vs. Owners
Planned Colonies
Walled City
Urban Villages
Unauthorized & Regularized Colonies
Renters
Owners
Resettlement Colony
JJ Cluster
Ref: micro Home Solutions
Homeless
0 200000 400000 600000 800000 1000000
# of units
HOUSING in DELHI

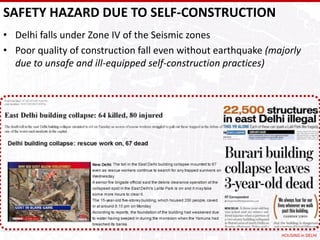

7. SAFETY HAZARD DUE TO SELF-CONSTRUCTION
• Delhi falls under Zone IV of the Seismic zones
• Poor quality of construction fall even without earthquake (majorly
due to unsafe and ill-equipped self-construction practices)
HOUSING in DELHI

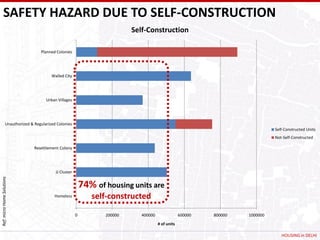

8. SAFETY HAZARD DUE TO SELF-CONSTRUCTION
Self-Construction
Planned Colonies
Walled City
Urban Villages
Unauthorized & Regularized Colonies
Self-Constructed Units
Not-Self-Constructed
Resettlement Colony
JJ Cluster
Ref: micro Home Solutions
74% of housing units are
Homeless self-constructed
0 200000 400000 600000 800000 1000000
# of units
HOUSING in DELHI

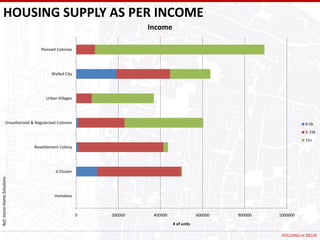

9. HOUSING SUPPLY AS PER INCOME
Income
Planned Colonies
Walled City
Urban Villages
Unauthorized & Regularized Colonies 0-5k
5-15k
15>
Resettlement Colony
JJ Cluster
Ref: micro Home Solutions
Homeless
0 200000 400000 600000 800000 1000000
# of units
HOUSING in DELHI

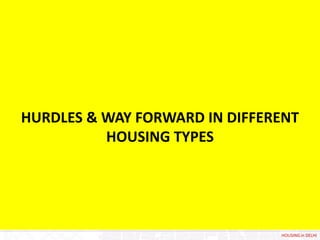

10. HURDLES & WAY FORWARD IN DIFFERENT
HOUSING TYPES
HOUSING in DELHI

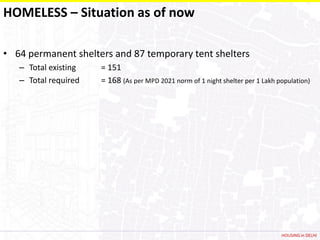

11. HOMELESS – Situation as of now
• 64 permanent shelters and 87 temporary tent shelters
– Total existing = 151
– Total required = 168 (As per MPD 2021 norm of 1 night shelter per 1 Lakh population)
HOUSING in DELHI

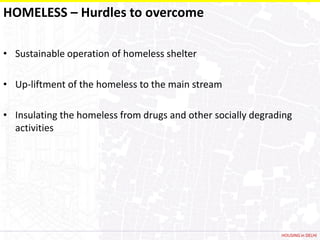

12. HOMELESS – Hurdles to overcome
• Sustainable operation of homeless shelter
• Up-liftment of the homeless to the main stream
• Insulating the homeless from drugs and other socially degrading
activities
HOUSING in DELHI

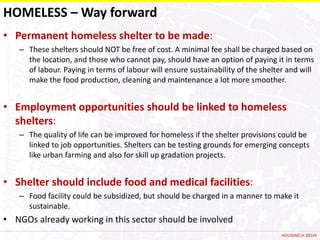

13. HOMELESS – Way forward
• Permanent homeless shelter to be made:
– These shelters should NOT be free of cost. A minimal fee shall be charged based on
the location, and those who cannot pay, should have an option of paying it in terms
of labour. Paying in terms of labour will ensure sustainability of the shelter and will
make the food production, cleaning and maintenance a lot more smoother.
• Employment opportunities should be linked to homeless
shelters:
– The quality of life can be improved for homeless if the shelter provisions could be
linked to job opportunities. Shelters can be testing grounds for emerging concepts
like urban farming and also for skill up gradation projects.
• Shelter should include food and medical facilities:
– Food facility could be subsidized, but should be charged in a manner to make it
sustainable.
• NGOs already working in this sector should be involved
HOUSING in DELHI

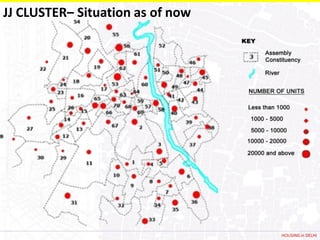

14. JJ CLUSTER– Situation as of now
HOUSING in DELHI

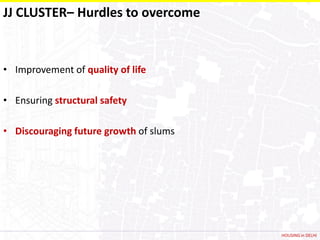

15. JJ CLUSTER– Hurdles to overcome
• Improvement of quality of life
• Ensuring structural safety
• Discouraging future growth of slums
HOUSING in DELHI

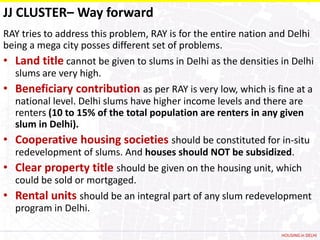

16. JJ CLUSTER– Way forward
RAY tries to address this problem, RAY is for the entire nation and Delhi
being a mega city posses different set of problems.
• Land title cannot be given to slums in Delhi as the densities in Delhi
slums are very high.
• Beneficiary contribution as per RAY is very low, which is fine at a
national level. Delhi slums have higher income levels and there are
renters (10 to 15% of the total population are renters in any given
slum in Delhi).
• Cooperative housing societies should be constituted for in-situ
redevelopment of slums. And houses should NOT be subsidized.
• Clear property title should be given on the housing unit, which
could be sold or mortgaged.
• Rental units should be an integral part of any slum redevelopment
program in Delhi.
HOUSING in DELHI

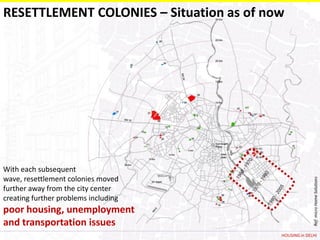

17. RESETTLEMENT COLONIES – Situation as of now
With each subsequent
wave, resettlement colonies moved
Ref: micro Home Solutions
further away from the city center
creating further problems including
poor housing, unemployment
and transportation issues
HOUSING in DELHI

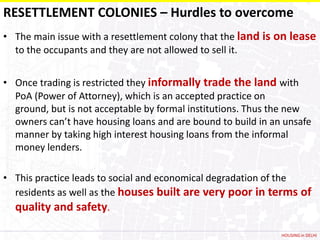

18. RESETTLEMENT COLONIES – Hurdles to overcome
• The main issue with a resettlement colony that the land is on lease
to the occupants and they are not allowed to sell it.
• Once trading is restricted they informally trade the land with
PoA (Power of Attorney), which is an accepted practice on
ground, but is not acceptable by formal institutions. Thus the new
owners can’t have housing loans and are bound to build in an unsafe
manner by taking high interest housing loans from the informal
money lenders.
• This practice leads to social and economical degradation of the
residents as well as the houses built are very poor in terms of
quality and safety.
HOUSING in DELHI

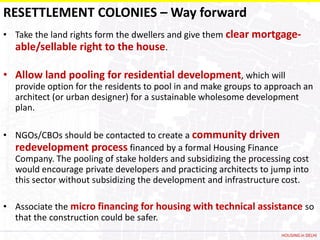

19. RESETTLEMENT COLONIES – Way forward
• Take the land rights form the dwellers and give them clear mortgage-
able/sellable right to the house.
• Allow land pooling for residential development, which will
provide option for the residents to pool in and make groups to approach an
architect (or urban designer) for a sustainable wholesome development
plan.
• NGOs/CBOs should be contacted to create a community driven
redevelopment process financed by a formal Housing Finance
Company. The pooling of stake holders and subsidizing the processing cost
would encourage private developers and practicing architects to jump into
this sector without subsidizing the development and infrastructure cost.
• Associate the micro financing for housing with technical assistance so
that the construction could be safer.
HOUSING in DELHI

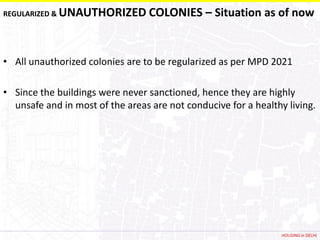

20. REGULARIZED & UNAUTHORIZED COLONIES – Situation as of now
• All unauthorized colonies are to be regularized as per MPD 2021
• Since the buildings were never sanctioned, hence they are highly
unsafe and in most of the areas are not conducive for a healthy living.
HOUSING in DELHI

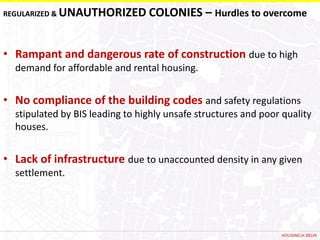

21. REGULARIZED & UNAUTHORIZED COLONIES – Hurdles to overcome
• Rampant and dangerous rate of construction due to high
demand for affordable and rental housing.
• No compliance of the building codes and safety regulations
stipulated by BIS leading to highly unsafe structures and poor quality
houses.
• Lack of infrastructure due to unaccounted density in any given
settlement.
HOUSING in DELHI

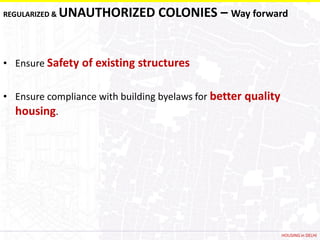

22. REGULARIZED & UNAUTHORIZED COLONIES – Way forward
• Ensure Safety of existing structures
• Ensure compliance with building byelaws for better quality
housing.
HOUSING in DELHI

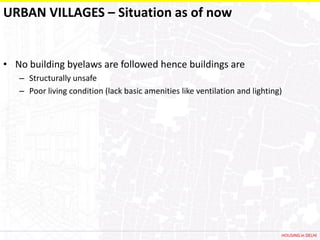

23. URBAN VILLAGES – Situation as of now
• No building byelaws are followed hence buildings are
– Structurally unsafe
– Poor living condition (lack basic amenities like ventilation and lighting)
HOUSING in DELHI

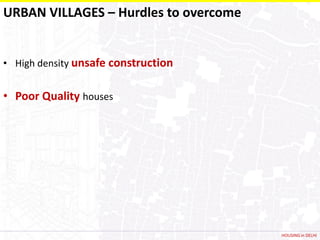

24. URBAN VILLAGES – Hurdles to overcome
• High density unsafe construction
• Poor Quality houses
HOUSING in DELHI

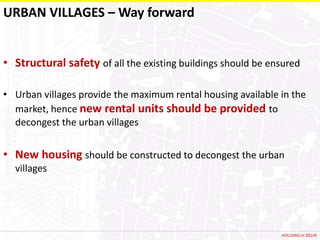

25. URBAN VILLAGES – Way forward
• Structural safety of all the existing buildings should be ensured
• Urban villages provide the maximum rental housing available in the
market, hence new rental units should be provided to
decongest the urban villages
• New housing should be constructed to decongest the urban
villages
HOUSING in DELHI

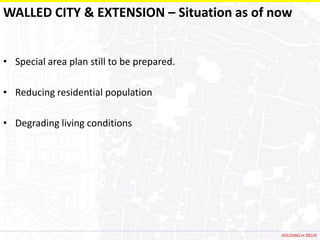

26. WALLED CITY & EXTENSION – Situation as of now
• Special area plan still to be prepared.
• Reducing residential population
• Degrading living conditions
HOUSING in DELHI

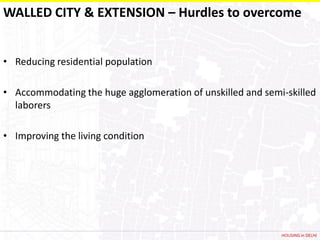

27. WALLED CITY & EXTENSION – Hurdles to overcome
• Reducing residential population
• Accommodating the huge agglomeration of unskilled and semi-skilled
laborers
• Improving the living condition
HOUSING in DELHI

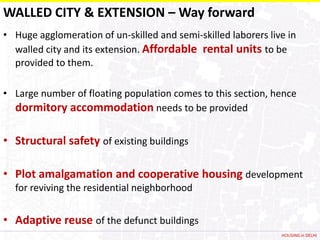

28. WALLED CITY & EXTENSION – Way forward
• Huge agglomeration of un-skilled and semi-skilled laborers live in
walled city and its extension. Affordable rental units to be
provided to them.
• Large number of floating population comes to this section, hence
dormitory accommodation needs to be provided
• Structural safety of existing buildings
• Plot amalgamation and cooperative housing development
for reviving the residential neighborhood
• Adaptive reuse of the defunct buildings
HOUSING in DELHI

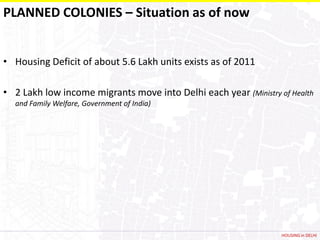

29. PLANNED COLONIES – Situation as of now
• Housing Deficit of about 5.6 Lakh units exists as of 2011
• 2 Lakh low income migrants move into Delhi each year (Ministry of Health
and Family Welfare, Government of India)
HOUSING in DELHI

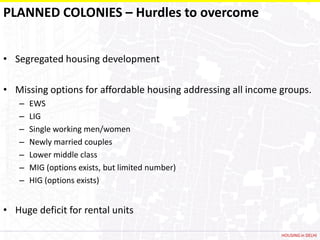

30. PLANNED COLONIES – Hurdles to overcome
• Segregated housing development
• Missing options for affordable housing addressing all income groups.
– EWS
– LIG
– Single working men/women
– Newly married couples
– Lower middle class
– MIG (options exists, but limited number)
– HIG (options exists)
• Huge deficit for rental units
HOUSING in DELHI

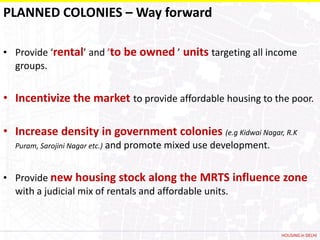

31. PLANNED COLONIES – Way forward
• Provide ‘rental’ and ’to be owned ’ units targeting all income
groups.
• Incentivize the market to provide affordable housing to the poor.
• Increase density in government colonies (e.g Kidwai Nagar, R.K
Puram, Sarojini Nagar etc.) and promote mixed use development.
• Provide new housing stock along the MRTS influence zone
with a judicial mix of rentals and affordable units.
HOUSING in DELHI

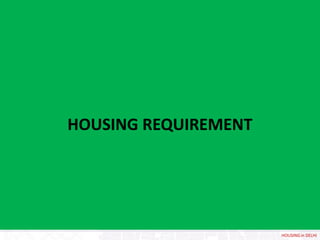

32. HOUSING REQUIREMENT
HOUSING in DELHI

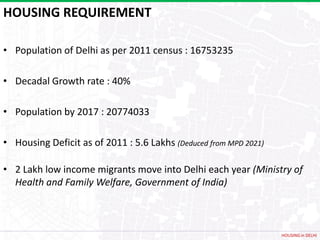

33. HOUSING REQUIREMENT
• Population of Delhi as per 2011 census : 16753235
• Decadal Growth rate : 40%
• Population by 2017 : 20774033
• Housing Deficit as of 2011 : 5.6 Lakhs (Deduced from MPD 2021)
• 2 Lakh low income migrants move into Delhi each year (Ministry of
Health and Family Welfare, Government of India)
HOUSING in DELHI

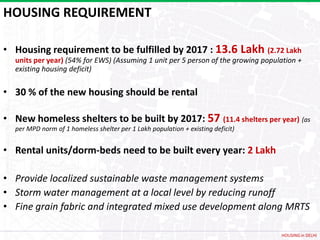

34. HOUSING REQUIREMENT
• Housing requirement to be fulfilled by 2017 : 13.6 Lakh (2.72 Lakh
units per year) (54% for EWS) (Assuming 1 unit per 5 person of the growing population +
existing housing deficit)
• 30 % of the new housing should be rental
• New homeless shelters to be built by 2017: 57 (11.4 shelters per year) (as
per MPD norm of 1 homeless shelter per 1 Lakh population + existing deficit)
• Rental units/dorm-beds need to be built every year: 2 Lakh
• Provide localized sustainable waste management systems
• Storm water management at a local level by reducing runoff
• Fine grain fabric and integrated mixed use development along MRTS
HOUSING in DELHI
