- 1. Sizing and OrderingInformation Sizing In all instances, garment sizing information is located adjacent to the picture of the garment. Please note that some garments are not available in every size option and that size conversions can differ from garment to garment. Please read details directly from the table situated next to the garments you require. The following instructions provide advice on how to take accurate measurements for each part of the body. Male Female Special Measures Chest Bust Waist Waist Hips Ordering Information Inside Leg Please complete the Network Rail Maintenance PPE order form and ensure that it has been approved by your line manager/budget holder. There are two easy ways to obtain your correct measurements: 01 If you already have HIgh Visibility Workwear, that is comfortable after it has been washed, look in the label, and the size and fit should be visible. 02 Simply follow the instructions opposite and ask a friend to measure the key dimensions as illustrated. It is important to note that you should always measure around the fullest part whilst wearing the undergarments that you would normally wear for work. 19 Should standard clothing or footwear not fit you, you may require a special measure in which case please contact your local buyer who will contact the relevant supplier to arrange an appointment with their measuring coordinator. Chest: Measure around the fullest part and around the shoulder blade. Bust: Measure bust around the fullest part. Waist: Remove belt and measure around the waistline. Waist: Measure around the natural waistline. Inside Leg: Measure inside seam from crotch to hem. Hips: Measure around the fullest part. Please send to your local procurement team to approve who will ensure the correct account number and Purchase Order number have been included.

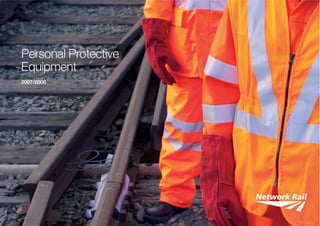

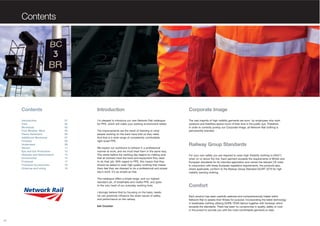

- 3. Contents Contents Introduction Care Workwear Foul Weather Wear FlameRetardant Additional Workwear Forestry Underwear Gloves Eye and Ear Protection Helmets and Attachments Accessories Footwear Footwear Accessories Ordering and sizing Introduction 01 02 03 05 06 07 08 09 11 13 14 15 17 18 19 Corporate Image I'm pleased to introduce our new Network Rail catalogue for PPE, which will make your working environment better. The vast majority of high visibility garments are worn by employees who work outdoors and therefore spend much of their time in the public eye. Therefore, in order to correctly portray our Corporate Image, all Network Rail clothing is permanently branded. The improvements are the result of listening to what people working on the track have told us they need. And that is a wide range of consistently comfortable, right-sized PPE. We expect our workforce to behave in a professional manner at work, and we must treat them in the same way. This starts before the working day begins by making sure that all workers have the tools and equipment they need to do their job. With regard to PPE, this means that they should be asked to wear high-quality clothing that makes them feel they are dressed to do a professional and proper day's work. It's as simple as that. The catalogue offers a broad range, and our highest standard yet, of breathable and visible PPE, and goes to the very heart of our everyday working lives. I strongly believe that by focusing on the basic needs, we can positively influence the wider issues of safety and performance on the railway. Iain Coucher 01 Railway Group Standards For your own safety you are required to wear High Visibility clothing to EN471, when on or about the line. Each garment exceeds the requirements of British and European standards for its intended application and carries the relevant CE mark. In conjunction with these European legislative requirements, the products also, where applicable, conform to the Railway Group Standard GO/RT 3279 for high visibility warning clothing. Comfort Each product has been carefully selected and comprehensively trialed within Network Rail to assess their fitness for purpose. Incorporating the latest technology in breathable clothing utilising GORE-TEX® fabrics together with footwear which exceeds the standards. There has been no compromise in quality, safety or cost in the pursuit to provide you with the most comfortable garments to date.

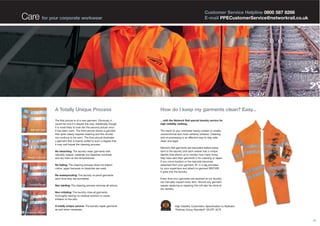

- 4. Care for yourcorporate workwear Customer Service Helpline 0800 587 8266 E-mail PPECustomerService@networkrail.co.uk A Totally Unique Process Safe and Clean Ready to Launder How do I keep my garments clean? Easy... The first picture is of a new garment. Obviously it would be nice if it stayed this way, realistically though it is more likely to look like the second picture once it has been worn. The third picture shows a garment that quite clearly requires cleaning and this should not continue to be worn. The final picture illustrates a garment that is heavily soiled to such a degree that it may well impair the cleaning process. …with the Network Rail special laundry service for high visibility clothing. No bleaching: The laundry clean garments with naturally organic materials (no bleaches involved) and dry them at low temperatures. No fading: The cleaning process does not bleach colour, again because no bleaches are used. Re-waterproofing: The laundry re-proof garments each time they are laundered. Potential Danger Non tainting: The cleaning process removes all odours. The result of your workwear being unclean is unsafe, uneconomical and most certainly unlawful. Cleaning and re-processing is an effective way to stay safe, clean and legal. Network Rail garments are barcoded before being sent to the laundry and each wearer has a unique identity that allows us to monitor how many times they have sent their garments in for cleaning or repair. If you move location or the barcode becomes detached from your garment, fill in a tag provided by your supervisor and attach to garment BEFORE it goes into the laundry. Every time your garments are received at our laundry we manually inspect every item. Should any garment require replacing or repairing this will also be done at our laundry. Non irritating: The laundry rinse all garments thoroughly leaving no residual solution to cause irritation to the skin. A totally unique service: The laundry repair garments as and when necessary. High Visibility Colormetric Specification to Railtrack “Railway Group Standard” GO/RT 3279 Dangerous Garment 02
- 5. Workwear protecting youfrom the grime EN510 EN471 EN471 EN471 NR91 High Visibility Class 2 Vest with Internal Pockets NR05 High Visibility Coverall NR13 High Visibility Reversible Bodywarmer NR121 High Visibility T-Shirt Approved to EN471 class 2 in Polycotton Approved to EN471 class 3 in Polycotton Approved to EN471 class 2 in Polycotton Approved to EN471 class 2 Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL Chest (cm) 97 97-107 107-117 117-127 127-132 132-137 • Side seams have 4 stud dual positioning • Lower internal pocket with zip fastening • Lower internal pocket with small mobile phone pocket with pen division • Zip front • Elasticated at side fronts and centre back waist Chest (cm) 92 100 108 116 124 132 Available in tall fittings Tall: 83cm / 33” Reg: 79cm / 31” • • • • Elasticated waist Zip front Two chest patch pockets Two side access swing pockets EN471: 1994 (excluding clause 4.2.5.) 03 Chest (cm) 91-97 102-107 112-117 124-127 132-137 142-147 • Reversible high-vis orange and non high-vis grey • Zip front fastening designed to zip into coat • Two deep inset zipped pockets Chest (cm) 92 100 108 116 124 • 100% Polyester 200g single jersey • Crew ribbed neck • Reflective tape over shoulders and round body

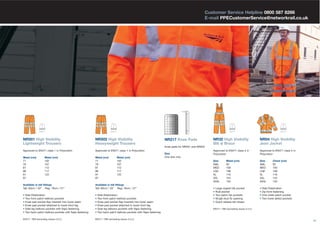

- 6. Customer Service Helpline0800 587 8266 E-mail PPECustomerService@networkrail.co.uk EN471 EN471 EN471 NR501 High Visibility Lightweight Trousers NR502 High Visibility Heavyweight Trousers Approved to EN471 class 1 in Polycotton Approved to EN471 class 1 in Polycotton Waist (cm) 71 76 81 86 91 97 Waist (cm) 71 76 81 86 91 97 Waist (cm) 102 107 112 117 122 Waist (cm) 102 107 112 117 122 Available in tall fittings Tall: 83cm / 33” Reg: 79cm / 31” Available in tall fittings Tall: 83cm / 33” Reg: 79cm / 31” • • • • • • • • • • • • Side Elastication Two front patch bellows pockets Knee pad pocket flap inserted into lower seam Knee pad pocket attached to lower front leg Side leg bellows pockets with flaps fastening Two back patch bellows pockets with flaps fastening EN471: 1994 (excluding clause 4.2.5.) Side Elastication Two front patch bellows pockets Knee pad pocket flap inserted into lower seam Knee pad pocket attached to lower front leg Side leg bellows pockets with flaps fastening Two back patch bellows pockets with flaps fastening EN471: 1994 (excluding clause 4.2.5.) NR217 Knee Pads Knee pads for NR501 and NR502 Size One size only EN471 NR32 High Visibility Bib & Brace NR04 High Visibility Jean Jacket Approved to EN471 class 2 in Polycotton Approved to EN471 class 2 in Polycotton Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL • • • • • Waist (cm) 92 100 108 116 124 132 Large zipped bib pocket Rule pocket Two patch hip pockets Single stud fly opening Quick release bib straps • • • • Chest (cm) 92 100 108 116 124 132 Side Elastication Zip front fastening One chest patch pocket Two lower jetted pockets EN471: 1994 (excluding clause 4.2.5.) 04

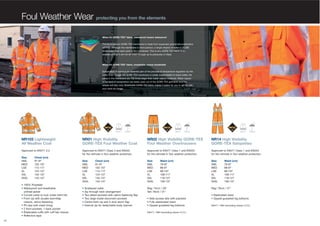

- 7. Foul Weather Wearprotecting you from the elements When it’s GORE-TEX® fabric, waterproof means waterproof The bicomponent GORE-TEX membrane is made from expanded polytetrafluoroethylene (ePTFE). Although the membrane is micro-porous, a single droplet of water is 20,000 times larger than each pore in the membrane. This is why GORE-TEX fabric is so waterproof that it will not let water through up to pressures of 45psi. When it’s GORE-TEX® fabric, breathable means breathable Evaporation of sweat is an essential part of the process of temperature regulation by the body. Even though the GORE-TEX membrane is totally impermeable to liquid water, the pores in the membrane are 700 times larger than water vapour molecule. Water vapour in the form of perspiration can easily pass out of the GORE-TEX garments and the wearer will stay cool. Breathable GORE-TEX fabric makes it easier for you to get on with your work for longer. EN471 EN343 EN471 EN343 EN471 EN343 NR103 Lightweight All Weather Coat NR01 High Visibility GORE-TEX Foul Weather Coat NR02 High Visibility GORE-TEX Foul Weather Overtrousers NR14 High Visibility GORE-TEX Salopettes Approved to EN471 3.3 Approved to EN471 Class 3 and EN343 for the ultimate in foul weather protection. Approved to EN471 Class 1 and EN343 for the ultimate in foul weather protection. Approved to EN471 Class 1 and EN343 for the ultimate in foul weather protection. Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Chest (cm) 91-97 102-107 112-117 124-127 132-137 142-147 • 100% Polyester • Waterproof and breathable unlined jacket • Curved collar to tuck under hard hat • Front zip with double stormflap closure, velcro fastening • Pit zips with mesh lining • 2 front pockets, 1 back pocket • Elasticated cuffs with cuff tab closure • Reflective tape 05 • • • • • • Chest (cm) 91-97 102-107 112-117 124-127 132-137 142-147 Scalloped collar Zip through neck arrangement Two jetted pockets with velcro fastening flap Two large inside document pockets Centre front zip and 5 stud storm flap Internal zip for detachable body warmer Waist (cm) 78-87 88-97 98-107 108-117 118-127 128-137 Reg: 74cm / 29” Tall: 79cm / 31” • Side access slits with plackets • Fully elasticated waist • Zipped gusseted leg bottoms EN471: 1994 (excluding clause 4.2.5.) Waist (cm) 78-87 88-97 98-107 108-117 118-127 128-137 Reg: 79cm / 31” • Elasticated waist • Zipped gusseted leg bottoms EN471: 1994 (excluding clause 4.2.5.)
- 8. Customer Service Helpline0800 587 8266 E-mail PPECustomerService@networkrail.co.uk Flame Retardant protecting you from the heat EN531 EN343 EN471 EN531 EN343 EN471 EN531 EN343 EN471 EN531 EN531 NR22 Flame Retardant Foul Weather Coat NR23 Flame Retardant Foul Weather Trousers NR35 Flame Retardant Salopettes NR87 Flame Retardant Coverall NR36 Flame Retardant Bodywarmer Approved to EN531, EN470, EN343 and EN471 Class 3. Approved to EN531, EN470, EN343 and EN471 Class 1. Approved to EN471 Class 1 and EN343 for the ultimate in foul weather protection. Approved to EN531 & EN470-1 no high visibility classification. Approved to EN531 A, B1, C1 and EN470-1 in Securetec. Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL Size SML MED LGE Available in tall fittings Tall: 83cm / 33” Reg: 79cm / 31” Size SML MED LGE XL XXL XXXL • • • • • • Flame Retardant • Zip front fastening designed to zip into coat • Two deep inset zipped pockets • Fully lined Chest (cm) 91-97 102-107 112-117 124-127 132-137 140-147 Waist (cm) 78-87 88-97 98-107 108-117 118-127 Reg: 79cm / 31” • Zip front • Two hip pockets with overhanging flap • Detachable inner lining Size SML MED LGE XL XXL XXXL Waist (cm) 78-87 88-97 98-107 108-117 118-127 128-137 • Side access slits • Elasticated waist • Incorporating retro-reflective tape for increased visibility Reg: 79cm / 31” EN471: 1994 (excluding clause 4.2.5.) EN471: 1994 (excluding clause 4.2.5.) • Elasticated waist • Zipped gusseted leg bottoms Chest (cm) 92 100 108 Size XL XXL XXXL Chest (cm) 116 124 132 Zip front 2 jetted hip pockets with access Straight leg seams Side waist elastication One square breast pocket (left) with overhanging flap • Incorporating retro-reflective tape for increased visibility Chest (cm) 91-97 102-107 112-117 124-127 132-137 140-147 06

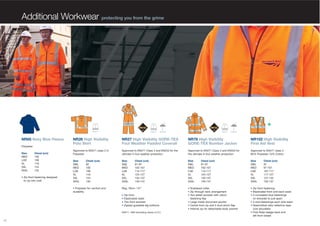

- 9. Additional Workwear protectingyou from the grime EN471 NR65 Navy Blue Fleece Polyester Size MED LGE XL XXL XXXL Chest (cm) 100 108 116 124 132 • Zip front fastening designed to zip into coat EN471 EN343 EN343 NR26 High Visibility Polo Shirt NR27 High Visibility GORE-TEX Foul Weather Padded Coverall NR78 High Visibility GORE-TEX Bomber Jacket NR102 High Visibility First Aid Vest Approved to EN471 class 2 in Polyester Approved to EN471 Class 3 and EN343 for the ultimate in foul weather protection. Approved to EN471 Class 3 and EN343 for the ultimate in foul weather protection. Approved to EN471 class 2 85% Polyester 15% Cotton Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Chest (cm) 92 100 108 116 124 132 • Polyester for comfort and durability Chest (cm) 91-97 102-107 112-117 124-127 132-137 140-147 Reg: 79cm / 31” • • • • Zip front Elasticated waist Two front pockets Zipped gusseted leg bottoms EN471: 1994 (excluding clause 4.2.5.) 07 EN471 Chest (cm) 91-97 102-107 112-117 124-127 132-137 140-147 • Scalloped collar • Zip through neck arrangement • Two jetted pockets with velcro fastening flap • Large inside document pocket • Centre front zip and 5 stud storm flap • Internal zip for detachable body warmer Chest (cm) 97 97-107 107-117 117-127 127-132 132-137 • Zip front fastening • Elasticated front and back waist • 3 concealed stud fastenings on shoulder to pull apart • 4 stud fastenings each side seam • Green/silver retro reflective tape over shoulders • First Aider badge back and left front breast

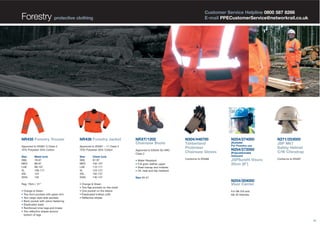

- 10. Customer Service Helpline0800 587 8266 E-mail PPECustomerService@networkrail.co.uk Forestry protective clothing NR435 Forestry Trouser NR436 Forestry Jacket Approved to EN381-5 Class 2 70% Polyester 30% Cotton Approved to EN381 – 11 Class 2 70% Polyester 30% Cotton Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Waist (cm) 78-87 88-97 98-107 108-117 124 132 Reg: 79cm / 31” • • • • • • • Orange & Green Two front pockets with green trim Two cargo style side pockets Back pocket with velcro fastening Elasticated waist Reinforced inner legs and knees Two reflective stripes around bottom of legs • • • • • Chest (cm) 91-97 102-107 112-117 124-127 132-137 140-147 Orange & Green Two flap pockets on the chest One pocket on the sleeve Elasticated knitted cuffs Reflective stripes NRXT/1202 Chainsaw Boots Approved to EN345 S3 HRO Class 2 • • • • Water Resistant Full grain leather upper Steel toecap and midsole Oil, heat and slip resistant Size 40-47 N304/448700 Timberland Protimber Chainsaw Gloves N254/274000 Conforms to EN388 JSPSurefit Visors 20cm (8”) (Acetate) For Forestry use N254/272000 (Polycarbonate) Unbound N271/253000 JSP Mk7 Safety Helmet C/W Chinstrap Conforms to EN397 N254/304000 Visor Carrier For Mk ll/lll and Mk Vll Helmets 08
- 11. Underwear protecting youfrom the cold WINDSTOPPER next to skin garments are extremely breathable and absolutely windproof. They protect from cold even without an additional wind protecting layer. All this means that these garments are suitable for use in all weather conditions. Please note: these items are non-returnable. • • • • • • Soft, lightweight and easy to wear Functional and comfortable All garments washable at 60oC Breathable and hard wearing Eliminates wind chill effect Effectively controls loss of body heat and overheating NR138 WINDSTOPPER® Balaclava NR132 WINDSTOPPER® Shorts NR131 WINDSTOPPER® Long Sleeve Vest NR133 WINDSTOPPER® Leggings Size One Size 09 NR130 WINDSTOPPER® Short Sleeve Vest Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Chest (cm) 92 100 108 116 124 132 Waist (cm) 92 100 108 116 124 132 Chest (cm) 92 100 108 116 124 132 Waist (cm) 92 100 108 116 124 132
- 12. Customer Service Helpline0800 587 8266 E-mail PPECustomerService@networkrail.co.uk Underwear flame retardant protection Please note that these items should not be worn in isolation but only under existing, approved flame retardant outerwear. These are Non-GORE items. • Soft, lightweight and easy to wear • Functional and comfortable NR134 Flame Retardant Short Sleeve Vest NR135 Flame Retardant Long Sleeve Vest NR136 Flame Retardant Shorts NR137 Flame Retardant Leggings Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Size SML MED LGE XL XXL XXXL Chest (cm) 92 100 108 116 124 132 Chest (cm) 92 100 108 116 124 132 Waist (cm) 92 100 108 116 124 132 Waist (cm) 92 100 108 116 124 132 10

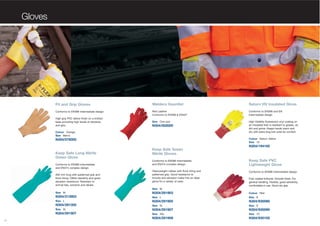

- 13. Gloves Fit and GripGloves Welders Gauntlet Saturn HV Insulated Glove Conforms to EN388 intermediate design. Red Leather Conforms to EN388 & EN407 Conforms to EN388 and EN intermediate design Size One size High Visibility fluorescent vinyl coating on an insulated liner is resistant to grease, oil, dirt and grime. Keeps hands warm and dry with extra long knit wrist for comfort. High grip PVC lattice finish on a knitted base providing high levels of dexterity and grip. N304/002000 Colour Orange Size Men’s Colour Saturn Yellow Size 10 N304/076000 Keep Safe Long Nitrile Green Glove Conforms to EN388 intermediate and EN374 complex design. 400 mm long with patterned grip and flock lining. Offers dexterity and good abrasion resistance. Resistant to animal fats, solvents and alkalis. Keep Safe Green Nitrile Gloves N304/194100 Conforms to EN388 intermediate and EN374 complex design. Keep Safe PVC Lightweight Glove Heavyweight rubber with flock lining and patterned grip. Good resistance to knocks and abrasion make this an ideal glove for a variety of uses. Conforms to EN388 intermediate design. Fully coated knitwrist. Smooth finish. For general handling. Flexible, good sensitivity, comfortable in use. Good dry grip. Size M Size M N304/213903 Size L N304/291305 Size XL N304/291907 11 N304/291903 Colour Red Size L Size 8 N304/291905 N304/930080 Size XL Size 9 N304/291907 N304/930090 Size XXL Size 10 N304/291909 N304/930100
- 14. Customer Service Helpline0800 587 8266 E-mail PPECustomerService@networkrail.co.uk Clean Grip Disposable Nitrile Powder-Free Gloves Keep Safe Heavyweight Rubber Glove Turtle Skin Workwear Plus Puncture Resistant Glove 100% nitrile approved for use with food preparation. Conforms to EN388 intermediate and EN374 complex design. Conforms to EN388 intermediate design Colour Blue Heavyweight rubber with flock lining and patterned grip. Good resistance to knocks and abrasion make this an ideal glove for a variety of uses. Size S N304/667901 Size M Ultra-comfortable leather work gloves specifically designed for tasks that require great grip, flexibility, and tactile sensitivity. Patented blended aramid liner for added puncture protection in the palm area. N304/667903 Colour Black Size L Size M Colour Black N304/667905 N304/293903 Size S Size XL Size L N303/543901 N304/667907 N304/293905 Size M Size XL N304/293907 Canadian Rigger Style Pig Split Leather Gloves Conforms to EN166.1.F Pig leather. Safety cuff with vein protection patch. Elasticated back. Palm lined. Colour Yellow Size One size N304/017000 N303/543903 Size L N303/543905 Size XL Cotton Stockinette Glove N303/543907 Standard quality open cuff. Colour White Size Men’s N304/112000 Spat Welders Leather 12” Gaiter One size N292/225000 12

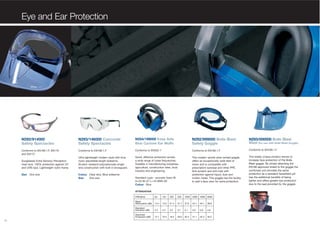

- 15. Eye and EarProtection N292/914000 Safety Spectacles N293/146000 Concorde Safety Spectacles N254/199000 Keep Safe Blue Cyclone Ear Muffs N292/999000 Bolle Blast Safety Goggle N293/000000 Bolle Blast Visor (for use with Bolle Blast Goggle) Conforms to EN166.1.F, EN170 and EN172 Conforms to EN166.1.F Conforms to EN352-1 Conforms to EN166.1.F Conforms to EN166.1.F Ultra lightweight modern style with blue nylon adjustable length sidearms. Scratch resistant polycarbonate single lens construction with built in browguard. Good, effective protection across a wide range of noise frequencies. Suitable in manufacturing industries, agriculture, construction sites, food industry and engineering. This modern sports style vented goggle offers an exceptionally wide field of vision and is compatible with prescription eyewear and other PPE. Anti-scratch and anti-mist with protection against liquid, dust and molten metal. This goggle has the facility to add a face visor for extra protection. This totally unique product serves to increase face protection of the Bolle Blast goggle. By simply attaching the EN166 approved shield to the goggle the combined unit provides the same protection as a standard faceshield yet has the additional benefits of being lighter and offers greater eye protection due to the seal provided by the goggle. Sunglasses Extra Sensory Perception clear lens. 100% protection against UV and UVB rays. Lightweight nylon frame. Size One size Colour Clear lens, Blue sidearms Size One size Standard cups - acoustic foam fill. H=33 M=27 L=18 SNR=30 Colour Blue ATTENUATION FREQ(Hz) 125 250 500 1000 2000 4000 8000 14.4 14.5 21.4 31.7 37.6 34.1 40.1 39.8 Standard Deviation (dB) 2.3 4.2 3.2 3.7 5.1 3.0 5.8 4.6 Assumed Protection (dB) 13 63 Mean Attenuation (dB) 12.1 10.3 18.2 28.0 32.5 31.1 34.3 35.2
- 16. Customer Service Helpline0800 587 8266 E-mail PPECustomerService@networkrail.co.uk Helmets and Attachments N272/050000 Network Rail White JSP MK7 Helmet C/W Lamp Clip Conforms to EN397 N254/303000 JSP Surefit Ear Defender N271/300000 Chinstrap N271/158000 JSP Retractaspec Retro Kit N277/250000 3M Hornell Welders Filter Conforms to EN352-3 Designed with quick release attachment points for safety should the chin strap become snagged. Conforms to EN166.1.F • 3M Speedglass 9002D • Shades 9 & 11 Dual • Sizes 3-13 H=31 M=23 L=16 SNR=26 Provides excellent attenuation and ease of use. International slot enables firm fitting. Stand off position when not needed. All day comfort from soft foam pads. N290/427000 Sweatband for JSP Helmet N254/304000 Visor Carrier • For Mark 2 and Mark 7 helmet • 250mm • Nomaz Leatherette For Mk ll/lll and Mk Vll Helmets Easy assembly kit for those wishing to add retractable eyeshields to their existing JSP Comfort Plus or JSP Standard Safety Helmets. N254/272000 JSP Surefit Visors 20cm (8”) Unbound. Polycarbonate. N271/252000 Protective Neck Cape Green N271/260000 JSP Blue New Starter Helmet C/W Network Rail Logo Conforms to EN397 N277/251000 3M Hornell Welders Helmet & Welding Shield • Speedglass Protop • c/w Sidewindows 14
- 17. Accessories Armbands N290/032000 Disposable Respirator FFP1 N290/033000 Disposable Respirator FFP2 N292/035000 Disposable RespiratorFFP3 Conforms to EN149 Pack of 20 Conforms to EN149 Pack of 20 Conforms to EN149 Pack of 5 Disposable Coverall • Made from 100% Polypropylene • Specially designed for single use applications. • Colour: White Size L XL XXL 15 N382/023905 N382/023907 N382/023909 0044/003363 Pilotmand Sleevelet 0044/003421 Armlet ‘Lookout’ Leather Strap & Buckle 0044/003426 Armlet Person In Charge Possession Leather Strap & Buckle 0044/003427 Armlet Engineering Supervisor Leather Strap & Buckle 0044/007509 Armband ‘D P’ Velcro Fastened 0044/007522 Armband Engineering Supervisor Velcro Fastened 0044/007523 Armband ‘Lookout’ Velcro Fastened 0044/007524 Armband Person IC Possession Velcro Fastened 0044/150026 Armband ‘Picop’ Elasticated Fitting 0044/150027 Armband ‘Site Warden’ Elasticated Fitting 0044/150028 Armband ‘Crane Controller’ Elasticated Fitting 0044/150029 Armband ‘Engineering Supervisor’ Elasticated Fitting 0044/150433 Armband ‘Coss’ Controller Of Site Safety Elasticated Fitting 0044/150030 Armband ‘Look Out’ Elasticated Fitting 0044/150434 Armband ‘Coss’ Controller Of Site Safety Velcro Fastened 0044/150114 Armlet ‘PC’ Protection Controller Leather Strap & Buckle 0044/150574 Armband ‘Picom’ Elasticated Fitting 0044/150115 Armlet Coss Leather Strap & Buckle 0044/150575 Armband ‘MC’ Machine Controller Elasticated Fitting 0044/150116 Armband Protection Controller Elasticated Fitting 0044/169679 Armband ‘Site Warden’ Velcro Fastened
- 18. Customer Service Helpline0800 587 8266 E-mail PPECustomerService@networkrail.co.uk Accessories N292/221000 Knee Pads NR200 Ripsafe Rucksack Size One size only • • • • • These soft knee pads protect your knees against the rigours inherent in kneeling on hard or rough surfaces • The one piece moulded impact resistant rubber pad with adjustable strap keeps you in your comfort zone Lightweight rucksack Nylon Colour: orange Ripsafe quick release mechanism N764/038000 Headlamp Clips For attaching head mounting torch to helmet (pk of 4) N764/034000 Petzl Halogen & 5 LED Water Resistant Headlamp N180/073080 Uniross AA & AAA Battery Charger • Torch, head mounted Petzl • Halogen bulb & 5 LED water resistant • c/w Battery • For AA and AAA Batteries N764/051000 Petzl Tikka 3 LED Bulb Headlamp N200/309000 Universal Battery Charger • Torch, head mounted Petzl ‘Tikka’ • 3 LED bulb light N740/330000 PPE Holdall Bag • PVC Coated Nylon • Navy • Complete with Network Rail Logo • Universal multi-charger for all sizes of batteries • Supplied complete with moulded 13 amp plug 16

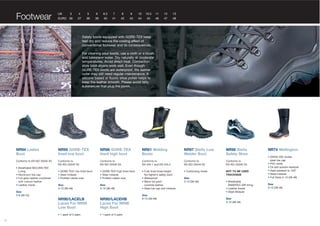

- 19. Footwear UK 3 EURO 36 4 37 5 38 6 39 6.5 40 7 41 8 42 9 43 10 44 10.5 45 11 46 12 47 13 48 Safety bootsequipped with GORE-TEX keep feet dry and reduce the cooling effect of conventional footwear and its consequences. For cleaning your boots, use a cloth or a brush and lukewarm water. Dry naturally at moderate temperatures. Avoid direct heat. Convection style boot dryers work well. Even though GORE-TEX boots are waterproof, the leather outer may still need regular maintenance. A silicone based or fluoric shoe polish helps to keep the leather smooth. Please avoid fatty substances that plug the pores. NR94 Ladies Boot NR95 GORE-TEX lined low boot NR96 GORE-TEX lined high boot NR81 Welding Boots NR97 Steitz Low Welder Boot NR98 Steitz Safety Shoe Conforms to EN ISO 20345 S3 Conforms to EN ISO 20345 S3 Conforms to EN ISO 20345 S3 Conforms to EN 345-1 and EN 345-2 Conforms to EN ISO 20345 S3 Conforms to EN ISO 20345 S3 • GORE-TEX® low lined boot • Steel midsole • Profiled rubber sole • GORE-TEX® high lined boot • Steel midsole • Profiled rubber sole • Cushioning Insole NOT TO BE USED TRACKSIDE Size 3-13 (36-48) Size 3-13 (36-48) • Fully lined knee-height fire fighter’s safety boot • Waterproof • Black full grain cowhide leather • Steel toe cap and midsole NR90/LACELB Laces For NR95 Low Boot NR90/LACEHB Laces For NR96 High Boot • 1 pack of 5 pairs • 1 pack of 5 pairs • Breathable SECURA-TEX Lining • Aluminium toe cap • Full grain leather combined with nubuck leather • Leather insole Size 3-8 (36-42) 17 Size 6-13 (39-48) Size 5-13 (38-48) • Breathable SMARTEC-AIR lining • Leather Insole • Steel Midsole Size 5-13 (38-48) NR74 Wellington • EN345 200 Joules steel toe cap • PVC nitrile • Oil and solvent resistant • Heat resistant to 120º • Steel midsole • Full Sizes 5-13 (38-48) Size 5-13 (38-48)

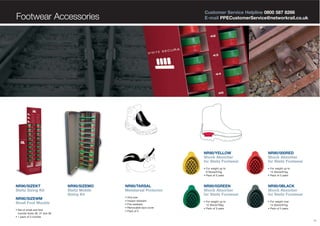

- 20. Customer Service Helpline0800 587 8266 E-mail PPECustomerService@networkrail.co.uk Footwear Accessories NR90/YELLOW Shock Absorber for Steitz Footwear • For weight up to 9 Stone/57kg • Pack of 5 pairs NR90/SIZEKT Steitz Sizing Kit NR90/SIZEWM Small Foot Moulds • Set of small size foot moulds Sizes 36, 37 and 38 • 1 pack of 3 moulds NR90/SIZEMO Steitz Mobile Sizing Kit NR90/TARSAL Metatarsal Protector • • • • • One size Impact resistant Fire resistant Removable lace cover Pack of 5 NR90/000RED Shock Absorber for Steitz Footwear • For weight up to 14 Stone/91kg • Pack of 5 pairs NR90/0GREEN Shock Absorber for Steitz Footwear NR90/0BLACK Shock Absorber for Steitz Footwear • For weight up to 12 Stone/79kg • Pack of 5 pairs • For weight over 14 Stone/91kg • Pack of 5 pairs 18

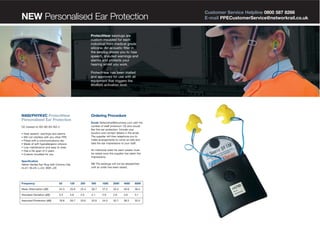

- 21. NEW Personalised EarProtection ProtectHear earplugs are custom moulded for each individual from medical grade silicone. An acoustic filter in the earplug allows you to hear speech, shouted warnings and alarms and protects your hearing whilst you work. ProtectHear has been trialled and approved for use with all equipment that triggers the 80dB(A) activation level. N400/PHYKVC ProtectHear Personalised Ear Protection Ordering Procedure Email: Networkrail@sourceqx.com with the number of staff (minimum 10) who would like this ear protection. Include your location and contact details in the email. The supplier will then telephone you to make arrangements to come on-site and take the ear impressions of your staff. CE marked to ISO BS EN 352-2 • • • • • • • Hear speech, warnings and alarms Will not interfere with any other PPE Fitted with a communications clip Made of soft hypoallergenic silicone Low maintenance and easy to wear Has a life span of 5 years Custom moulded for you An individual order for each wearer must be raised once the supplier has taken the impressions. Specification Yellow Vented Ear Plug with Comms Clip H=31; M=25; L=24; SNR =29 Frequency 63 125 NB The earplugs will not be despatched until an order has been raised. 250 500 1000 2000 4000 8000 Mean Attenuation (dB) 24.3 25.6 25.4 26.7 27.2 35.4 40.8 38.4 Standard Deviation (dB) 5.5 4.8 2.5 4.1 2.9 2.6 4.6 5.1 Assumed Protection (dB) 18.8 20.7 23.0 22.6 24.3 32.7 36.2 33.2 Customer Service Helpline 0800 587 8266 E-mail PPECustomerService@networkrail.co.uk
