1. HIGH QUALITY LIVE BROADCASTING WITH
PHP
by Martin de Keijzer
PHP Limburg BE - July 27, 2016

2. A presentation by Martin de Keijzer
ABOUT ME
Martin de Keijzer
Dutch web developer
Working @ Spinnin' Records
PHPBenelux Board Member
@Martin1982
http://www.martindekeijzer.nl

4. A presentation by Martin de Keijzer
We digital

5. A presentation by Martin de Keijzer
TODAY

6. LIVE STREAMING
Why and when?

7. A presentation by Martin de Keijzer
LIVING ONTHE EDGE
Live streaming is all about bringing the latest and greatest

8. A presentation by Martin de Keijzer
VIRTUAL PRESENCE

9. A presentation by Martin de Keijzer
DIRECT FEEDBACK
Every modern live streaming service has a chat for direct feedback

10. A presentation by Martin de Keijzer
LIKE INTHE OLD DAYS

11. A presentation by Martin de Keijzer
BENEFITS AND USAGES
• More followers
• Create hype
• Product presentations
• Screencasts

12. THE SPINNIN' HISTORY
Why the tech dept. stepped in

13. A presentation by Martin de Keijzer
SPINNIN' SESSIONS
Weekly premiere onTwitch

14. A presentation by Martin de Keijzer
THETECHNOLOGY

15. A presentation by Martin de Keijzer
THETECHNOLOGY
Ingredient 1;An MP4 file

16. A presentation by Martin de Keijzer
THETECHNOLOGY
Ingredient 2:An old Windows desktop

17. A presentation by Martin de Keijzer
THETECHNOLOGY
Ingredient 3: Open Broadcaster Software

18. A presentation by Martin de Keijzer
THETECHNOLOGY
Ingredient 4:A human being at the controls

19. A presentation by Martin de Keijzer
THETECHNOLOGY
What could possibly go wrong?

20. A presentation by Martin de Keijzer
THE RESULT

21. A presentation by Martin de Keijzer
THE RESULT
The good: People were eager to hear the radio show early

22. A presentation by Martin de Keijzer
THE RESULT
The bad: We were struggling with technology to deliver on time

23. A presentation by Martin de Keijzer
THE RESULT
The ugly: Jenny got frustrated by technology issues and viewers
start complaining in chat

24. A presentation by Martin de Keijzer
OTHER COMPLICATIONS
Bandwidth when sending a stream to multiple social networks

25. A presentation by Martin de Keijzer
OTHER COMPLICATIONS
Power outages

26. A presentation by Martin de Keijzer
OTHER COMPLICATIONS
Technical knowledge about accepted stream settings

27. A presentation by Martin de Keijzer
OTHER COMPLICATIONS
Manually starting streams for timezone targeting

28. LIVE BROADCAST BUNDLE
The path to salvation

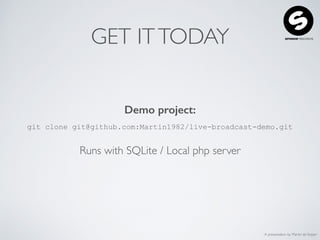

29. A presentation by Martin de Keijzer
GET ITTODAY
Demo project:
git clone git@github.com:Martin1982/live-broadcast-demo.git
Runs with SQLite / Local php server

30. A presentation by Martin de Keijzer
SUPPORT

31. A presentation by Martin de Keijzer
GET ITTODAY
composer require martin1982/live-broadcast-bundle
Just the bundle:
Still in alpha; we release early & often

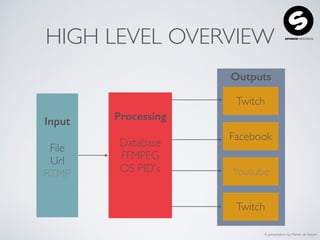

32. A presentation by Martin de Keijzer
HIGH LEVEL OVERVIEW
Input
File
Url
RTMP
Processing
Database
FFMPEG
OS PID's
Twitch
Facebook
Youtube
Twitch
Outputs

33. INSIDETHE BUNDLE
Created for extensibility

34. A presentation by Martin de Keijzer
SCHEDULER
• Retrieves the LiveBroadcast entities
• Checks running broadcasts
• Decides to start/stop or leave a broadcast
alone

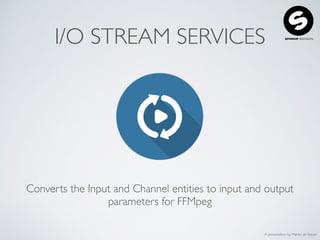

35. A presentation by Martin de Keijzer
I/O STREAM SERVICES
Converts the Input and Channel entities to input and output
parameters for FFMpeg

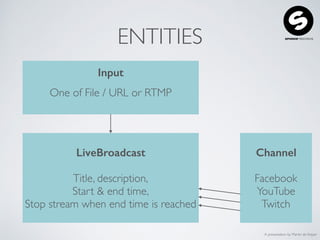

36. A presentation by Martin de Keijzer
ENTITIES
Input
One of File / URL or RTMP
LiveBroadcast
Title, description,
Start & end time,
Stop stream when end time is reached
Channel
Facebook
YouTube
Twitch

37. A presentation by Martin de Keijzer
INPUT
File
Local file location
For prerecorded video

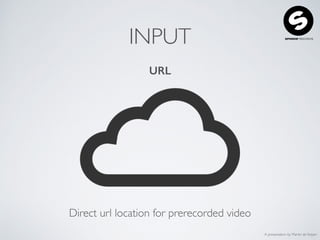

38. A presentation by Martin de Keijzer
INPUT
Direct url location for prerecorded video
URL

39. A presentation by Martin de Keijzer
INPUT
RTMP
(soon)
Live video input protocol
Great for broadcasting to multiple channels from
a lower bandwidth location.

40. A presentation by Martin de Keijzer
INPUT DEEP-DIVE

41. A presentation by Martin de Keijzer
PROCESSING
Database
Is being visited by the scheduler to see
if a broadcast needs to run or stop
The core command for reading input media
and sending it to one of the output channels
FFMPEG
OS
Process list is being checked by the scheduler
to see which broadcasts from the bundle are running
and what their PID's are

42. A presentation by Martin de Keijzer
OUTPUT
Twitch
Configurable with a stream key from theTwitch
dashboard

43. A presentation by Martin de Keijzer
OUTPUT
Needs a reviewed Facebook app to run
and allow API calls
Facebook

44. A presentation by Martin de Keijzer
OUTPUT
YouTube
(in active development)
Needs to authenticate an app for doing
API calls

45. A presentation by Martin de Keijzer
OUTPUT
Your channel
Needs to be coded by you

46. A presentation by Martin de Keijzer
OUTPUT ENTITY

47. A presentation by Martin de Keijzer
OUTPUT SERVICE

48. A presentation by Martin de Keijzer
BONUS:ADMIN
Spinnin' uses Sonata, so we added it as a bonus and a full
setup in a demo project which you can use to test-drive
the application

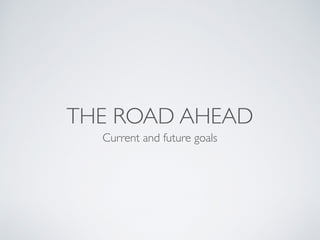

49. THE ROAD AHEAD
Current and future goals

50. A presentation by Martin de Keijzer
MORE INPUTS
Mainly RTMP, as easy and functional as possible
Ideas are going around to combine graphic layers to a single
video stream output

51. A presentation by Martin de Keijzer
MORE CHANNELS
YouTube Live streaming is high on the priority list.

52. A presentation by Martin de Keijzer
MORE QUALITY
Firmly tested code, good documentation and easier implementation.

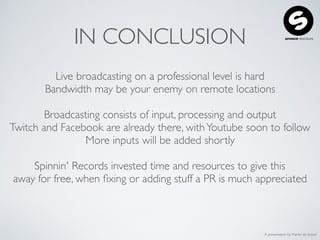

53. A presentation by Martin de Keijzer
IN CONCLUSION
Live broadcasting on a professional level is hard
Bandwidth may be your enemy on remote locations
Broadcasting consists of input, processing and output
Twitch and Facebook are already there, withYoutube soon to follow
More inputs will be added shortly
Spinnin' Records invested time and resources to give this
away for free, when fixing or adding stuff a PR is much appreciated

54. A presentation by Martin de Keijzer
LIVE DEMOTIME?

55. A presentation by Martin de Keijzer
Thank you for listening,
any questions?
