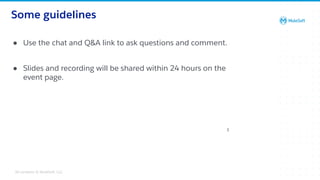

Some guidelines
3
● Use the chat and Q&A link to ask questions and comment.
● Slides and recording will be shared within 24 hours on the
event page.

4. All contents © MuleSoft, LLC

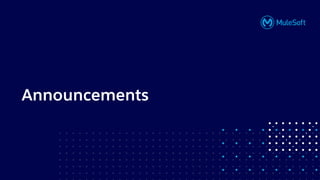

Announcements

5. All contents © MuleSoft, LLC

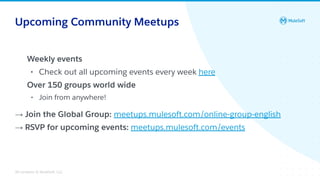

Upcoming Community Meetups
Weekly events
• Check out all upcoming events every week here
Over 150 groups world wide
• Join from anywhere!
→ Join the Global Group: meetups.mulesoft.com/online-group-english
→ RSVP for upcoming events: meetups.mulesoft.com/events

6. All contents © MuleSoft, LLC

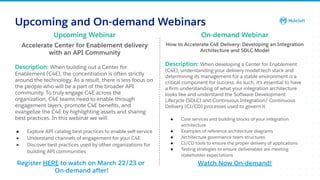

Upcoming and On-demand Webinars
Upcoming Webinar
Accelerate Center for Enablement delivery
with an API Community
Description: When building out a Center for
Enablement (C4E), the concentration is often strictly
around the technology. As a result, there is less focus on
the people who will be a part of the broader API
community. To truly engage C4E across the
organization, C4E teams need to enable through
engagement layers, promote C4E benefits, and
evangelize the C4E by highlighting assets and sharing
best practices. In this webinar we will:
● Explore API catalog best practices to enable self-service
● Understand channels of engagement for your C4E
● Discover best practices used by other organizations for
building API communities
Watch Now On-demand!
On-demand Webinar
How to Accelerate C4E Delivery: Developing an Integration
Architecture and SDLC Model
Description: When developing a Center for Enablement
(C4E), understanding your delivery model tech stack and
determining its management for a stable environment is a
critical component for success. As such, it's essential to have
a firm understanding of what your integration architecture
looks like and understand the Software Development
Lifecycle (SDLC) and Continuous Integration/ Continuous
Delivery (CI/CD) processes used to govern it.
● Core services and building blocks of your integration
architecture
● Examples of reference architecture diagrams
● Architecture governance team structures
● CI/CD tools to ensure the proper delivery of applications
● Testing strategies to ensure deliverables are meeting
stakeholder expectations
Register HERE to watch on March 22/23 or
On-demand after!

7. All contents © MuleSoft, LLC 7

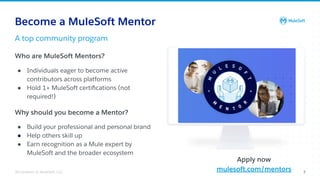

Become a MuleSoft Mentor
Who are MuleSoft Mentors?
● Individuals eager to become active
contributors across platforms
● Hold 1+ MuleSoft certifications (not
required!)
Why should you become a Mentor?
● Build your professional and personal brand
● Help others skill up
● Earn recognition as a Mule expert by
MuleSoft and the broader ecosystem
Apply now
mulesoft.com/mentors
A top community program

8. All contents © MuleSoft, LLC

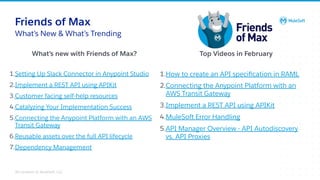

1.How to create an API specification in RAML
2.Connecting the Anypoint Platform with an
AWS Transit Gateway
3.Implement a REST API using APIKit
4.MuleSoft Error Handling
5.API Manager Overview - API Autodiscovery
vs. API Proxies
Friends of Max
1.Setting Up Slack Connector in Anypoint Studio
2.Implement a REST API using APIKit
3.Customer facing self-help resources
4.Catalyzing Your Implementation Success
5.Connecting the Anypoint Platform with an AWS
Transit Gateway
6.Reusable assets over the full API lifecycle
7.Dependency Management
What’s New & What’s Trending
What’s new with Friends of Max? Top Videos in February

9. All contents © MuleSoft, LLC

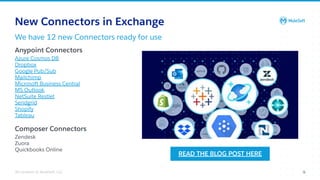

We have 12 new Connectors ready for use
New Connectors in Exchange
Anypoint Connectors
Azure Cosmos DB
Dropbox
Google Pub/Sub
Mailchimp
Microsoft Business Central
MS Outlook
NetSuite Restlet
Sendgrid
Shopify
Tableau
Composer Connectors
Zendesk
Zuora
Quickbooks Online
9
READ THE BLOG POST HERE

10. All contents © MuleSoft, LLC
Salesforce Streaming APIs
Elza Circiu
Anant Alok

11. All contents © MuleSoft, LLC
Elza Circiu
MuleSoft
Professional Services
Speakers Intro
11
Anant Alok
MuleSoft
Professional Services

12. All contents © MuleSoft, LLC

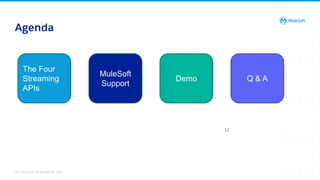

Agenda
12
The Four
Streaming
APIs
MuleSoft
Support
Demo Q & A

13. All contents © MuleSoft, LLC
The Four Streaming APIs
An Introduction

14. All contents © MuleSoft, LLC
The Four Streaming APIs
14

15. All contents © MuleSoft, LLC

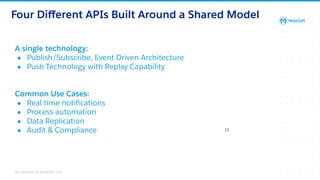

Four Different APIs Built Around a Shared Model
A single technology:
● Publish/Subscribe, Event Driven Architecture
● Push Technology with Replay Capability
Common Use Cases:
● Real time notifications
● Process automation
● Data Replication
● Audit & Compliance 15

16. All contents © MuleSoft, LLC

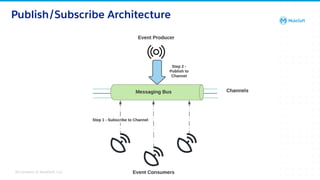

Publish/Subscribe Architecture
17

17. All contents © MuleSoft, LLC

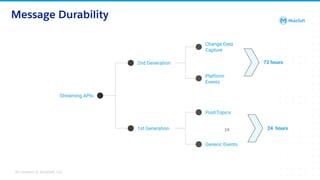

Message Durability
19
Change Data
Capture
2nd Generation
Streaming APIs
1st Generation
Platform
Events
PushTopics
Generic Events
72 hours
24 hours

18. All contents © MuleSoft, LLC
Platform Events

19. All contents © MuleSoft, LLC
21

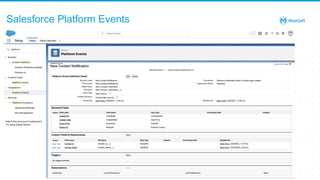

Salesforce Platform Events

20. All contents © MuleSoft, LLC

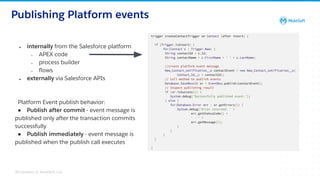

Publishing Platform events
❖ internally from the Salesforce platform
➢ APEX code
➢ process builder
➢ flows
❖ externally via Salesforce APIs
Platform Event publish behavior:
● Publish after commit - event message is
published only after the transaction commits
successfully
● Publish immediately - event message is
published when the publish call executes
23

21. All contents © MuleSoft, LLC

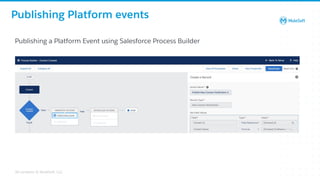

Publishing a Platform Event using Salesforce Process Builder
Publishing Platform events
24

22. All contents © MuleSoft, LLC
Change Data Capture

23. All contents © MuleSoft, LLC

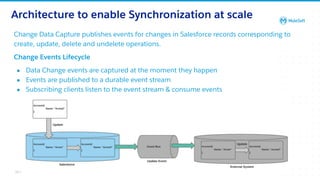

Architecture to enable Synchronization at scale
Change Data Capture publishes events for changes in Salesforce records corresponding to
create, update, delete and undelete operations.
Change Events Lifecycle
● Data Change events are captured at the moment they happen
● Events are published to a durable event stream
● Subscribing clients listen to the event stream & consume events
26

24. All contents © MuleSoft, LLC

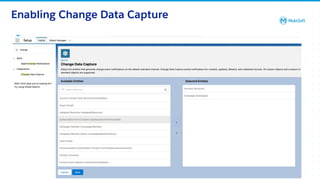

Enabling Change Data Capture
27

25. All contents © MuleSoft, LLC
Platform Events vs Change Data Capture
29
{
"data": {
"schema": "8_j4Jvbl5vY1cUg6ykKsKw",
"payload": {
"LastModifiedDate": "2021-10-21T03:40:09.000Z",
"Phone": "(336) 222-7000",
"ChangeEventHeader": {
"commitNumber": 202866745235,
"commitUser": "0055j000000vpBOAAY",
"sequenceNumber": 1,
"entityName": "Account",
"changeType": "UPDATE",
"changedFields": [
"Phone",
"LastModifiedDate"
],
"changeOrigin": "",
"transactionKey":
"00046797-0e54-b5dd-3ba7-97e31380dd57",
"commitTimestamp": 1634787609000,
"recordIds": [
"0015j000007aJyAAAU"
]
}
},
"event": {
"replayId": 40532028
}
},
"channel": "/data/AccountChangeEvent"
}
Sample events
{
"data" : {
"schema" : "fxnhBTVoCql1BwaszeK2iQ",
"payload" : {
"CreatedById" : "0055g000005O2lwAAC",
"Contact_Name__c" : "Test PEDemo3",
"CreatedDate" : "2021-11-07T06:08:38.959Z",
"Contact_Id__c" : "0035g00000HvOv8AAF"
},
"event" : {
"replayId" : 1134652
}
},
"channel" : "/event/New_Contact_notification__e"
}

26. All contents © MuleSoft, LLC
MuleSoft Salesforce Connector

27. All contents © MuleSoft, LLC

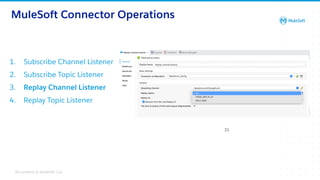

MuleSoft Connector Operations
31
1. Subscribe Channel Listener
2. Subscribe Topic Listener
3. Replay Channel Listener
4. Replay Topic Listener

28. All contents © MuleSoft, LLC
Replaying Events
32
MuleSoft Connector Option Salesforce API Option ReplayID Required? Behavior
ALL -2 No Subscriber receives all events including past events
within the retention window and new events after the
subscription
FROM REPLAY ID REPLAY ID Yes Subscriber receives only events with ReplayId >
specified ReplayId
ONLY NEW -1 No Subscriber receives new events broadcasts after
client subscription
Replay Options

29. All contents © MuleSoft, LLC

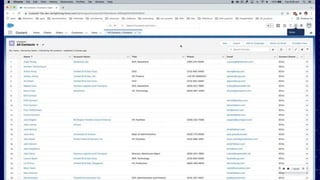

Demo

30. All contents © MuleSoft, LLC

31. All contents © MuleSoft, LLC
Q & A

32. All contents © MuleSoft, LLC
References

33. All contents © MuleSoft, LLC
References
38
● https://developer.salesforce.com/docs/atlas.en-us.api_streaming.meta/api_streaming/intro_strea
m.htm
● https://developer.salesforce.com/docs/atlas.en-us.platform_events.meta/platform_events/platfor
m_events_publish_process.htm
● https://trailhead.salesforce.com/en/content/learn/modules/change-data-capture/understand-cha
nge-data-capture
● https://docs.mulesoft.com/salesforce-connector/10.14/salesforce-connector-reference
● https://developer.salesforce.com/blogs/2018/07/which-streaming-event-do-i-use
● https://developer.salesforce.com/docs/atlas.en-us.234.0.change_data_capture.meta/change_data
_capture/cdc_allocations.htm
● https://developer.salesforce.com/docs/atlas.en-us.platform_events.meta/platform_events/platfor
m_event_limits.htm
