This presentation compares the JDBC, MyBatis, and Hibernate frameworks. It provides an overview of the key points and fundamental principles of each, including that JDBC provides a standard API for SQL access, MyBatis couples objects to SQL through mapping, and Hibernate maps objects to a relational database. Performance tests show JDBC and MyBatis performing better for simple operations, while Hibernate has more overhead but additional features. The presentation analyzes when each framework is best suited based on environment, such as JDBC for performance critical code and Hibernate for object-centric domains.

1. Hibernate vs MyBatis vs JDBC:
is there a silver bullet?
Eugene Varfolomeev
Dnepropetrovsk
15 May 2014

2. 2

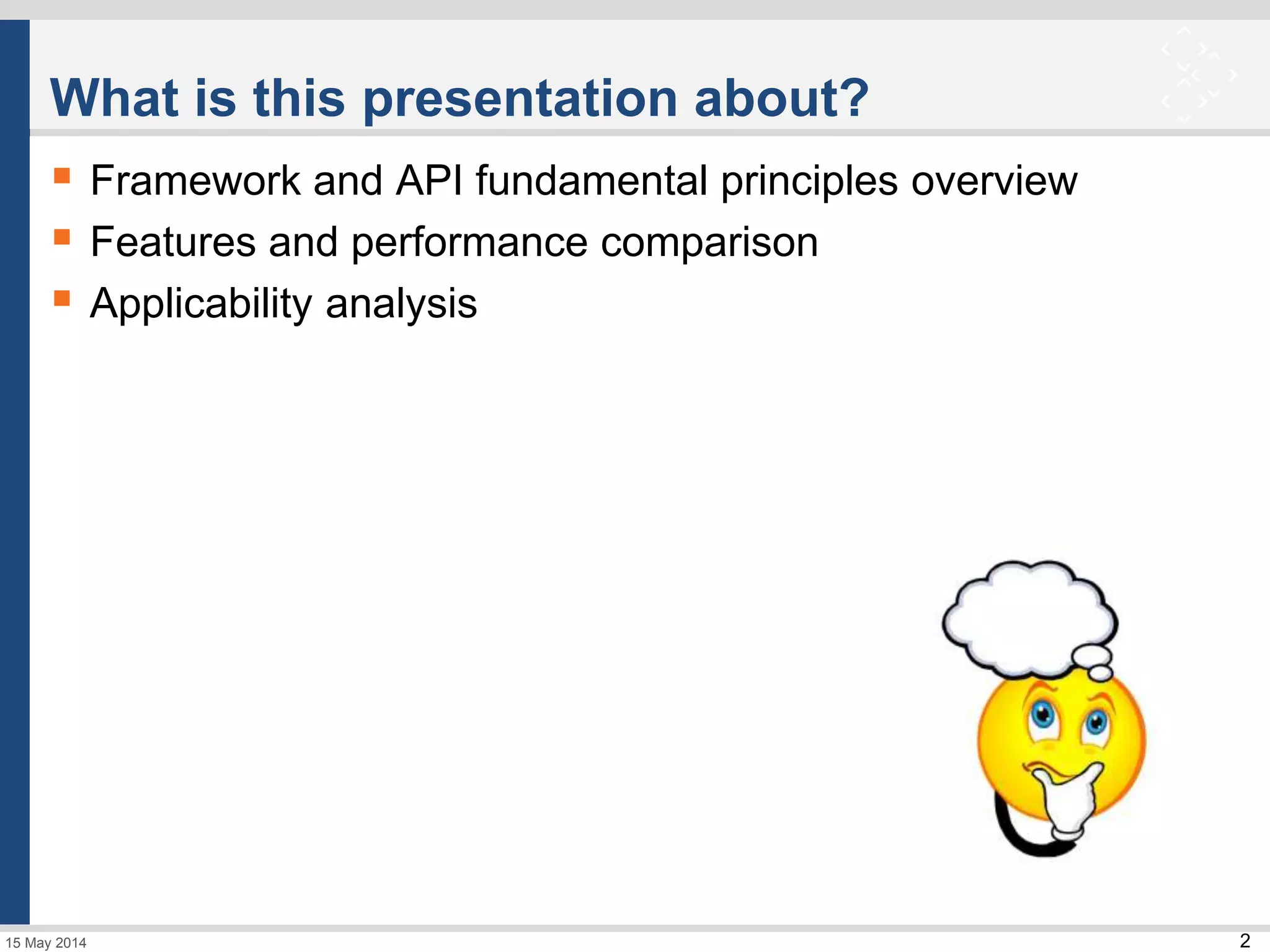

What is this presentation about?
 Framework and API fundamental principles overview
 Features and performance comparison
 Applicability analysis
15 May 2014

3. 315 May 2014
Framework
and API overview

4. 4

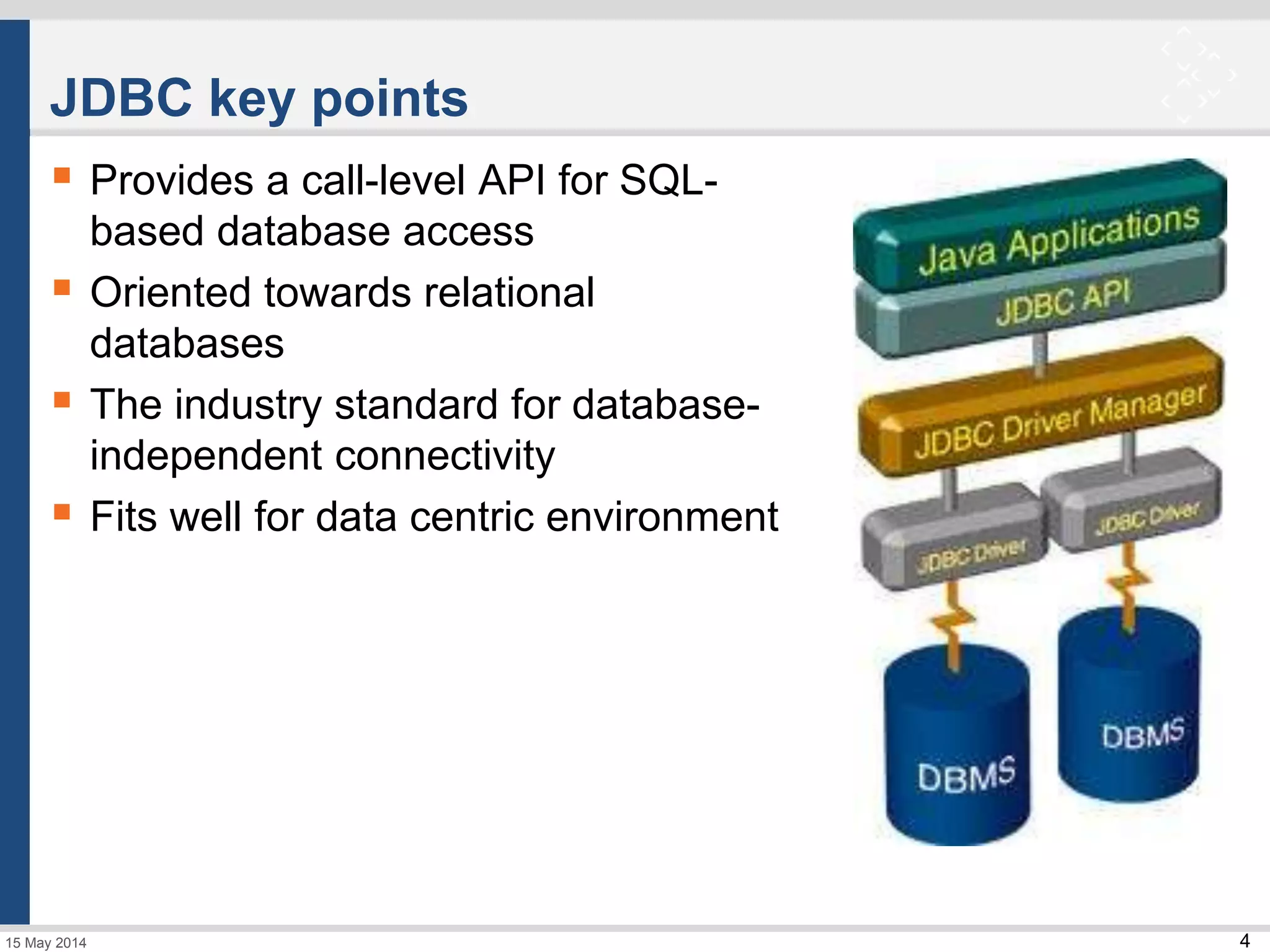

JDBC key points
 Provides a call-level API for SQL-
based database access
 Oriented towards relational
databases
 The industry standard for database-
independent connectivity
 Fits well for data centric environment
15 May 2014

5. 5

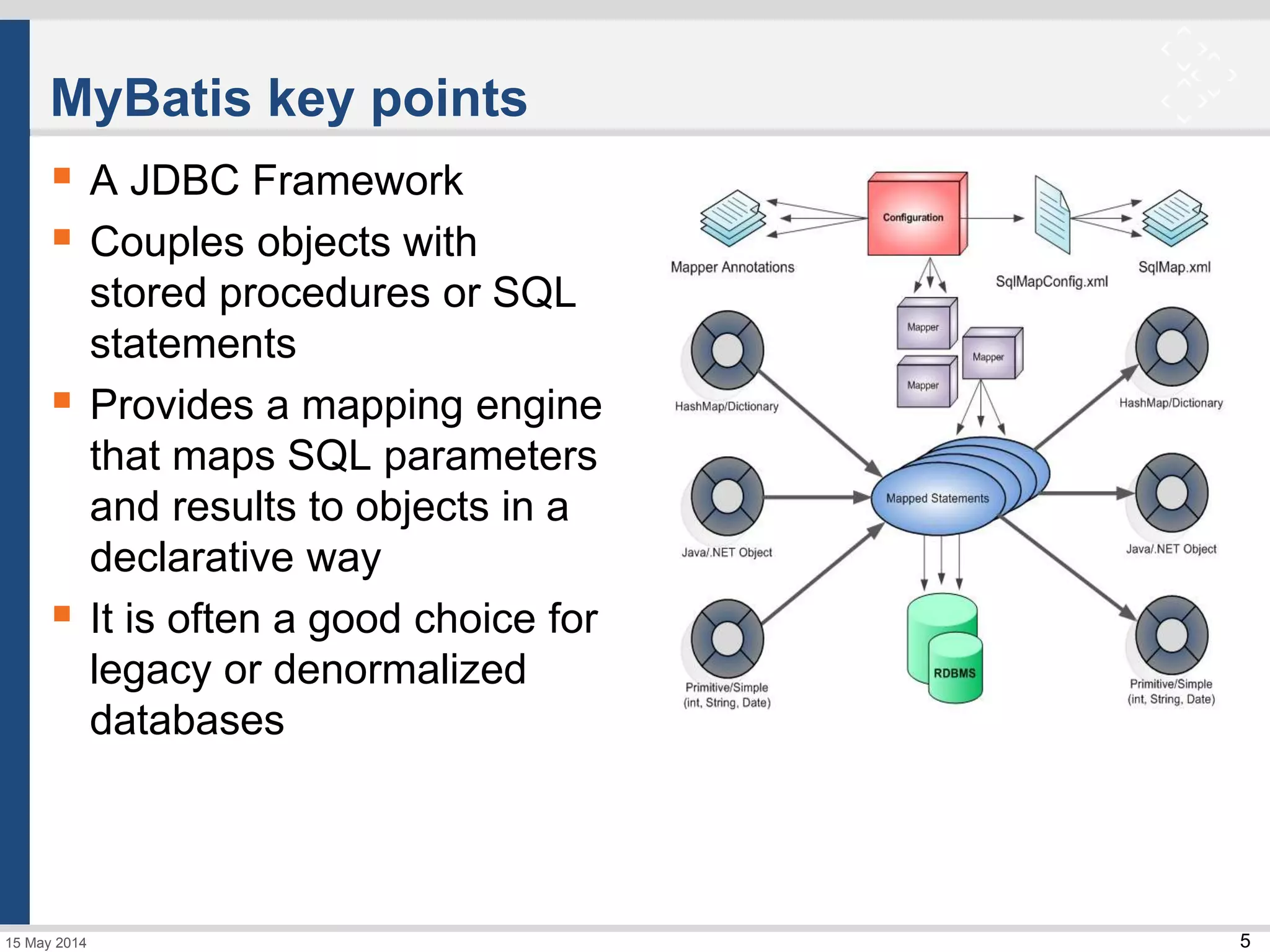

MyBatis key points
 A JDBC Framework
 Couples objects with
stored procedures or SQL
statements
 Provides a mapping engine
that maps SQL parameters
and results to objects in a
declarative way
 It is often a good choice for
legacy or denormalized
databases
15 May 2014

6. 6

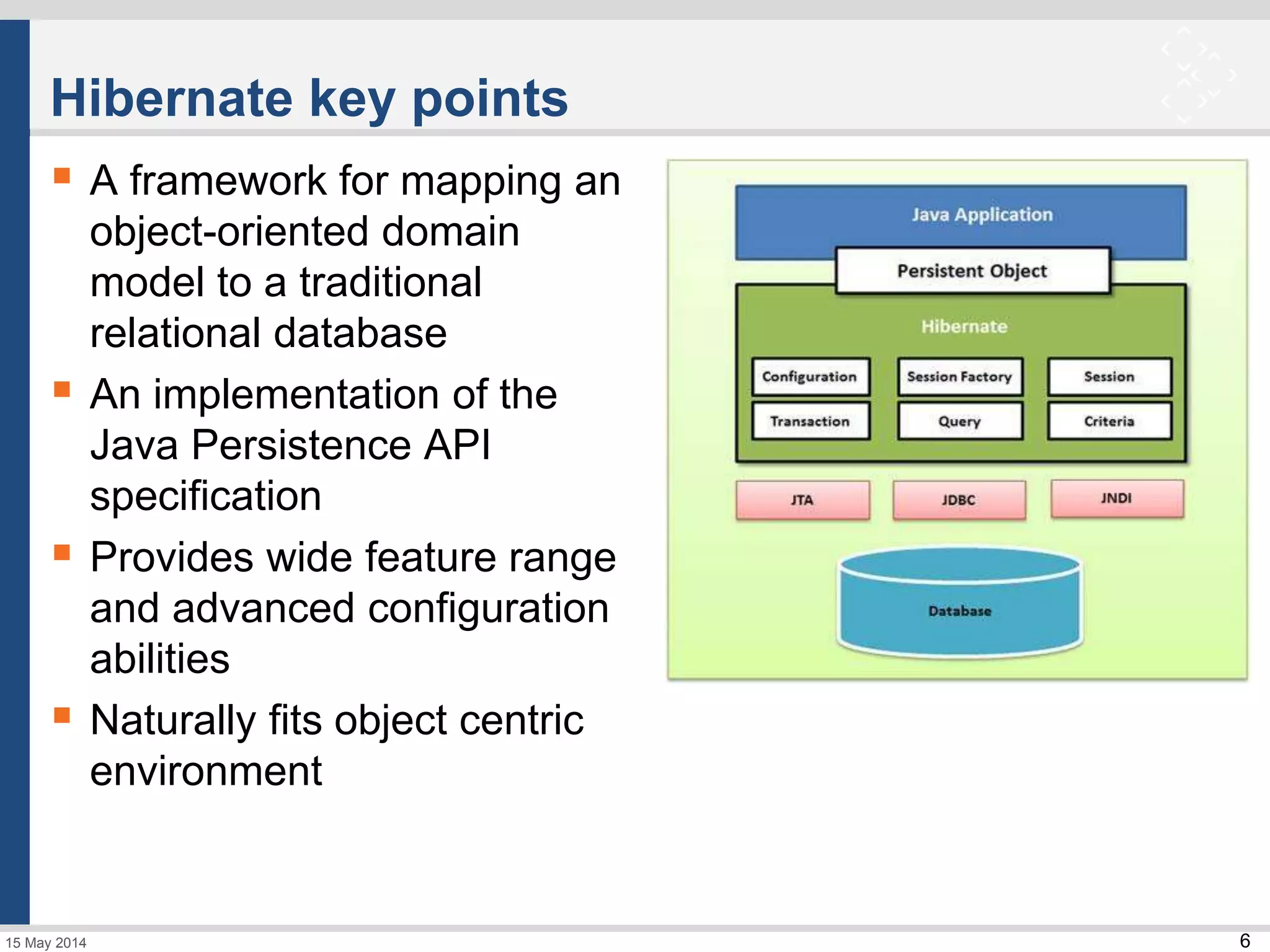

Hibernate key points
 A framework for mapping an
object-oriented domain
model to a traditional
relational database
 An implementation of the
Java Persistence API
specification
 Provides wide feature range
and advanced configuration
abilities
 Naturally fits object centric
environment
15 May 2014

7. 715 May 2014
Features and
Performance

8. 8

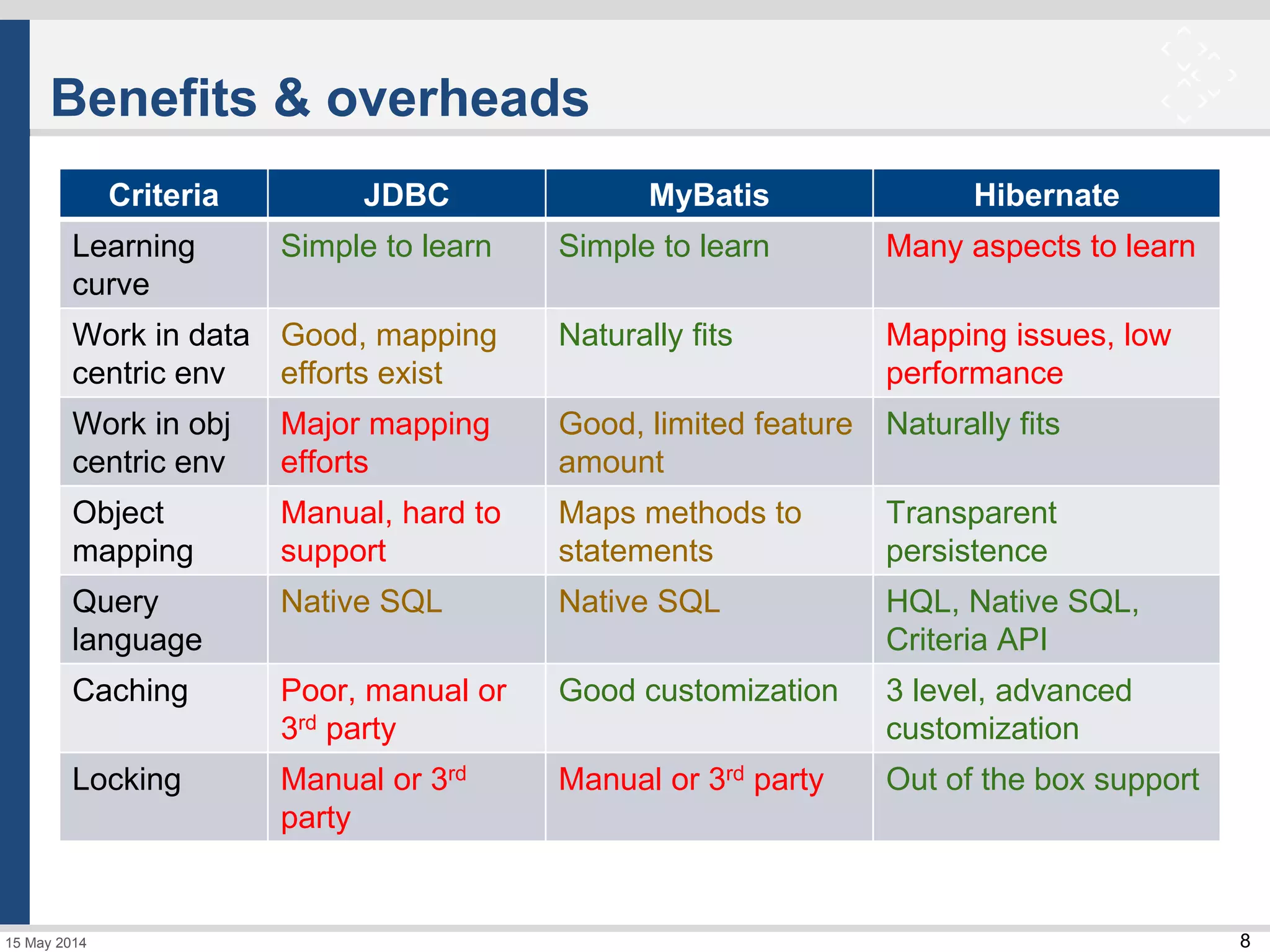

Benefits & overheads
15 May 2014
Criteria JDBC MyBatis Hibernate
Learning
curve
Simple to learn Simple to learn Many aspects to learn
Work in data
centric env
Good, mapping
efforts exist
Naturally fits Mapping issues, low
performance
Work in obj
centric env
Major mapping
efforts
Good, limited feature
amount
Naturally fits
Object
mapping
Manual, hard to
support
Maps methods to
statements
Transparent
persistence
Query
language
Native SQL Native SQL HQL, Native SQL,
Criteria API
Caching Poor, manual or
3rd party
Good customization 3 level, advanced
customization
Locking Manual or 3rd
party
Manual or 3rd party Out of the box support

9. 9

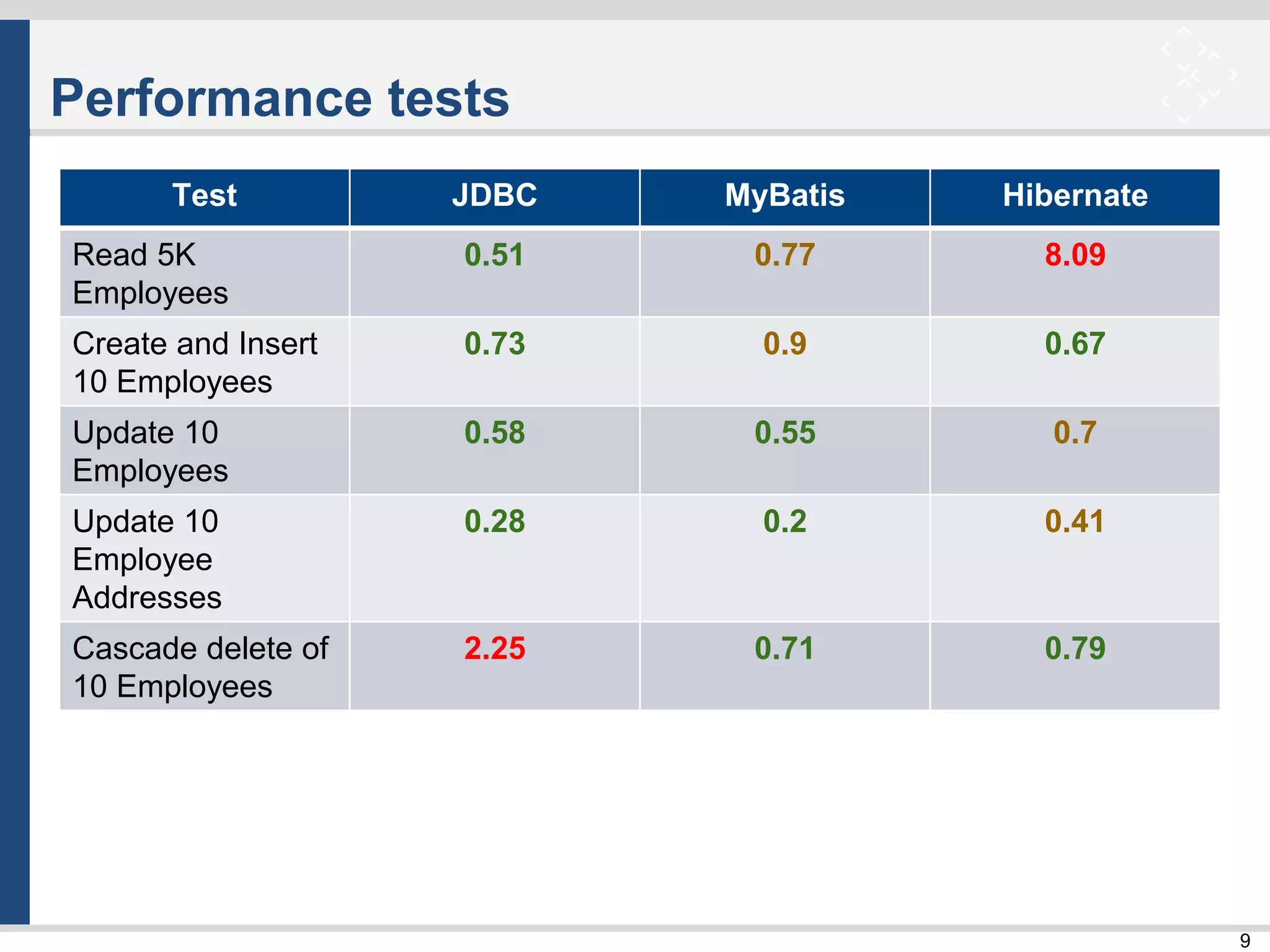

Performance tests
Test JDBC MyBatis Hibernate
Read 5K
Employees
0.51 0.77 8.09
Create and Insert
10 Employees
0.73 0.9 0.67
Update 10
Employees
0.58 0.55 0.7
Update 10
Employee
Addresses
0.28 0.2 0.41
Cascade delete of
10 Employees
2.25 0.71 0.79

10. 10

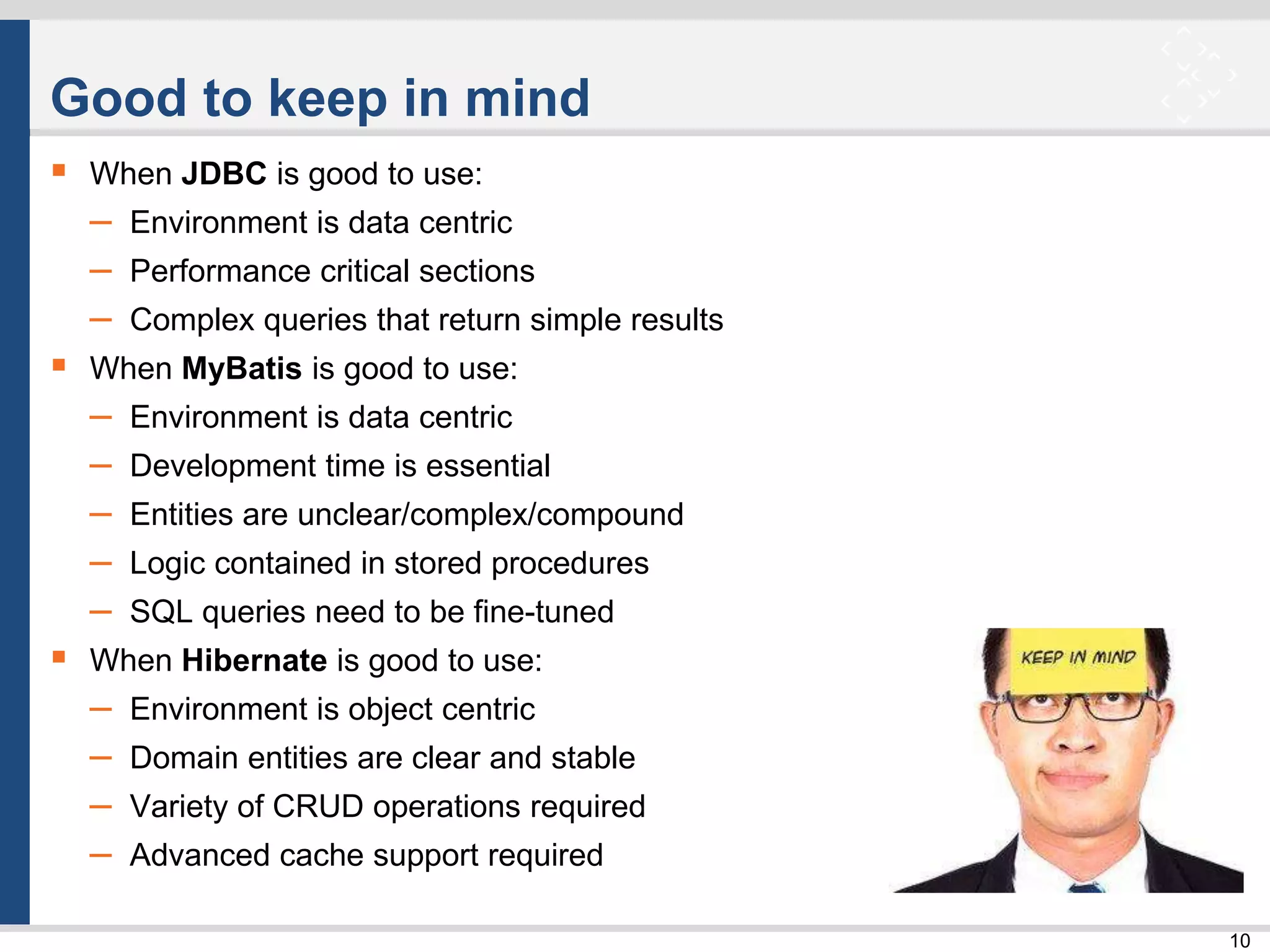

Good to keep in mind
 When JDBC is good to use:
– Environment is data centric
– Performance critical sections
– Complex queries that return simple results
 When MyBatis is good to use:
– Environment is data centric
– Development time is essential
– Entities are unclear/complex/compound
– Logic contained in stored procedures
– SQL queries need to be fine-tuned
 When Hibernate is good to use:
– Environment is object centric
– Domain entities are clear and stable
– Variety of CRUD operations required
– Advanced cache support required

11. 11
Questions

12. 12

13. Your
QR Code
I am at your disposal in case
of any questions or doubts
15 May 2014
Eugene Varfolomeev
Dnepropetrovsk
EVarfolomeev@luxoft.com
