1. #Kscope
HFM vs. Essbase BSO
A Comparative Anatomy
Keith Berry

2. #Kscope
“Focused and Committed”
 Dallas-based Industry Leaders, Pioneers and Trustworthy for 13 years
 Focused on enterprise performance management applications
 Over 50 professionals dedicated to EPM and BI
 Oracle Platinum Partner and Oracle BI Pillar Partner
 Oracle’s highest level of partnership
 Advanced degrees and certifications (CPAs, CMAs, MBAs)
 Seasoned Infrastructure practice: 400+ installations/migrations
 Unique blend of deep technical expertise and business acumen with hundreds of
implementation cycles, driven towards a results-oriented, customer ROI
 Strong project leadership & proactive account management
 Corporate culture of integrity with 100% customer commitment
 Full Service Solution Provider

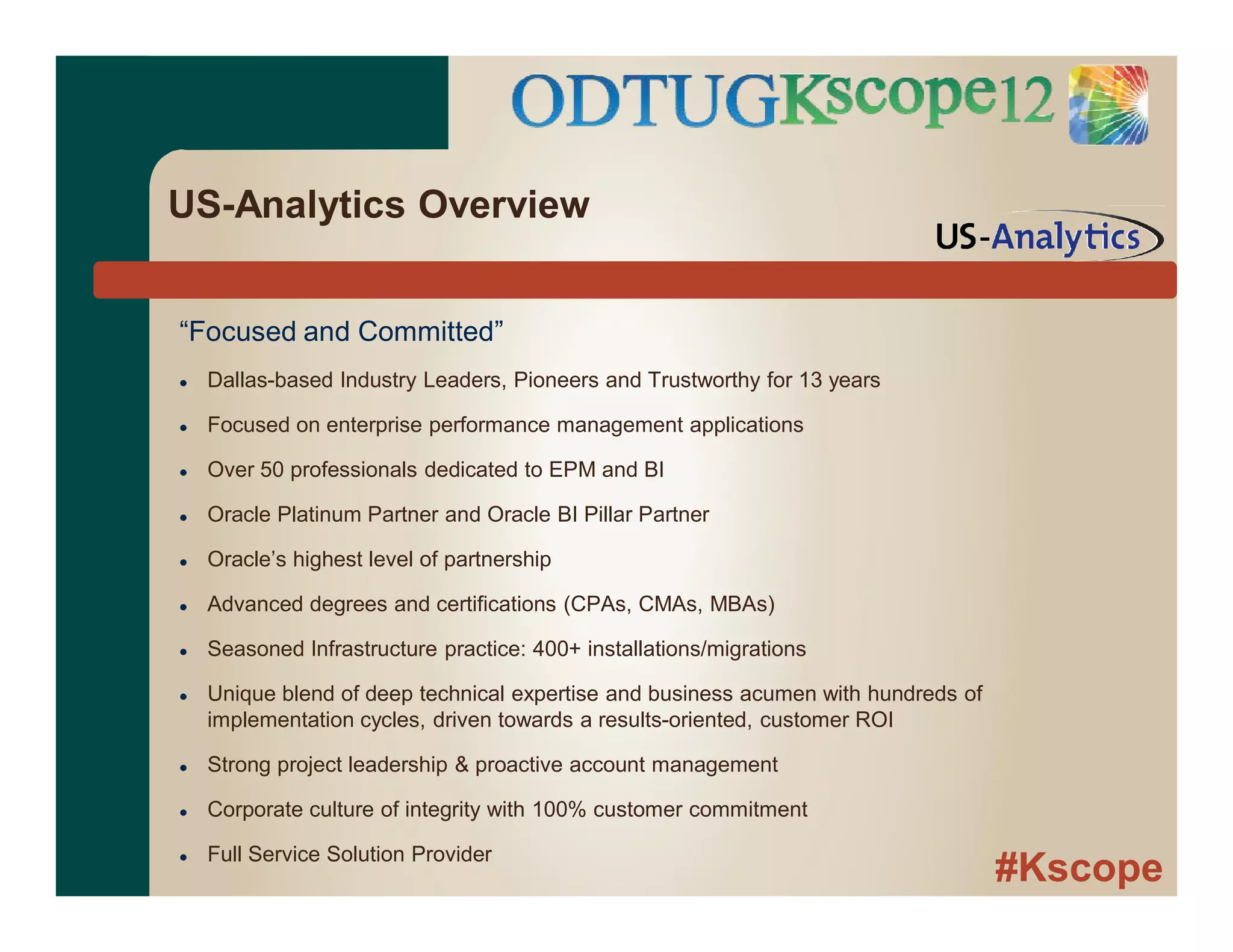

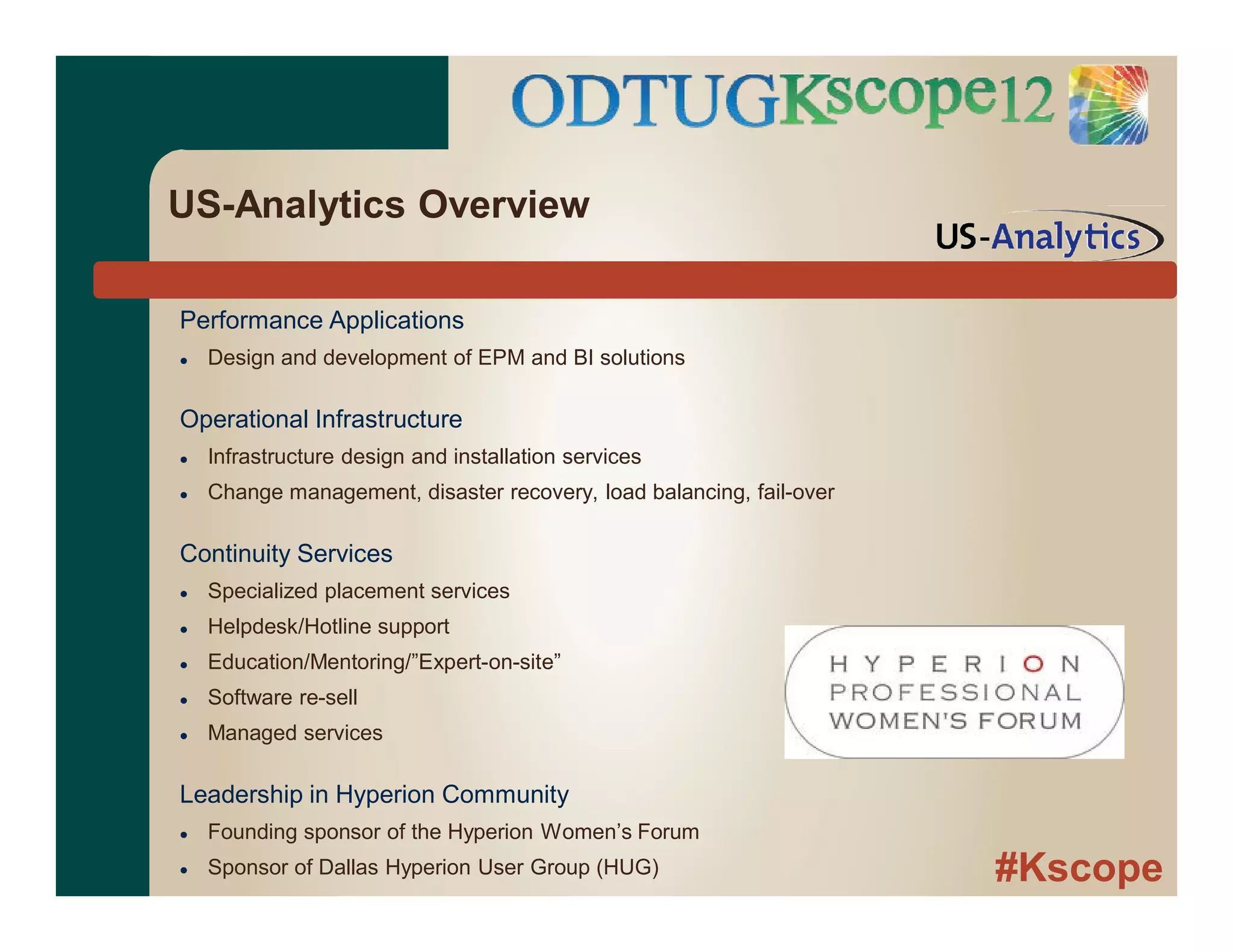

US-Analytics Overview

3. #Kscope
Performance Applications
 Design and development of EPM and BI solutions
Operational Infrastructure
 Infrastructure design and installation services
 Change management, disaster recovery, load balancing, fail-over
Continuity Services
 Specialized placement services
 Helpdesk/Hotline support
 Education/Mentoring/”Expert-on-site”
 Software re-sell
 Managed services
Leadership in Hyperion Community
 Founding sponsor of the Hyperion Women’s Forum
 Sponsor of Dallas Hyperion User Group (HUG)
US-Analytics Overview

4. #Kscope

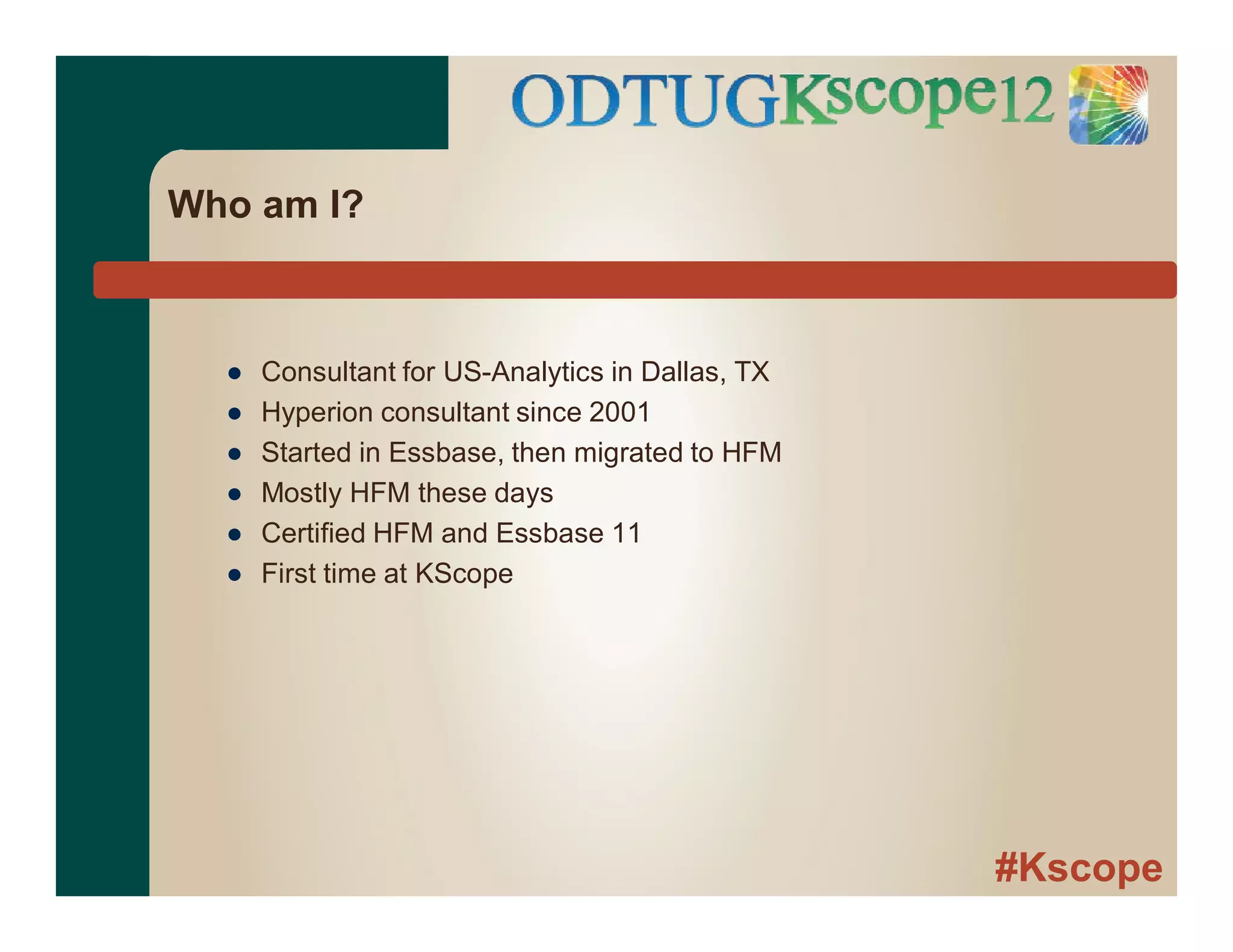

Who am I?
● Consultant for US-Analytics in Dallas, TX
● Hyperion consultant since 2001
● Started in Essbase, then migrated to HFM
● Mostly HFM these days
● Certified HFM and Essbase 11
● First time at KScope

5. #Kscope
Before we get started
● HFM = HFM subcube engine (vs. application)
● Essbase = Essbase BSO
● HFM content not revised for changes in HFM 11.1.2.2

6. #Kscope

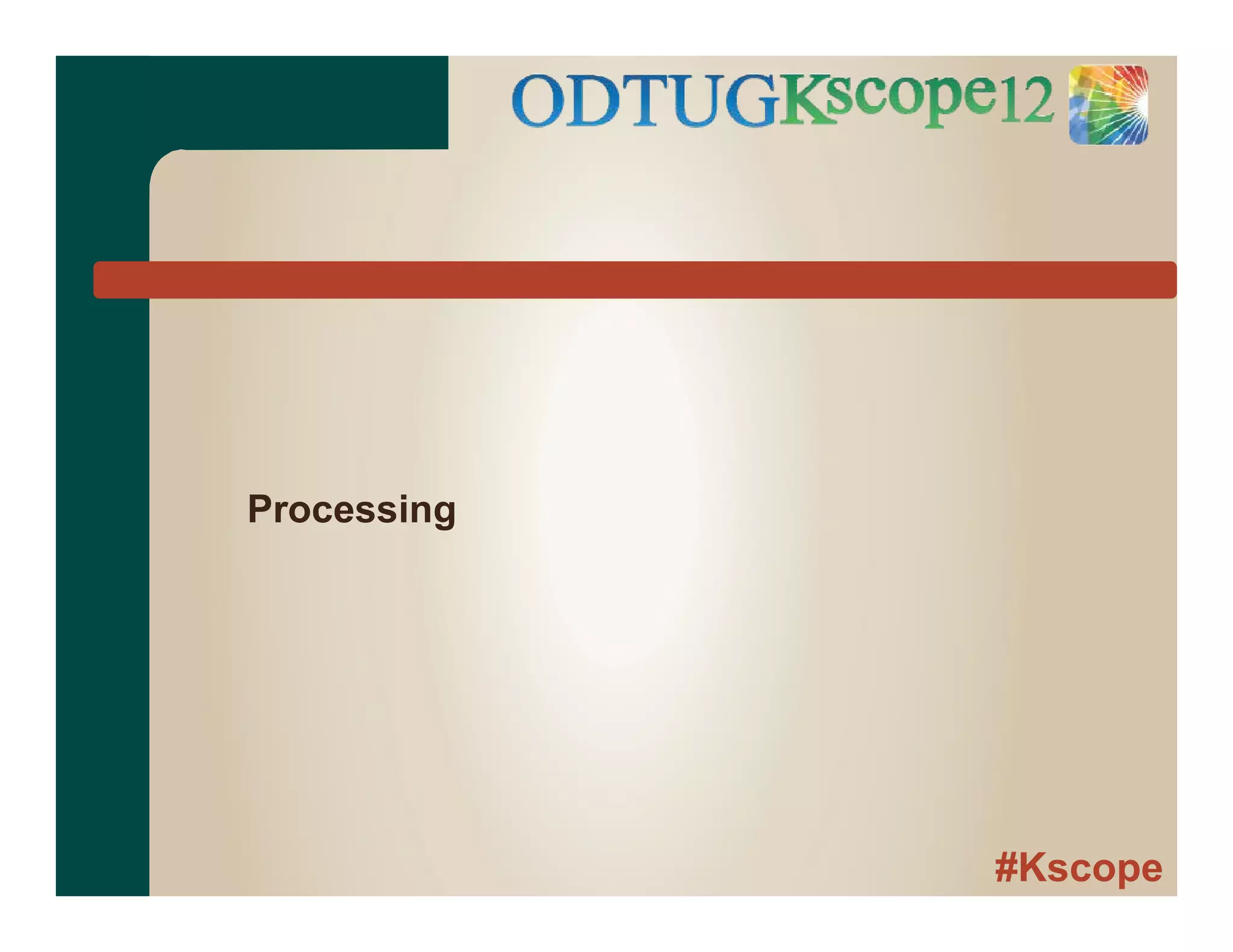

Processing

7. #Kscope

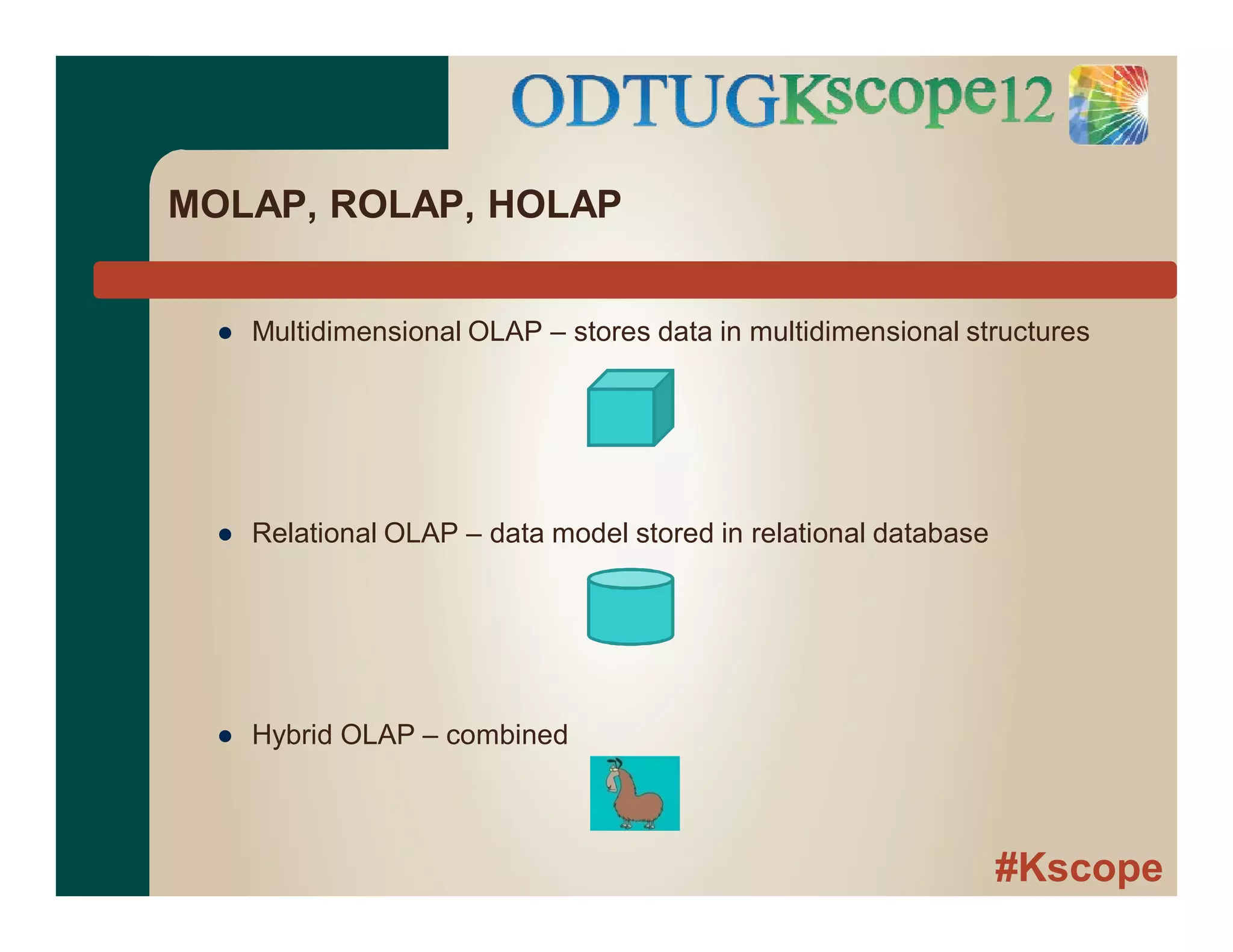

MOLAP, ROLAP, HOLAP
● Multidimensional OLAP – stores data in multidimensional structures
● Relational OLAP – data model stored in relational database
● Hybrid OLAP – combined

8. #Kscope

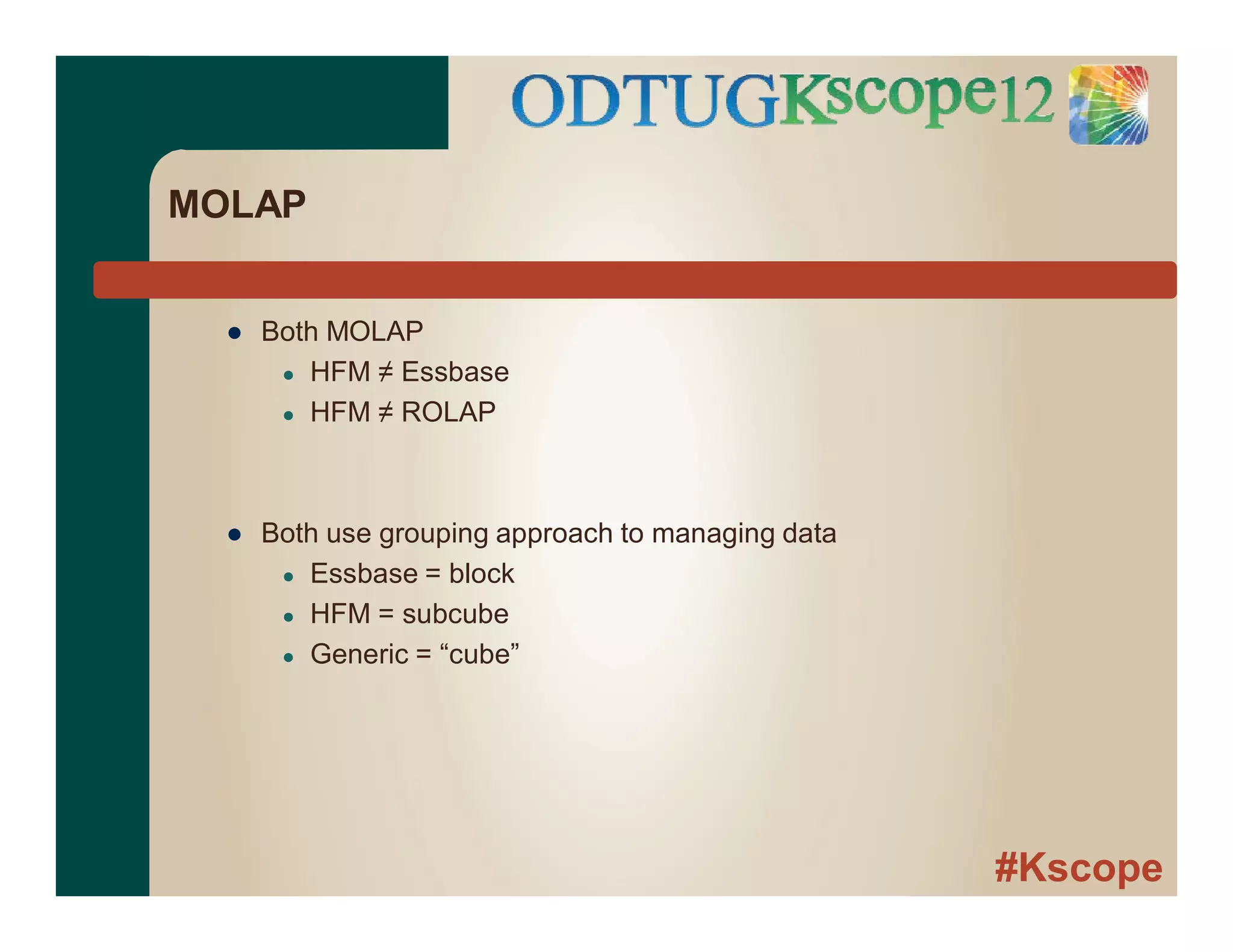

MOLAP
● Both MOLAP
● HFM ≠ Essbase
● HFM ≠ ROLAP
● Both use grouping approach to managing data
● Essbase = block
● HFM = subcube
● Generic = “cube”

9. #Kscope

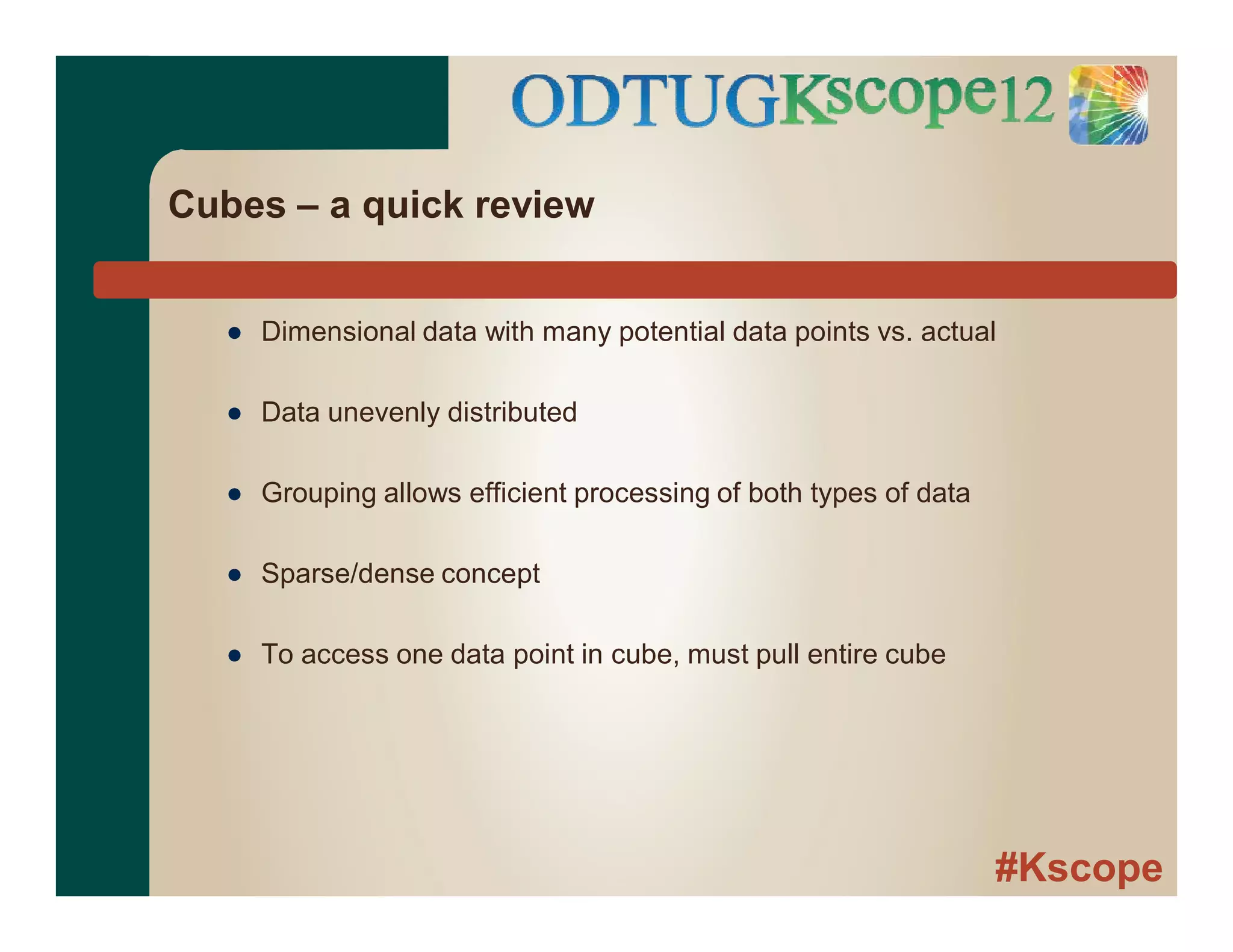

Cubes – a quick review
● Dimensional data with many potential data points vs. actual
● Data unevenly distributed
● Grouping allows efficient processing of both types of data
● Sparse/dense concept
● To access one data point in cube, must pull entire cube

10. #Kscope

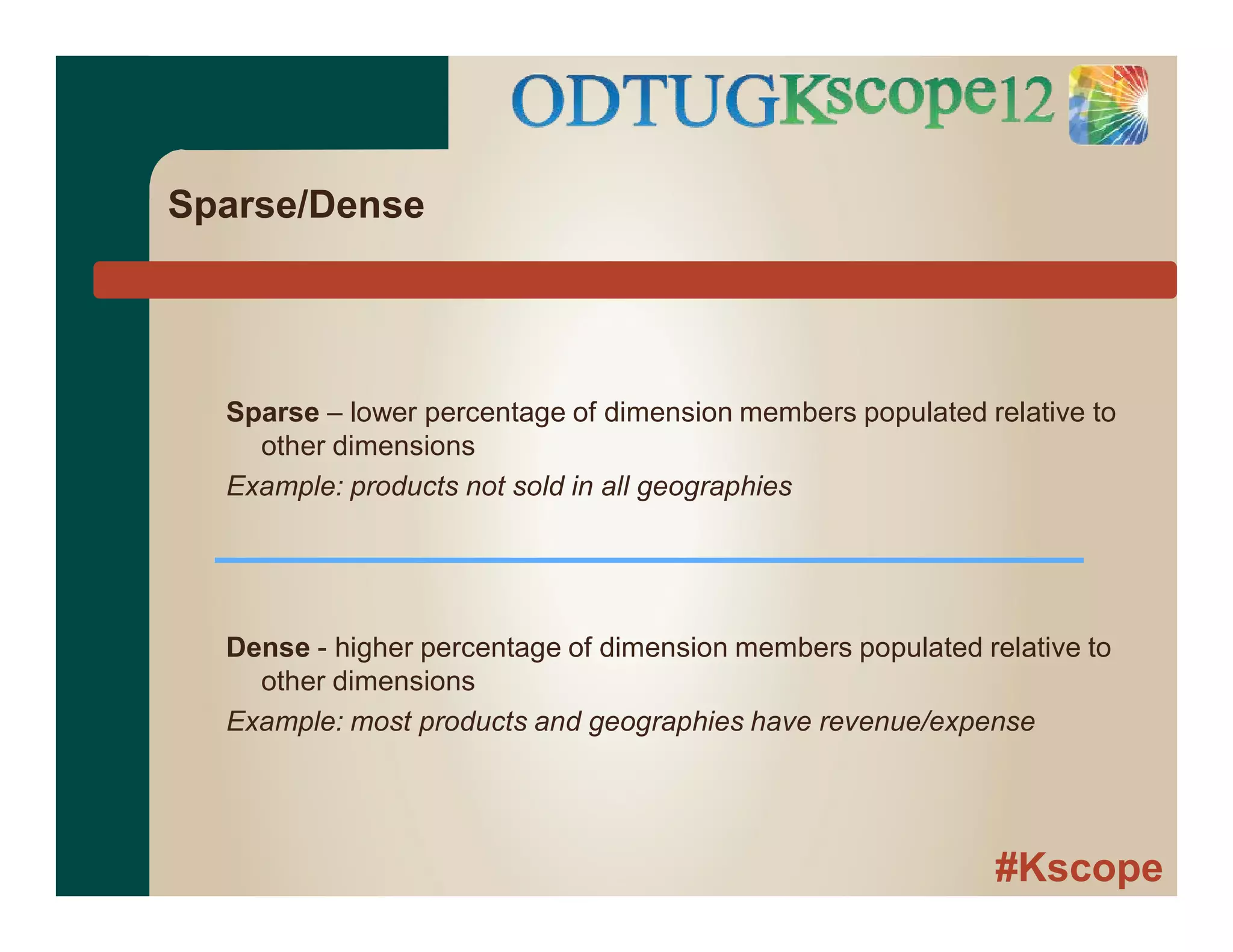

Sparse/Dense
Sparse – lower percentage of dimension members populated relative to
other dimensions
Example: products not sold in all geographies
Dense - higher percentage of dimension members populated relative to
other dimensions
Example: most products and geographies have revenue/expense

11. #Kscope

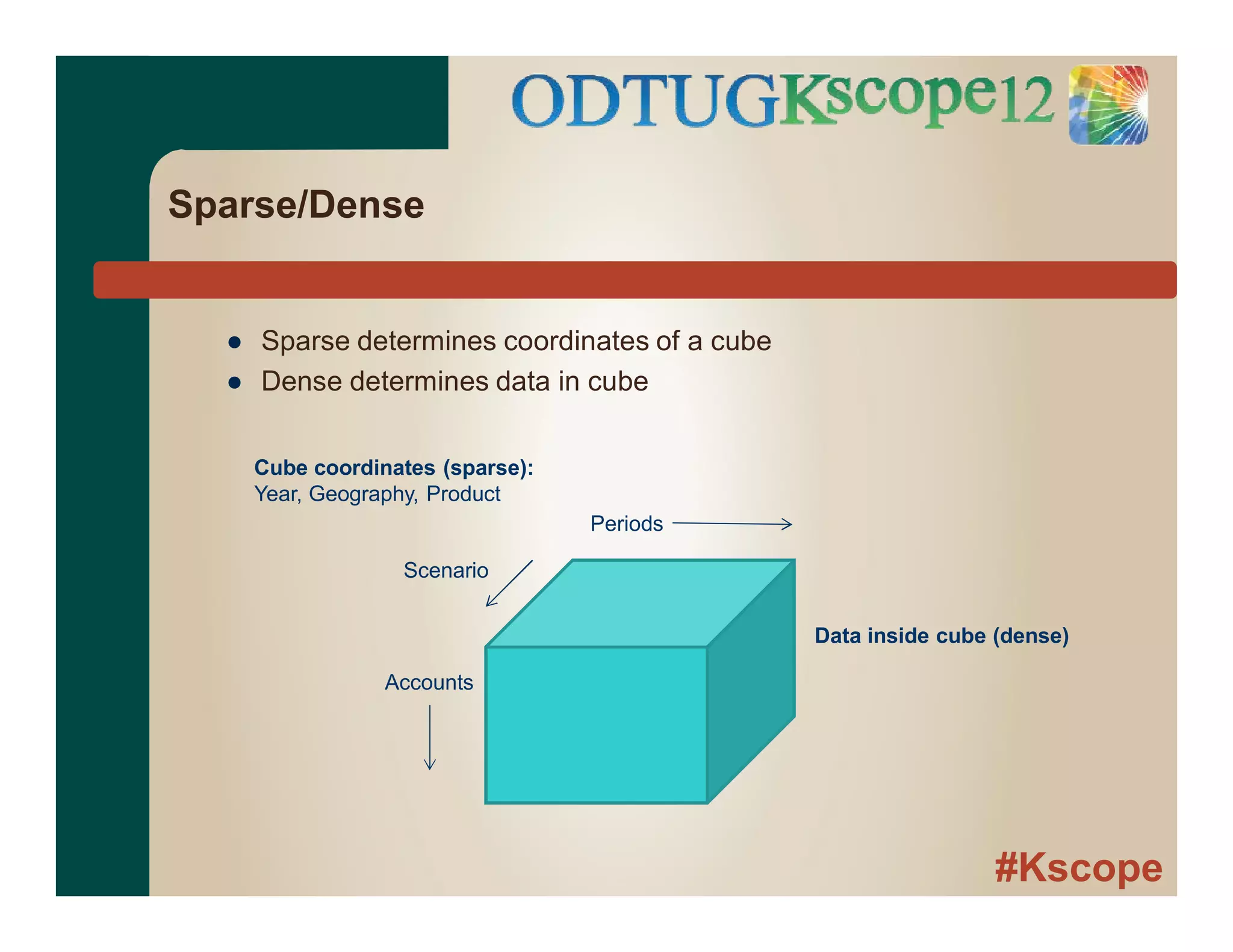

Sparse/Dense
● Sparse determines coordinates of a cube
● Dense determines data in cube
Cube coordinates (sparse):
Year, Geography, Product
Accounts
Periods
Scenario
Data inside cube (dense)

12. #Kscope

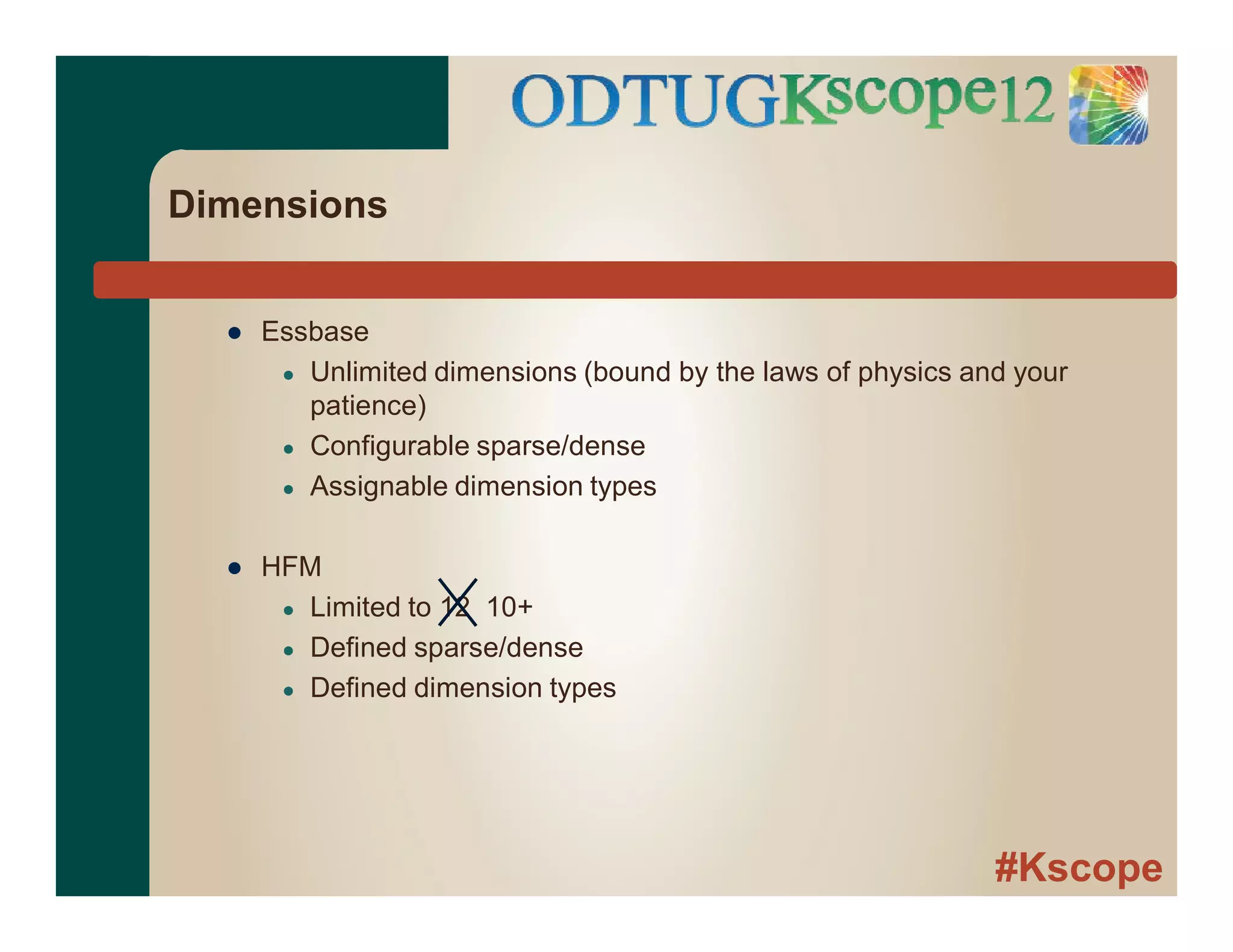

Dimensions
● Essbase
● Unlimited dimensions (bound by the laws of physics and your
patience)
● Configurable sparse/dense
● Assignable dimension types
● HFM
● Limited to 12 10+
● Defined sparse/dense
● Defined dimension types

13. #Kscope

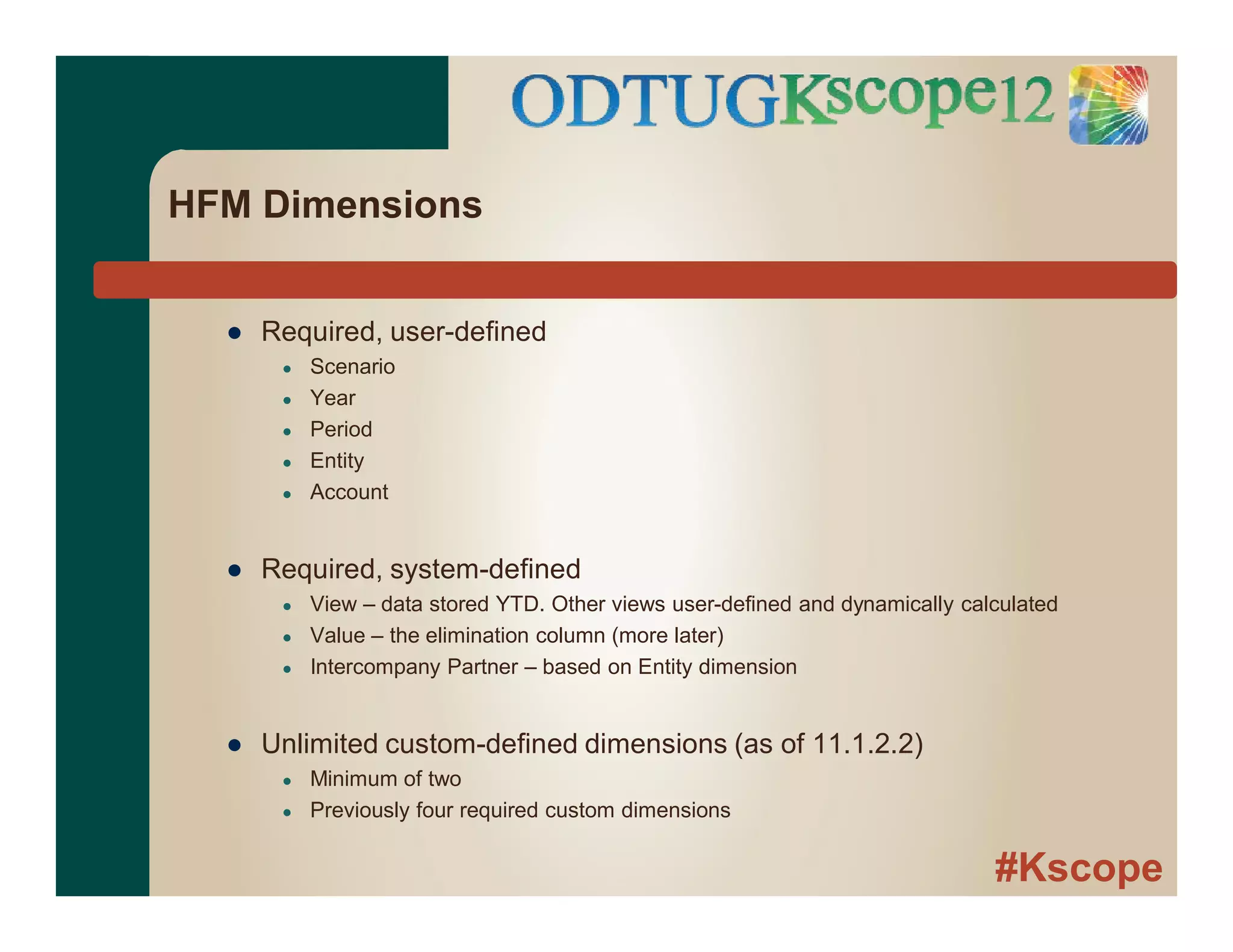

HFM Dimensions
● Required, user-defined
● Scenario
● Year
● Period
● Entity
● Account
● Required, system-defined
● View – data stored YTD. Other views user-defined and dynamically calculated
● Value – the elimination column (more later)
● Intercompany Partner – based on Entity dimension
● Unlimited custom-defined dimensions (as of 11.1.2.2)
● Minimum of two
● Previously four required custom dimensions

14. #Kscope
Subcube dimensions
Subcube coordinates
(sparse)
● Scenario
● Year
● Entity
● Value (Currency/Node)
Inside subcube (dense)
● Period
● Accounts
● Intercompany
● Customs

15. #Kscope
Same cube concept, but processing in RAM is
very different....

16. #Kscope

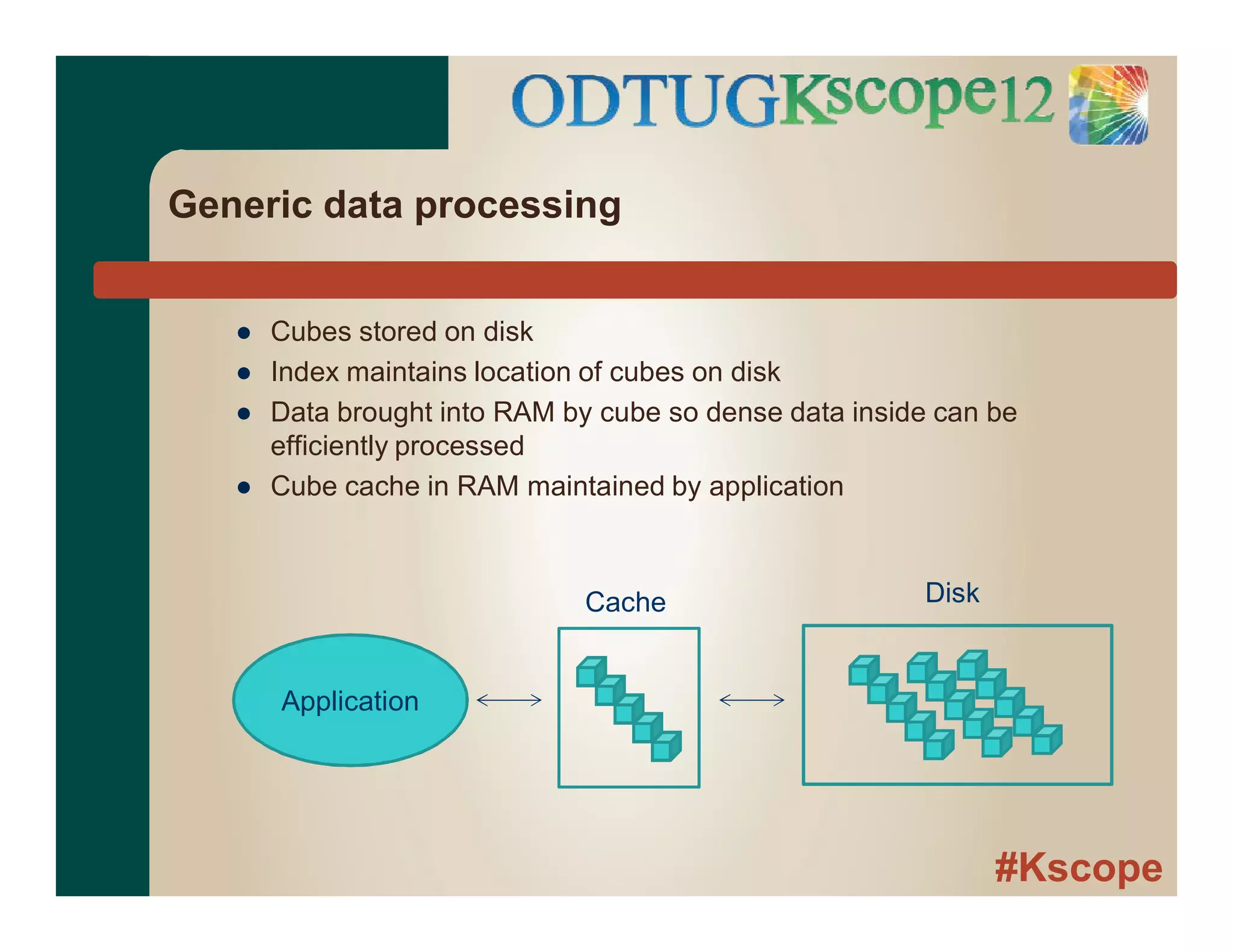

Generic data processing
● Cubes stored on disk
● Index maintains location of cubes on disk
● Data brought into RAM by cube so dense data inside can be
efficiently processed
● Cube cache in RAM maintained by application
Application
Cache Disk

17. #Kscope

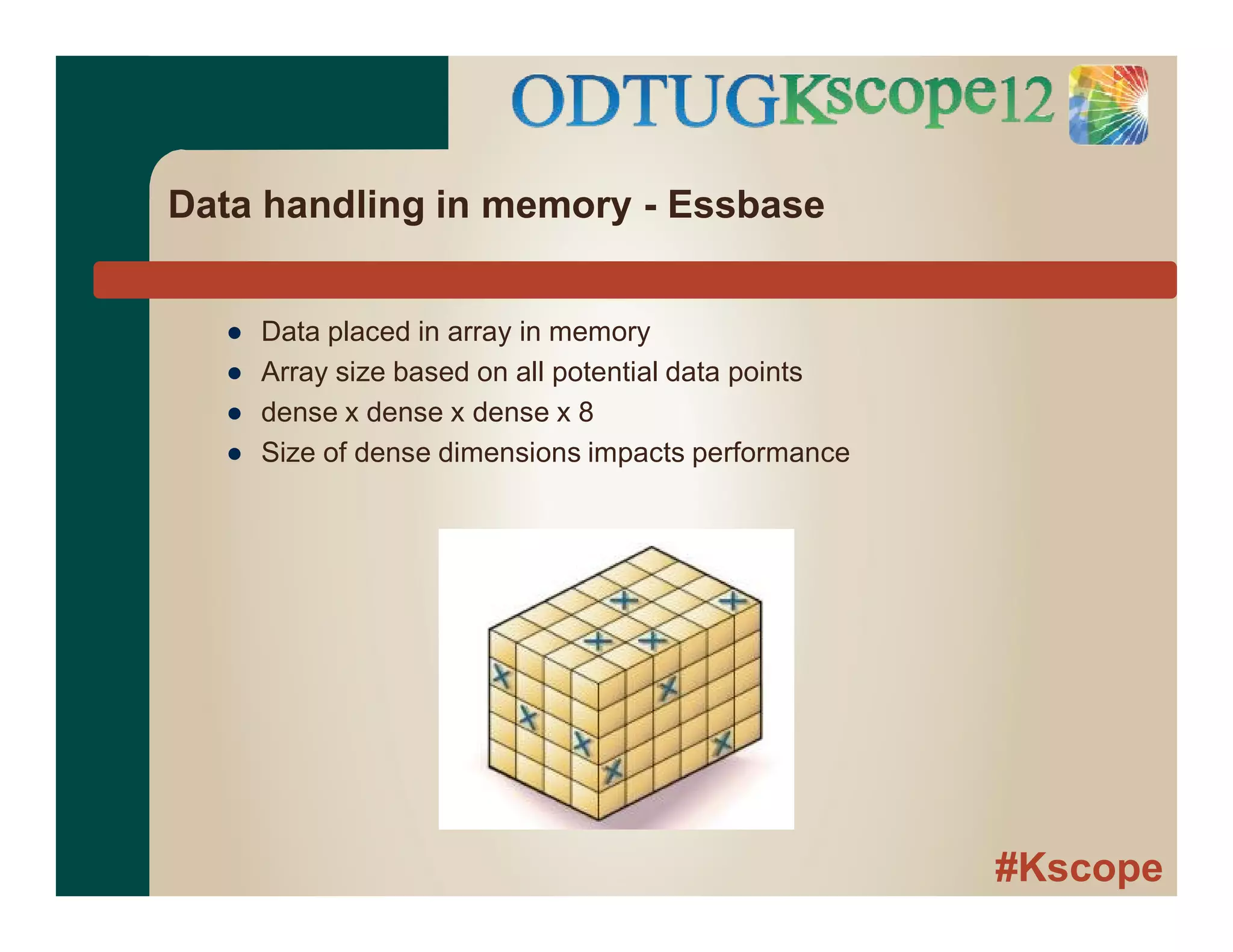

Data handling in memory - Essbase
● Data placed in array in memory
● Array size based on all potential data points
● dense x dense x dense x 8
● Size of dense dimensions impacts performance

18. #Kscope

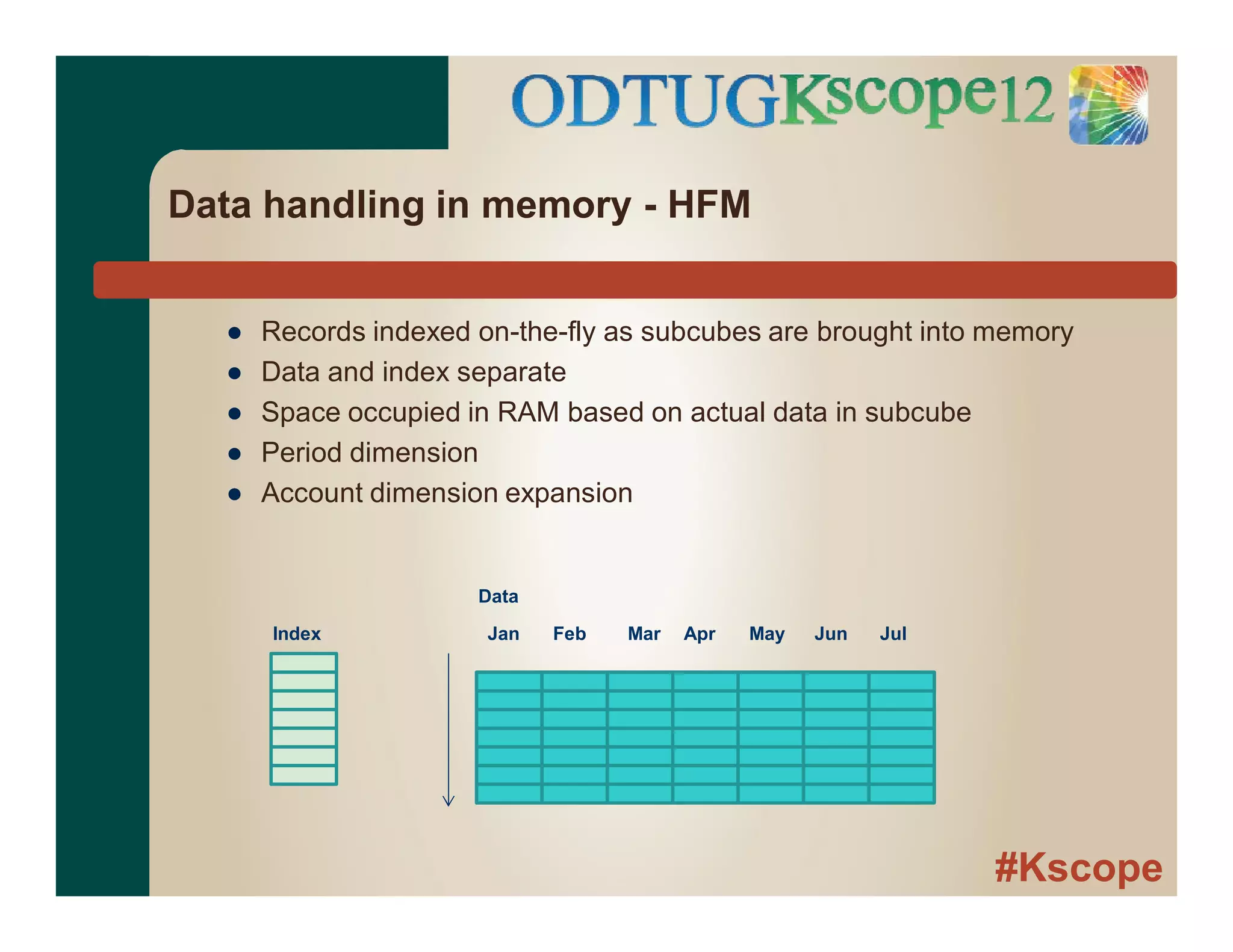

Data handling in memory - HFM
● Records indexed on-the-fly as subcubes are brought into memory
● Data and index separate
● Space occupied in RAM based on actual data in subcube
● Period dimension
● Account dimension expansion
Index
Data
Jan Feb Mar Apr May Jun Jul

19. #Kscope

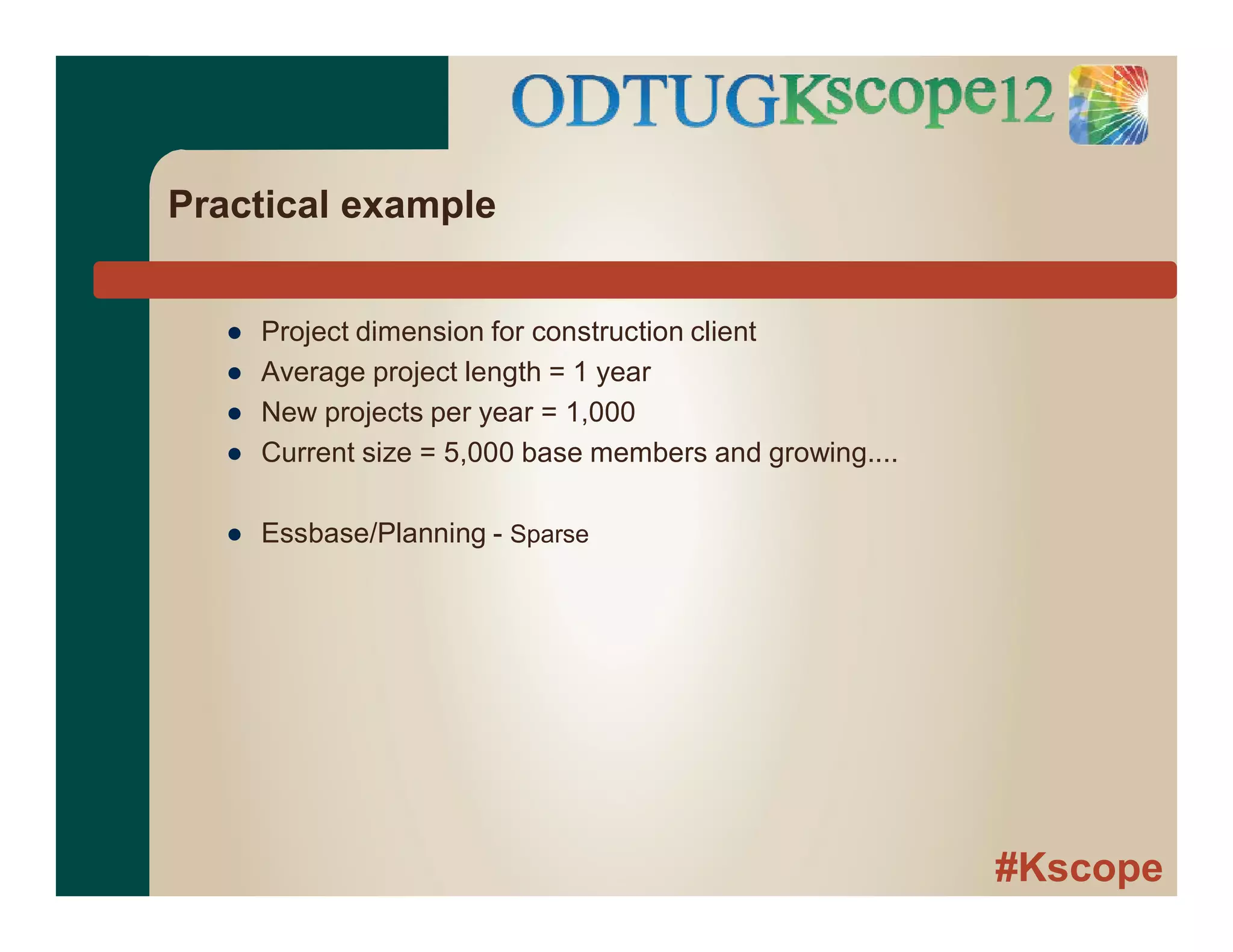

Practical example
● Project dimension for construction client
● Average project length = 1 year
● New projects per year = 1,000
● Current size = 5,000 base members and growing....
● Essbase/Planning - Sparse

20. #Kscope

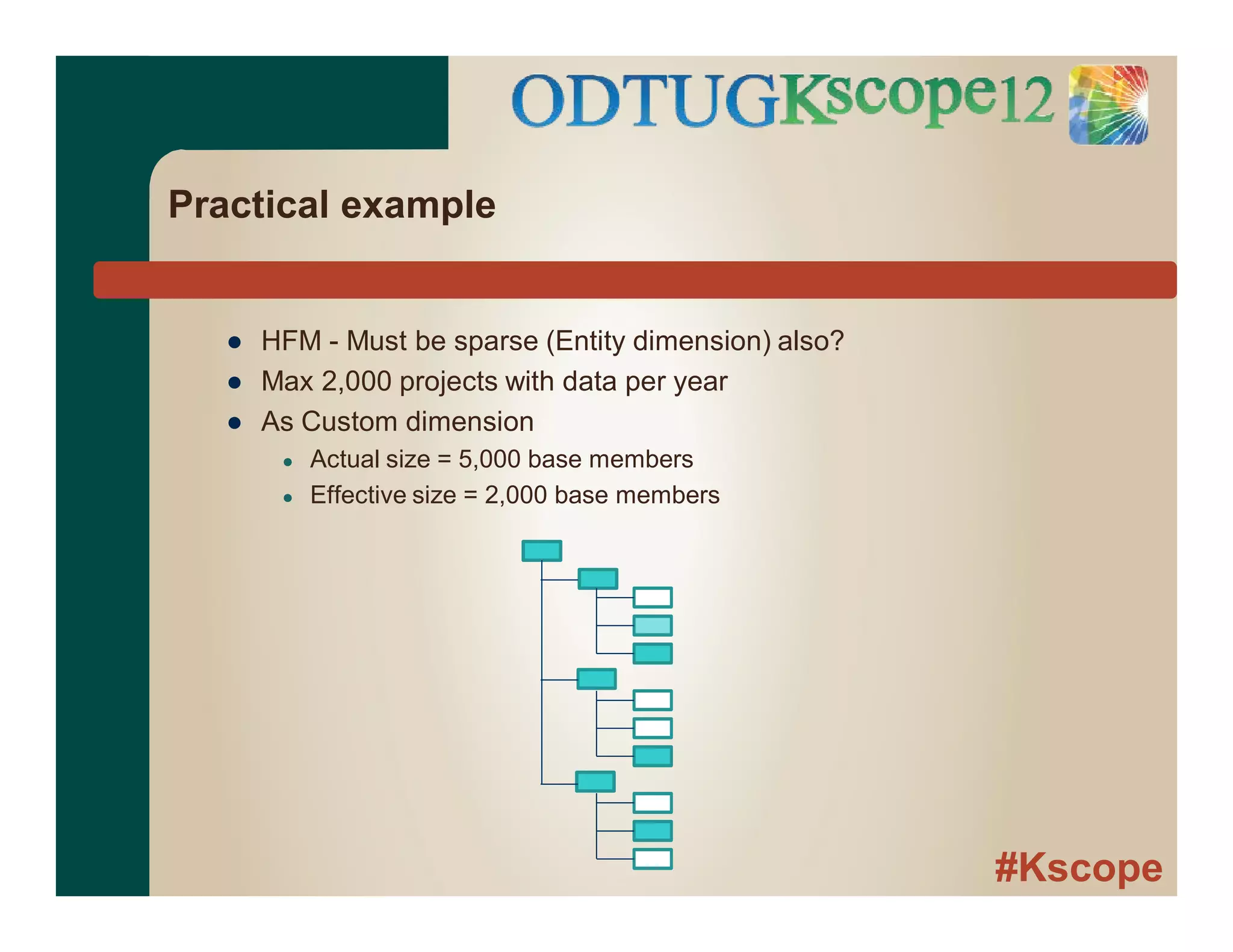

Practical example
● HFM - Must be sparse (Entity dimension) also?
● Max 2,000 projects with data per year
● As Custom dimension
● Actual size = 5,000 base members
● Effective size = 2,000 base members

21. #Kscope

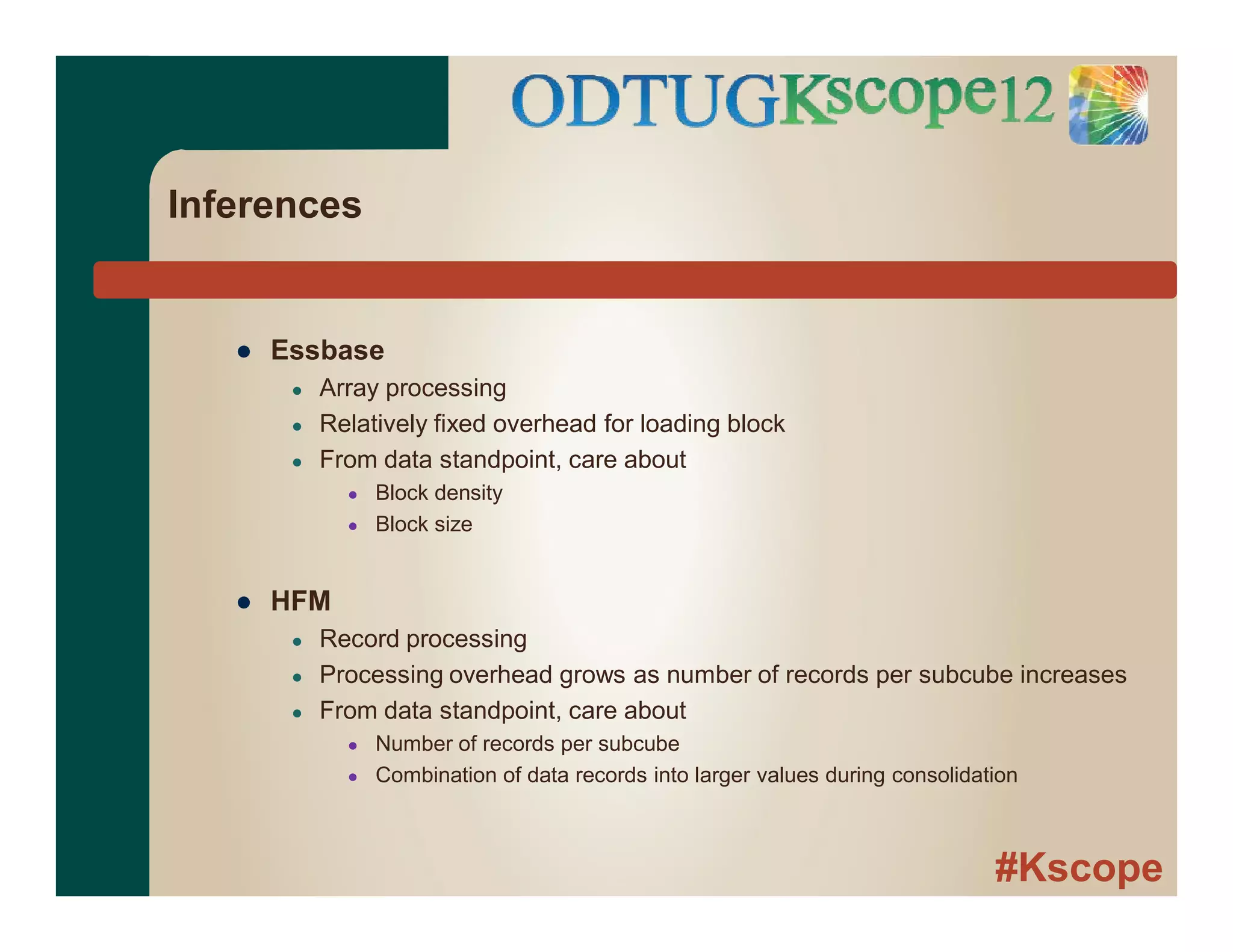

Inferences
● Essbase
● Array processing
● Relatively fixed overhead for loading block
● From data standpoint, care about
● Block density
● Block size
● HFM
● Record processing
● Processing overhead grows as number of records per subcube increases
● From data standpoint, care about
● Number of records per subcube
● Combination of data records into larger values during consolidation

22. #Kscope

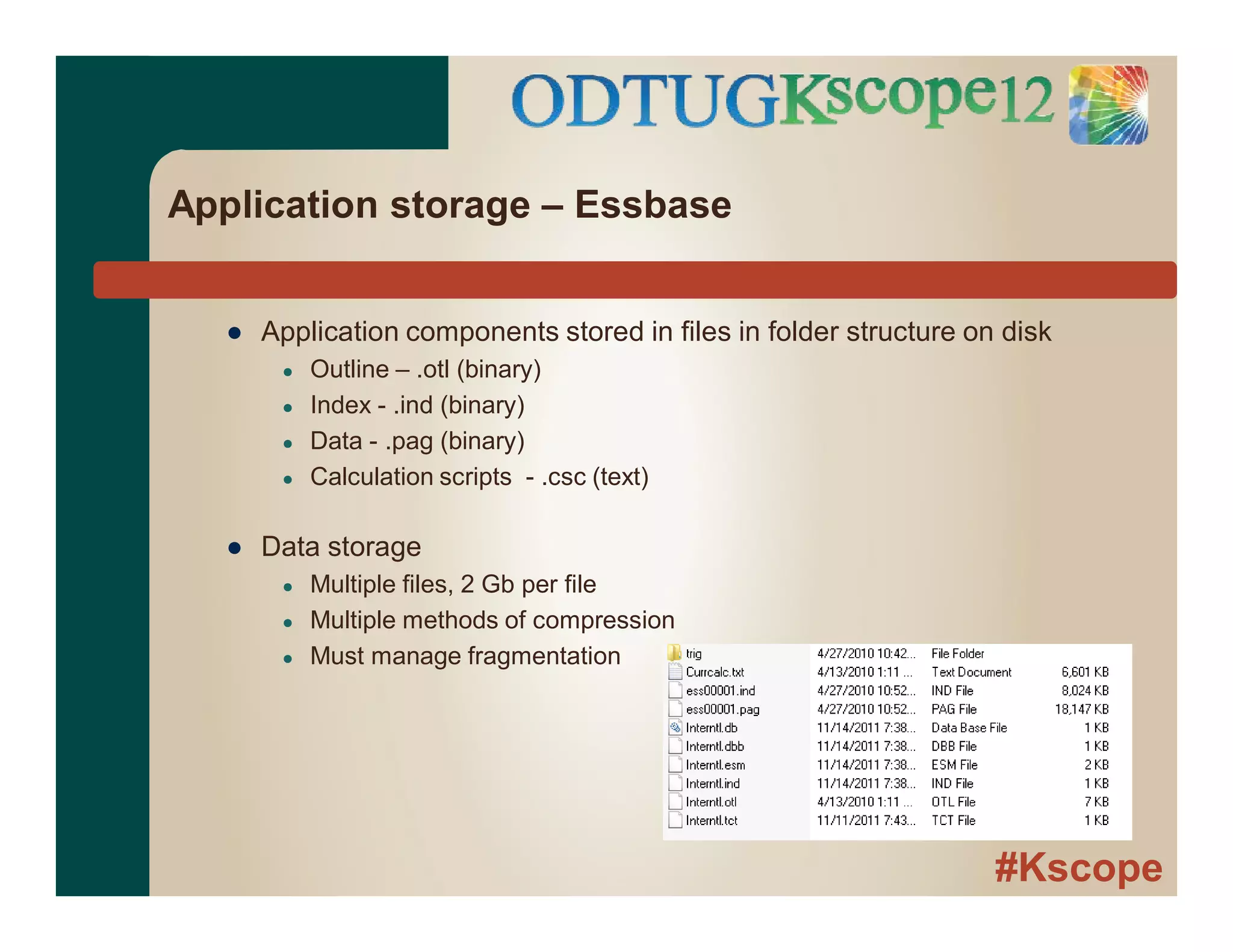

Application storage – Essbase
● Application components stored in files in folder structure on disk
● Outline – .otl (binary)
● Index - .ind (binary)
● Data - .pag (binary)
● Calculation scripts - .csc (text)
● Data storage
● Multiple files, 2 Gb per file
● Multiple methods of compression
● Must manage fragmentation

23. #Kscope
Application storage – HFM
● Relational Database
● All application components stored in database
● Data, hierarchies, forms, grids, etc.
● Hierarchies and data separate
● Linked via member IDs
● Separate table for each scenario, year with data –
● Mirrors subcube
● Only base data within subcube stored

24. #Kscope

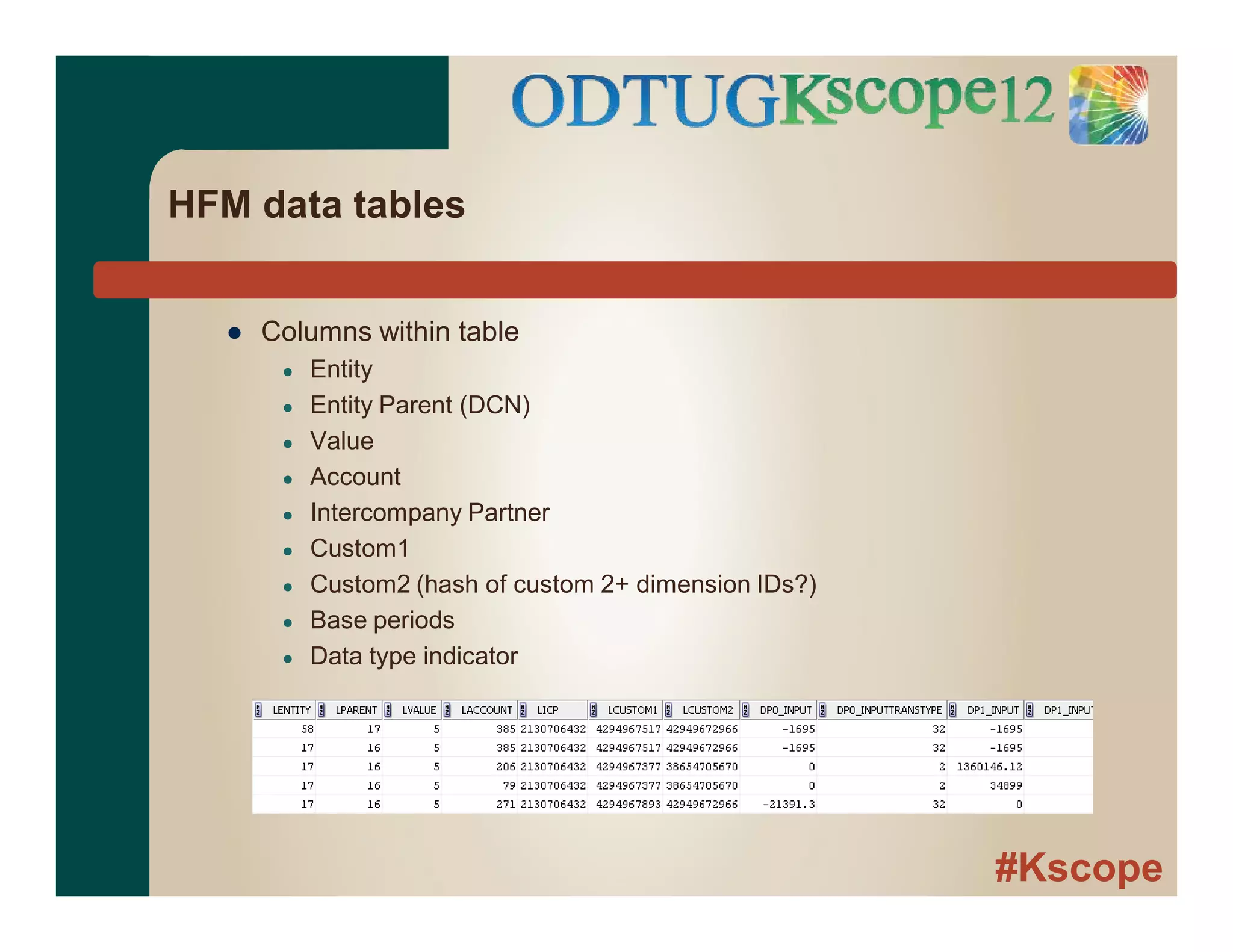

HFM data tables
● Columns within table
● Entity
● Entity Parent (DCN)
● Value
● Account
● Intercompany Partner
● Custom1
● Custom2 (hash of custom 2+ dimension IDs?)
● Base periods
● Data type indicator

25. #Kscope
Key caches - Essbase
● Index Cache
● Buffer for index of blocks on disk
● Max size managed by admin via interface or batch script
● Ideally, 100% of index in buffer
● Data Cache
● Buffer in memory for uncompressed blocks required by Essbase kernel during
processing
● Max size managed by admin via interface or batch script
● Setting loosely based on usage, available memory and application size
● Allocated in memory as blocks requested
● Specialized caches for supporting calculations

26. #Kscope

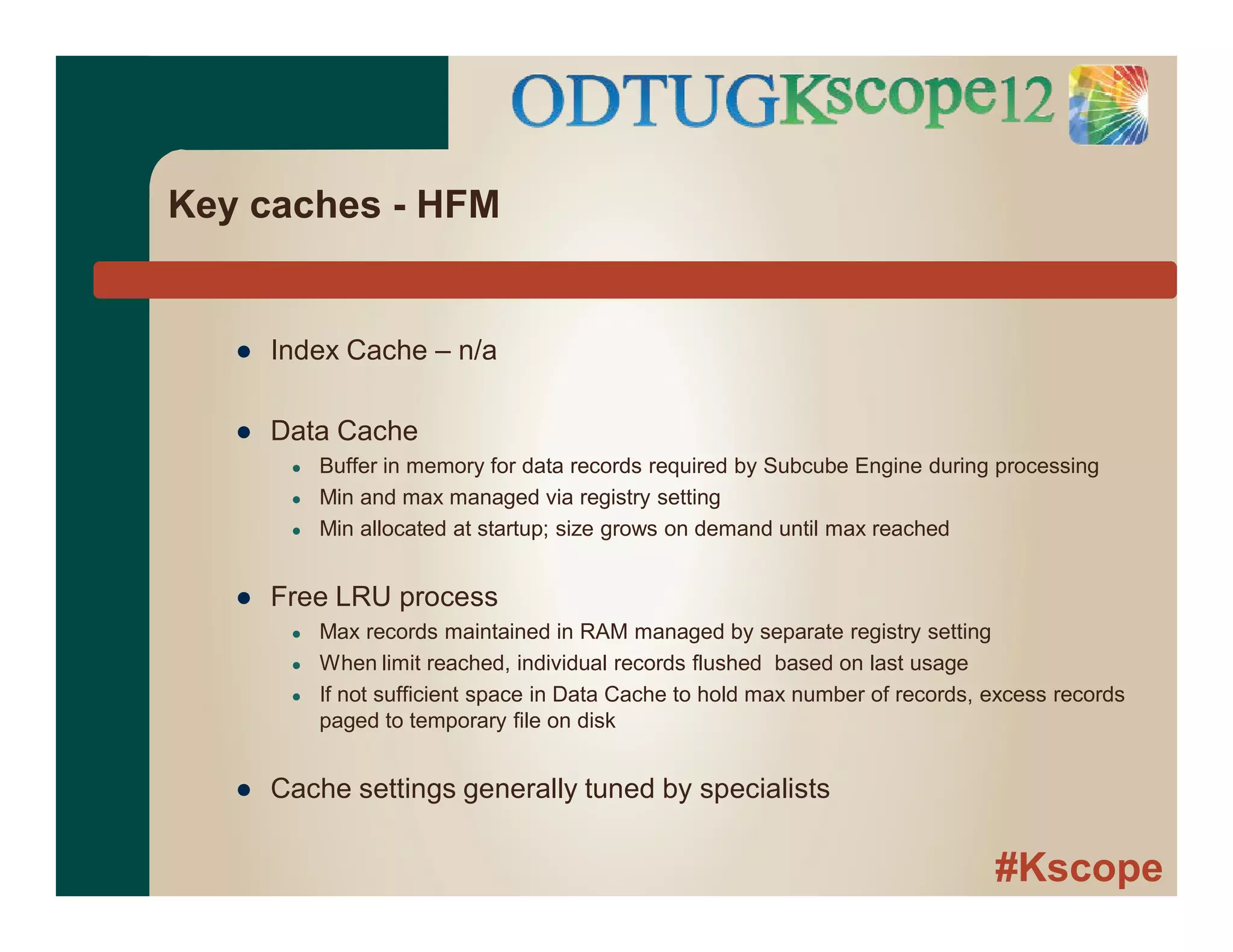

Key caches - HFM
● Index Cache – n/a
● Data Cache
● Buffer in memory for data records required by Subcube Engine during processing
● Min and max managed via registry setting
● Min allocated at startup; size grows on demand until max reached
● Free LRU process
● Max records maintained in RAM managed by separate registry setting
● When limit reached, individual records flushed based on last usage
● If not sufficient space in Data Cache to hold max number of records, excess records
paged to temporary file on disk
● Cache settings generally tuned by specialists

27. #Kscope

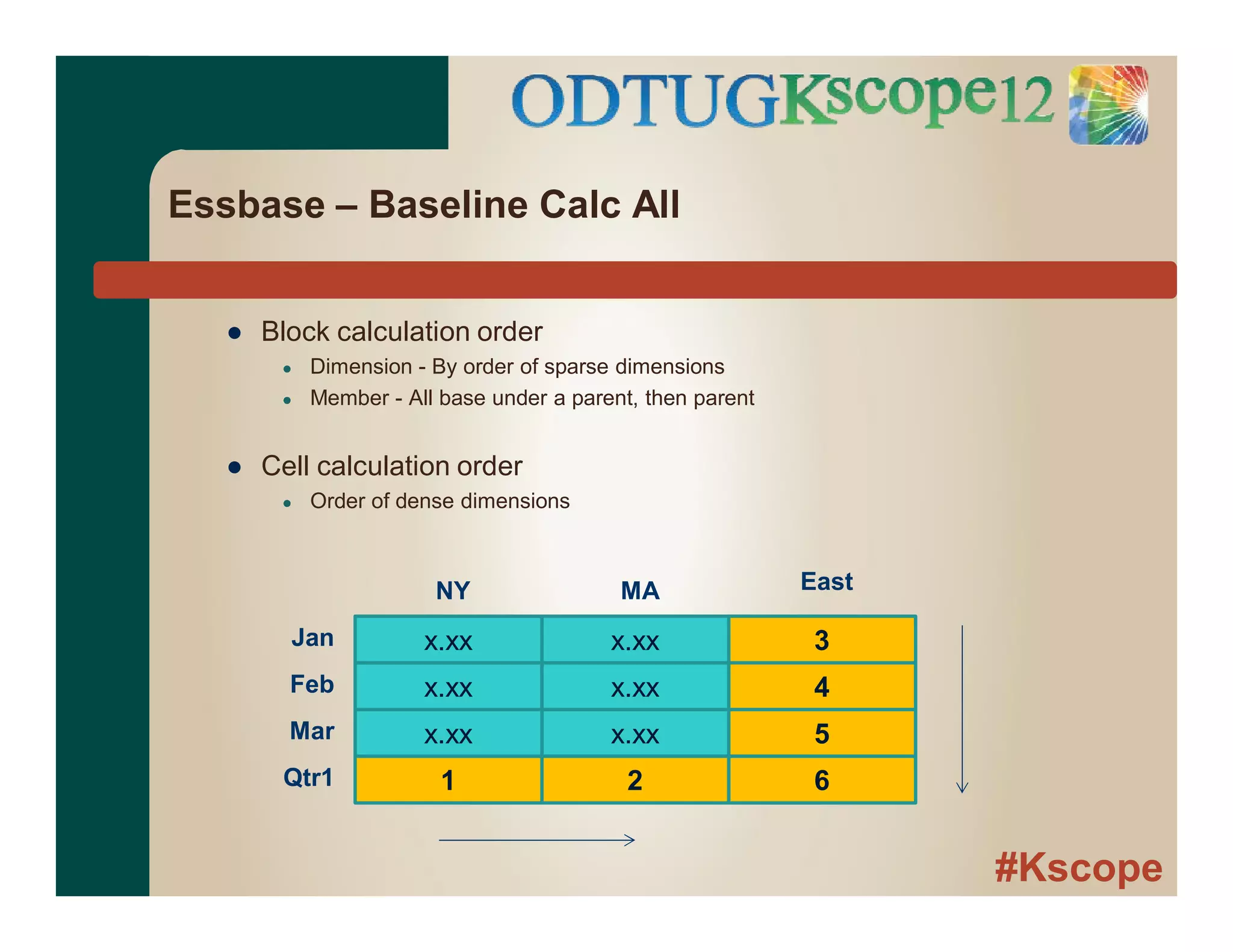

Essbase – Baseline Calc All
● Block calculation order
● Dimension - By order of sparse dimensions
● Member - All base under a parent, then parent
● Cell calculation order
● Order of dense dimensions
Jan x.xx x.xx 3
x.xx x.xx 4
x.xx x.xx 5
1 2 6
Feb
Mar
Qtr1
NY MA East

28. #Kscope

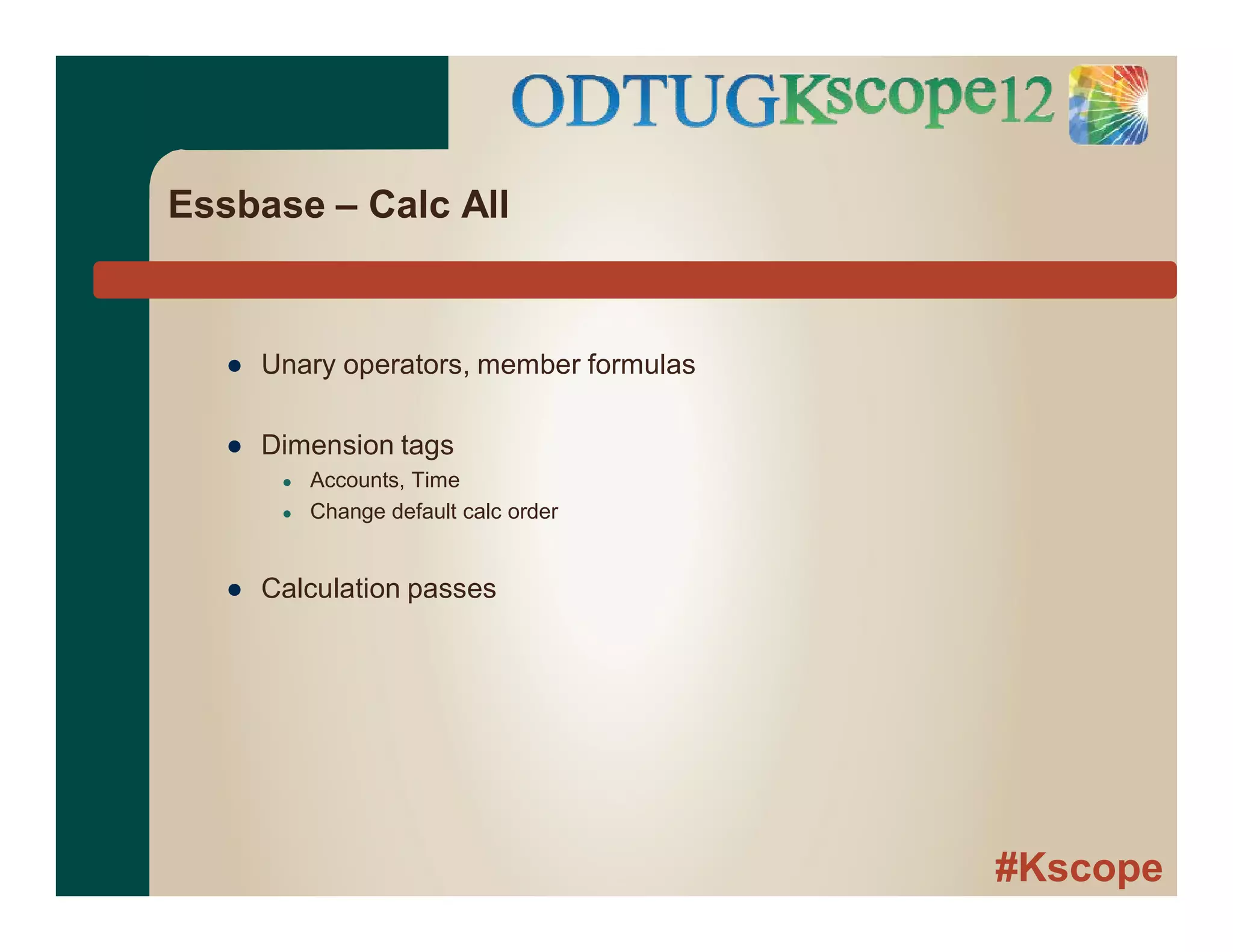

Essbase – Calc All
● Unary operators, member formulas
● Dimension tags
● Accounts, Time
● Change default calc order
● Calculation passes

29. #Kscope
Essbase – calc scripts
● Functions
● Specify members. perform calculations, etc.
● @IDESC (East), @AVG(SKIPNONE, Jan:Dec), etc.
● Calculation commands
● Control flow and issue commands to database
● Fix, Calc All, ClearData, CopyData, etc.

30. #Kscope
Essbase – calc scripts
● Ability to override default calc order
● Calc specific dimensions
● CALC DIM, AGG, etc.
● Calc section of database
● FIX, IF...THEN
● Dimension intersections
● “Dec”->”East”
● Individual member formulas

31. #Kscope

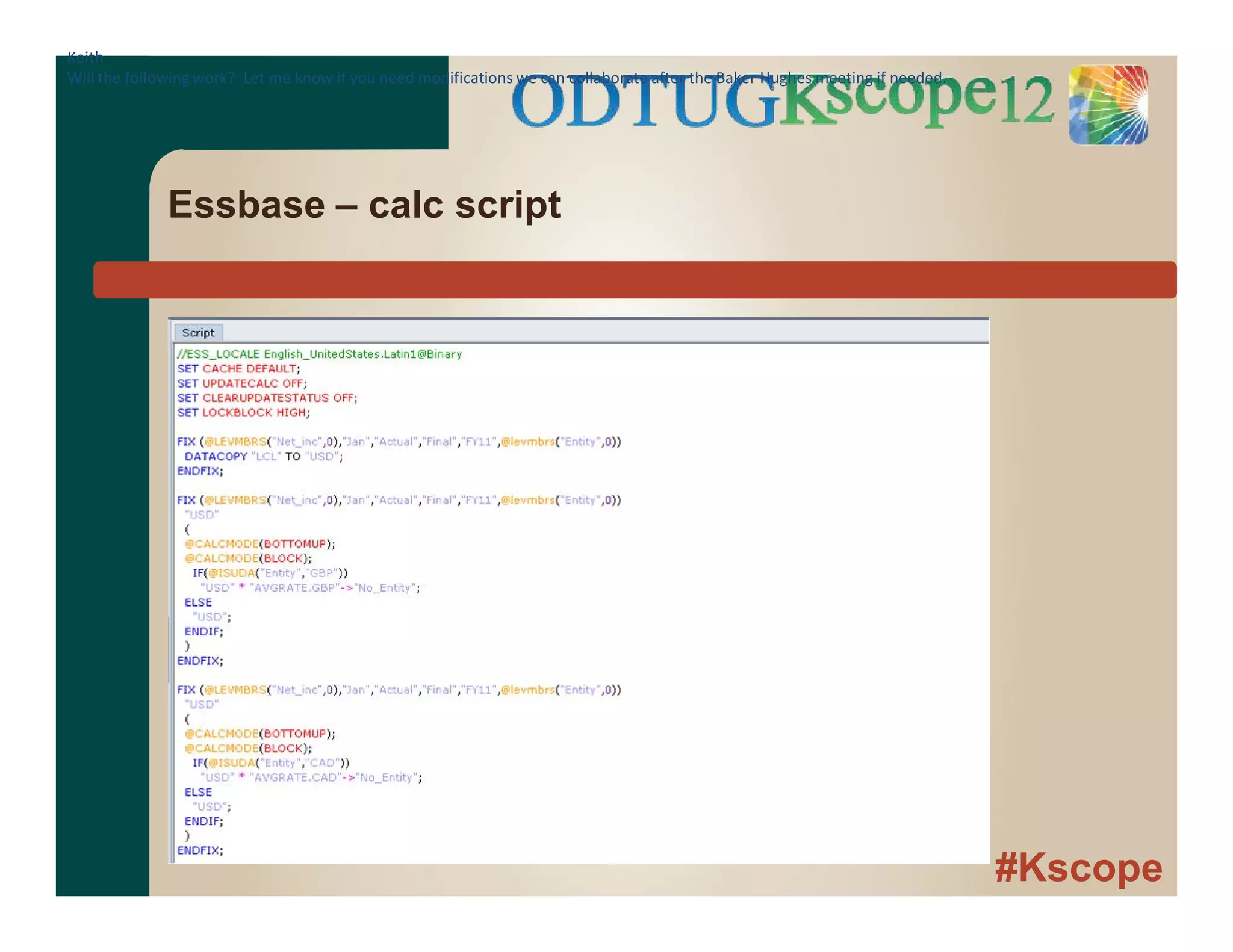

Essbase – calc script
Keith
Will the following work? Let me know if you need modifications we can collaborate after the Baker Hughes meeting if needed.

32. #Kscope

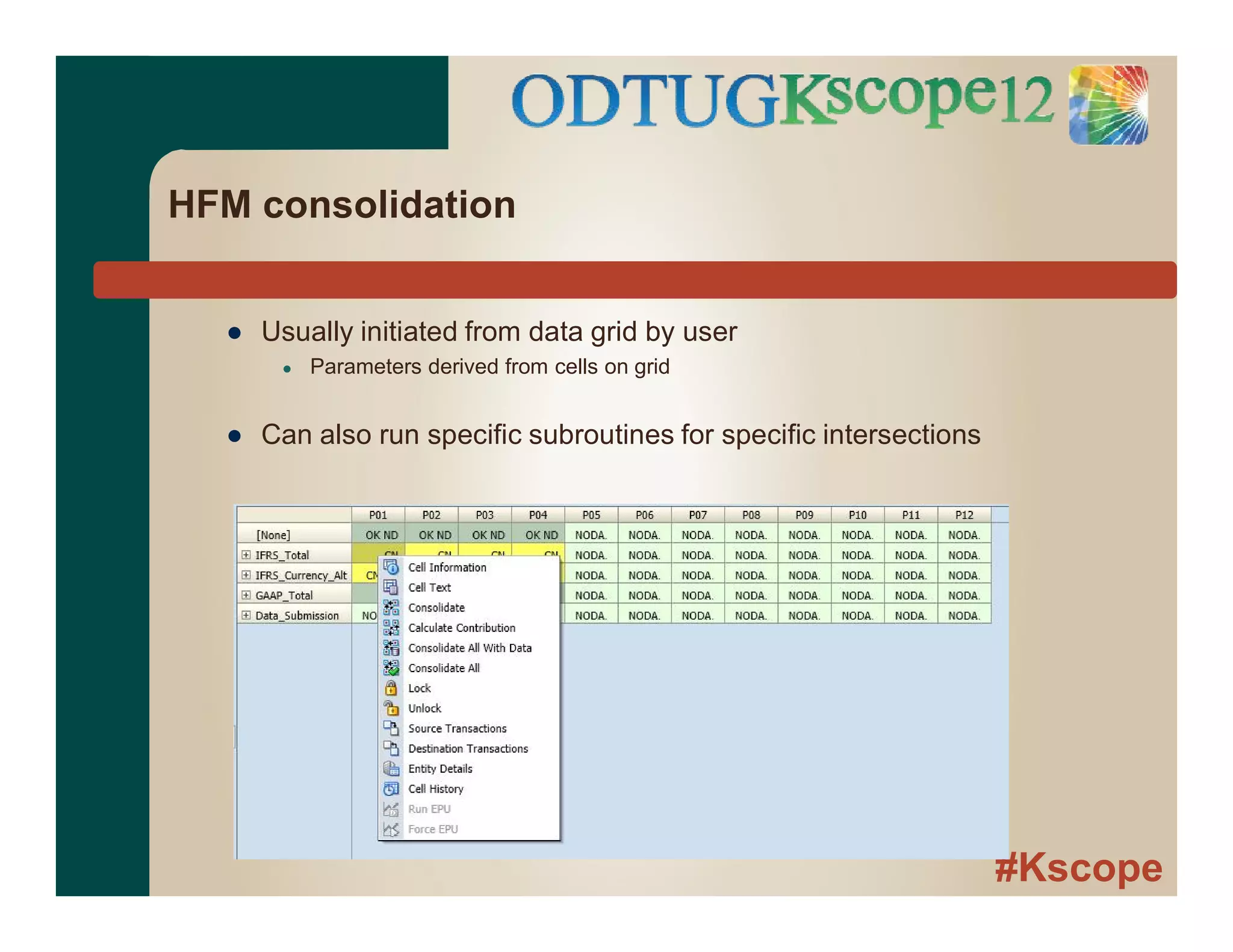

HFM consolidation
● Usually initiated from data grid by user
● Parameters derived from cells on grid
● Can also run specific subroutines for specific intersections

33. #Kscope
HFM Rules File
● Single rules file for application
● VBScript
● Interact with HFM via HFM objects
● Hs.Exp
● Hs.Member
● Etc.
● Multiple subroutines
● Sub Calculate
● Sub Translate
● Sub Consolidate

34. #Kscope
HFM Rules File

35. #Kscope
HFM Consolidation
● Financial Intelligence
● Assign types to accounts
● Asset, Liability, Expense, etc.
● Types determine addition/subtraction
● Not all dimensions created equal
● Scenario, Year dimension are flat
● Overhead for processing Entity dimension
● Parents in subcube dimensions

36. #Kscope
HFM consolidation
● HFM manages consolidation order
● Subroutines execute at specified points in consolidation
● Rules execute on data within subcube
● Write to base members of subcube
Sub Calculate ( )
Sub Calculate ()
Sub Translate ()
Sub Calculate ( )
Sub Calculate ()

37. #Kscope

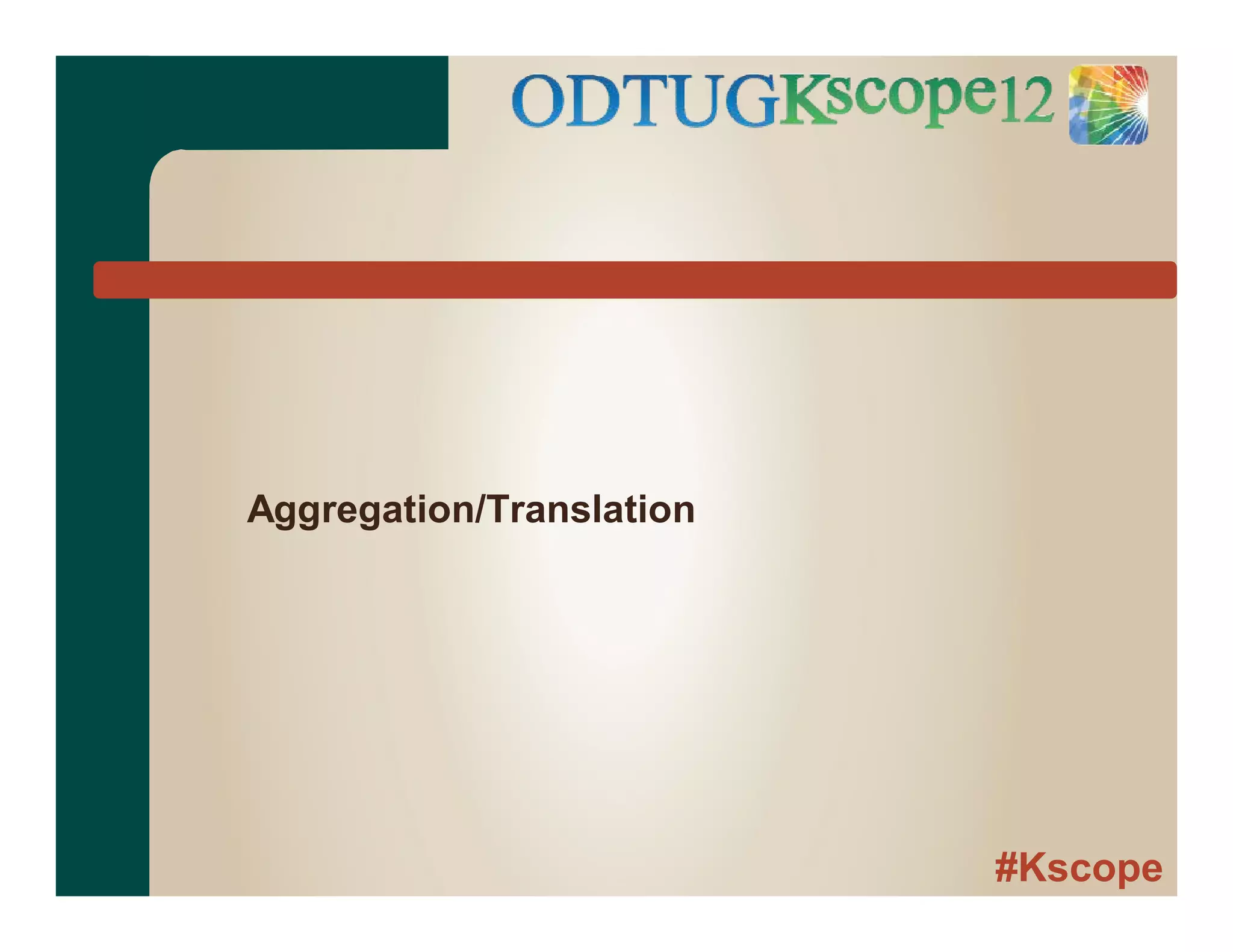

Aggregation/Translation

38. #Kscope

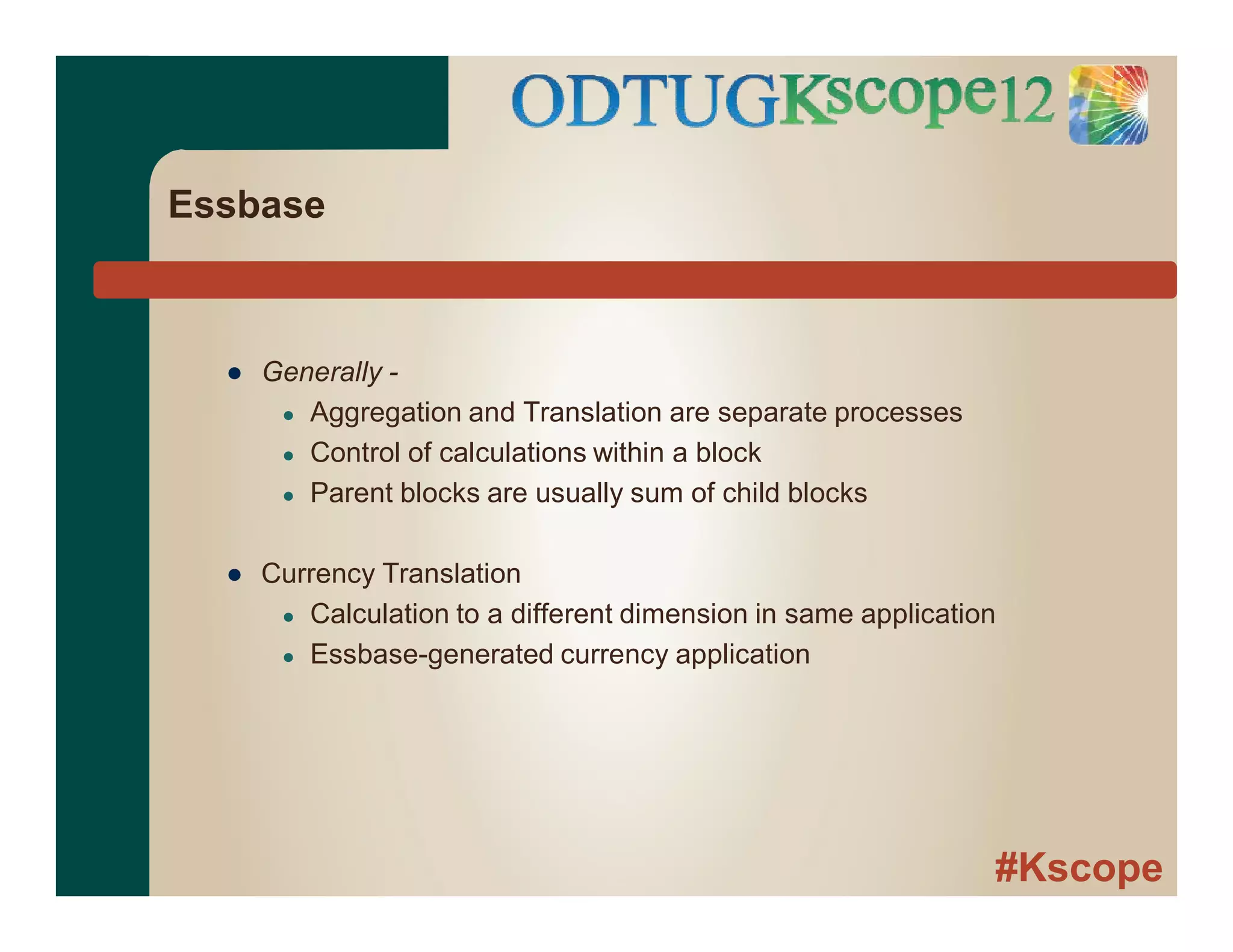

Essbase
● Generally -
● Aggregation and Translation are separate processes
● Control of calculations within a block
● Parent blocks are usually sum of child blocks
● Currency Translation
● Calculation to a different dimension in same application
● Essbase-generated currency application

39. #Kscope

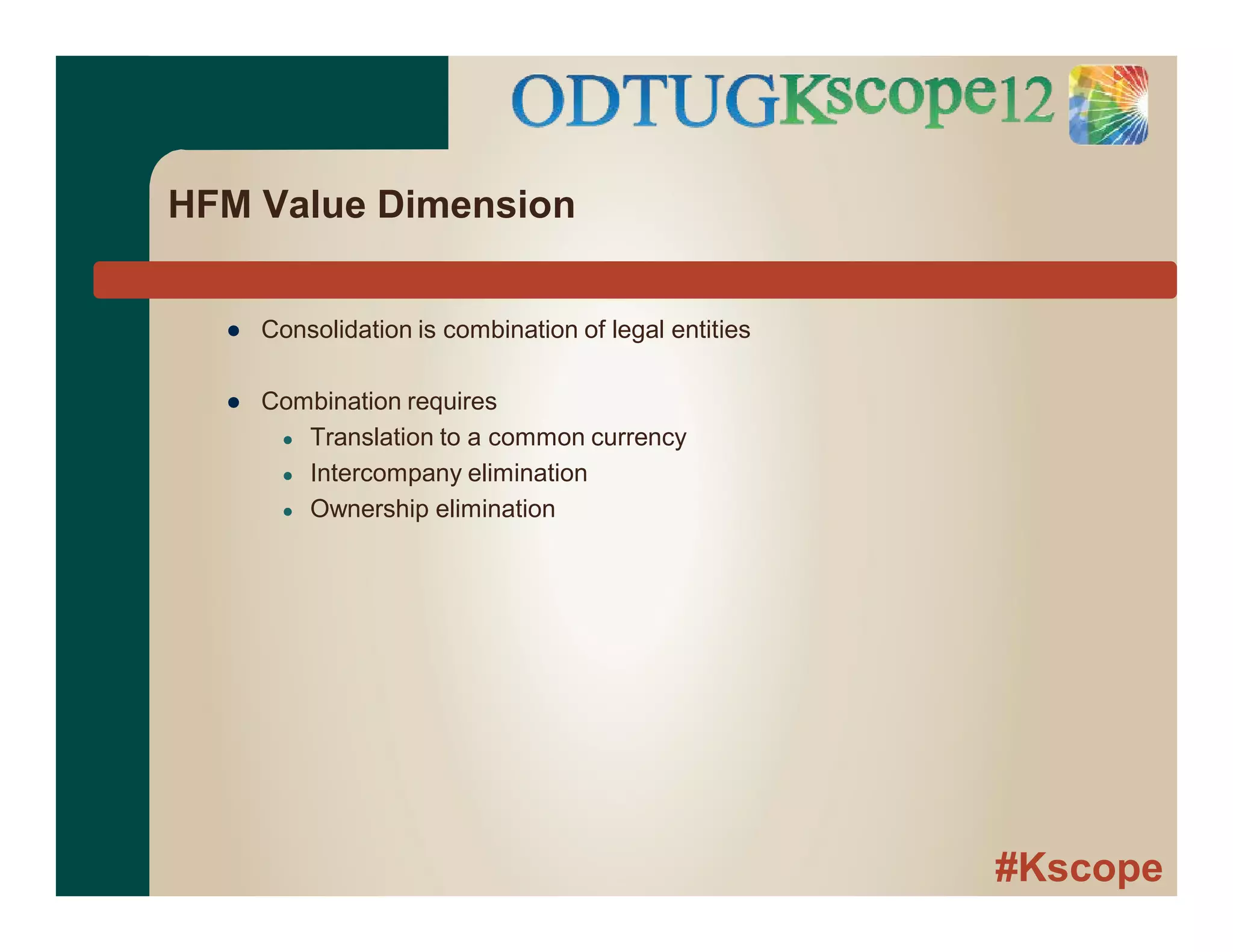

HFM Value Dimension
● Consolidation is combination of legal entities
● Combination requires
● Translation to a common currency
● Intercompany elimination
● Ownership elimination

40. #Kscope

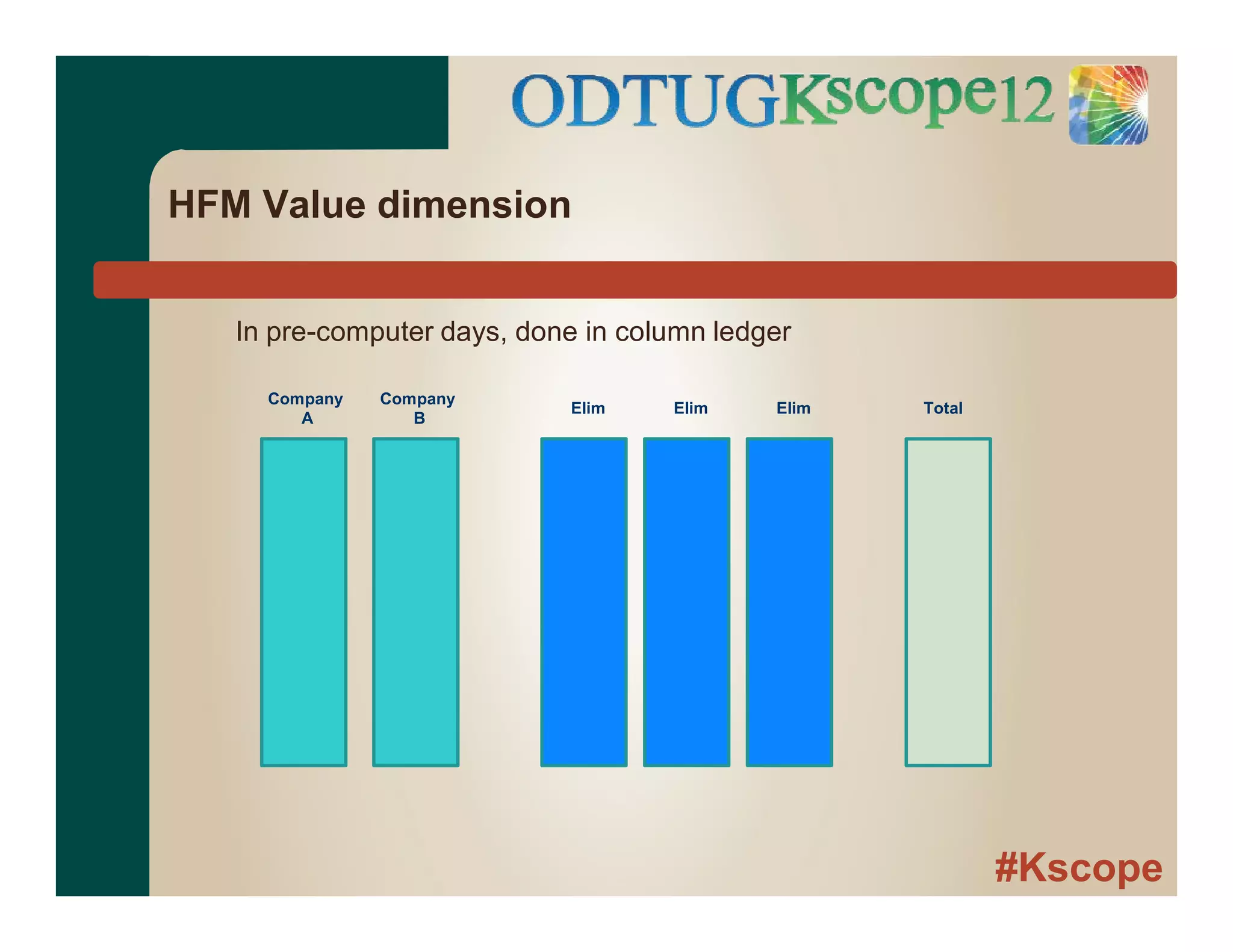

HFM Value dimension
In pre-computer days, done in column ledger
Company
A
Company
B
Elim Elim Elim Total

41. #Kscope
HFM Value Dimension

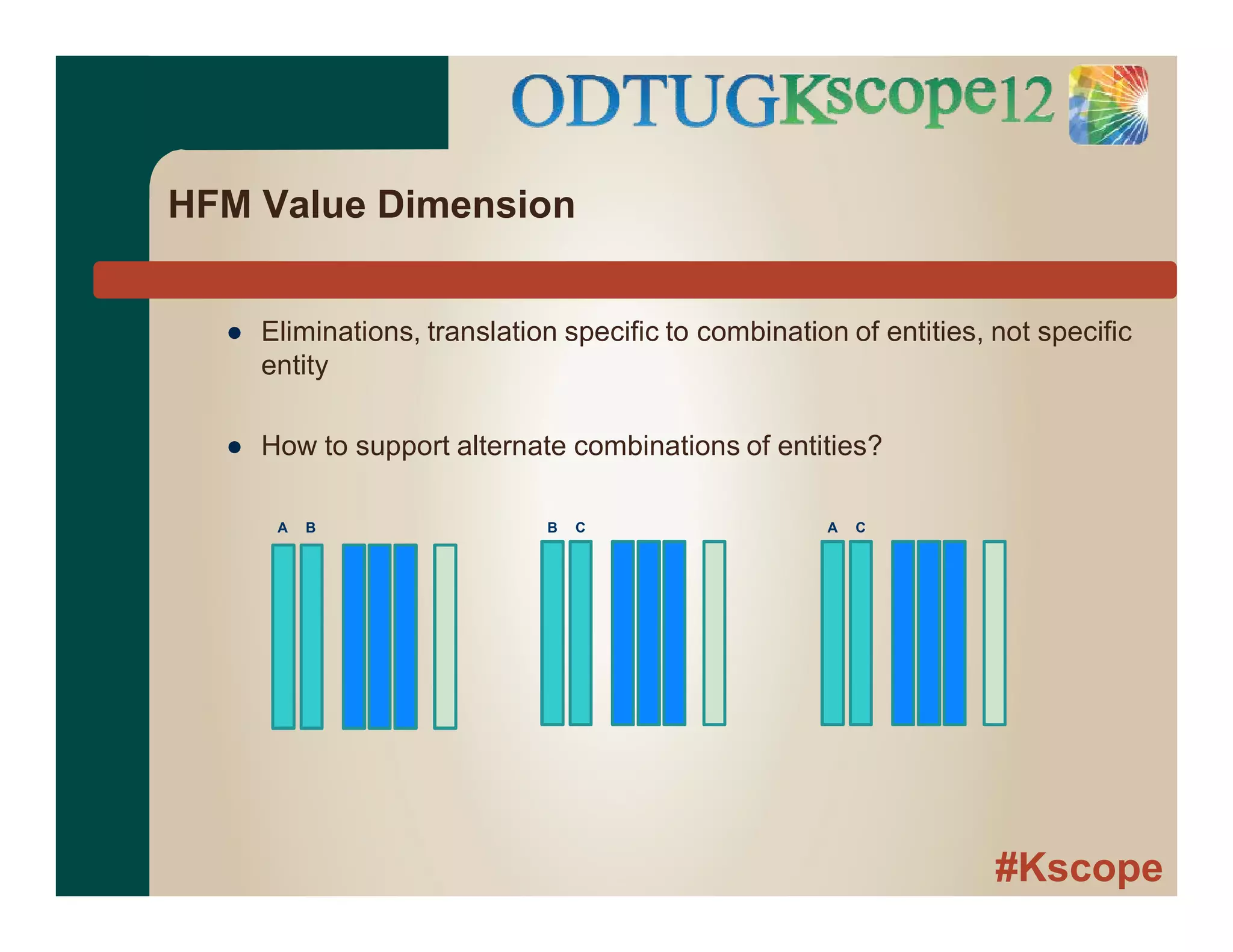

● Eliminations, translation specific to combination of entities, not specific
entity
● How to support alternate combinations of entities?
A B B C A C

42. #Kscope
HFM Value Dimension
A
B
B
C

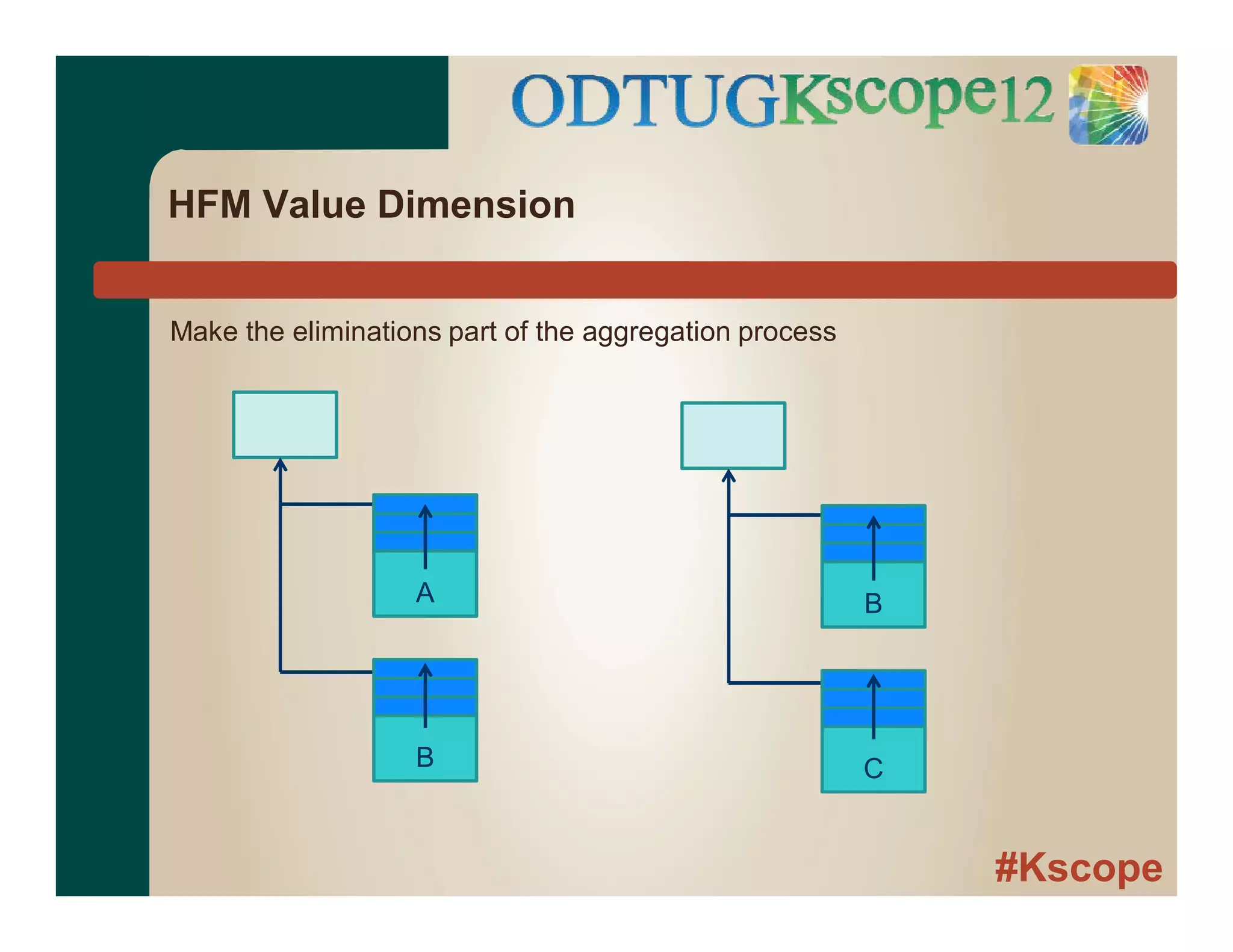

Make the eliminations part of the aggregation process

43. #Kscope

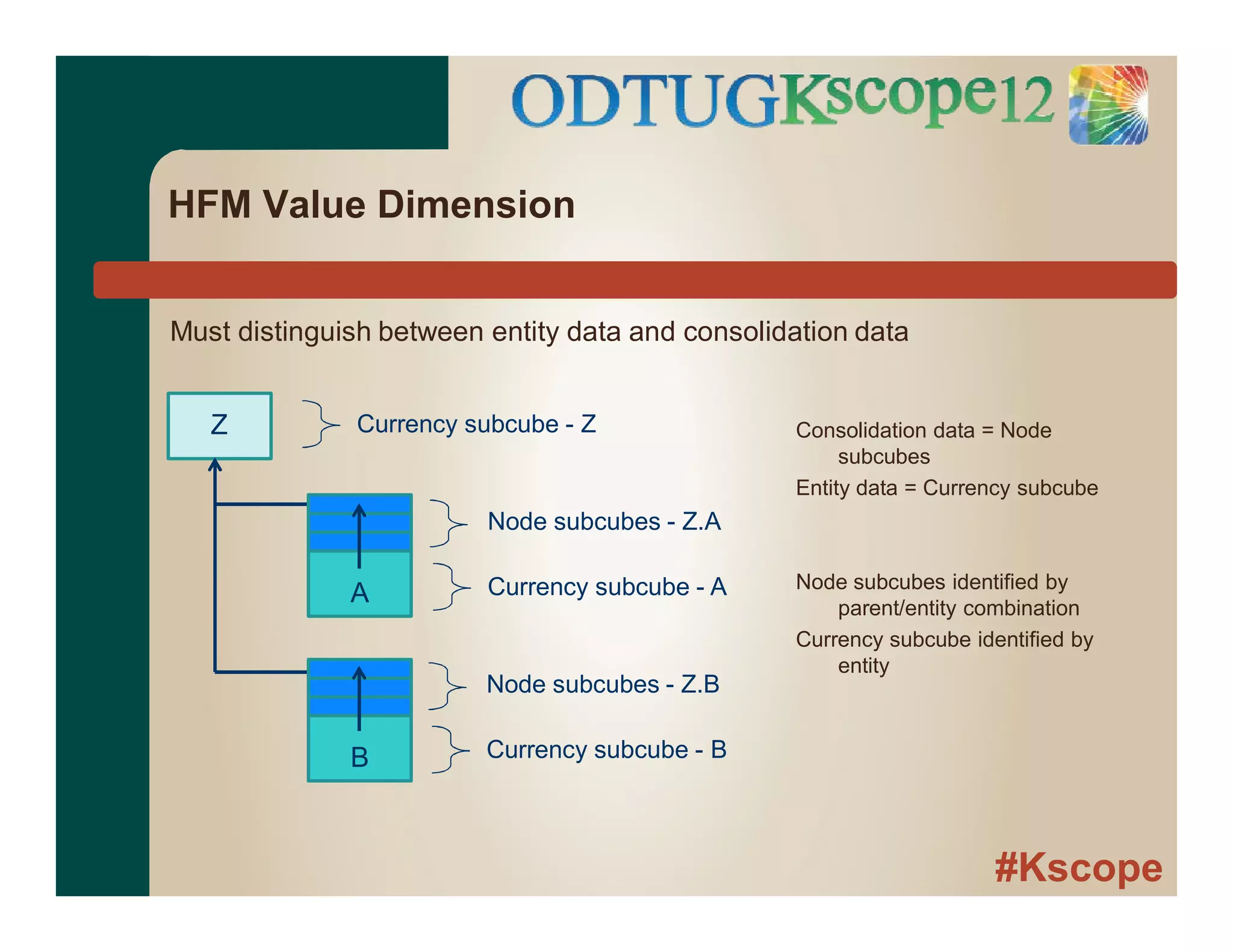

HFM Value Dimension
Must distinguish between entity data and consolidation data
A
B
Node subcubes - Z.B
Currency subcube - B
Z
Node subcubes - Z.A
Currency subcube - A
Currency subcube - Z Consolidation data = Node
subcubes
Entity data = Currency subcube
Node subcubes identified by
parent/entity combination
Currency subcube identified by
entity

44. #Kscope
HFM Value Dimension
Another view.... One entity is the source of two sets of eliminations
A
X Y

45. #Kscope
HFM Value Dimension
EUR
EUR
With translation
USD

46. #Kscope

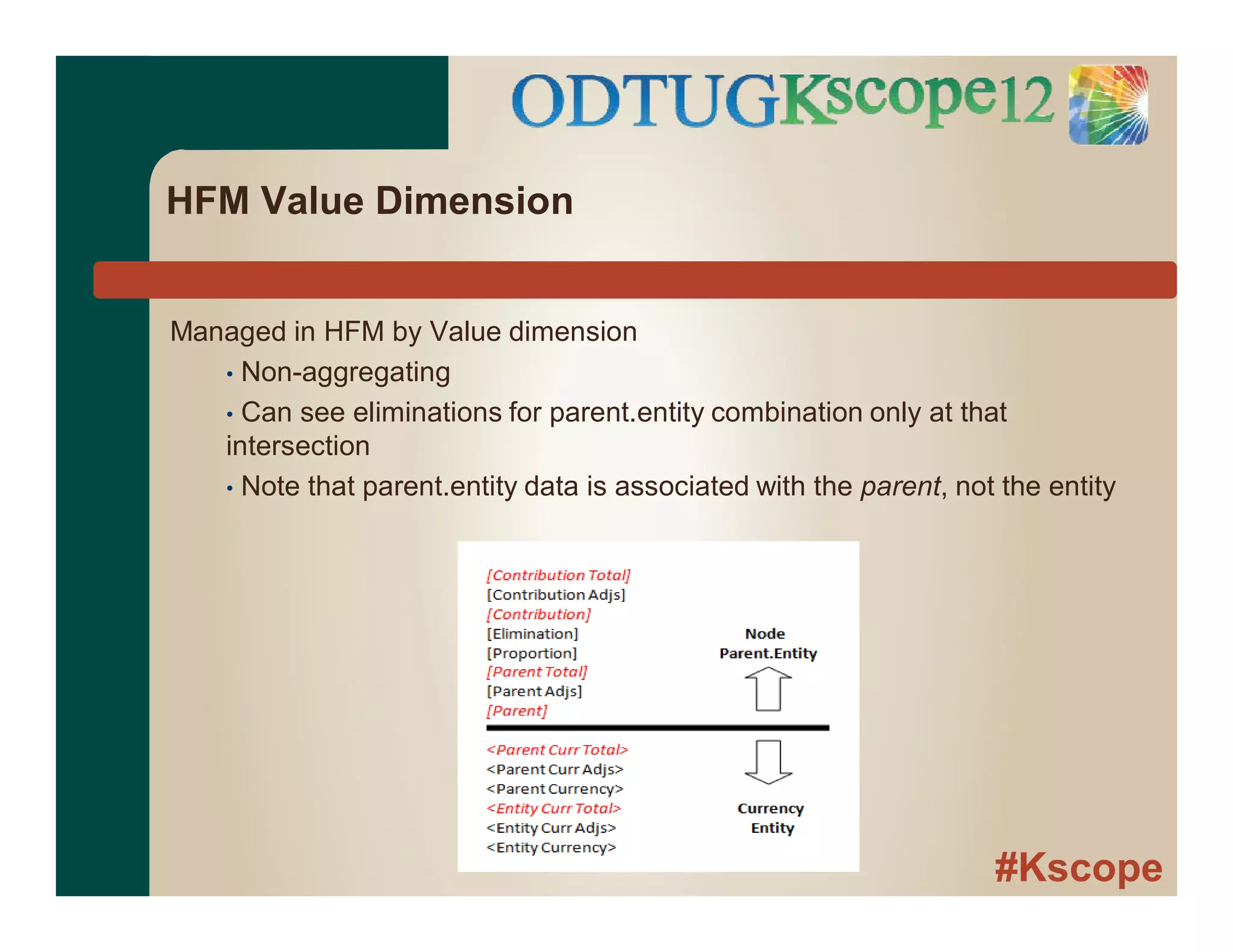

HFM Value Dimension
Managed in HFM by Value dimension
• Non-aggregating
• Can see eliminations for parent.entity combination only at that
intersection
• Note that parent.entity data is associated with the parent, not the entity

47. #Kscope
HFM Value Dimension

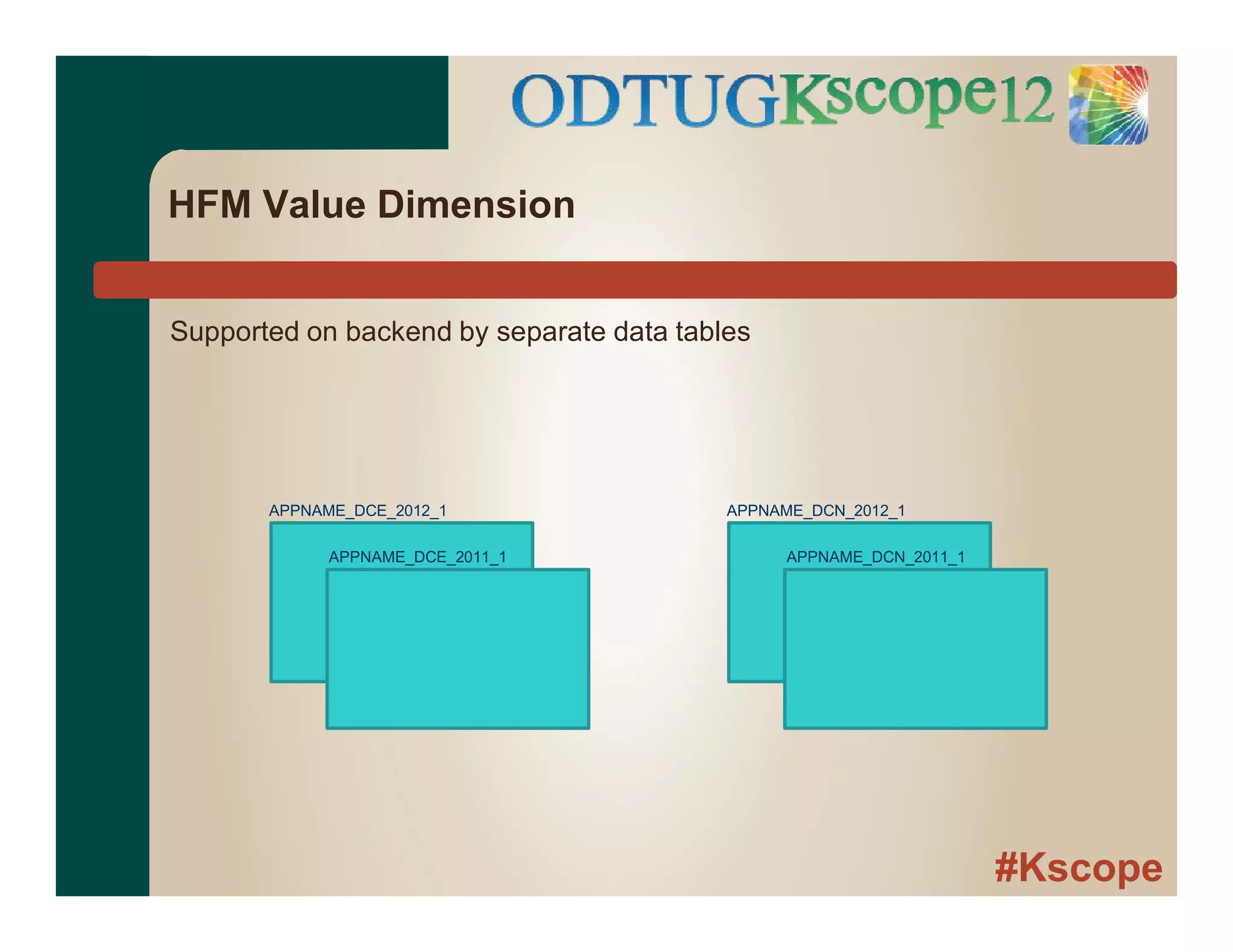

Supported on backend by separate data tables
APPNAME_DCE_2012_1
APPNAME_DCE_2011_1
APPNAME_DCN_2012_1
APPNAME_DCN_2011_1

48. #Kscope

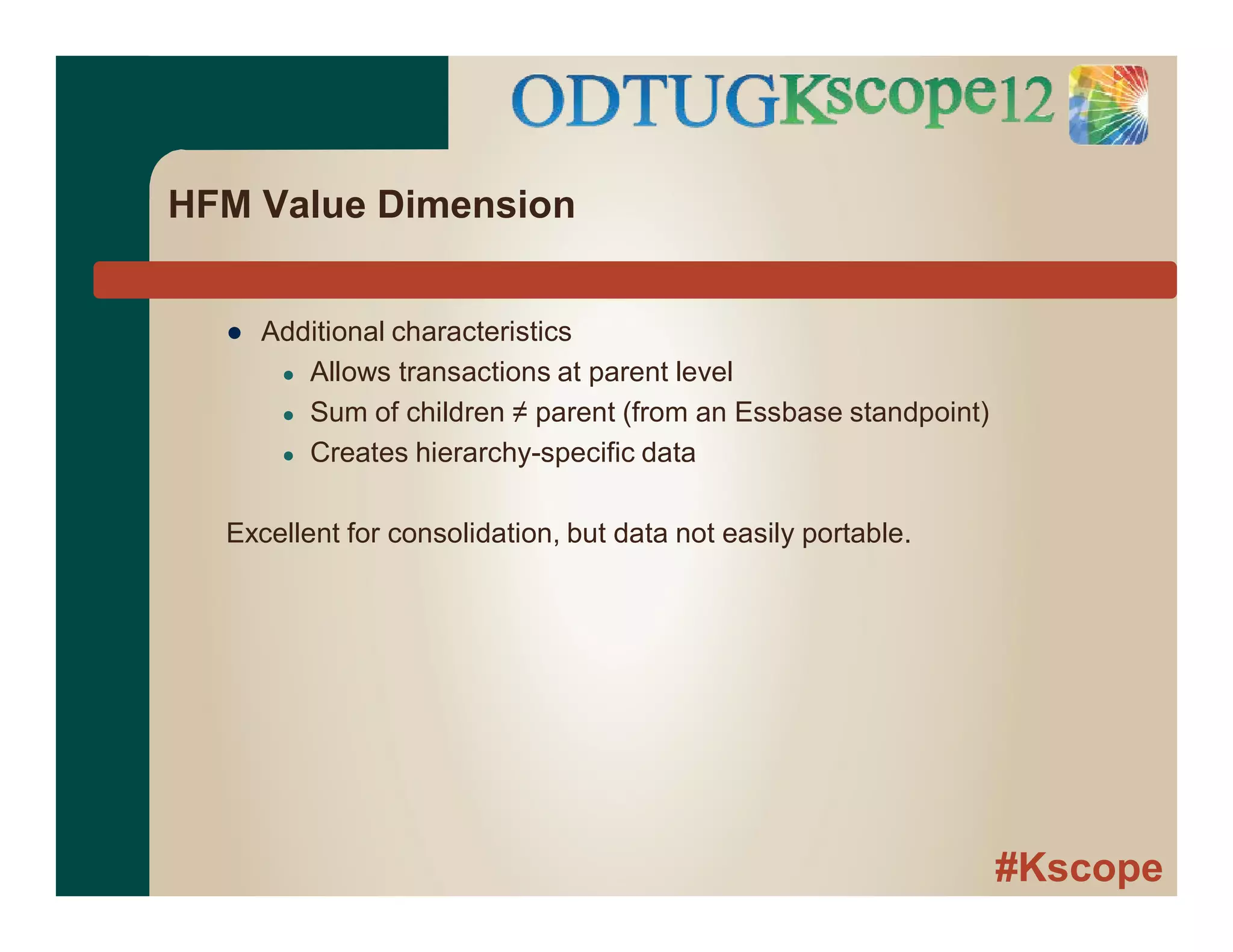

HFM Value Dimension
● Additional characteristics
● Allows transactions at parent level
● Sum of children ≠ parent (from an Essbase standpoint)
● Creates hierarchy-specific data
Excellent for consolidation, but data not easily portable.

49. #Kscope
Questions?
