IMAX is a large format motion picture film format and projection standard with higher resolution than traditional film systems. It achieves its effect through large film format, a specialized six-channel sound system, a custom projection system designed for IMAX screens, and theaters specially built for IMAX screens. The IMAX 3D camera is a large, heavy camera capable of shooting at different frame rates on 1000ft or 2500ft film magazines using a dual 15 perf 65mm film movement. It has a 180 degree shutter and digital crystal speed selection. IMAX projectors use a dual projector system with proprietary image enhancement technology to project at increased brightness, contrast and resolution onto customized large IMAX screens, providing an immersive viewing experience.

1. Sebastian
OMILESCU
Sorin FITERO
Submitted to: Submitted By:
Prof. Pankaj Acharya Hemant Kumar
Head of Department B.Tech IV Year
Information Technology Information Technology

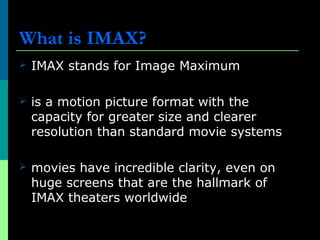

2. What is IMAX?
 IMAX stands for Image Maximum
 is a motion picture format with the
capacity for greater size and clearer
resolution than standard movie systems
 movies have incredible clarity, even on
huge screens that are the hallmark of
IMAX theaters worldwide

3. How is the IMAX effect achieved?
 the large film format
 a six-channel sound system that is separate
from the film
 a unique projection system that is
specifically designed and custom-built
 the theater itself which is specially designed

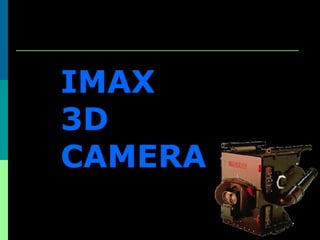

4. IMAX
3D
CAMERA

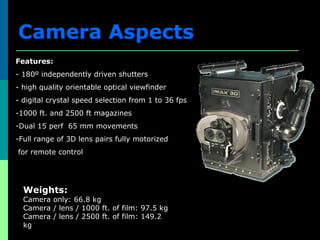

5. Features:
- 180º independently driven shutters
- high quality orientable optical viewfinder
- digital crystal speed selection from 1 to 36 fps
-1000 ft. and 2500 ft magazines
-Dual 15 perf 65 mm movements
-Full range of 3D lens pairs fully motorized
for remote control
Weights:
Camera only: 66.8 kg
Camera / lens / 1000 ft. of film: 97.5 kg
Camera / lens / 2500 ft. of film: 149.2
kg
Dimensions:
Length: 58.8 cm
Width: 50.8 cm
Height: 60.9 cm
Camera Aspects

6. Camera Weight

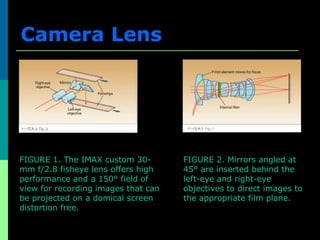

7. FIGURE 1. The IMAX custom 30-
mm f/2.8 fisheye lens offers high
performance and a 150° field of
view for recording images that can
be projected on a domical screen
distortion free.
Camera Lens
FIGURE 2. Mirrors angled at
45° are inserted behind the
left-eye and right-eye
objectives to direct images to
the appropriate film plane.

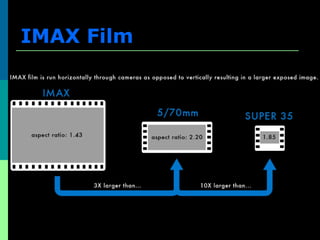

8. IMAX Film

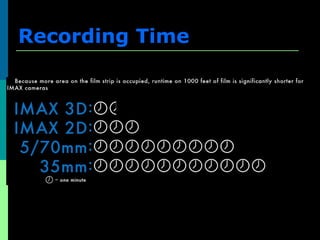

9. Recording Time

10. Number of Films

11. IMAX
PROJECTORS

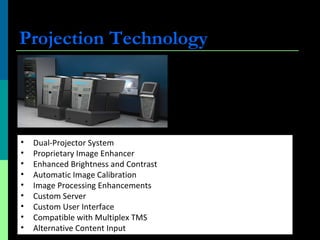

12. Projection Technology
• Dual-Projector System
• Proprietary Image Enhancer
• Enhanced Brightness and Contrast
• Automatic Image Calibration
• Image Processing Enhancements
• Custom Server
• Custom User Interface
• Compatible with Multiplex TMS
• Alternative Content Input

13. Effective Screen Width
 In IMAX theatres, a larger effective screen width is
achieved by bringing the screen closer to the audience.
 IMAX's customized, patented theatre geometry provides an
immersive experience equal to 20 to 230% increased
screen area.

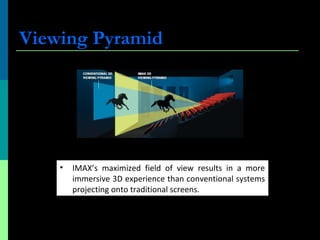

14. Viewing Pyramid
• IMAX’s maximized field of view results in a more
immersive 3D experience than conventional systems
projecting onto traditional screens.

15. Custom Lens Suite
• Proprietary IMAX Immersive
Lens Suite
• Lens Throw Ratio Ranges
IMAX 1 0.83 –
0.97
IMAX 2 1.04 –
1.25

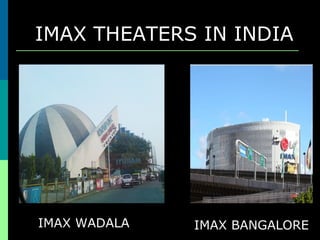

16. IMAX THEATERS IN INDIA
IMAX WADALA IMAX BANGALORE

17. SOME MOVIES MADE IN IMAX FORMAT
FIRST IMAX 3D MOVIE
IMAX 2D MOVIES
