ApacheCon EU 2016 - Apache Camel the integration library
- 1. Apache Camel The Integration Library EU 2016 Claus Ibsen
- 2. Claus Ibsen • Senior Principal Software Engineer at Red Hat • Apache Camel 8+ years commiter and PMC member • Author of Camel in Action books @davsclaus davsclaus davsclaus.com claus.ibsen@gmail.com

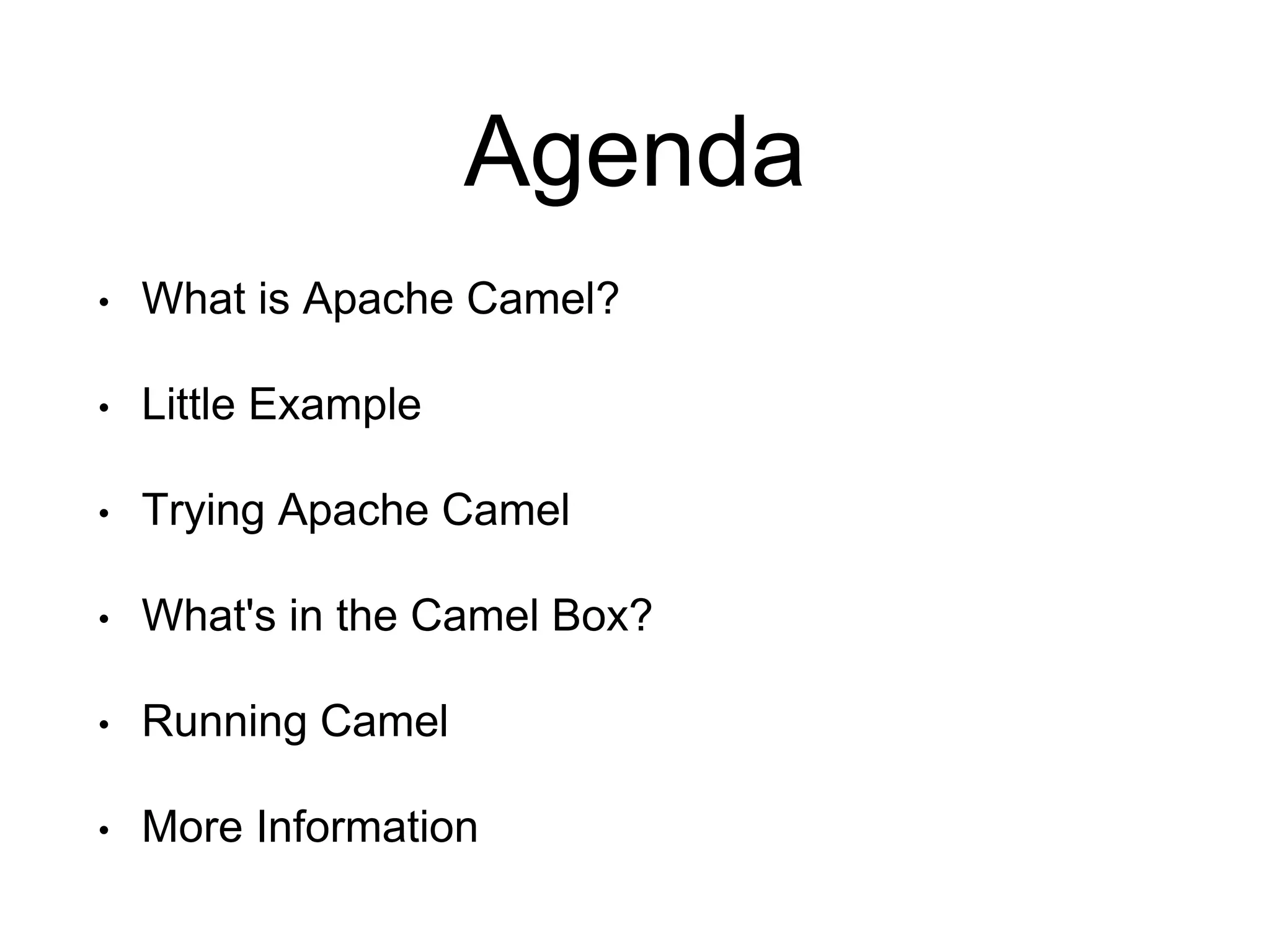

- 3. Agenda • What is Apache Camel? • Little Example • Trying Apache Camel • What's in the Camel Box? • Running Camel • More Information
- 4. What is Apache Camel? • Quote from the website Apache Camel is a powerful Open Source Integration Framework based on Enterprise Integration Patterns

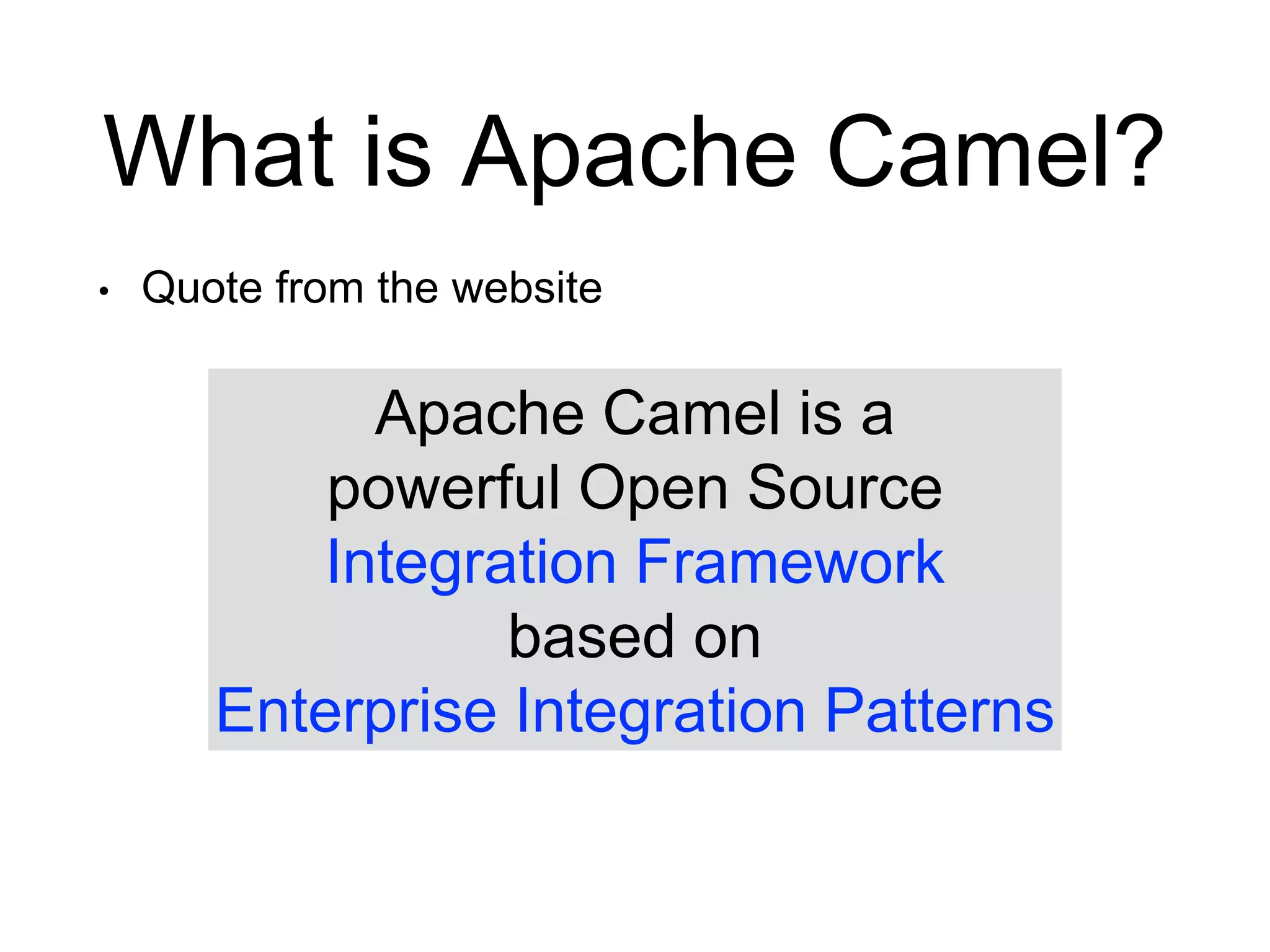

- 5. What is Apache Camel? • Quote from the website Apache Camel is a powerful Open Source Integration Framework based on Enterprise Integration Patterns

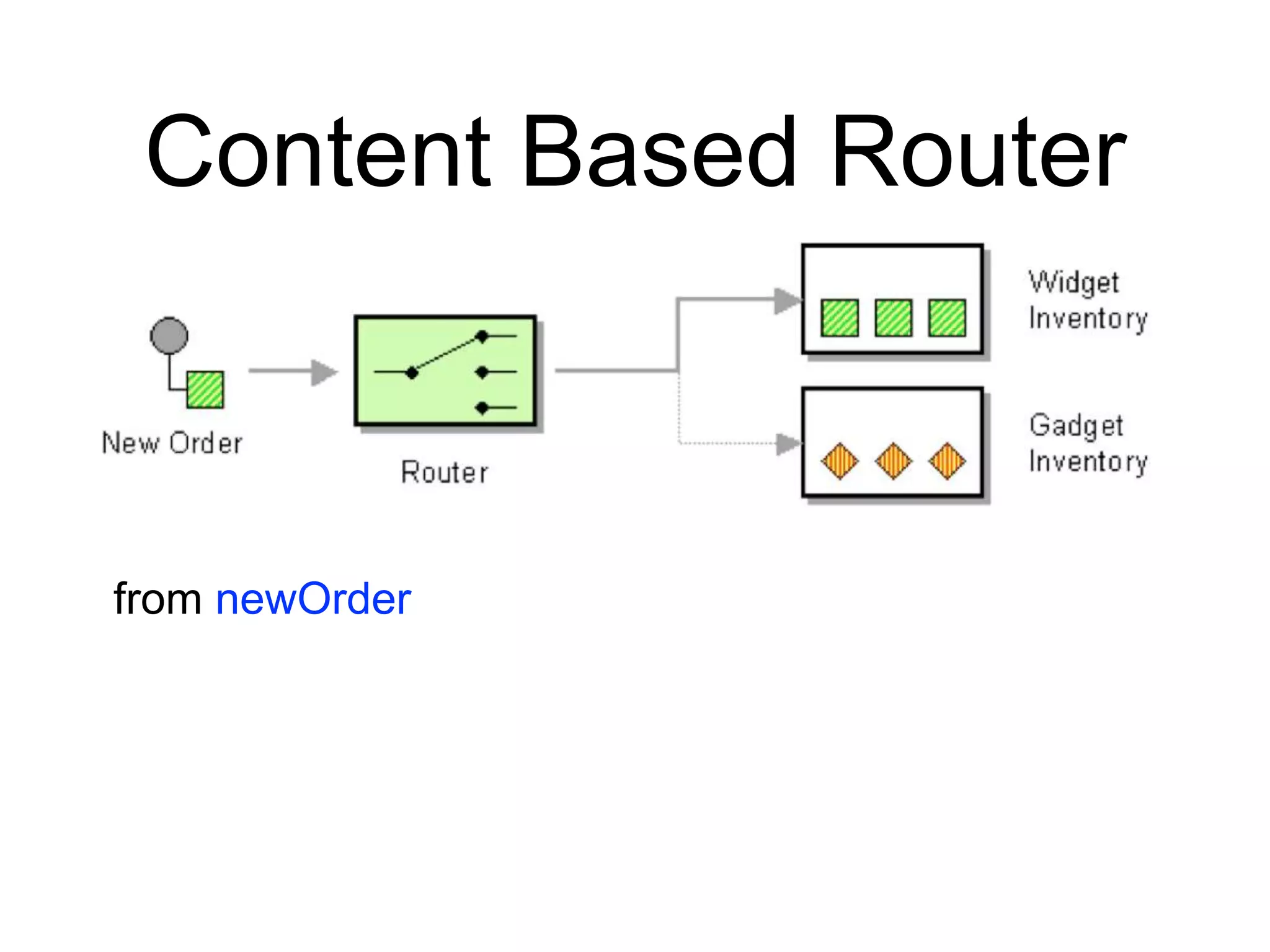

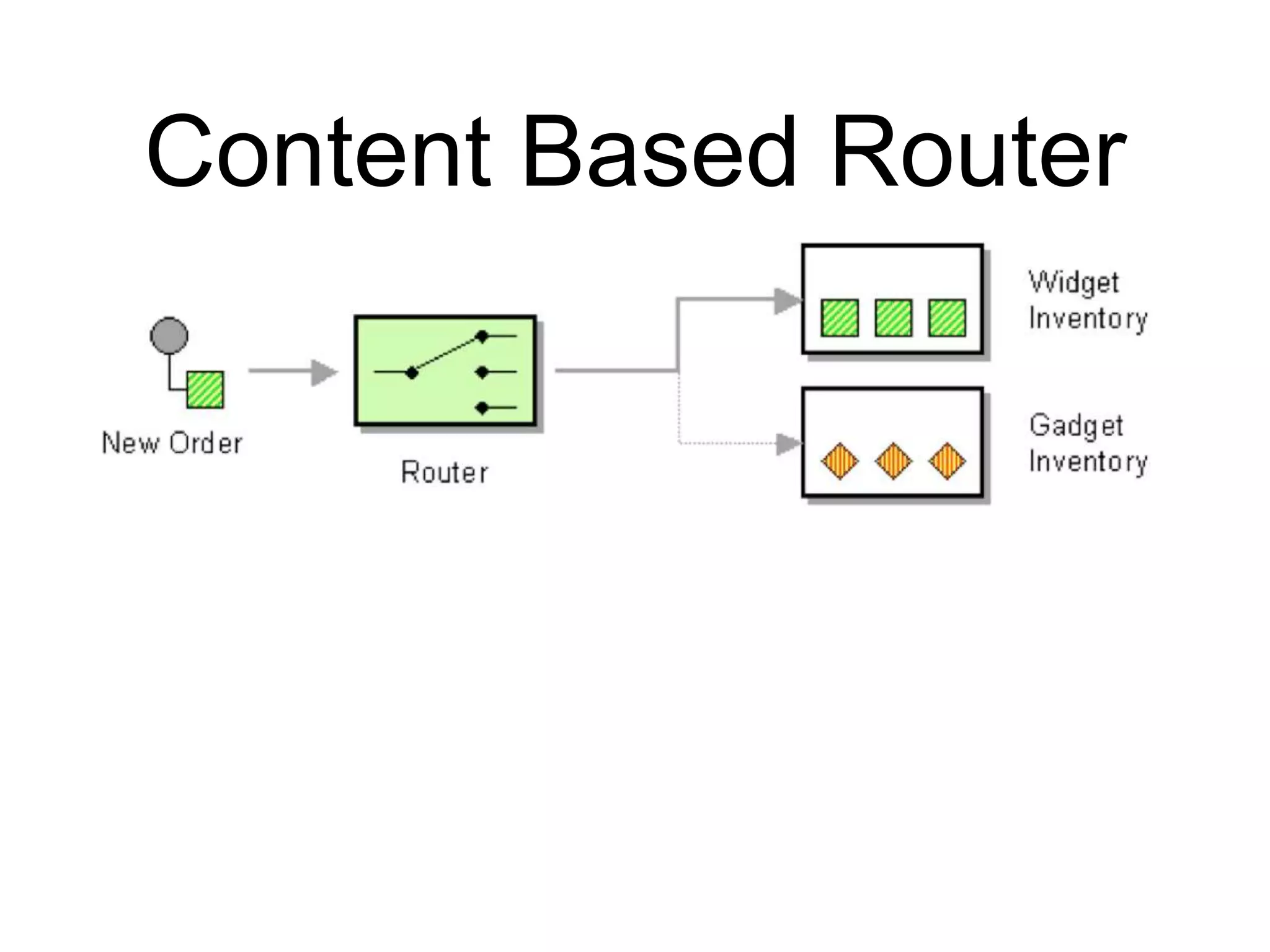

- 10. Content Based Router from newOrder

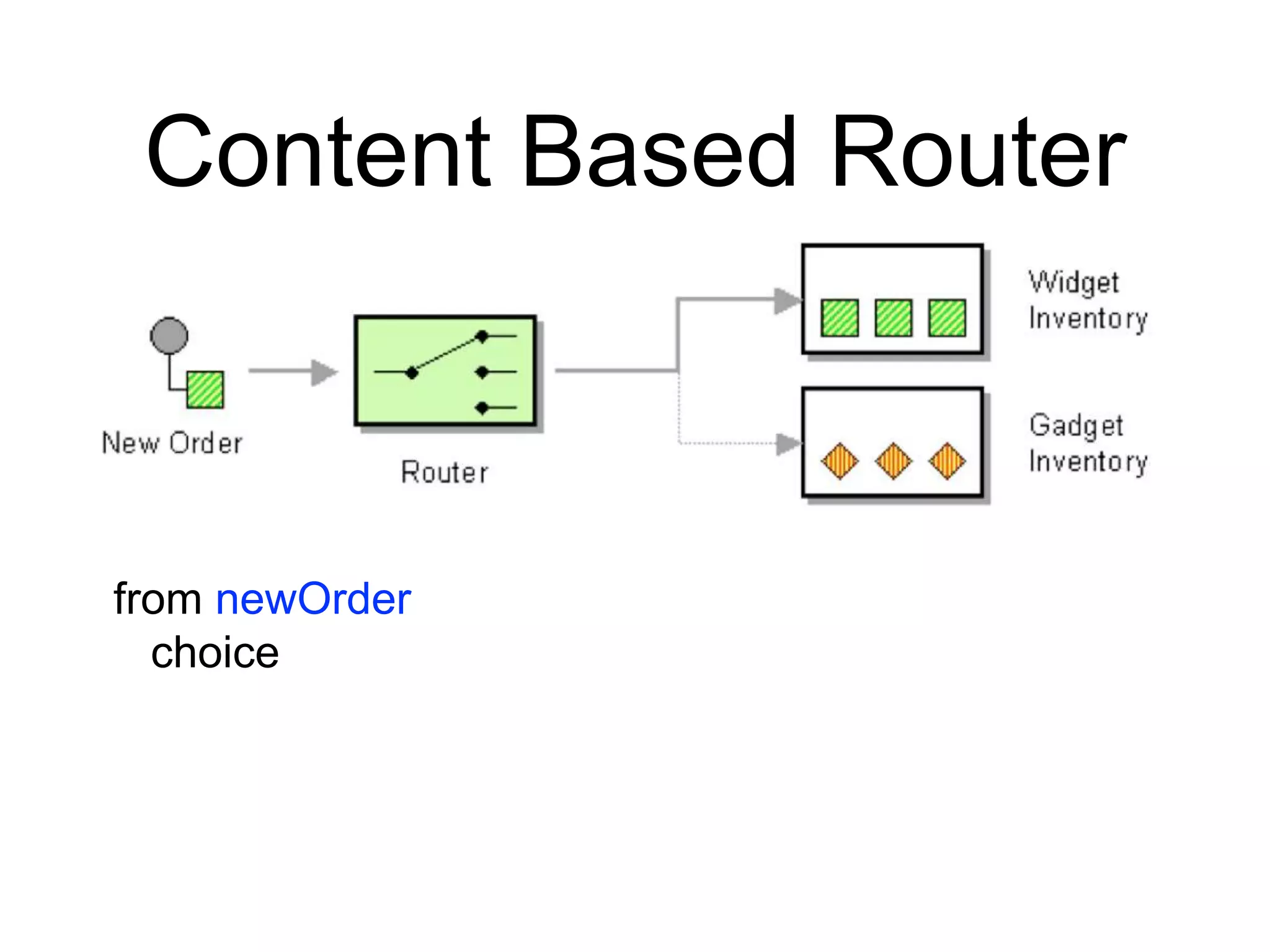

- 11. Content Based Router from newOrder choice

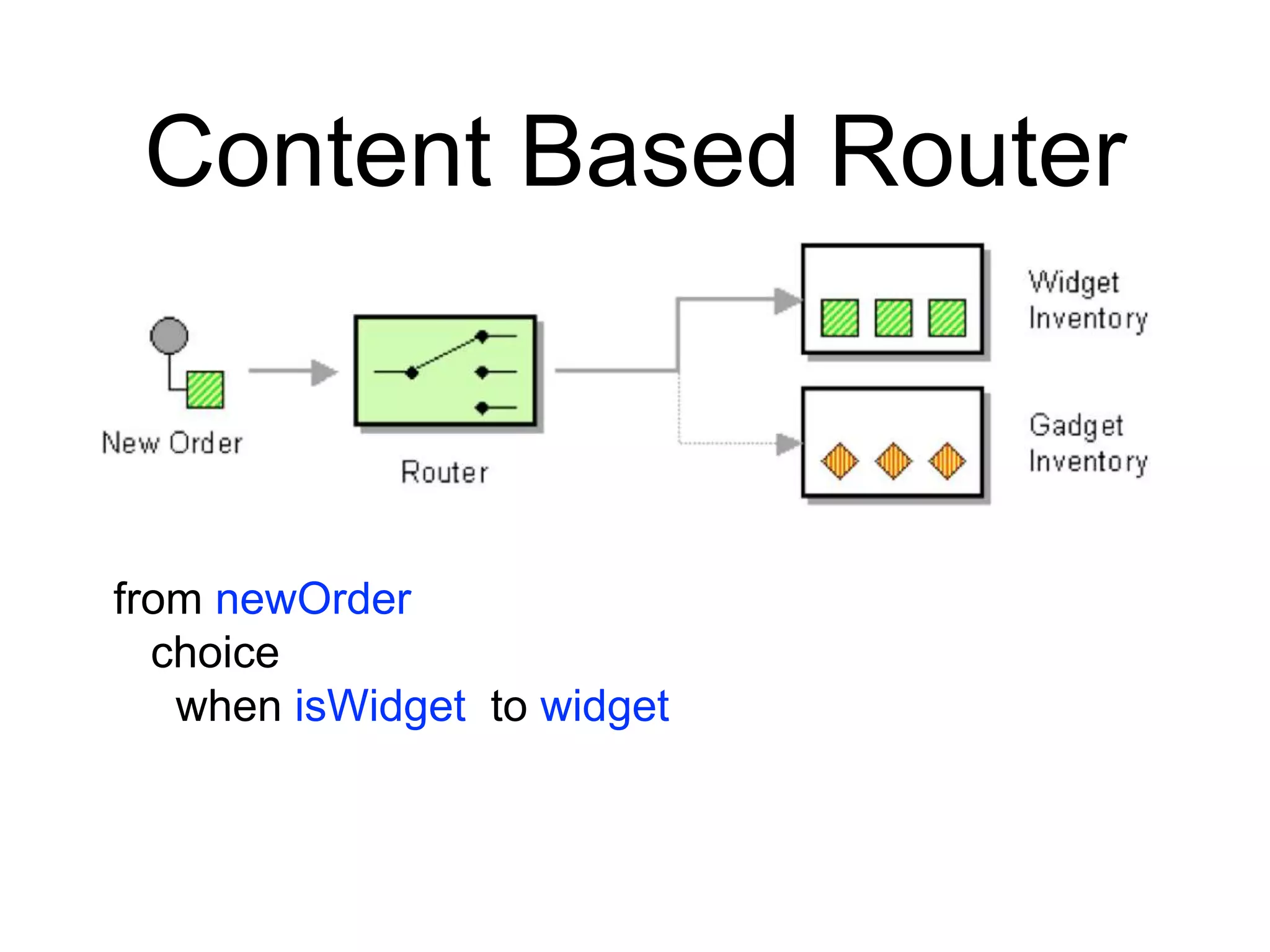

- 12. Content Based Router from newOrder choice when isWidget to widget

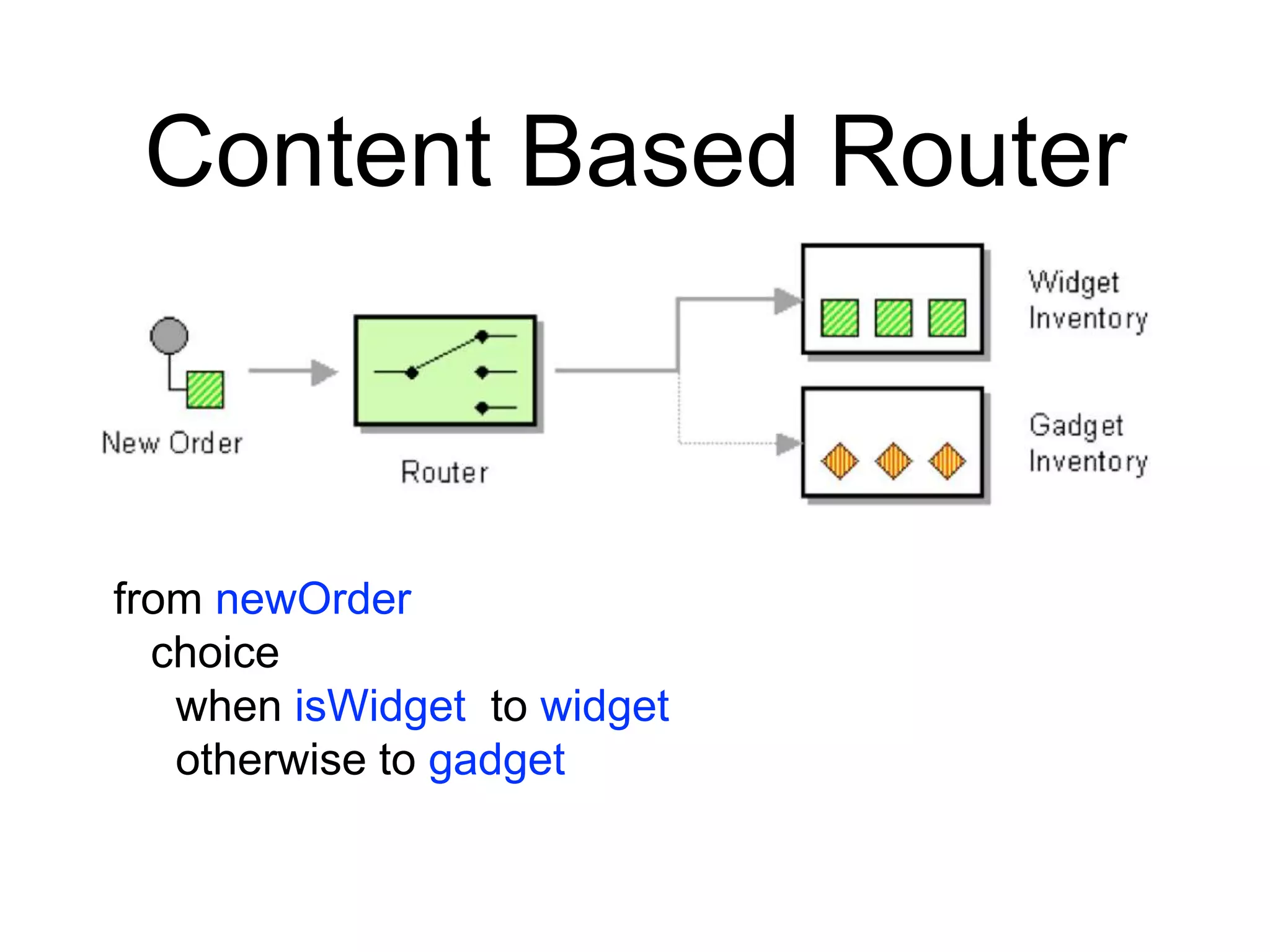

- 13. Content Based Router from newOrder choice when isWidget to widget otherwise to gadget

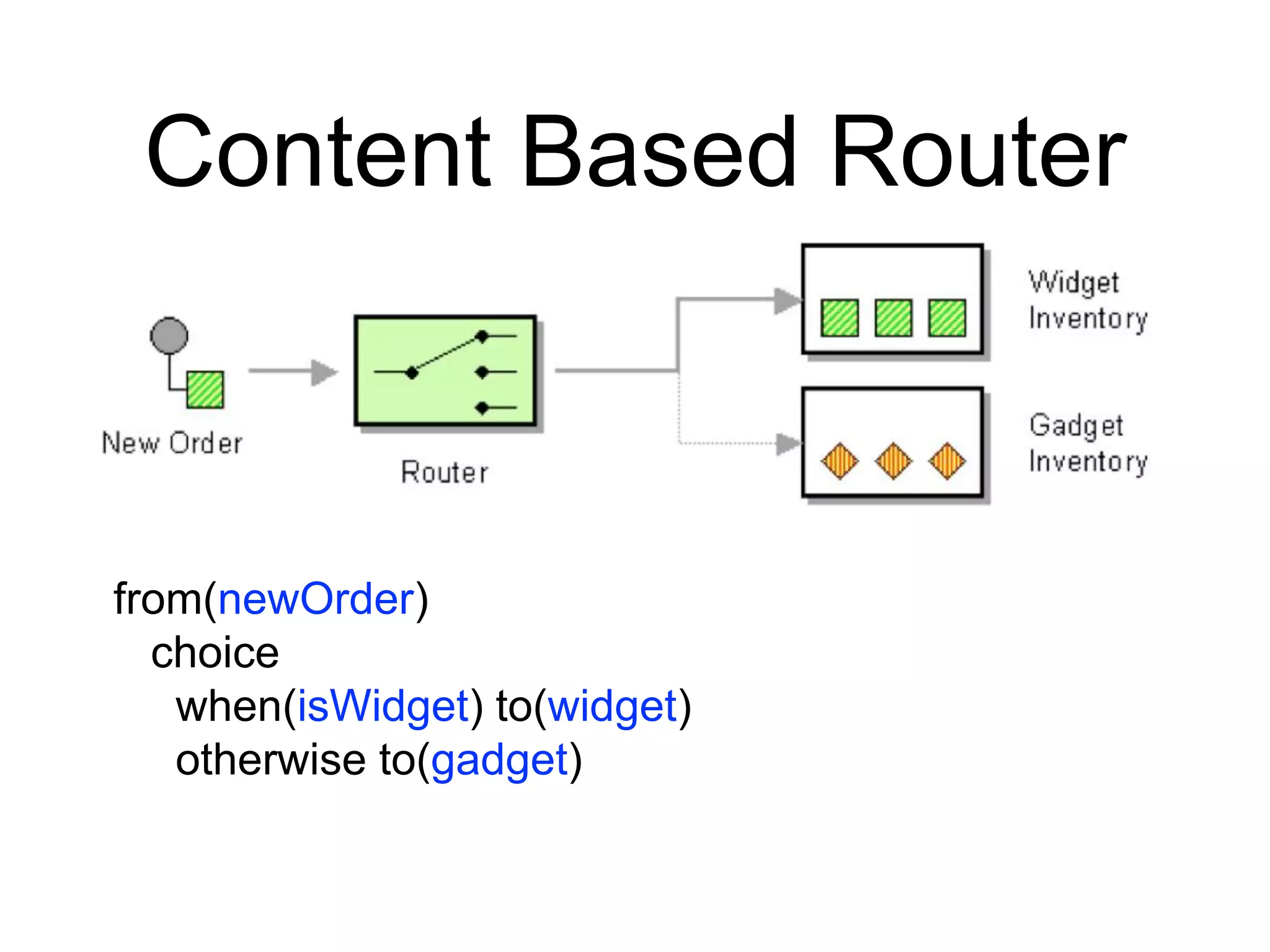

- 14. Content Based Router from(newOrder) choice when(isWidget) to(widget) otherwise to(gadget)

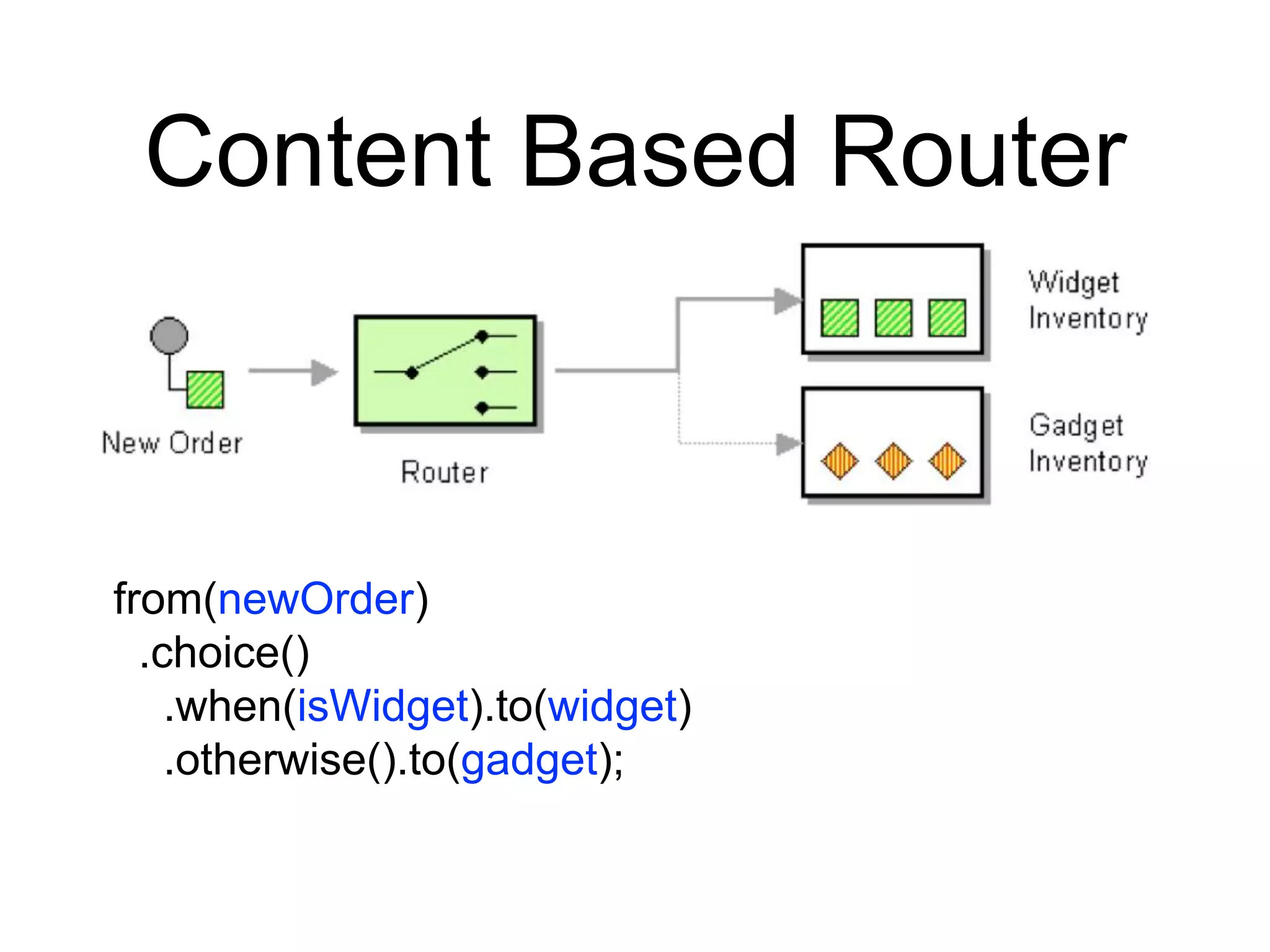

- 15. Content Based Router from(newOrder) .choice() .when(isWidget).to(widget) .otherwise().to(gadget);

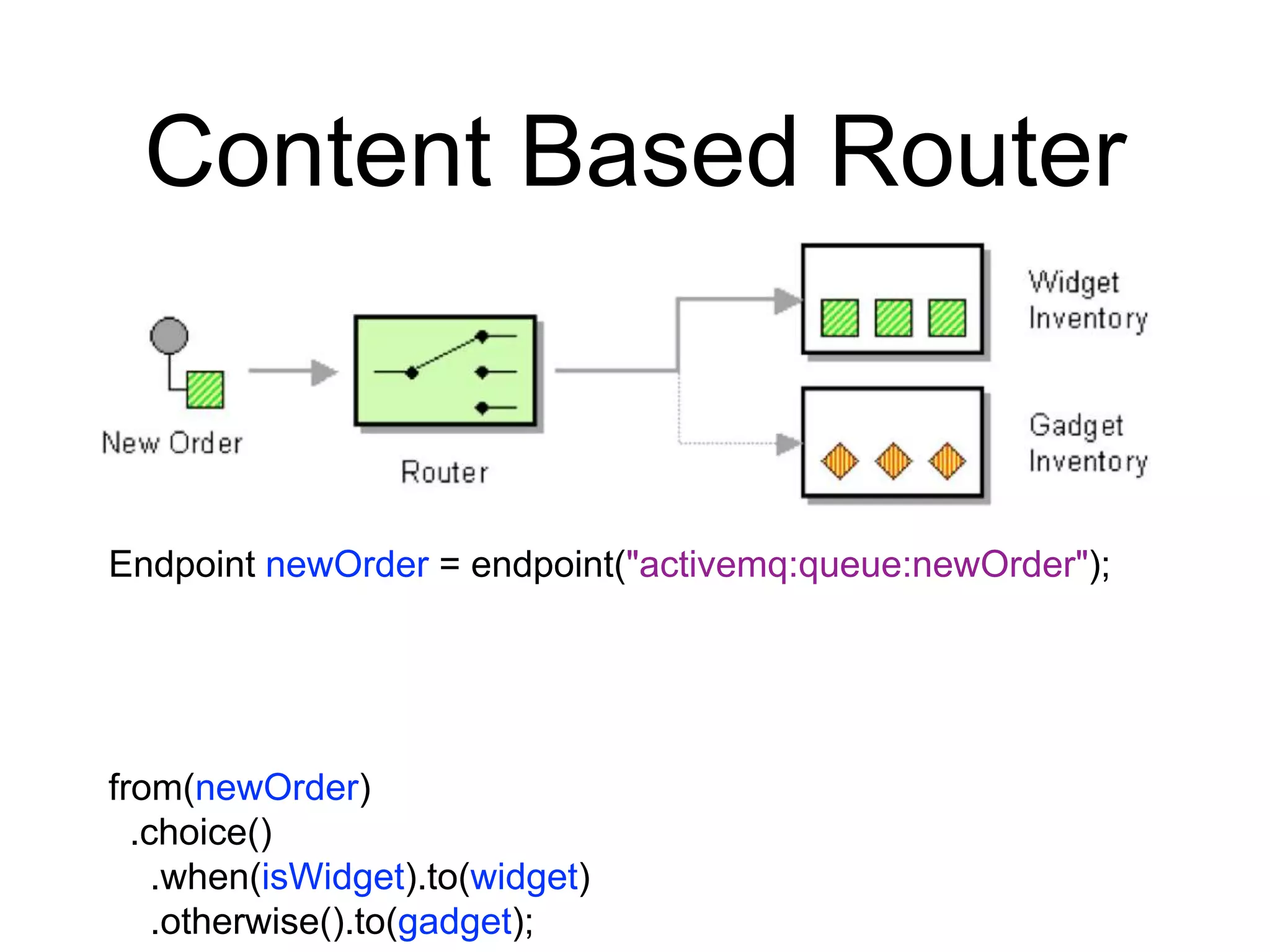

- 16. Content Based Router Endpoint newOrder = endpoint("activemq:queue:newOrder"); from(newOrder) .choice() .when(isWidget).to(widget) .otherwise().to(gadget);

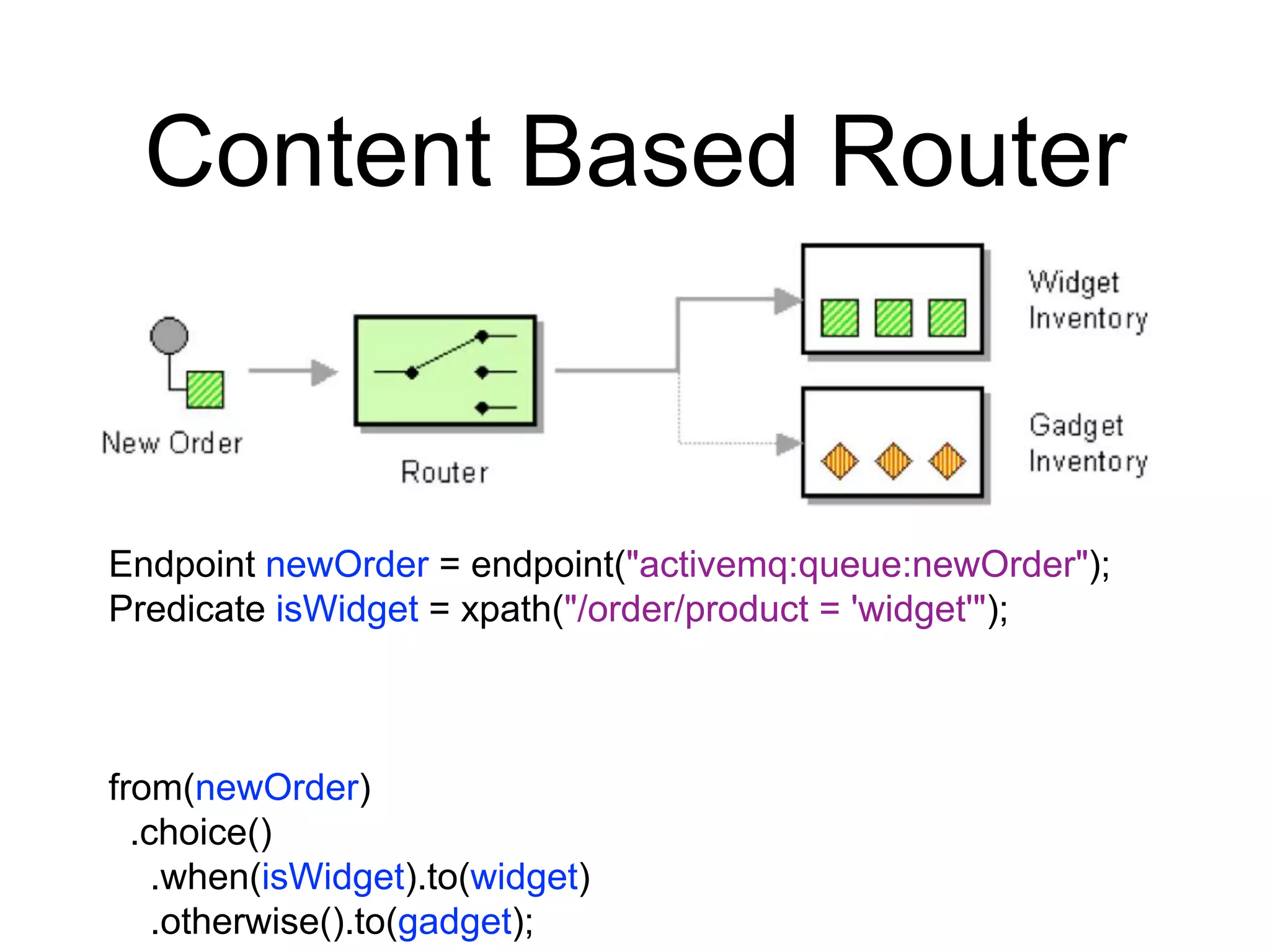

- 17. Content Based Router Endpoint newOrder = endpoint("activemq:queue:newOrder"); Predicate isWidget = xpath("/order/product = 'widget'"); from(newOrder) .choice() .when(isWidget).to(widget) .otherwise().to(gadget);

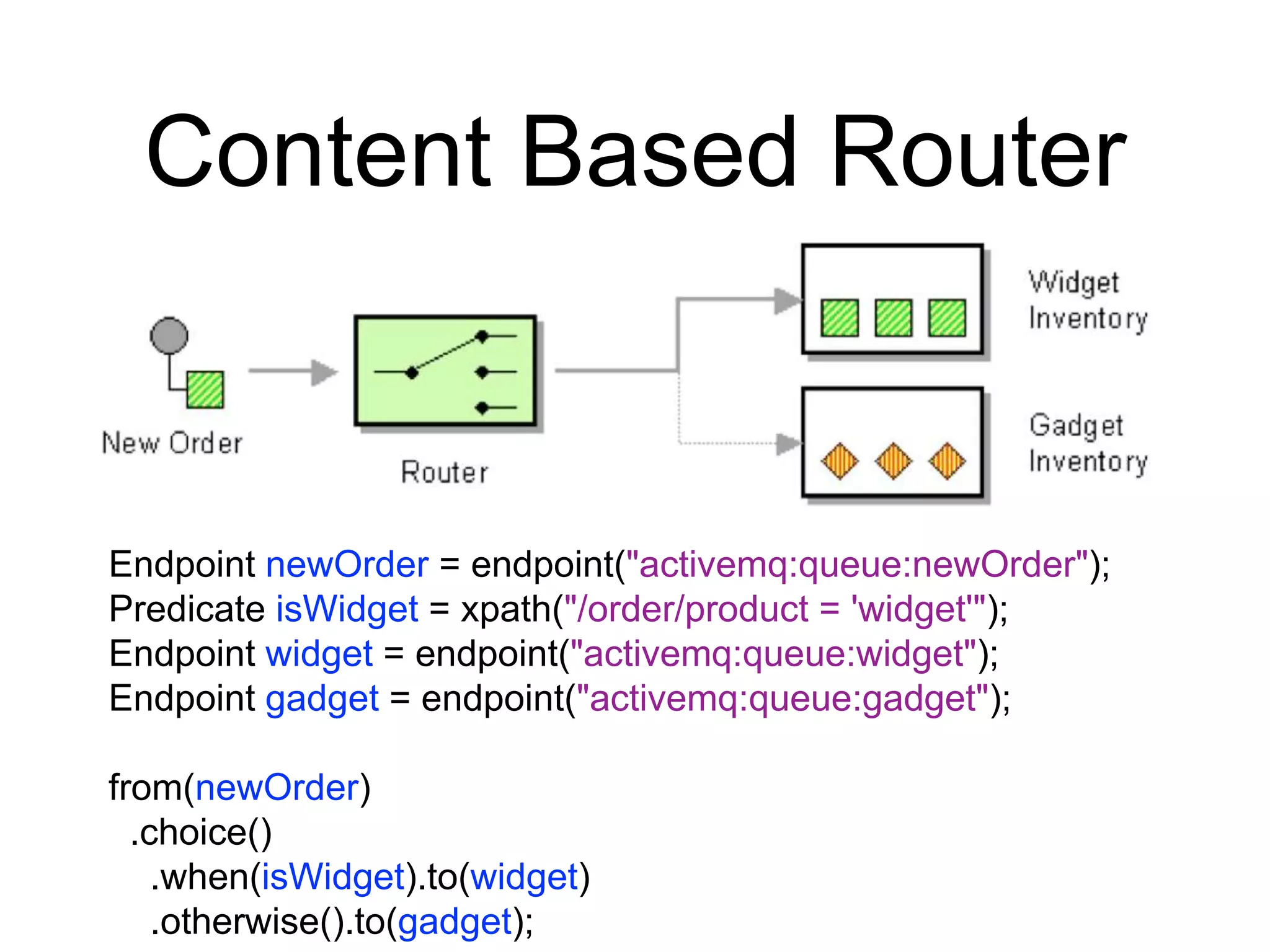

- 18. Content Based Router Endpoint newOrder = endpoint("activemq:queue:newOrder"); Predicate isWidget = xpath("/order/product = 'widget'"); Endpoint widget = endpoint("activemq:queue:widget"); Endpoint gadget = endpoint("activemq:queue:gadget"); from(newOrder) .choice() .when(isWidget).to(widget) .otherwise().to(gadget);

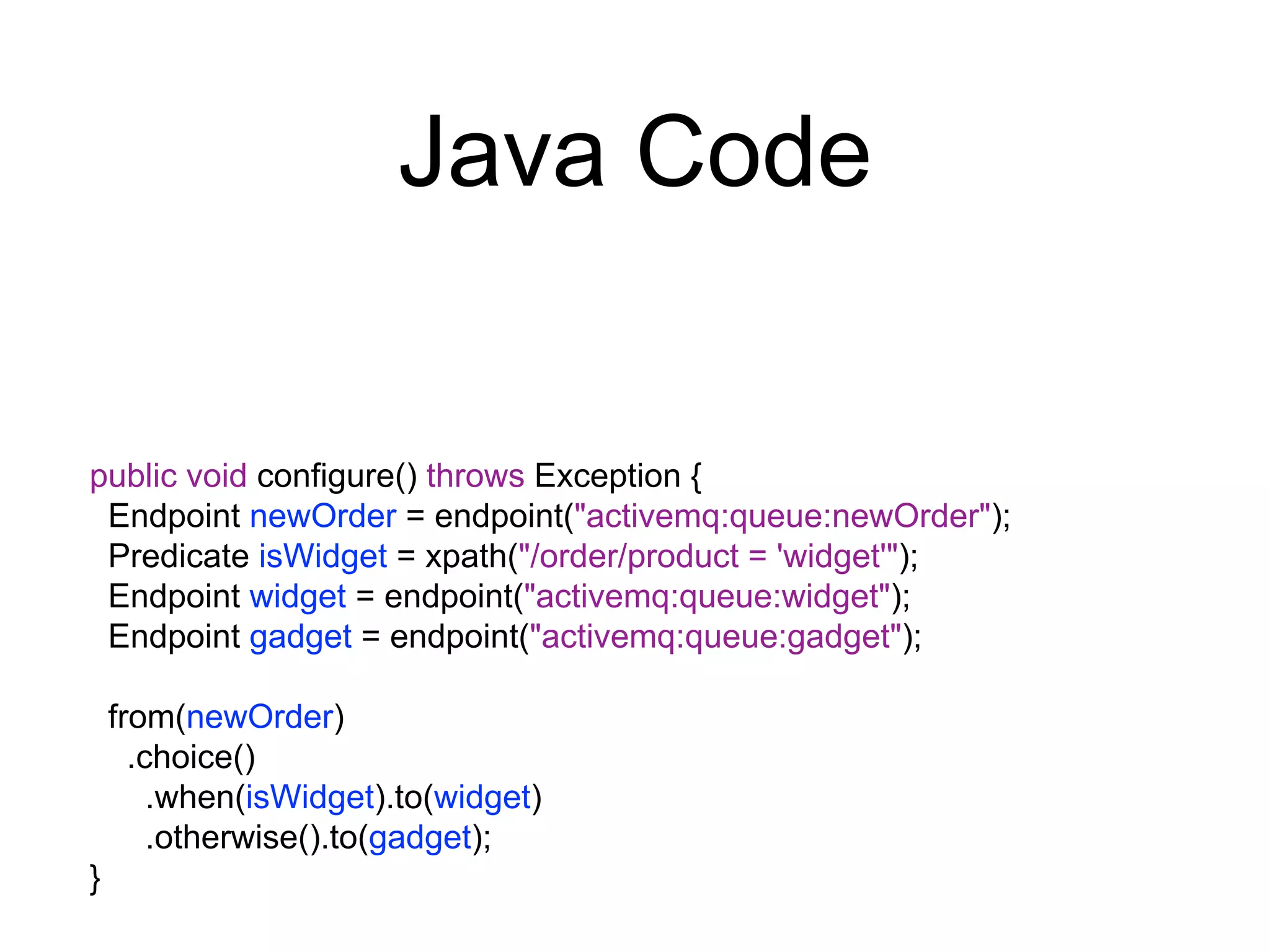

- 19. Java Code public void configure() throws Exception { Endpoint newOrder = endpoint("activemq:queue:newOrder"); Predicate isWidget = xpath("/order/product = 'widget'"); Endpoint widget = endpoint("activemq:queue:widget"); Endpoint gadget = endpoint("activemq:queue:gadget"); from(newOrder) .choice() .when(isWidget).to(widget) .otherwise().to(gadget); }

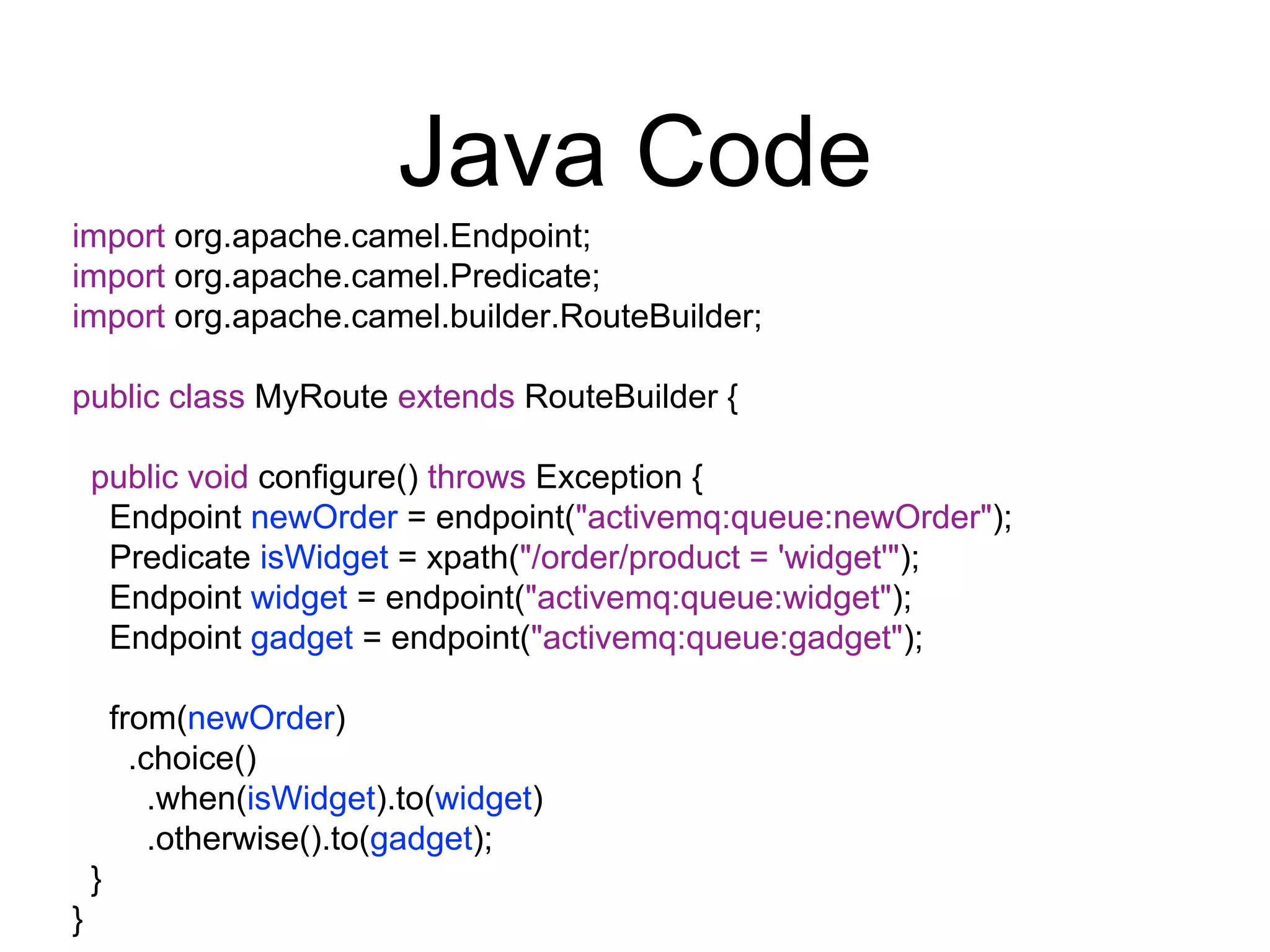

- 20. Java Code import org.apache.camel.Endpoint; import org.apache.camel.Predicate; import org.apache.camel.builder.RouteBuilder; public class MyRoute extends RouteBuilder { public void configure() throws Exception { Endpoint newOrder = endpoint("activemq:queue:newOrder"); Predicate isWidget = xpath("/order/product = 'widget'"); Endpoint widget = endpoint("activemq:queue:widget"); Endpoint gadget = endpoint("activemq:queue:gadget"); from(newOrder) .choice() .when(isWidget).to(widget) .otherwise().to(gadget); } }

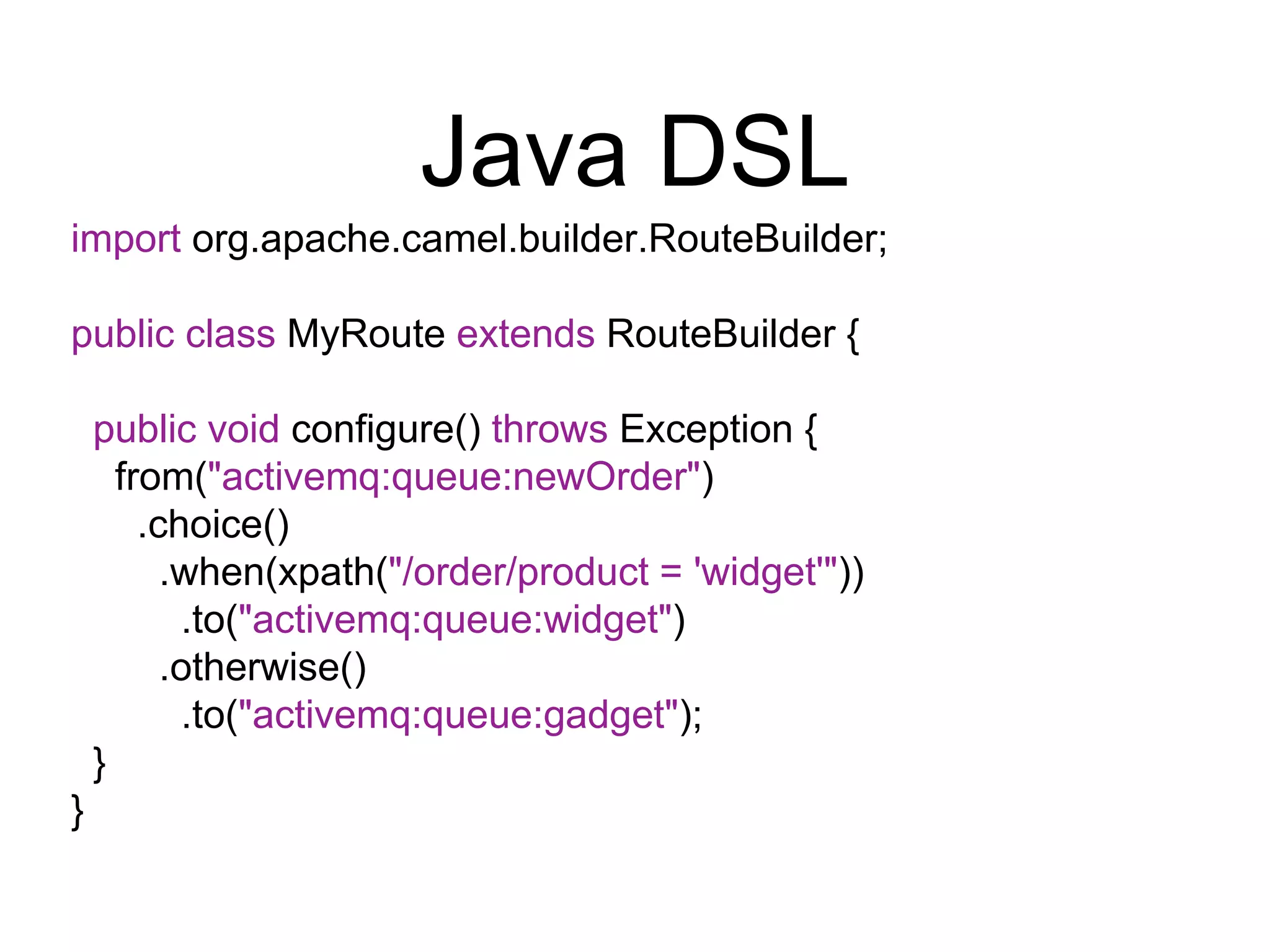

- 21. Java DSL import org.apache.camel.builder.RouteBuilder; public class MyRoute extends RouteBuilder { public void configure() throws Exception { from("activemq:queue:newOrder") .choice() .when(xpath("/order/product = 'widget'")) .to("activemq:queue:widget") .otherwise() .to("activemq:queue:gadget"); } }

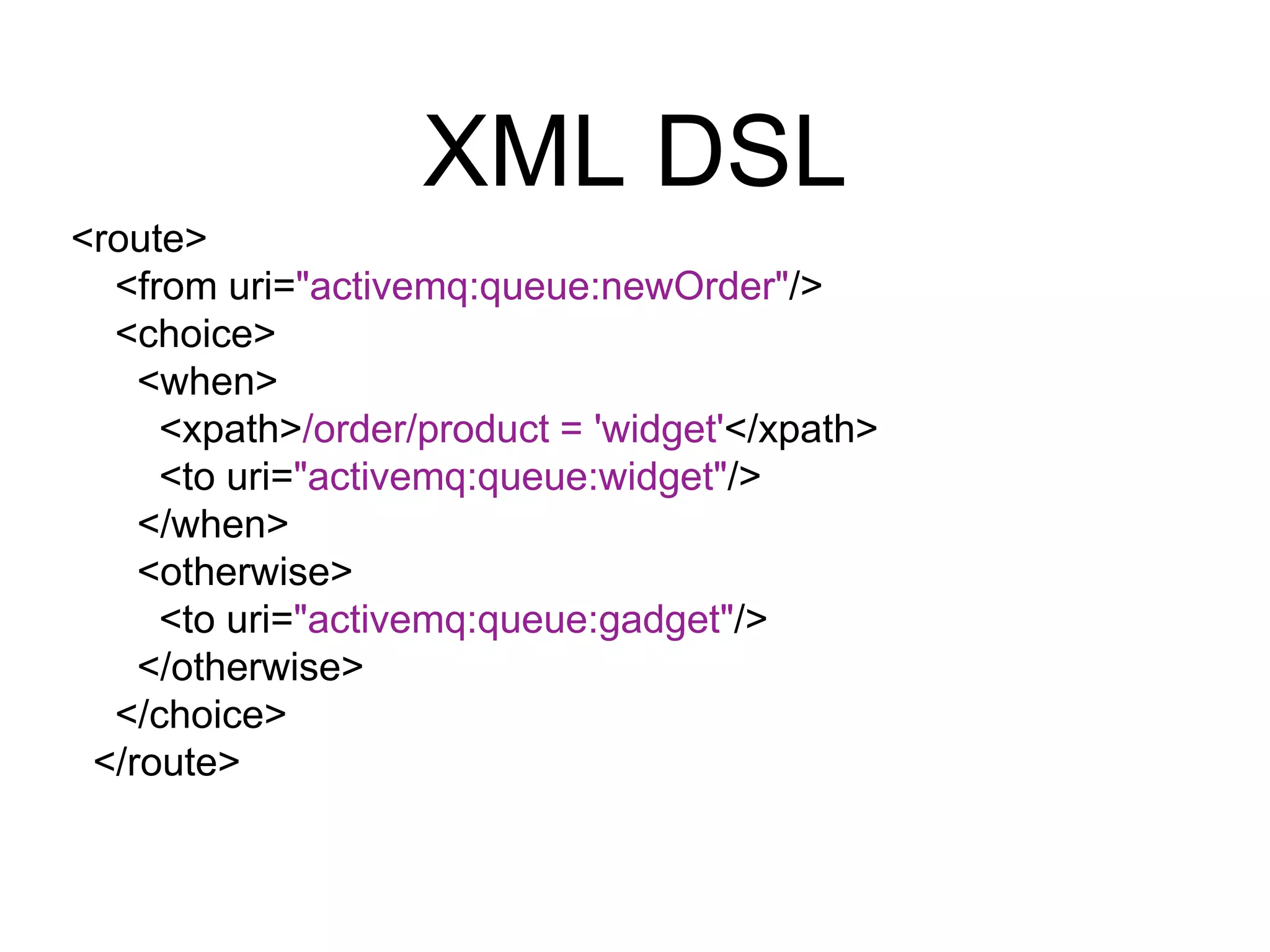

- 22. XML DSL <route> <from uri="activemq:queue:newOrder"/> <choice> <when> <xpath>/order/product = 'widget'</xpath> <to uri="activemq:queue:widget"/> </when> <otherwise> <to uri="activemq:queue:gadget"/> </otherwise> </choice> </route>

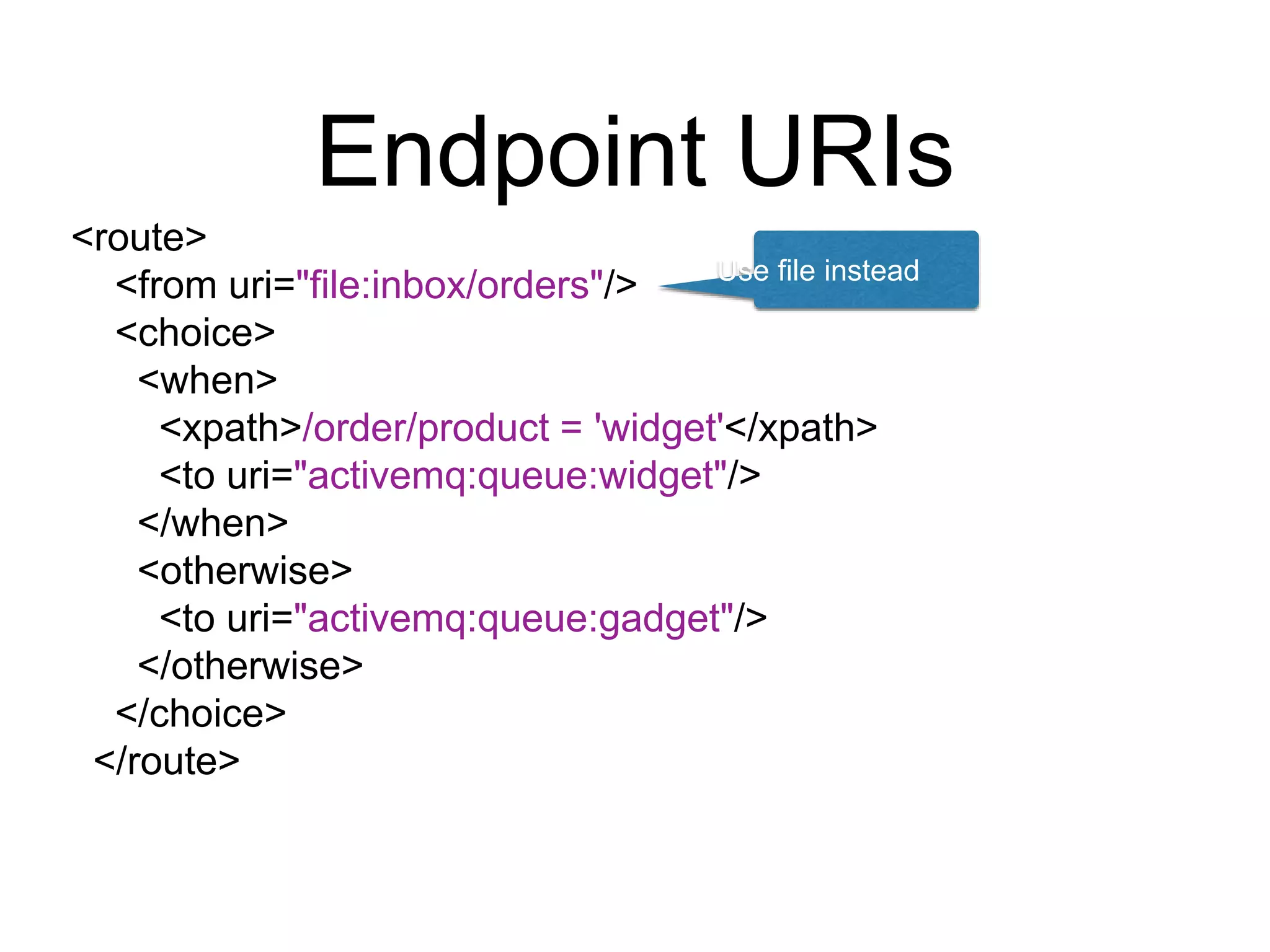

- 23. Endpoint URIs <route> <from uri="file:inbox/orders"/> <choice> <when> <xpath>/order/product = 'widget'</xpath> <to uri="activemq:queue:widget"/> </when> <otherwise> <to uri="activemq:queue:gadget"/> </otherwise> </choice> </route> Use file instead

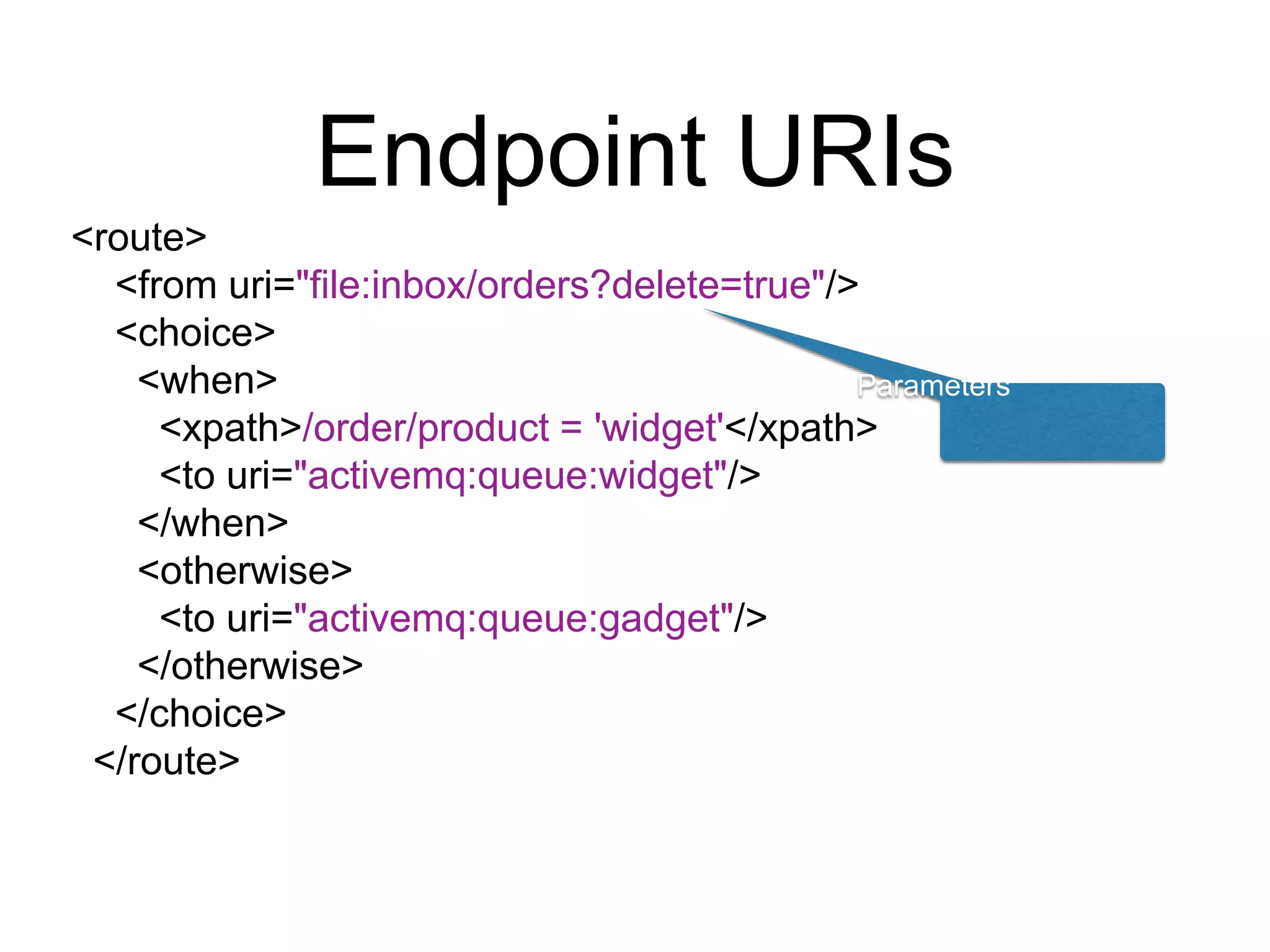

- 24. Endpoint URIs <route> <from uri="file:inbox/orders?delete=true"/> <choice> <when> <xpath>/order/product = 'widget'</xpath> <to uri="activemq:queue:widget"/> </when> <otherwise> <to uri="activemq:queue:gadget"/> </otherwise> </choice> </route> Parameters

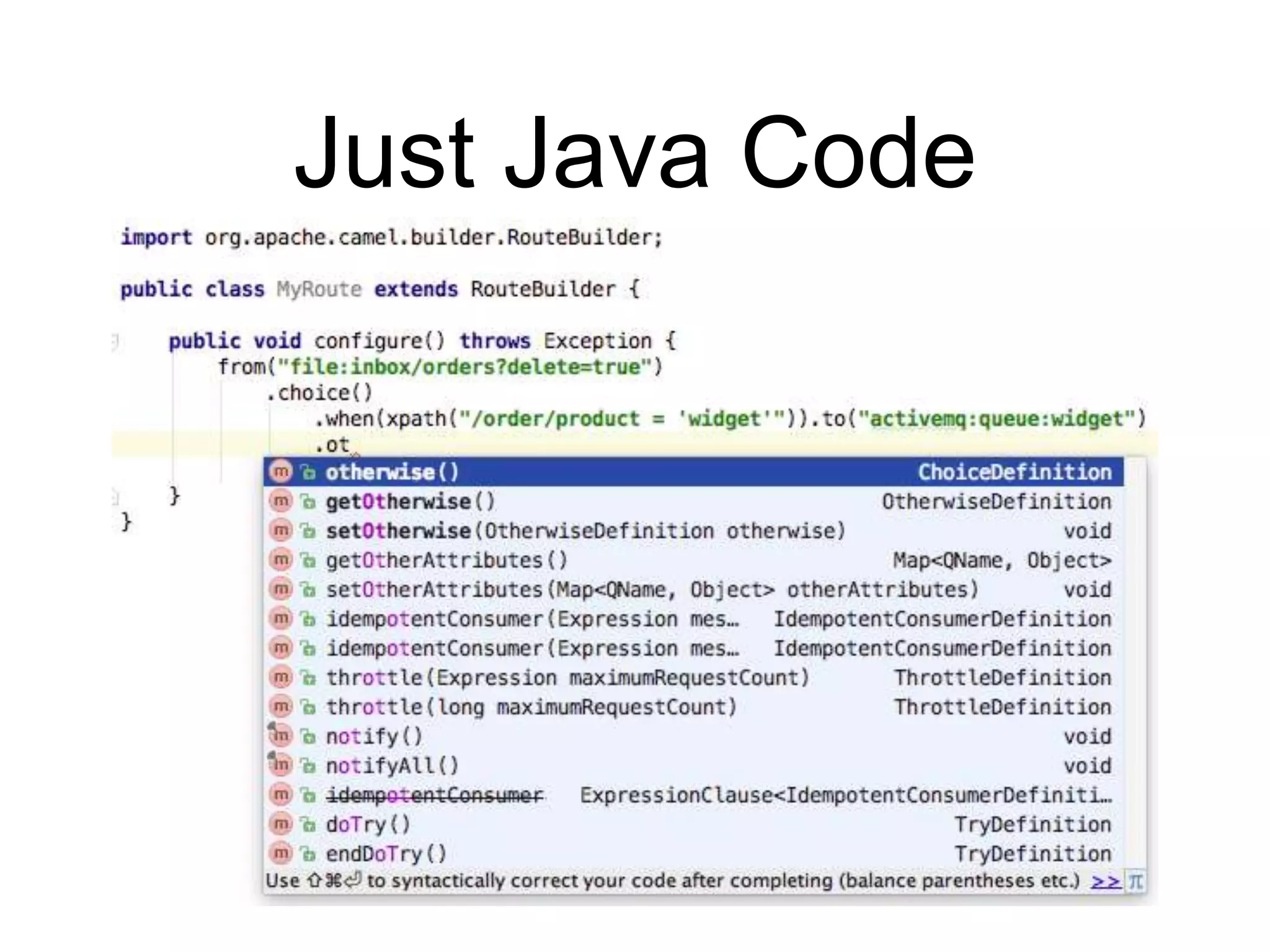

- 25. Just Java Code

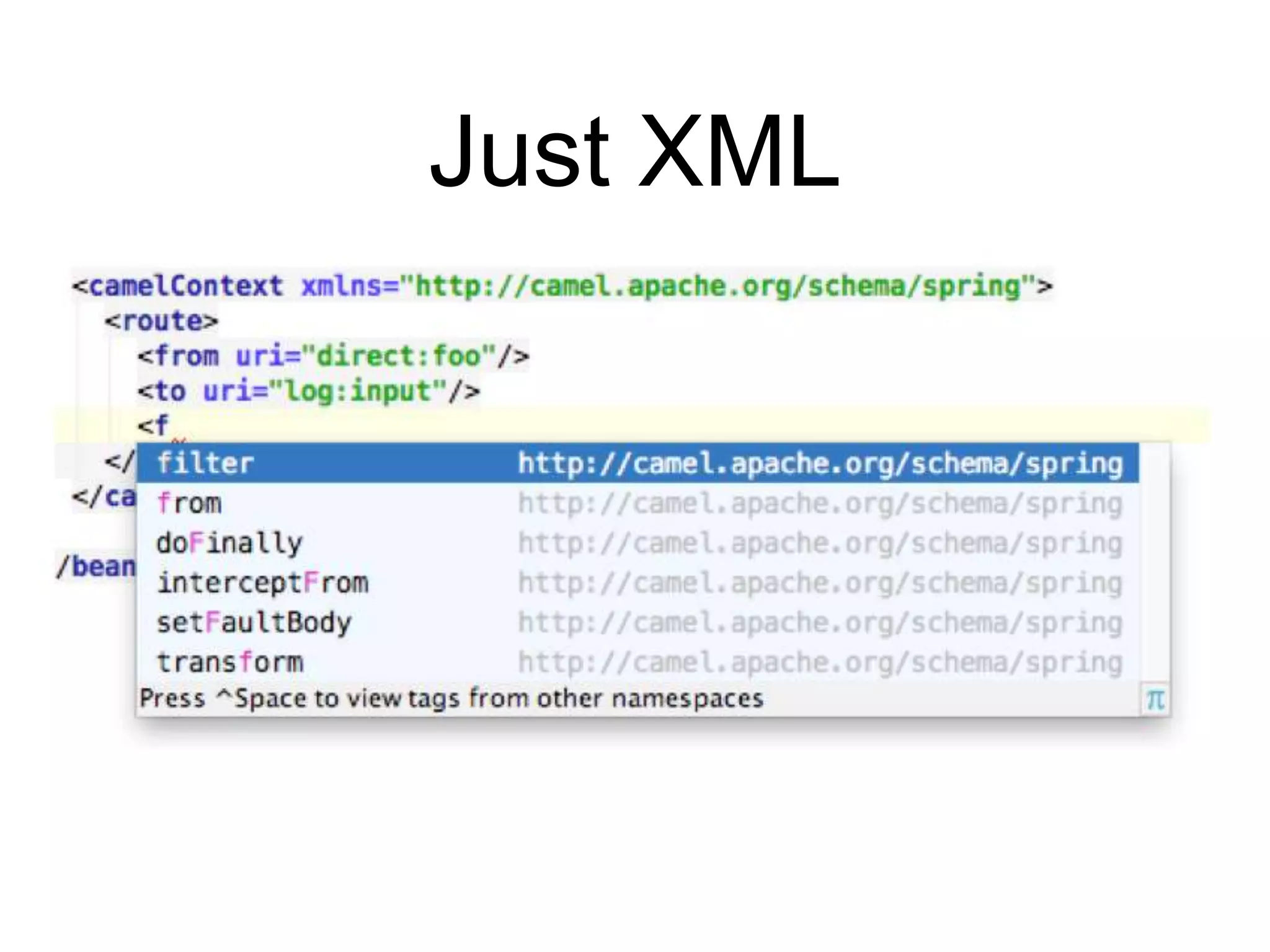

- 26. Just XML

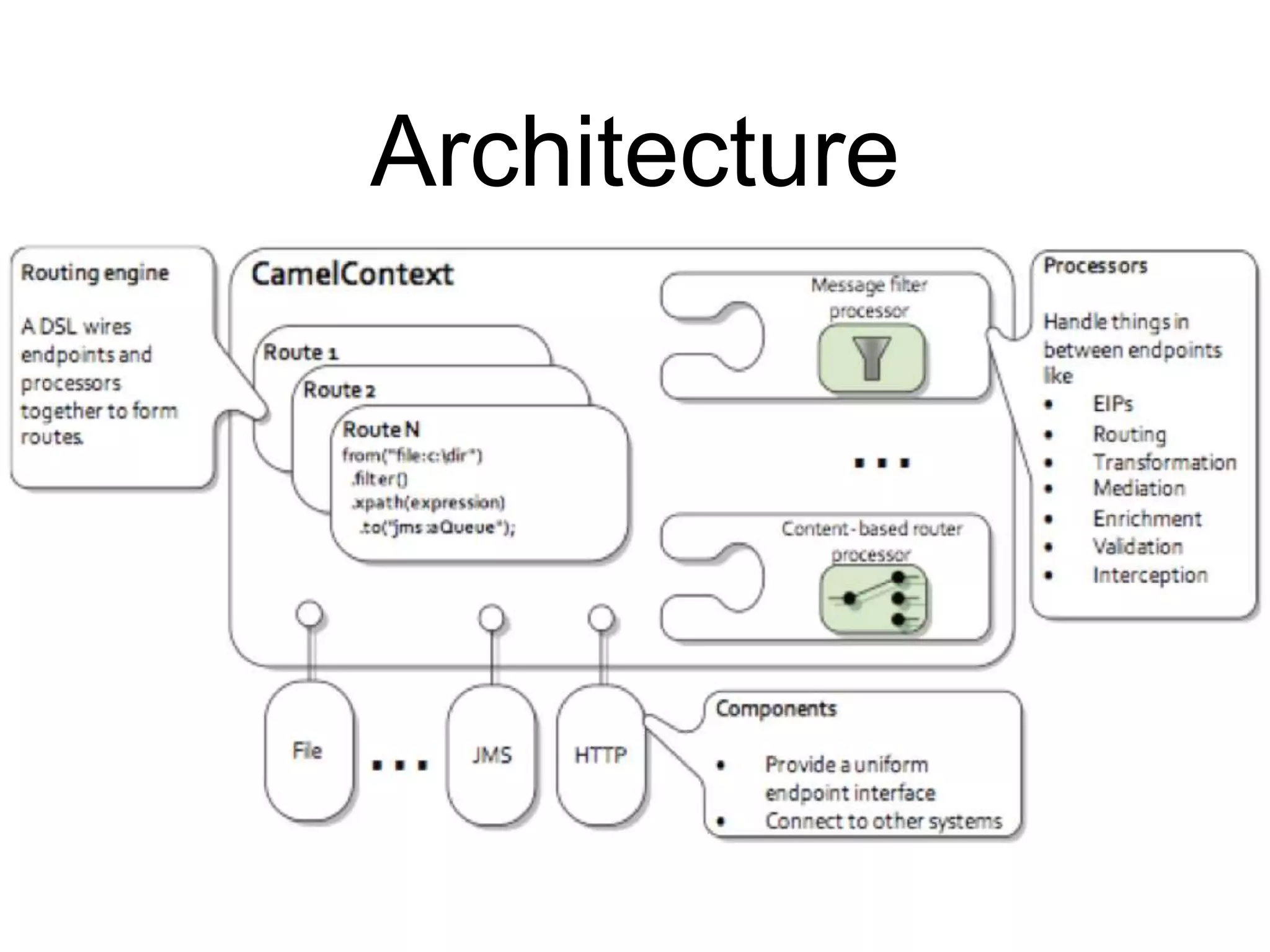

- 27. Architecture

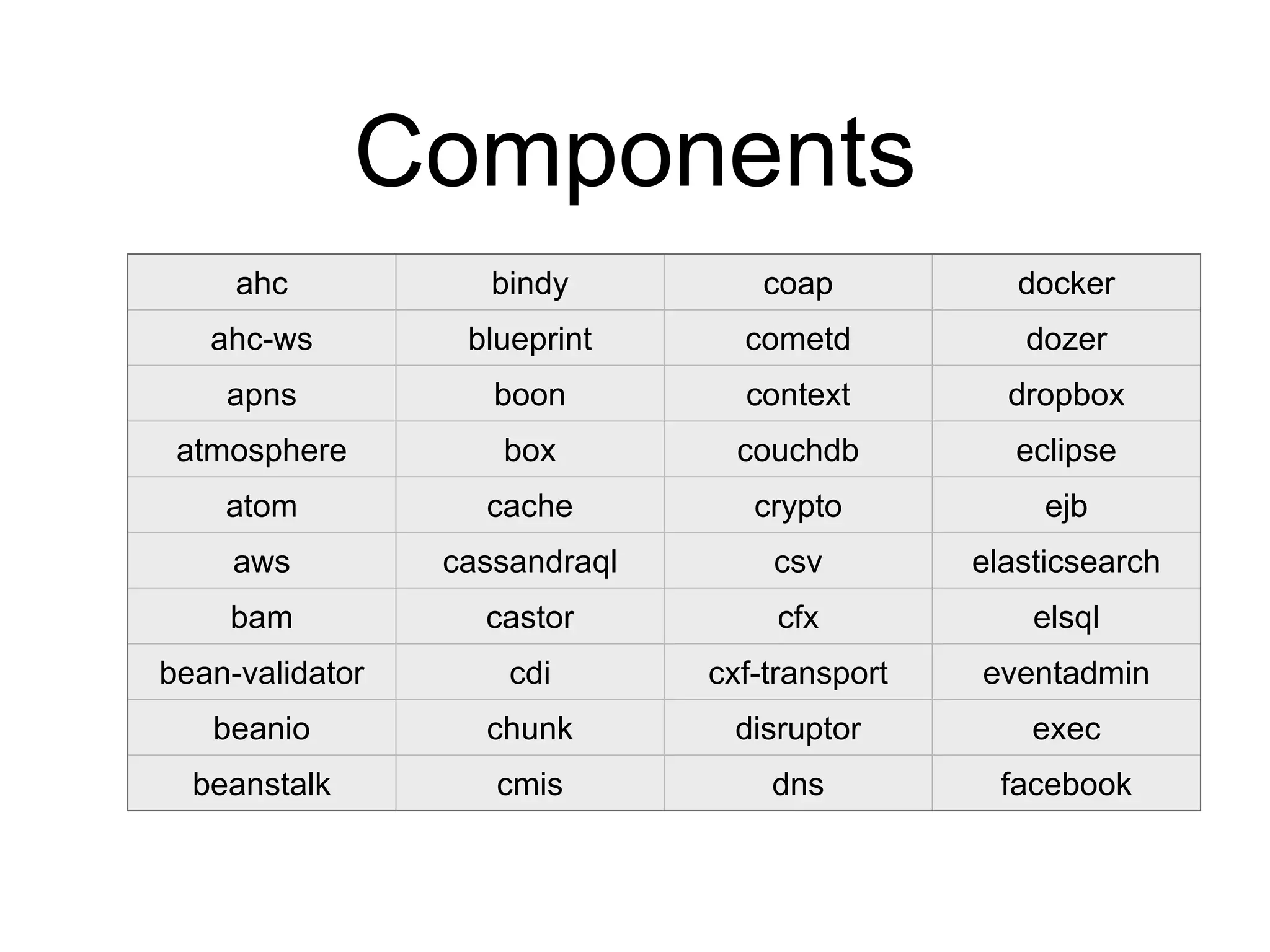

- 28. Components ahc bindy coap docker ahc-ws blueprint cometd dozer apns boon context dropbox atmosphere box couchdb eclipse atom cache crypto ejb aws cassandraql csv elasticsearch bam castor cfx elsql bean-validator cdi cxf-transport eventadmin beanio chunk disruptor exec beanstalk cmis dns facebook

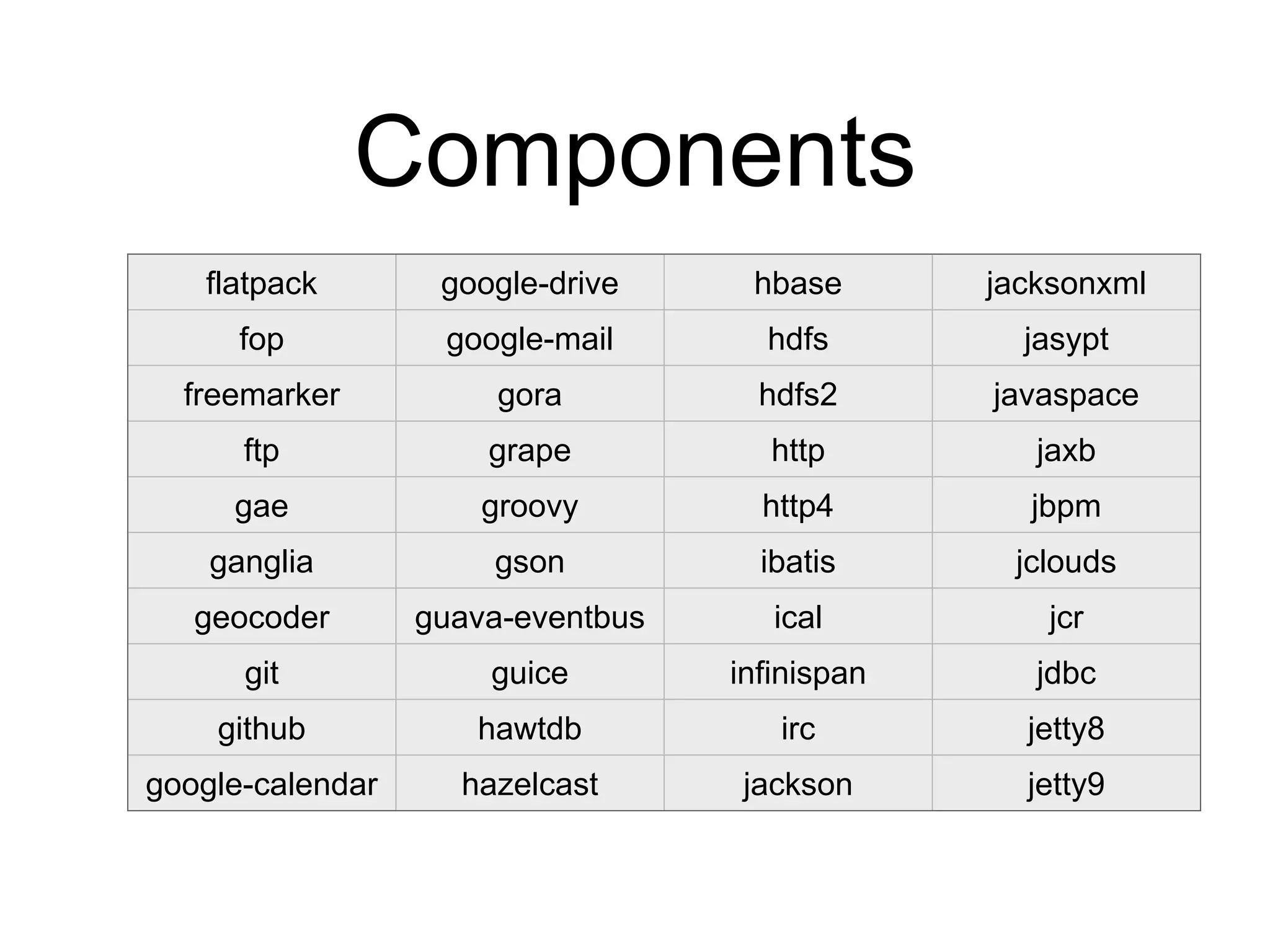

- 29. Components flatpack google-drive hbase jacksonxml fop google-mail hdfs jasypt freemarker gora hdfs2 javaspace ftp grape http jaxb gae groovy http4 jbpm ganglia gson ibatis jclouds geocoder guava-eventbus ical jcr git guice infinispan jdbc github hawtdb irc jetty8 google-calendar hazelcast jackson jetty9

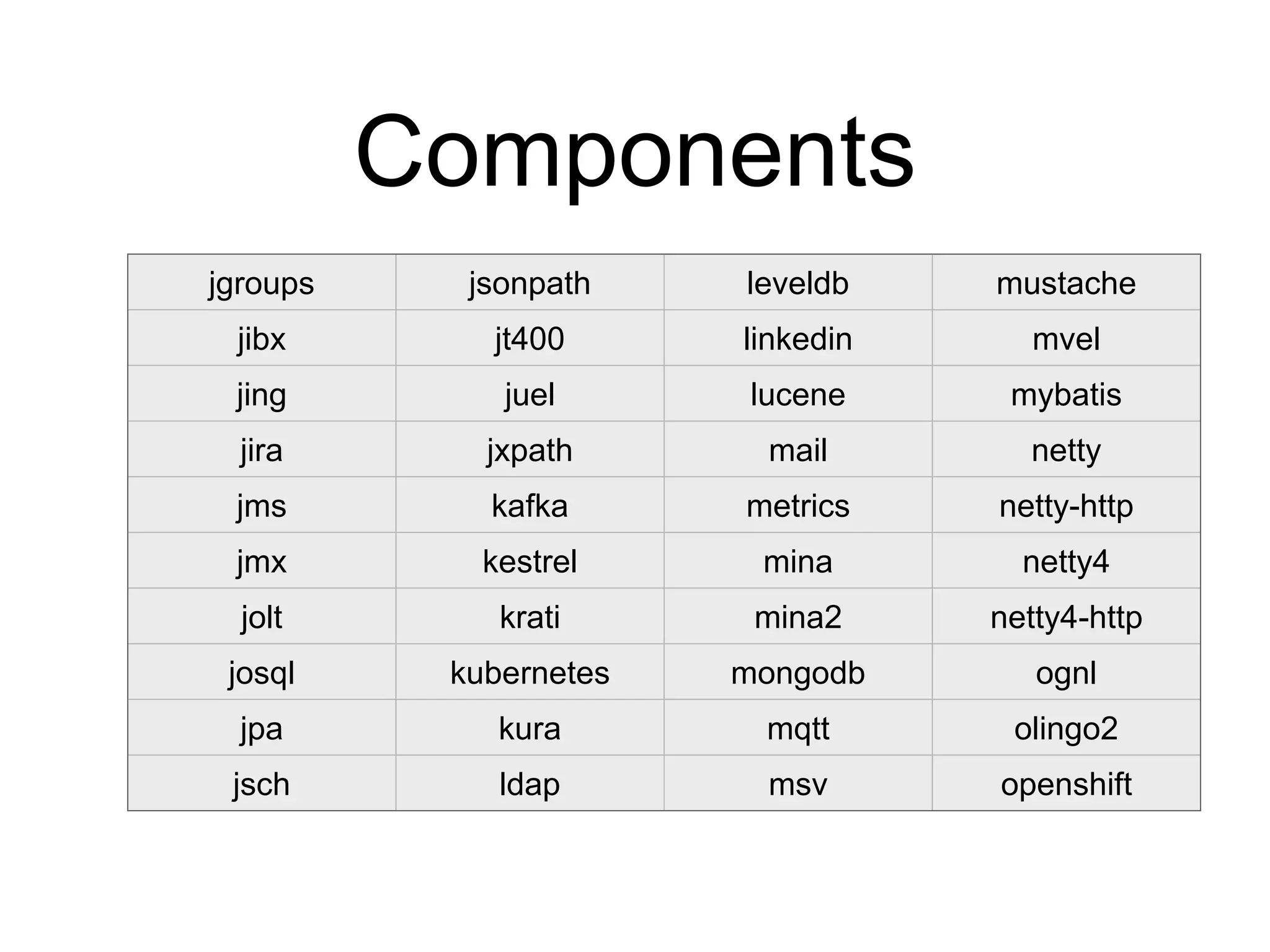

- 30. Components jgroups jsonpath leveldb mustache jibx jt400 linkedin mvel jing juel lucene mybatis jira jxpath mail netty jms kafka metrics netty-http jmx kestrel mina netty4 jolt krati mina2 netty4-http josql kubernetes mongodb ognl jpa kura mqtt olingo2 jsch ldap msv openshift

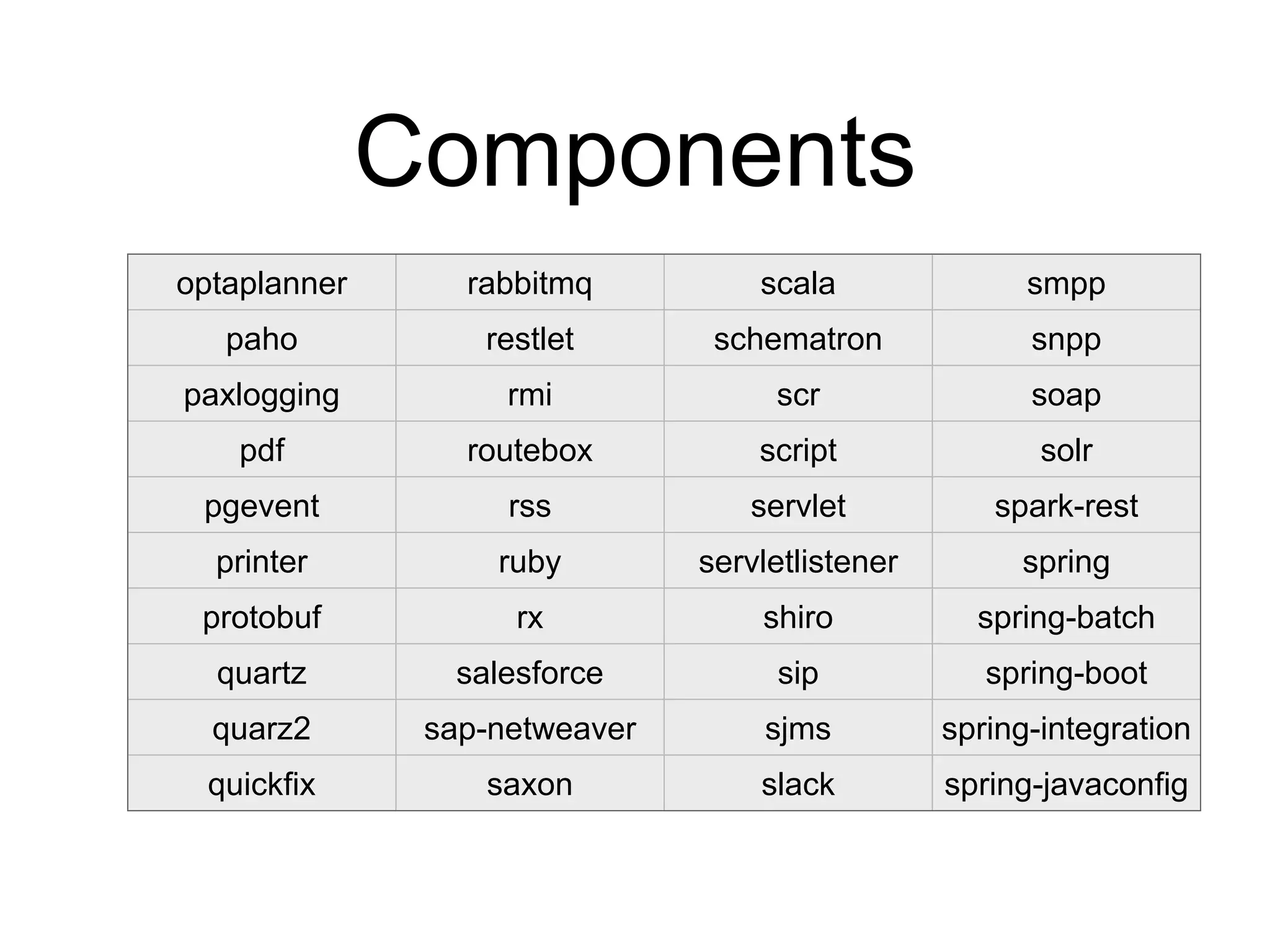

- 31. Components optaplanner rabbitmq scala smpp paho restlet schematron snpp paxlogging rmi scr soap pdf routebox script solr pgevent rss servlet spark-rest printer ruby servletlistener spring protobuf rx shiro spring-batch quartz salesforce sip spring-boot quarz2 sap-netweaver sjms spring-integration quickfix saxon slack spring-javaconfig

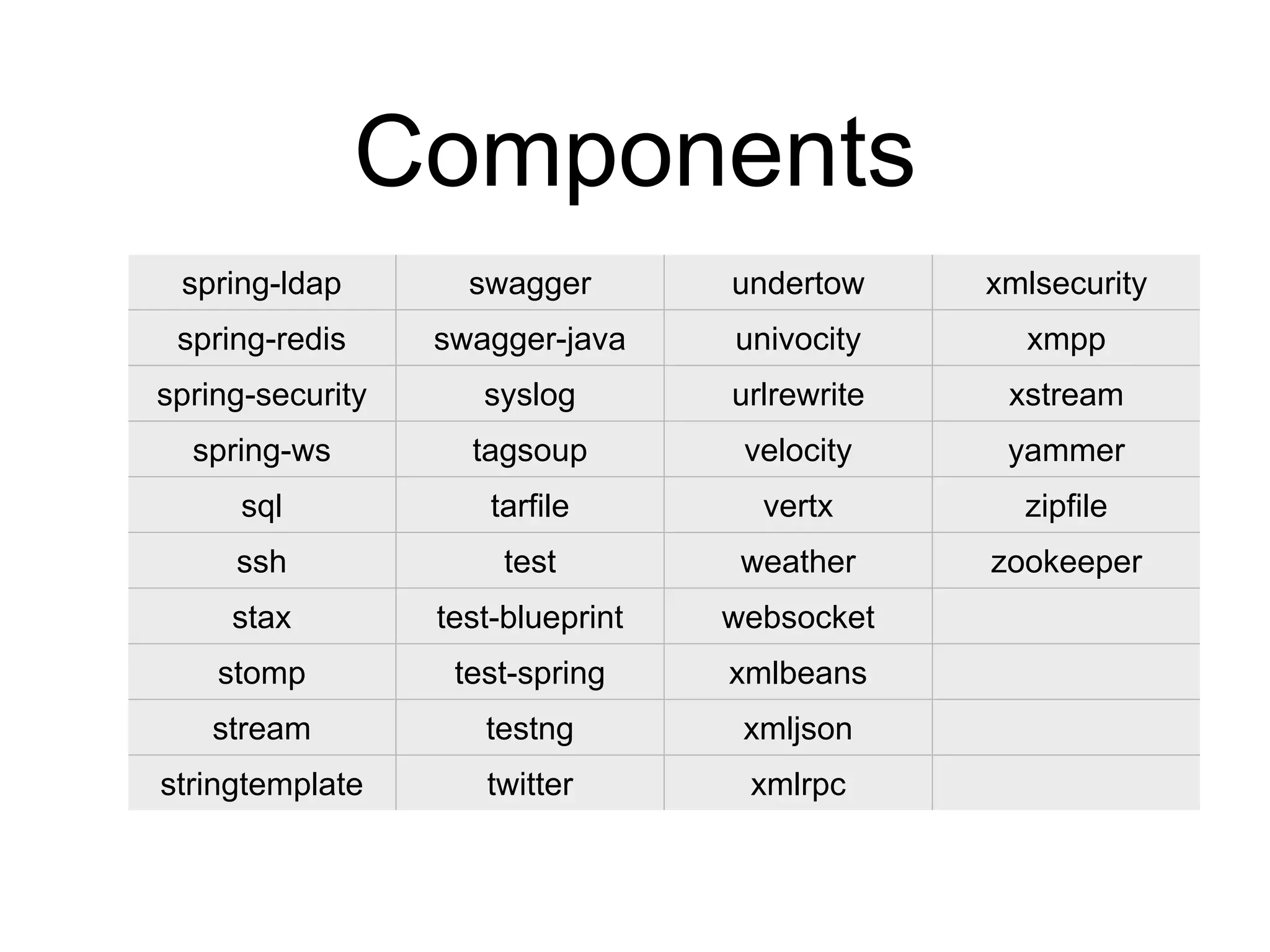

- 32. Components spring-ldap swagger undertow xmlsecurity spring-redis swagger-java univocity xmpp spring-security syslog urlrewrite xstream spring-ws tagsoup velocity yammer sql tarfile vertx zipfile ssh test weather zookeeper stax test-blueprint websocket stomp test-spring xmlbeans stream testng xmljson stringtemplate twitter xmlrpc
- 34. +
- 35. + +

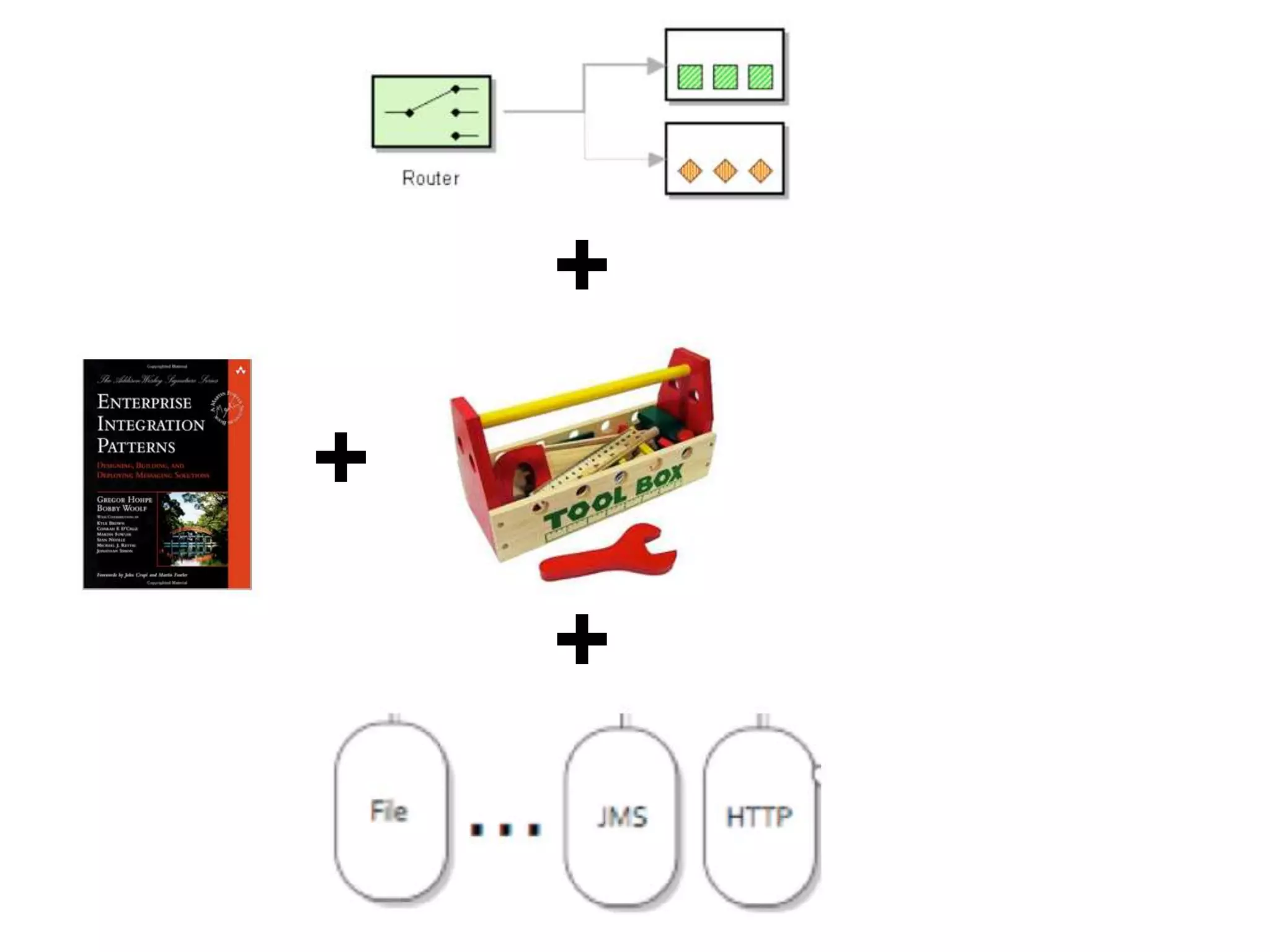

- 36. + + +

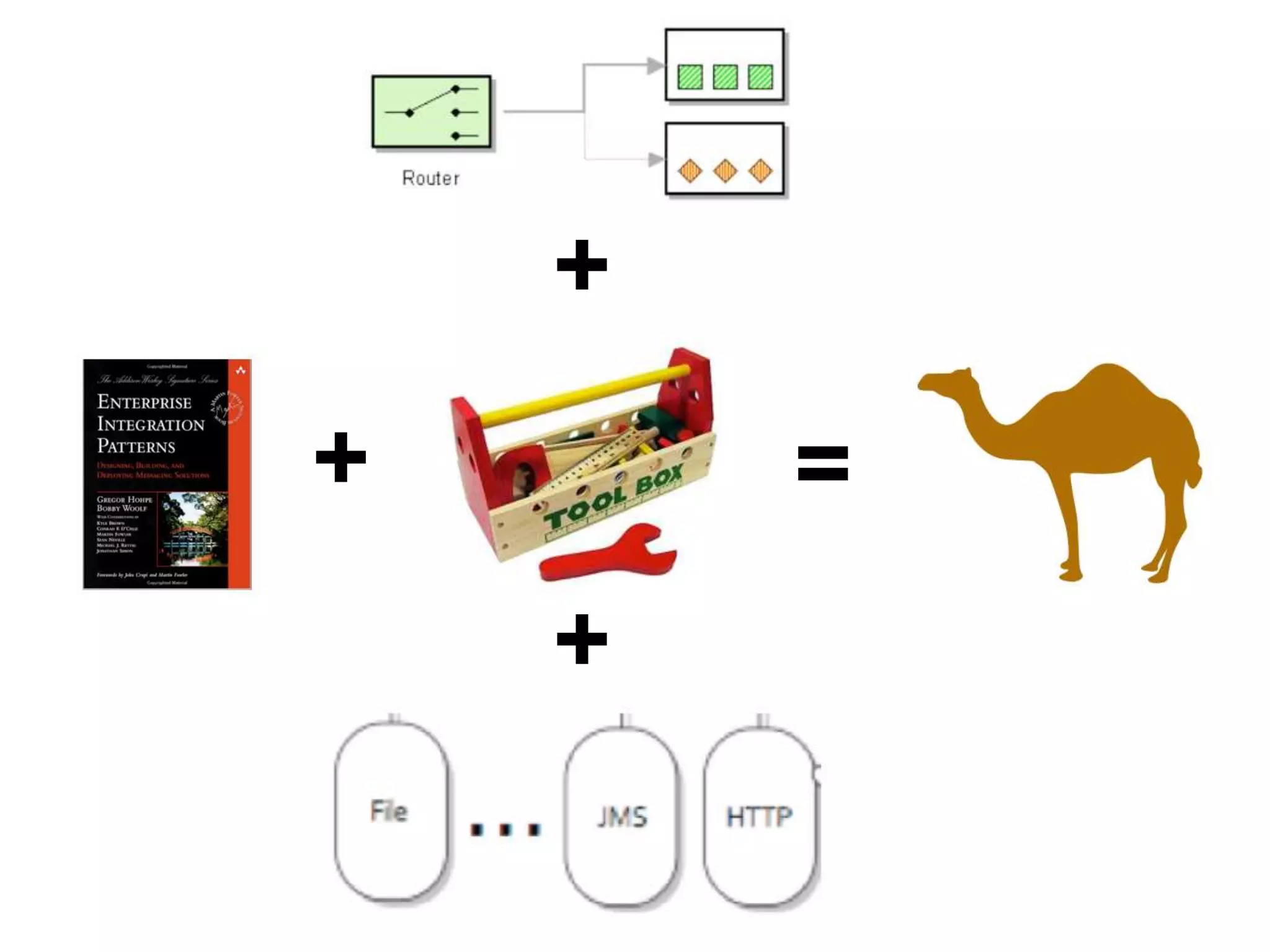

- 37. + + + =

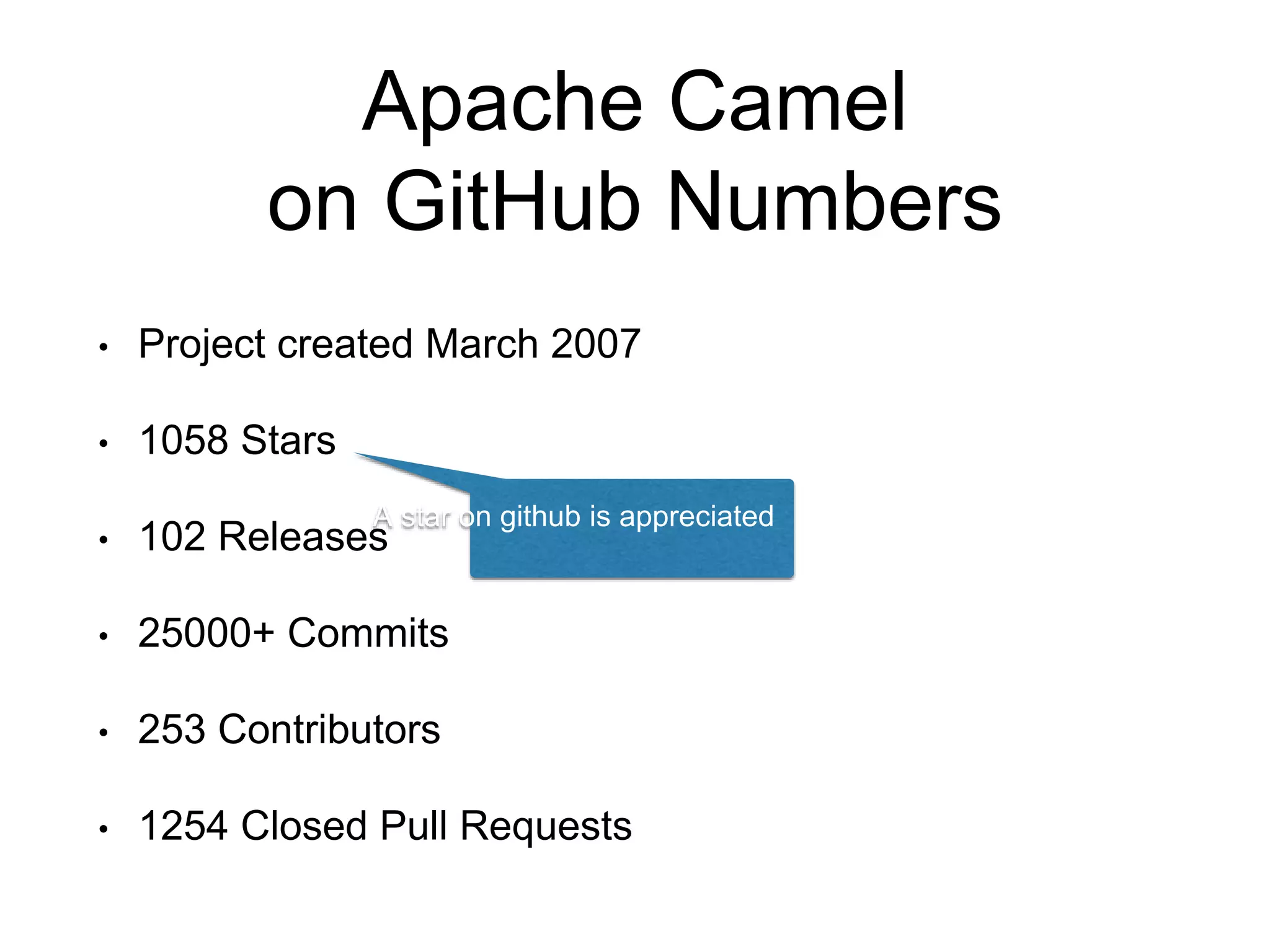

- 38. Apache Camel on GitHub Numbers • Project created March 2007 • 1058 Stars • 102 Releases • 25000+ Commits • 253 Contributors • 1254 Closed Pull Requests A star on github is appreciated

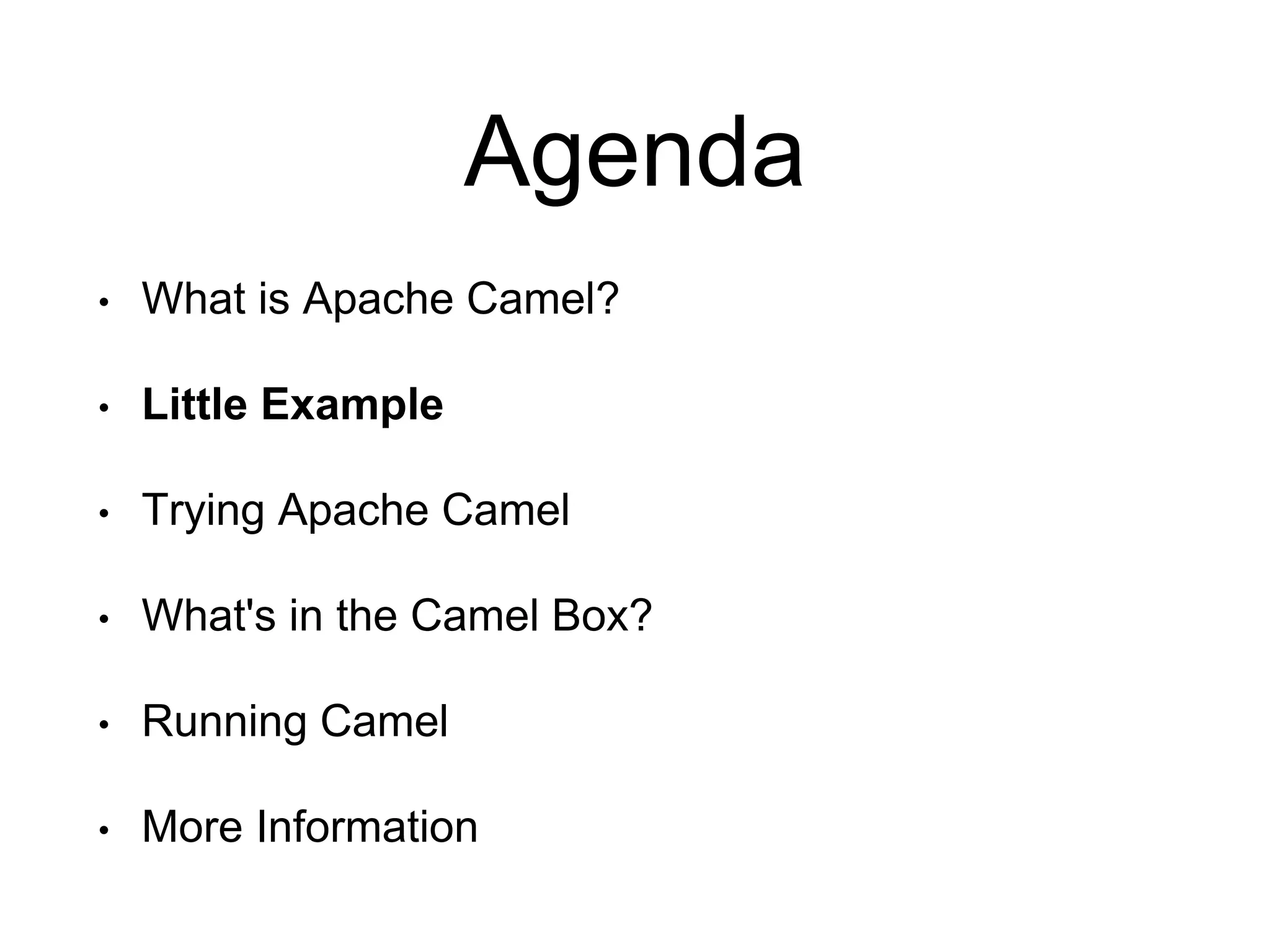

- 39. Agenda • What is Apache Camel? • Little Example • Trying Apache Camel • What's in the Camel Box? • Running Camel • More Information

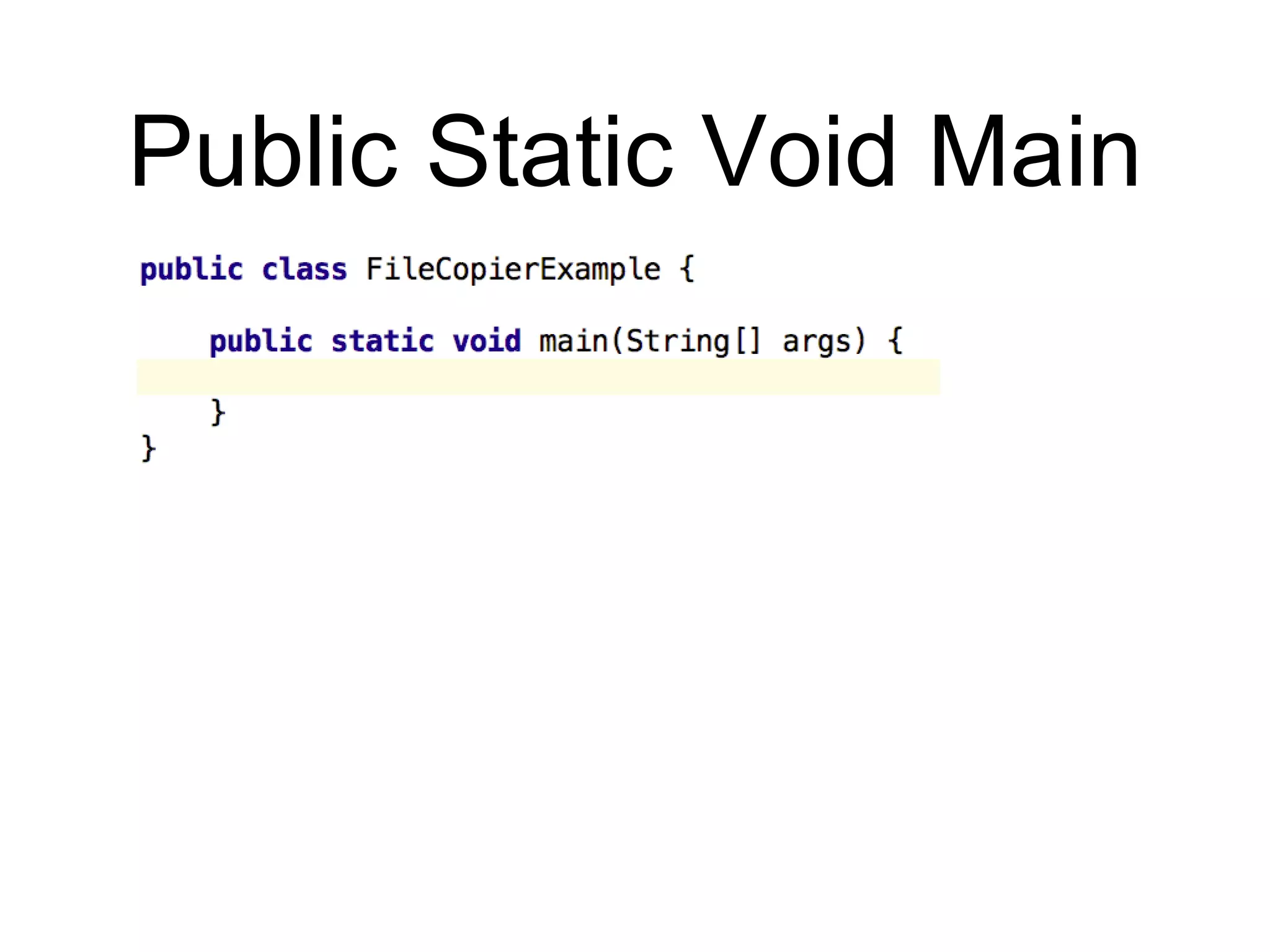

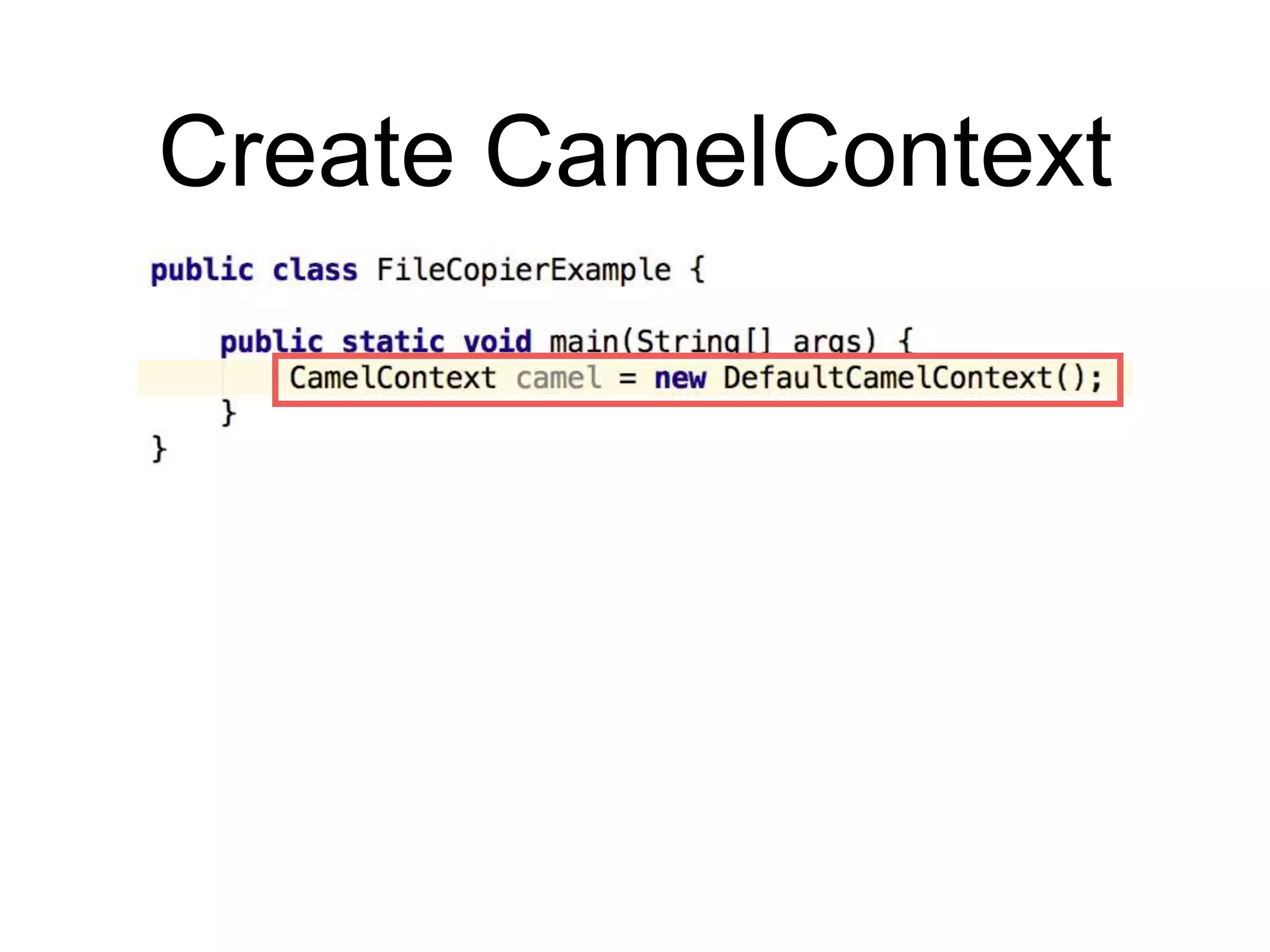

- 41. Public Static Void Main

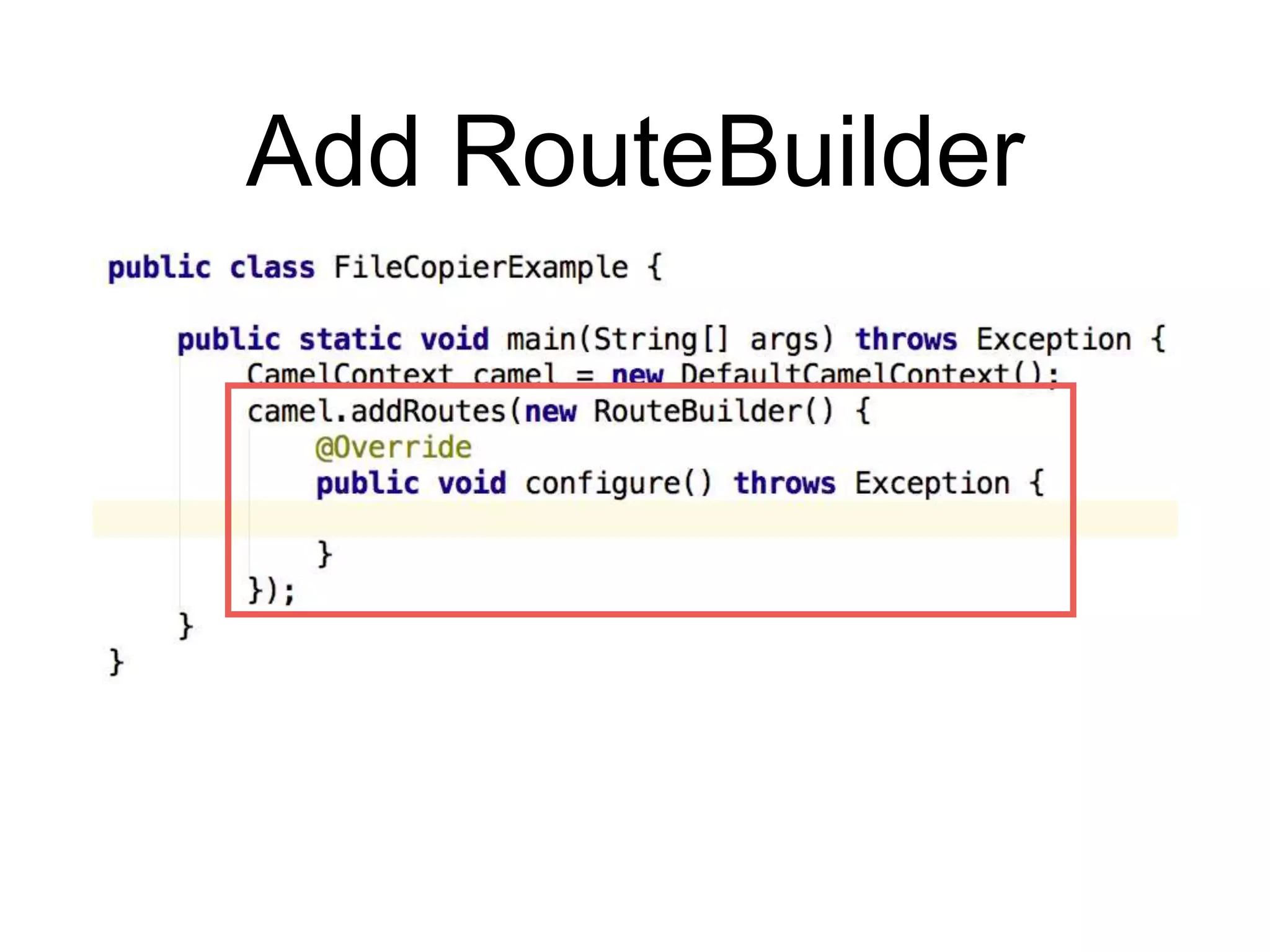

- 43. Add RouteBuilder

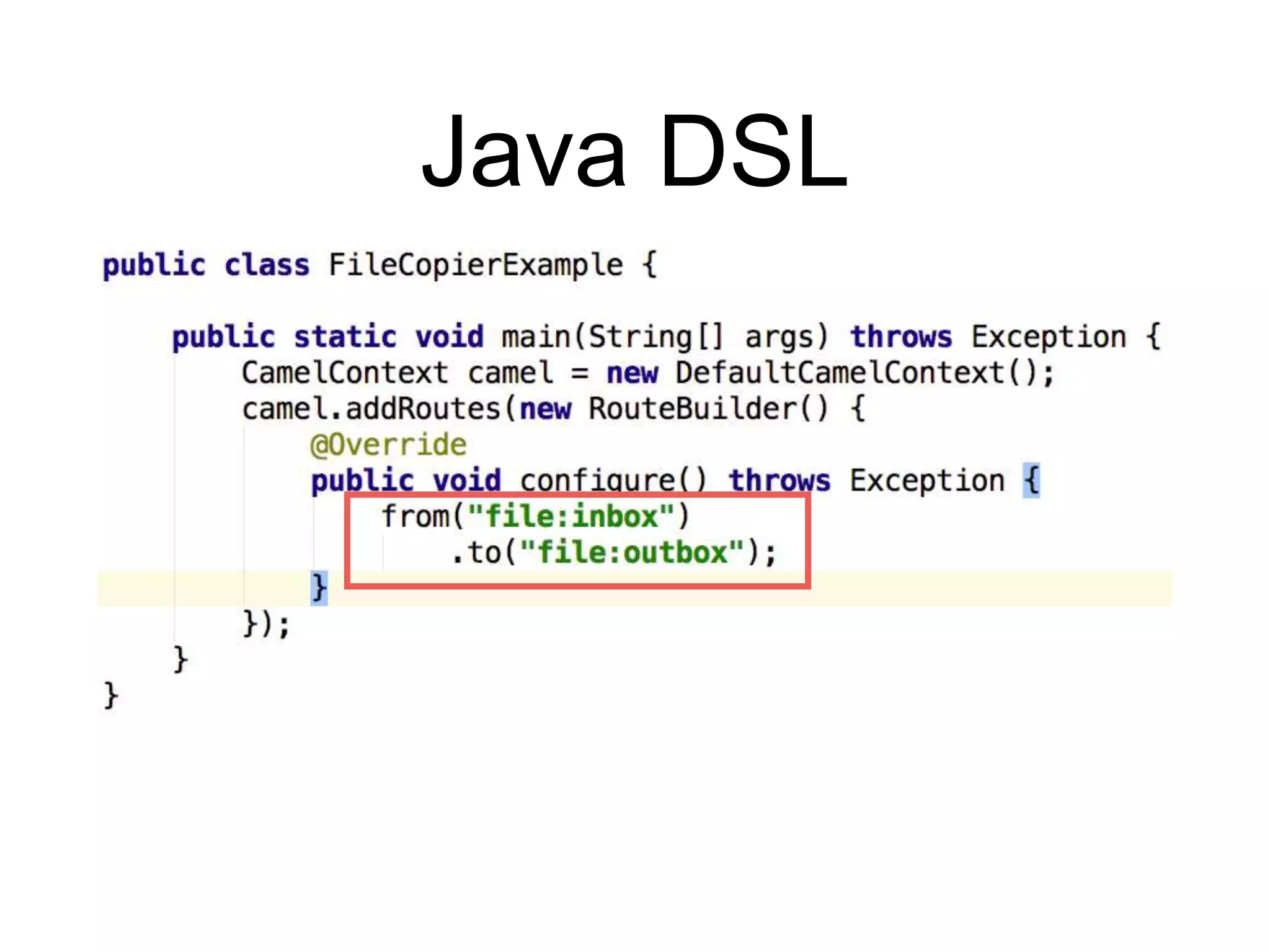

- 44. Java DSL

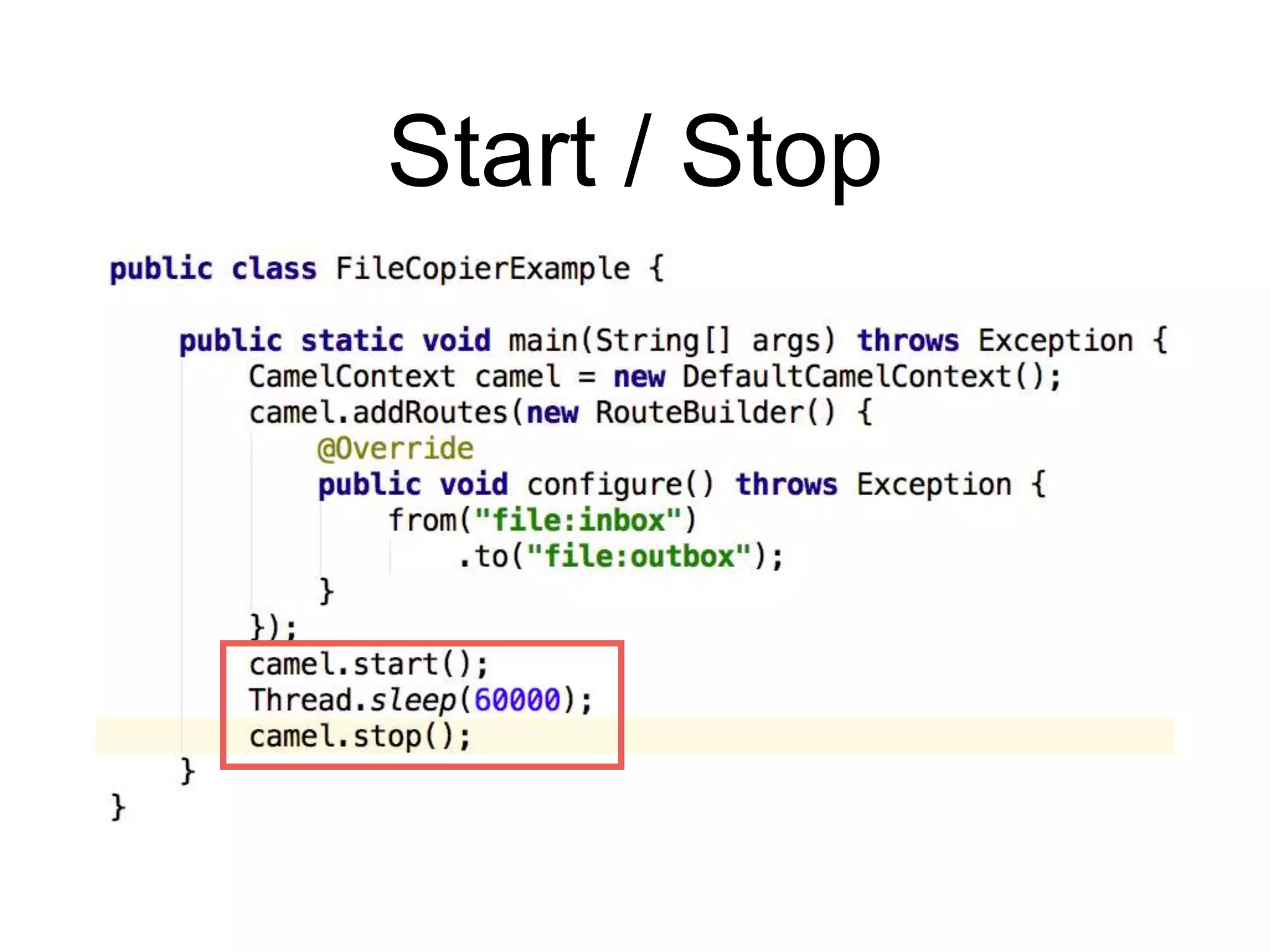

- 45. Start / Stop

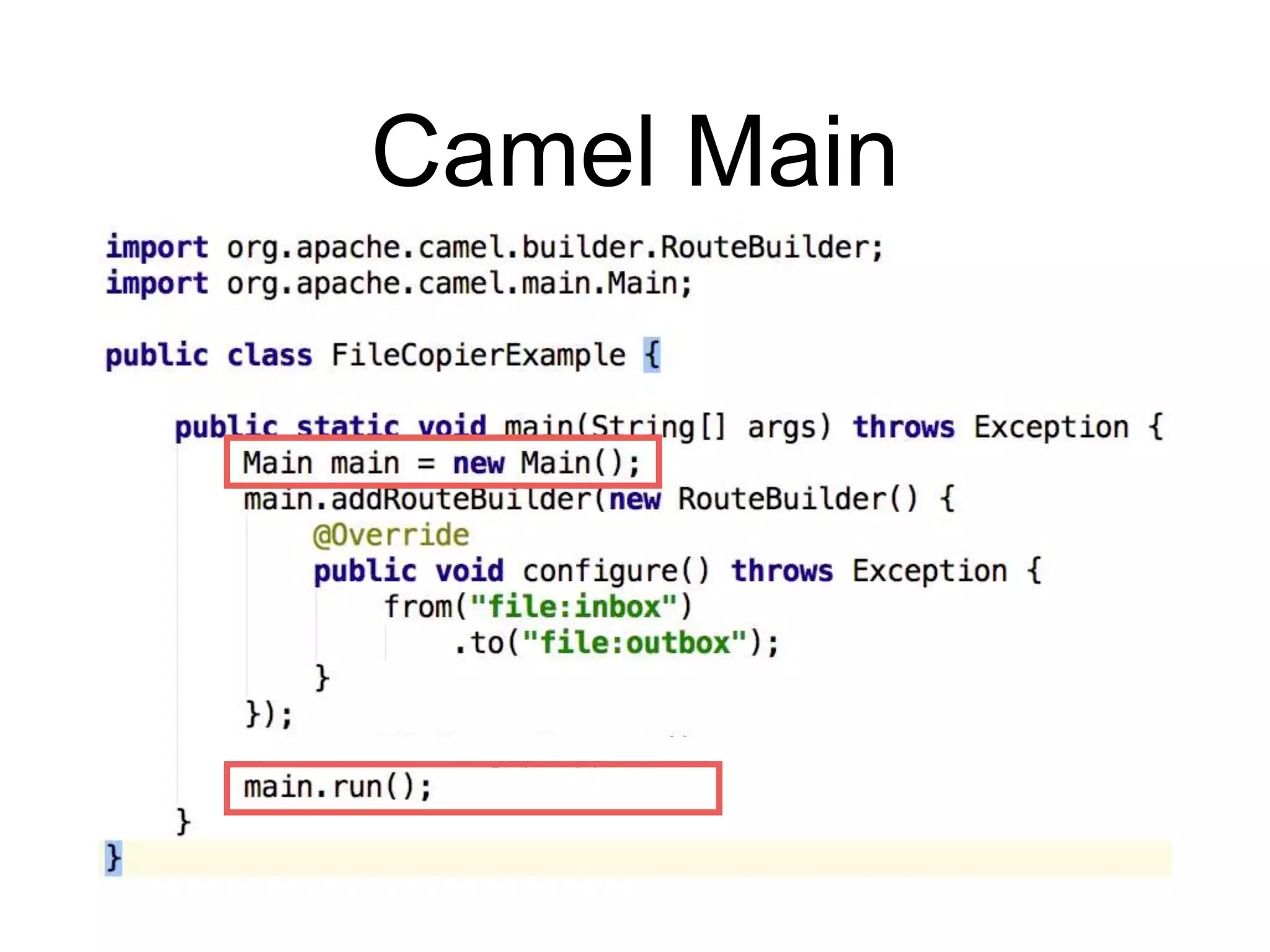

- 46. Camel Main

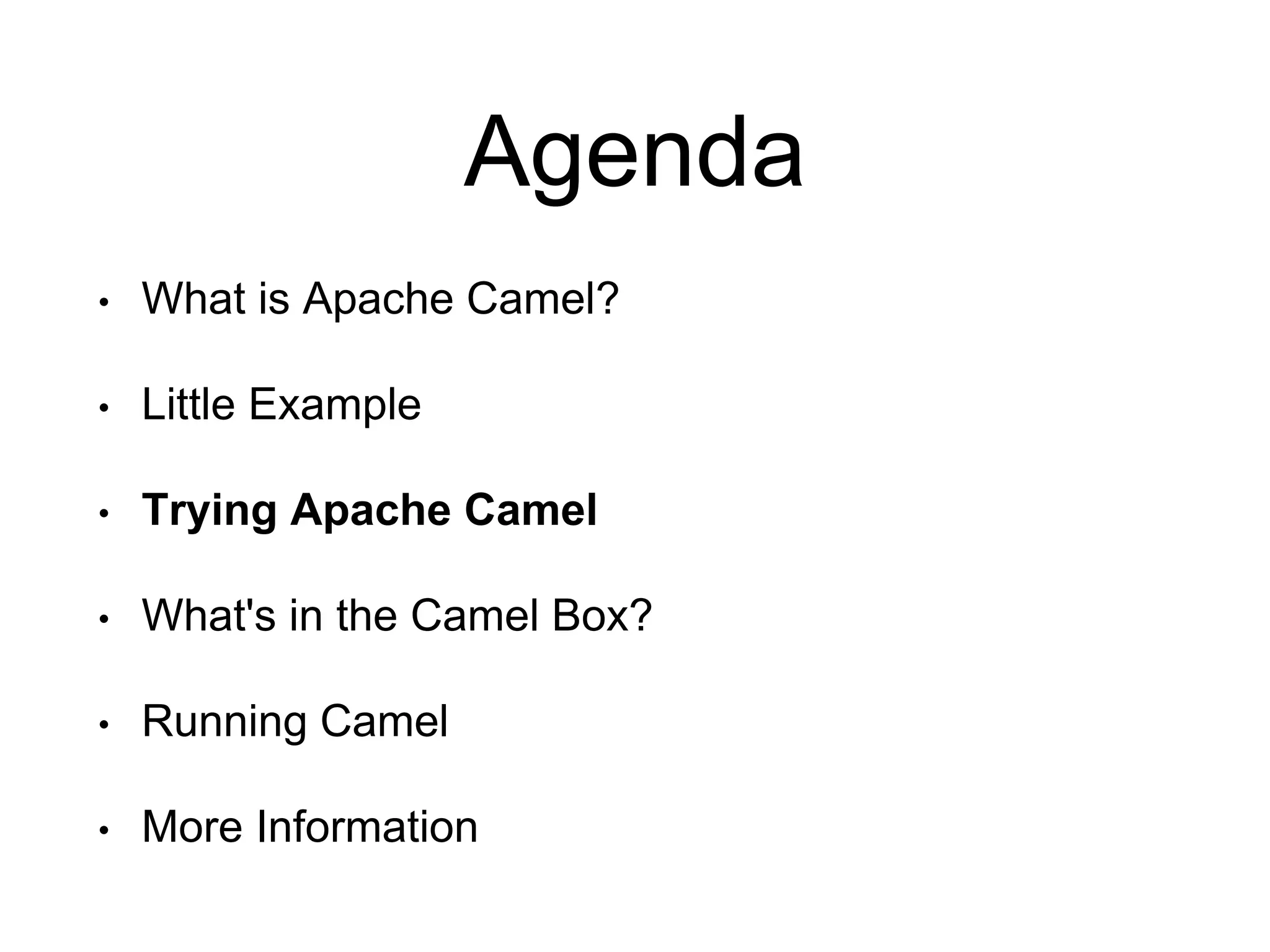

- 47. Agenda • What is Apache Camel? • Little Example • Trying Apache Camel • What's in the Camel Box? • Running Camel • More Information

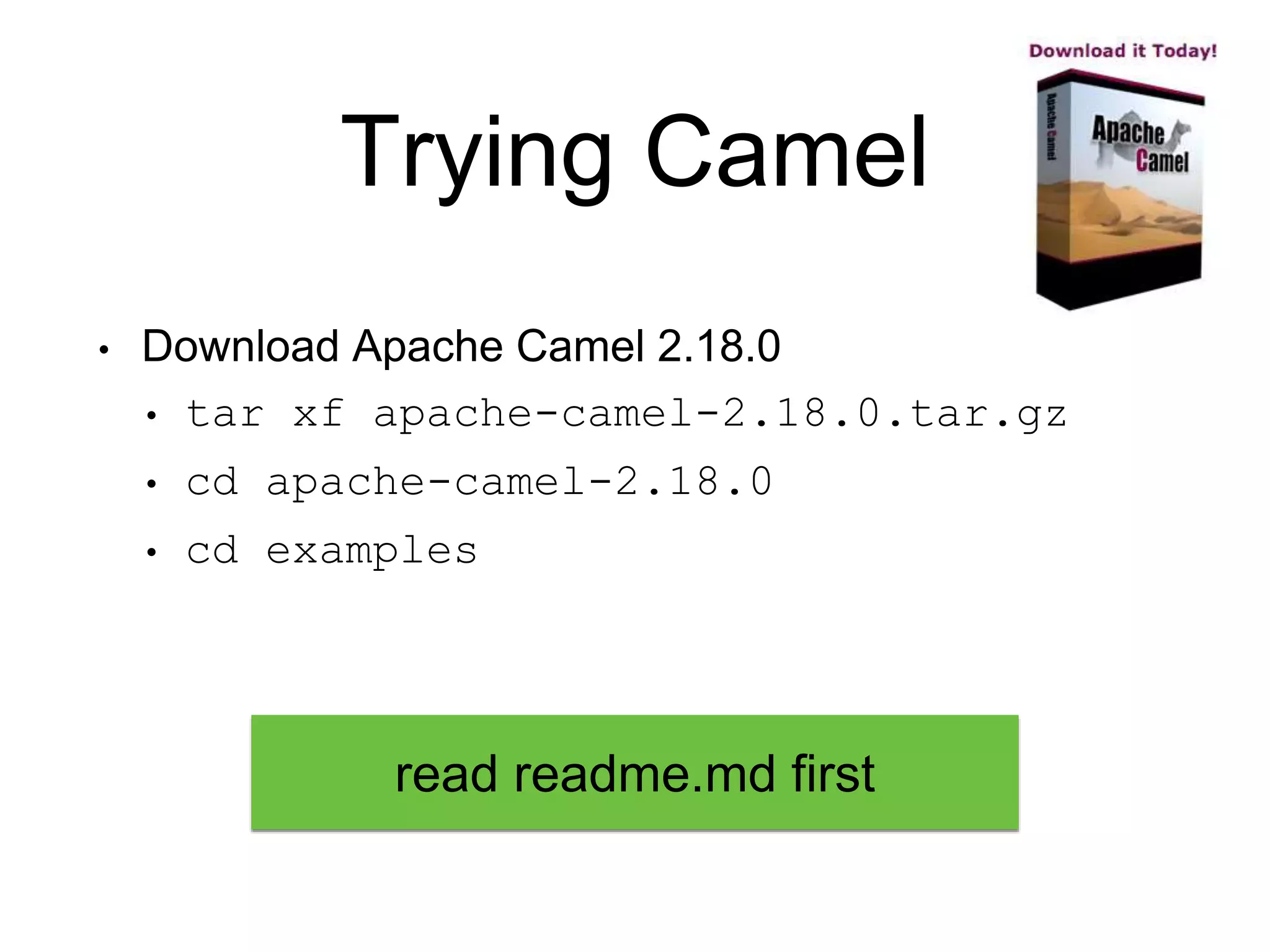

- 48. Trying Camel • Download Apache Camel 2.18.0 • tar xf apache-camel-2.18.0.tar.gz • cd apache-camel-2.18.0 • cd examples read readme.md first

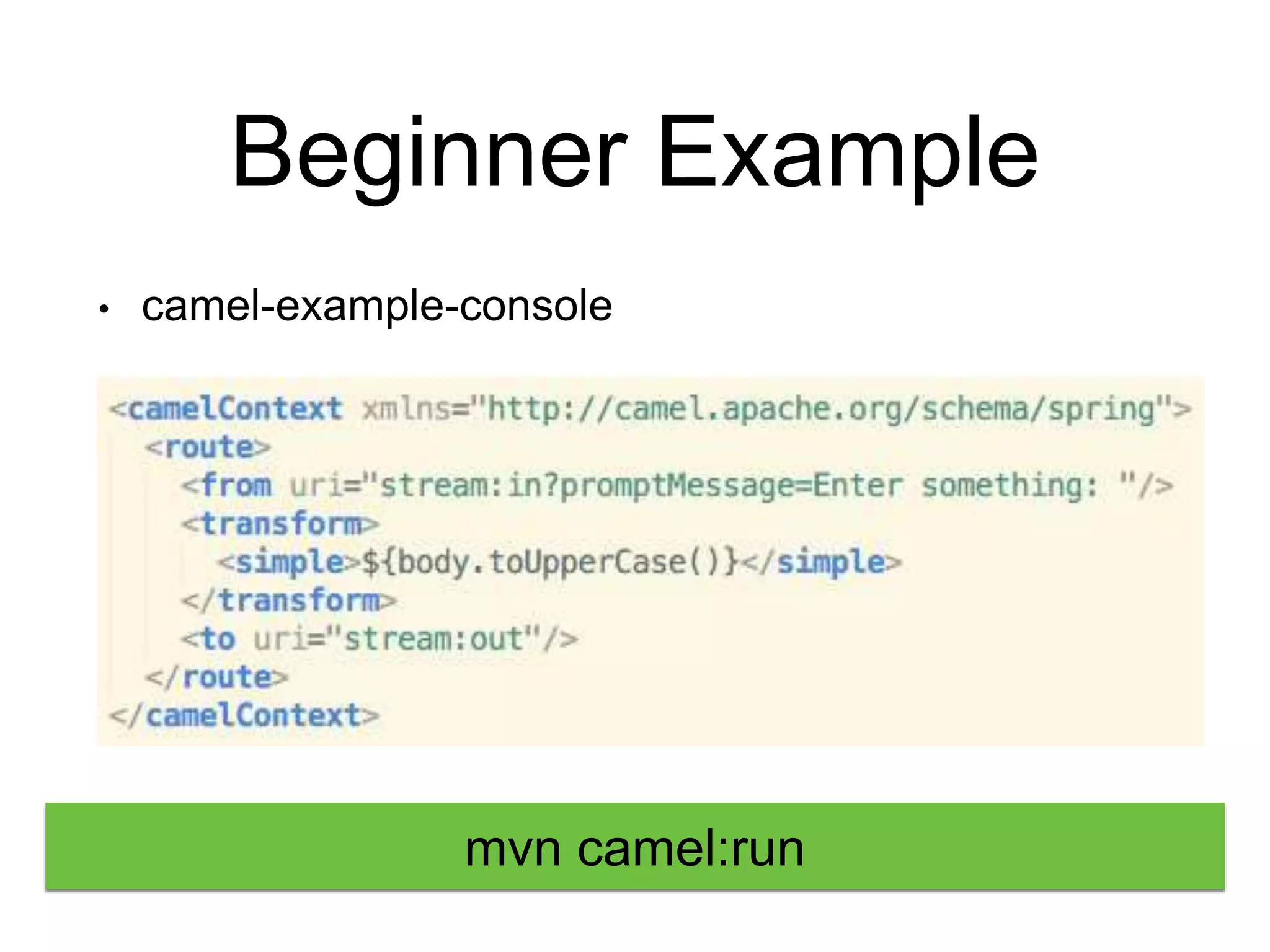

- 49. Beginner Example • camel-example-console mvn camel:run

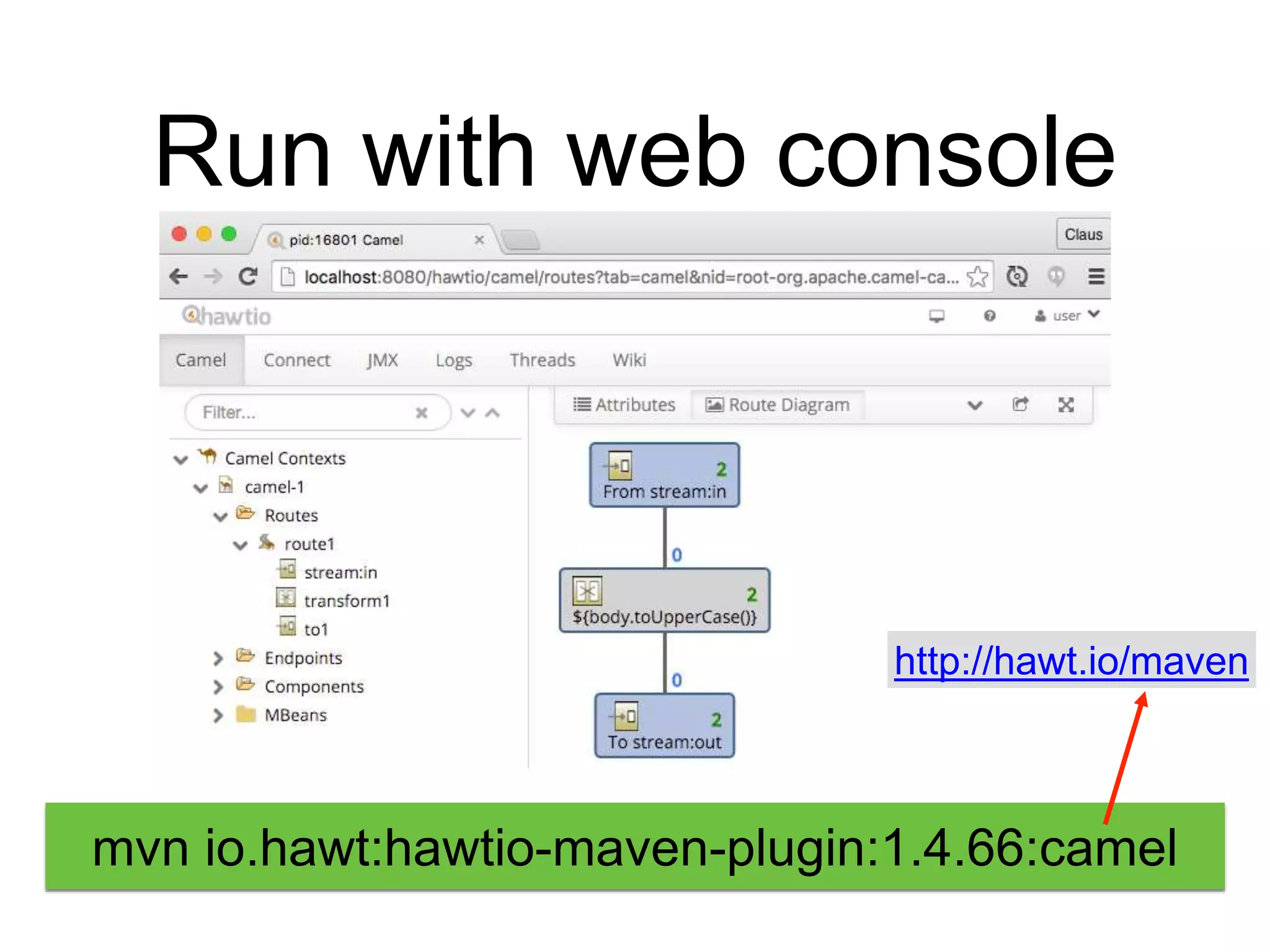

- 50. Run with web console mvn io.hawt:hawtio-maven-plugin:1.4.66:camel http://hawt.io/maven

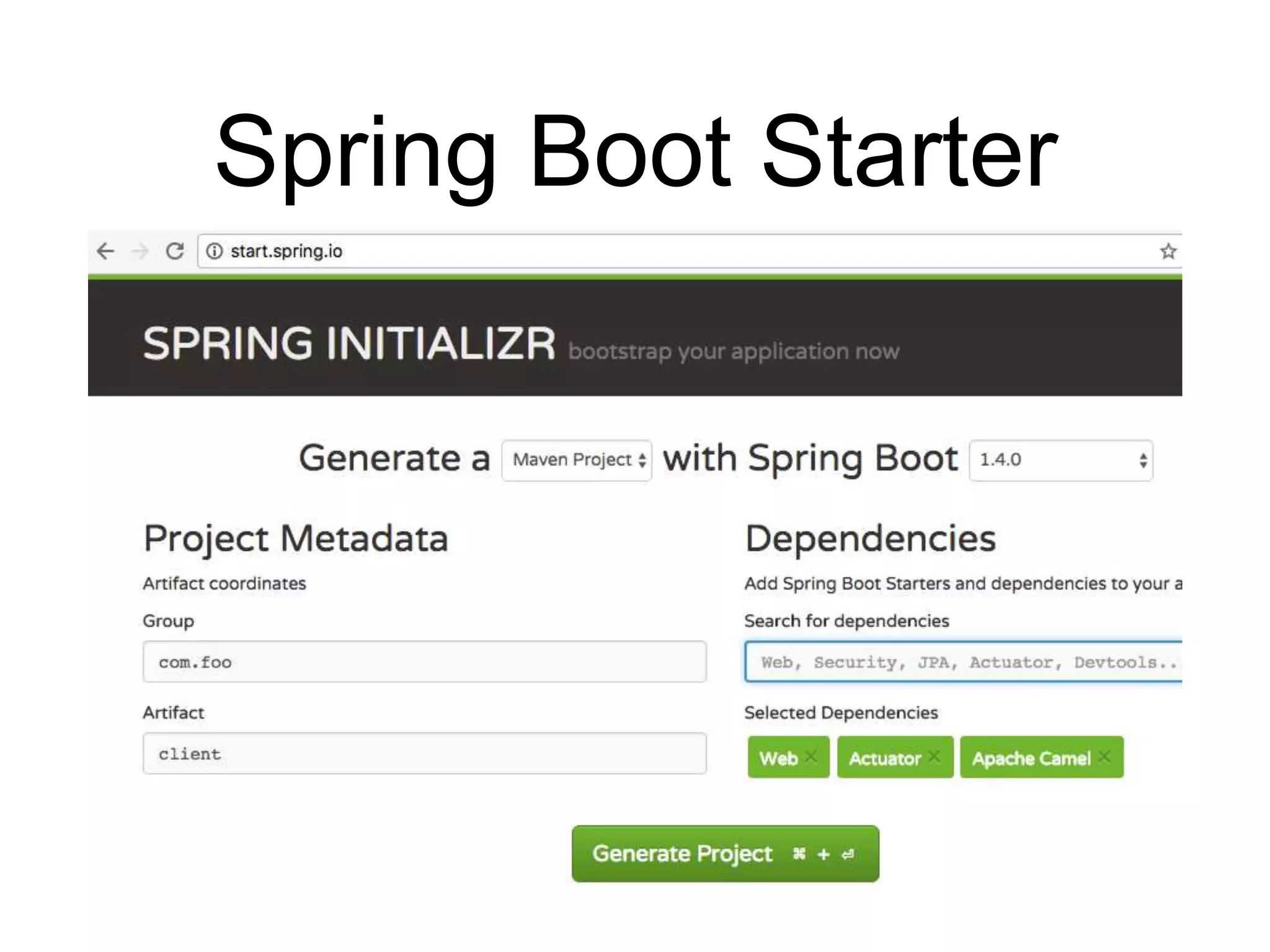

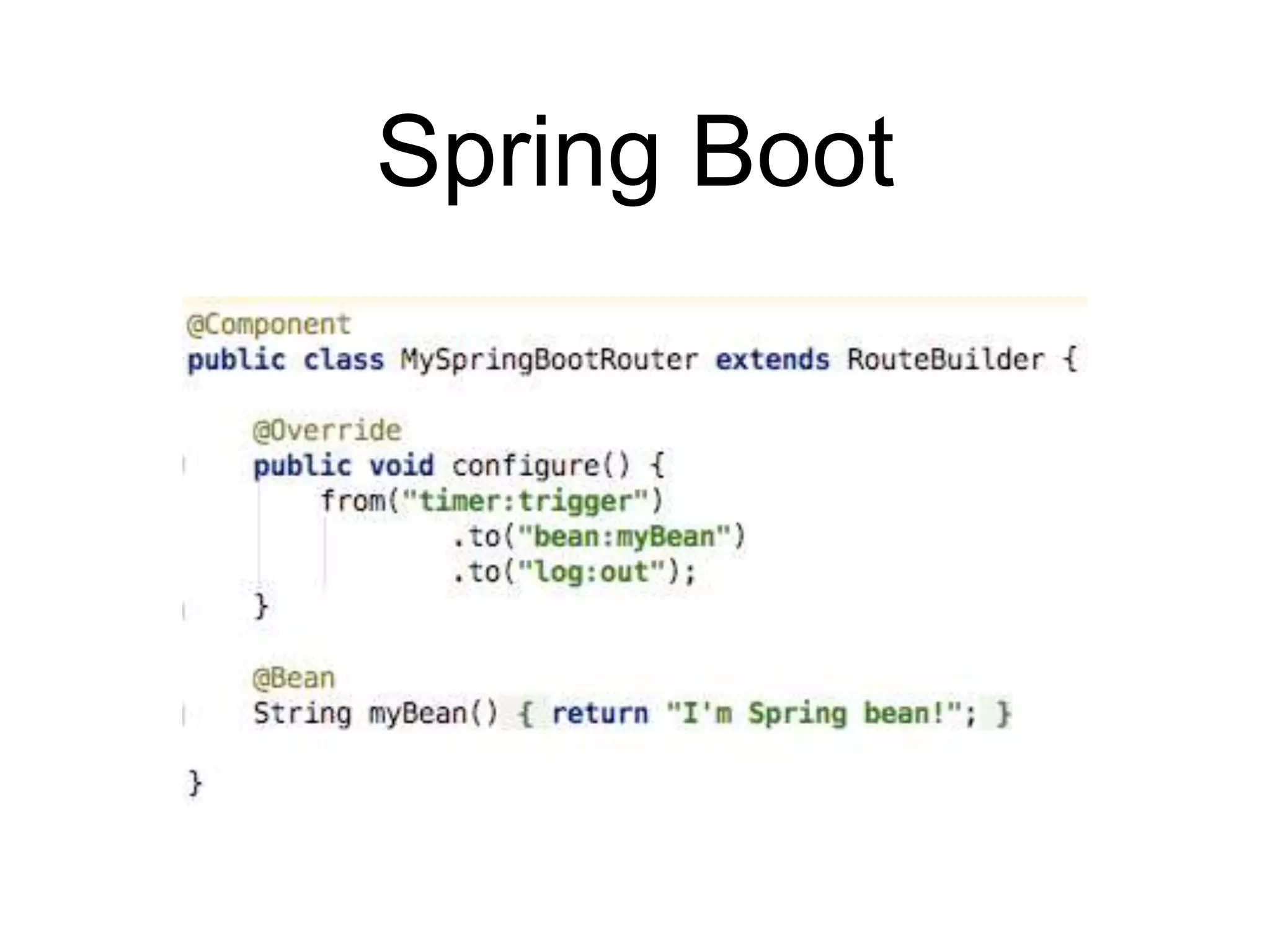

- 52. Spring Boot

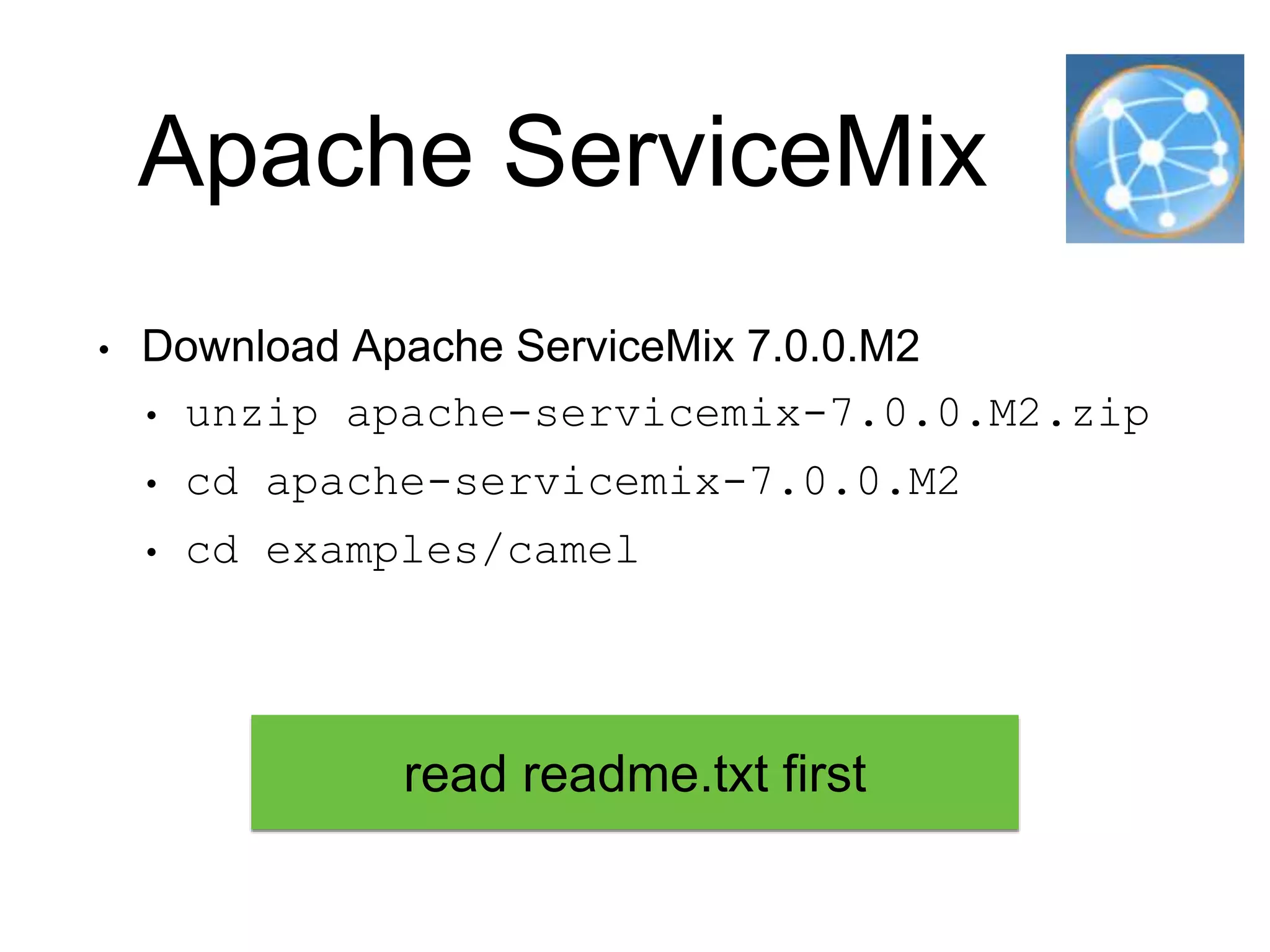

- 55. Apache ServiceMix • Download Apache ServiceMix 7.0.0.M2 • unzip apache-servicemix-7.0.0.M2.zip • cd apache-servicemix-7.0.0.M2 • cd examples/camel read readme.txt first

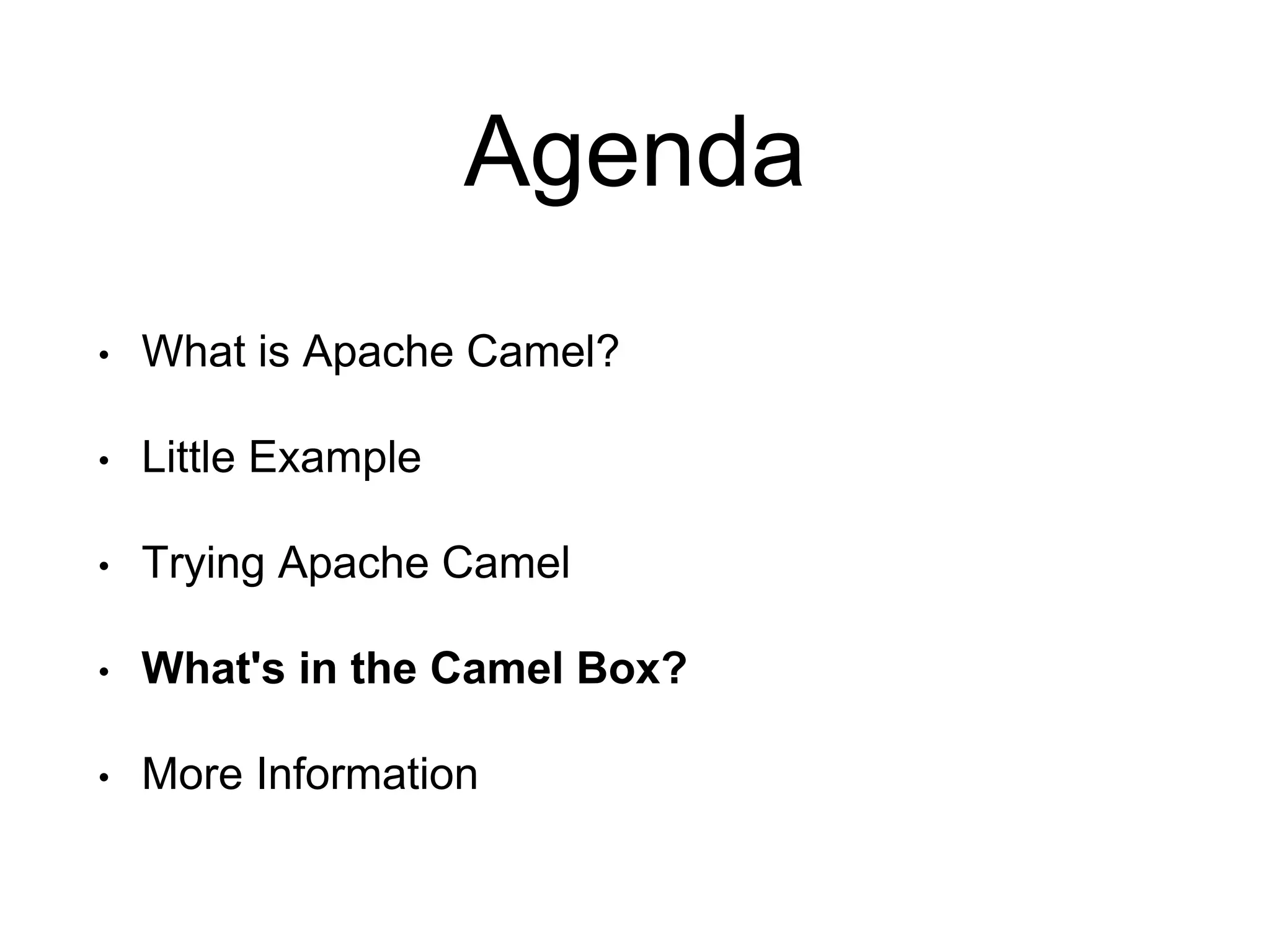

- 56. Agenda • What is Apache Camel? • Little Example • Trying Apache Camel • What's in the Camel Box? • More Information
- 57. What's in the Camel Box?

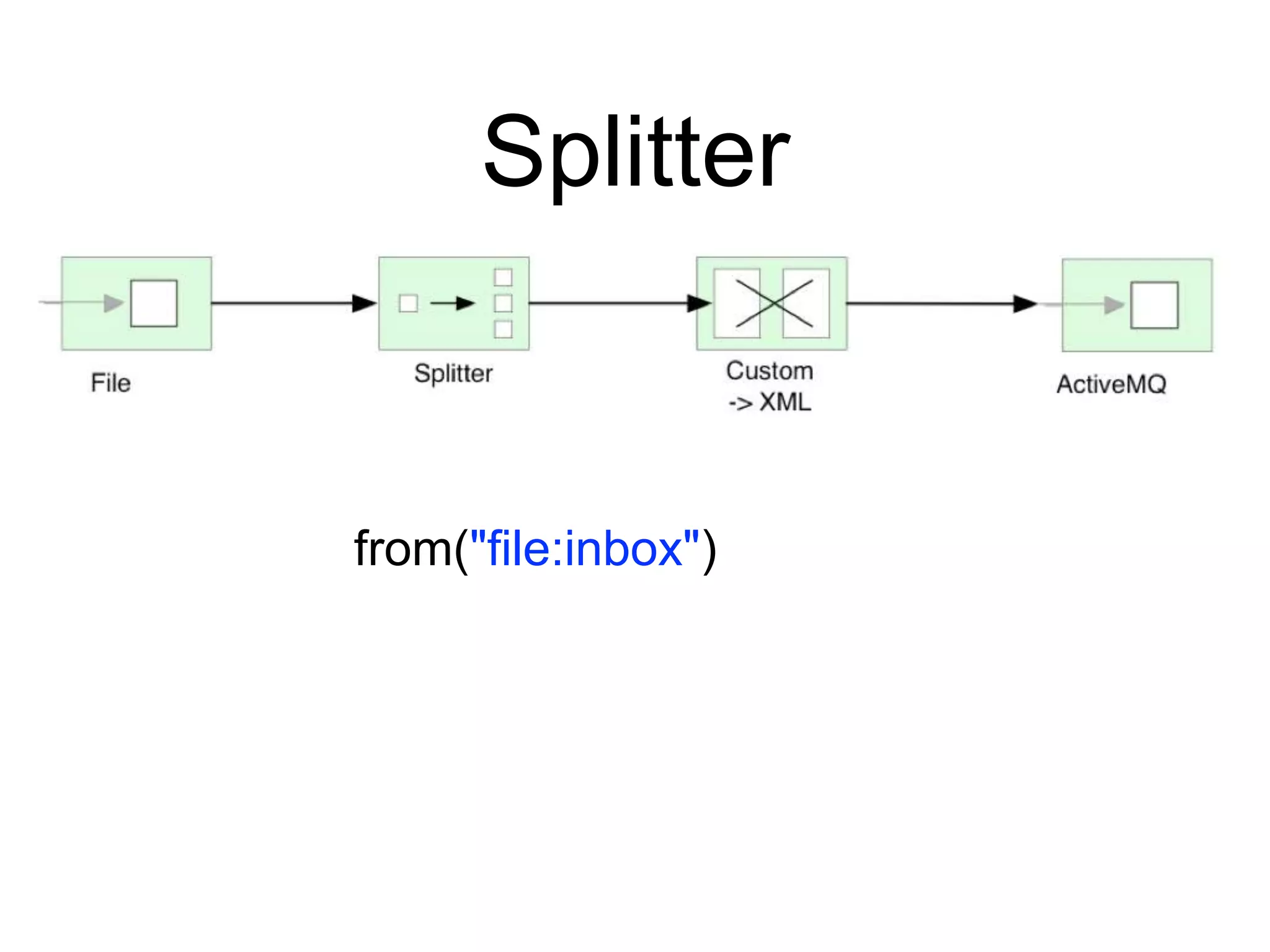

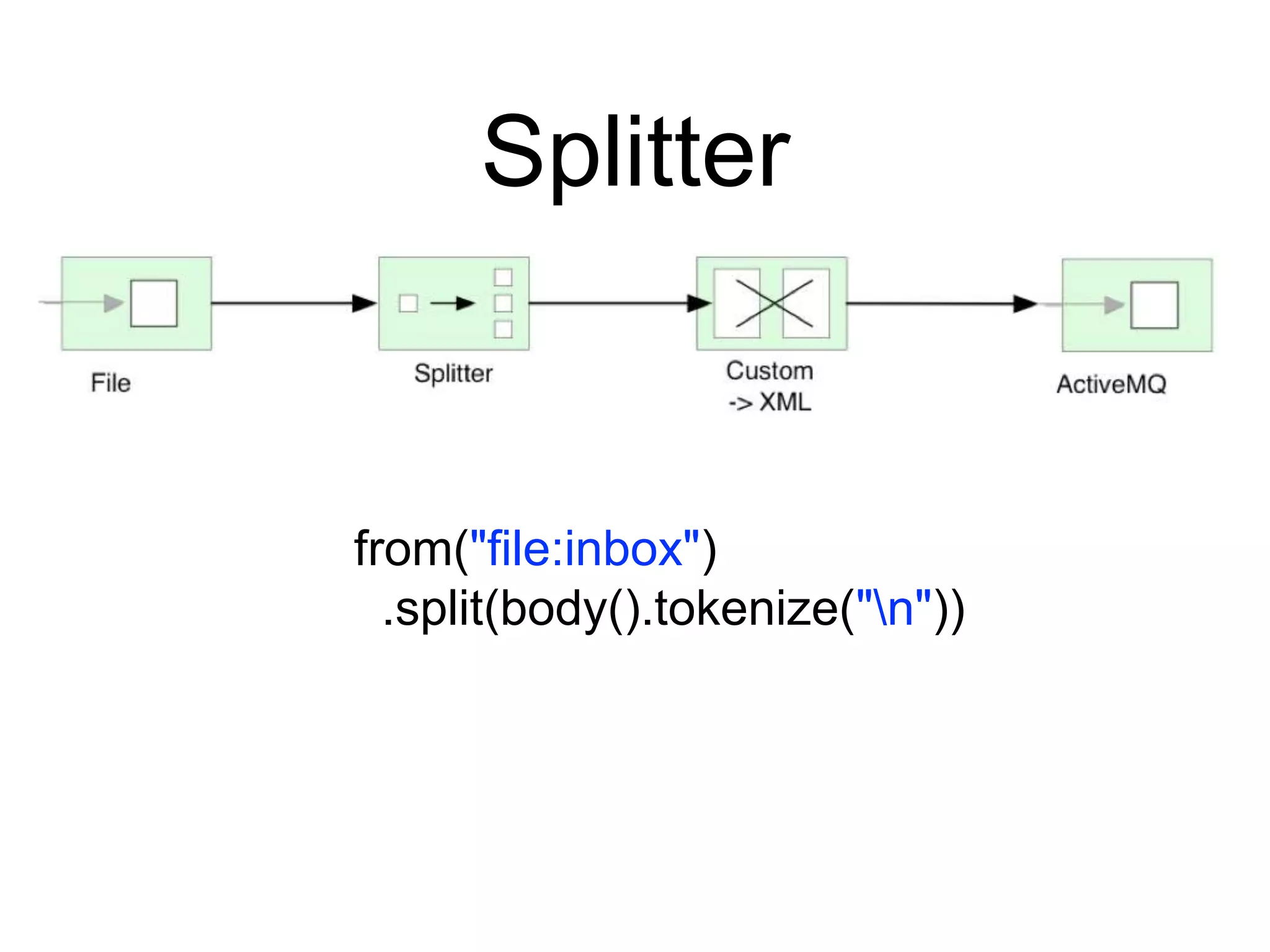

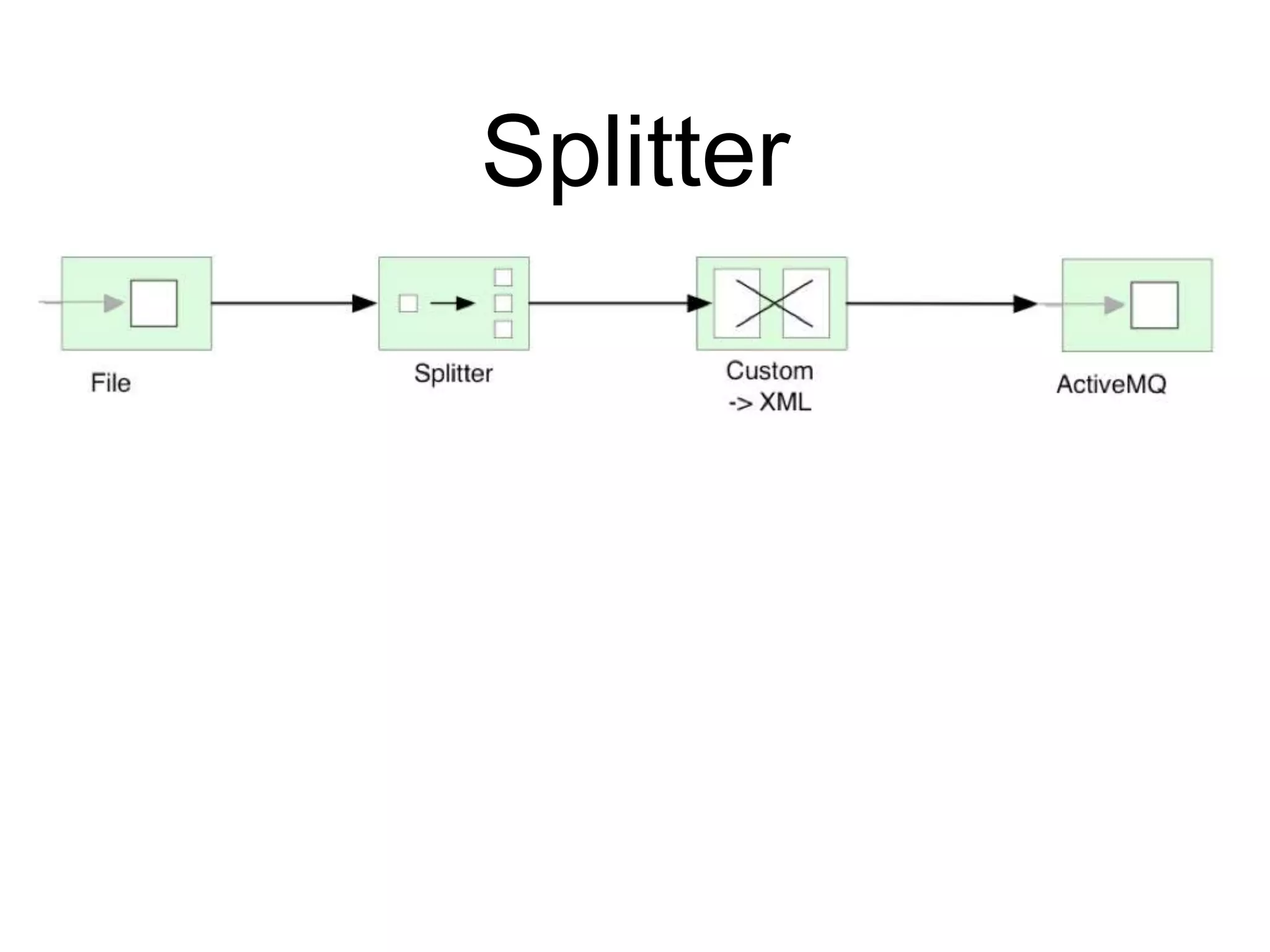

- 59. Splitter

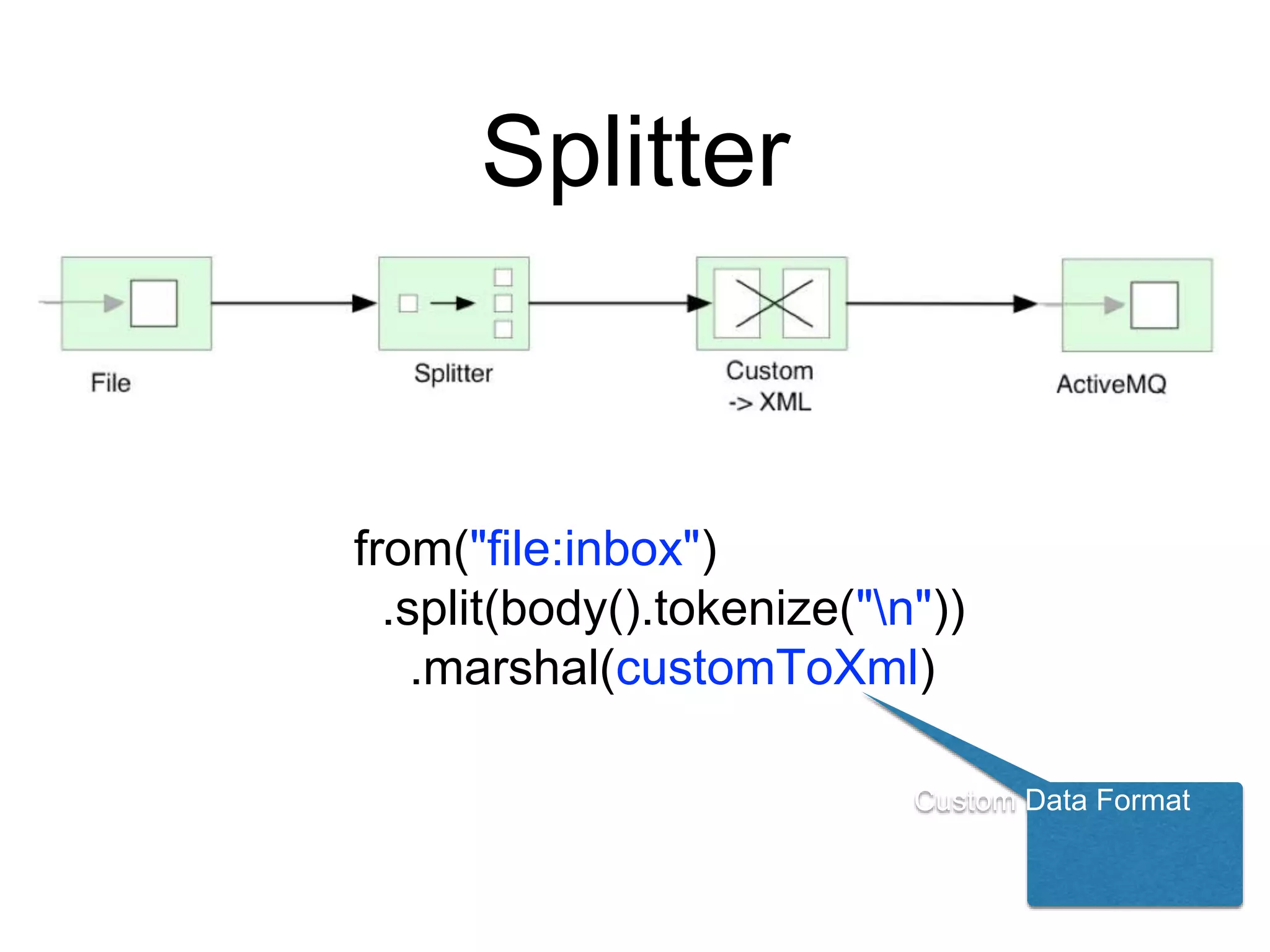

- 62. Splitter from("file:inbox") .split(body().tokenize("n")) .marshal(customToXml) Custom Data Format

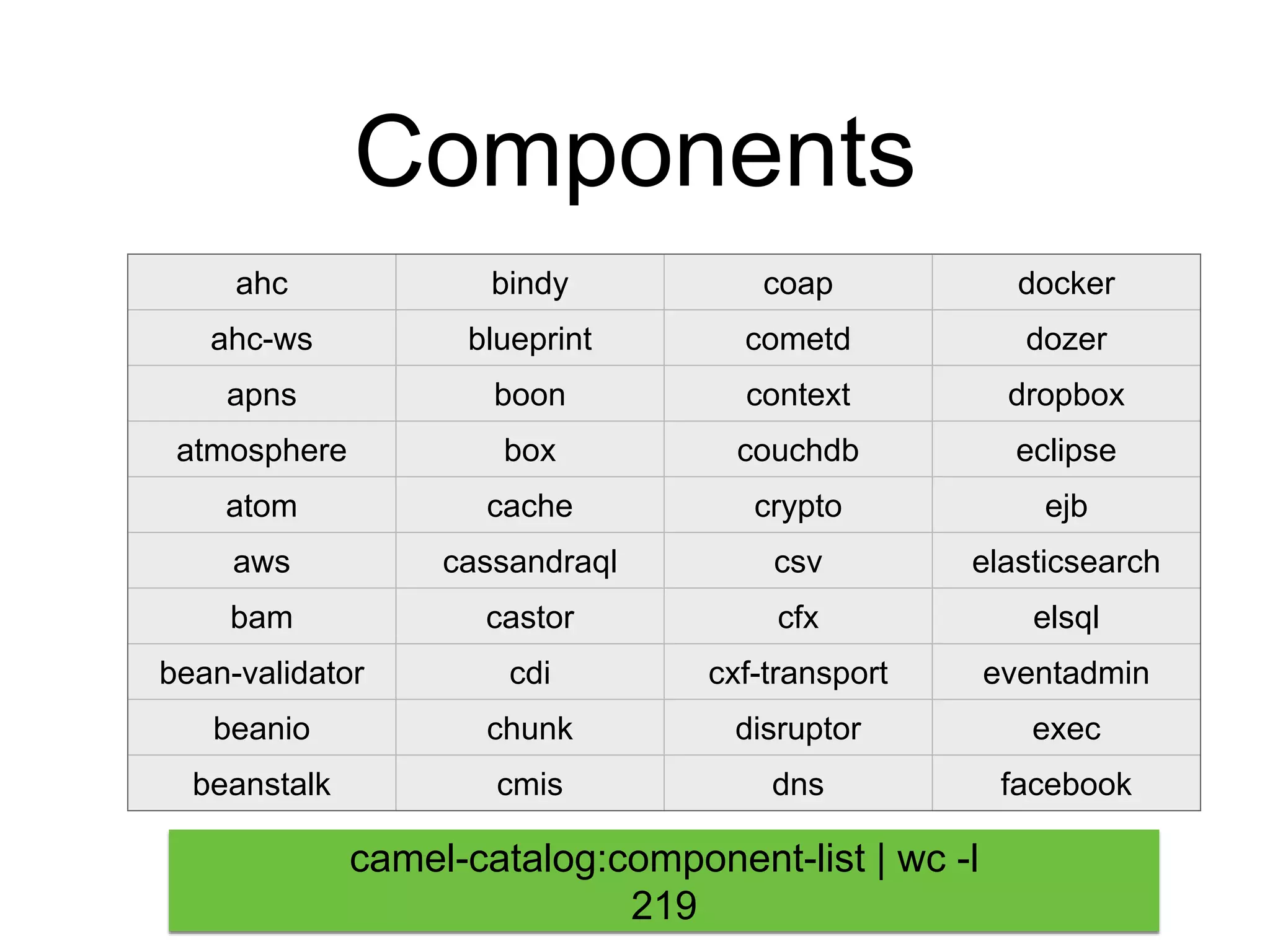

- 64. Components ahc bindy coap docker ahc-ws blueprint cometd dozer apns boon context dropbox atmosphere box couchdb eclipse atom cache crypto ejb aws cassandraql csv elasticsearch bam castor cfx elsql bean-validator cdi cxf-transport eventadmin beanio chunk disruptor exec beanstalk cmis dns facebook camel-catalog:component-list | wc -l 219

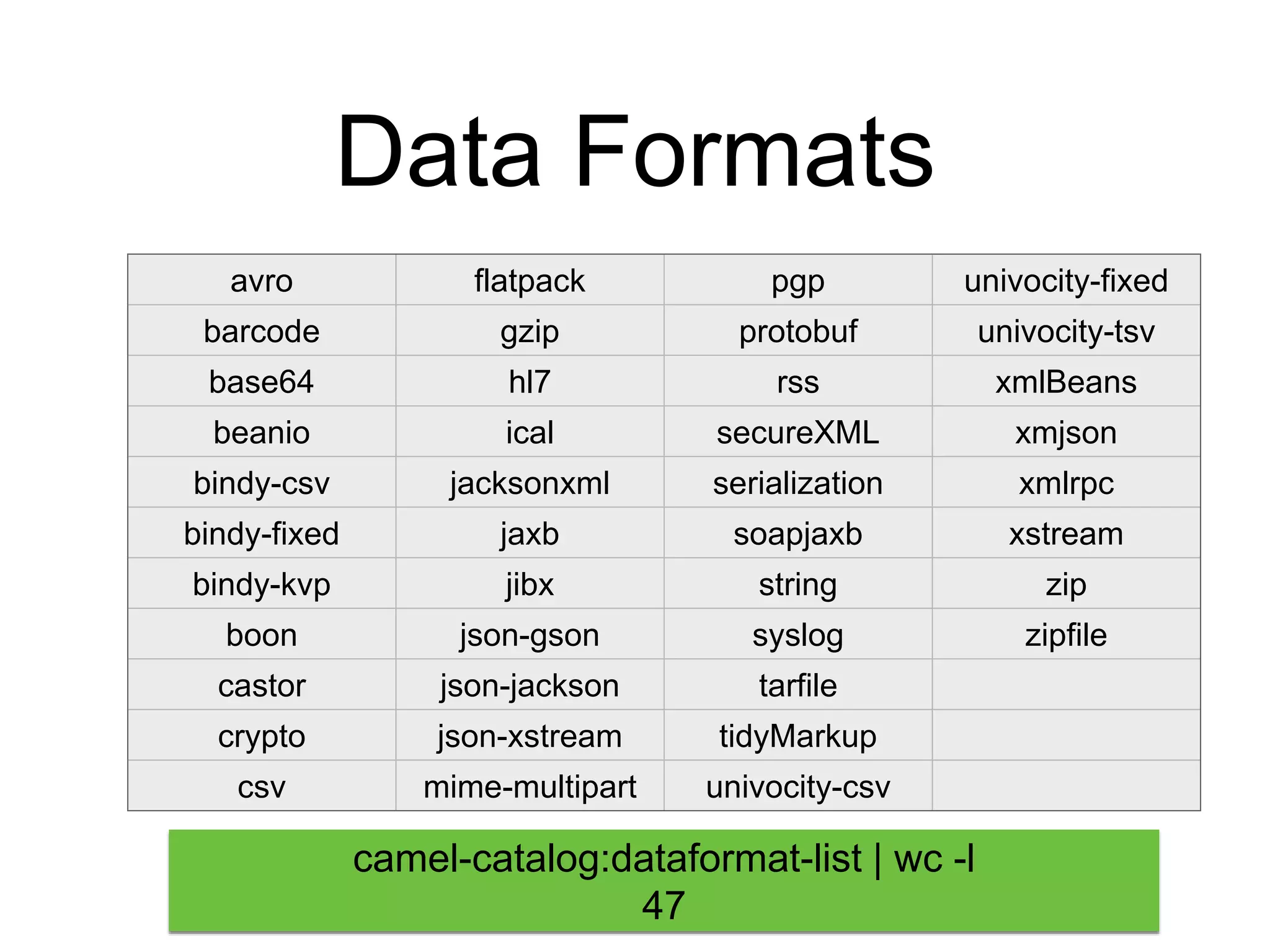

- 65. Data Formats avro flatpack pgp univocity-fixed barcode gzip protobuf univocity-tsv base64 hl7 rss xmlBeans beanio ical secureXML xmjson bindy-csv jacksonxml serialization xmlrpc bindy-fixed jaxb soapjaxb xstream bindy-kvp jibx string zip boon json-gson syslog zipfile castor json-jackson tarfile crypto json-xstream tidyMarkup csv mime-multipart univocity-csv camel-catalog:dataformat-list | wc -l 47

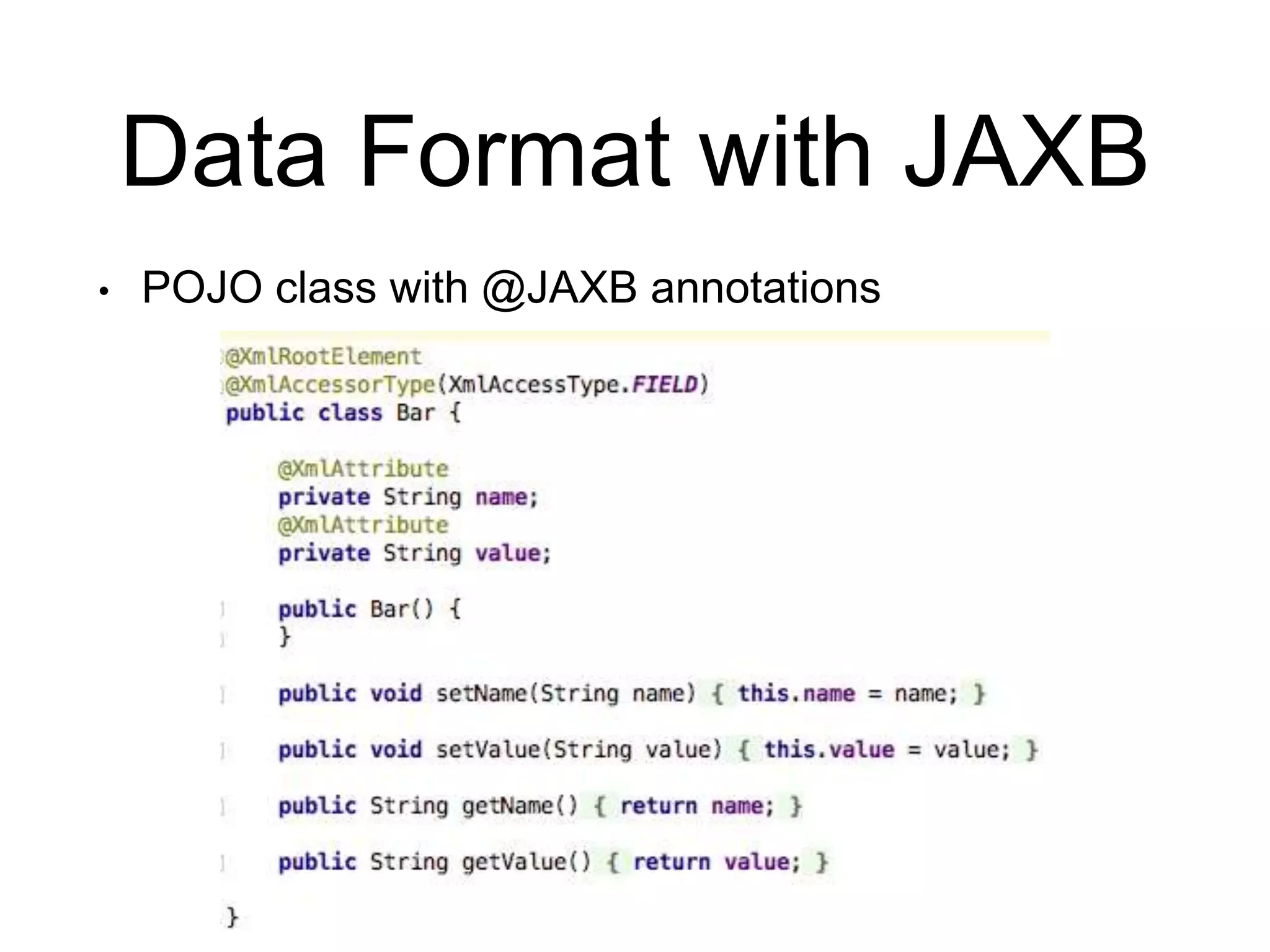

- 66. Data Format with JAXB • POJO class with @JAXB annotations

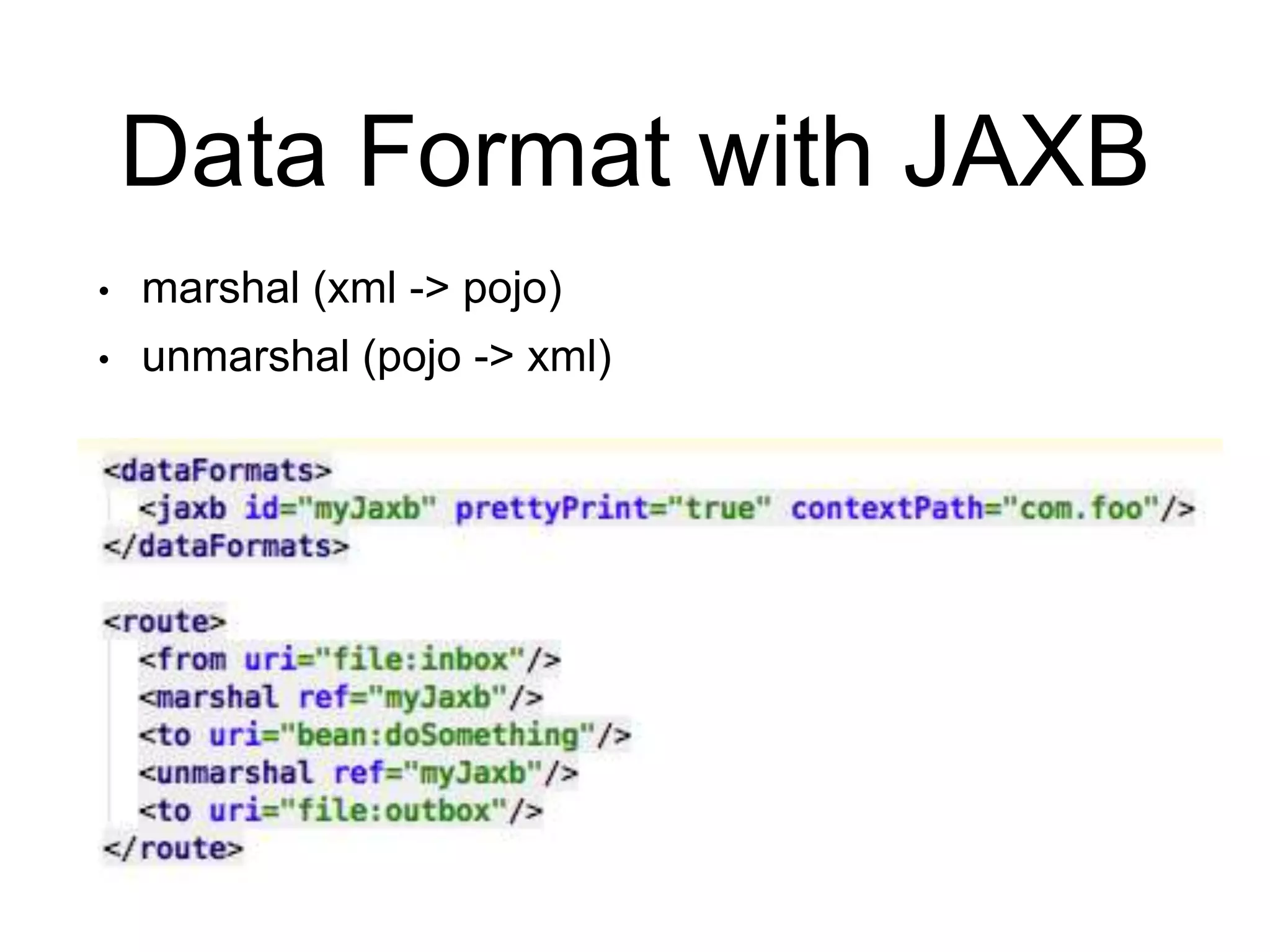

- 67. Data Format with JAXB • marshal (xml -> pojo) • unmarshal (pojo -> xml)

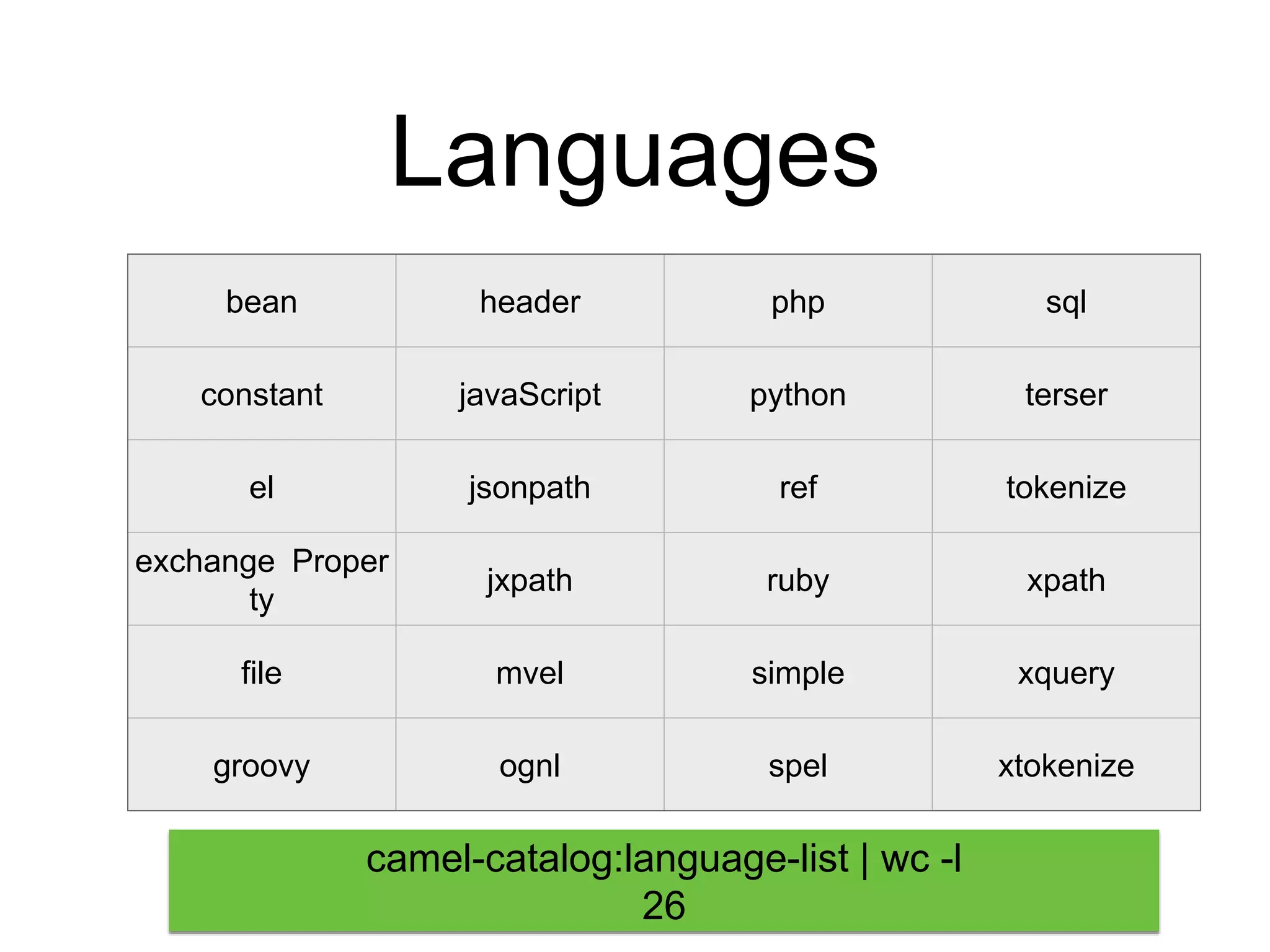

- 68. Languages bean header php sql constant javaScript python terser el jsonpath ref tokenize exchange Proper ty jxpath ruby xpath file mvel simple xquery groovy ognl spel xtokenize camel-catalog:language-list | wc -l 26

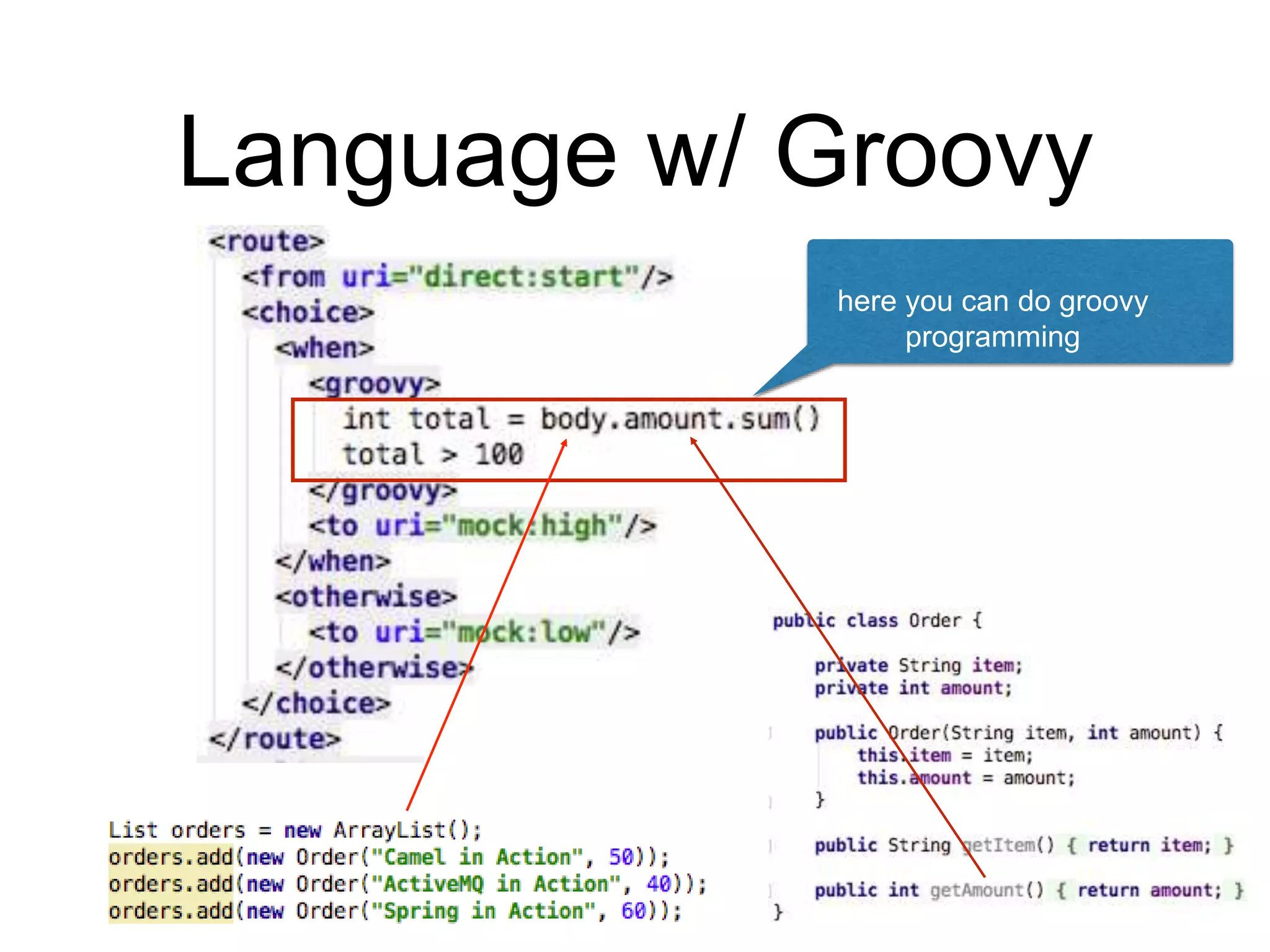

- 70. Language w/ Groovy here you can do groovy programming

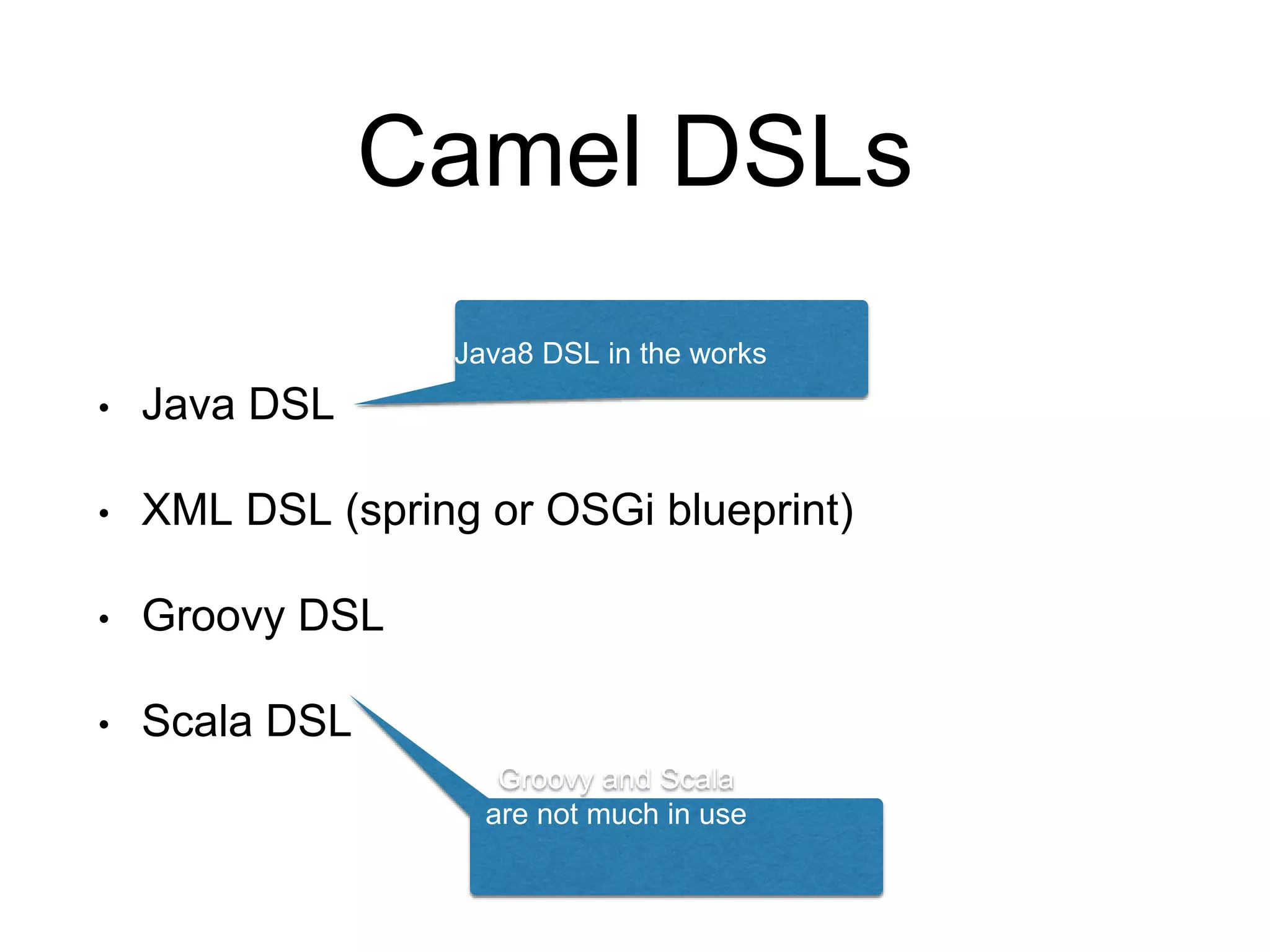

- 71. Camel DSLs • Java DSL • XML DSL (spring or OSGi blueprint) • Groovy DSL • Scala DSL Groovy and Scala are not much in use Java8 DSL in the works

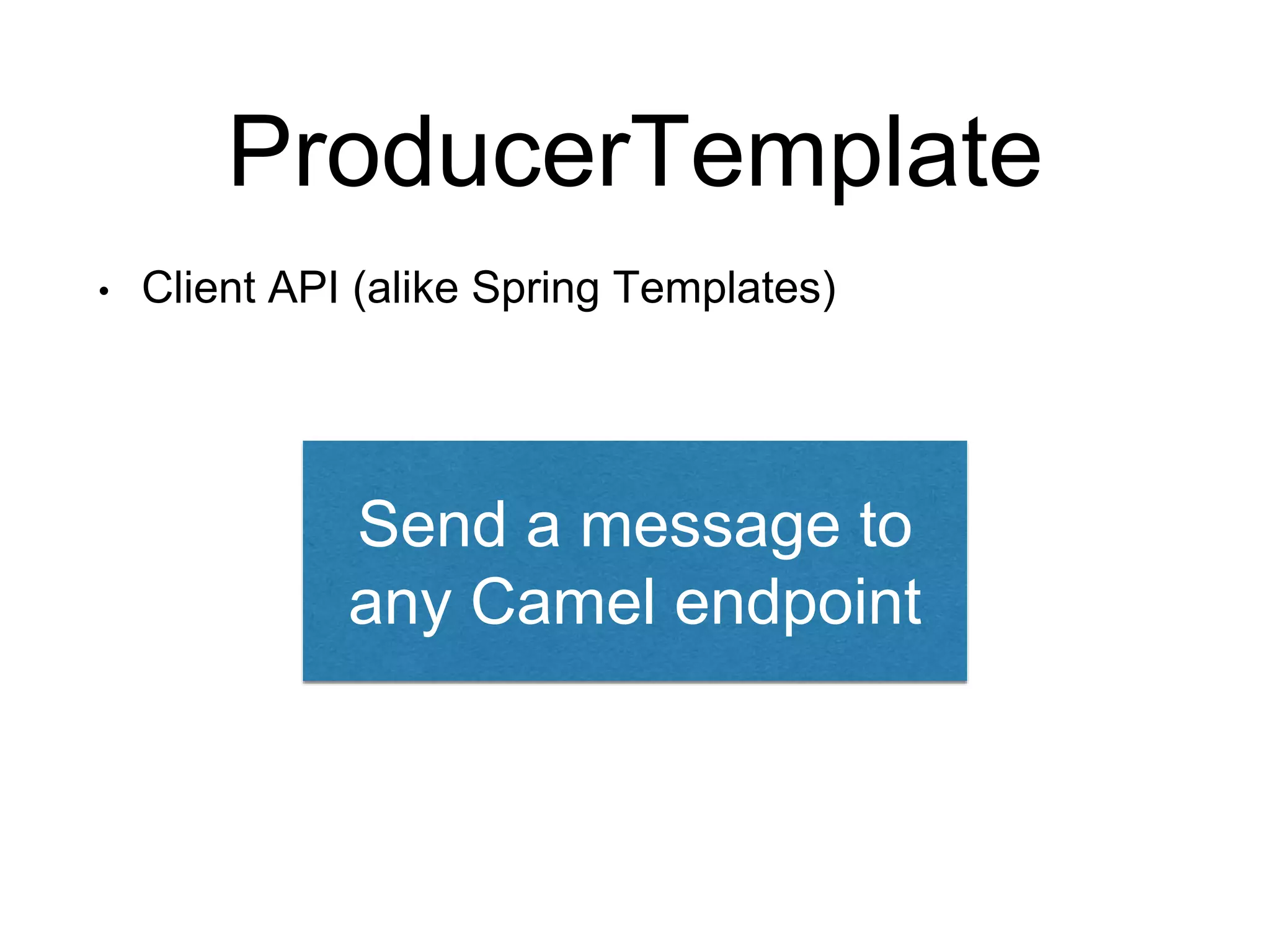

- 72. ProducerTemplate • Client API (alike Spring Templates) Send a message to any Camel endpoint

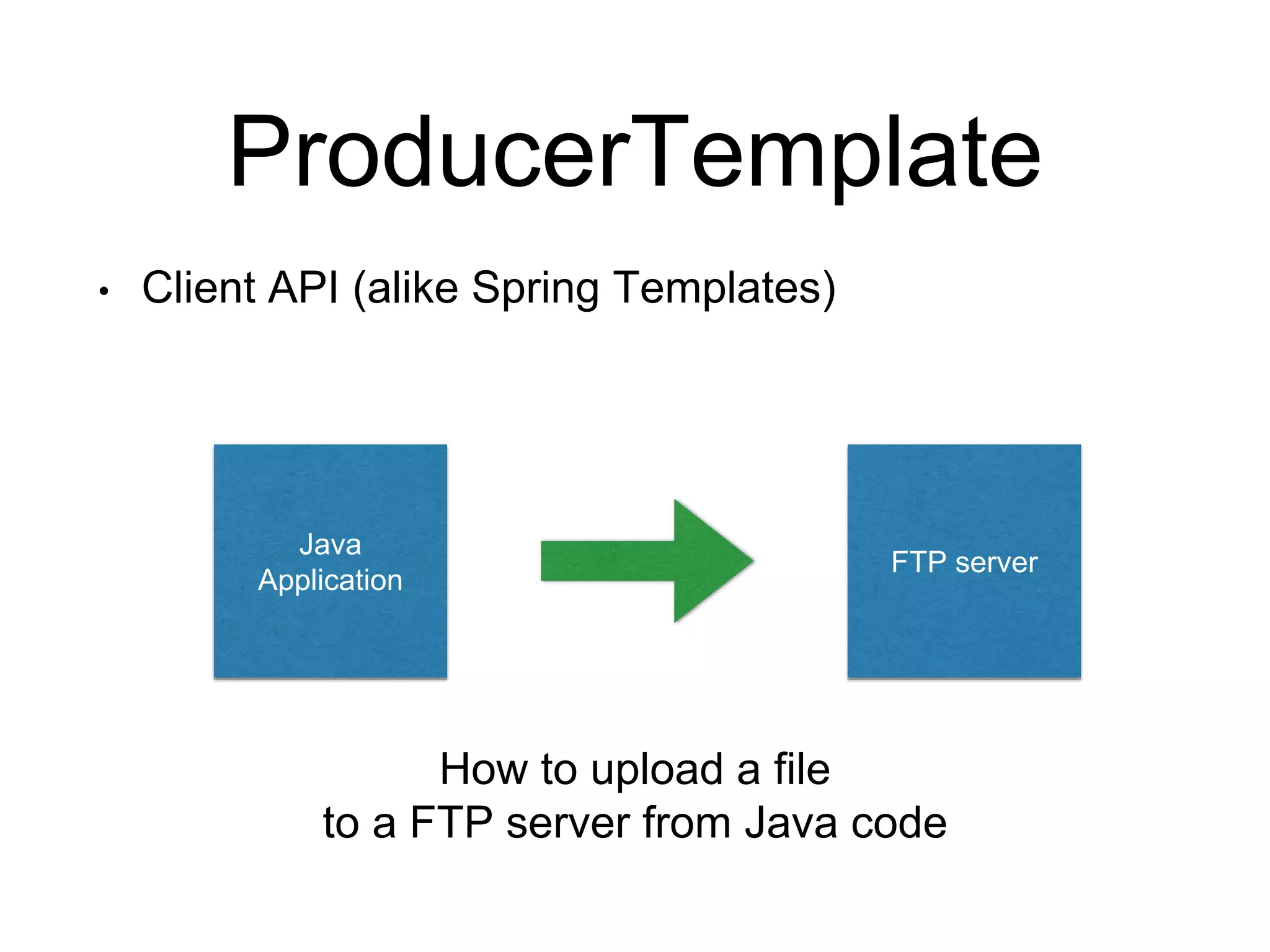

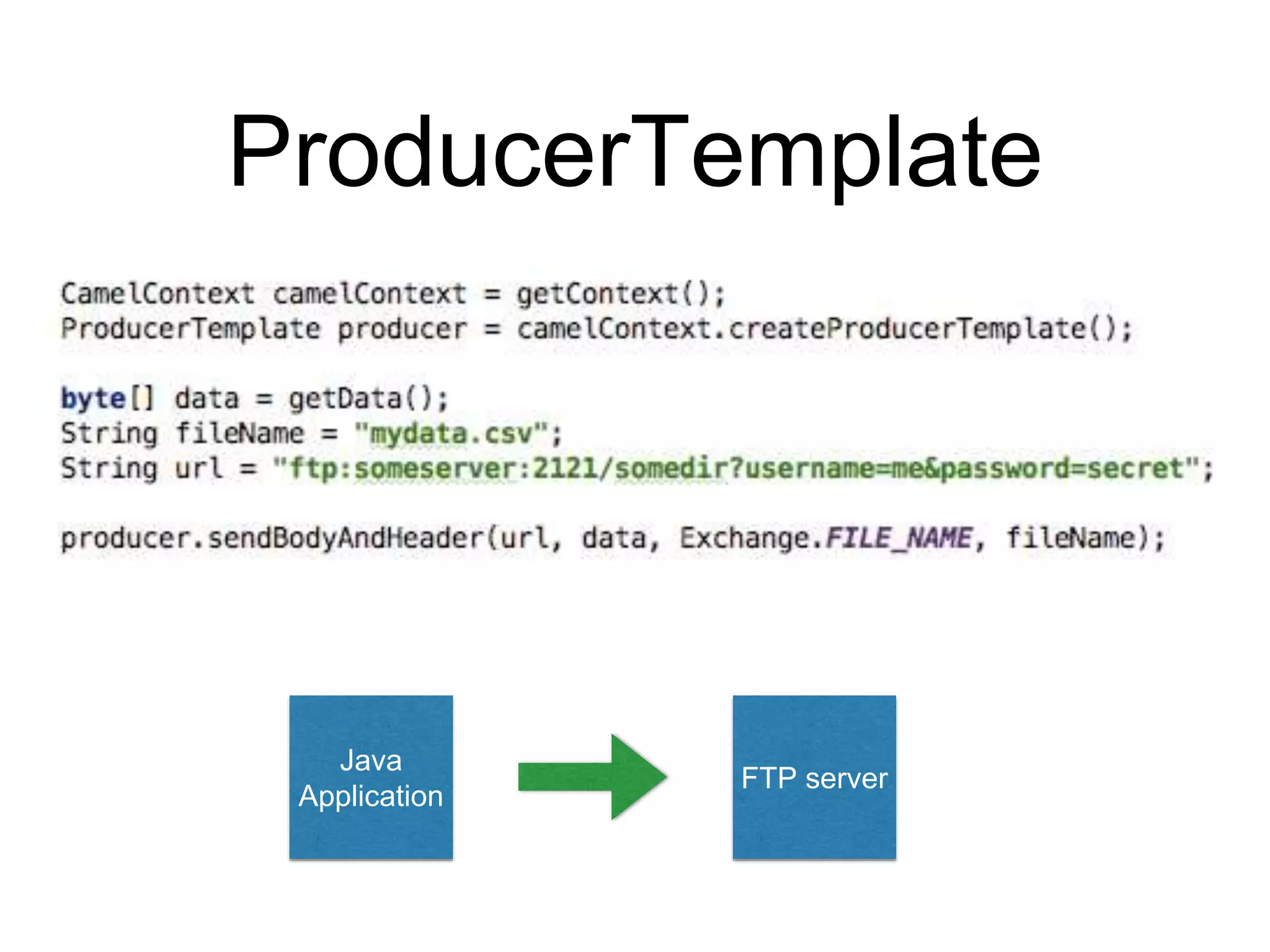

- 73. ProducerTemplate • Client API (alike Spring Templates) FTP server Java Application How to upload a file to a FTP server from Java code

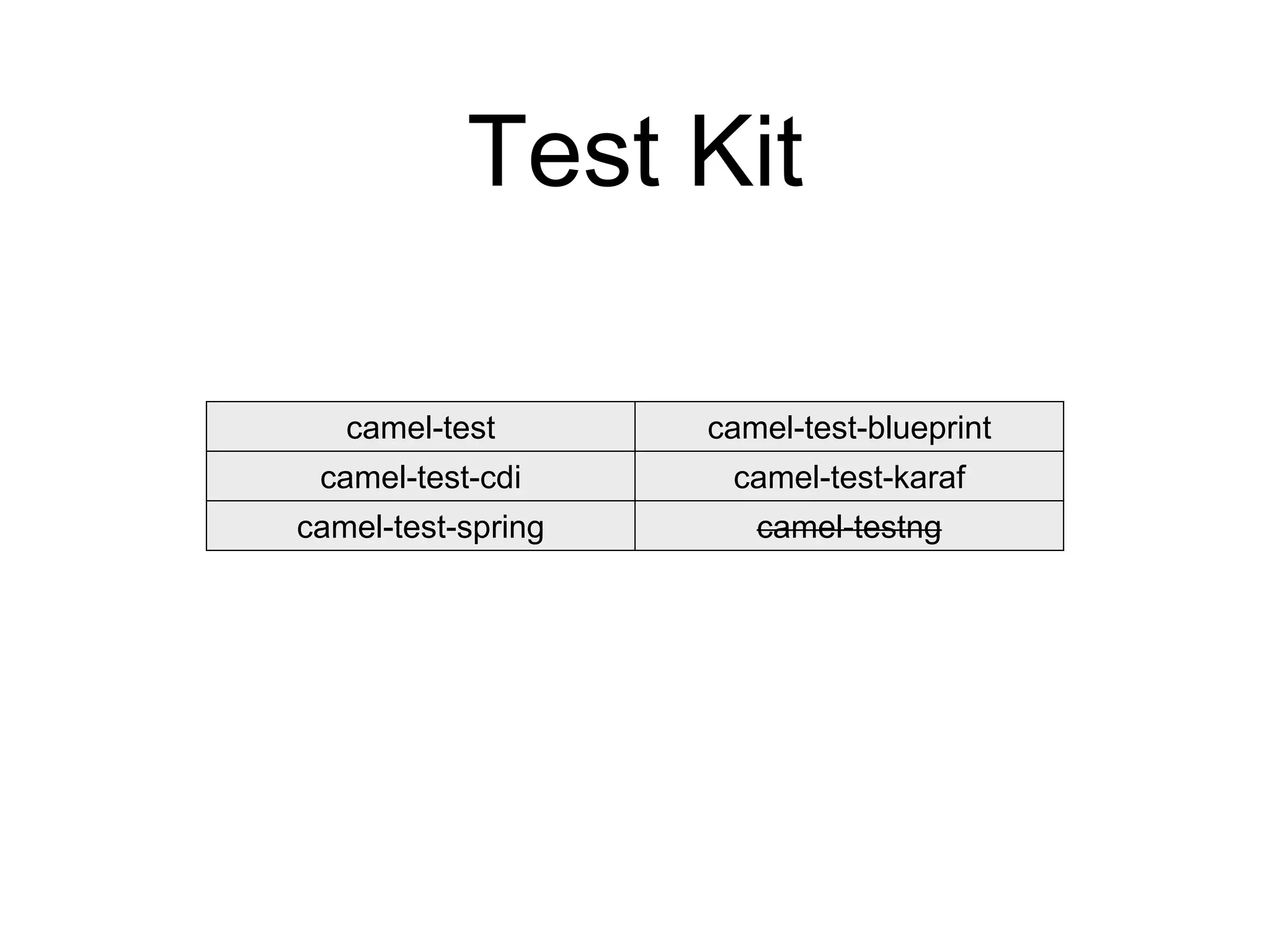

- 76. Test Kit camel-test camel-test-blueprint camel-test-cdi camel-test-karaf camel-test-spring camel-testng

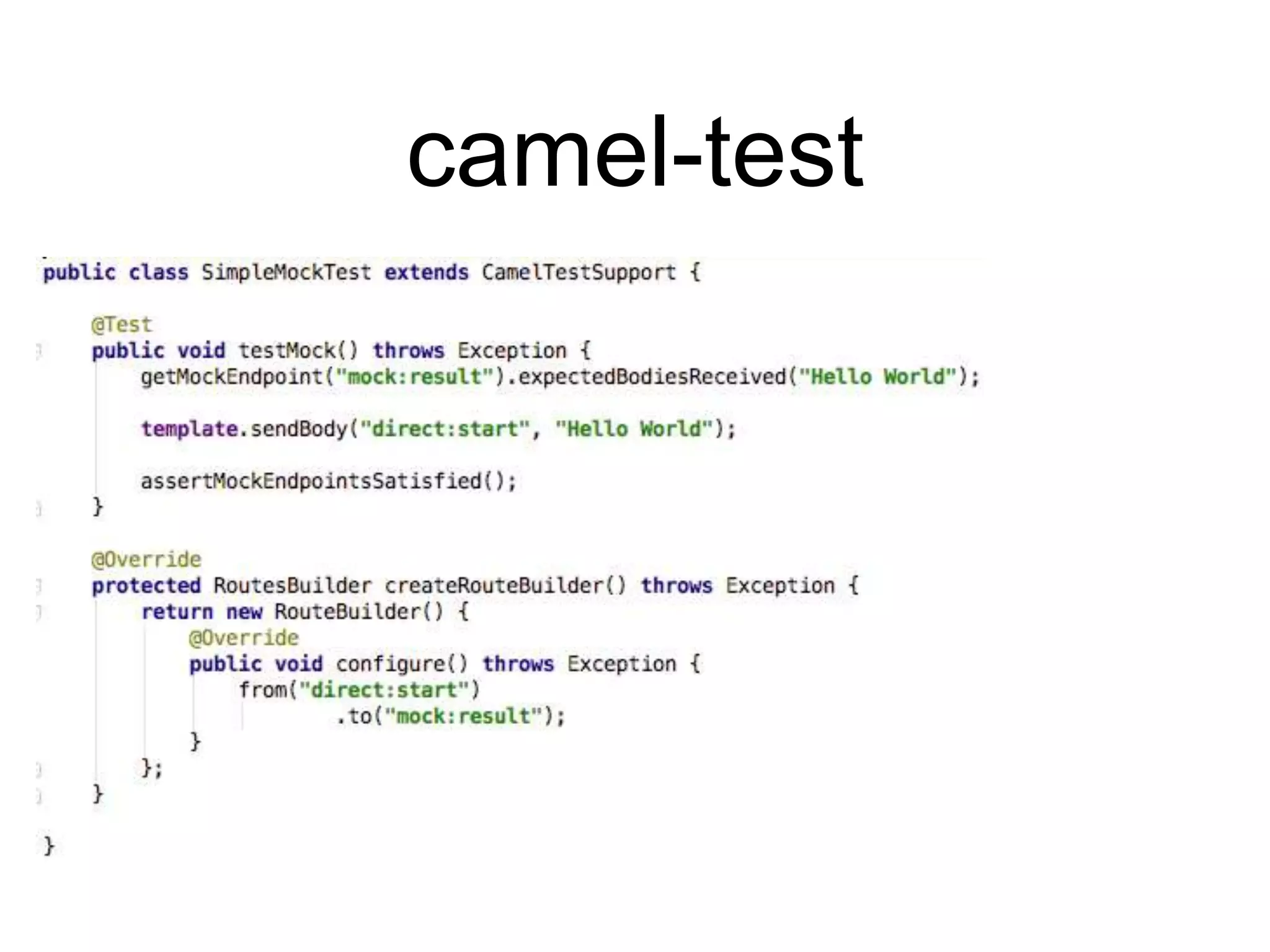

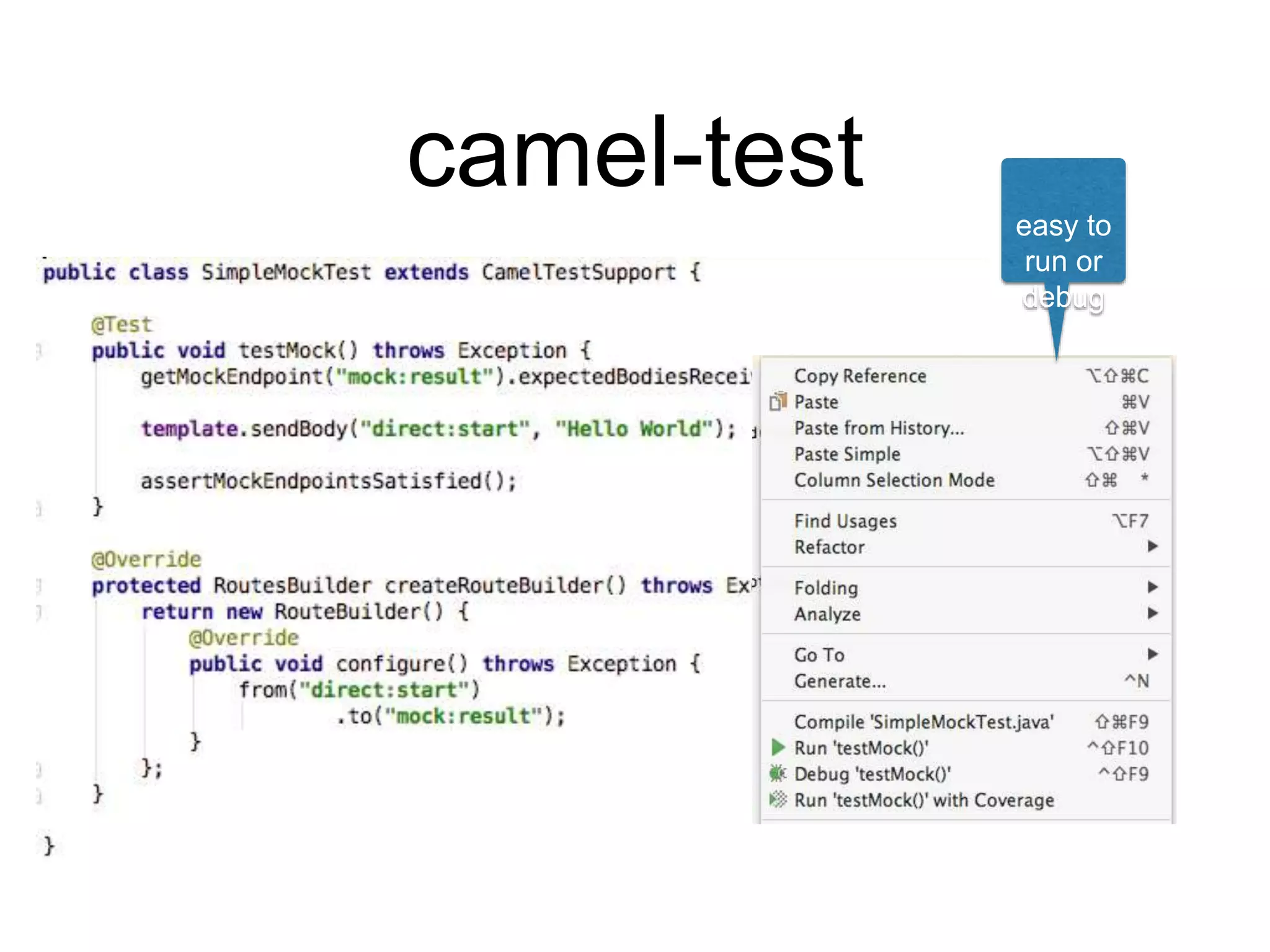

- 77. camel-test

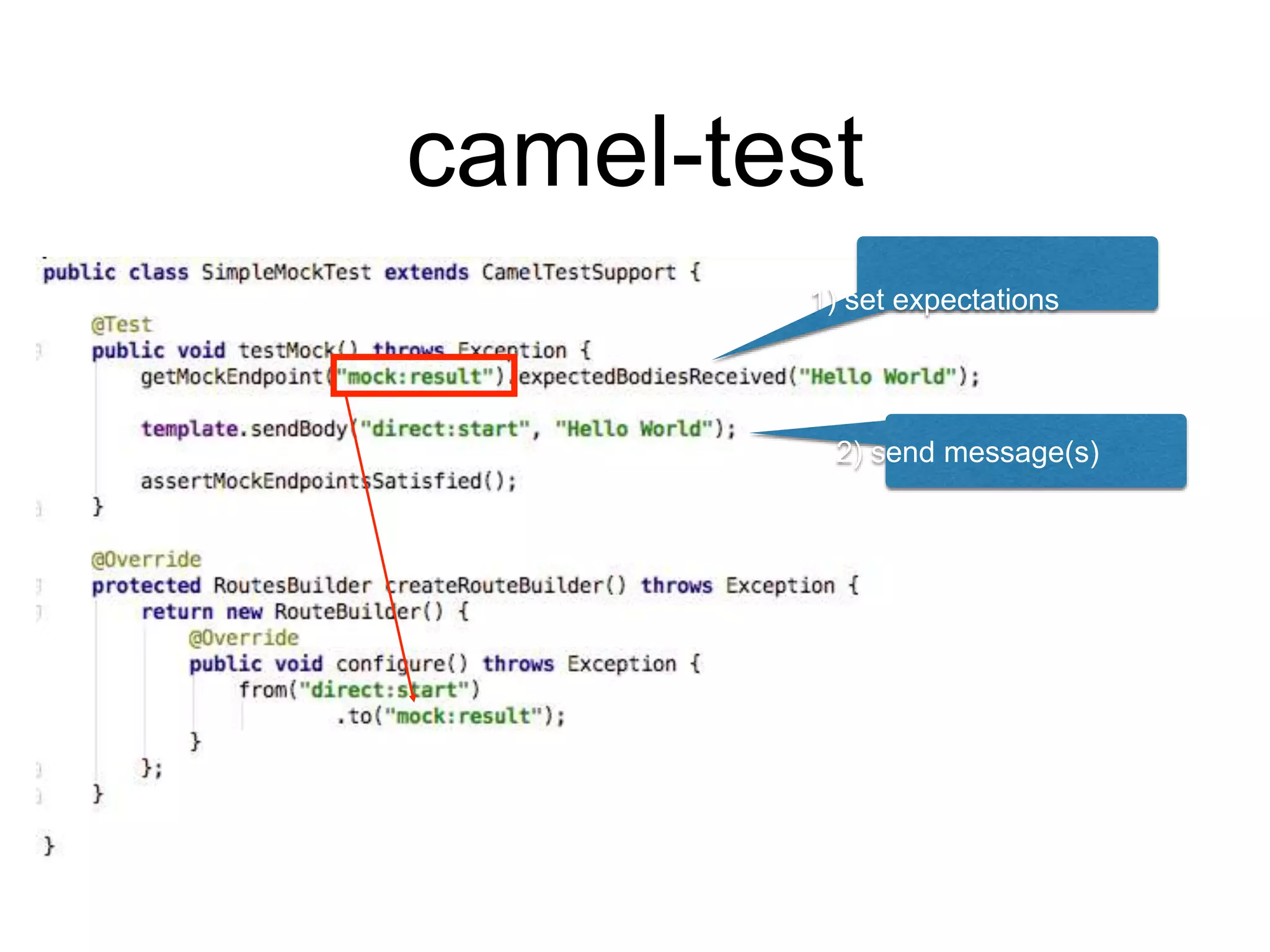

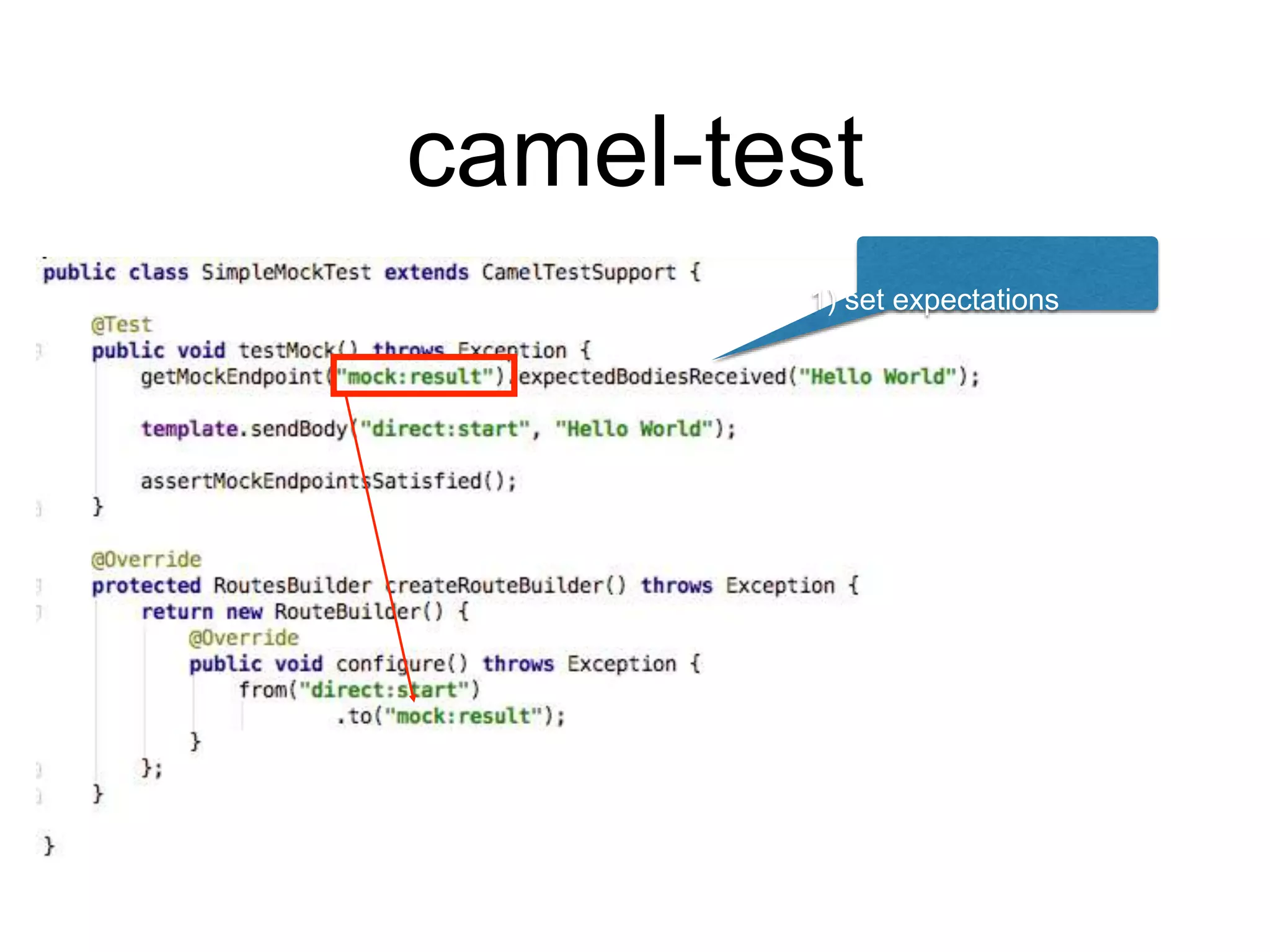

- 80. camel-test 1) set expectations 2) send message(s)

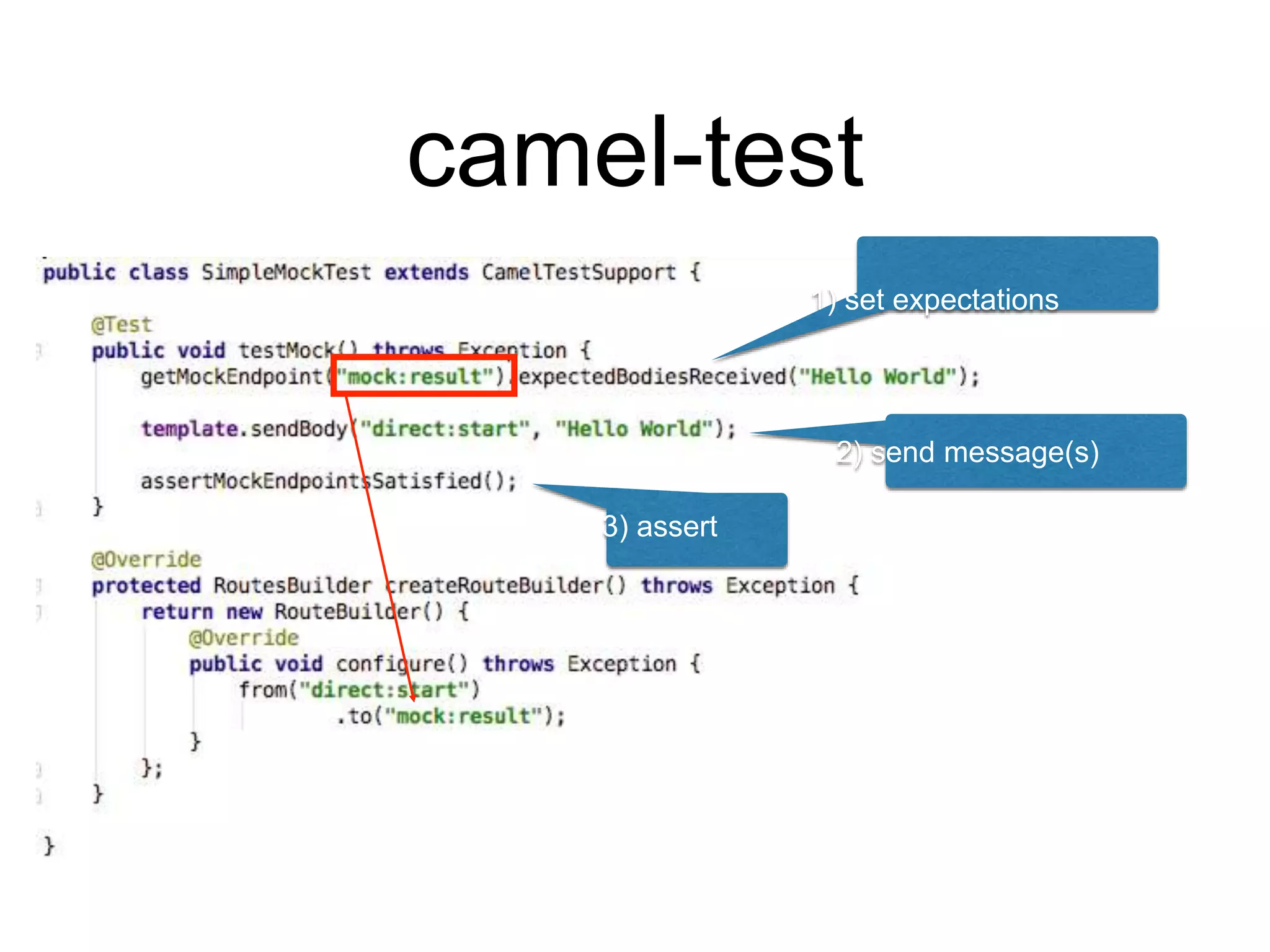

- 81. camel-test 1) set expectations 2) send message(s) 3) assert

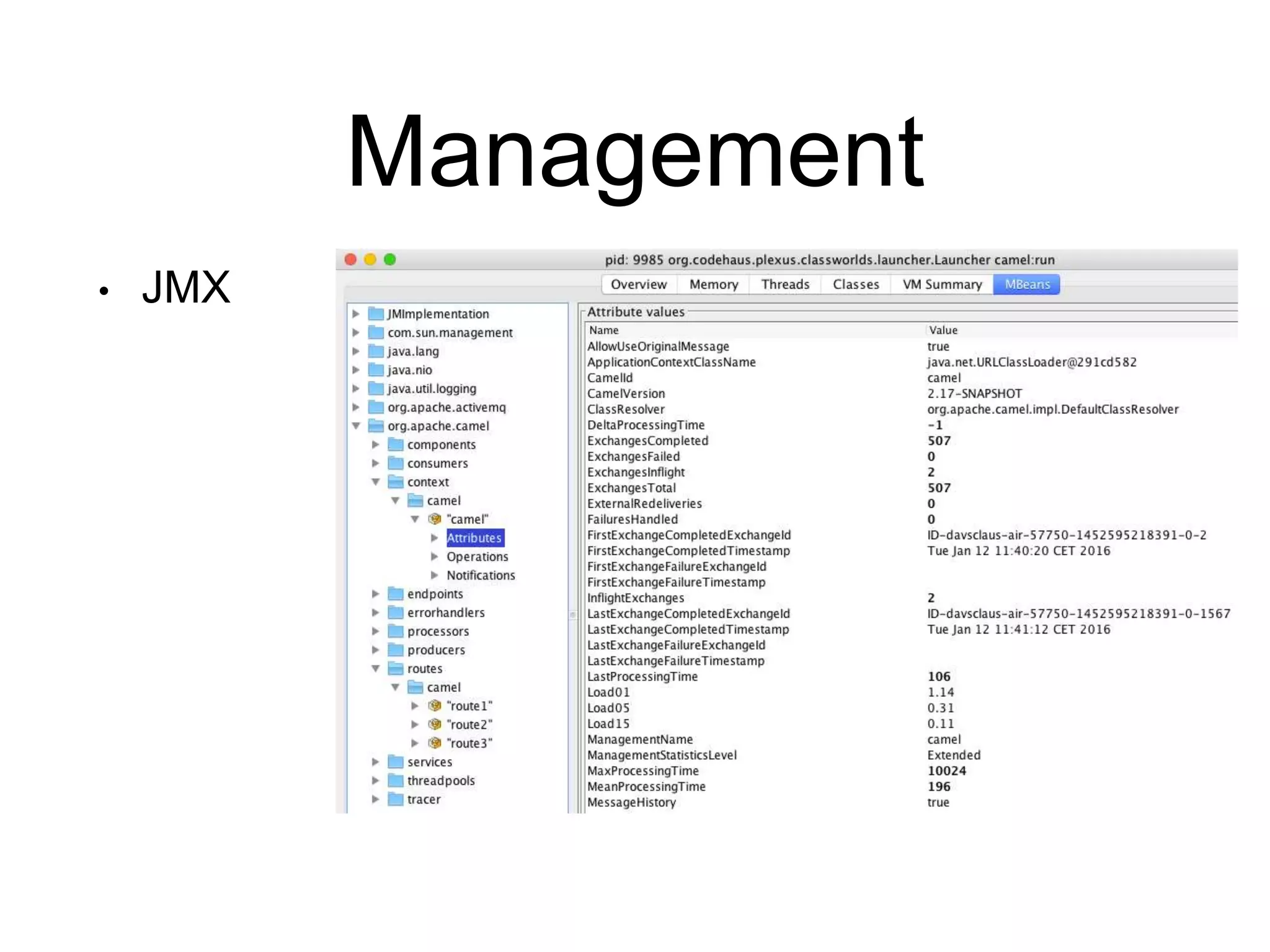

- 82. Management • JMX

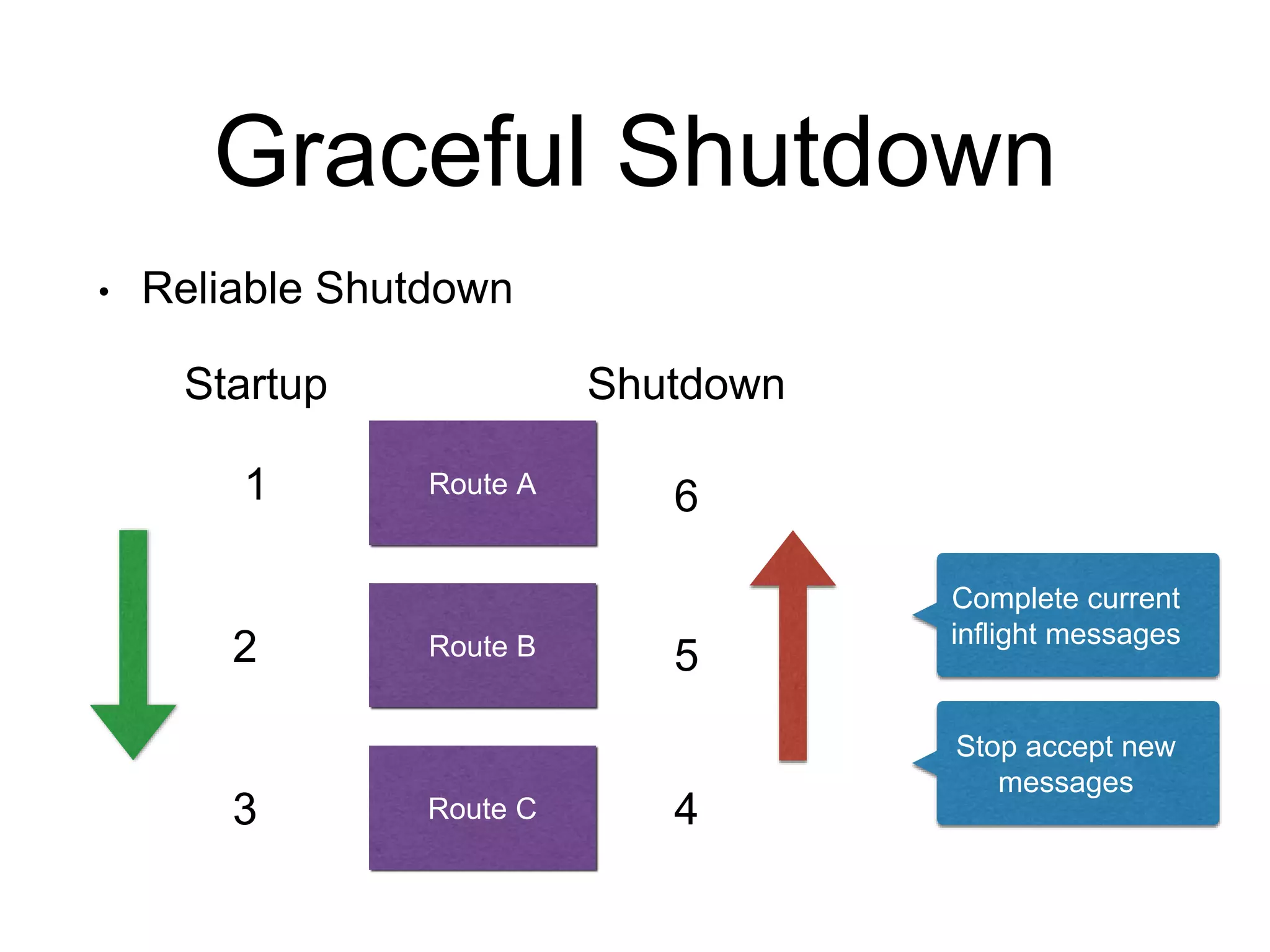

- 83. • Reliable Shutdown Graceful Shutdown Route A Route B Route C 2 1 3 4 5 6 Startup Shutdown Stop accept new messages Complete current inflight messages

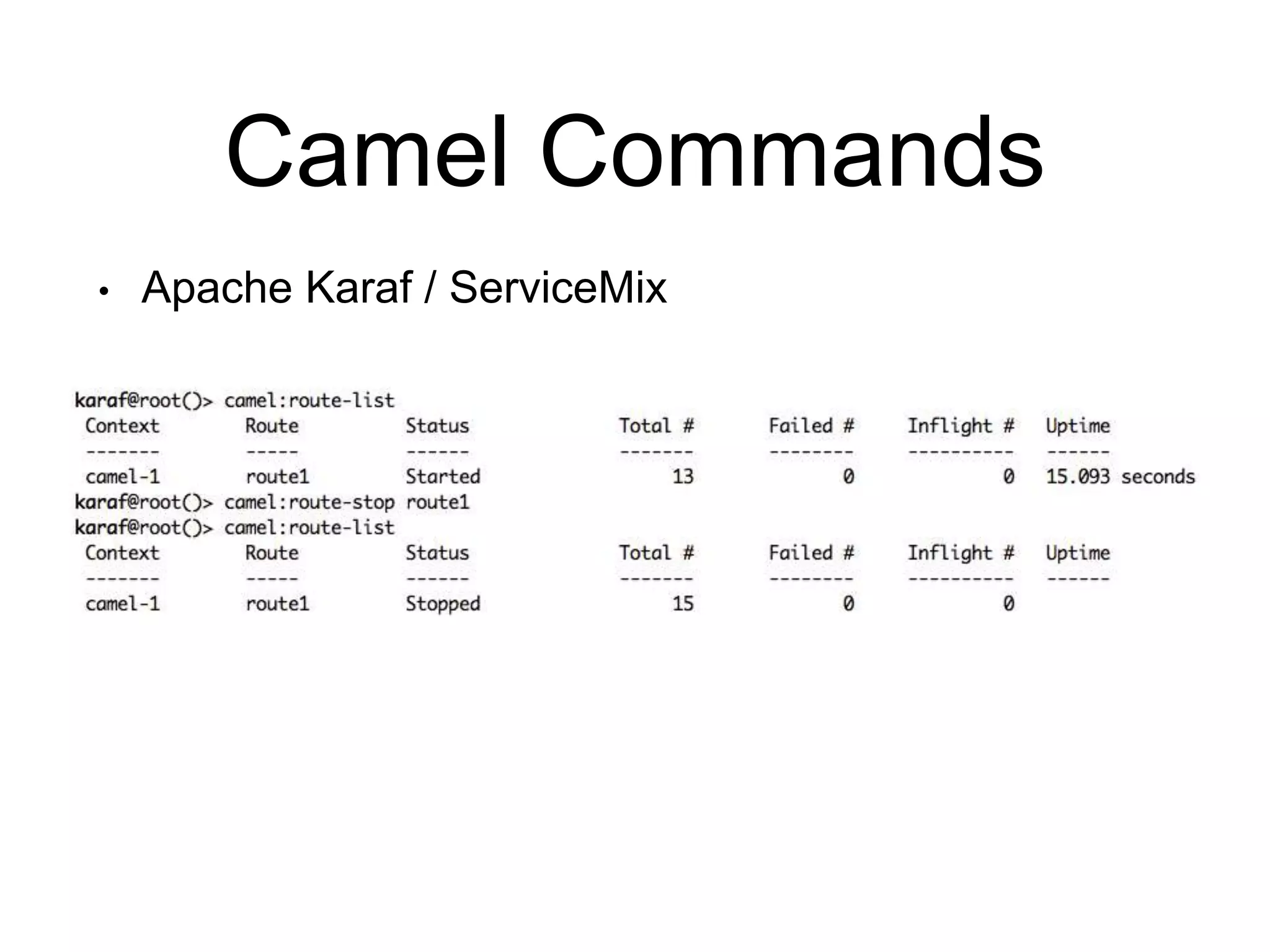

- 84. Camel Commands • Apache Karaf / ServiceMix

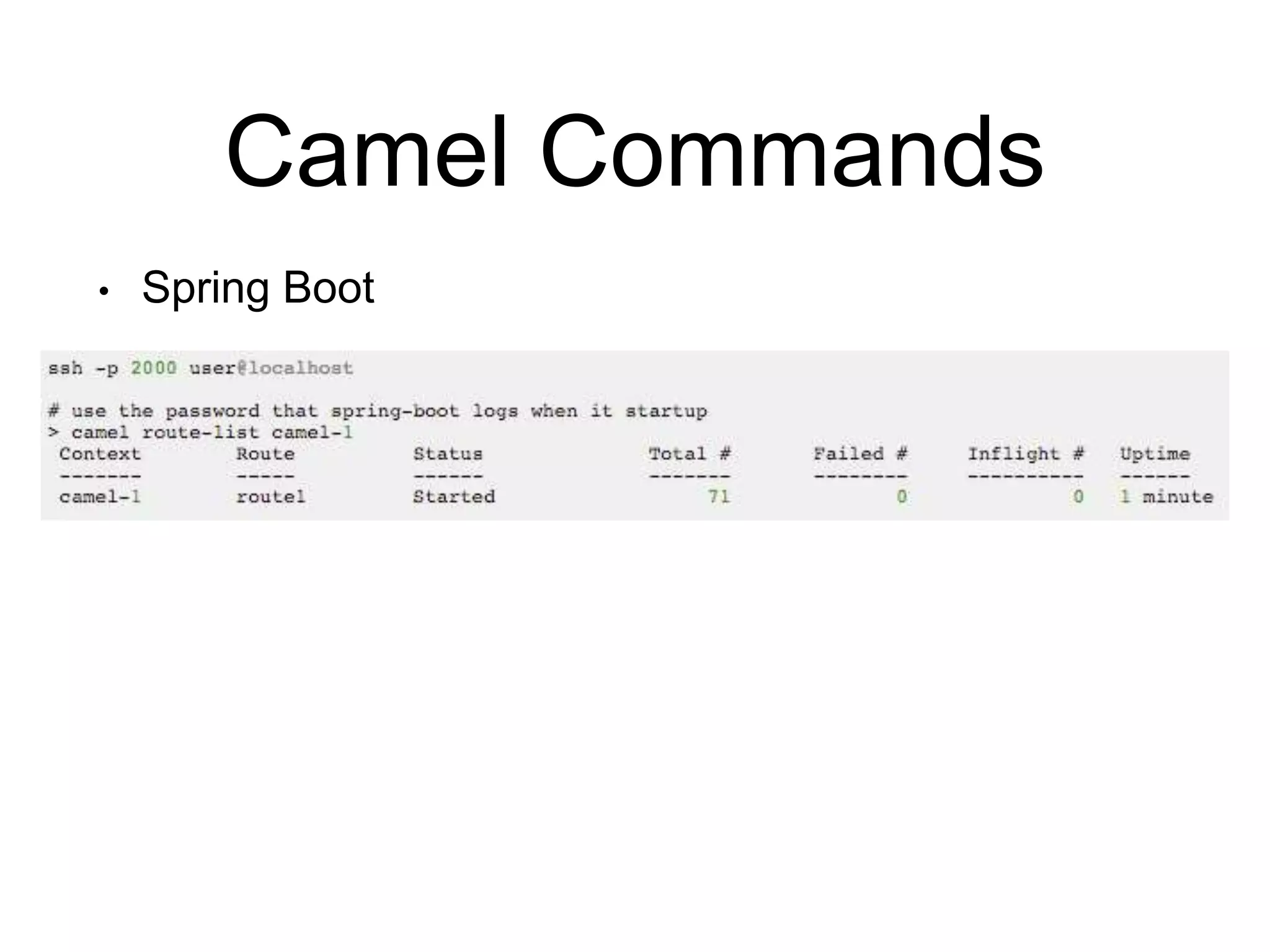

- 85. Camel Commands • Spring Boot

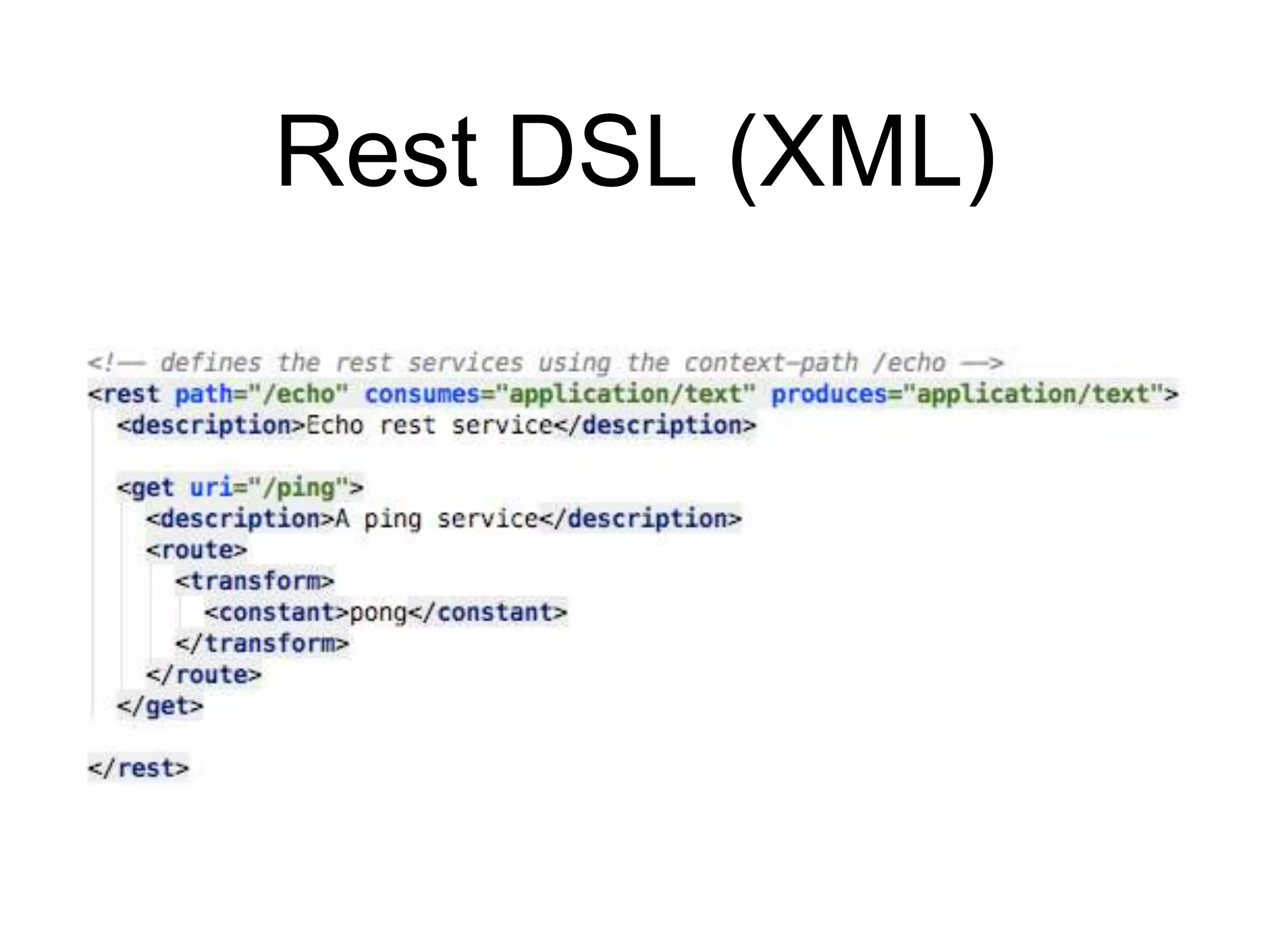

- 86. Rest DSL (XML)

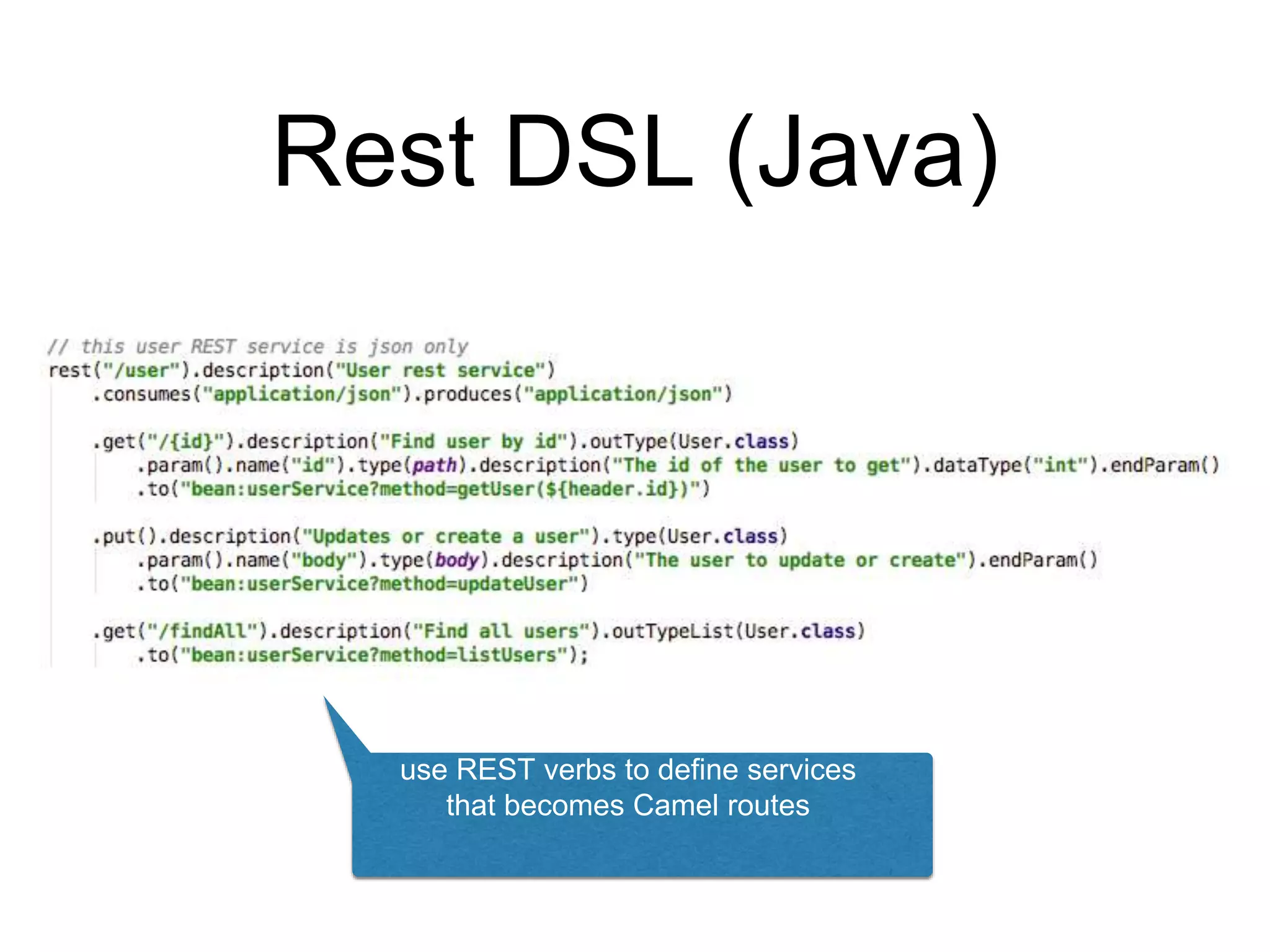

- 87. Rest DSL (Java) use REST verbs to define services that becomes Camel routes

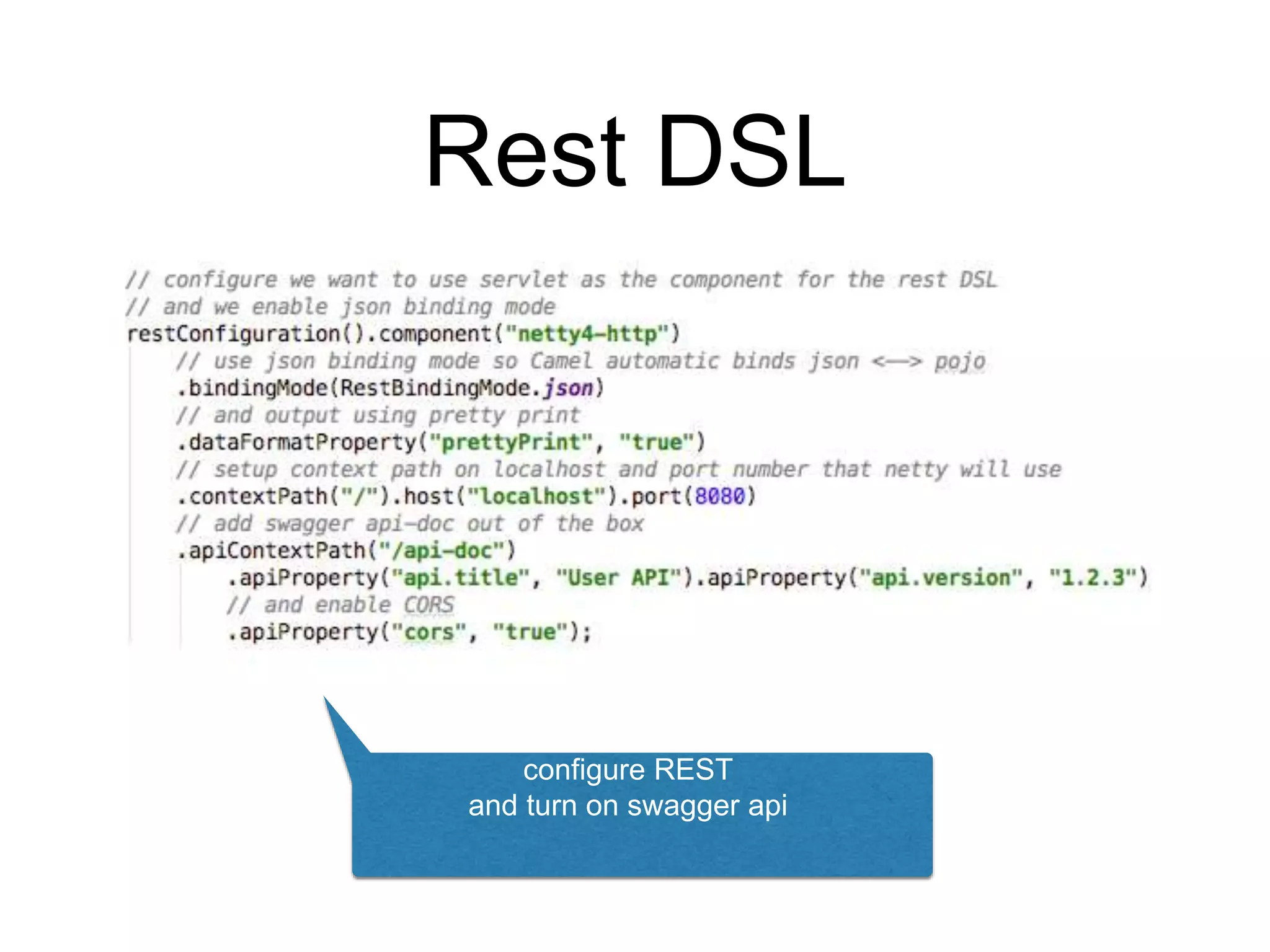

- 88. Rest DSL configure REST and turn on swagger api

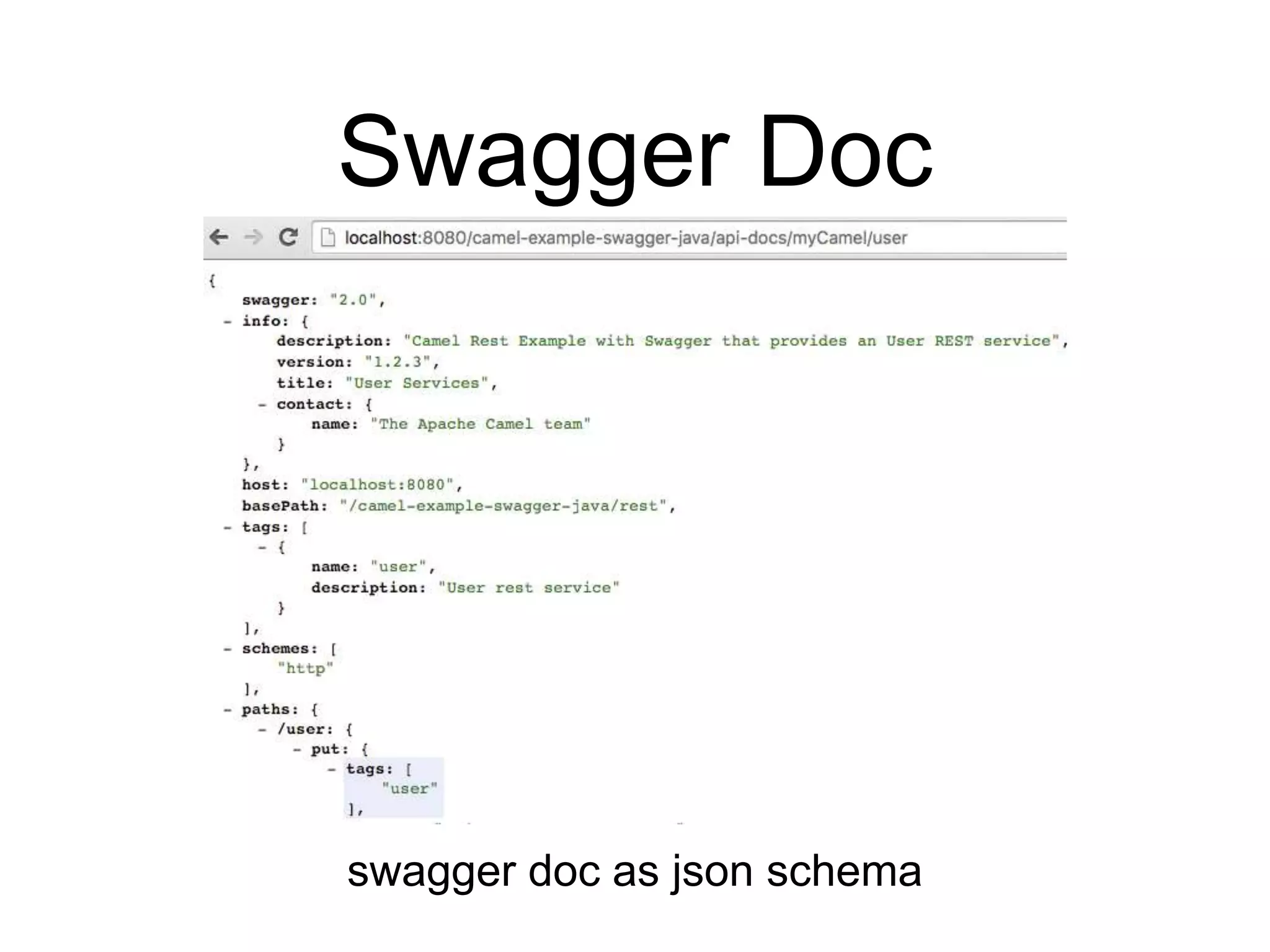

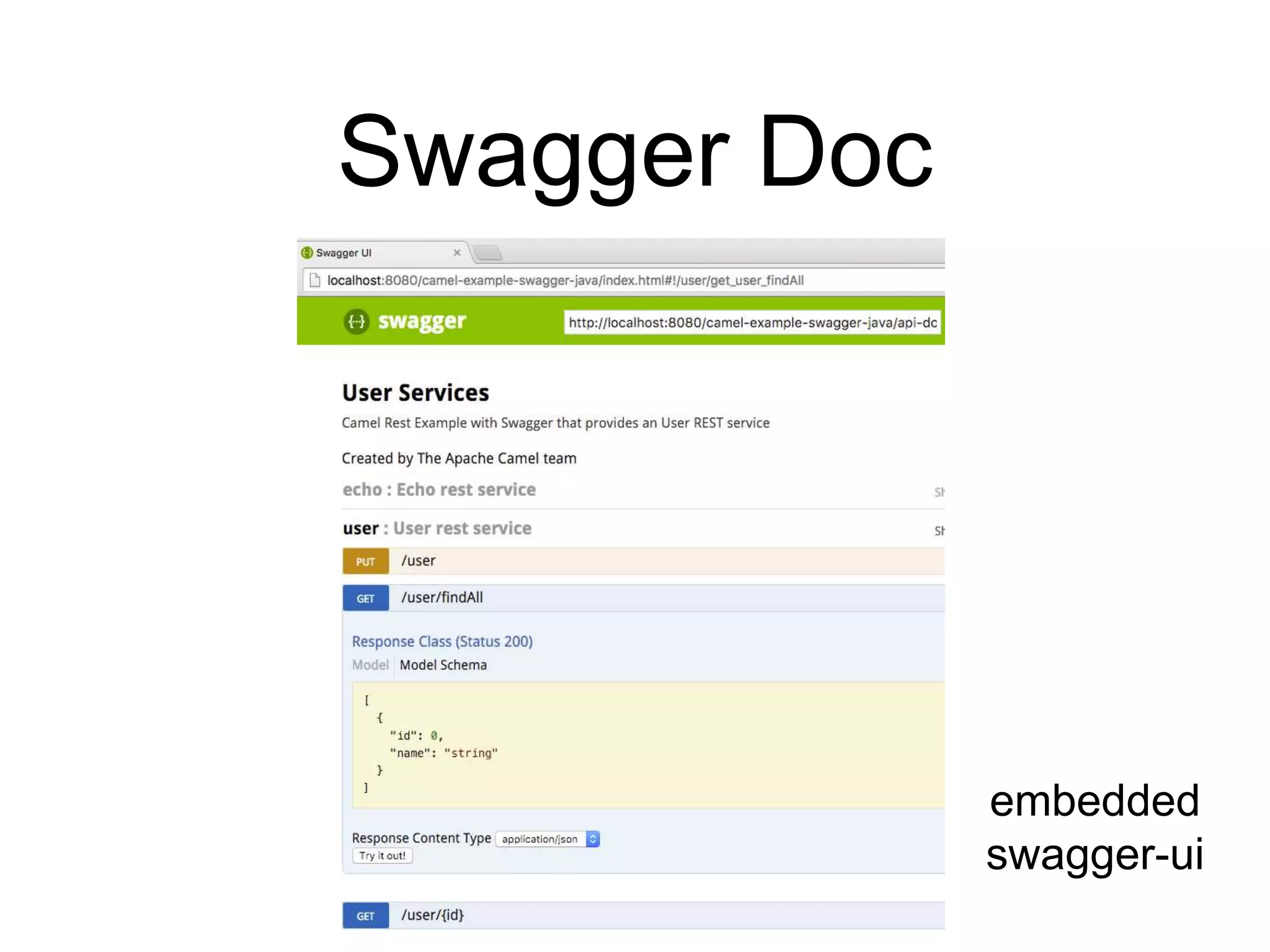

- 89. Swagger Doc swagger doc as json schema

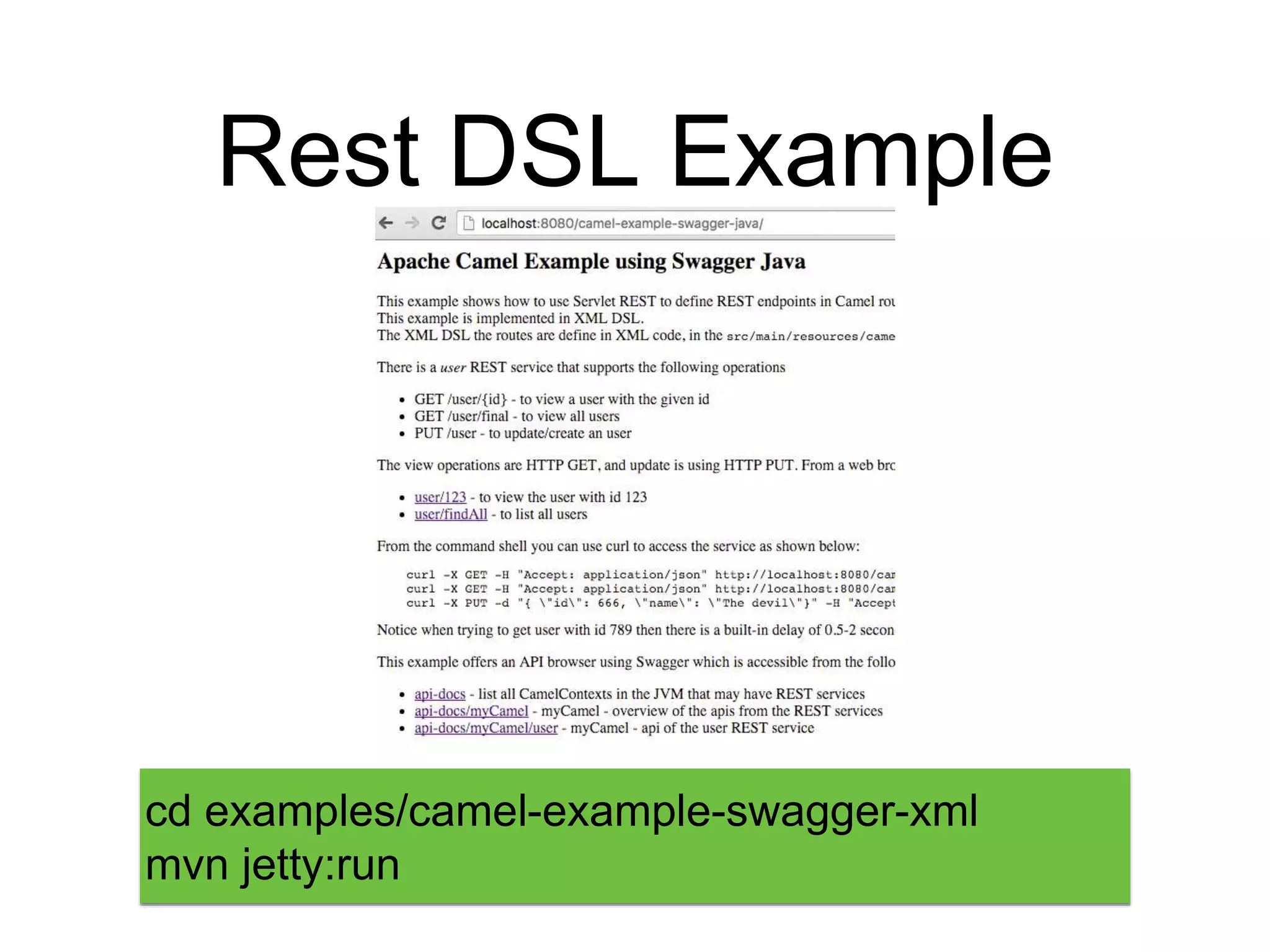

- 91. Rest DSL Example cd examples/camel-example-swagger-xml mvn jetty:run

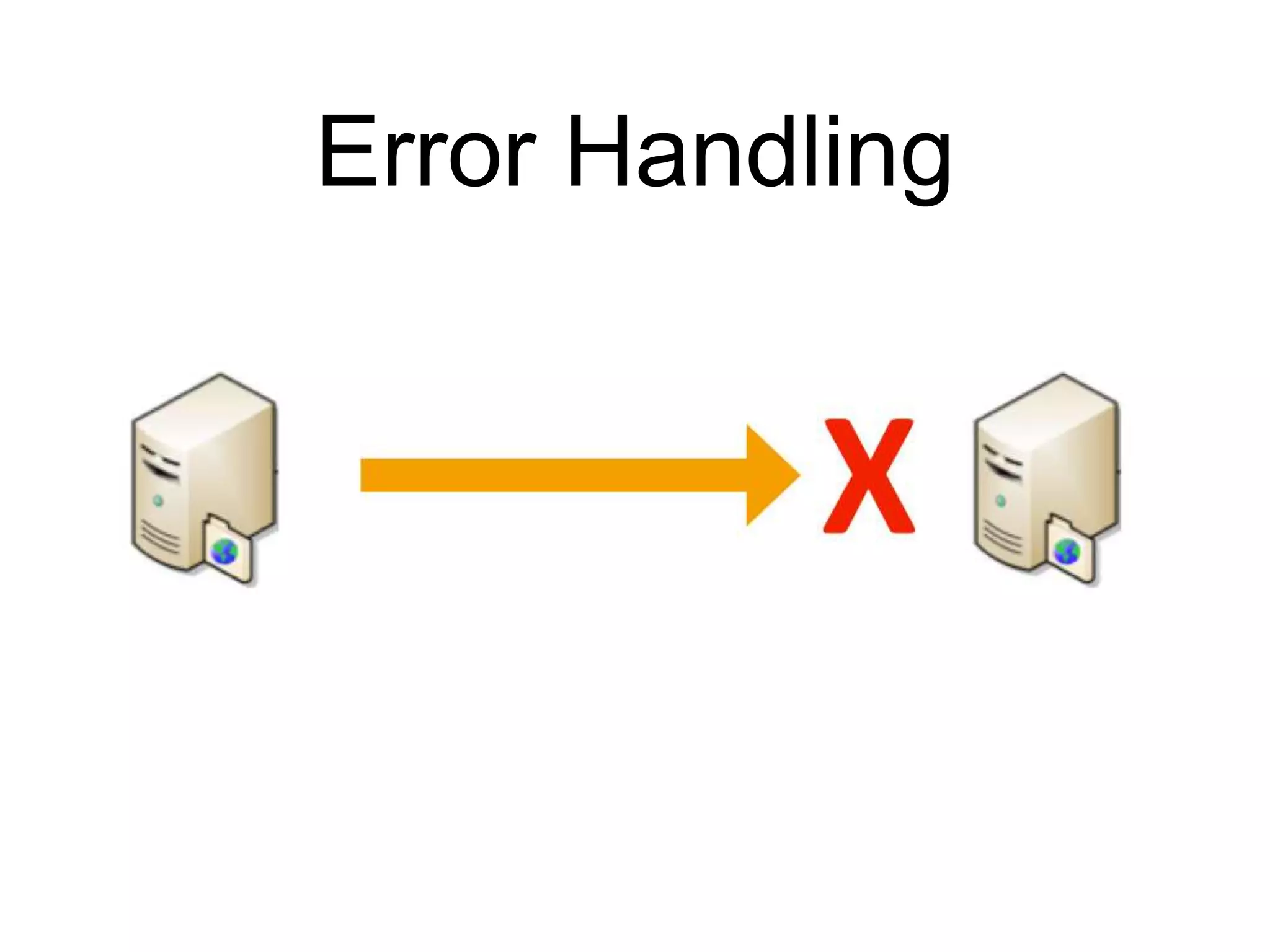

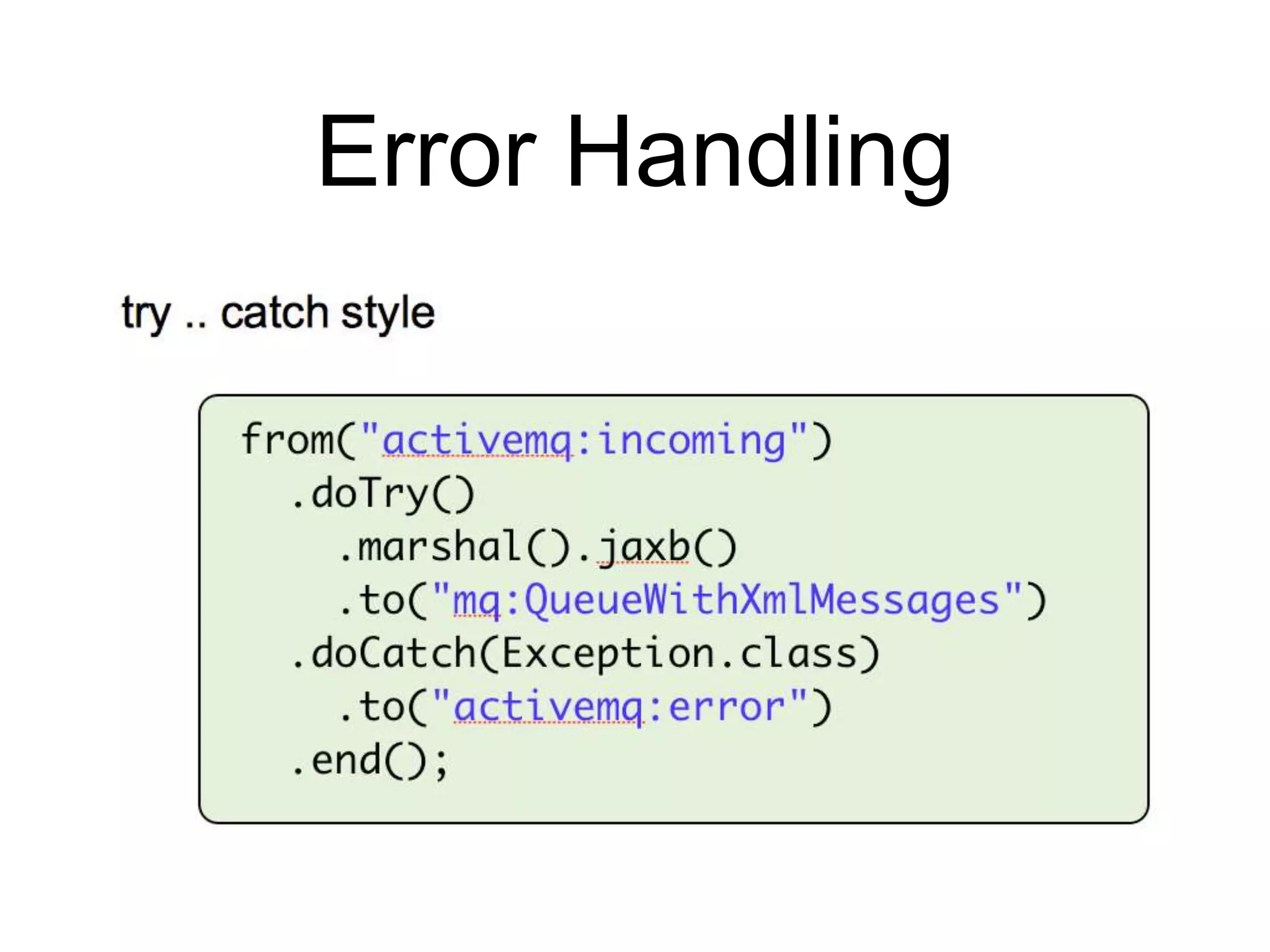

- 92. Error Handling
- 93. Error Handling

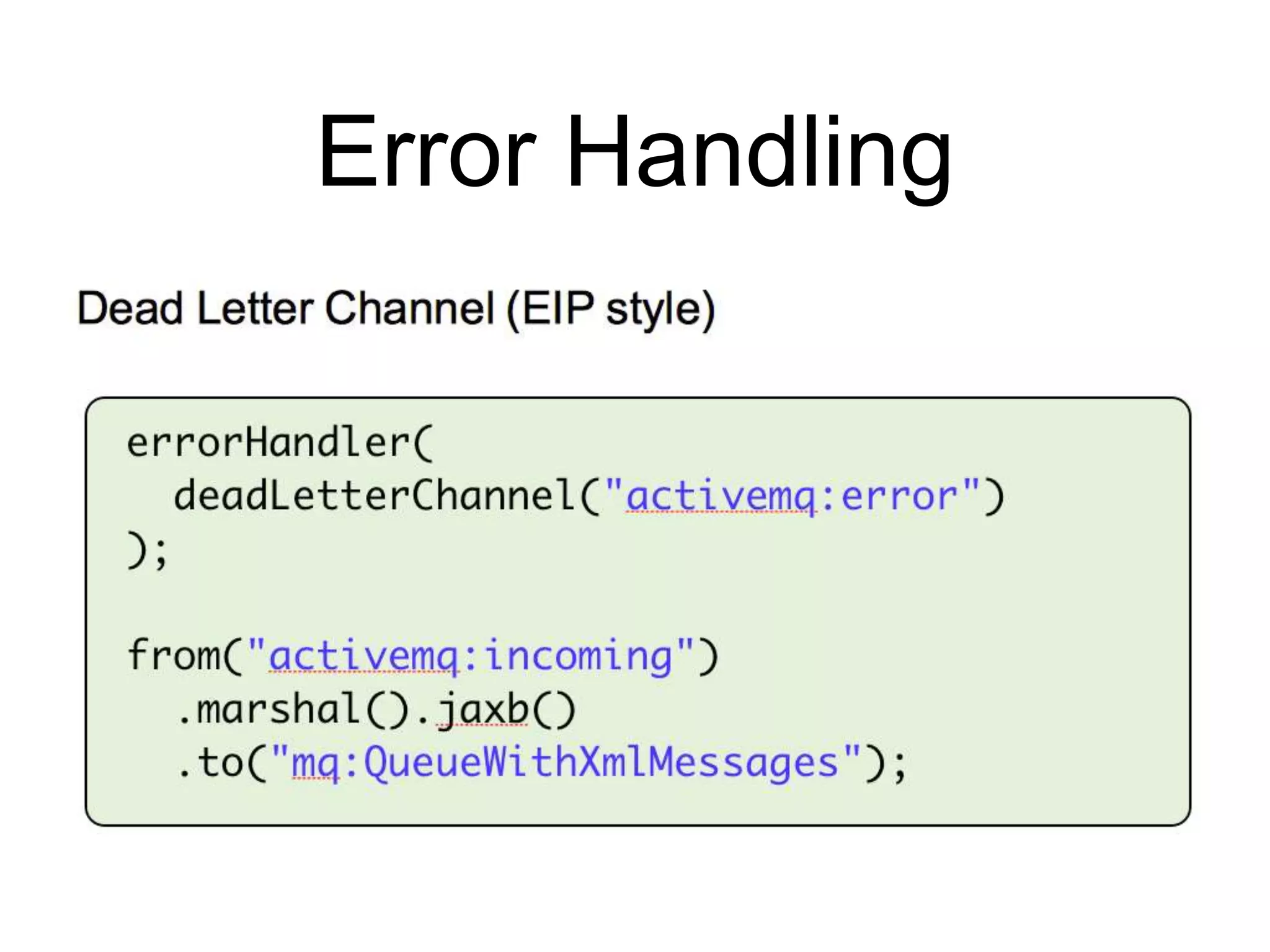

- 94. Error Handling

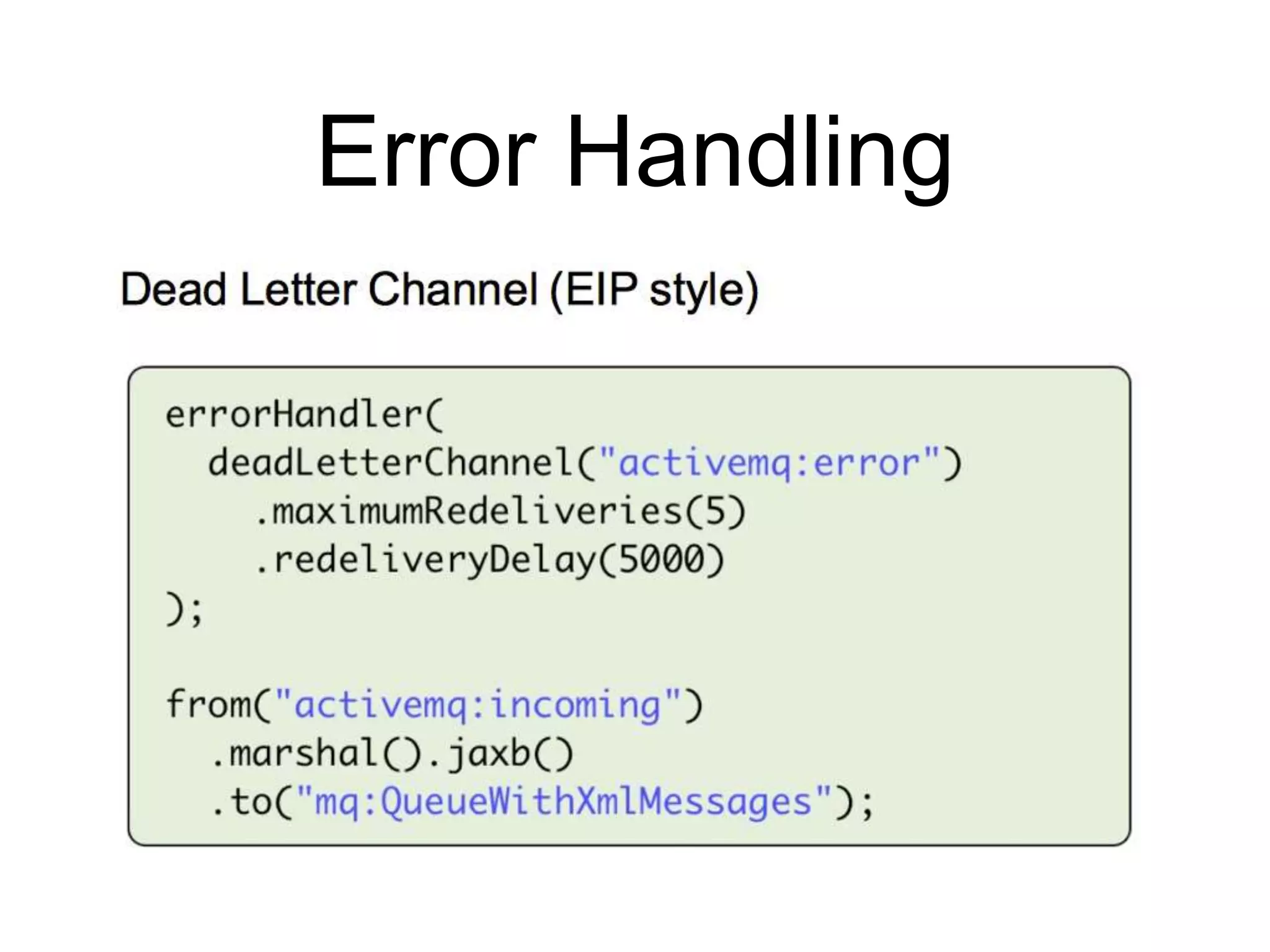

- 95. Error Handling

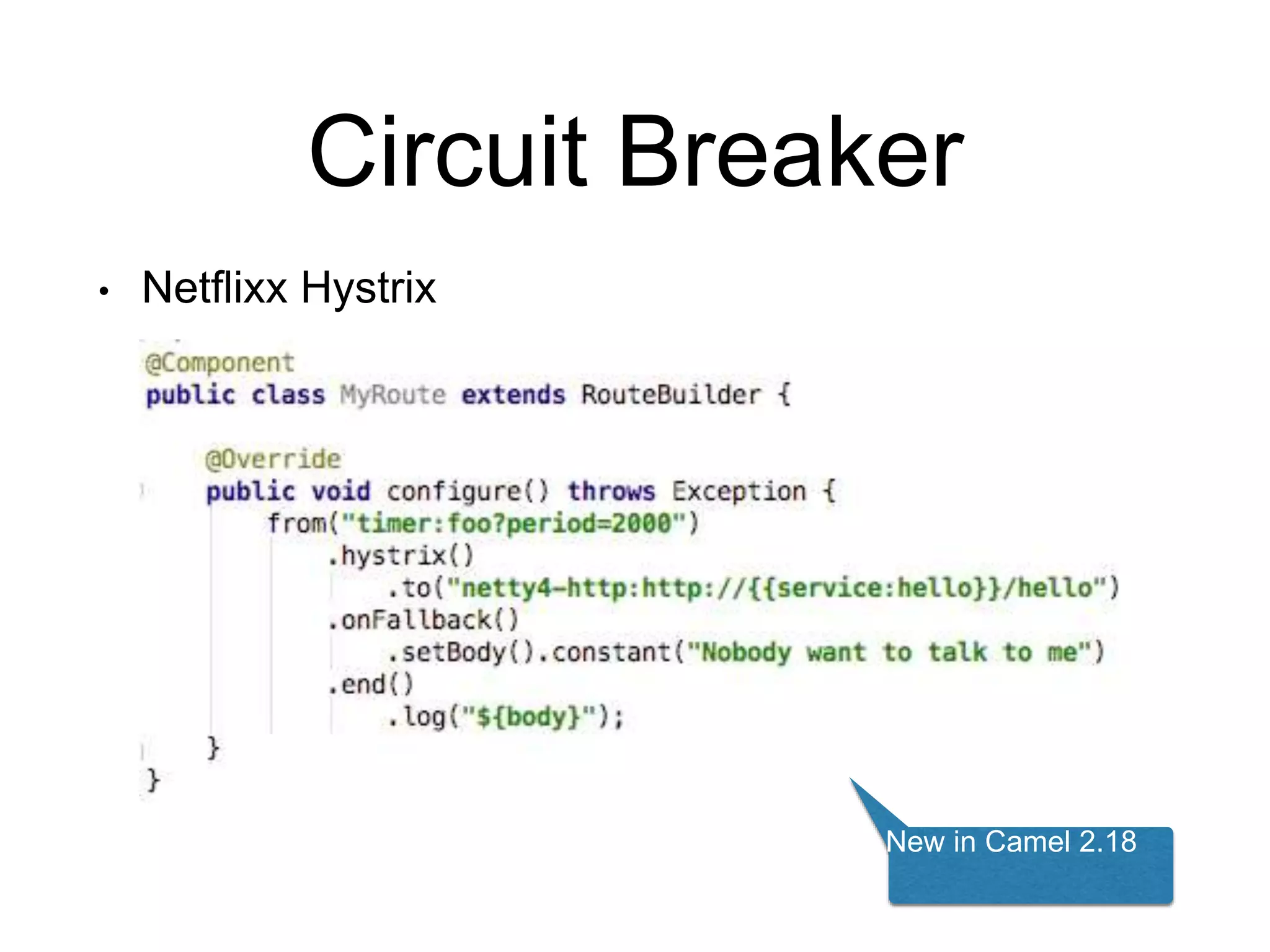

- 96. Circuit Breaker • Netflixx Hystrix New in Camel 2.18

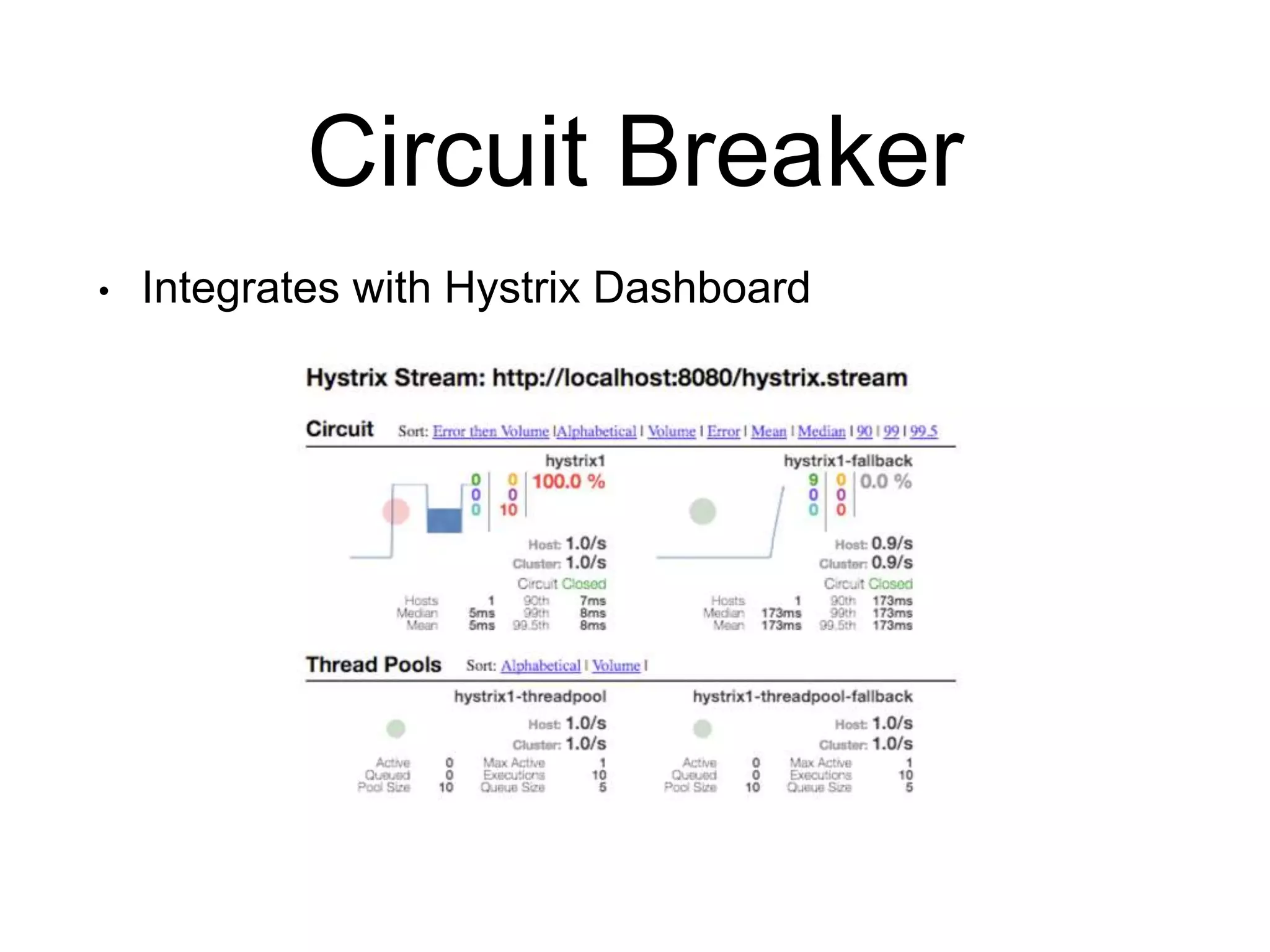

- 97. Circuit Breaker • Integrates with Hystrix Dashboard

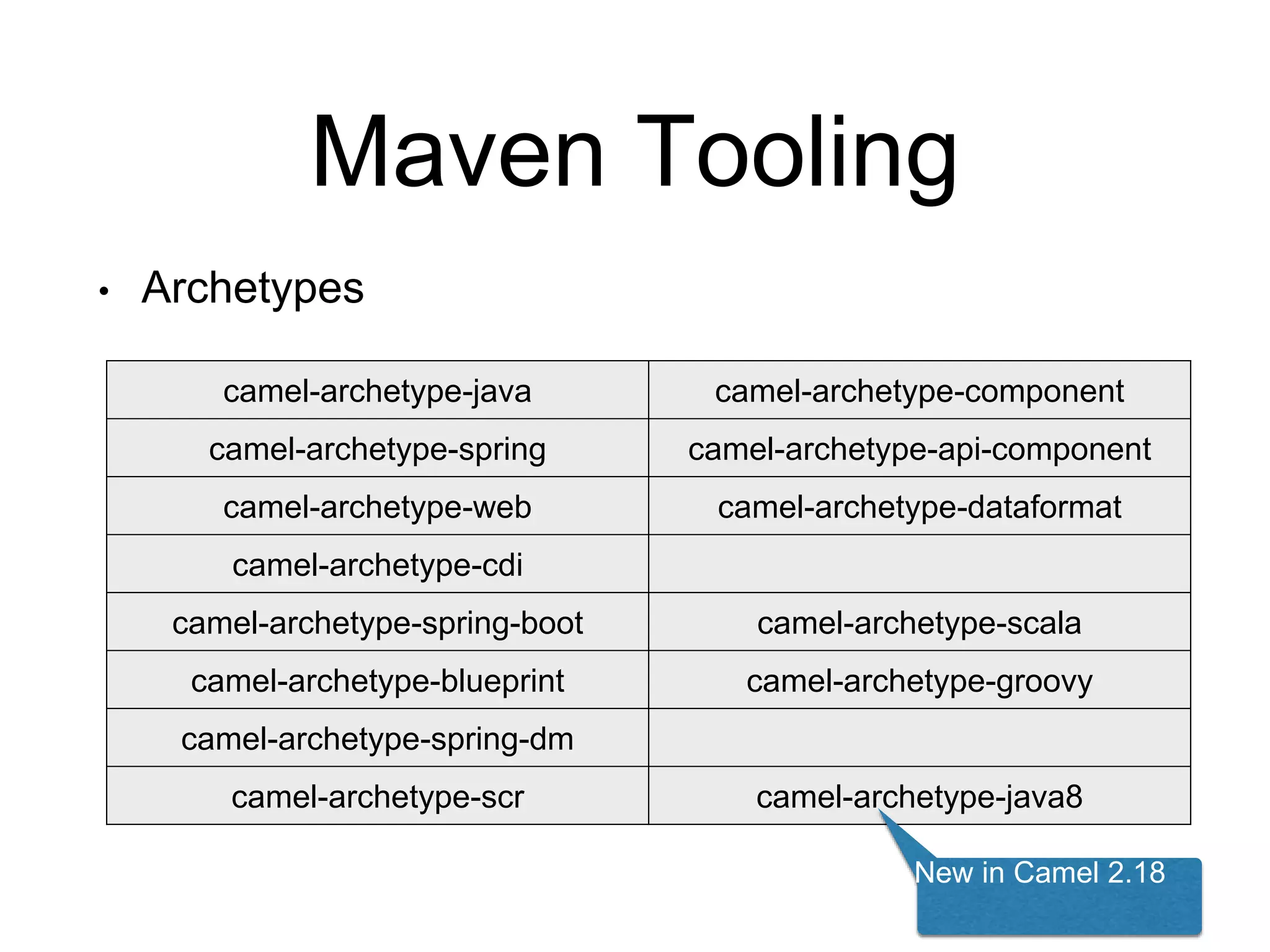

- 98. Maven Tooling • Archetypes camel-archetype-java camel-archetype-component camel-archetype-spring camel-archetype-api-component camel-archetype-web camel-archetype-dataformat camel-archetype-cdi camel-archetype-spring-boot camel-archetype-scala camel-archetype-blueprint camel-archetype-groovy camel-archetype-spring-dm camel-archetype-scr camel-archetype-java8 New in Camel 2.18

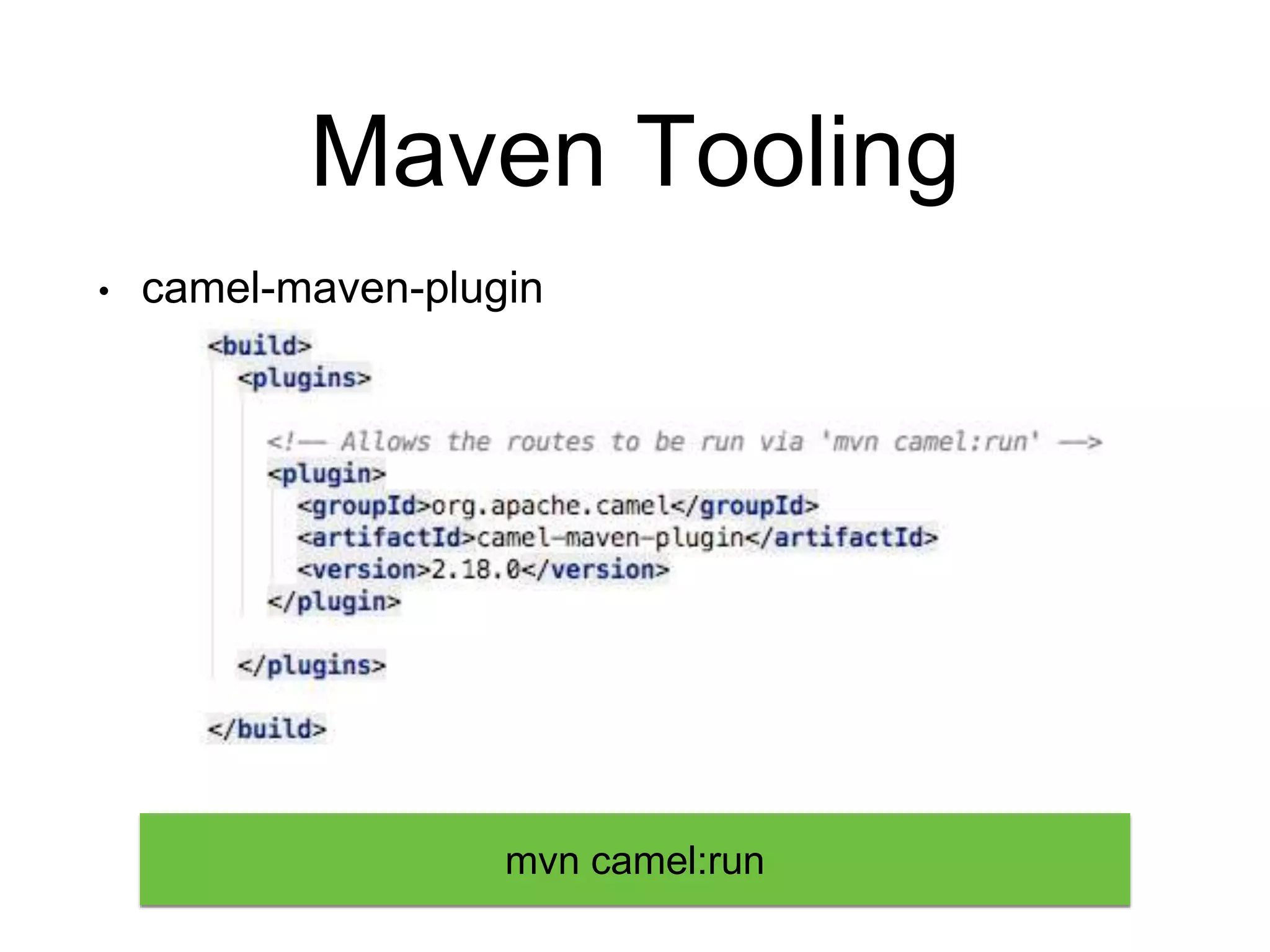

- 99. Maven Tooling • camel-maven-plugin mvn camel:run

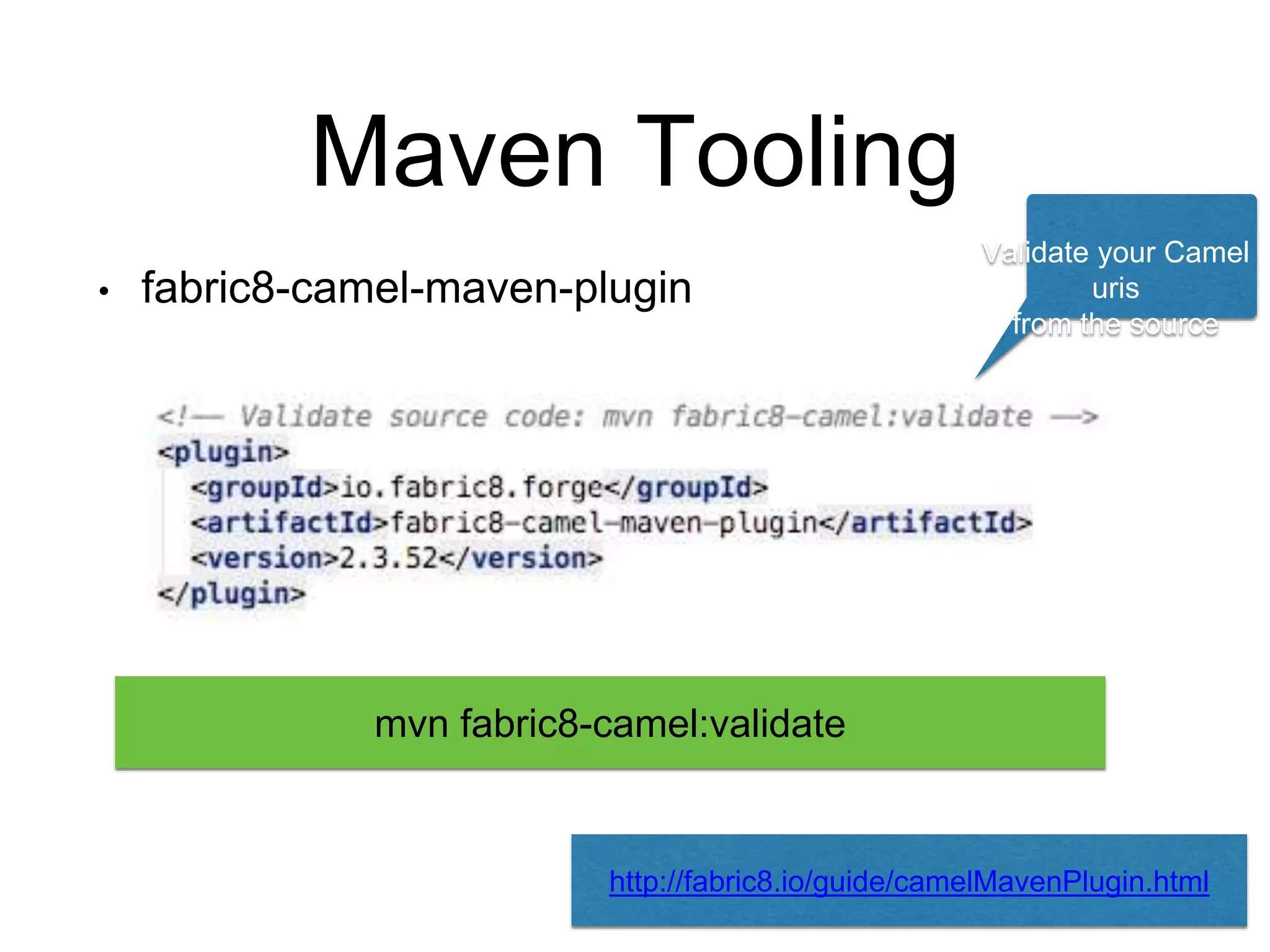

- 100. Maven Tooling • fabric8-camel-maven-plugin mvn fabric8-camel:validate http://fabric8.io/guide/camelMavenPlugin.html Validate your Camel uris from the source

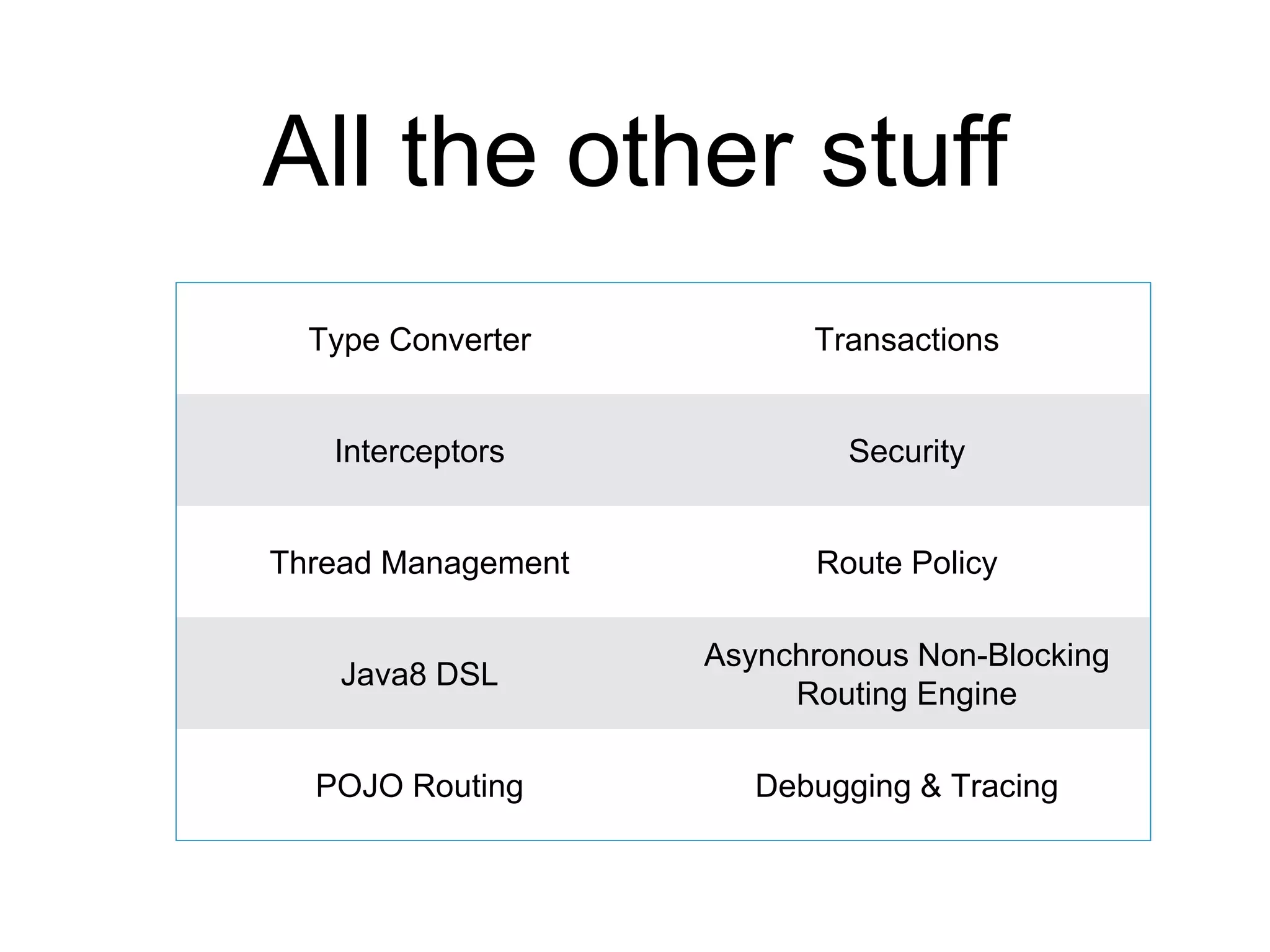

- 101. All the other stuff Type Converter Transactions Interceptors Security Thread Management Route Policy Java8 DSL Asynchronous Non-Blocking Routing Engine POJO Routing Debugging & Tracing

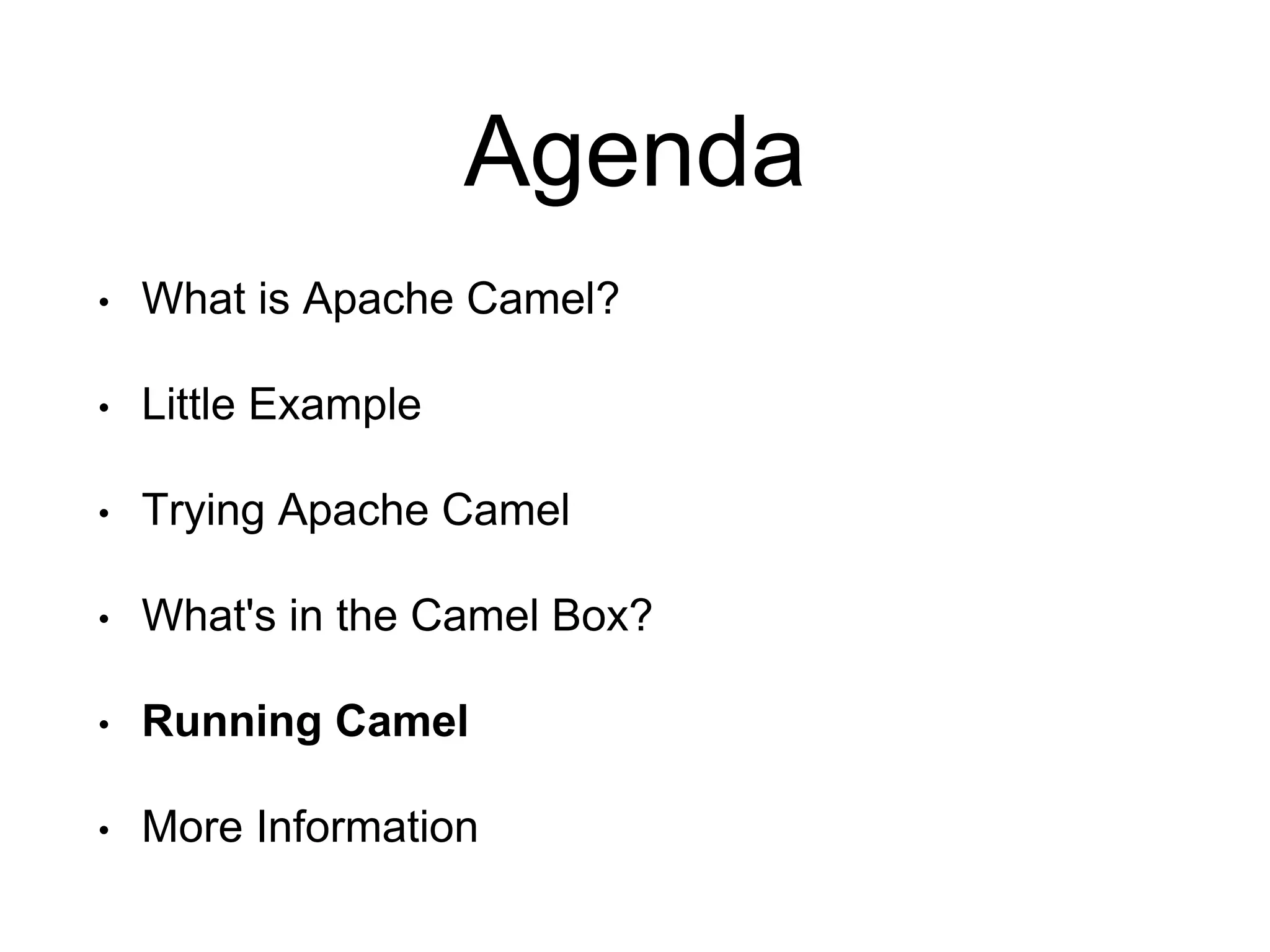

- 102. Agenda • What is Apache Camel? • Little Example • Trying Apache Camel • What's in the Camel Box? • Running Camel • More Information

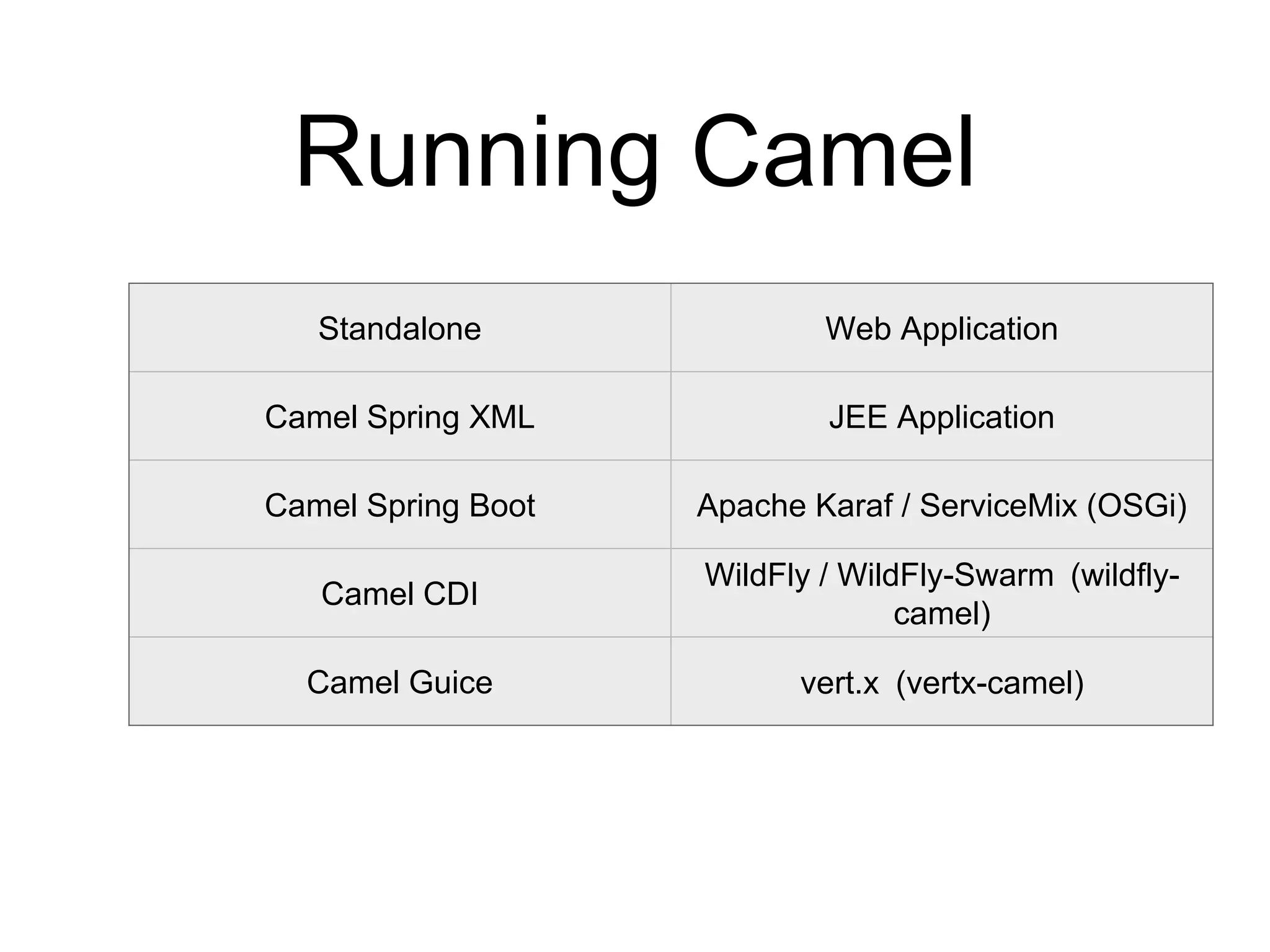

- 103. Running Camel Standalone Web Application Camel Spring XML JEE Application Camel Spring Boot Apache Karaf / ServiceMix (OSGi) Camel CDI WildFly / WildFly-Swarm (wildfly- camel) Camel Guice vert.x (vertx-camel)

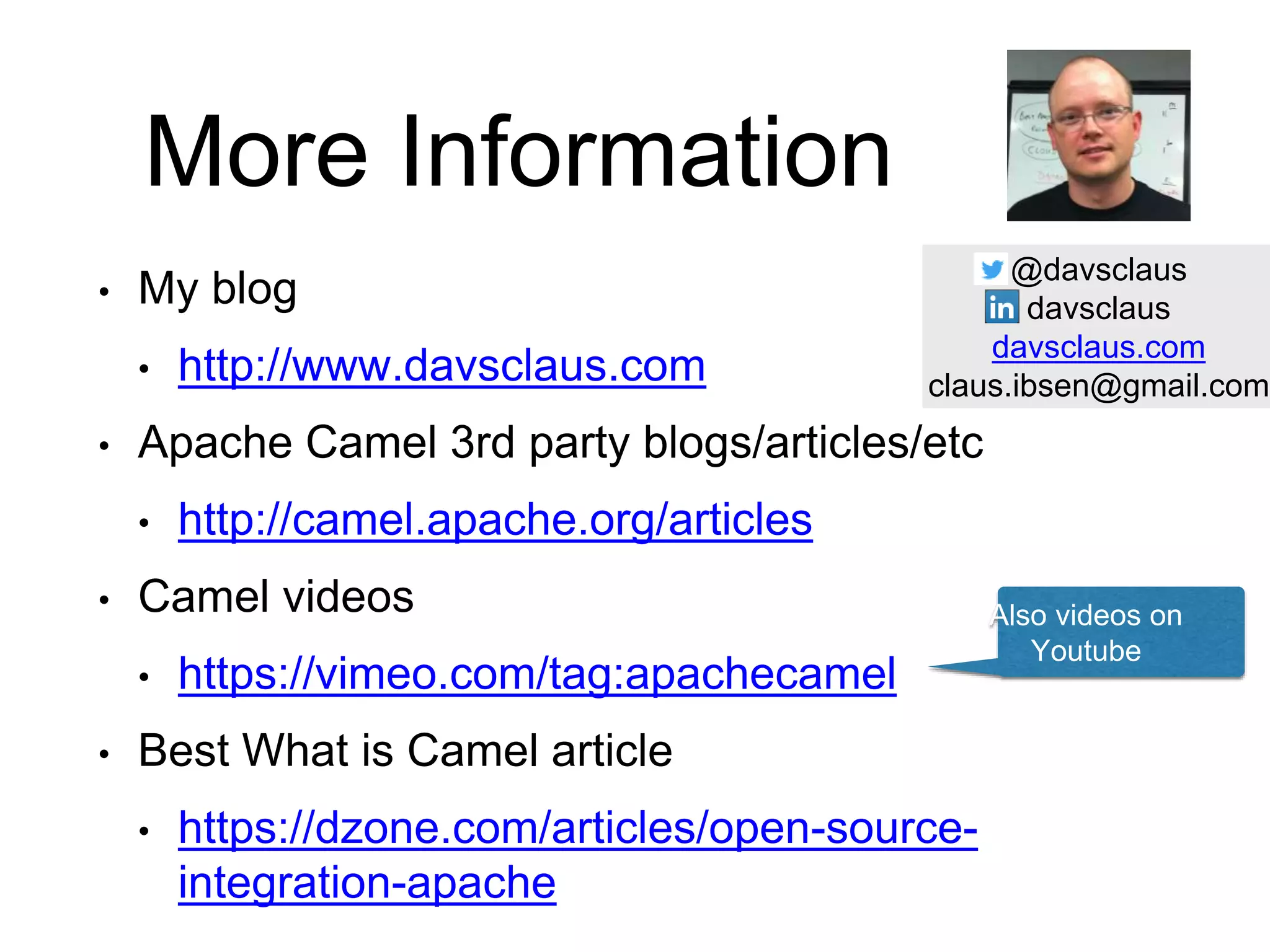

- 104. More Information • My blog • http://www.davsclaus.com • Apache Camel 3rd party blogs/articles/etc • http://camel.apache.org/articles • Camel videos • https://vimeo.com/tag:apachecamel • Best What is Camel article • https://dzone.com/articles/open-source- integration-apache Also videos on Youtube @davsclaus davsclaus davsclaus.com claus.ibsen@gmail.com
