1. Reconfigurable Autopilot Flight System for both General Aviation and
Unmanned Aerial Systems
Hardware Servo Interface
Queensland University of Technology
Science and Engineering Faculty
Australian Research Centre for Aerospace Automation
Version 1.0
March 13, 2014
Project Team:
Dr. Luis Mejias Alvarez, PhD, Principal Supervisor
Dr. Duncan Campbell, PhD, Associate Supervisor
Mr. Duncan Greer, Engineering and support
Mr. Pedro Pablo Plazas Rincon, Master Research Student
Documents Author(s):
Pedro Pablo Plazas Rincon
I. Introduction
This document shows the hardware implementation and a list of electronic devices need to
implement the servo interfaces related to the autopilot. This interface must bring an high modularity
to separate the implementation of the UAV servos and the implementation of the civil aircraft
servos using the CANAerospace protocol according to the standards RTCA-DO254(Airbone
Electronic Hardware) and RTCA-DO178C(Software Considerations in Airborne Systems).

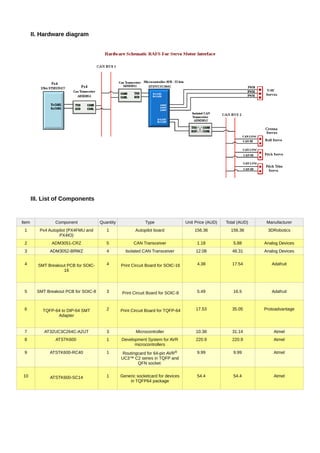

2. II. Hardware diagram
III. List of Components
Item Component Quantity Type Unit Price (AUD) Total (AUD) Manufacturer
1 Px4 Autopilot (PX4FMU and
PX4IO)
1 Autopilot board 156.36 156.36 3DRobotics
2 ADM3051-CRZ 5 CAN Transceiver 1.18 5.88 Analog Devices
3 ADM3052-BRWZ 4 Isolated CAN Transceiver 12.08 48.31 Analog Devices
4 SMT Breakout PCB for SOIC-
16
4 Print Circuit Board for SOIC-16 4.38 17.54 Adafruit
5 SMT Breakout PCB for SOIC-8 3 Print Circuit Board for SOIC-8 5.49 16.5 Adafruit
6 TQFP-64 to DIP-64 SMT
Adapter
2 Print Circuit Board for TQFP-64 17.53 35.05 Protoadvantage
7 AT32UC3C264C-A2UT 3 Microcontroller 10.38 31.14 Atmel
8 ATSTK600 1 Development System for AVR
microcontrollers
220.9 220.9 Atmel
9 ATSTK600-RC40 1 Routingcard for 64-pin AVR®
UC3™ C2 series in TQFP and
QFN socket
9.99 9.99 Atmel
10 ATSTK600-SC14 1 Generic socketcard for devices
in TQFP64 package
54.4 54.4 Atmel

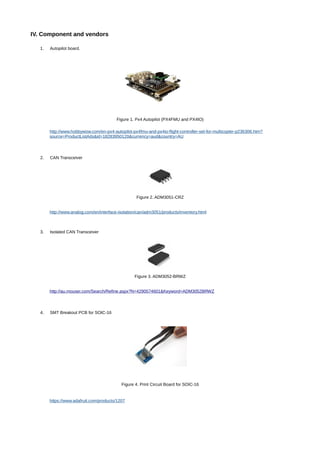

3. IV. Component and vendors
1. Autopilot board.
Figure 1. Px4 Autopilot (PX4FMU and PX4IO)
http://www.hobbywow.com/en-px4-autopilot-px4fmu-and-px4io-flight-controller-set-for-multicopter-p236306.htm?
source=ProductListAds&id=18283950120&currency=aud&country=AU
2. CAN Transceiver
Figure 2. ADM3051-CRZ
http://www.analog.com/en/interface-isolation/can/adm3051/products/inventory.html
3. Isolated CAN Transceiver
Figure 3. ADM3052-BRWZ
http://au.mouser.com/Search/Refine.aspx?N=4290574601&Keyword=ADM3052BRWZ
4. SMT Breakout PCB for SOIC-16
Figure 4. Print Circuit Board for SOIC-16
https://www.adafruit.com/products/1207

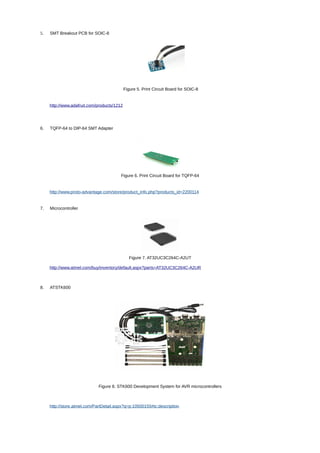

4. 5. SMT Breakout PCB for SOIC-8
Figure 5. Print Circuit Board for SOIC-8
http://www.adafruit.com/products/1212
6. TQFP-64 to DIP-64 SMT Adapter
Figure 6. Print Circuit Board for TQFP-64
http://www.proto-advantage.com/store/product_info.php?products_id=2200114
7. Microcontroller
Figure 7. AT32UC3C264C-A2UT
http://www.atmel.com/buy/inventory/default.aspx?parts=AT32UC3C264C-A2UR
8. ATSTK600
Figure 8. STK600 Development System for AVR microcontrollers
http://store.atmel.com/PartDetail.aspx?q=p:10500155#tc:description

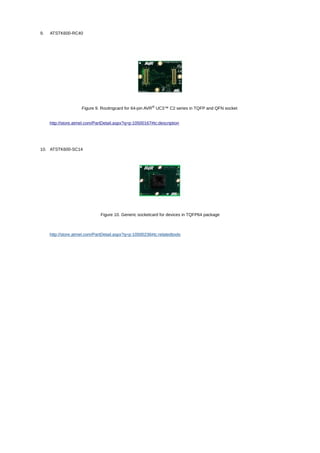

5. 9. ATSTK600-RC40
Figure 9. Routingcard for 64-pin AVR® UC3™ C2 series in TQFP and QFN socket
http://store.atmel.com/PartDetail.aspx?q=p:10500167#tc:description
10. ATSTK600-SC14
Figure 10. Generic socketcard for devices in TQFP64 package
http://store.atmel.com/PartDetail.aspx?q=p:10500236#tc:relatedtools
