HailDB: A NoSQL API Direct to InnoDB
- 1. HailDB A NoSQL API direct to InnoDB Stewart Smith
- 5. Commonly found in MySQL
- 7. Been in MySQL “forever”
- 8. HailDB and InnoDB have...
- 11. Really an interface to an InnoDB API

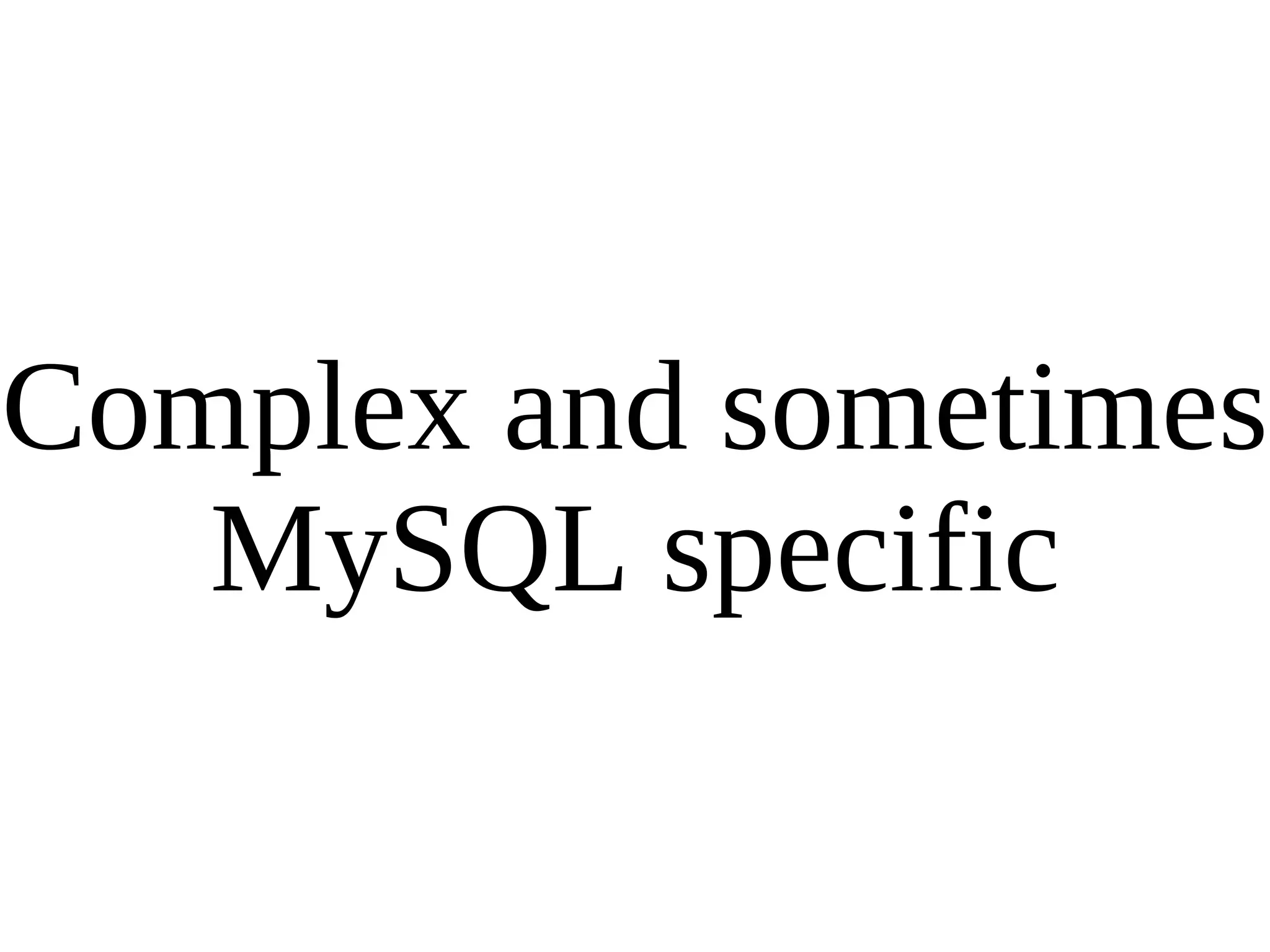

- 13. Complex and sometimes MySQL specific
- 14. HailDB history

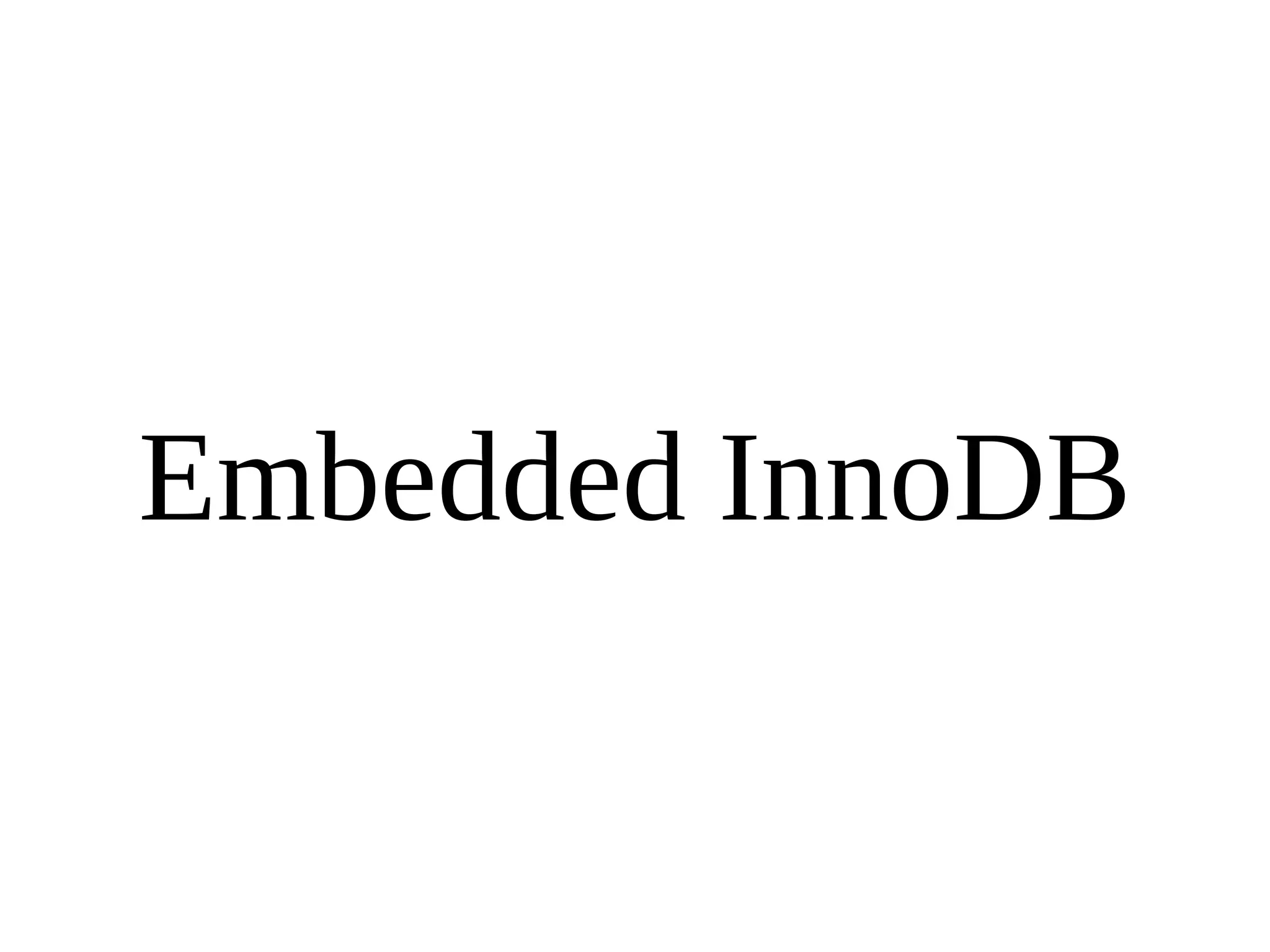

- 15. Embedded InnoDB
- 16. A couple of releases...

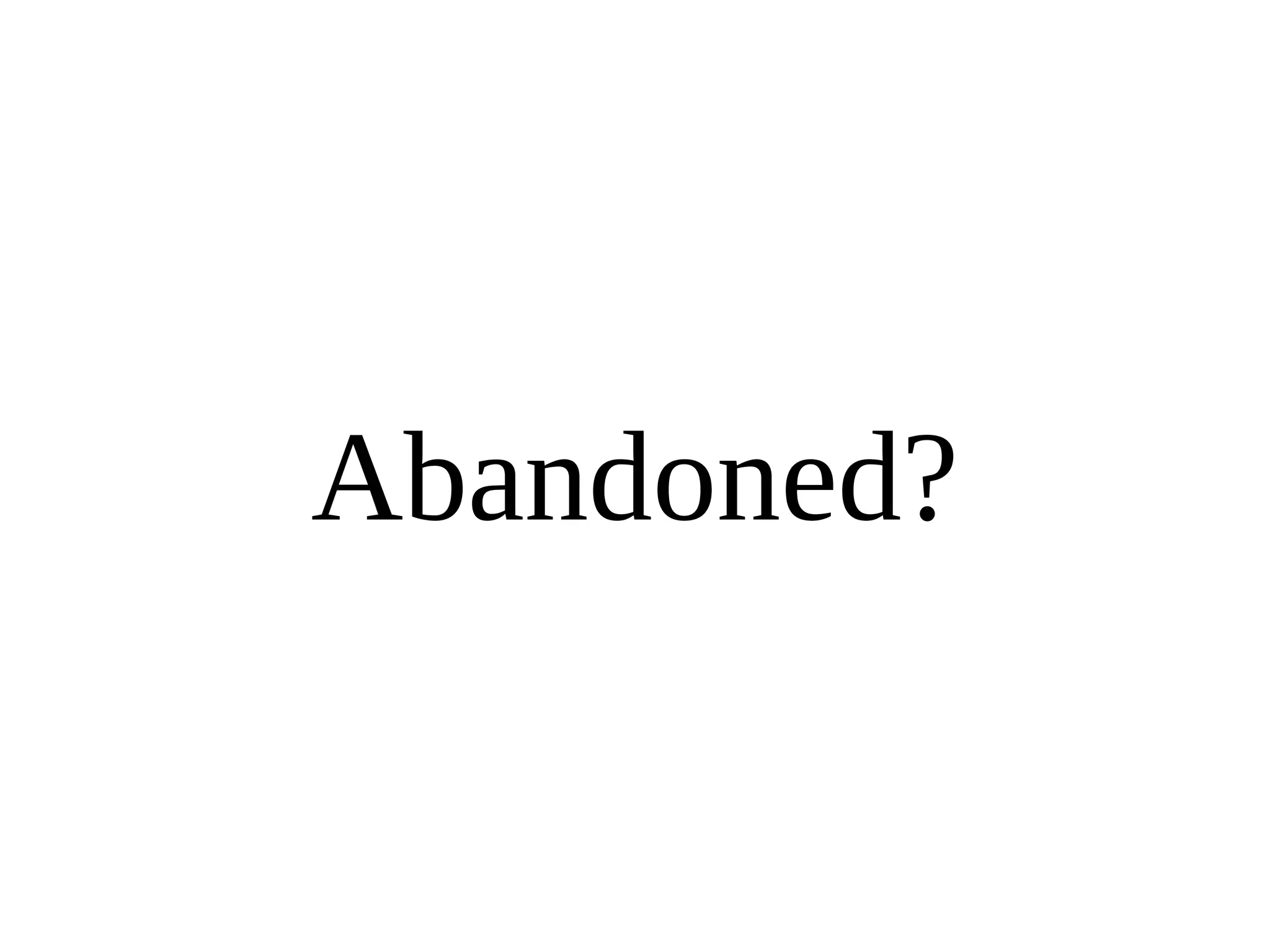

- 17. Abandoned?
- 18. Enter HailDB

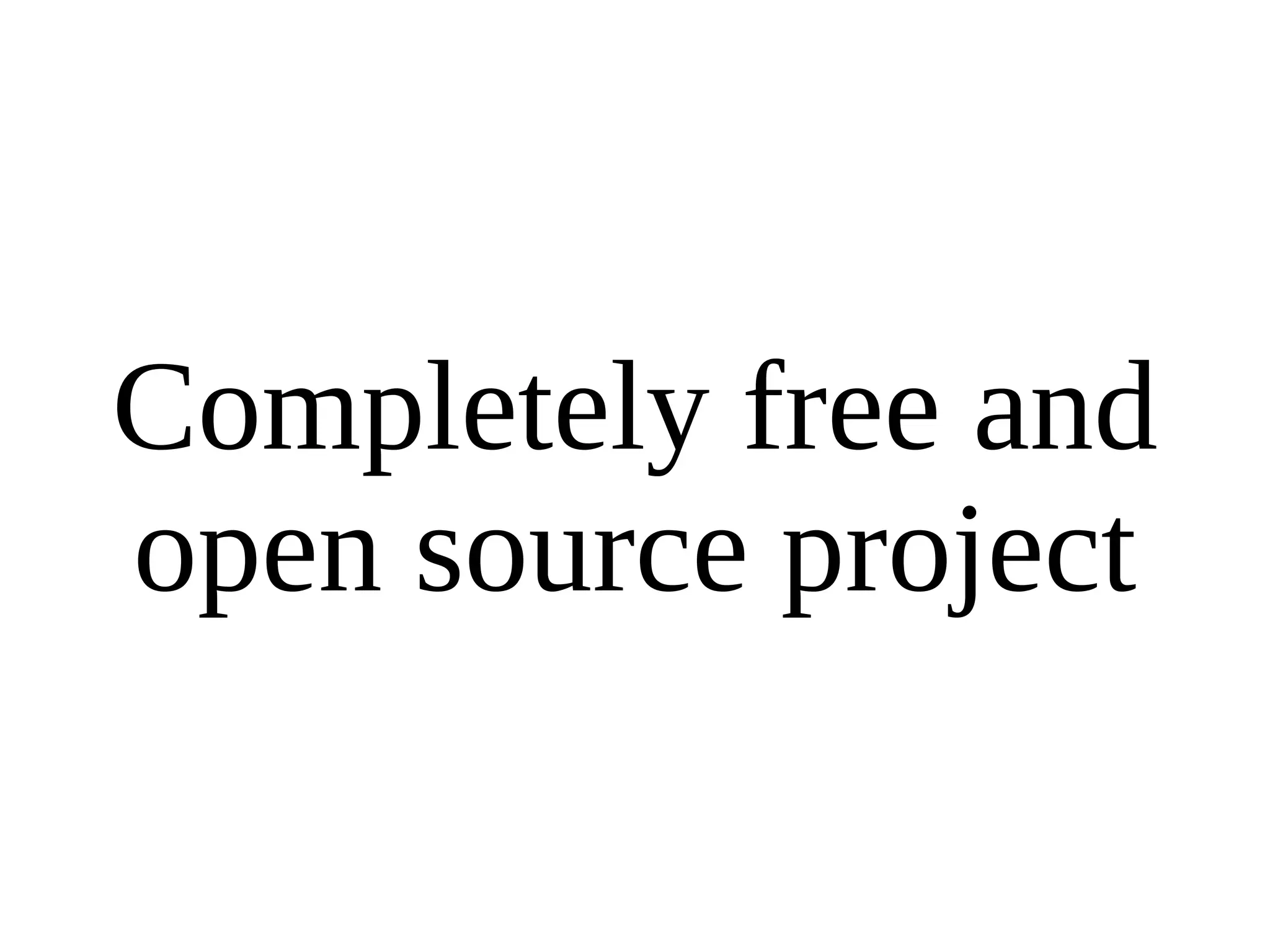

- 19. Completely free and open source project
- 21. Launchpad

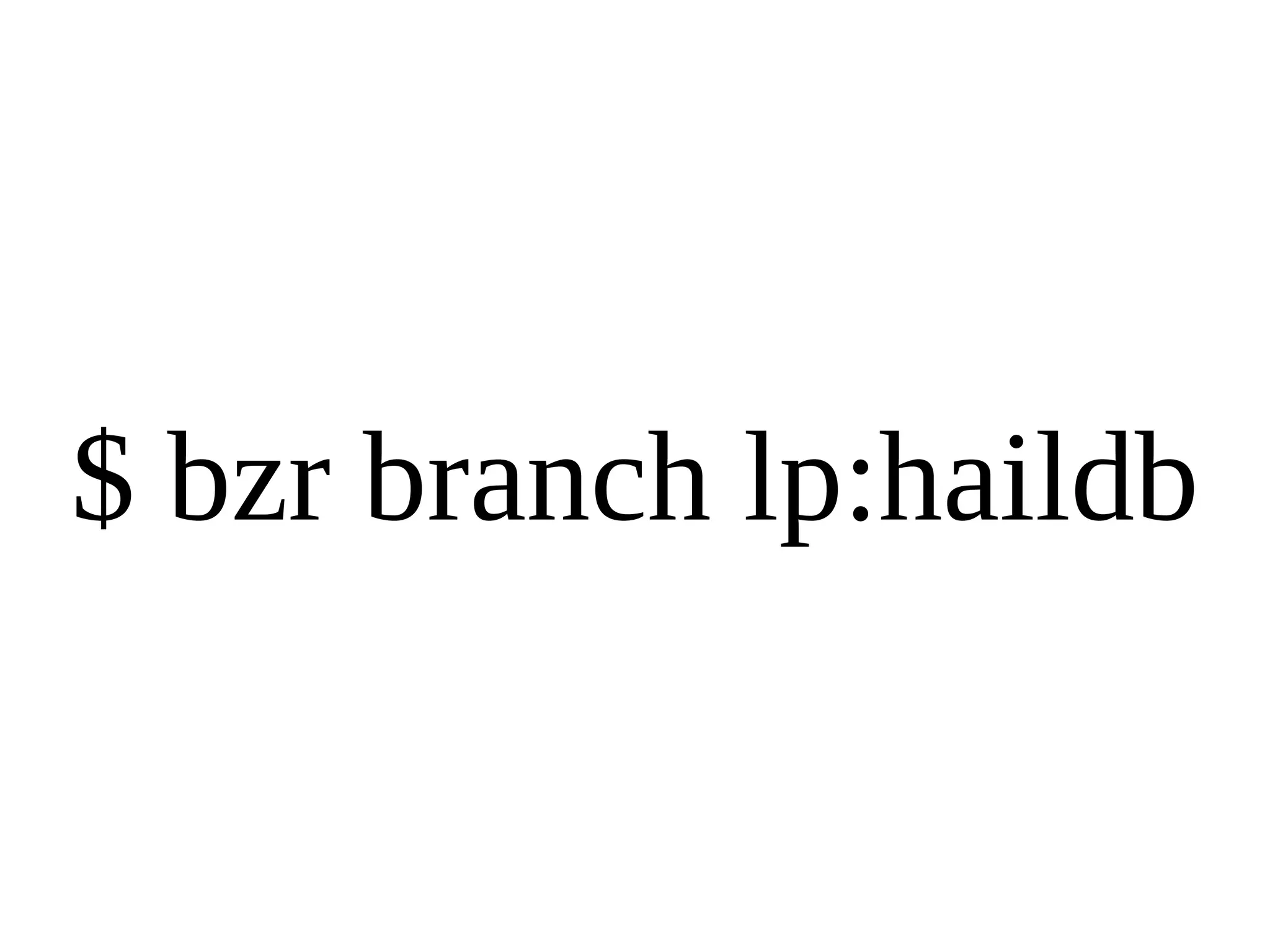

- 22. $ bzr branch lp:haildb

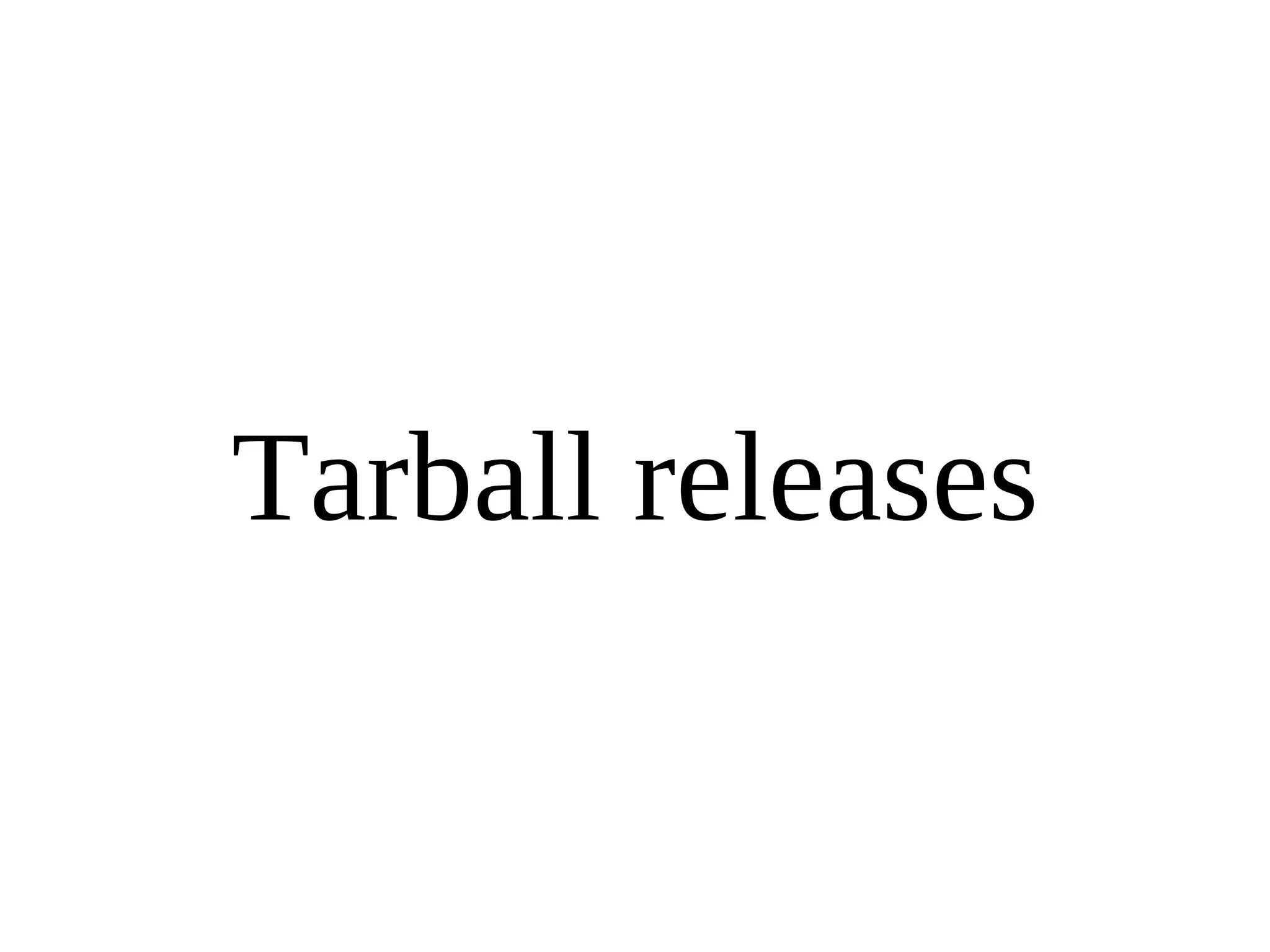

- 23. Tarball releases
- 24. Packaged in Ubuntu Natty
- 25. Packaged in drizzle-developers PPA
- 26. Also RPMs

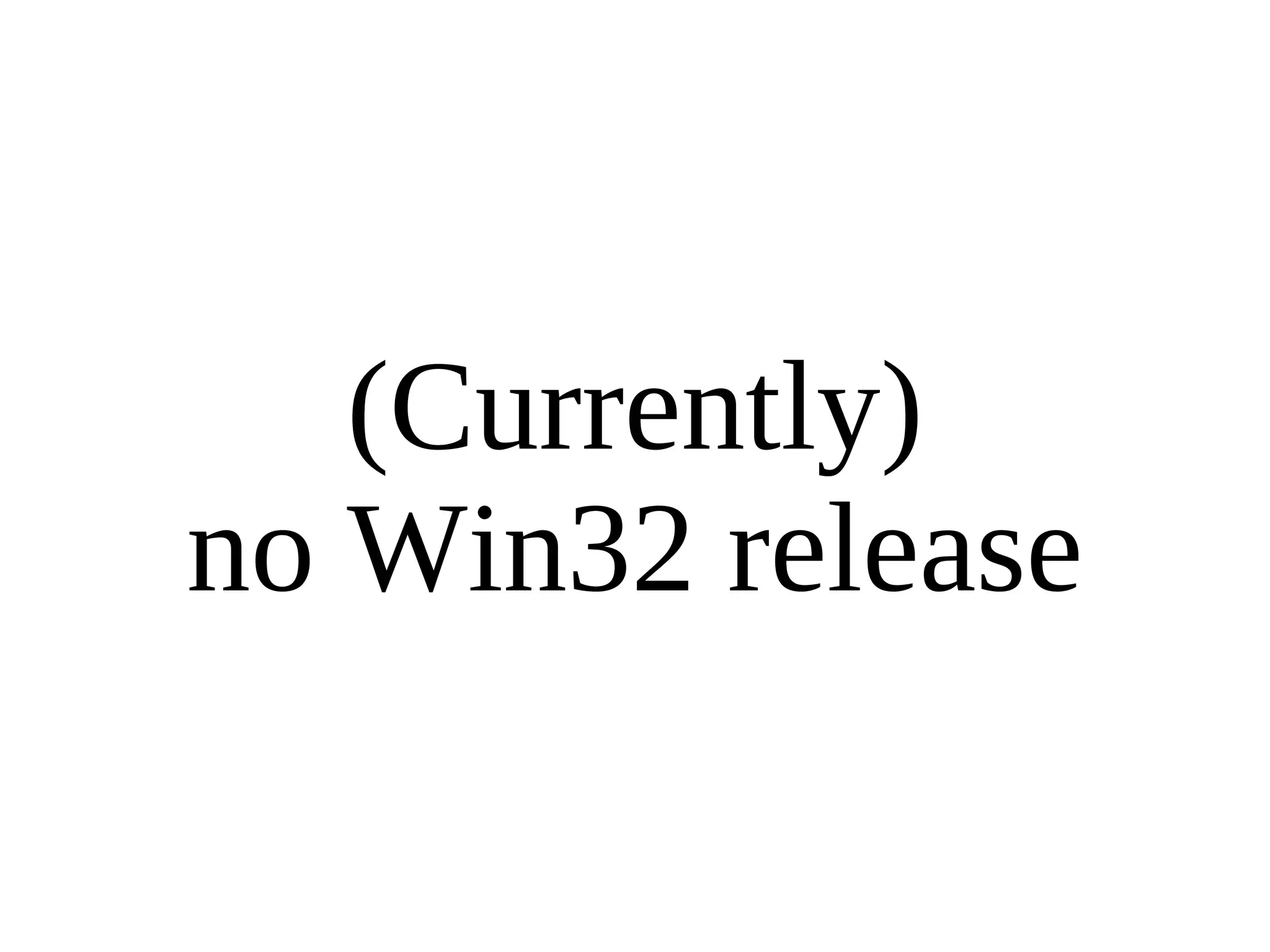

- 27. (Currently) no Win32 release

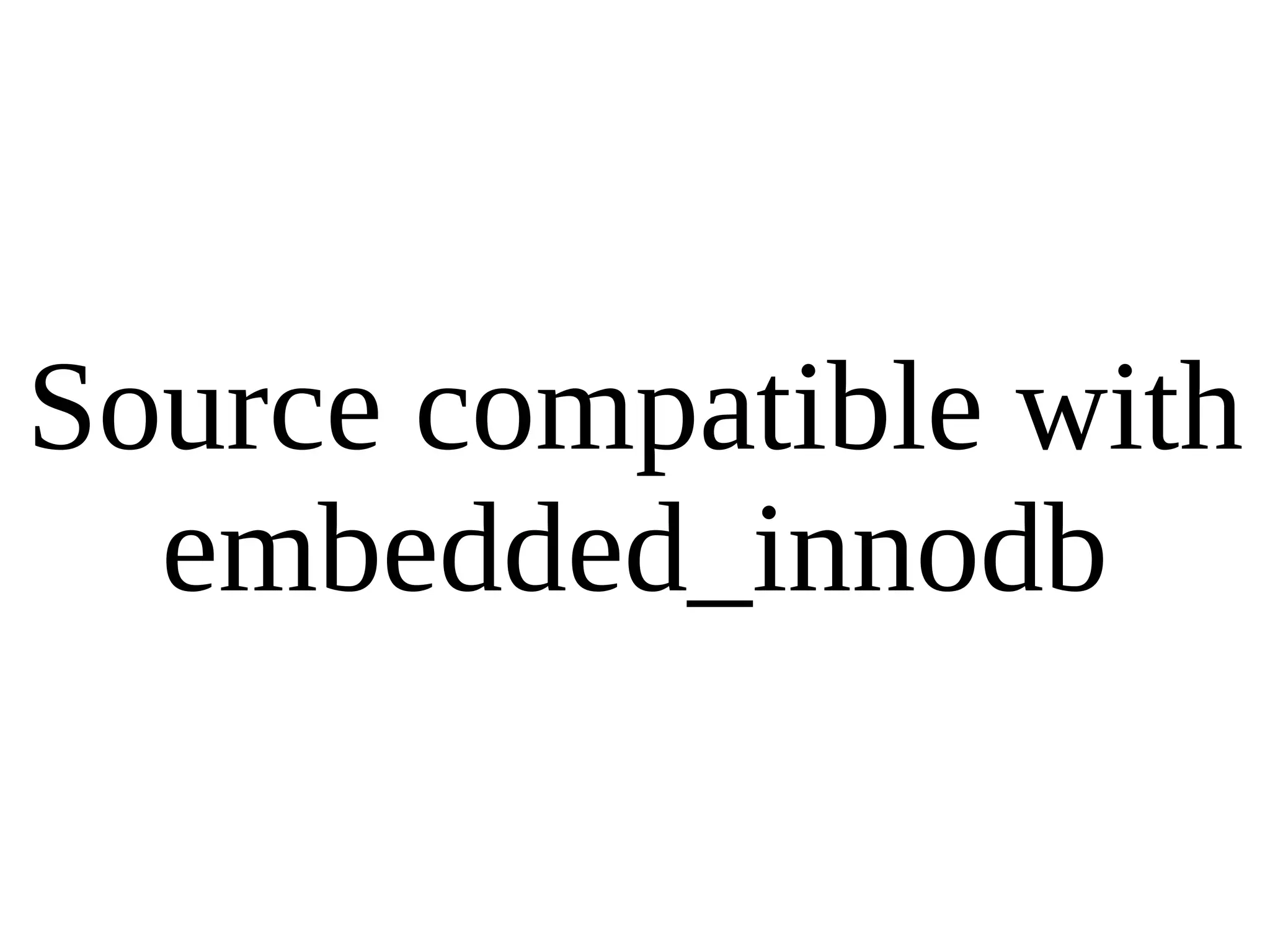

- 28. Source compatible with embedded_innodb
- 29. libhaildb.so
- 30. haildb.h
- 31. Pandora-build provides autoconf foo
- 33. Cursor based API
- 34. Transactions

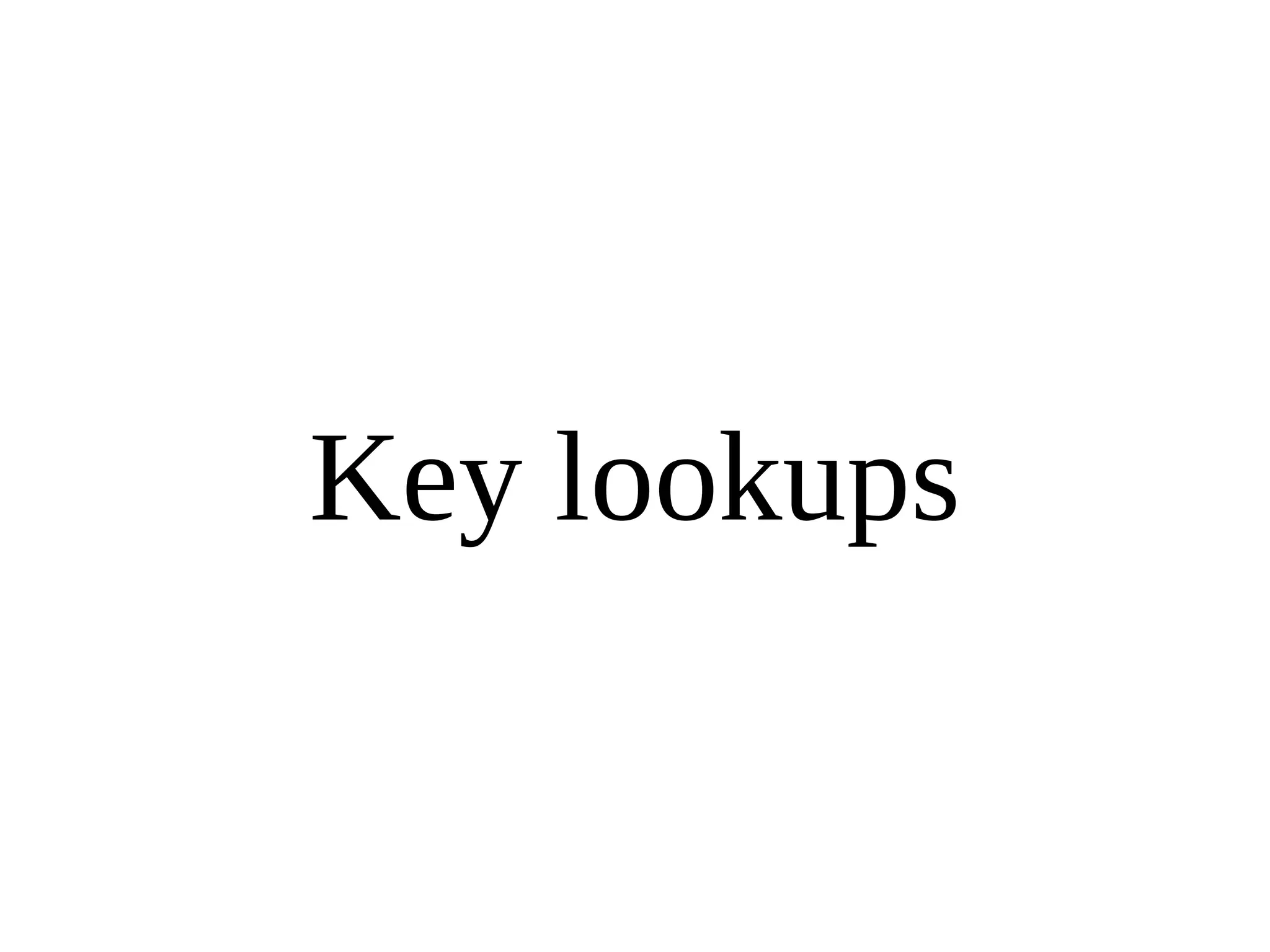

- 35. Key lookups
- 36. Index scans

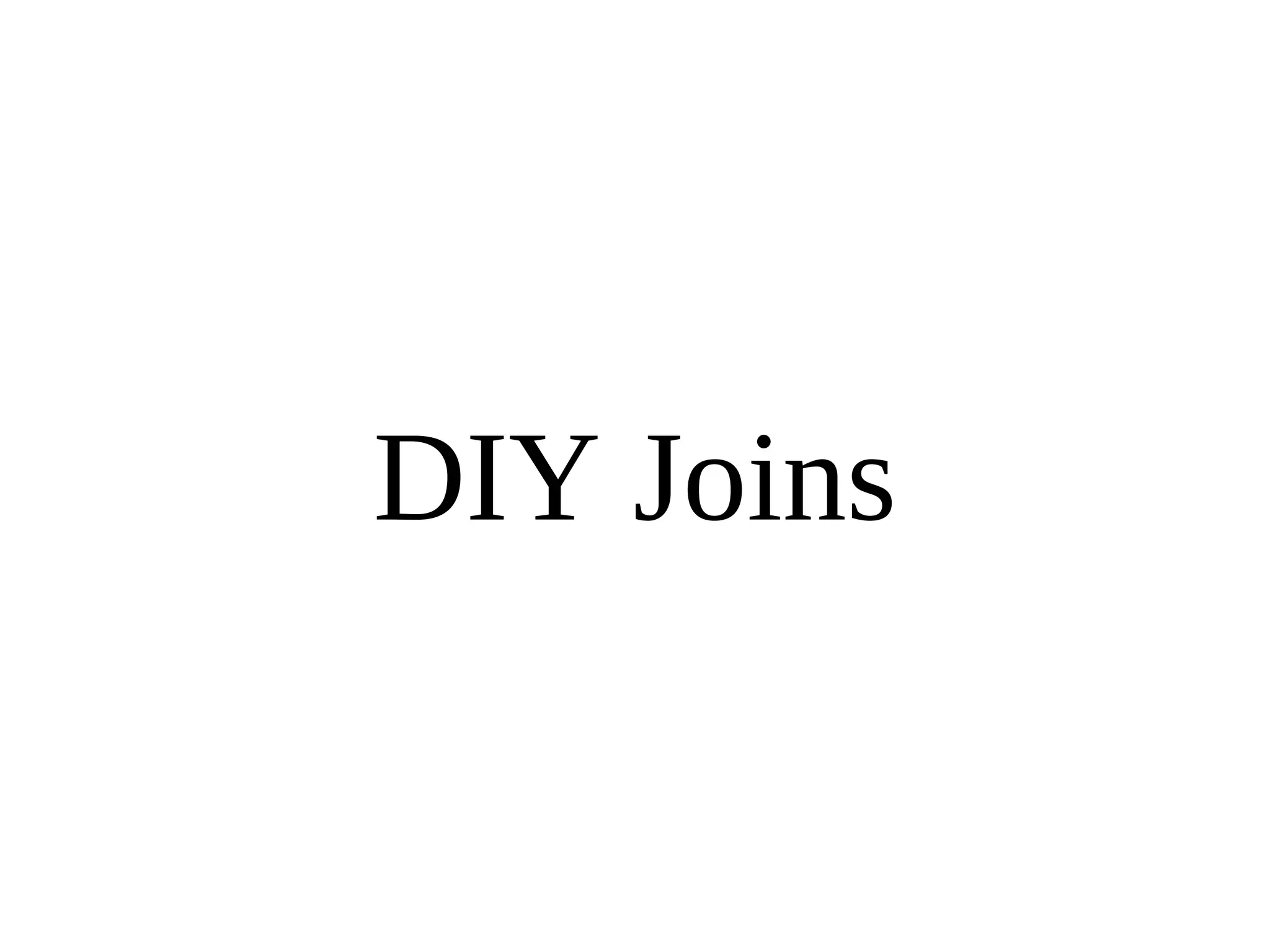

- 37. DIY Joins
- 38. Updates
- 39. Inserts

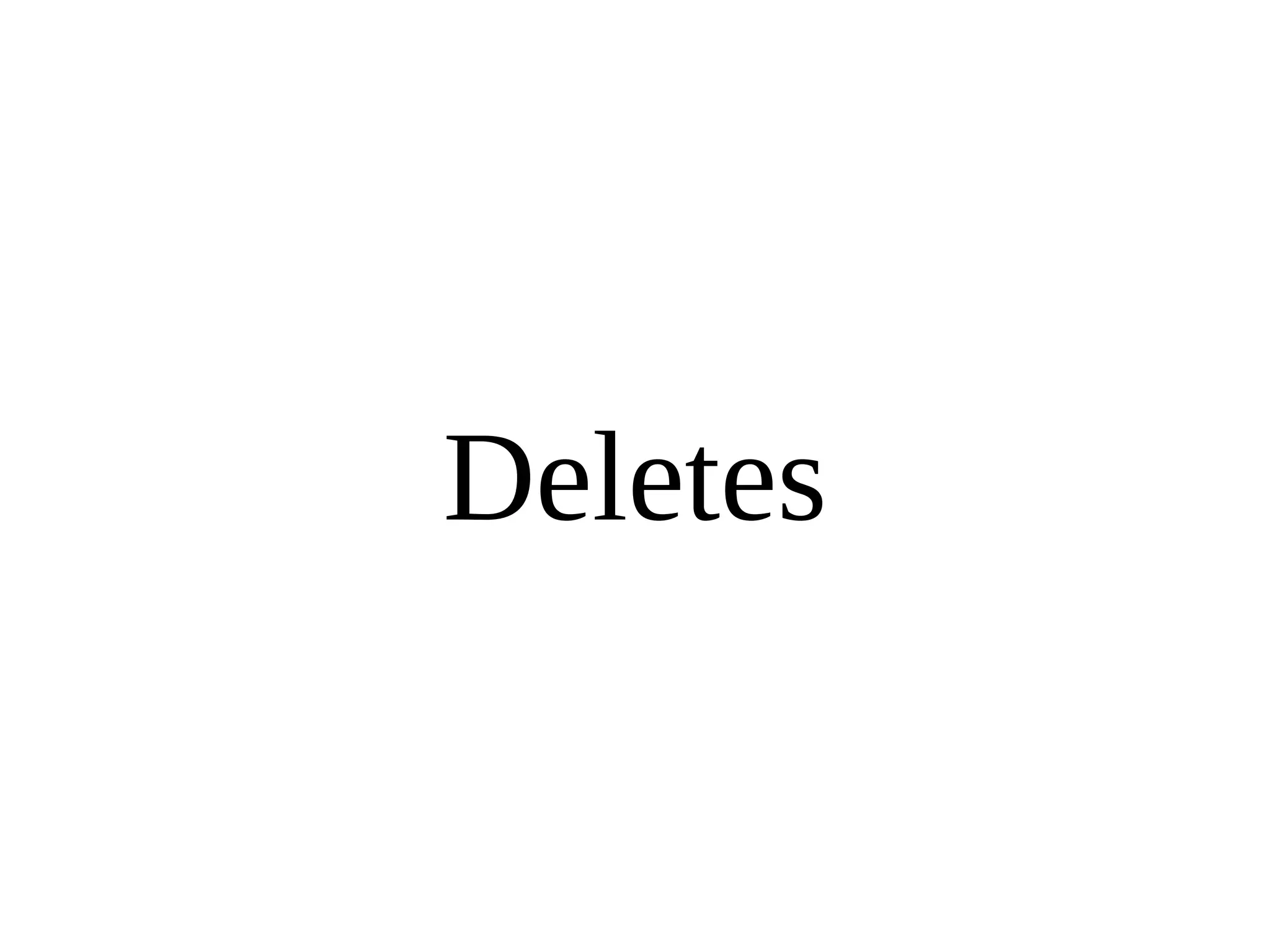

- 40. Deletes
- 41. Use cases
- 42. Embedded, fast, concurrent, relational database
- 44. Not SQL
- 45. High-Performance Storage Services Using HailDB and Java Ballroom E, 2:50pm Thursday

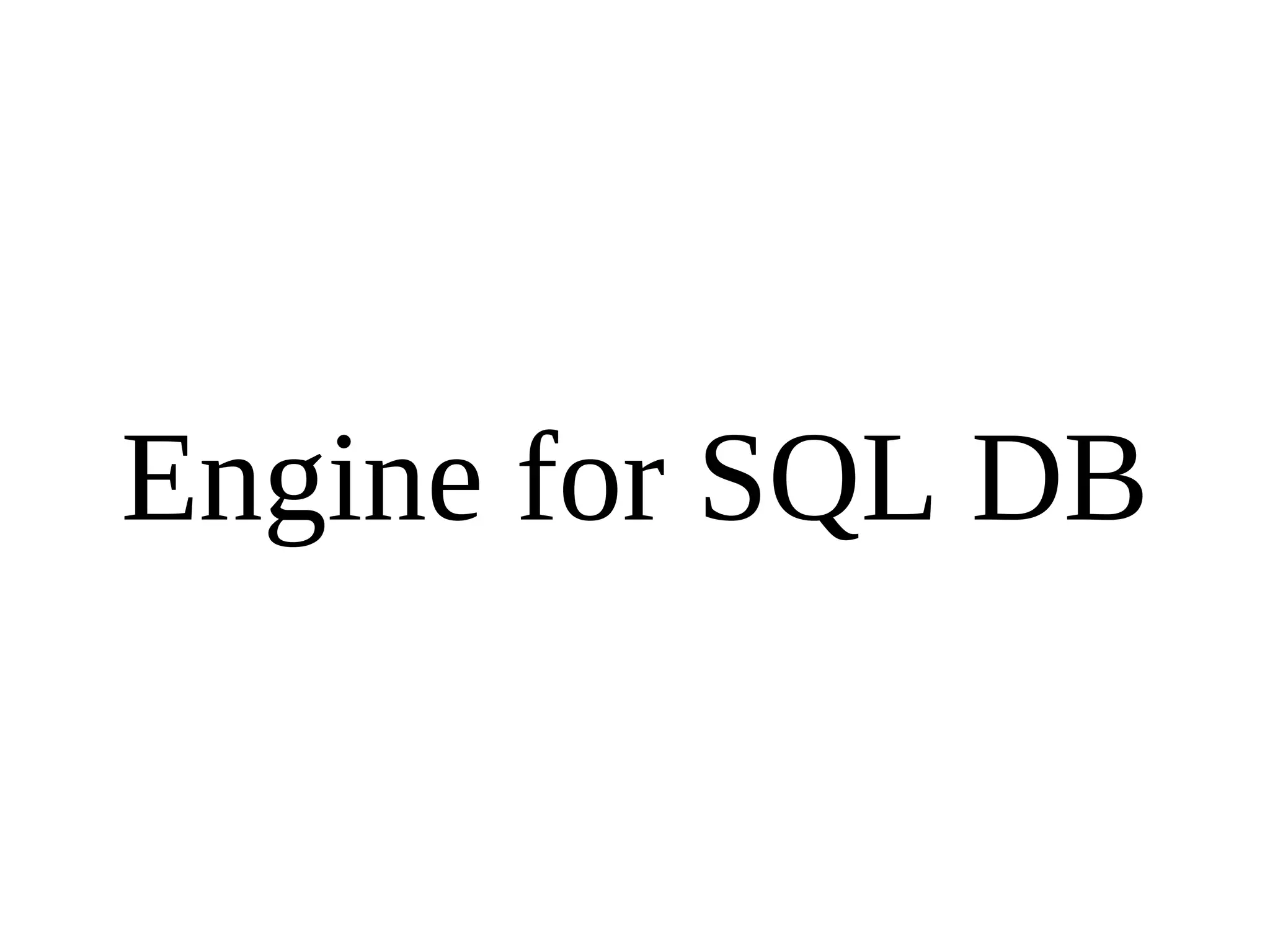

- 46. Engine for SQL DB
- 47. Using the API
- 48. ib_init()
- 49. ib_cfg_set_int()
- 52. Set callbacks

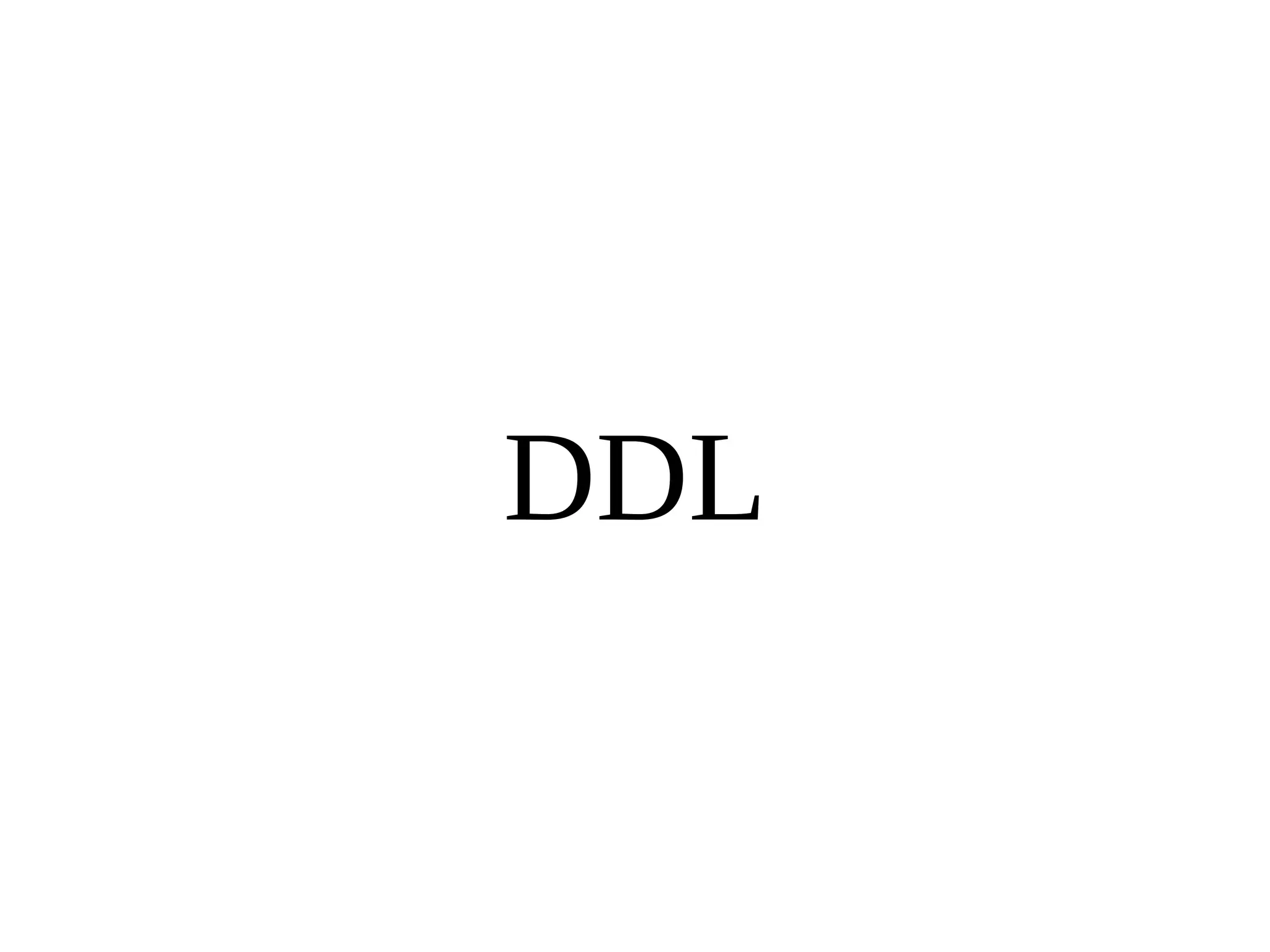

- 55. DDL
- 58. ib_table_drop()
- 60. Transactions
- 61. ib_trx_begin()
- 64. Cursors
- 68. Position a cursor, perform row operations
- 69. Tuples

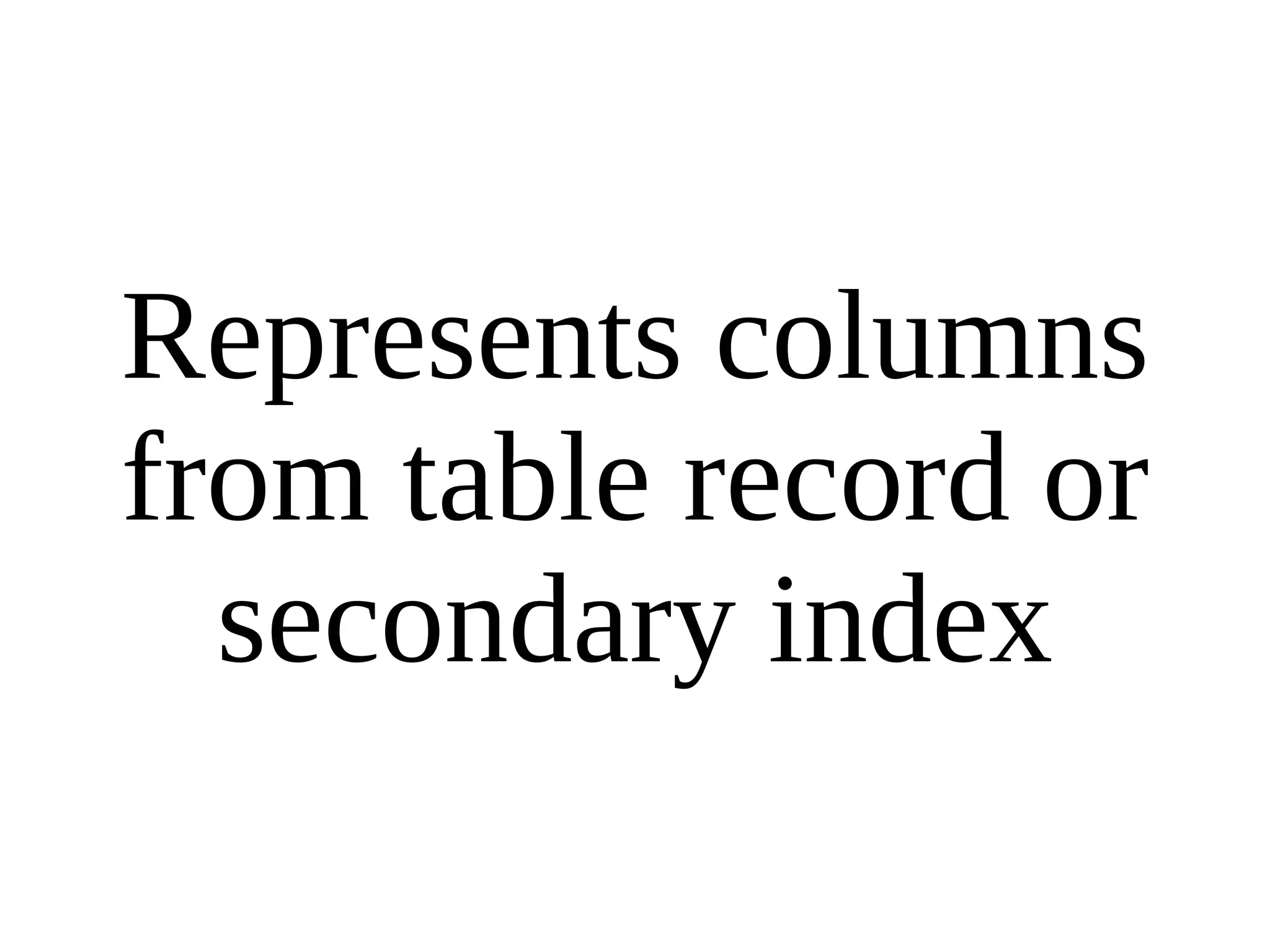

- 70. Represents columns from table record or secondary index
- 71. ib_tpl_t tpl = ib_clust_read_tuple_create(cursor)
- 74. Examples

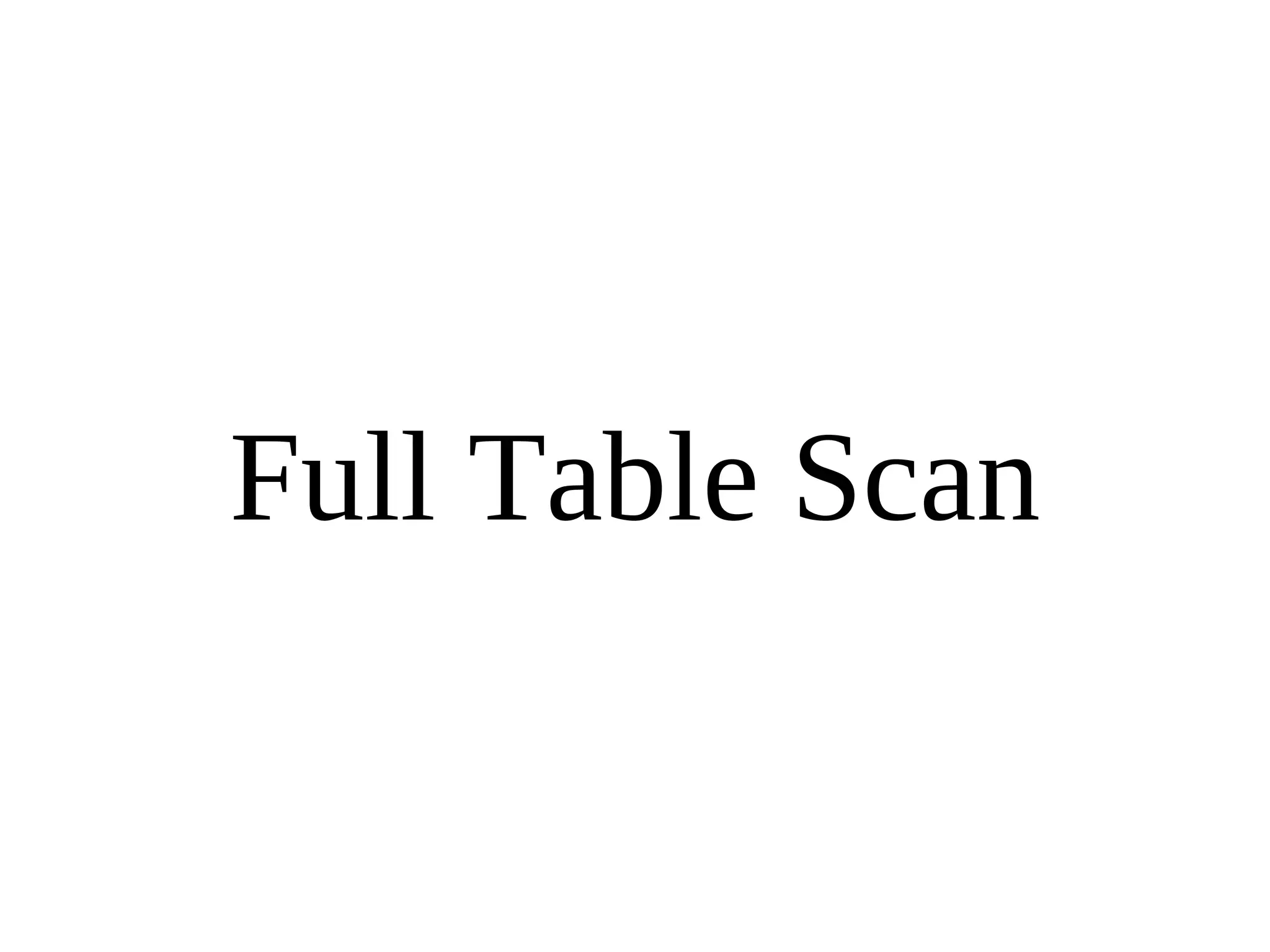

- 75. Full Table Scan

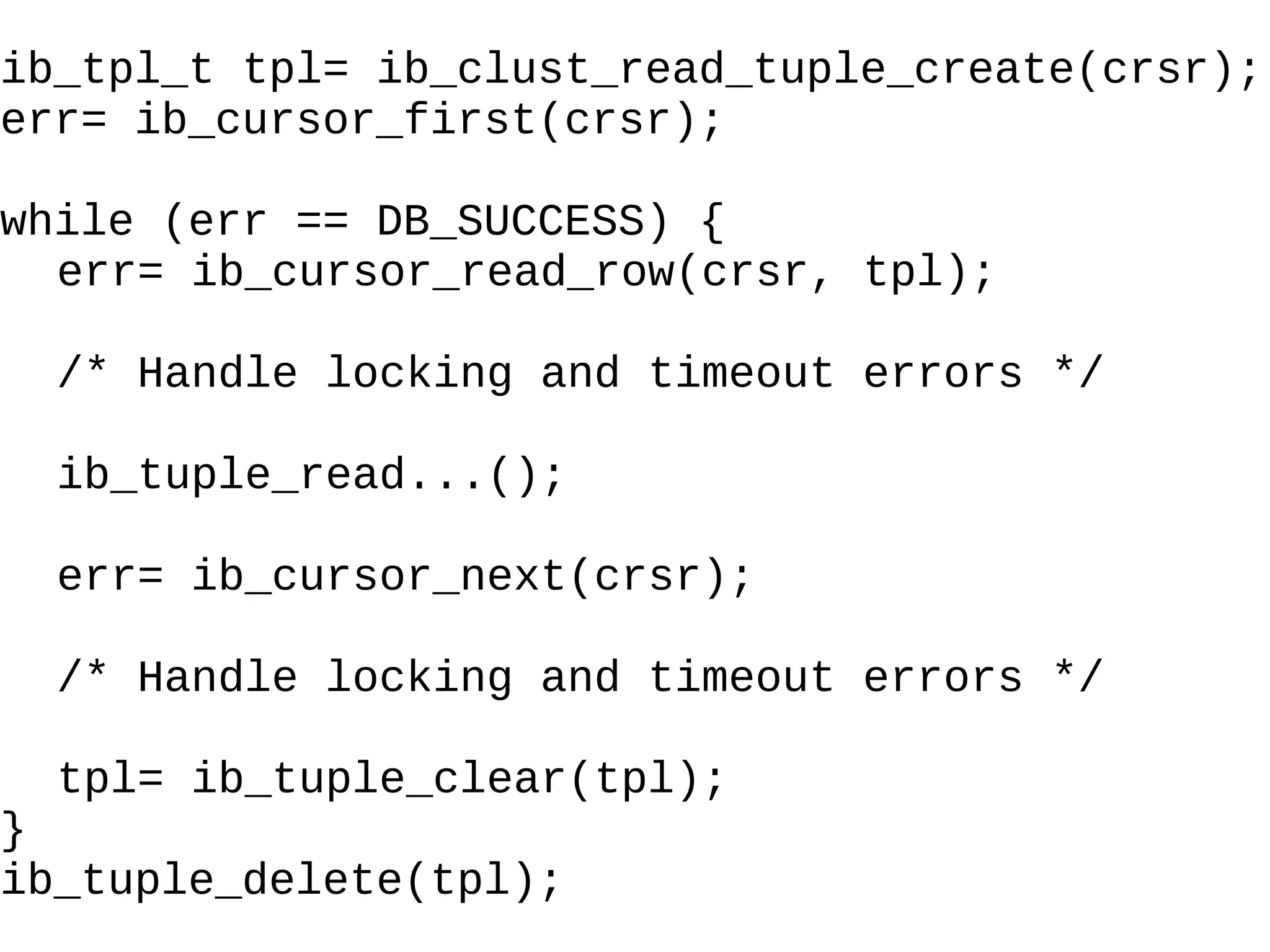

- 76. ib_tpl_t tpl= ib_clust_read_tuple_create(crsr); err= ib_cursor_first(crsr); while (err == DB_SUCCESS) { err= ib_cursor_read_row(crsr, tpl); /* Handle locking and timeout errors */ ib_tuple_read...(); err= ib_cursor_next(crsr); /* Handle locking and timeout errors */ tpl= ib_tuple_clear(tpl); } ib_tuple_delete(tpl);

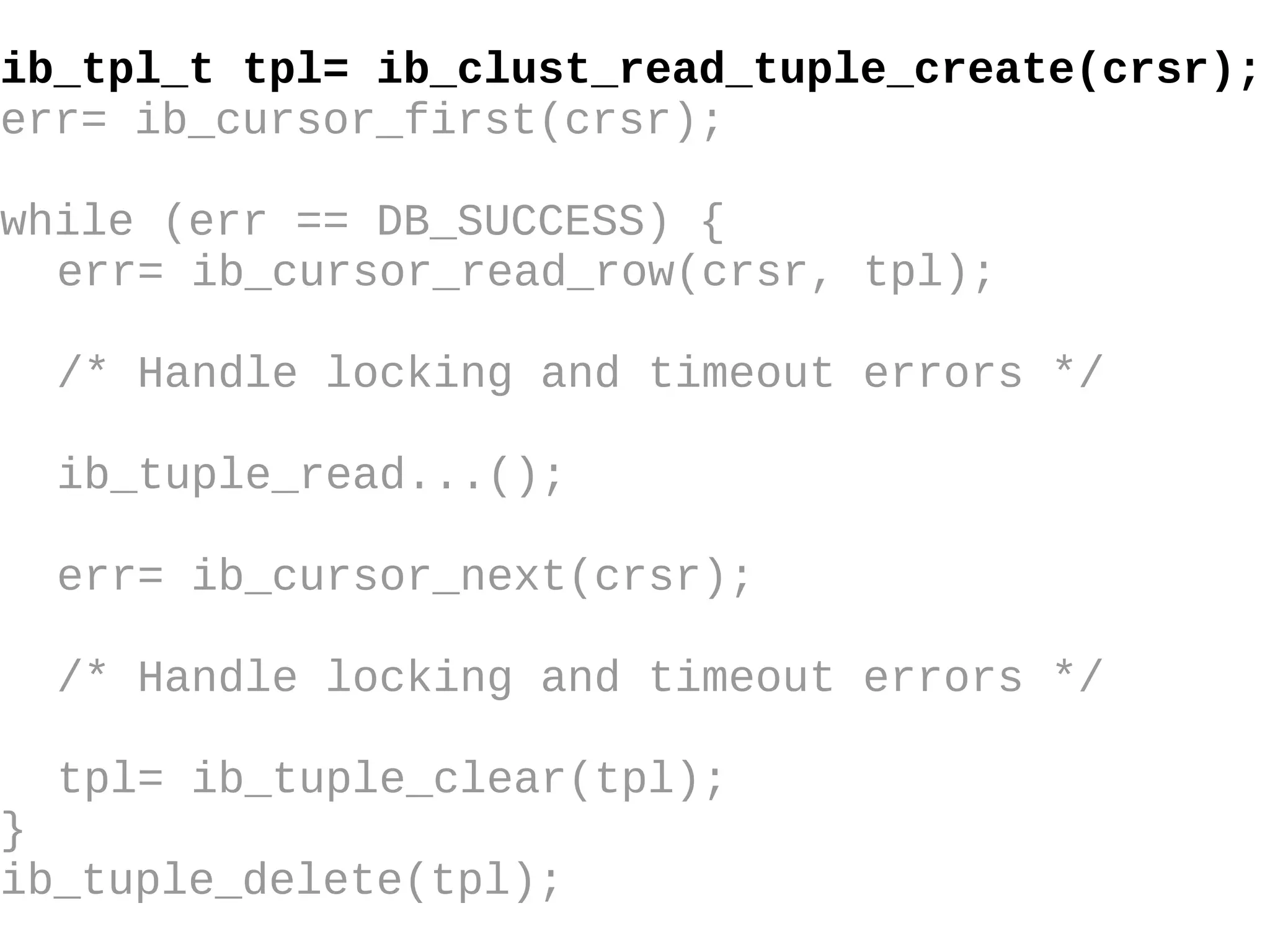

- 77. ib_tpl_t tpl= ib_clust_read_tuple_create(crsr); err= ib_cursor_first(crsr); while (err == DB_SUCCESS) { err= ib_cursor_read_row(crsr, tpl); /* Handle locking and timeout errors */ ib_tuple_read...(); err= ib_cursor_next(crsr); /* Handle locking and timeout errors */ tpl= ib_tuple_clear(tpl); } ib_tuple_delete(tpl);

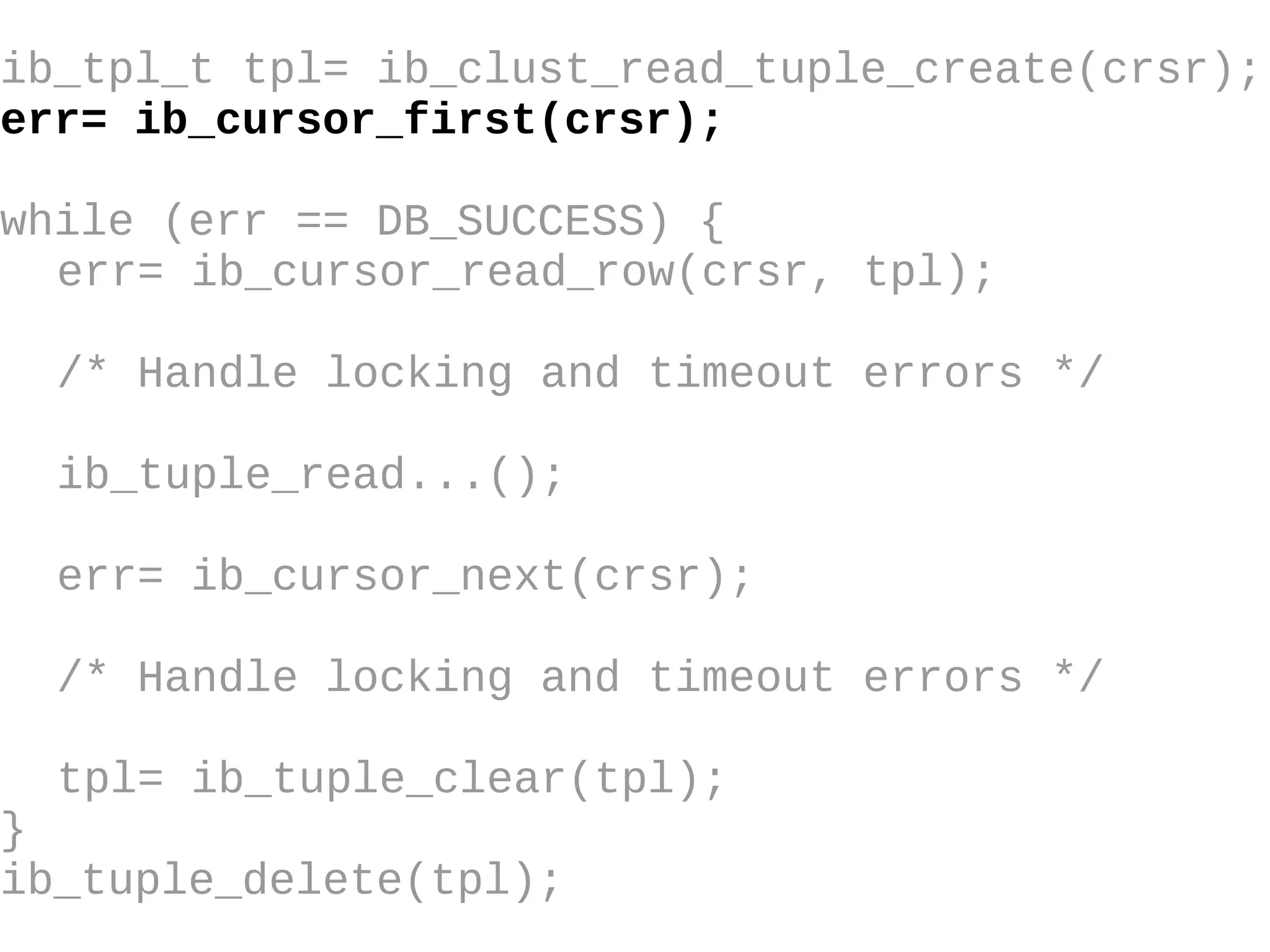

- 78. ib_tpl_t tpl= ib_clust_read_tuple_create(crsr); err= ib_cursor_first(crsr); while (err == DB_SUCCESS) { err= ib_cursor_read_row(crsr, tpl); /* Handle locking and timeout errors */ ib_tuple_read...(); err= ib_cursor_next(crsr); /* Handle locking and timeout errors */ tpl= ib_tuple_clear(tpl); } ib_tuple_delete(tpl);

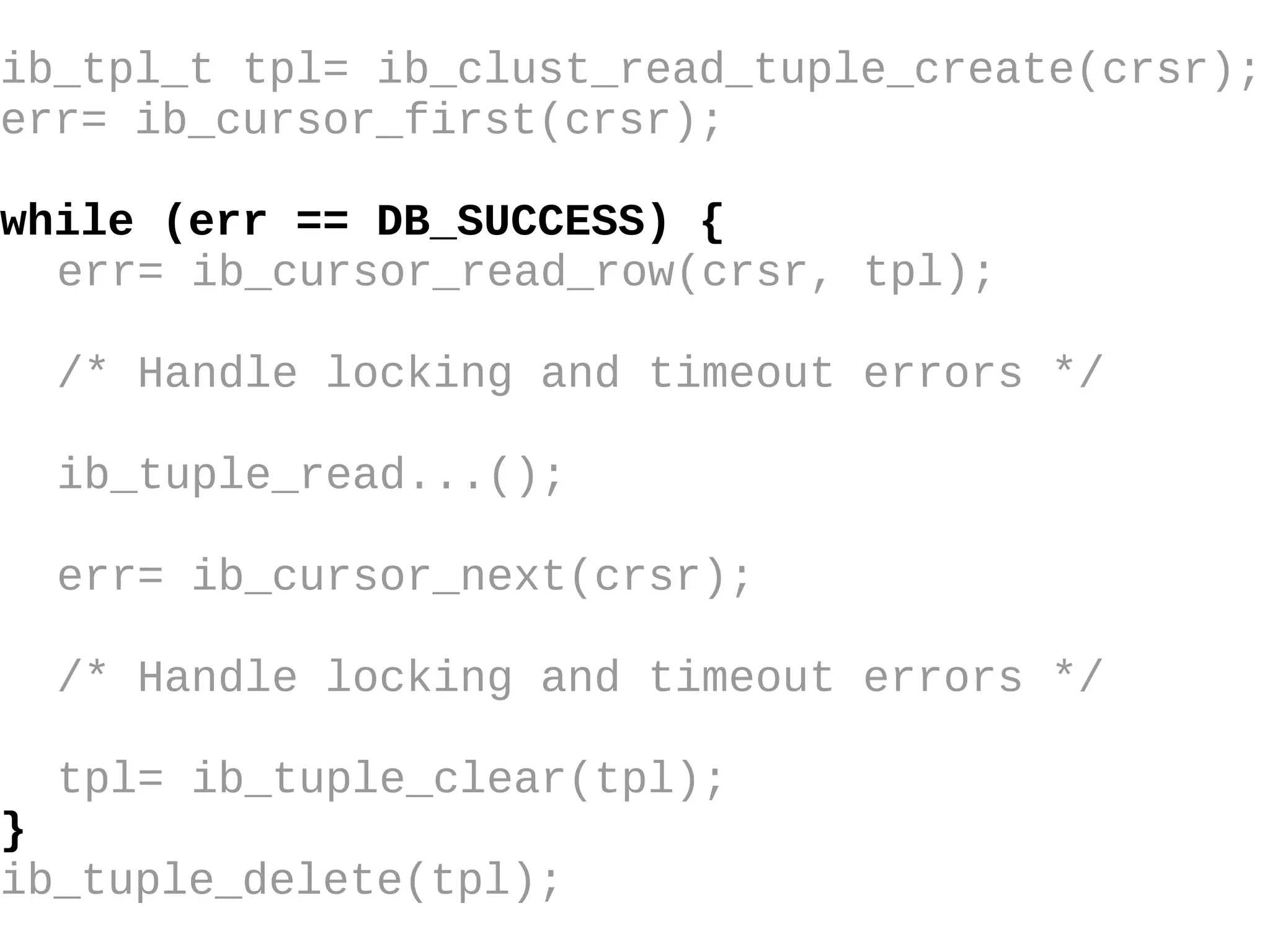

- 79. ib_tpl_t tpl= ib_clust_read_tuple_create(crsr); err= ib_cursor_first(crsr); while (err == DB_SUCCESS) { err= ib_cursor_read_row(crsr, tpl); /* Handle locking and timeout errors */ ib_tuple_read...(); err= ib_cursor_next(crsr); /* Handle locking and timeout errors */ tpl= ib_tuple_clear(tpl); } ib_tuple_delete(tpl);
- 80. ib_tpl_t tpl= ib_clust_read_tuple_create(crsr); err= ib_cursor_first(crsr); while (err == DB_SUCCESS) { err= ib_cursor_read_row(crsr, tpl); /* Handle locking and timeout errors */ ib_tuple_read...(); err= ib_cursor_next(crsr); /* Handle locking and timeout errors */ tpl= ib_tuple_clear(tpl); } ib_tuple_delete(tpl);

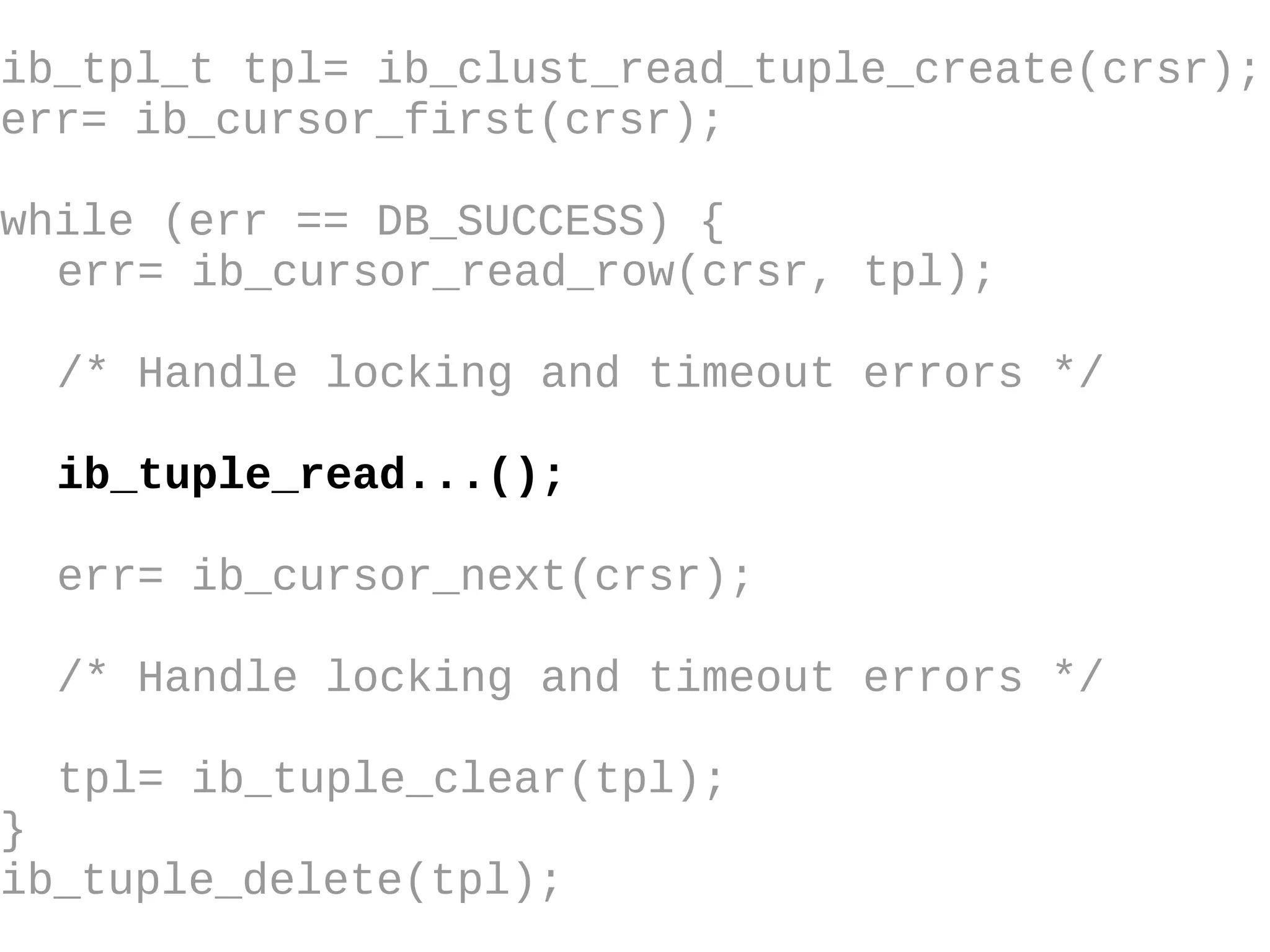

- 81. ib_tpl_t tpl= ib_clust_read_tuple_create(crsr); err= ib_cursor_first(crsr); while (err == DB_SUCCESS) { err= ib_cursor_read_row(crsr, tpl); /* Handle locking and timeout errors */ ib_tuple_read...(); err= ib_cursor_next(crsr); /* Handle locking and timeout errors */ tpl= ib_tuple_clear(tpl); } ib_tuple_delete(tpl);

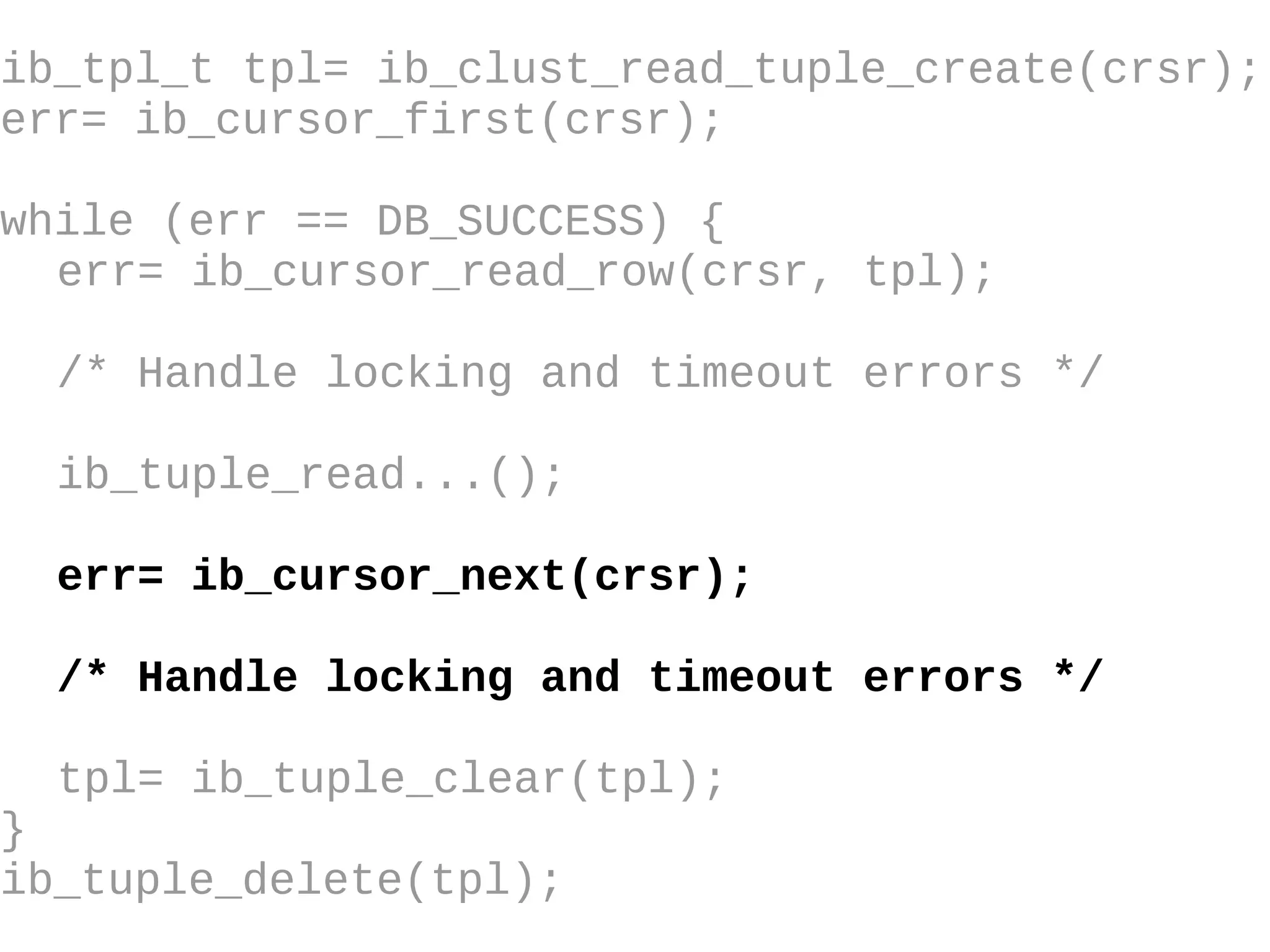

- 82. ib_tpl_t tpl= ib_clust_read_tuple_create(crsr); err= ib_cursor_first(crsr); while (err == DB_SUCCESS) { err= ib_cursor_read_row(crsr, tpl); /* Handle locking and timeout errors */ ib_tuple_read...(); err= ib_cursor_next(crsr); /* Handle locking and timeout errors */ tpl= ib_tuple_clear(tpl); } ib_tuple_delete(tpl);

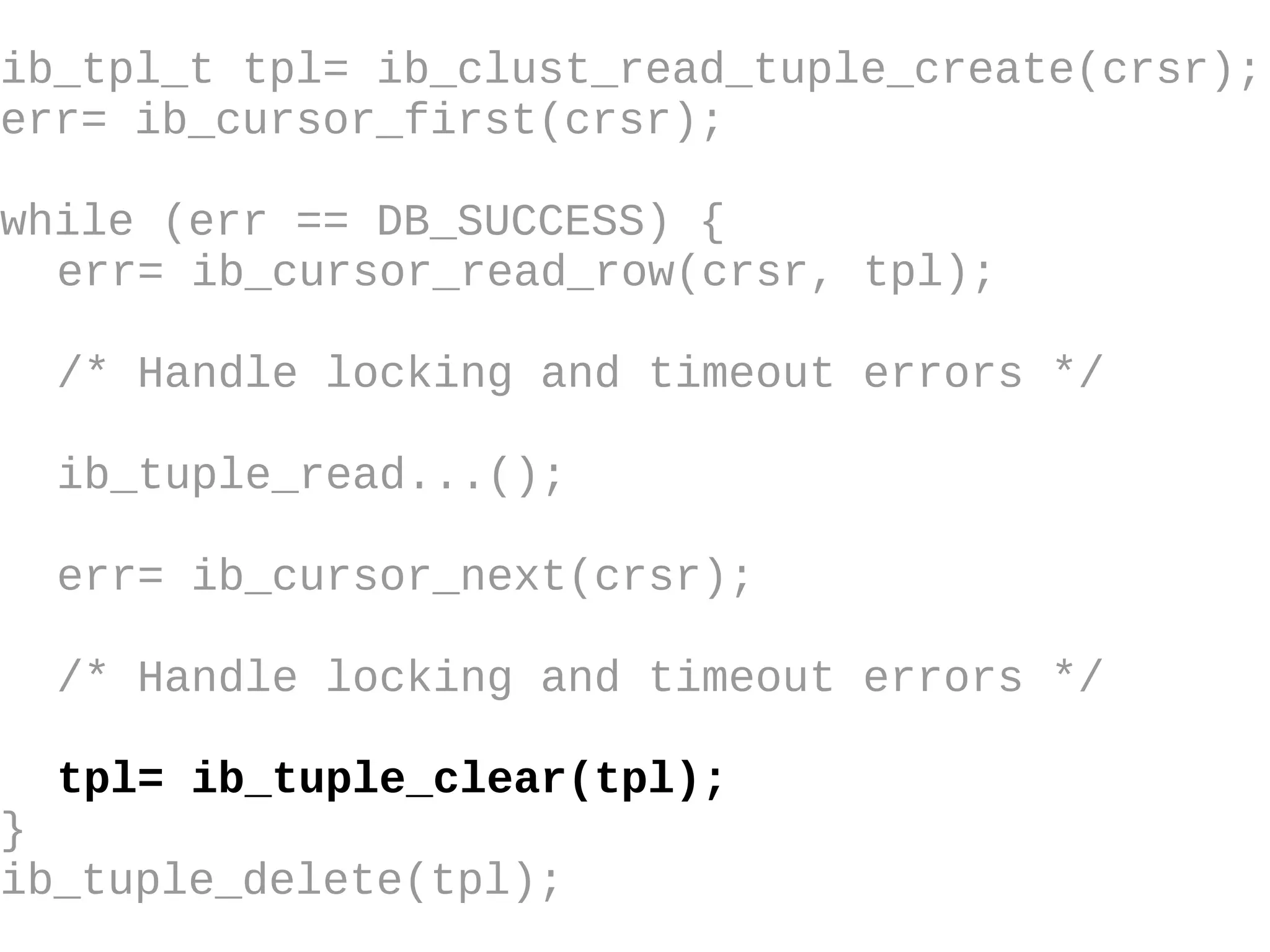

- 83. ib_tpl_t tpl= ib_clust_read_tuple_create(crsr); err= ib_cursor_first(crsr); while (err == DB_SUCCESS) { err= ib_cursor_read_row(crsr, tpl); /* Handle locking and timeout errors */ ib_tuple_read...(); err= ib_cursor_next(crsr); /* Handle locking and timeout errors */ tpl= ib_tuple_clear(tpl); } ib_tuple_delete(tpl);

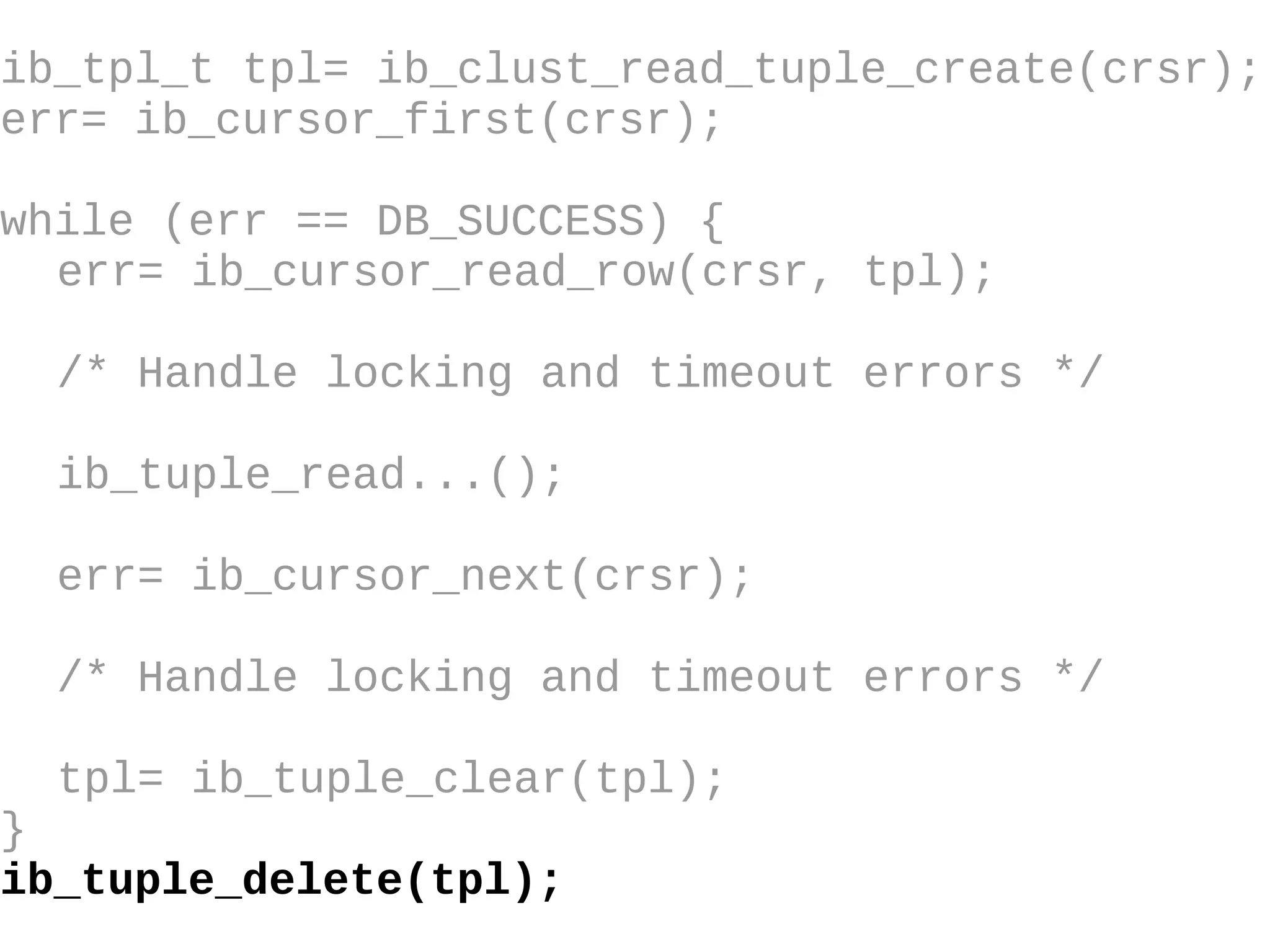

- 84. ib_tpl_t tpl= ib_clust_read_tuple_create(crsr); err= ib_cursor_first(crsr); while (err == DB_SUCCESS) { err= ib_cursor_read_row(crsr, tpl); /* Handle locking and timeout errors */ ib_tuple_read...(); err= ib_cursor_next(crsr); /* Handle locking and timeout errors */ tpl= ib_tuple_clear(tpl); } ib_tuple_delete(tpl);

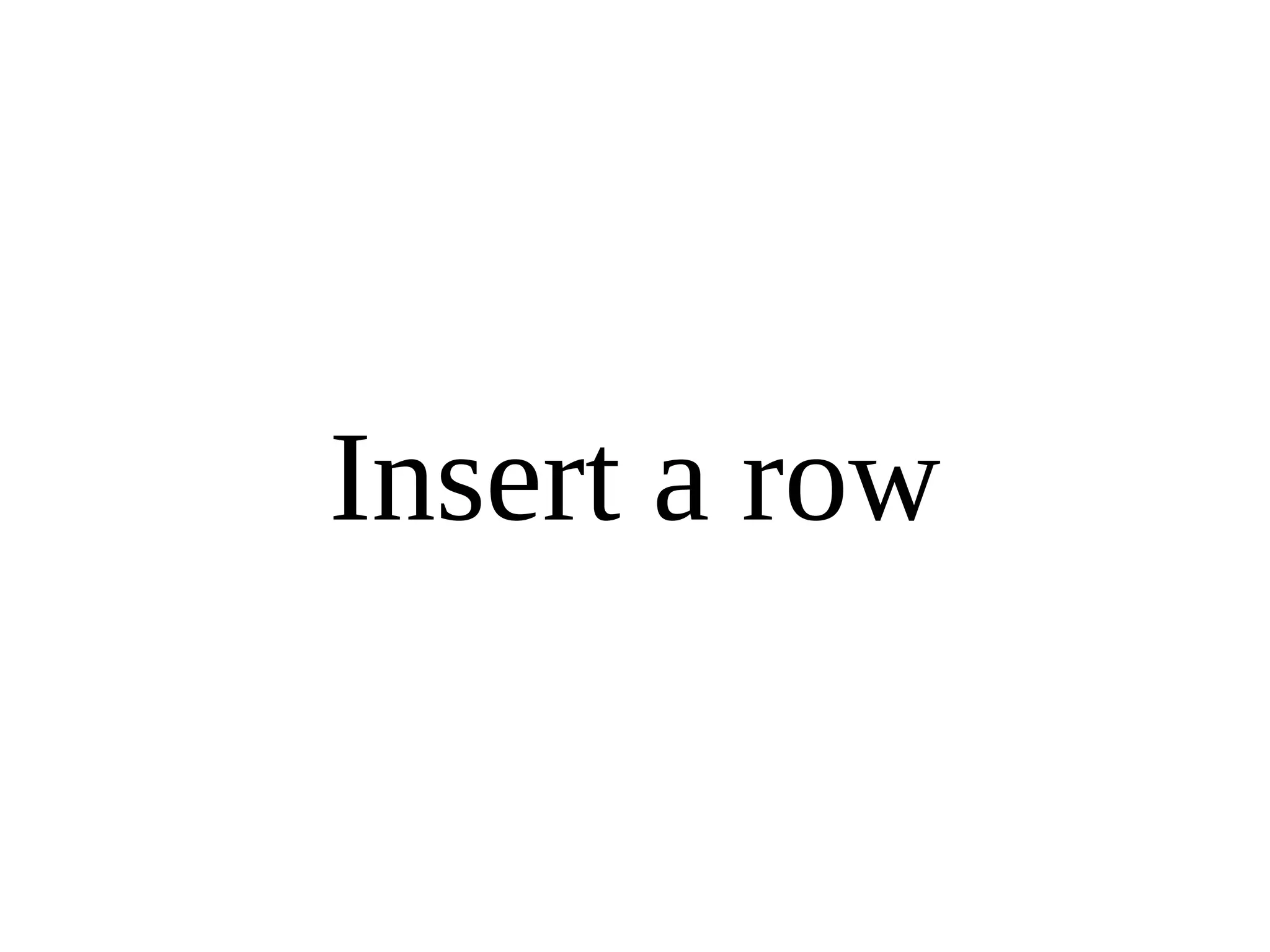

- 85. Insert a row

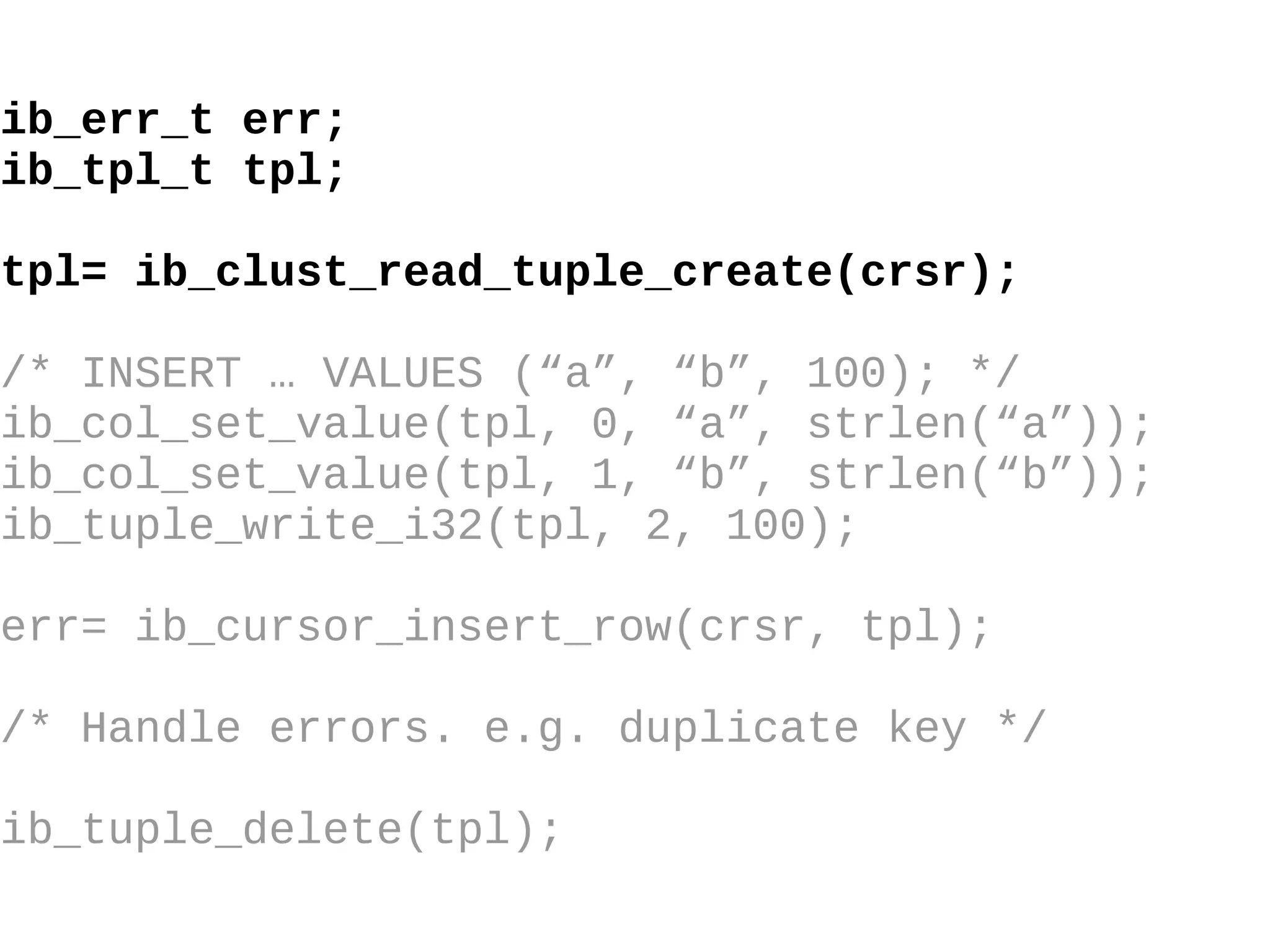

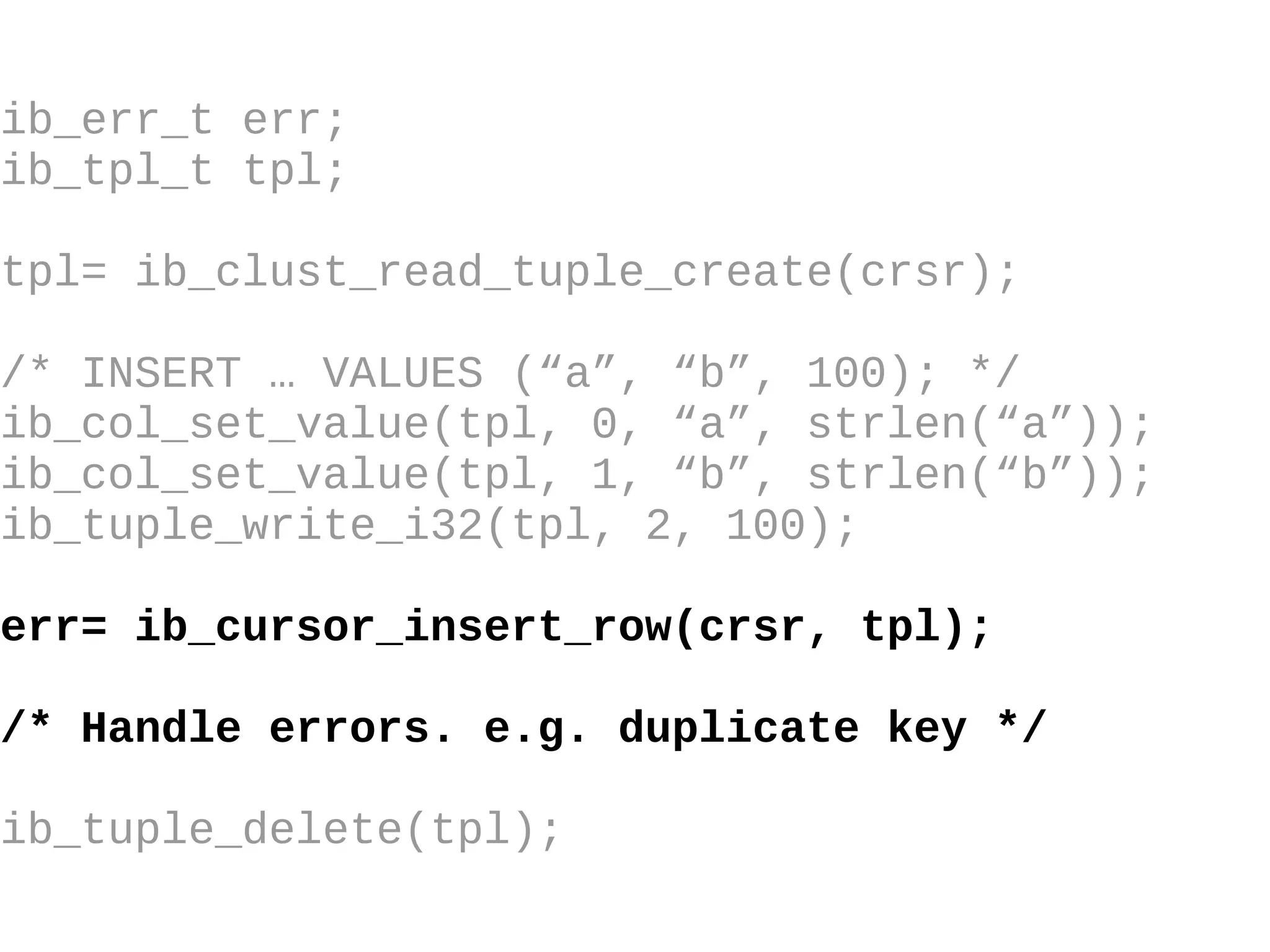

- 86. ib_err_t err; ib_tpl_t tpl; tpl= ib_clust_read_tuple_create(crsr); /* INSERT … VALUES (“a”, “b”, 100); */ ib_col_set_value(tpl, 0, “a”, strlen(“a”)); ib_col_set_value(tpl, 1, “b”, strlen(“b”)); ib_tuple_write_i32(tpl, 2, 100); err= ib_cursor_insert_row(crsr, tpl); /* Handle errors. e.g. duplicate key */ ib_tuple_delete(tpl);

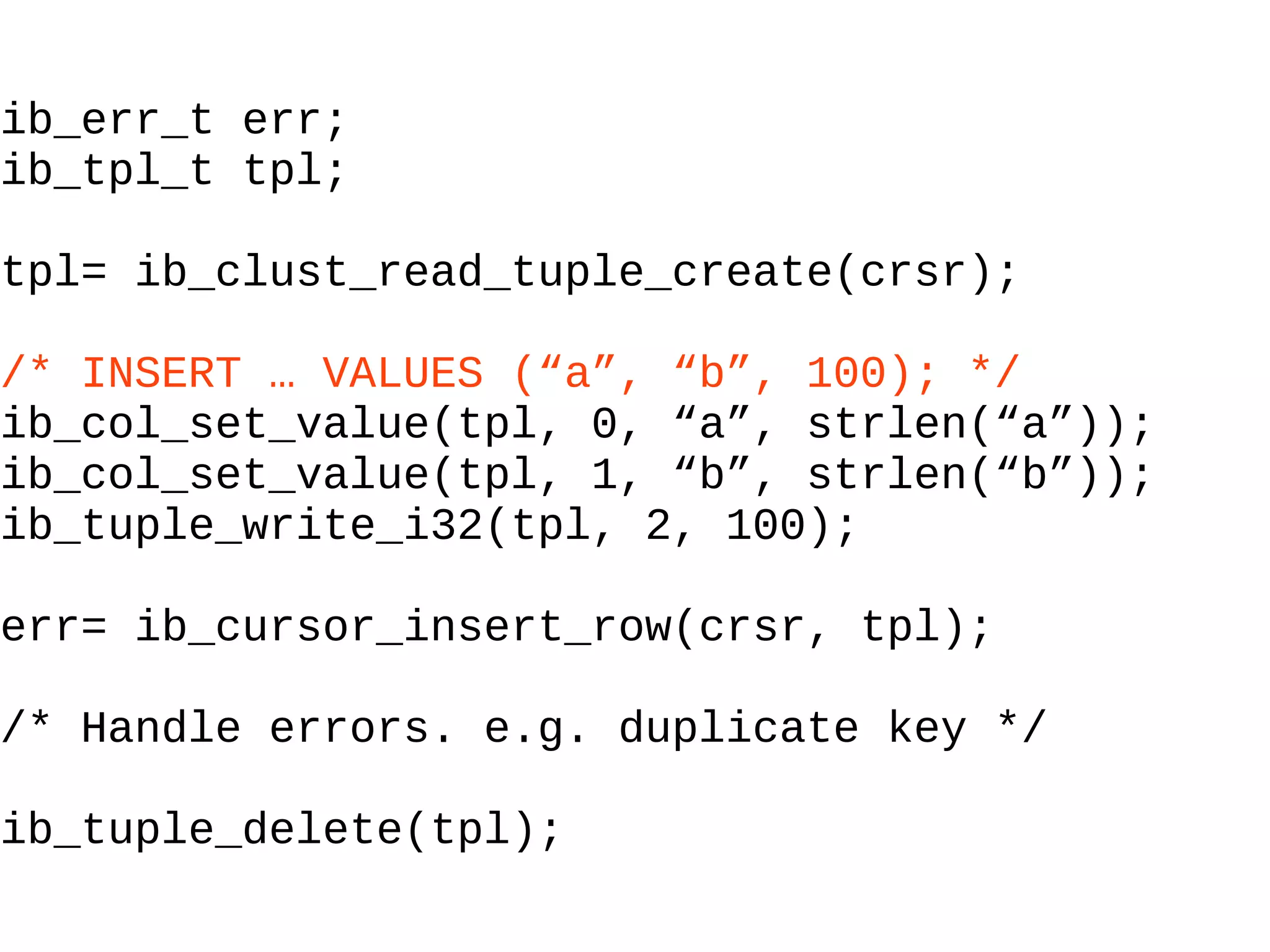

- 87. ib_err_t err; ib_tpl_t tpl; tpl= ib_clust_read_tuple_create(crsr); /* INSERT … VALUES (“a”, “b”, 100); */ ib_col_set_value(tpl, 0, “a”, strlen(“a”)); ib_col_set_value(tpl, 1, “b”, strlen(“b”)); ib_tuple_write_i32(tpl, 2, 100); err= ib_cursor_insert_row(crsr, tpl); /* Handle errors. e.g. duplicate key */ ib_tuple_delete(tpl);
- 88. ib_err_t err; ib_tpl_t tpl; tpl= ib_clust_read_tuple_create(crsr); /* INSERT … VALUES (“a”, “b”, 100); */ ib_col_set_value(tpl, 0, “a”, strlen(“a”)); ib_col_set_value(tpl, 1, “b”, strlen(“b”)); ib_tuple_write_i32(tpl, 2, 100); err= ib_cursor_insert_row(crsr, tpl); /* Handle errors. e.g. duplicate key */ ib_tuple_delete(tpl);

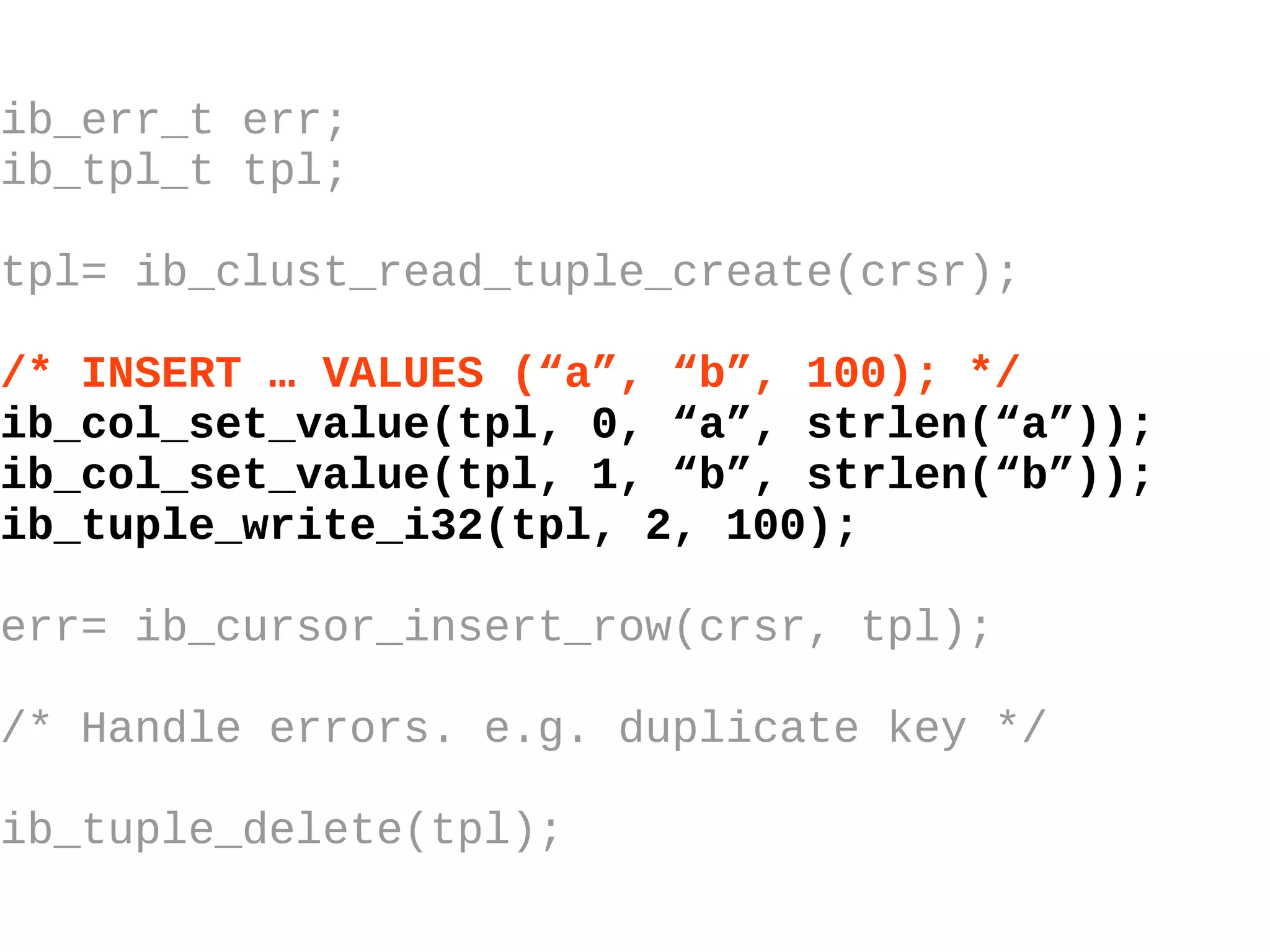

- 89. ib_err_t err; ib_tpl_t tpl; tpl= ib_clust_read_tuple_create(crsr); /* INSERT … VALUES (“a”, “b”, 100); */ ib_col_set_value(tpl, 0, “a”, strlen(“a”)); ib_col_set_value(tpl, 1, “b”, strlen(“b”)); ib_tuple_write_i32(tpl, 2, 100); err= ib_cursor_insert_row(crsr, tpl); /* Handle errors. e.g. duplicate key */ ib_tuple_delete(tpl);
- 90. ib_err_t err; ib_tpl_t tpl; tpl= ib_clust_read_tuple_create(crsr); /* INSERT … VALUES (“a”, “b”, 100); */ ib_col_set_value(tpl, 0, “a”, strlen(“a”)); ib_col_set_value(tpl, 1, “b”, strlen(“b”)); ib_tuple_write_i32(tpl, 2, 100); err= ib_cursor_insert_row(crsr, tpl); /* Handle errors. e.g. duplicate key */ ib_tuple_delete(tpl);

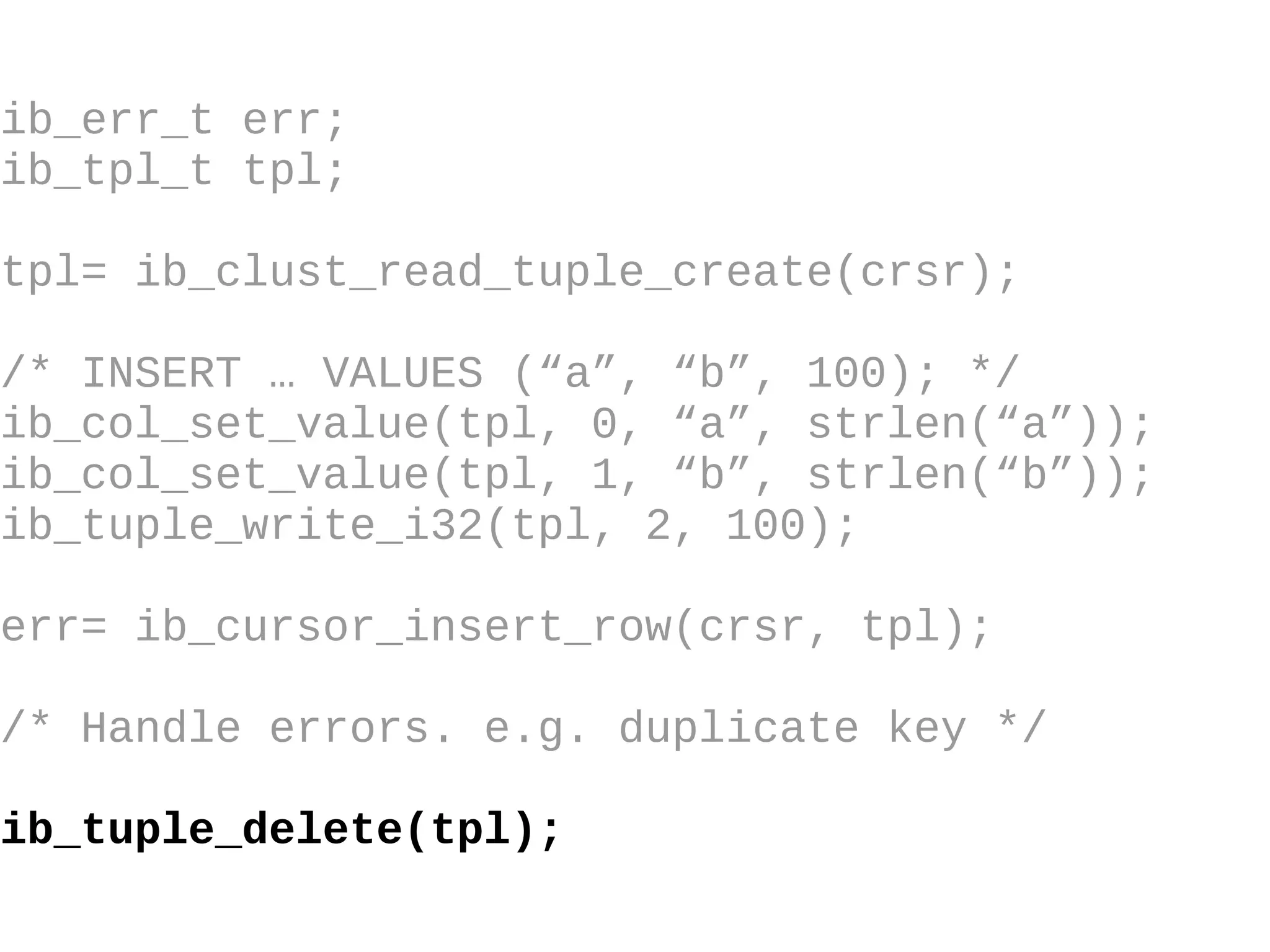

- 91. ib_err_t err; ib_tpl_t tpl; tpl= ib_clust_read_tuple_create(crsr); /* INSERT … VALUES (“a”, “b”, 100); */ ib_col_set_value(tpl, 0, “a”, strlen(“a”)); ib_col_set_value(tpl, 1, “b”, strlen(“b”)); ib_tuple_write_i32(tpl, 2, 100); err= ib_cursor_insert_row(crsr, tpl); /* Handle errors. e.g. duplicate key */ ib_tuple_delete(tpl);

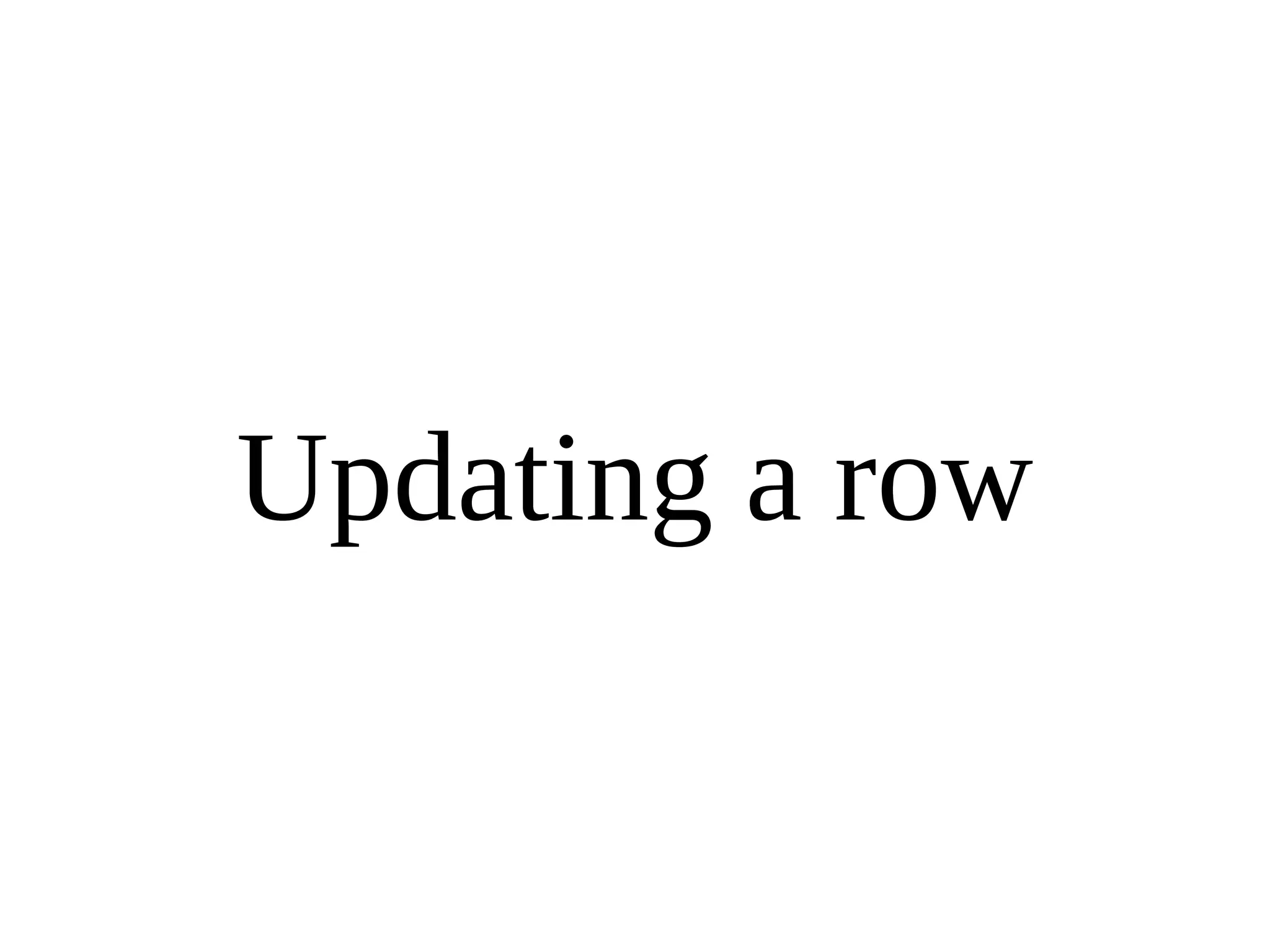

- 92. Updating a row
- 93. Delete

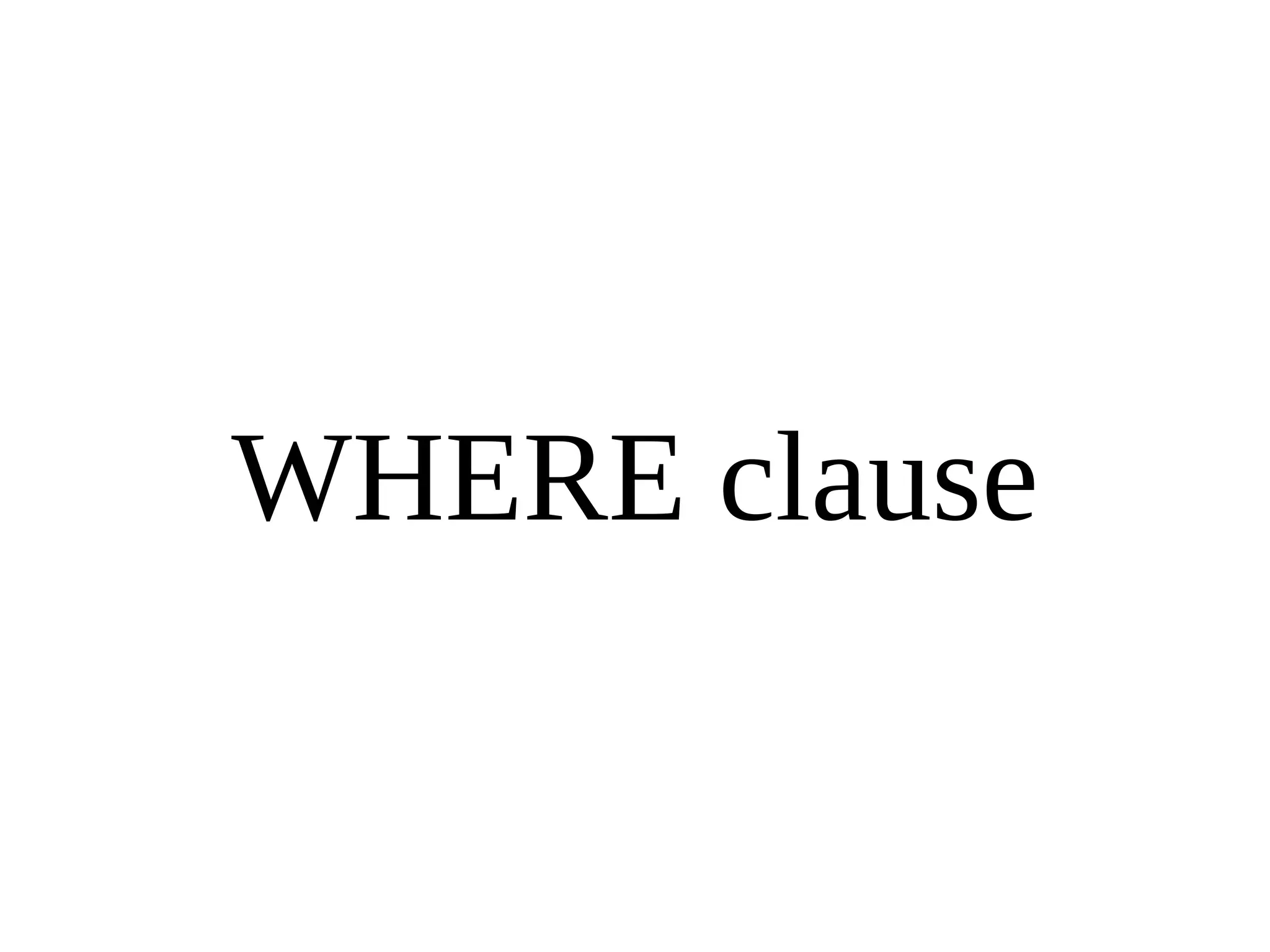

- 95. WHERE clause
- 96. Table statistics
- 97. HailDB
- 98. Questions?
Editor's Notes
- Talk to me!
- ACID compliance Transactions, savepoints, crash recovery, concurrency etc
- Row buffer format etc
- Row buffer format etc
- Clean, easy to use API, shared library. Based on early InnoDB Plugin
- Clean, easy to use API, shared library. Based on early InnoDB Plugin
- Oracle certainly doesn't like to announce things.
- So I created HailDB. Take existing Embedded InnoDB code. Fix bugs, add features. Update InnoDB based on.
- So I created HailDB. Take existing Embedded InnoDB code. Fix bugs, add features. Update InnoDB based on.
- Karmic, Lucid and Maverick
- I don't personally use RPM based distros... but there are people making RPMs
- Karmic, Lucid and Maverick
- Since we've cleaned up what symbols are being exported, we've bumped the so version Added APIs Existing apps, change what you link against, header name, and recompile.
- Since we've cleaned up what symbols are being exported, we've bumped the so version Added APIs Existing apps, change what you link against, header name, and recompile.
- Since we've cleaned up what symbols are being exported, we've bumped the so version Added APIs Existing apps, change what you link against, header name, and recompile.
- Detect which HailDB version is present etc.
- Even where you may have connected to an external RDBMS. Need concurrency that sqlite doesn't provide Need less overhead than InnoDB in MySQL
- That's what SQL is for
- Use a SQL database. HailDB can be used to build a SQL database though.
- Like the HailDB engine in Drizzle. Our work-in-progress next gen way to interface between innobase (HailDB) and the DB kernel
- Call first. Sets up a few internal things.

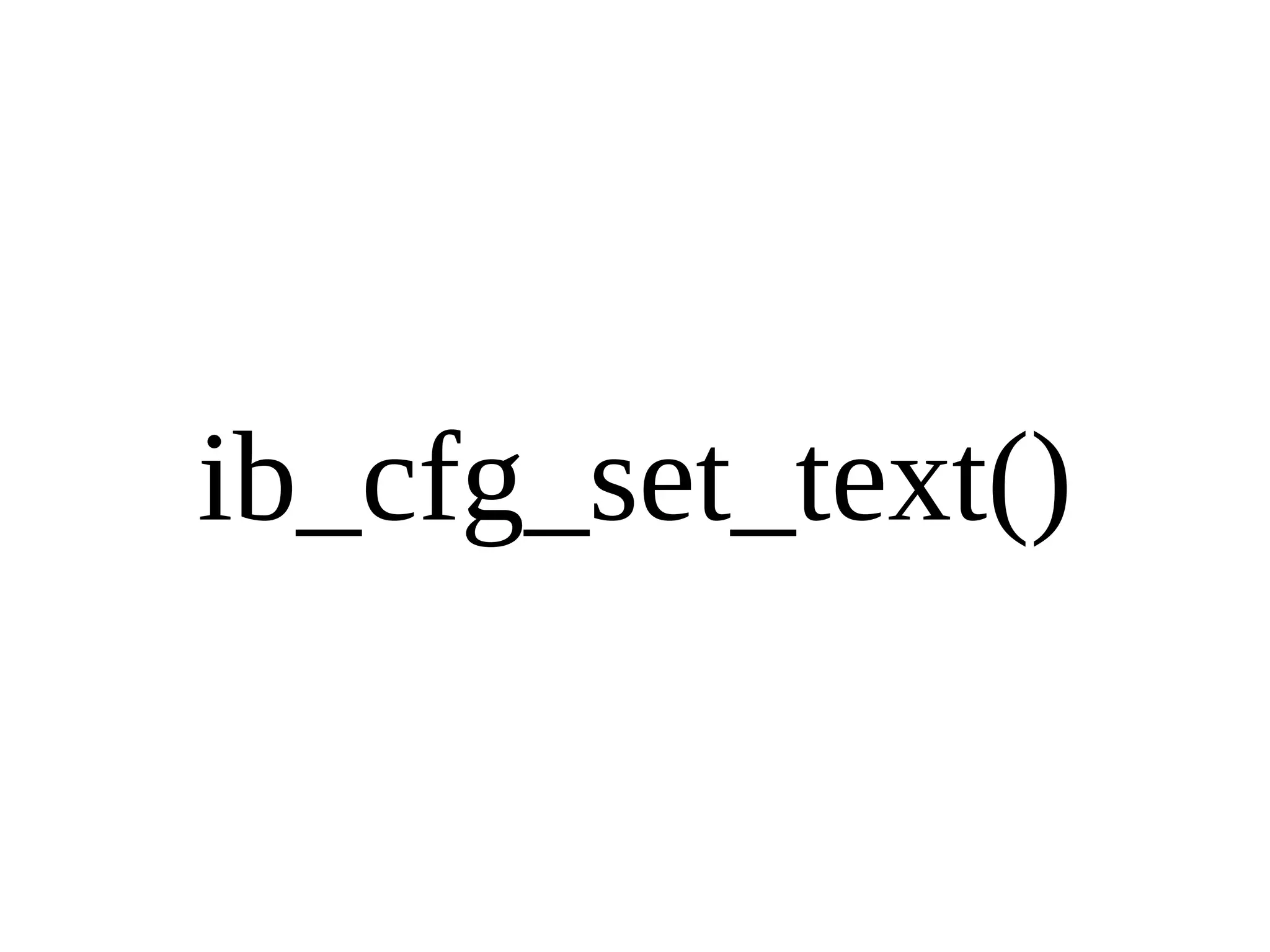

- Used to set configuration options. HailDB does not provide config file parsing or command line option parsing.
- Log messages (defaults to printing to stderr) trx_is_interrupted (can interrupt threads stuck on locks) Panic handler (elegantly shut down the rest of your app on corruption)
- Starts InnoDB. Reads tablespaces, does recovery etc.

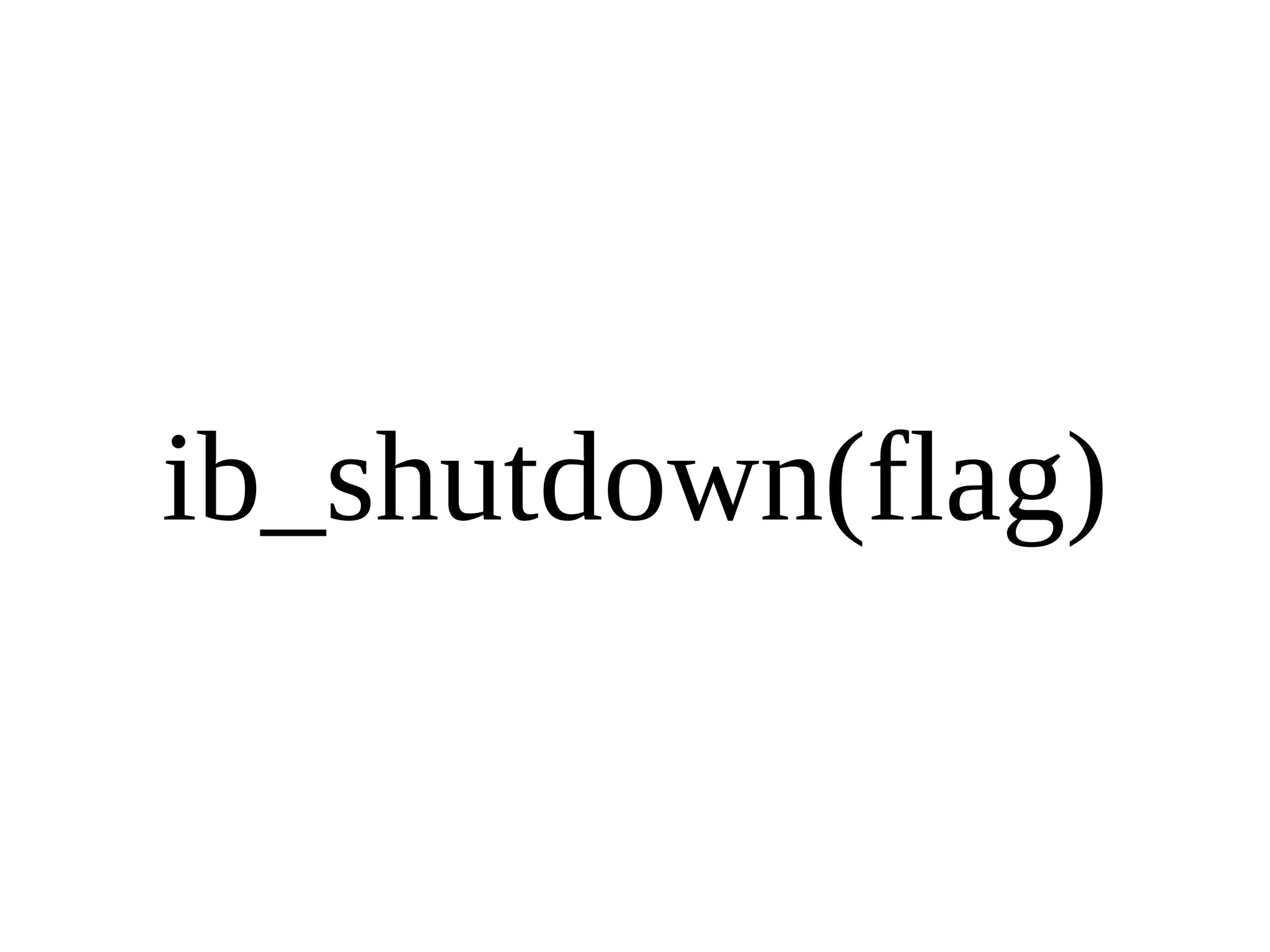

- The various innodb shutdown options NORMAL, NO_IBUF_MERGE, NO_BUFPOOL_FLUSH
- Schema lock. Shared for read, exclusive for write.
- Creates the directories for a database. Where file-per-table ibd files go. Otherwise, not really that useful :)

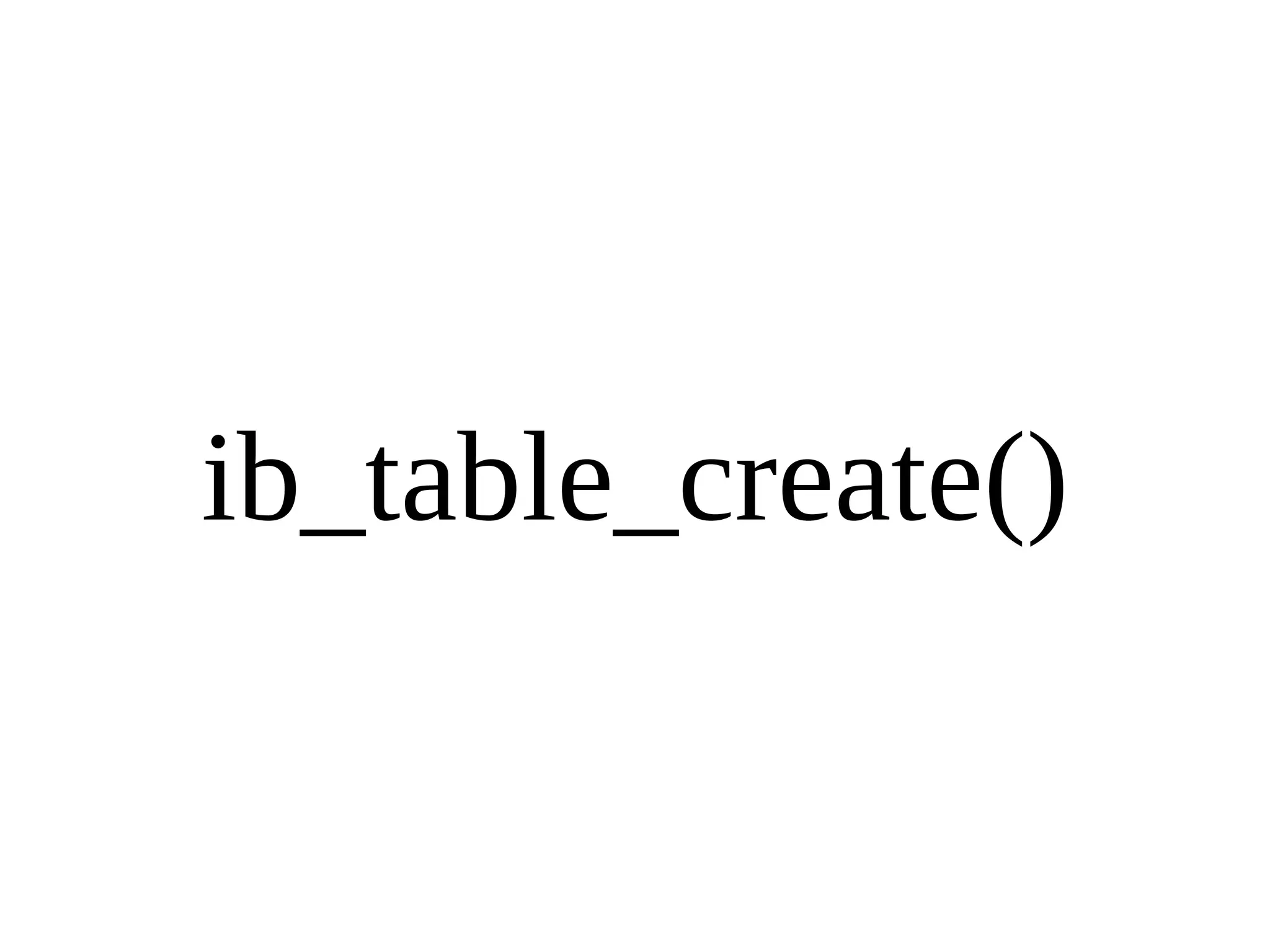

- Create a table. Done inside a transaction. Get DDL lock. Schema specified by API calls, not SQL. No foreign keys (yet)
- You can do several DDL operations in the same DDL transaction. You can even (within limits) do transactions on other tables. DFE in DDL txn
- Same as TRUNCATE TABLE in SQL

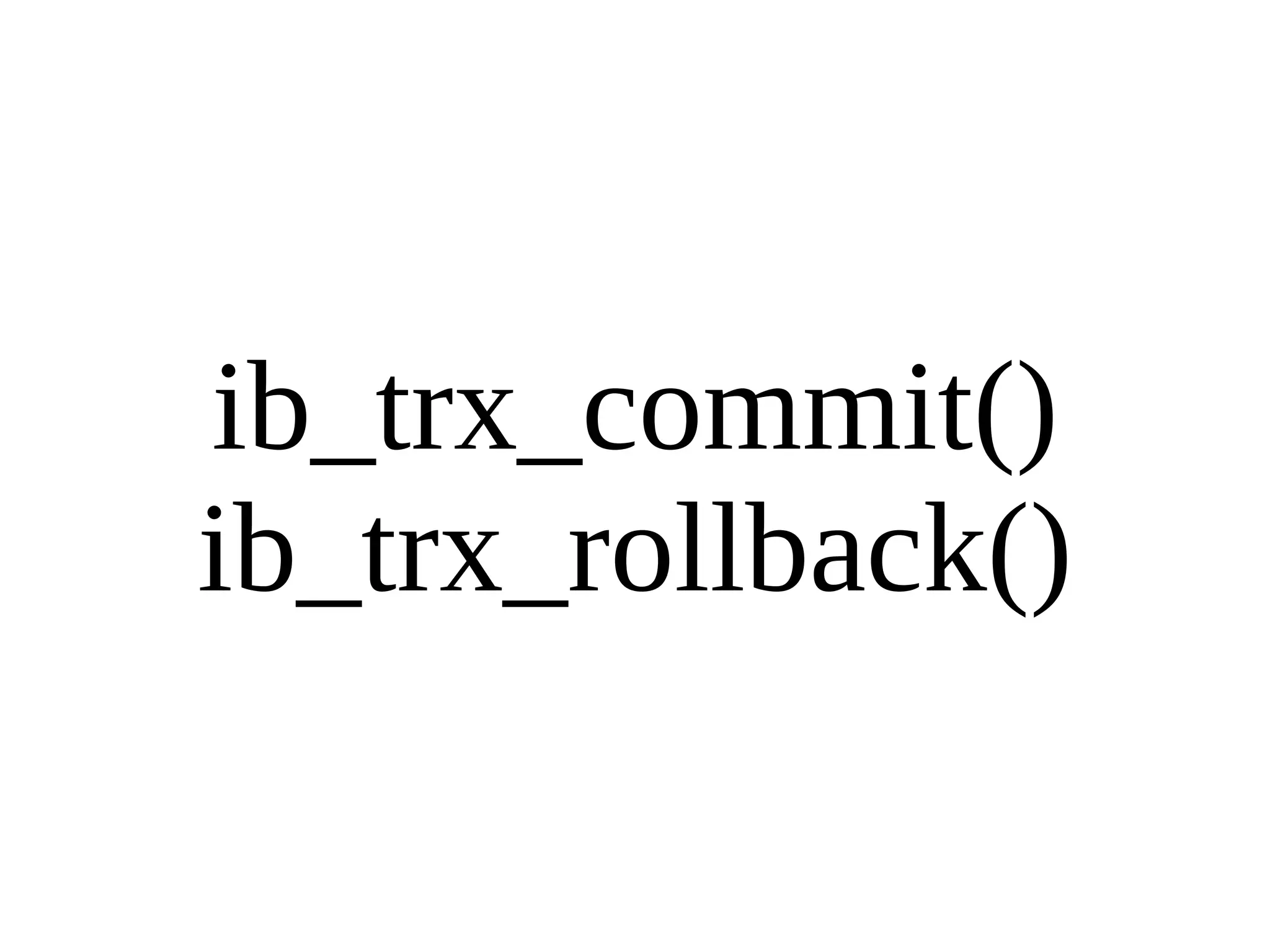

- Simple calls for begin/commit/rollback.
- Supports isolation levels
- Rather obvious. You can also query the state of the transaction, or in deadlock, ib_trx_release() if txn has been rolled back by HailDB

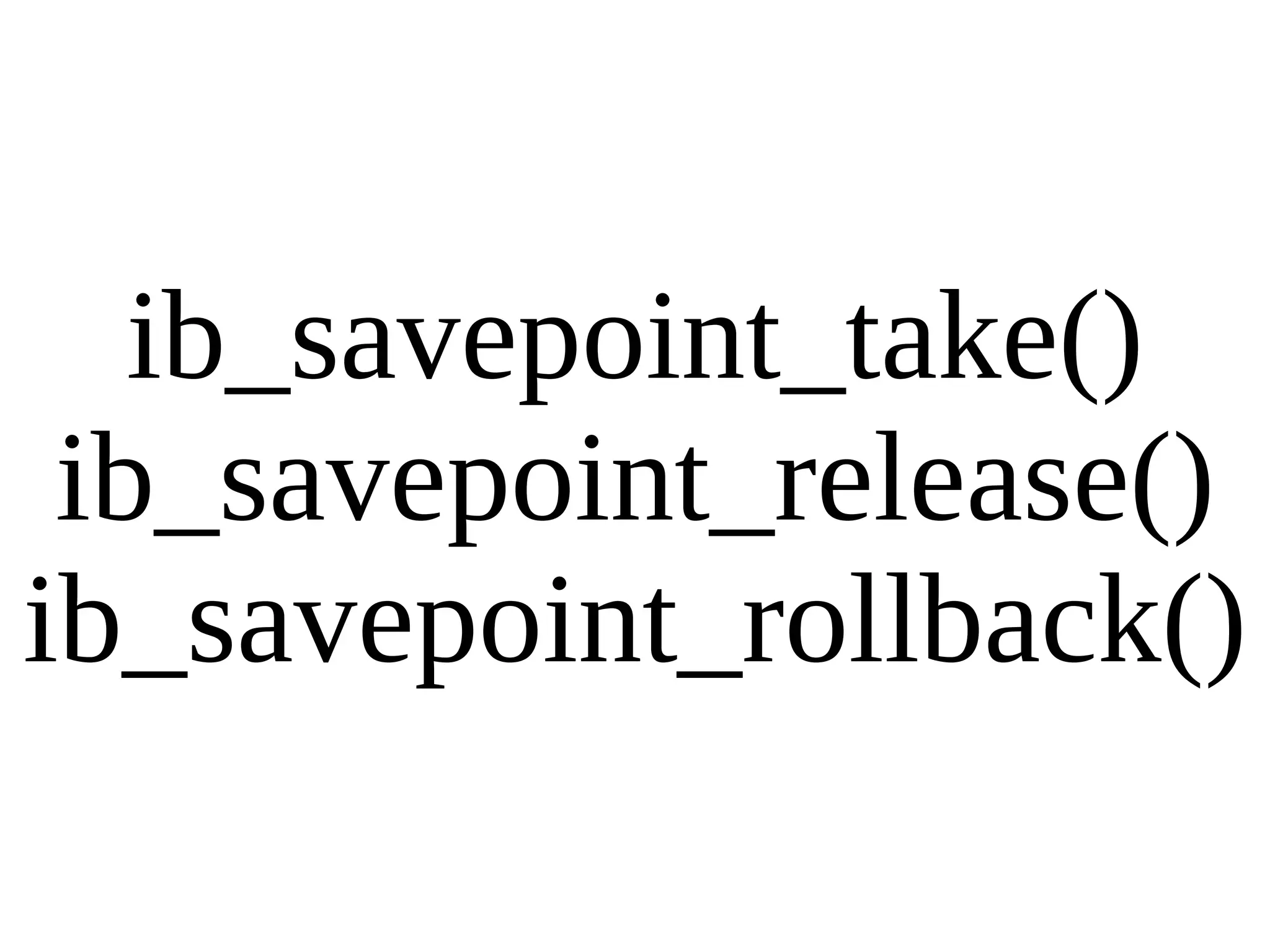

- Named savepoints. Maps exactly to what you'd expect from SQL usage. In future we'll have a lightweight “statement” savepoint
- Can have a cursor not yet attached to a transaction.
- There's also using_id() methods.
- When you're done
- Lets you reuse the data sturctures, increased perf
- Don't really need for INSERT. Do need for UPDATE and DELETE of course.
- So can lookup the primary key from a secondary index without having to read the clustered index
- To read/write row in clustered index. Other types for searching secondary index, redaing row from secondary index

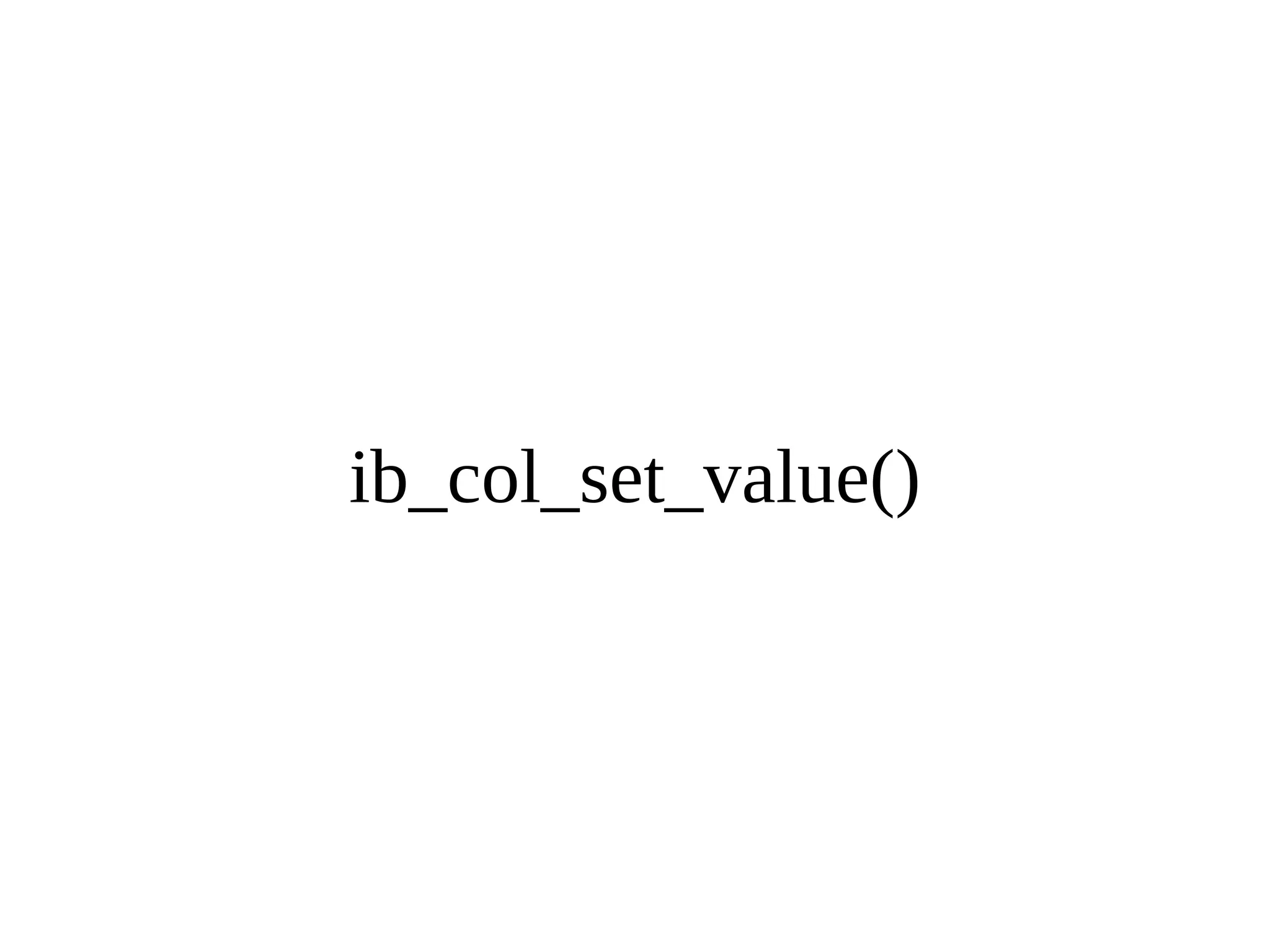

- Used to set values. e.g. doing an UPDATE or INSERT row operation.
- A suite of calls both for specific data types (such as 64bit int) and pointer to it in memory (useful for BLOBs).
- A suite of calls both for specific data types (such as 64bit int) and pointer to it in memory (useful for BLOBs).
- A little more involved. Read a row, copy it to a new tuple, update that tuple, call ib_cursor_update_row()
- On a positioned cursor
- Search an index (or do a full table scan), examining rows until you find the ones you're looking for.
- Same ones used by MySQL and Drizzle optimisers. Likely not too useful in most HailDB using apps.
- And that's HailDB. A rather simple interface to an advanced transactional engine.
