1. AWS - Sydney North Shore
October 25, 2016

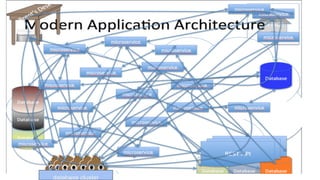

4. Brent’s Desk
database cluster

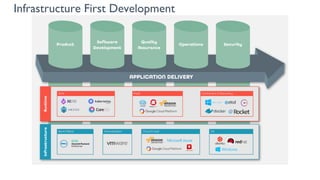

5. Infrastructure First Development

6. Cloud Native is code for
“Rewrite the world”

7. What if you could
defer infrastructure
decisions until
runtime?

8. Habitat
Application automation that enables modern
application teams to build, deploy, and run any
application in any environment - from traditional
data-centers to containerized microservices.

9. Build Service
Plan Artifact Depot
Build
Service
A Build Service with a workflow to describe the software and behavior for Habitat applications
Explicit about dependencies
Includes what is configurable about the application
Packages are developed and built in an isolated build environment (hab studio)
Built Artifacts are post-processed in one step to multiple formats including Docker Images
Source
Code
Repo
Habitat Technology

10. Post-process packaging

11. Automation travels with the app

12. Choreography

13. Topology aware

14. Security
Code Quality
Container Hosting
Peer Discovery
Config Changes
Supervision
Monitoring
Rolling Deployment
Networking
Internal Registry
Workload Placement
Production
The Container Learning Cliff Development

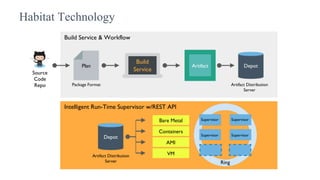

15. Habitat Technology
Plan Artifact Depot
Build
Service
Supervisor Supervisor
Supervisor Supervisor
Ring
Bare Metal
Containers
AMI
VM
Depot
Build Service & Workflow
Package Format Artifact Distribution
Server
Artifact Distribution
Server
Intelligent Run-Time Supervisor w/REST API
Source
Code
Repo

16. Applications run as distributed, fully automated, and capable autonomous actors
Immutable applications, but flexible and easy to manage because automation travels
with the application
Bundles what your apps need to run and nothing else (new and legacy)
Embedded automation choreographs application cluster topology/behavior
A network with no reliance on external services and no single-point-of-failure
Provides continuous deployment without traditional Application Release Automation
(ARA) tooling
Habitat’s approach

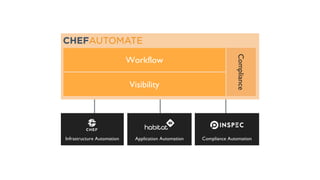

18. Infrastructure Automation Application Automation Compliance Automation
Workflow
Visibility
Compliance

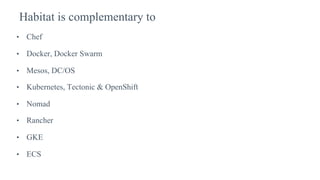

19. • Chef
• Docker, Docker Swarm
• Mesos, DC/OS
• Kubernetes, Tectonic & OpenShift
• Nomad
• Rancher
• GKE
• ECS
Habitat is complementary to

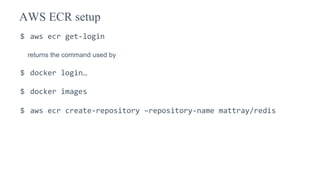

20. $ aws ecr get-login
returns the command used by
$ docker login…
$ docker images
$ aws ecr create-repository –repository-name mattray/redis
AWS ECR setup

21. $ docker tag mattray/redis:latest aws_account_id.dkr.ecr.ap-
southeast-2.amazonaws.com/mattray/redis:latest
$ docker push aws_account_id.dkr.ecr.ap-southeast-
2.amazonaws.com/mattray/redis:latest
$ docker pull aws_account_id.dkr.ecr.ap-southeast-
2.amazonaws.com/mattray/redis:latest
Deleting…
$ docker rmi mattray/redis:latest
$ aws ecr batch-delete-image --repository-name mattray/redis --
image-ids imageTag=latest
AWS ECR publishing

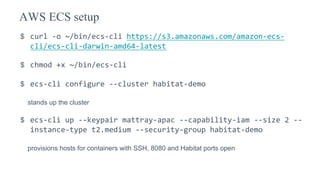

22. $ curl -o ~/bin/ecs-cli https://s3.amazonaws.com/amazon-ecs-
cli/ecs-cli-darwin-amd64-latest
$ chmod +x ~/bin/ecs-cli
$ ecs-cli configure --cluster habitat-demo
stands up the cluster
$ ecs-cli up --keypair mattray-apac --capability-iam --size 2 --
instance-type t2.medium --security-group habitat-demo
provisions hosts for containers with SSH, 8080 and Habitat ports open
AWS ECS setup

23. $ aws ecs list-clusters
$ ecs-cli down –force
take down the Cloudformation cluster
$ ecs-cli compose --file redis.yml service rm
remove the deployed service
$ ssh -i ~/.ssh/mattray-apac ec2-user@12.34.56.78
connect to the running ECS host
$ docker logs e1e7834c6ab2
AWS ECS cluster management

24. AWS ECS deploying tasks
$ ecs-cli compose --file redis.yml -p habdemo up
version: '2’
services:
redis:
image: aws_account_id.dkr.ecr.ap-southeast-2.amazonaws.com/mattray/redis:latest
cpu_shares: 100
mem_limit: 524288000
environment:
HAB_REDIS: 'tcp-backlog=128'

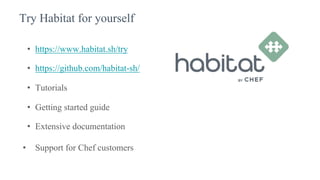

25. Try Habitat for yourself
• https://www.habitat.sh/try
• https://github.com/habitat-sh/
• Tutorials
• Getting started guide
• Extensive documentation
• Support for Chef customers

26. Links from the Presentation
• Redis plan
– https://github.com/habitat-sh/core-plans
• National Parks demo
– https://github.com/billmeyer/national-parks-plan
– https://github.com/billmeyer/national-parks
