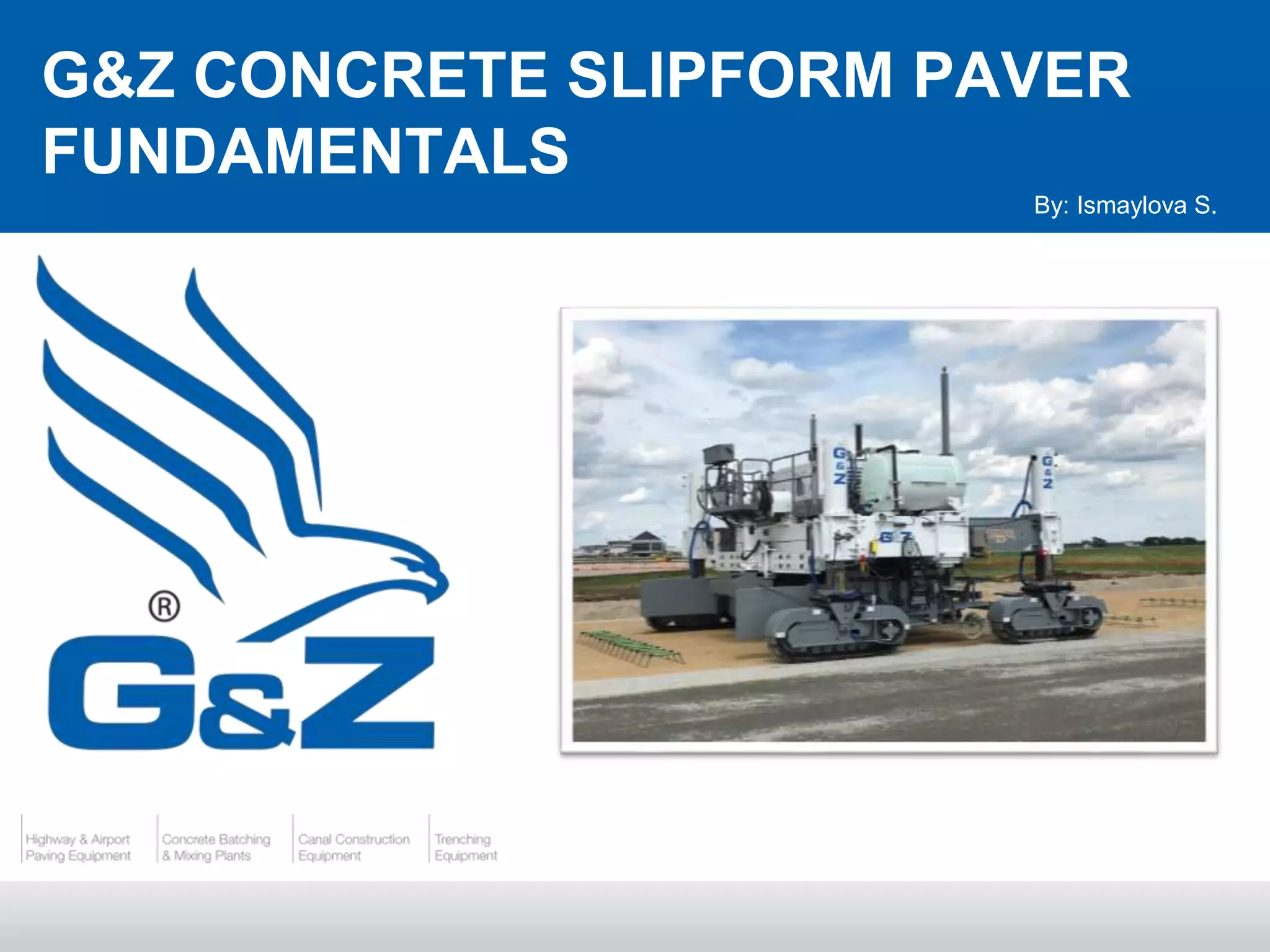

1. G&Z CONCRETE SLIPFORM PAVER
FUNDAMENTALS
By: Ismaylova S.

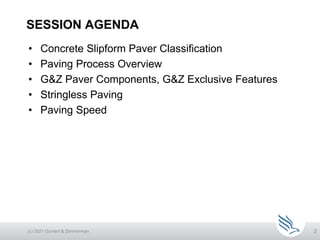

2. SESSION AGENDA
(c) 2021 Guntert & Zimmerman 2
• Concrete Slipform Paver Classification
• Paving Process Overview
• G&Z Paver Components, G&Z Exclusive Features
• Stringless Paving
• Paving Speed

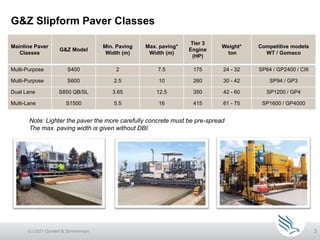

3. G&Z Slipform Paver Classes
3
(c) 2021 Guntert & Zimmerman
Mainline Paver
Classes
G&Z Model
Min. Paving
Width (m)
Max. paving*
Width (m)
Tier 3
Engine
(HP)
Weight*
ton
Competitive models
WT / Gomaco
Multi-Purpose S400 2 7.5 175 24 - 32 SP64 / GP2400 / CIII
Multi-Purpose S600 2.5 10 260 30 - 42 SP94 / GP3
Dual Lane S850 QB/SL 3.65 12.5 350 42 - 60 SP1200 / GP4
Multi-Lane S1500 5.5 16 415 61 - 75 SP1600 / GP4000
Note: Lighter the paver the more carefully concrete must be pre-spread
The max. paving width is given without DBI.

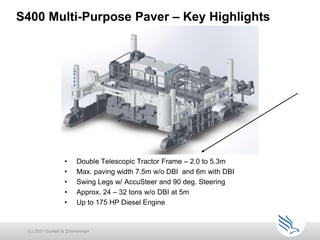

4. S400 Multi-Purpose Paver – Key Highlights
• Double Telescopic Tractor Frame – 2.0 to 5.3m
• Max. paving width 7.5m w/o DBI and 6m with DBI
• Swing Legs w/ AccuSteer and 90 deg. Steering
• Approx. 24 – 32 tons w/o DBI at 5m
• Up to 175 HP Diesel Engine
(c) 2021 Guntert & Zimmerman

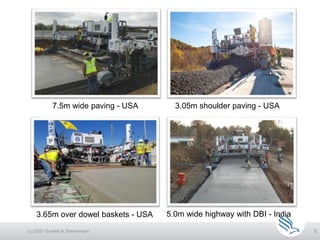

5. 5
3.65m over dowel baskets - USA
7.5m wide paving - USA 3.05m shoulder paving - USA
5.0m wide highway with DBI - India
(c) 2021 Guntert & Zimmerman

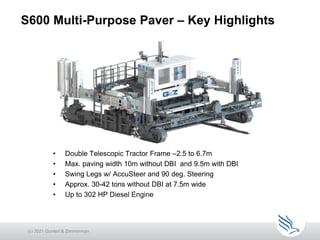

6. S600 Multi-Purpose Paver – Key Highlights
• Double Telescopic Tractor Frame –2.5 to 6.7m
• Max. paving width 10m without DBI and 9.5m with DBI
• Swing Legs w/ AccuSteer and 90 deg. Steering
• Approx. 30-42 tons without DBI at 7.5m wide
• Up to 302 HP Diesel Engine
(c) 2021 Guntert & Zimmerman

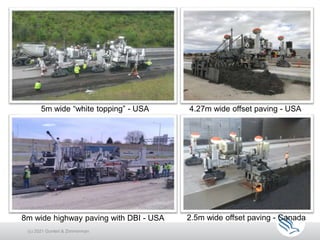

7. 5m wide “white topping” - USA
8m wide highway paving with DBI - USA
4.27m wide offset paving - USA
2.5m wide offset paving - Canada
(c) 2021 Guntert & Zimmerman

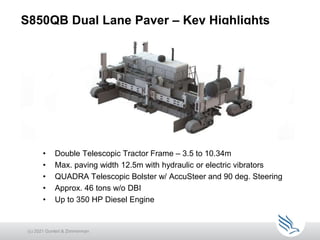

8. S850QB Dual Lane Paver – Key Highlights
• Double Telescopic Tractor Frame – 3.5 to 10.34m
• Max. paving width 12.5m with hydraulic or electric vibrators
• QUADRA Telescopic Bolster w/ AccuSteer and 90 deg. Steering
• Approx. 46 tons w/o DBI
• Up to 350 HP Diesel Engine
(c) 2021 Guntert & Zimmerman

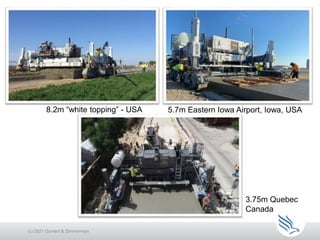

9. 8.2m “white topping” - USA 5.7m Eastern Iowa Airport, Iowa, USA
3.75m Quebec
Canada
(c) 2021 Guntert & Zimmerman

10. • Double Telescopic Tractor Frame –3.5 to 10.34m
• Max. paving width 12.5m (with hydraulic or electric vibrators)
• Smart Legs w/ AccuSteer and 90 deg. Steering
• Approx. 49 tons (w/o DBI)
• Up to 350 HP Diesel Engine

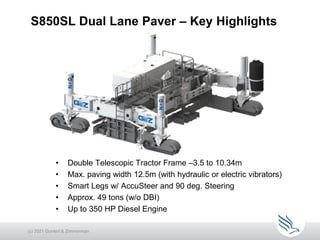

S850SL Dual Lane Paver – Key Highlights
(c) 2021 Guntert & Zimmerman

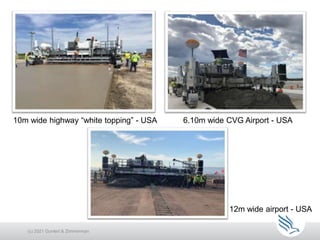

11. 10m wide highway “white topping” - USA 6.10m wide CVG Airport - USA
12m wide airport - USA
(c) 2021 Guntert & Zimmerman

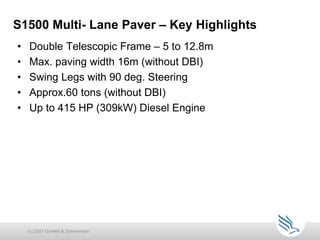

12. • Double Telescopic Frame – 5 to 12.8m
• Max. paving width 16m (without DBI)
• Swing Legs with 90 deg. Steering
• Approx.60 tons (without DBI)
• Up to 415 HP (309kW) Diesel Engine
S1500 Multi- Lane Paver – Key Highlights
(c) 2021 Guntert & Zimmerman

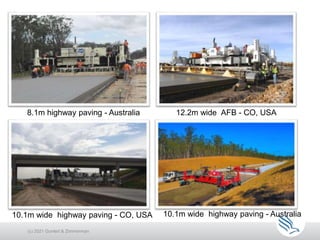

13. 8.1m highway paving - Australia 12.2m wide AFB - CO, USA
10.1m wide highway paving - CO, USA 10.1m wide highway paving - Australia
(c) 2021 Guntert & Zimmerman

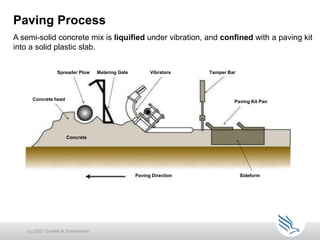

14. Paving Process
A semi-solid concrete mix is liquified under vibration, and confined with a paving kit
into a solid plastic slab.
Spreader Plow Metering Gate
Concrete head
Vibrators Tamper Bar
Paving Kit Pan
Sideform
Paving Direction
Concrete
(c) 2021 Guntert & Zimmerman

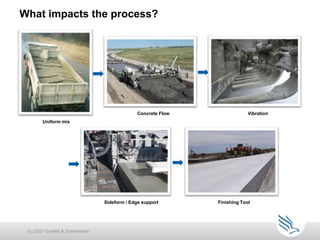

15. What impacts the process?
Uniform mix
Vibration
Concrete Flow
Sideform / Edge support Finishing Tool
(c) 2021 Guntert & Zimmerman

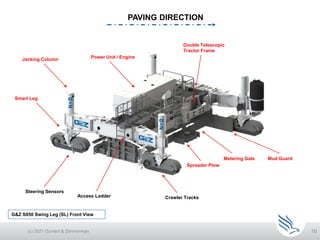

16. 16
G&Z S850 Swing Leg (SL) Front View
PAVING DIRECTION
Jacking Column
Steering Sensors
Power Unit / Engine
Crawler Tracks
Spreader Plow
Metering Gate Mud Guard
Smart Leg
Double Telescopic
Tractor Frame
Access Ladder
(c) 2021 Guntert & Zimmerman

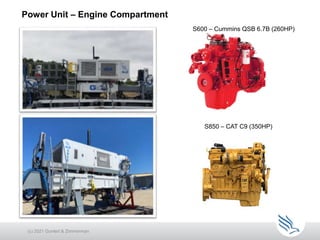

17. Power Unit – Engine Compartment
S600 – Cummins QSB 6.7B (260HP)
S850 – CAT C9 (350HP)
(c) 2021 Guntert & Zimmerman

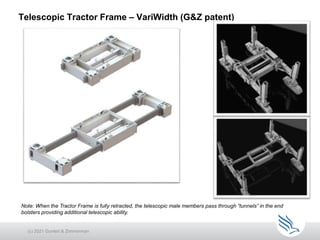

18. Telescopic Tractor Frame – VariWidth (G&Z patent)
Note: When the Tractor Frame is fully retracted, the telescopic male members pass through “tunnels” in the end
bolsters providing additional telescopic ability.
(c) 2021 Guntert & Zimmerman

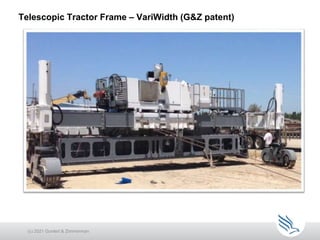

19. Telescopic Tractor Frame – VariWidth (G&Z patent)
(c) 2021 Guntert & Zimmerman

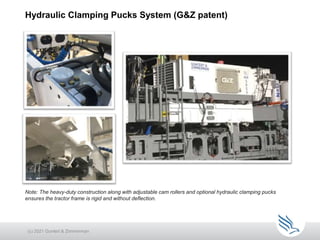

20. Hydraulic Clamping Pucks System (G&Z patent)
Note: The heavy-duty construction along with adjustable cam rollers and optional hydraulic clamping pucks
ensures the tractor frame is rigid and without deflection.
(c) 2021 Guntert & Zimmerman

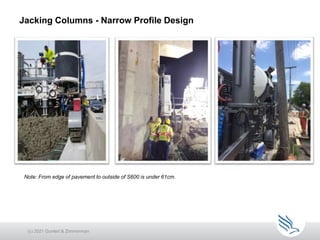

21. Jacking Columns - Narrow Profile Design
Note: From edge of pavement to outside of S600 is under 61cm.
(c) 2021 Guntert & Zimmerman

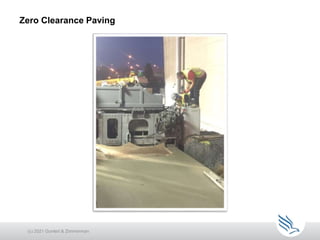

22. Zero Clearance Paving
(c) 2021 Guntert & Zimmerman

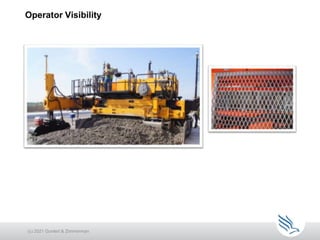

23. Operator Visibility
(c) 2021 Guntert & Zimmerman

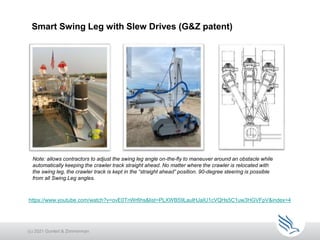

24. Smart Swing Leg with Slew Drives (G&Z patent)
Note: allows contractors to adjust the swing leg angle on-the-fly to maneuver around an obstacle while
automatically keeping the crawler track straight ahead. No matter where the crawler is relocated with
the swing leg, the crawler track is kept in the “straight ahead” position. 90-degree steering is possible
from all Swing Leg angles.
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=ovE0TnWr6hs&list=PLXWB59LaulHJaIU1cVQHs5C1uw3HGVFpV&index=4

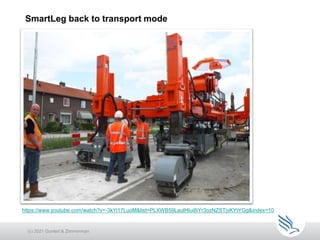

25. SmartLeg back to transport mode
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=-3kYi17LuoM&list=PLXWB59LaulHIui8iYr3ozNZSTjvKYtYGg&index=10

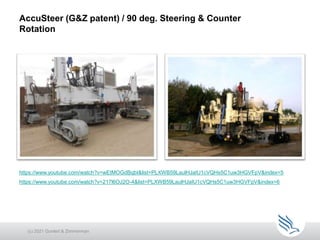

26. AccuSteer (G&Z patent) / 90 deg. Steering & Counter
Rotation
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=wEtMOGdBqbI&list=PLXWB59LaulHJaIU1cVQHs5C1uw3HGVFpV&index=5
https://www.youtube.com/watch?v=217l6OJ2O-4&list=PLXWB59LaulHJaIU1cVQHs5C1uw3HGVFpV&index=6

27. Spreader Plow
(c) 2021 Guntert & Zimmerman

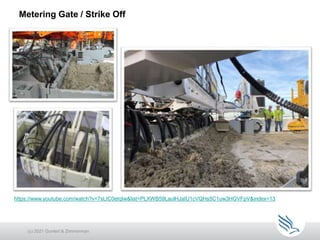

28. Metering Gate / Strike Off
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=7sLtC0etqIw&list=PLXWB59LaulHJaIU1cVQHs5C1uw3HGVFpV&index=13

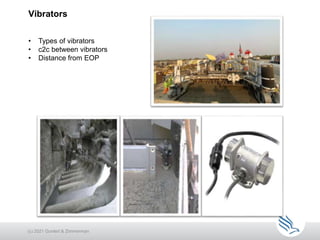

29. Vibrators
• Types of vibrators
• c2c between vibrators
• Distance from EOP
(c) 2021 Guntert & Zimmerman

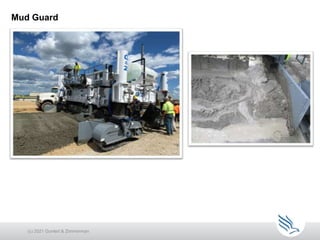

30. Mud Guard
(c) 2021 Guntert & Zimmerman

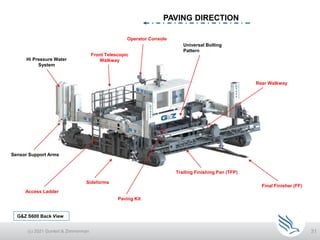

31. 31
G&Z S600 Back View
PAVING DIRECTION
Hi Pressure Water
System
Access Ladder
Front Telescopic
Walkway
Final Finisher (FF)
Universal Bolting
Pattern
Rear Walkway
Paving Kit
Trailing Finishing Pan (TFP)
Operator Console
Sensor Support Arms
Sideforms
(c) 2021 Guntert & Zimmerman

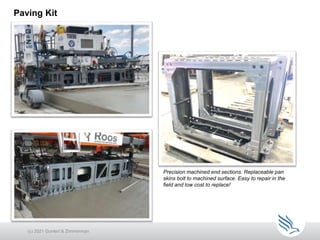

32. Paving Kit
(c) 2021 Guntert & Zimmerman
Precision machined end sections. Replaceable pan
skins bolt to machined surface. Easy to repair in the
field and low cost to replace!

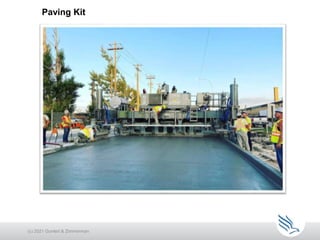

33. Paving Kit
(c) 2021 Guntert & Zimmerman

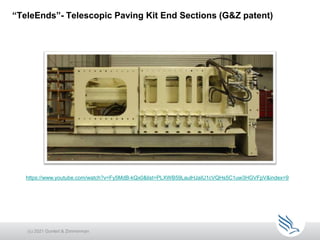

34. “TeleEnds”- Telescopic Paving Kit End Sections (G&Z patent)
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=Fy5MdB-kQx0&list=PLXWB59LaulHJaIU1cVQHs5C1uw3HGVFpV&index=9

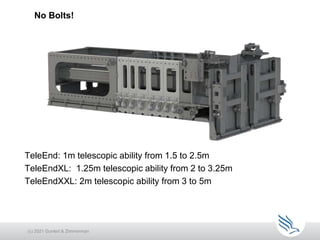

35. No Bolts!
TeleEnd: 1m telescopic ability from 1.5 to 2.5m
TeleEndXL: 1.25m telescopic ability from 2 to 3.25m
TeleEndXXL: 2m telescopic ability from 3 to 5m
(c) 2021 Guntert & Zimmerman

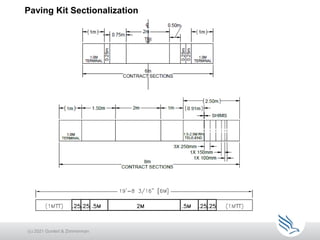

36. Paving Kit Sectionalization
(c) 2021 Guntert & Zimmerman

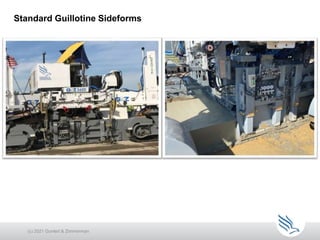

37. Standard Guillotine Sideforms
(c) 2021 Guntert & Zimmerman

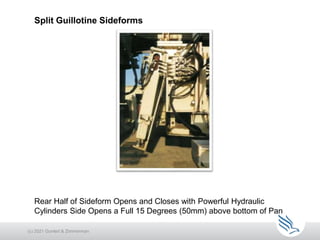

38. Split Guillotine Sideforms
(c) 2021 Guntert & Zimmerman
Rear Half of Sideform Opens and Closes with Powerful Hydraulic
Cylinders Side Opens a Full 15 Degrees (50mm) above bottom of Pan

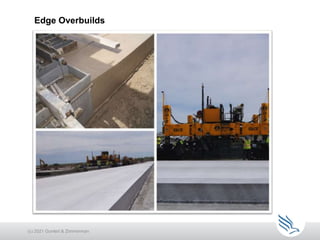

39. Edge Overbuilds
(c) 2021 Guntert & Zimmerman

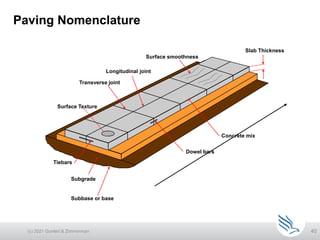

40. 40
Paving Nomenclature
(c) 2021 Guntert & Zimmerman
Subbase or base
Surface Texture
Surface smoothness
Slab Thickness
Transverse joint
Dowel bars
Concrete mix
Subgrade
Longitudinal joint
Tiebars

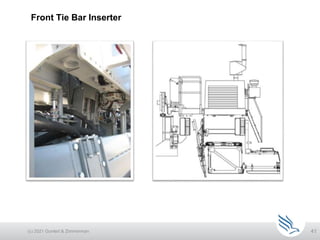

41. 41
Front Tie Bar Inserter
(c) 2021 Guntert & Zimmerman

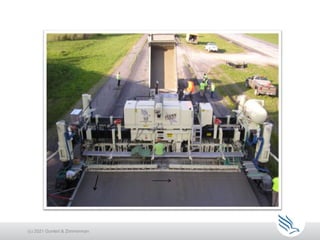

42. (c) 2021 Guntert & Zimmerman

43. 43

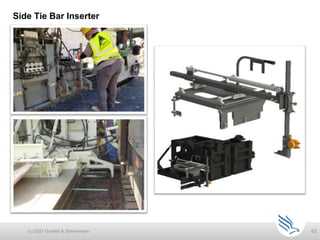

Side Tie Bar Inserter
(c) 2021 Guntert & Zimmerman

44. 44

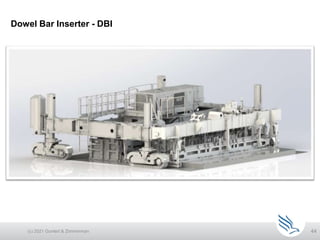

Dowel Bar Inserter - DBI
(c) 2021 Guntert & Zimmerman

45. 45
Dowel Bar Inserter - DBI
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=Hf1FrotxrYE&list=PLXWB59LaulHIui8iYr3ozNZSTjvKYtYGg&index=7

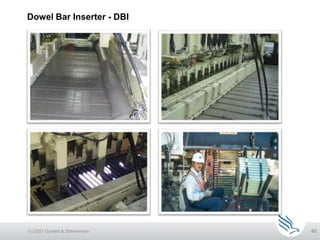

46. 46
Dowel Bar Inserter - DBI
(c) 2021 Guntert & Zimmerman

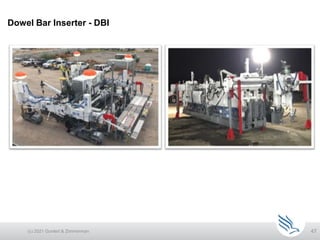

47. 47
Dowel Bar Inserter - DBI
(c) 2021 Guntert & Zimmerman

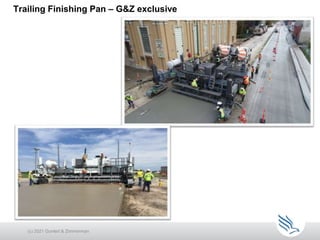

48. Trailing Finishing Pan – G&Z exclusive
(c) 2021 Guntert & Zimmerman

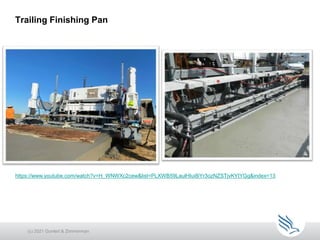

49. Trailing Finishing Pan
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=H_WNWXc2cew&list=PLXWB59LaulHIui8iYr3ozNZSTjvKYtYGg&index=13

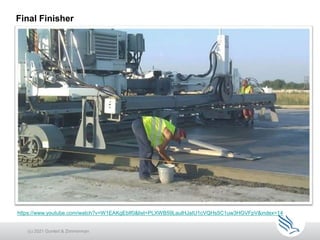

50. Final Finisher
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=W1EAKgEbIf0&list=PLXWB59LaulHJaIU1cVQHs5C1uw3HGVFpV&index=14

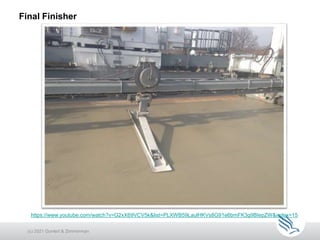

51. Final Finisher
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=G2xX69VCV5k&list=PLXWB59LaulHKVs8G91e6bmFK3g9BIepZW&index=15

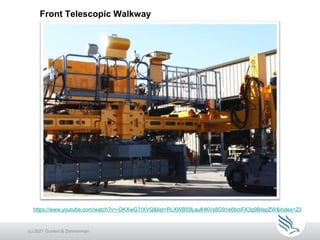

52. Front Telescopic Walkway
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=-OKXwG7rXVQ&list=PLXWB59LaulHKVs8G91e6bmFK3g9BIepZW&index=23

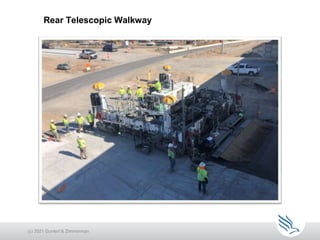

53. Rear Telescopic Walkway
(c) 2021 Guntert & Zimmerman

54. 54

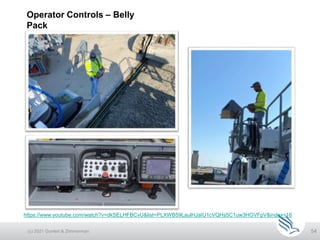

Operator Controls – Belly
Pack
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=dkSELHFBCvU&list=PLXWB59LaulHJaIU1cVQHs5C1uw3HGVFpV&index=16

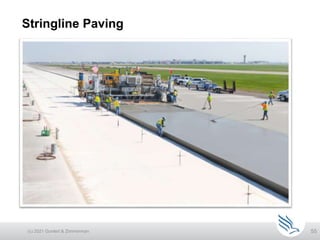

55. Stringline Paving
55
(c) 2021 Guntert & Zimmerman

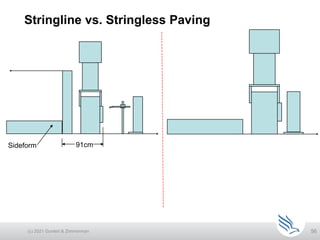

56. Stringline vs. Stringless Paving
56
Sideform 91cm
(c) 2021 Guntert & Zimmerman

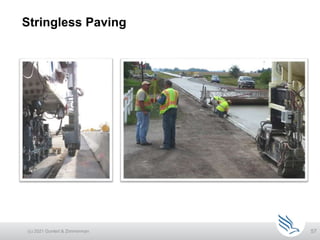

57. Stringless Paving
57
(c) 2021 Guntert & Zimmerman

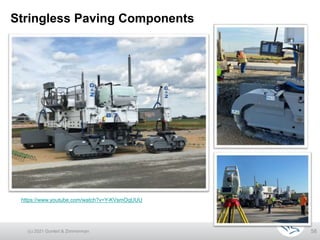

58. Stringless Paving Components
58
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=Y-KVsmOqUUU

59. 59

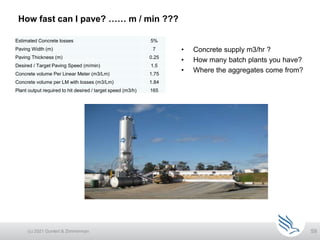

How fast can I pave? …… m / min ???
(c) 2021 Guntert & Zimmerman
• Concrete supply m3/hr ?
• How many batch plants you have?
• Where the aggregates come from?
Estimated Concrete losses 5%
Paving Width (m) 7
Paving Thickness (m) 0.25
Desired / Target Paving Speed (m/min) 1.5
Concrete volume Per Linear Meter (m3/Lm) 1.75
Concrete volume per LM with losses (m3/Lm) 1.84
Plant output required to hit desired / target speed (m3/h) 165

60. 60

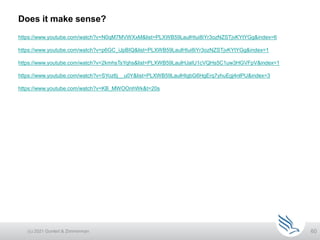

Does it make sense?
(c) 2021 Guntert & Zimmerman
https://www.youtube.com/watch?v=N0qM7MVWXxM&list=PLXWB59LaulHIui8iYr3ozNZSTjvKYtYGg&index=6
https://www.youtube.com/watch?v=p6GC_iJpBIQ&list=PLXWB59LaulHIui8iYr3ozNZSTjvKYtYGg&index=1
https://www.youtube.com/watch?v=2kmhsTsYqhs&list=PLXWB59LaulHJaIU1cVQHs5C1uw3HGVFpV&index=1
https://www.youtube.com/watch?v=SYoz6j__u0Y&list=PLXWB59LaulHIgbG6HgErq7yhuEgj4nlPU&index=3
https://www.youtube.com/watch?v=KB_MWOOnhWk&t=20s

61. 61

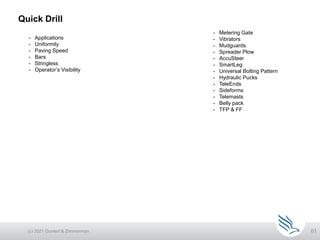

Quick Drill
(c) 2021 Guntert & Zimmerman
- Metering Gate
- Vibrators
- Mudguards
- Spreader Plow
- AccuSteer
- SmartLeg
- Universal Bolting Pattern
- Hydraulic Pucks
- TeleEnds
- Sideforms
- Telemasts
- Belly pack
- TFP & FF
- Applications
- Uniformity
- Paving Speed
- Bars
- Stringless
- Operator’s Visibility
