1. The Selection of Guide Stars for
Giant Telescopes using Virtual
Observatory Technologies
Hector Quintero Casanova
University of Edinburgh

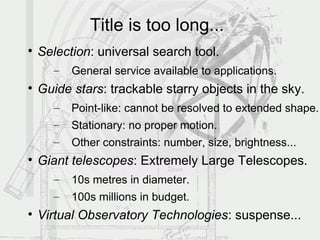

2. Title is too long...

Selection: universal search tool.
– General service available to applications.

Guide stars: trackable starry objects in the sky.
– Point-like: cannot be resolved to extended shape.
– Stationary: no proper motion.
– Other constraints: number, size, brightness...

Giant telescopes: Extremely Large Telescopes.
– 10s metres in diameter.
– 100s millions in budget.

Virtual Observatory Technologies: suspense...

3. ?
Depends on constraints
They are tough for ELTs
Are we running out of stars?

4. 1.Availability

European ELT specs:
– At least 3 Guide Stars (GS).
– All must be magnitude 14.
– And within 10 arcminutes.

Not that many meet those conditions.
– Acute in the galactic poles.
NOTE: This will be the project's test case.

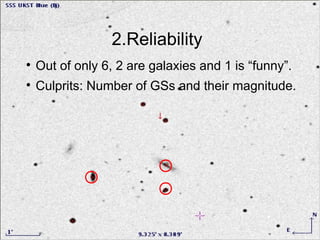

5. 2.Reliability

Out of only 6, 2 are galaxies and 1 is “funny”.

Culprits: Number of GSs and their magnitude.
Most stars here

6. Adaptive optics
• Atmospheric turbulence ruins the light party.

Adaptive optics removes distortion real-time.

Needs a GS to probe turbulence pattern:
– Bright enough: limiting magnitude.
– Isolated: near-neighbour problem.
– Initially, at minimum distance from target.
• Otherwise, affected by different turbulence.
• Solved with multiple GSs ≃ MCAO
• MCAO applied in ELTs.

7. The challenge

MCAO requires at least 3 stars magnitude 19.

ELTs work with a smaller Field Of View (FOV).
– AO corrections more accurate: brighter Gss.

But in a smaller FOV, less bright GSs.
– Stronger dependence on less reliable GSs.
• Shape might help filter out some of those.
• Other data to filter some more: proper motion.
• What happens with still point-like ones?

8. Galaxy PGC 214696

Happens also with double stars, nebulae...

For simplicity, consider only galaxies.


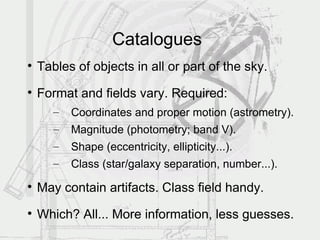

9. Catalogues

Tables of objects in all or part of the sky.

Format and fields vary. Required:
– Coordinates and proper motion (astrometry).
– Magnitude (photometry; band V).
– Shape (eccentricity, ellipticity...).
– Class (star/galaxy separation, number...).

May contain artifacts. Class field handy.

Which? All... More information, less guesses.

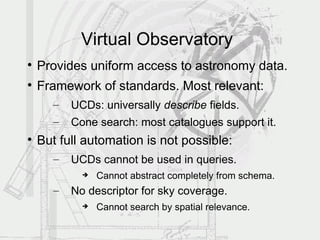

10. Virtual Observatory

Provides uniform access to astronomy data.

Framework of standards. Most relevant:
– UCDs: universally describe fields.
– Cone search: most catalogues support it.

But full automation is not possible:
– UCDs cannot be used in queries.
 Cannot abstract completely from schema.
– No descriptor for sky coverage.
 Cannot search by spatial relevance.

11. Pre-emptive catalogue selection

All-sky catalogues that include all/most fields.

At least, all magnitude 14 stars or brighter.
Magnitude Approx. number of
Name
range objects
Hipparcos <= 12 100 K
Tycho2 <= 12 2.5 M
UCAC3 8 – 16+ 100 M
2MASS PS <= 14 500 M
USNO-B1 12 – 21 1000 M
NOMAD <= 21 1100 M
GSC 2.3.2 <= 20 900 M
Updated list of recommended catalogues by U.S. Naval Obs.

GSC 2.3.2 with highest % of correctness: 98%

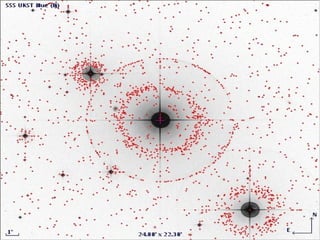

12. Pre-emptive catalogue selection

Use GSC 2.3.2 as a baseline against user's:
– To guarantee availability of required fields.
• More flexibility allowed in user's choice.
– To use its classifier as a first coarse filter.
• Reduces no. of operations in point-like search.
• Cannot use GSC 2.3.2 data directly anyway.

Use crossmatching to relate catalogues.

At service level, all catalogues as parameters.

At interface level, recommended catalogues.

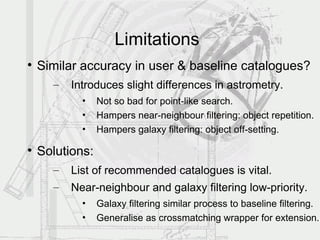

13. Limitations

Similar accuracy in user & baseline catalogues?
– Introduces slight differences in astrometry.
• Not so bad for point-like search.
• Hampers near-neighbour filtering: object repetition.
• Hampers galaxy filtering: object off-setting.

Solutions:
– List of recommended catalogues is vital.
– Near-neighbour and galaxy filtering low-priority.
• Galaxy filtering similar process to baseline filtering.
• Generalise as crossmatching wrapper for extension.

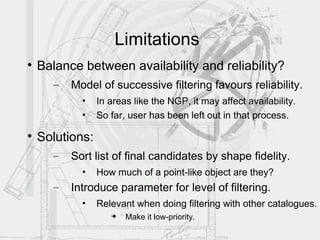

14. Limitations

Balance between availability and reliability?
– Model of successive filtering favours reliability.
• In areas like the NGP, it may affect availability.
• So far, user has been left out in that process.

Solutions:
– Sort list of final candidates by shape fidelity.
• How much of a point-like object are they?
– Introduce parameter for level of filtering.
• Relevant when doing filtering with other catalogues.
 Make it low-priority.

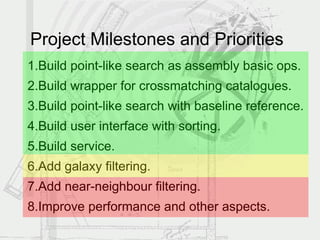

15. Project Milestones and Priorities
1.Build point-like search as assembly basic ops.
2.Build wrapper for crossmatching catalogues.
3.Build point-like search with baseline reference.
4.Build user interface with sorting.
5.Build service.
6.Add galaxy filtering.
7.Add near-neighbour filtering.
8.Improve performance and other aspects.

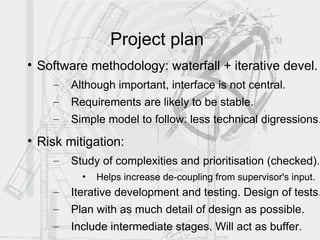

16. Project plan

Software methodology: waterfall + iterative devel.
– Although important, interface is not central.
– Requirements are likely to be stable.
– Simple model to follow: less technical digressions.

Risk mitigation:
– Study of complexities and prioritisation (checked).
• Helps increase de-coupling from supervisor's input.
– Iterative development and testing. Design of tests.
– Plan with as much detail of design as possible.
– Include intermediate stages. Will act as buffer.

17. ¿?
