1. CASE STUDY-
CITY OF MUSIC
SUBMITTED BY-
RASHI JAIN
BARC1516
-HEAVEN FOR MUSIC LOVERS

2. • LOCATION-BHILEPADA
KHOPOLI ROAD, PALI,
MAHARASHTRA
• SITE AREA- 22 ACRES
• TOWNSHIP INCLUDES-
1. TWIN BUNGALOWS
2. LUXURYVILLAS
3. 1 BHK FLATS
4. 1 RK FLATS
5. COTTAGES

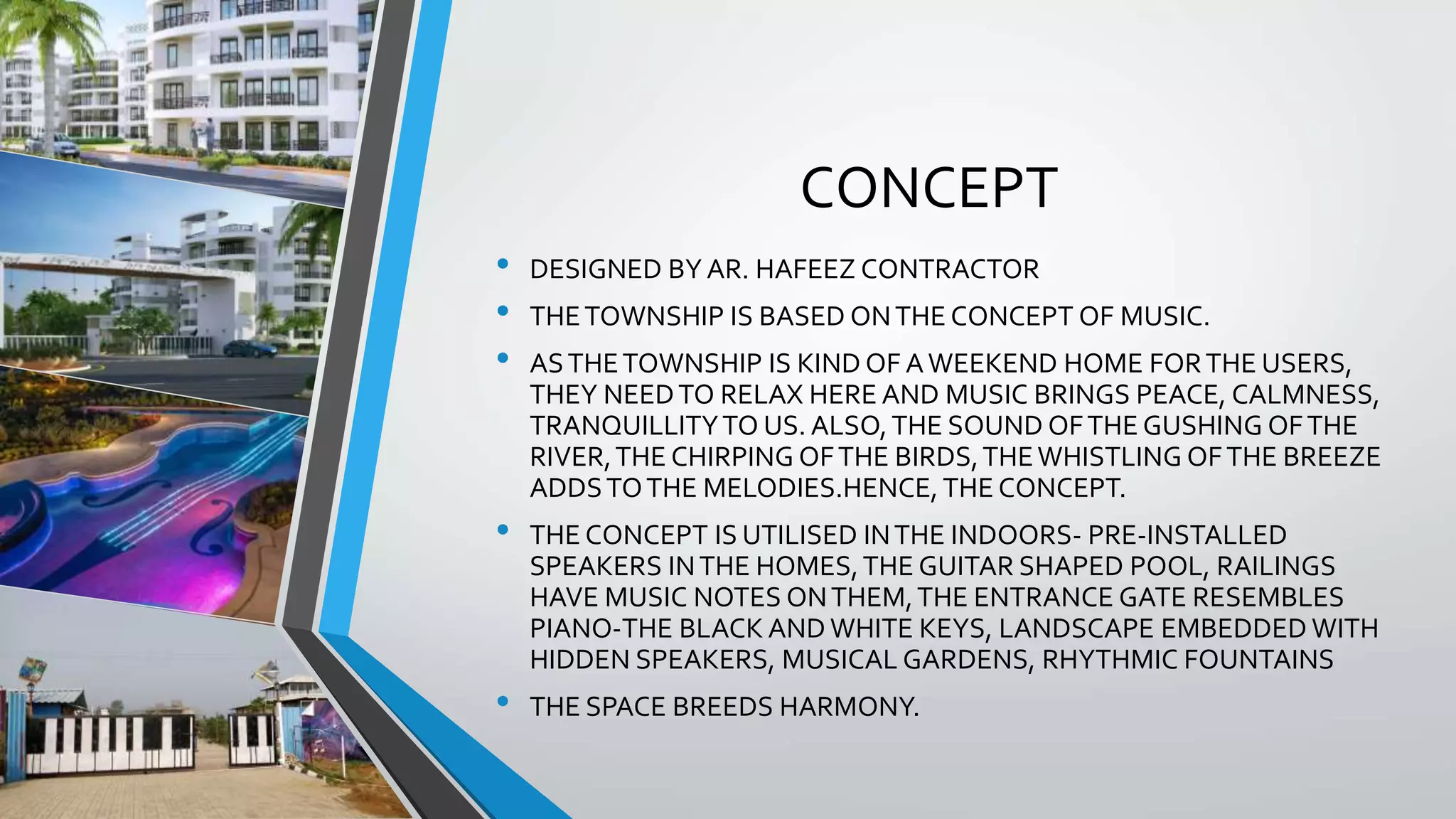

3. CONCEPT
• DESIGNED BY AR. HAFEEZ CONTRACTOR
• THETOWNSHIP IS BASED ONTHE CONCEPT OF MUSIC.
• ASTHETOWNSHIP IS KIND OF AWEEKEND HOME FORTHE USERS,
THEY NEEDTO RELAX HERE AND MUSIC BRINGS PEACE, CALMNESS,
TRANQUILLITYTO US. ALSO,THE SOUND OFTHE GUSHING OFTHE
RIVER,THE CHIRPING OFTHE BIRDS,THEWHISTLING OFTHE BREEZE
ADDSTOTHE MELODIES.HENCE, THE CONCEPT.
• THE CONCEPT IS UTILISED INTHE INDOORS- PRE-INSTALLED
SPEAKERS INTHE HOMES,THE GUITAR SHAPED POOL, RAILINGS
HAVE MUSIC NOTES ONTHEM,THE ENTRANCE GATE RESEMBLES
PIANO-THE BLACK AND WHITE KEYS, LANDSCAPE EMBEDDED WITH
HIDDEN SPEAKERS, MUSICAL GARDENS, RHYTHMIC FOUNTAINS
• THE SPACE BREEDS HARMONY.

4. MASTER PLAN LAYOUT
APARTMENTS
COTTAGES
PLOTS FOR
TWIN BUNGALOWS
AMENITIES
ENTRANCETOTHE
SITE
LUXURY
VILLAS
CLUB HOUSE
N

5. 12 MWIDE INTERNAL ROAD LAKE ONTHE SITE
VIEW OFTHE MAIN ENTRANCE AND
THE AMENITIES CENTRE
INSTALLATIONS RELATING
THETHEME

6. APARTMENTS
1 BHKTYPICAL FLOOR PLAN
KEY PLAN
N
THE SIZE OFTHEWINDOW
ISTOO SMALL.
THE LANDING
WASN’T
ACCORDINGTO
THE BASIC
NORMS
OPENING SIZEOF
THE DOOR
ISTOO
SMALL.

7. • THE PEOPLE STAYING HEREAREGOINGTO STAY
PERMANENTLY,SO,THEY SHOULD HAVE GIVENTHEVIEW OF
THE LAKETOTHEMTOO.
• THE CURVED ELEMENTS IN PLANAND ELEVATIONGOESWITH
THE CONCEPTAND ALSOTACKLESWITHTHEWIND
BIFURCATING ITTO FLOW IN DIFFERENT PATHS.
• THEREAREA LOT OF NEGATIVE SPACESTO BE OBSERVED.
• ALTERNATIVE DOUBLE HEIGHT BALCONIESARE PROVIDED
HERE.
OPENINGS FOR
VENTILATION
NEGATIVE SPACES

8. SAMPLE FLAT OF 1 BHK FLAT

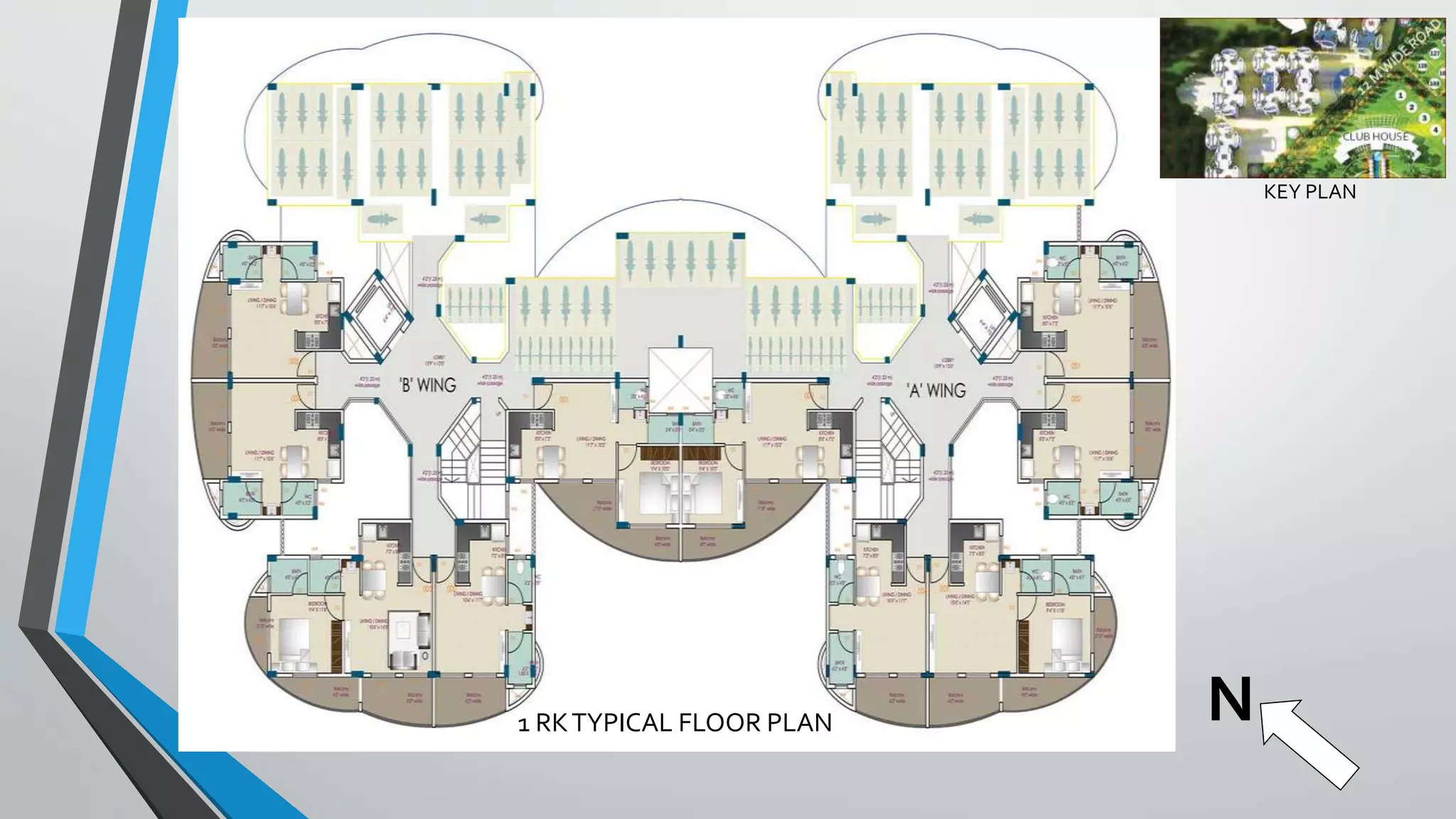

9. 1 RKTYPICAL FLOOR PLAN N
KEY PLAN

10. SAMPLE FLAT OF 1 RK FLAT

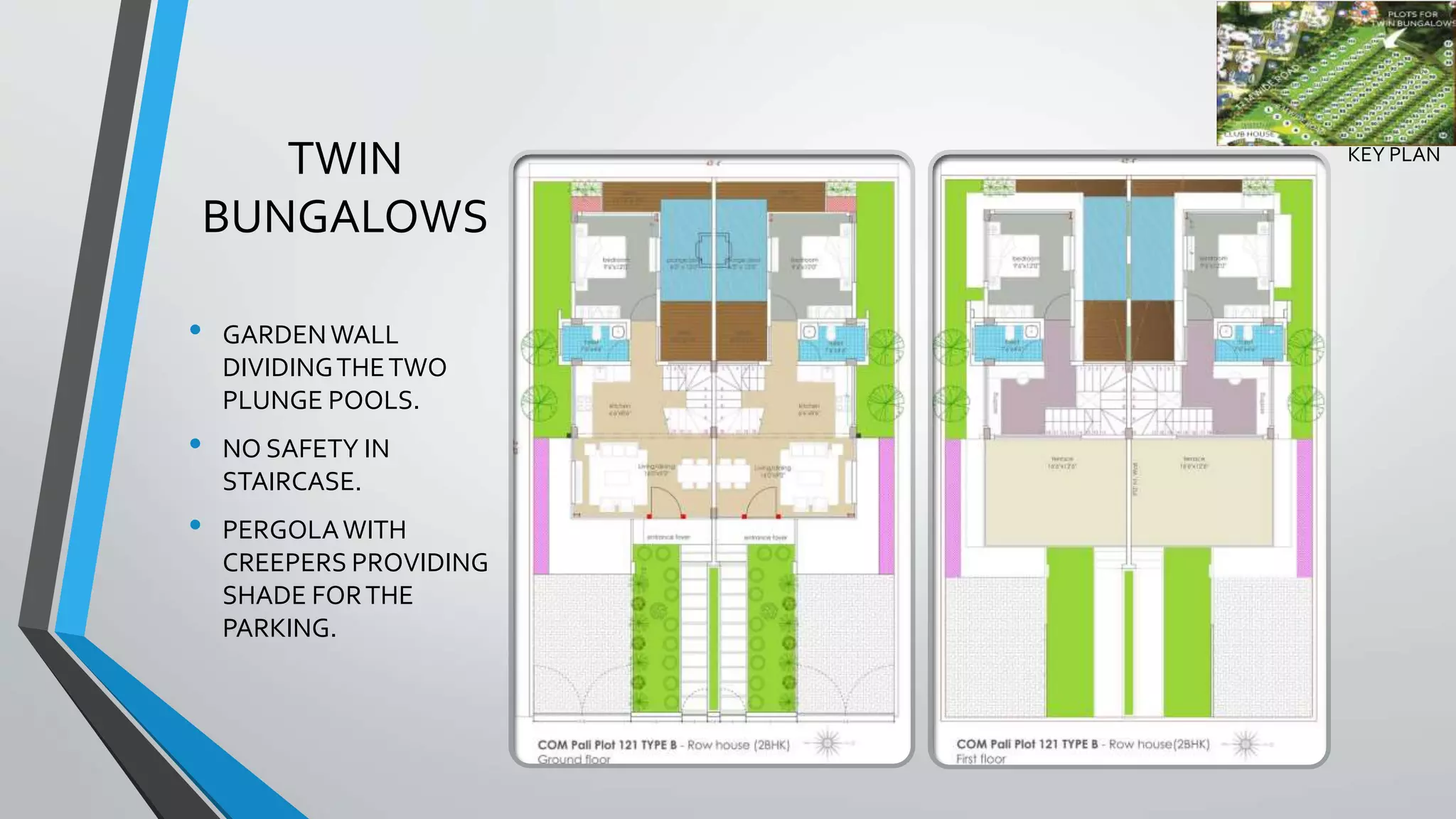

11. TWIN
BUNGALOWS
• GARDENWALL
DIVIDINGTHETWO
PLUNGE POOLS.
• NO SAFETY IN
STAIRCASE.
• PERGOLAWITH
CREEPERS PROVIDING
SHADE FORTHE
PARKING.
KEY PLAN

12. PLUNGE POOL
STAIRCASEWITHOUT SAFETY
VIEW FROMTHETERRACE
PERGOLAS
FRONTVIEW
VIEW OFTHE BUNGALOW

13. LUXURYVILLAS
KEY PLAN
• NOVIEWS FROMTHEVILLA.
• SECLUDED FROMTHE MAIN
LAYOUT, HENCE PRIVACY.

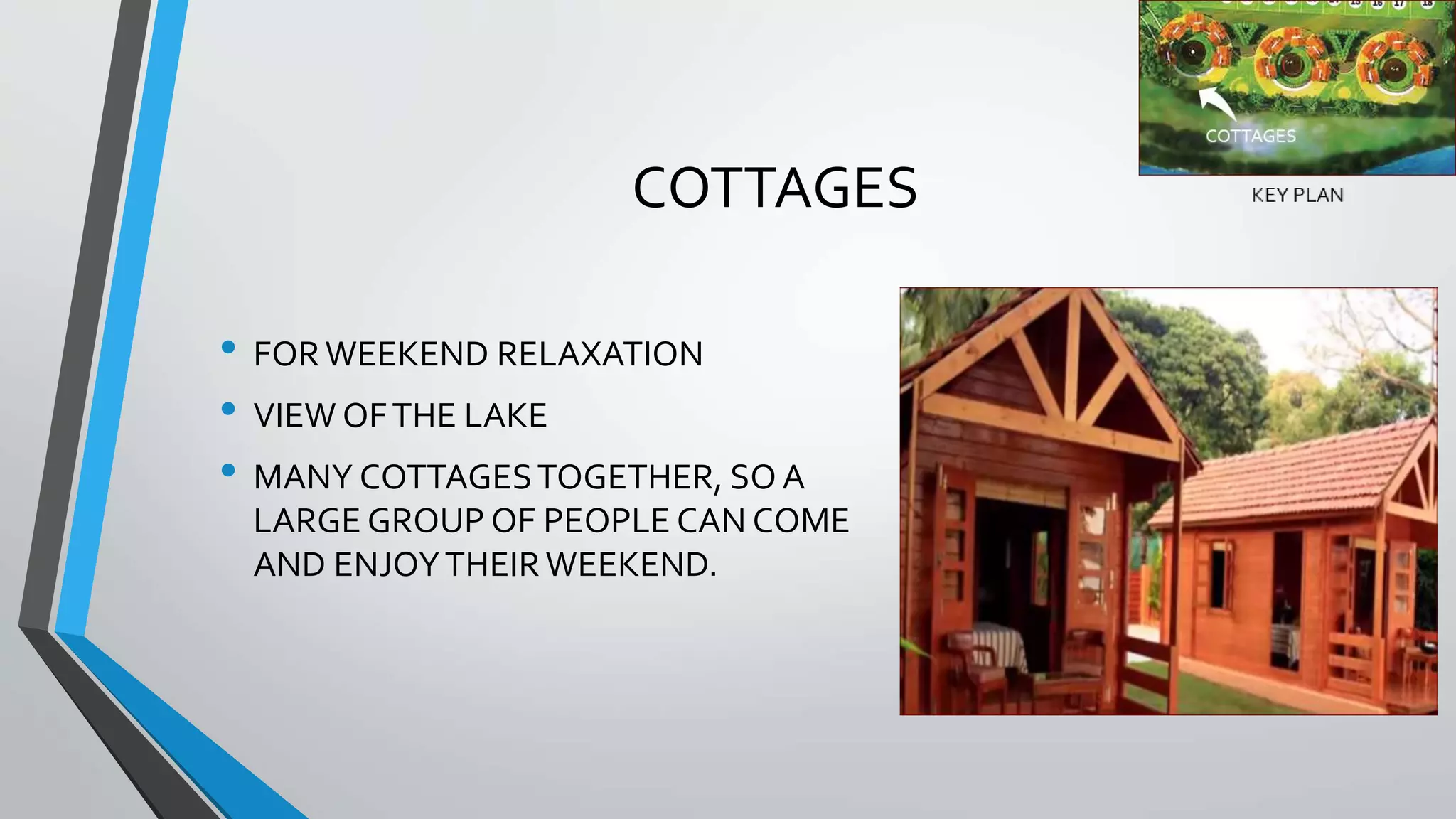

14. COTTAGES
• FORWEEKEND RELAXATION
• VIEW OFTHE LAKE
• MANY COTTAGESTOGETHER, SO A
LARGE GROUP OF PEOPLE CAN COME
AND ENJOYTHEIRWEEKEND.

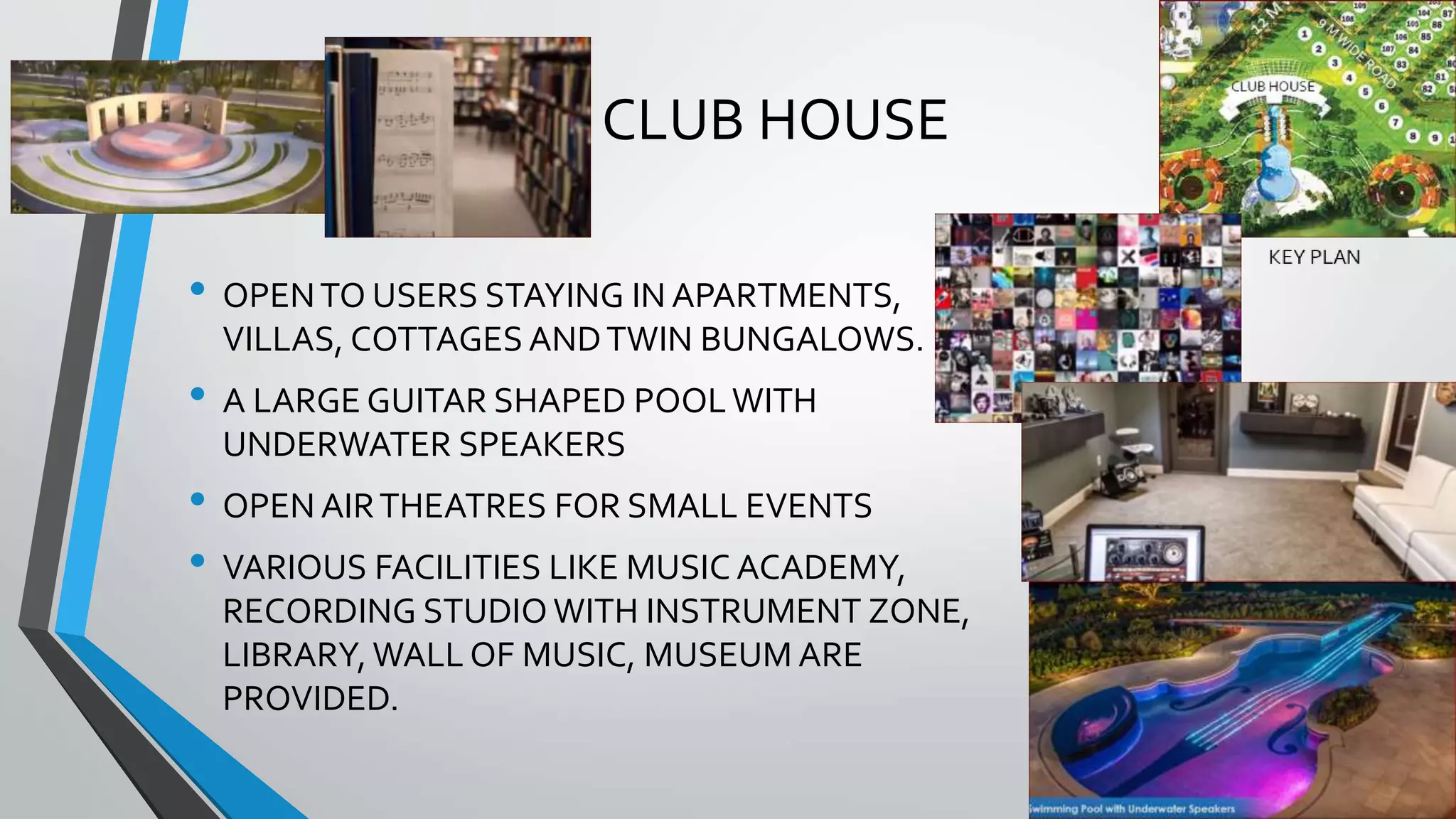

15. CLUB HOUSE
• OPENTO USERS STAYING IN APARTMENTS,
VILLAS, COTTAGES ANDTWIN BUNGALOWS.
• A LARGE GUITAR SHAPED POOLWITH
UNDERWATER SPEAKERS
• OPEN AIRTHEATRES FOR SMALL EVENTS
• VARIOUS FACILITIES LIKE MUSIC ACADEMY,
RECORDING STUDIO WITH INSTRUMENT ZONE,
LIBRARY, WALL OF MUSIC, MUSEUM ARE
PROVIDED.

16. THANKYOU
• HENCE, A CITY FORTHOSEWHO CAN DISCOVER LIFE IN MUSIC AND
MUSIC IN LIFE!
