1. Groundwater Sampling Pumps
 
Eric

2.  Types of pumps – submersible, bladder, peristaltic, and
inertial
 Pump specifications
 Pros and cons
 Supplies and accessories
 Common problems in the field
 Decontamination

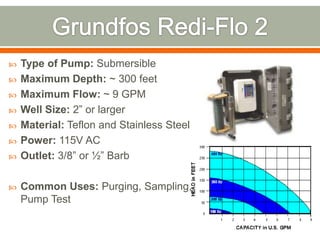

3.  Type of Pump: Submersible
 Maximum Depth: ~ 300 feet
 Maximum Flow: ~ 9 GPM
 Well Size: 2” or larger
 Material: Teflon and Stainless Steel
 Power: 115V AC
 Outlet: 3/8” or ½” Barb
 Common Uses: Purging, Sampling,
Pump Test

4. PROS CONS
 Inert materials – Stainless  Easy to damage
Steel & Teflon o Does not handle sediment
well (not recommended for
 High flow rate – up to 9 developing)
GPM o Can overheat easily if run
dry
 Pump up to 300 feet
depth  Requires 115V AC Power
 Requires water circulation
 Fits in 2” wells or larger
to cool the pump during
 VFD controller allows for use.
fine tuning flow rate  Harder to decon than
other pumps

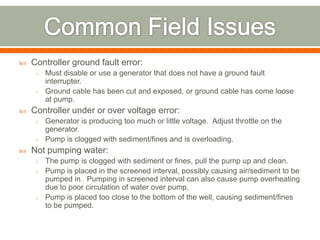

5.  Controller ground fault error:
o Must disable or use a generator that does not have a ground fault
interrupter.
o Ground cable has been cut and exposed, or ground cable has come loose
at pump.
 Controller under or over voltage error:
o Generator is producing too much or little voltage. Adjust throttle on the
generator.
o Pump is clogged with sediment/fines and is overloading.
 Not pumping water:
o The pump is clogged with sediment or fines, pull the pump up and clean.
o Pump is placed in the screened interval, possibly causing air/sediment to be
pumped in. Pumping in screened interval can also cause pump overheating
due to poor circulation of water over pump.
o Pump is placed too close to the bottom of the well, causing sediment/fines
to be pumped.

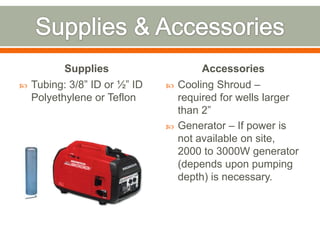

6. Supplies Accessories
 Tubing: 3/8” ID or ½” ID  Cooling Shroud –
Polyethylene or Teflon required for wells larger
than 2”
 Generator – If power is
not available on site,
2000 to 3000W generator
(depends upon pumping
depth) is necessary.

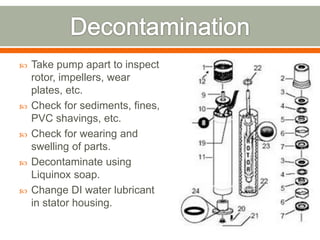

7.  Take pump apart to inspect
rotor, impellers, wear
plates, etc.
 Check for sediments, fines,
PVC shavings, etc.
 Check for wearing and
swelling of parts.
 Decontaminate using
Liquinox soap.
 Change DI water lubricant
in stator housing.

8. • Type of Pumps: Submersible • Well Size: 2” or larger
• Power: 12V DC Power • Materials: Stainless Steel and
• Outlet: 3/8” barb PVC wire
Mega-Typhoon Monsoon Mega-Monsoon
 Maximum Depth:  Maximum Depth:  Maximum Depth:
80 feet 120 feet 200 feet
PUMPING GALLONS PER PUMPING GALLONS PER PUMPING GALLONS PER
DEPTH (Ft) MINUTE DEPTH (DTW) MINUTE DEPTH (DTW) MINUTE
10 3.0 10 3.5 10 4.0
40 2.0 40 3.0 40 3.0
80 0.25 80 1.25 80 2.5
120 0.25 120 1.6
150 0.85
180 0.45
200 0.35

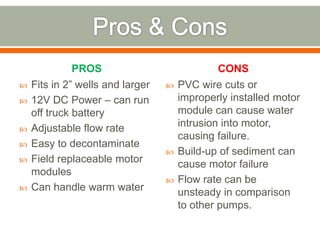

9. PROS CONS
 Fits in 2” wells and larger  PVC wire cuts or
 12V DC Power – can run improperly installed motor
off truck battery module can cause water
 Adjustable flow rate intrusion into motor,
causing failure.
 Easy to decontaminate
 Build-up of sediment can
 Field replaceable motor cause motor failure
modules
 Flow rate can be
 Can handle warm water unsteady in comparison
to other pumps.

10.  Controller is not getting any power:
o Check the alligator clips to make sure they have a good connection (check for
corrosion on clips and battery terminals).
o Inspect wires for breaks or kinks.
o Check the fuse on the side of the controller. Even if the fuse looks good, it can
still be bad.
 Not pumping water:
o Pump is clogged with sediment. Remove pump shield and inspect / clean motor
and pump housing.
o Pumping from screened interval or bottom of well.
o Motor is not getting power. Pull the pump up and make sure the motor is
spinning when powered. If not, contacts may need to be lifted to make good
connection. Check for wire break at motor, wiggle back and forth and see if there
is intermittent connection.
o Motor is burned up. Check for water damage. Check to see if motor shaft is
bent or damaged. Replace motor.

11. Supplies Accessories
 Tubing: 3/8” ID  Deep cycle 12V Battery
Polyethylene or Teflon  Check Valve
 Low flow control valve

12.  Use wrench to remove
pump shield.
 Twist motor off and check
for water intrusion and then
twist back on.
 Clean external surfaces of
motor and internal/external
surfaces of the shield with
Liquinox soap and rinse
with DI water.

13.  Type of Pump: Peristaltic
 Maximum Depth: 26 feet
 Maximum Flow: 2.5 LPM
 Well Size: All
 Power: 12V DC Power
 Pump Head Tubing: 1 ft section Silicone

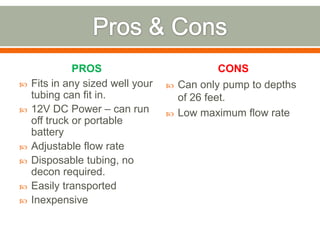

14. PROS CONS
 Fits in any sized well your  Can only pump to depths
tubing can fit in. of 26 feet.
 12V DC Power – can run  Low maximum flow rate
off truck or portable
battery
 Adjustable flow rate
 Disposable tubing, no
decon required.
 Easily transported
 Inexpensive

15.  No power:
o Power cable is not making a good connection or there is a break in the cable.
 Not pumping water:
o There is not enough water in the well
o The tubing is clogged with sediment/fines

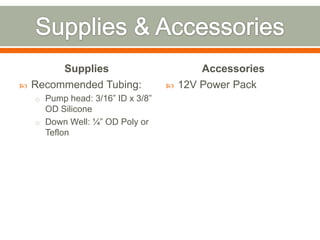

16. Supplies Accessories
 Recommended Tubing:  12V Power Pack
o Pump head: 3/16” ID x 3/8”
OD Silicone
o Down Well: ¼” OD Poly or
Teflon

17.  Type of Pump: Bladder
 Maximum Depth:
180 feet (with Geocontroller)
 Volume/Cycle:
o 1.66” Pump: 150 mL
o 0.85” Pump: 29 mL
 Well Size: 1” or larger
 Power: 12V DC Power
 Materials: Teflon and Stainless Steel
 Bladders: Teflon or Polyethylene
 Outlet:
o 1.66” Pump: 0.25”
o 0.85” Pump: 0.17”

18. PROS CONS
 Can reach great depths  Harder to operate than
depending upon most pumps
compressor and pressure  Bonded tubing is
rating of pump. expensive
 Fits in 1” well  Takes a little time to
 Low influence on turbidity change bladders

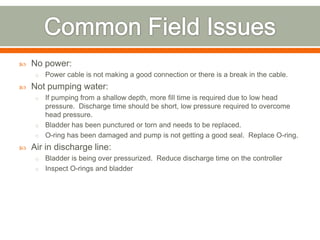

19.  No power:
o Power cable is not making a good connection or there is a break in the cable.
 Not pumping water:
o If pumping from a shallow depth, more fill time is required due to low head
pressure. Discharge time should be short, low pressure required to overcome
head pressure.
o Bladder has been punctured or torn and needs to be replaced.
o O-ring has been damaged and pump is not getting a good seal. Replace O-ring.
 Air in discharge line:
o Bladder is being over pressurized. Reduce discharge time on the controller
o Inspect O-rings and bladder

20. Supplies Accessories
 1.66” Pump Tubing:  None
o Bonded tubing:
• Air: 0.17” ID x 0.25” OD
• Water: 0.25” ID x 0.375”
OD
 0.85” Pump Tubing:
o Bonded tubing:
• Air: 0.17” ID x 0.25” OD
• Water: 0.17” ID x 0.25” OD
 Bladders:
o Teflon or Polyethylene

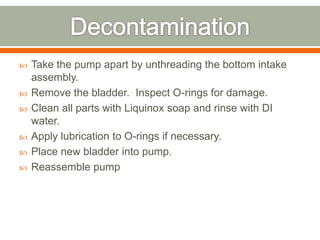

21.  Take the pump apart by unthreading the bottom intake
assembly.
 Remove the bladder. Inspect O-rings for damage.
 Clean all parts with Liquinox soap and rinse with DI
water.
 Apply lubrication to O-rings if necessary.
 Place new bladder into pump.
 Reassemble pump

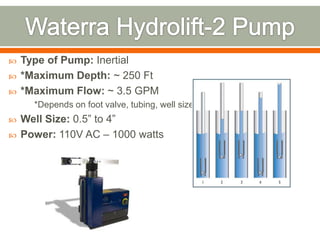

22.  Type of Pump: Inertial
 *Maximum Depth: ~ 250 Ft
 *Maximum Flow: ~ 3.5 GPM
*Depends on foot valve, tubing, well size
 Well Size: 0.5” to 4”
 Power: 110V AC – 1000 watts

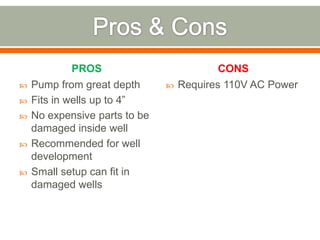

23. PROS CONS
 Pump from great depth  Requires 110V AC Power
 Fits in wells up to 4”
 No expensive parts to be
damaged inside well
 Recommended for well
development
 Small setup can fit in
damaged wells

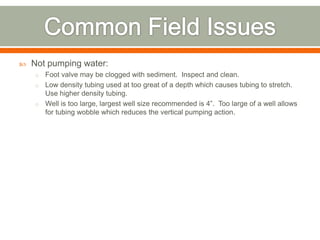

24.  Not pumping water:
o Foot valve may be clogged with sediment. Inspect and clean.
o Low density tubing used at too great of a depth which causes tubing to stretch.
Use higher density tubing.
o Well is too large, largest well size recommended is 4”. Too large of a well allows
for tubing wobble which reduces the vertical pumping action.

25. Supplies
 Tubing – Low density Polyethylene for depths less than 70
feet (due to stretching). High Density Polyethylene for depths
greater than 70 feet.
o 1” OD tubing for High Flow Foot Valves
o 5/8” OD or ½” ID tubing for Standard Flow Foot Valves
o ¼” ID tubing for Low Flow Foot Valves
o ¼” ID tubing for Micro Flow Foot Valves
 Foot Valves:
o Stainless Steel or Delrin
 Surge Block – Used to remove silt and sediment in bottom of
well and fines from the sand pack and well screen. Surge
blocks only can be used with 2” or 4” wells with standard or
high flow foot valves.

26.  Type of Pump: Submersible
 Maximum Depth: 200 feet
 Maximum Flow: 3.5 GPM
 Well Size: 2” or larger
 Power: 115V AC – 1000 watts
 Outlet: 3/8” barb

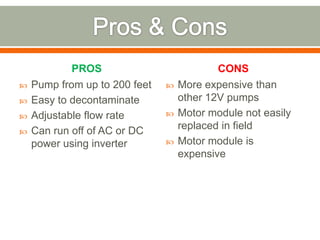

27. PROS CONS
 Pump from up to 200 feet  More expensive than
 Easy to decontaminate other 12V pumps
 Adjustable flow rate  Motor module not easily
 Can run off of AC or DC replaced in field
power using inverter  Motor module is
expensive

28.  Using the 750 Watt DC to AC inverter causes the max pumping
depth to drop due to less power available. This problem can be
avoided running off of 115V AC
 The pump is a new addition to our rental fleet, so far we have not
run into any other issues.

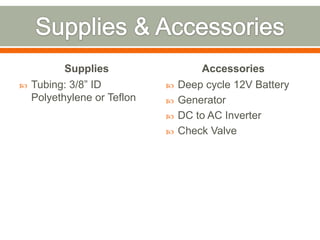

29. Supplies Accessories
 Tubing: 3/8” ID  Deep cycle 12V Battery
Polyethylene or Teflon  Generator
 DC to AC Inverter
 Check Valve

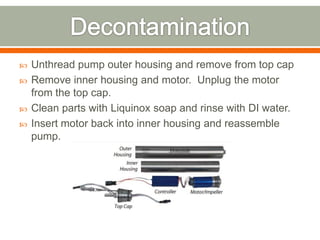

30.  Unthread pump outer housing and remove from top cap
 Remove inner housing and motor. Unplug the motor
from the top cap.
 Clean parts with Liquinox soap and rinse with DI water.
 Insert motor back into inner housing and reassemble
pump.

31.  Type of Pump: Submersible
 Maximum Depth: 100 feet (based on motor lead)
 Maximum Flow: 20 GPM
 Well Size: 4” or larger
 Power: 115V AC
 Outlet: 1” barb

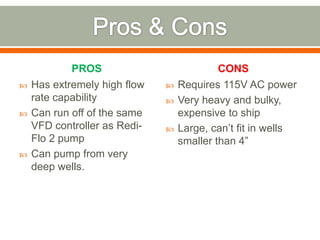

32. PROS CONS
 Has extremely high flow  Requires 115V AC power
rate capability  Very heavy and bulky,
 Can run off of the same expensive to ship
VFD controller as Redi-  Large, can’t fit in wells
Flo 2 pump smaller than 4”
 Can pump from very
deep wells.

33.  Same issues as Redi-Flo 2 pump
 Heavy & larger tubing, harder to lower into well.

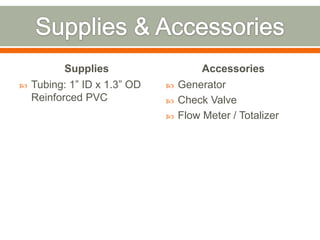

34. Supplies Accessories
 Tubing: 1” ID x 1.3” OD  Generator
Reinforced PVC  Check Valve
 Flow Meter / Totalizer

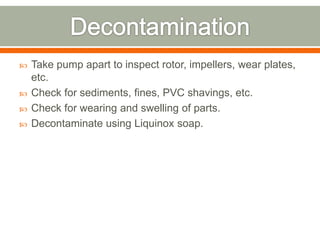

35.  Take pump apart to inspect rotor, impellers, wear plates,
etc.
 Check for sediments, fines, PVC shavings, etc.
 Check for wearing and swelling of parts.
 Decontaminate using Liquinox soap.

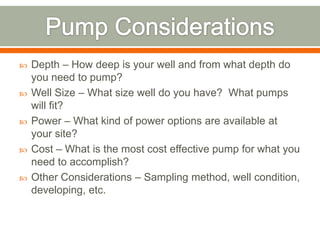

36.  Depth – How deep is your well and from what depth do
you need to pump?
 Well Size – What size well do you have? What pumps
will fit?
 Power – What kind of power options are available at
your site?
 Cost – What is the most cost effective pump for what you
need to accomplish?
 Other Considerations – Sampling method, well condition,
developing, etc.
