This document provides specifications for a small electric motor including its voltage, speed, gearbox ratio, output speed, torque, current, power, duty cycle, efficiency ratings, start/stall conditions, and speed vs torque and efficiency performance curves. Key details are a 115V PM 6015 motor with a 2450 RPM speed at 162.9 RPM output speed and 1.8 lb-in of torque through a 15:1 ratio gearbox.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6015
115 v FWR
2450 rpm 2 Poles
RP 7300 15:1 Ratio
Product ID: 62415
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
162.9 rpm
1.8lb-in
0.63 amps
3 watts
0.0047 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
9.2 %
60.2 %
5.5 %
Start/Stall Conditions:
Current:
Torque:
2.79 amps
112.36 lb-in
Constants:
Ke: 43.81 v/krpm
Kt: 3.70 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
20.0
0.0
0.0
12.0
40.0
24.0
60.0
36.0
80.0
48.0
100.0
60.0
120.0
72.0
140.0
84.0
160.0
96.0
180.0
108.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0

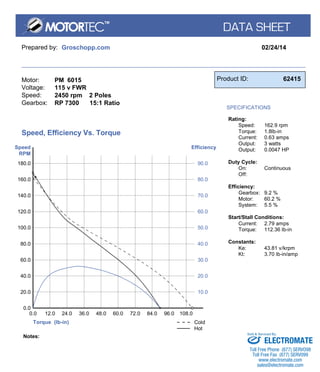

Speed, Efficiency Vs. Torque
Cold
Hot
