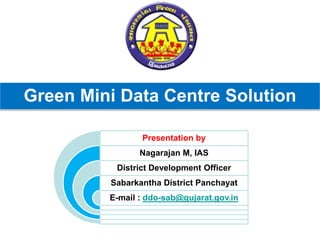

Green Mini Data Center

1. Green Mini Data Centre Solution
Presentation by
Nagarajan M, IAS
District Development Officer
Sabarkantha District Panchayat
E-mail : ddo-sab@gujarat.gov.in

2. Summary
• District has taken the new initiative for hosting their
important data at their own data centers at district level
also.
• Earlier data were hosted at rented portals like godaddy,
name.com….etc.
• These DC shall carry the contains for their applications
like – Mobile inspection, Prime Minister dream project –
Toilet portal, e-Shiksha, Digital Setu, Cyber Kitly, Digital
Village, Kisan Setu, Mamta Setu, etc..

3. Vision for Green Mini Data Center
• To facilitate Sabarkantha District Panchayat by "GREEN MINI DATA
CENTER" by improving/serving better for every day required
application. New servers allow for higher densities than ever before,
putting great strains on legacy cooling and power products. In
response, District Panchayat needs to intelligently allocate resources
to get the most from their data center infrastructure. Optimizing current
environment with the right cooling and power infrastructure will help to
reclaim precious capacity and may allow to delay or avoid altogether
the time and expense. GREEN Optimizing data center infrastructure
can achieve immediate results through increased capacity. This Mini
can save money through reduced CAPEX and OPEX costs towards
better ROI.

4. Key Features
1. Integrated Infrastructure Solutions:–
Smart Solutions offer integrated infrastructure solutions to customers who are looking for a
fully functional Datacenter. The Smart Cabinet consists of integrated Racks & containment,
Precision Cooling system, UPS & batteries, Fire detection & suppression system, intelligent
security and Environment monitoring system. The Smart Cabinet can be deployed on site in
weeks as compared to months in case of conventional datacenter build. The solution is
delivered to customer onsite as a plug and play and customer can move in their IT assets
immediately. The Smart Cabinet is a modular and easily scalable datacenter solution that
allows for substantial savings on CAPEX.
2. Inbuilt redundancy –
The Smart Cabinet offers inbuilt N+N redundancy on UPS system providing high availability
for your mission critical business requirements. The Smart Cabinet comes with an option of
redundant as well as a standalone-cooling unit providing customers with the option of
choosing the right fit as per their business needs. The Smart Cabinet is fully compliant to Tier
3 guidelines offering the highest uptime to your IT services.

5. Key Features
3.Space Savings –
The Smart Cabinets an integrated datacenter that offers substantial space savings as compared
to conventional datacenter. The reduced footprint of Smart Cabinet allows for savings up to 28%
on room upgrades compared to up fitting a room as a conventional datacenter. The Smart
Cabinet can be implemented in any commercial office floor and does not require raised flooring
or false ceiling. Since this is an integrated solution it doesn’t require separate space for UPS,
PAC, Fire suppression, distribution panel etc.
4. Energy efficiency –
The Smart Cabinet offers up to 30% savings on annual energy costs. The high efficiency
precision cooling system and efficient UPS system supports variable load that reduces the
operating costs of a datacenter. Reduced maintenance costs through reliable design and
efficient operations.
5. OPDC services –
24x7 monitoring services offered through NxtGen central NOC to manage your datacenter
infrastructure and provide higher IT efficiency through increased uptimes of infrastructure. DC
operations require highly integrated equipment, operational knowledge and skills to be deployed
24x7 at the premises.

6. Data Center Flow

7. Floor Layout

9. UTM Firewall
Cyberoam
Network Switch
Network Storage
Netgear
Server
Dell PowerEdge
UPS
Green Mini Data Centre Solution

10. What Makes Smart Solutions Smart?
Each member of the Smart Solutions family is designed around four key advantages
critical for managing data center infrastructure.

13. Copyright © 2014 Microlink Solutions
Server 1
Fiber Channel SAN Storage
Scenario for SAN
Server 3 Server 5 Server 7
Server 6Server 4Server 2

14. Inauguration Snaps

15. Inauguration Snaps

16. Inauguration Snaps

17. Nagarajan M, IAS
District Development Officer
Sabarkantha District Panchayat
E-mail : ddo-sab@gujarat.gov.in
