Graphing Tangent and Cotangent Function

1. LESSON NO. 8
GRAPHS OF TANGENT
AND
COTANGENT
FUNCTIONS

2. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Topics:
• Graphs of y = tan x and y = cot x
• Graphs of y= a tan bx and y = a cot bx
• Graphs of y = a tan b (x – c) + d and
y = a cot b (x – c) + d

3. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
EngagementActivity 1
IllustratingTangent and Cotangent with the Unit Circle
Author:afrewin
Topic: Trigonometry
References: https://www.geogebra.org/m/YUJvBfxw#material/fbQWQGsg
https://www.geogebra.org/m/YUJvBfxw#material/ueUcqGNG

4. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Illustrating Tangent and Cotangent with the Unit Circle
Questions:
1. What can you say about the relationship
between the tangent and cotangent function
with the unit circle?
2. How will you describe the relationship between
the tangent and cotangent function with the
unit circle?

5. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
TangentCotangent Relationship
Author:carpenter
Reference: https://www.geogebra.org/m/Y74C5aNz
Move the parameters a (vertical dilation), b (period
dilation), c ( part of phase shift), and d (vertical shift) to see
how the graphs of tangent and cotangent are related.

6. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
TangentCotangent Relationship
Questions:
1. Based on the graph, what can you say about
the domain and range of tangent function? How
about cotangent function?
2. How will you describe the relationship of
tangent and cotangent function in terms if their
domain, range and phase shift?

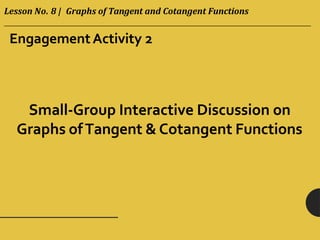

7. EngagementActivity 2
Small-Group Interactive Discussion on
Graphs ofTangent & Cotangent Functions
Lesson No. 8 | Graphs of Tangent and Cotangent Functions

8. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Small-Group Interactive Discussion on
Graphs ofTangent & Cotangent Functions
InquiryGuide Questions:
• What can you say about the graphs of tangent and cotangent
functions in terms of the following:
– Domain;
– Range;
– Phase Shift and;
– Period?
• What is your guide in graphing tangent and cotangent functions?
• What are the important properties of the graphs of tangent and
cotangent functions?

9. Small-Group Interactive Discussion on
Graphs ofTangent & Cotangent Functions
Inquiry Guide Questions:
-Do tangent and cotangent functions have amplitude? Why?
-What are the domains of the tangent and cotangent functions?
-What are the ranges of the tangent and cotangent functions?
-What are the periods of the tangent and cotangent? What does
period mean? How do you find the period of a given tangent or
cotangent functions?
-How do you graph tangent and cotangent functions? What are the
things to be considered in graphing the said functions?
Lesson No. 8 | Graphs of Tangent and Cotangent Functions

10. Lesson No. 8 | Graphs of Tangent and Cotangent Functions

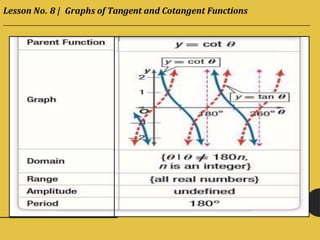

11. Lesson No. 8 | Graphs of Tangent and Cotangent Functions

12. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Graphs ofTangent &Cotangent Functions
In general, to sketch the graphs of y = a tan bx and y = a cot bx, a ≠ 0 and b > 0, we may proceed with the following
steps:
(1) Determine the period Π/b.Then we draw one cycle of the graph on (-Π/2b, Π/2b) for y = tan bx, and on (0, Π/b) for
y = a cot bx.
asymptotes are given by x =
(2) Determine the two adjacent vertical asymptotes. For y = a tan bx, these vertical
±Π/2b.For y = a cot bx, vertical asymptotes are given by x = 0 and x= Π/b.
(3) Divide the interval formed by the vertical asymptotes in Step 2 into four equal parts, and get three division points
exclusively between the asymptotes.
(4) Evaluate the function at each of these x-values identified in Step 3. The points will correspond to the sign and x-
intercept of the graph.
(5) Plot the points found in Step 3, and join them with a smooth curve approaching to the vertical asymptotes. Exten
the graph to the right and to the left, as needed.

13. Lesson No. 8 | Graphs of Tangent and Cotangent Functions

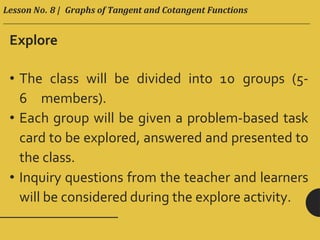

Explore
• The class will be divided into 10 groups (5-
6 members).
• Each group will be given a problem-based task
card to be explored, answered and presented to
the class.
• Inquiry questions from the teacher and learners
will be considered during the explore activity.

14. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Explore
Rubric/Point System of theTask:
1 point – No Answer
2point – Incorrect Answer/Explanation/Solutions
3 points – CorrectAnswer but No Explanation/Solutions
4points – CorrectAnswer with Explanation/Solutions
5 points – CorrectAnswer/well-Explained/with
SystematicSolution

15. Assigned Role:
Leader – 1 student
Secretary/Recorder – 1 student
Time Keeper – 1
Reporter/Speaker – 1-2 students
Material Manager – 1 student
Lesson No. 8 | Graphs of Tangent and Cotangent Functions

16. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Explore
1
2
Task 1 (Group 1 & Group 2): Sketch the graph of y = tan 2x
1
2
Task 2 (Group 3 & Group 4): Sketch the graph of y = 2 cot 𝑥.
Task 3 (Group 5 ,Group 6, &Group7):
Sketch the graph of y = –tanx + 2
Task 4 (Group 8, Group 9, & Group 10):
Sketch the graph of y = –2cotx – 1

17. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Explain
• Group Speaker/s will present the
solutions and answer to the class by
explaining the problem/concept explored
considering the given guide questions.

18. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Explain
Guide Questions:
• What is the problem-based task all about?
• What are the given in the problem-based task?
• What are the things did you consider in
solving/answering the problem-based task?
• What methods did you use in solving/answering
the given problem-based task?

19. Explain
Guide Questions:
- How did you solve/answer the problem-based task
using that method?
- Are there still other ways to answer the
problem/task? How did you do it?
- Are there any limitations to your solution/answer?
- What particular mathematical concept in
trigonometry did you apply to solve the problem-
based task?
Lesson No. 8 | Graphs of Tangent and Cotangent Functions

20. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
ELABORATE

21. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Elaborate
Generalization of the Lesson:
- What are the properties of the graphs of tangent
and cotangent functions?
- What are the domain and range of tangent and
cotangent functions?
- How do we determine the asymptotes, period and
phase shift of tangent and cotangent functions?

22. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Elaborate
Integration of Philosophical Views
Questions :
• What are the things/situations/instances that you
can relate with regard to the lesson about graphs of
tangent and cotangent?
• Considering your philosophical views, how will you
relate the terms/content/process of the lesson in
real-life situations/instances/scenario?

23. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Evaluate
Answer the following:
1
4
a) Sketch the graph of the function y = tan 𝑥 −
𝛱
4
over three periods. Find the
domain and range of the function.
b) Graph the given tangent and cotangent functions with its period, and phase shift
and determine its domain & range.
1
2
i) y = cot
1
3
𝑥 + 2 ii) y = −4 tan 𝑥 −
𝛱
4
− 1
1
c) How does the graph of y = tan x + 1 is different from y = tan x?
2
d) Are the graphs of y = 𝑐𝑜𝑡 (x) − 1 different from the graph of y = cot (x)? Justify
your answer.

24. Lesson No. 8 | Graphs of Tangent and Cotangent Functions
Assignment:
Answer the following questions:
1.What is meant by simple harmonic motion?
2.What are the equations of simple harmonic motion?
3. Give example of solved situational problems involving
graphs of circular functions.
Reference: DepED Pre-Calculus Learner’s Material, pages 160-165
