GRAPHITE — An Extensible Graph Traversal Framework for RDBMS
This document discusses GRAPHITE, an extensible graph traversal framework for relational database management systems (RDBMS). GRAPHITE allows for efficient graph processing by integrating native graph operators into the RDBMS query execution engine. This allows graph queries to be combined with relational and other data models within a single database. The architecture of GRAPHITE includes components for graph storage, logical and physical graph operators, a graph optimizer, and a graph traversal DSL called TraveL. Initial experimental results show that GRAPHITE can efficiently execute graph traversals and queries on graph data stored in an RDBMS.
More Related Content
Similar to GRAPHITE — An Extensible Graph Traversal Framework for RDBMS
GRAPHITE — An Extensible Graph Traversal Framework for RDBMS
- 1. GRAPHITE — AnExtensible Graph Traversal Framework for RDBMSMarcus Paradies (TU Dresden), March 18, 2015, 3rd Graph-TA Workshop

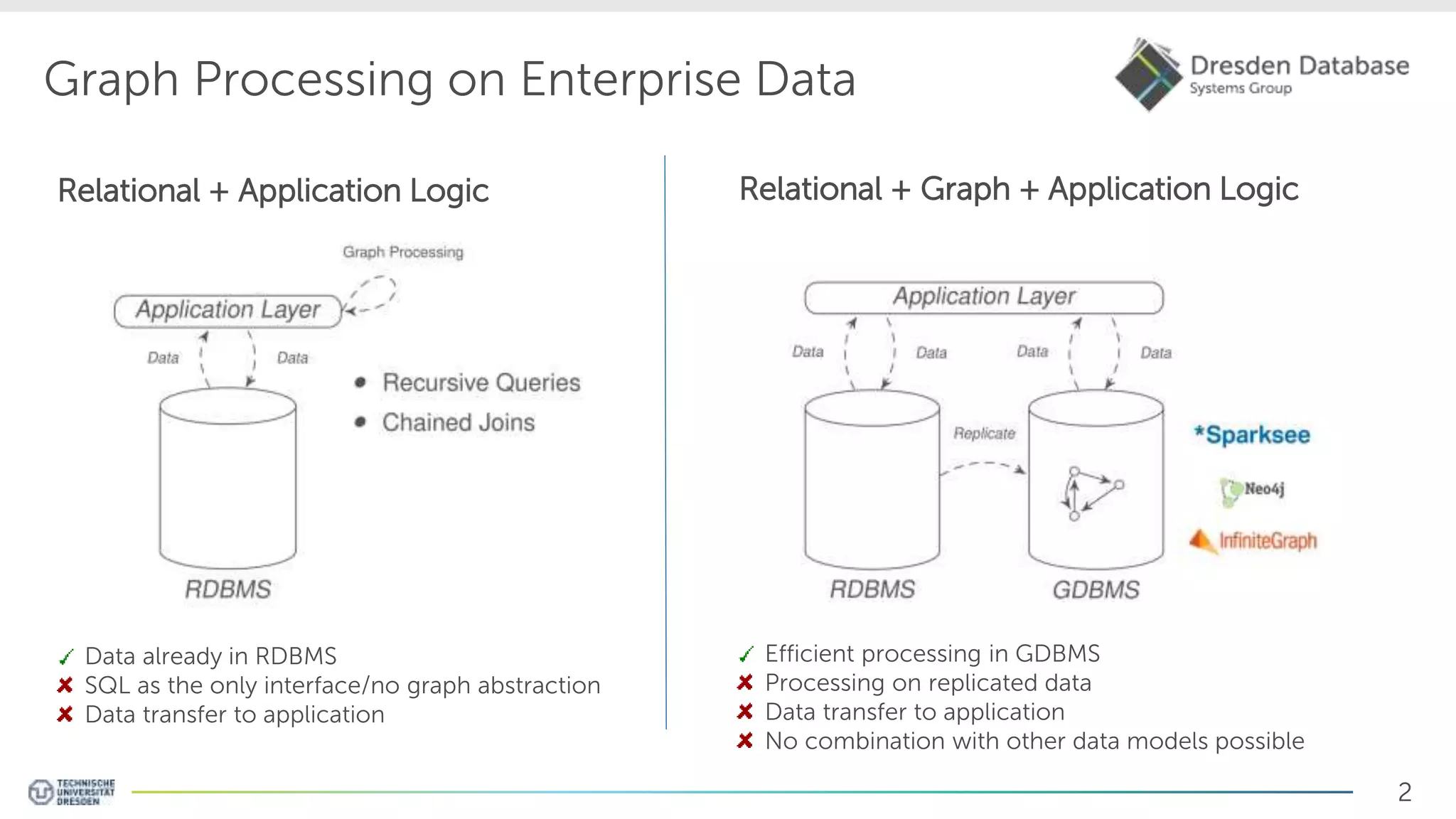

- 2. Graph Processing onEnterprise Data 2 Relational + Application Logic Relational + Graph + Application Logic Data already in RDBMS SQL as the only interface/no graph abstraction Data transfer to application Efficient processing in GDBMS Processing on replicated data Data transfer to application No combination with other data models possible

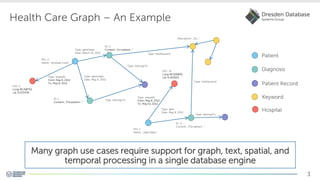

- 3. Many graph usecases require support for graph, text, spatial, and temporal processing in a single database engine 3 Patient Diagnosis Patient Record Type: getsDiagn Date: March 16, 2015 Type: getsDiagn Date: May 6, 2012 Type: belongsTo Type: belongsToID: 1 Content: „The patient...“ ID: 2 Content: „For patient…“ Type: gets Date: May 8, 2012 Type: belongsTo ID: 3 Content: „The patient...“ PID: 1 Name: „Jake Maier“ PID: 2 Name: „Andreas Cook“ Hospital Keyword Type: hasKeyword Type: hasKeyword Description: „Flu..“ Type: stayedIn From: May 6, 2012 To: May 8, 2012 Type: stayedIn From: May 8, 2012 To: May 10, 2012 HID: 2 Long:49.398752 Lat: 8.672434 HID: 33 Long:49.006890 Lat: 8.403653 Health Care Graph – An Example
- 4. Integration of GraphProcessing into an RDBMS How could a deep integration of graph functionality into a RDBMS look like? GRAPHITE is a native graph engine with graph operators that are freely combinable with other plan operators 4
- 5. Architecture of GRAPHITE GraphStorage Graph Index Structures Physical Graph Operators Logical Graph Operators Graph Statistics Graph Optimizer TraveL TraveL Compiler Graph API 5
- 6. Initial Experimental Results 6 ExperimentalResults for BFS Traversals Experimental Results for LDBC Query 1
- 7. Columnar Graph Storage Alldata types available in the RDBMS can be used as vertex/edge attributes 7
- 8. Graph Traversal Operators 8 Fragmented-IncrementalTraversal (FI-Traversal)
- 9. TraveL – ADSL for Graph Traversals 9 Code GenerationExample Query
- 10. Contact Marcus Paradies, TUDresden marcus.paradies@gmail.com https://wwwdb.inf.tu-dresden.de/team/external-members/marcus-paradies/
