Introduction to Graph Databases with detailed installation steps, cypher query language examples, demos and visualization tools like RedisInsight. It also contains benchmarks for RedisGraph against Tigergraph, neo4j, neptune, Janusgraph and Arangodb. I mentions differences between native and non-native graph databases. It contains usecases for the graph databases and provides a score for selecting graph DB over traditional SQL and NoSQL DBs.

1. GraphDB & RedisGraph
Presented by :
Md. Farhan Memon
Presented at :
Mumbai Redis Meetup
Mar 07, 2020

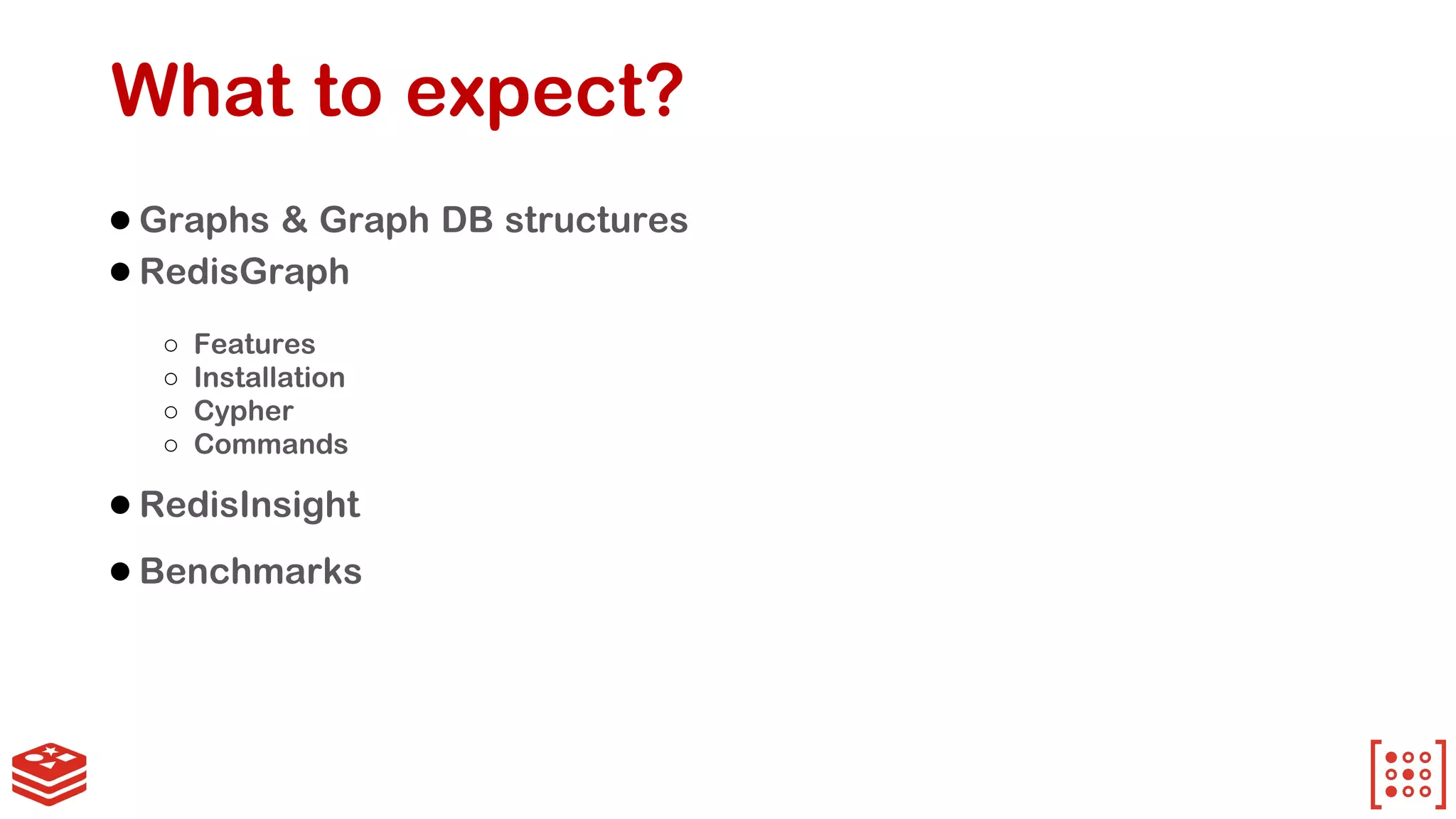

2. What to expect?
●Graphs & Graph DB structures
●RedisGraph
○ Features
○ Installation
○ Cypher
○ Commands
●RedisInsight
●Benchmarks

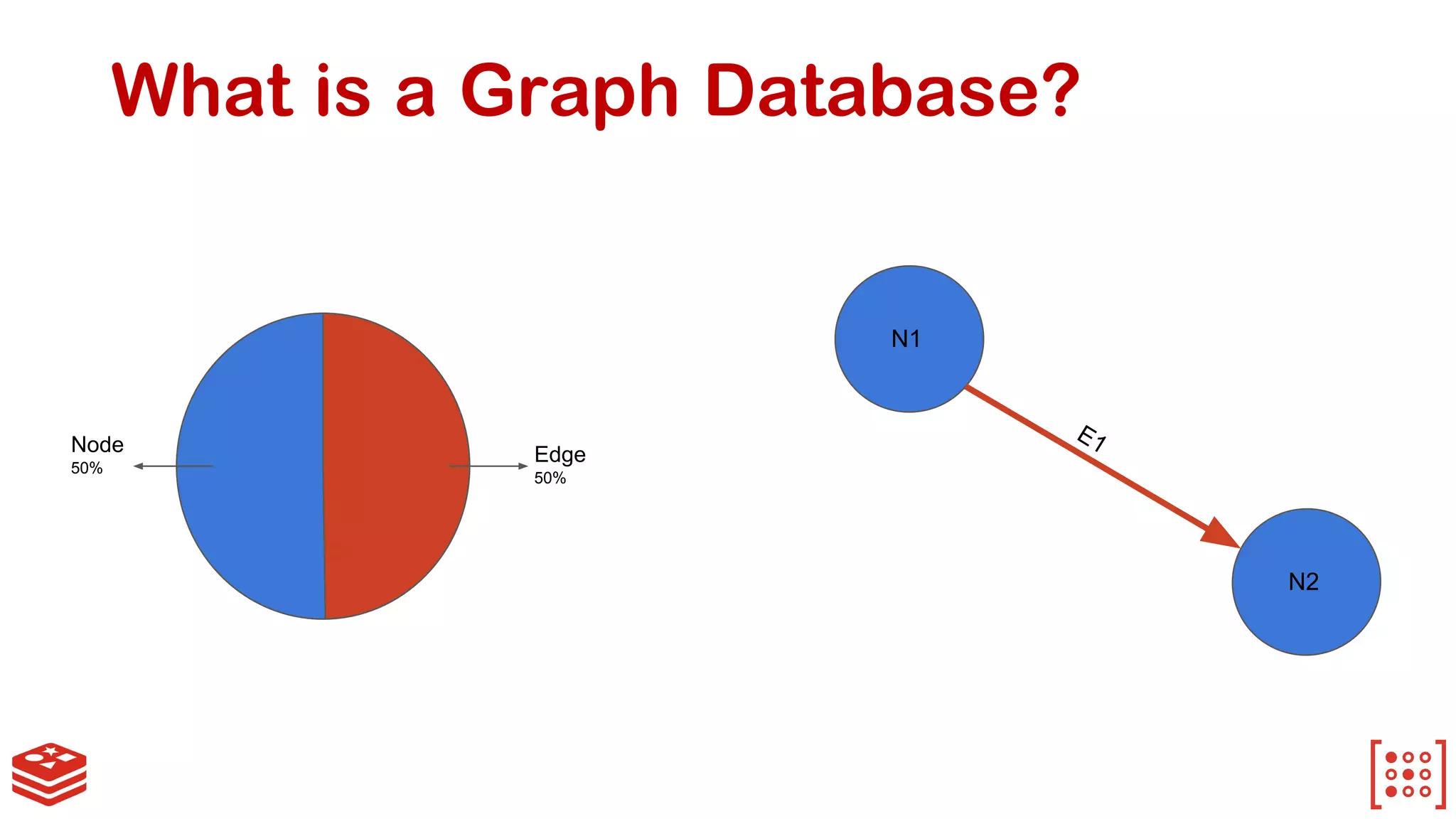

3. What is a Graph Database?
Node
50%
Edge
50%
N1
E1
N2

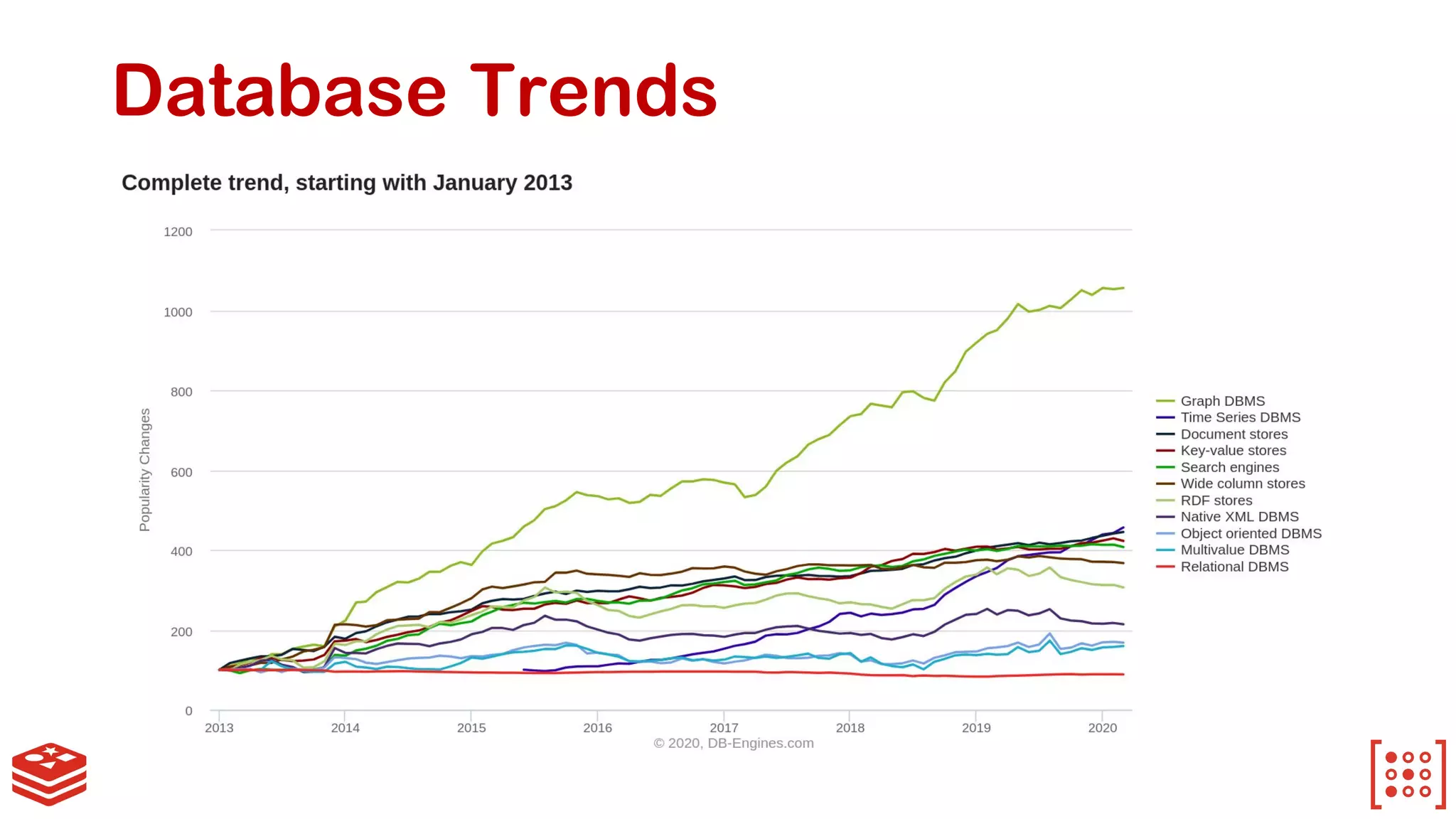

4. Database Trends

5. Database Structure

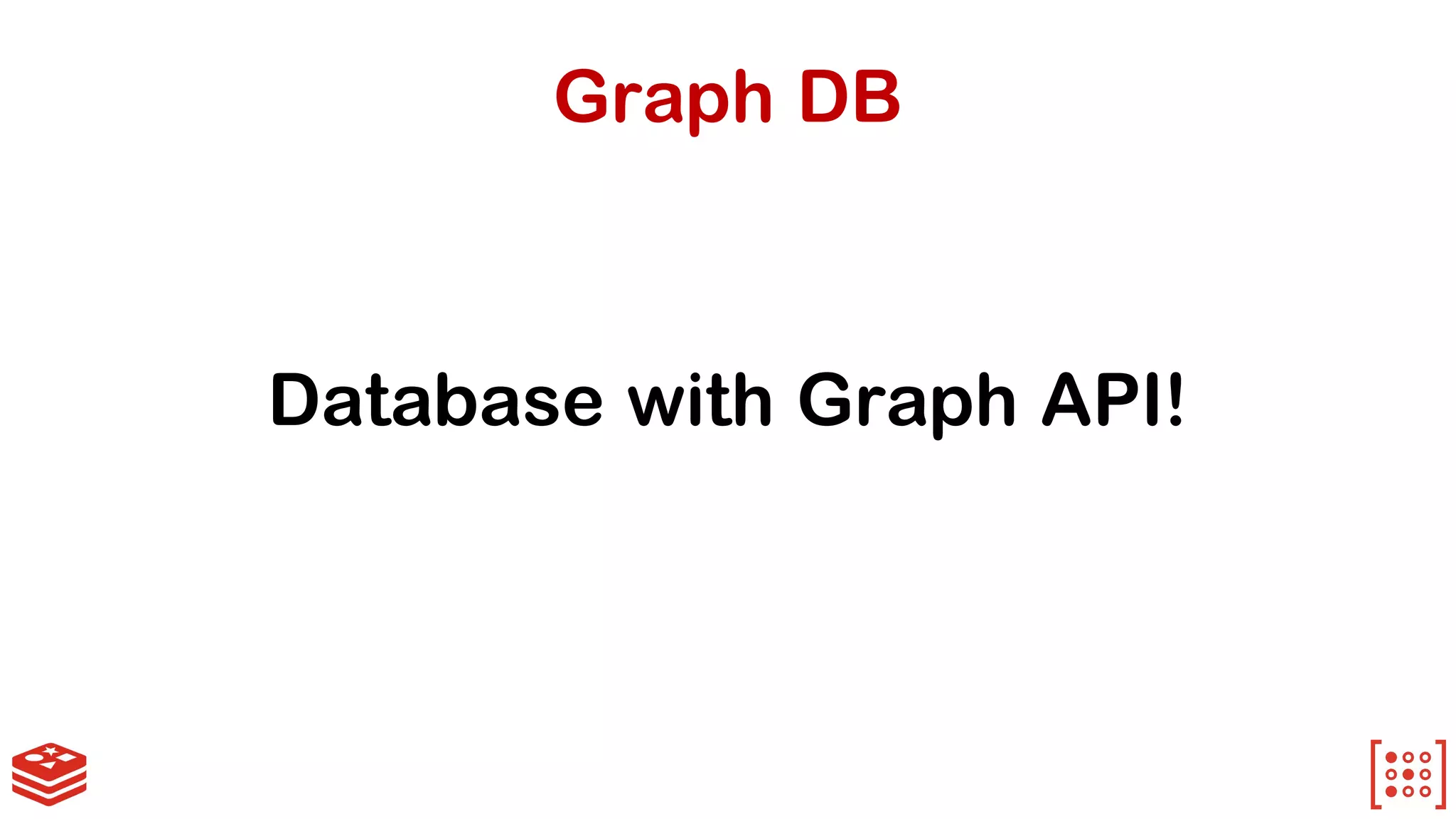

6. Database with Graph API!
Graph DB

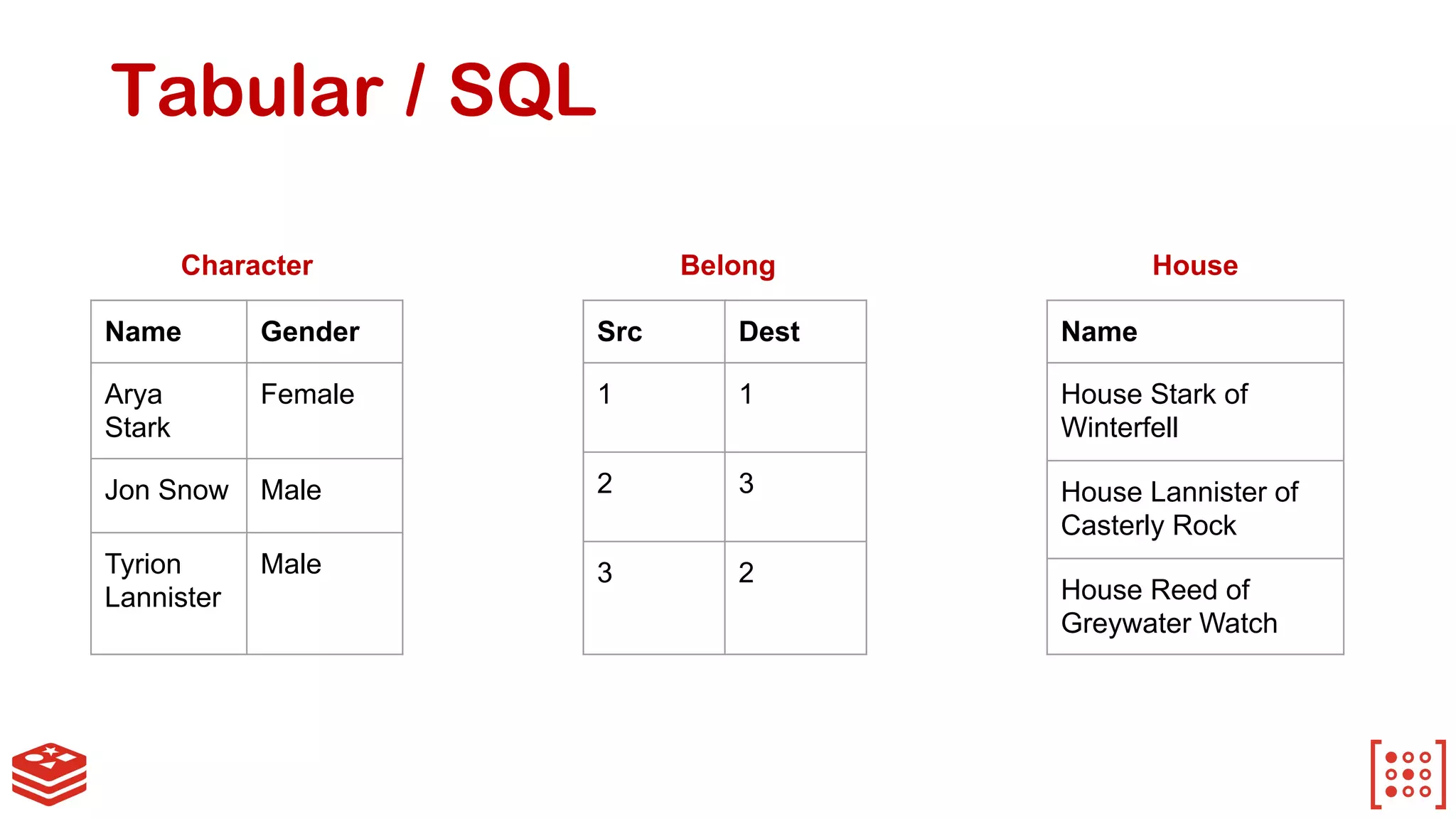

7. Tabular / SQL
Name Gender
Arya
Stark
Female
Jon Snow Male
Tyrion
Lannister
Male
Src Dest
1 1
2 3
3 2
Name
House Stark of
Winterfell
House Lannister of
Casterly Rock
House Reed of
Greywater Watch
Character Belong House

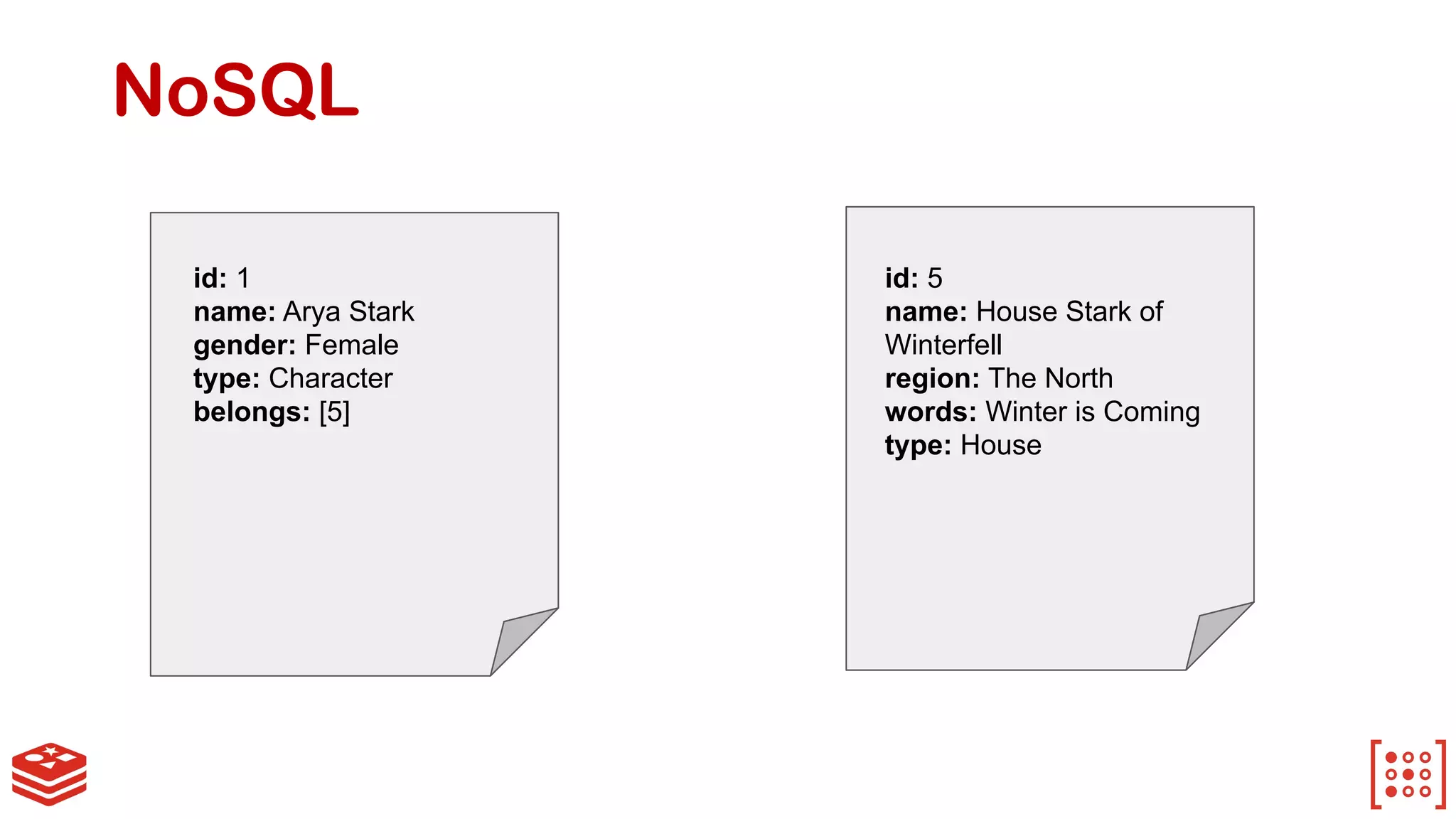

8. NoSQL
id: 1
name: Arya Stark
gender: Female
type: Character
belongs: [5]
id: 5
name: House Stark of
Winterfell
region: The North
words: Winter is Coming
type: House

9. Graph DB
+
Index-free Adjacency
Graph Native DB

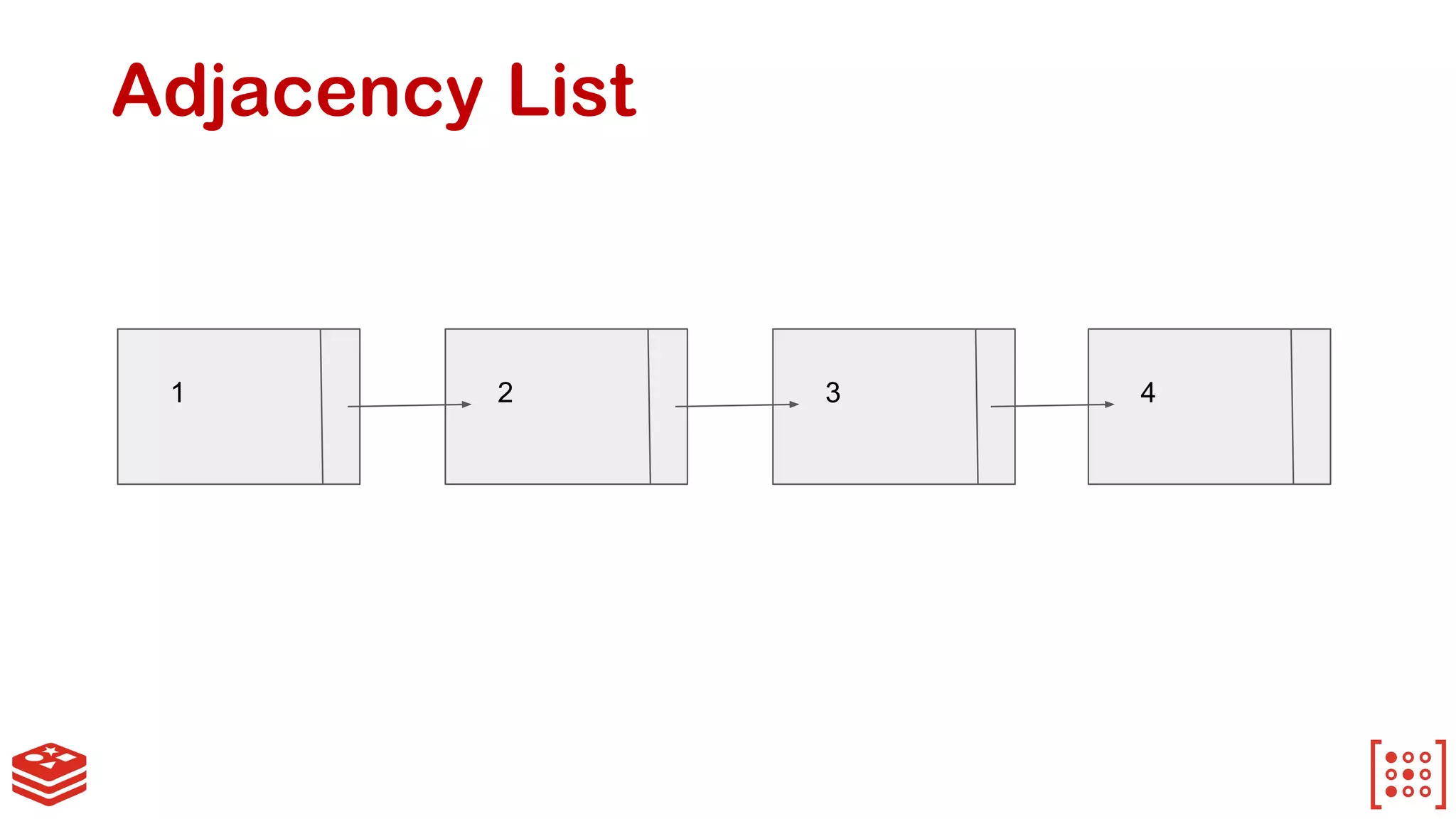

10. Adjacency List
1 432

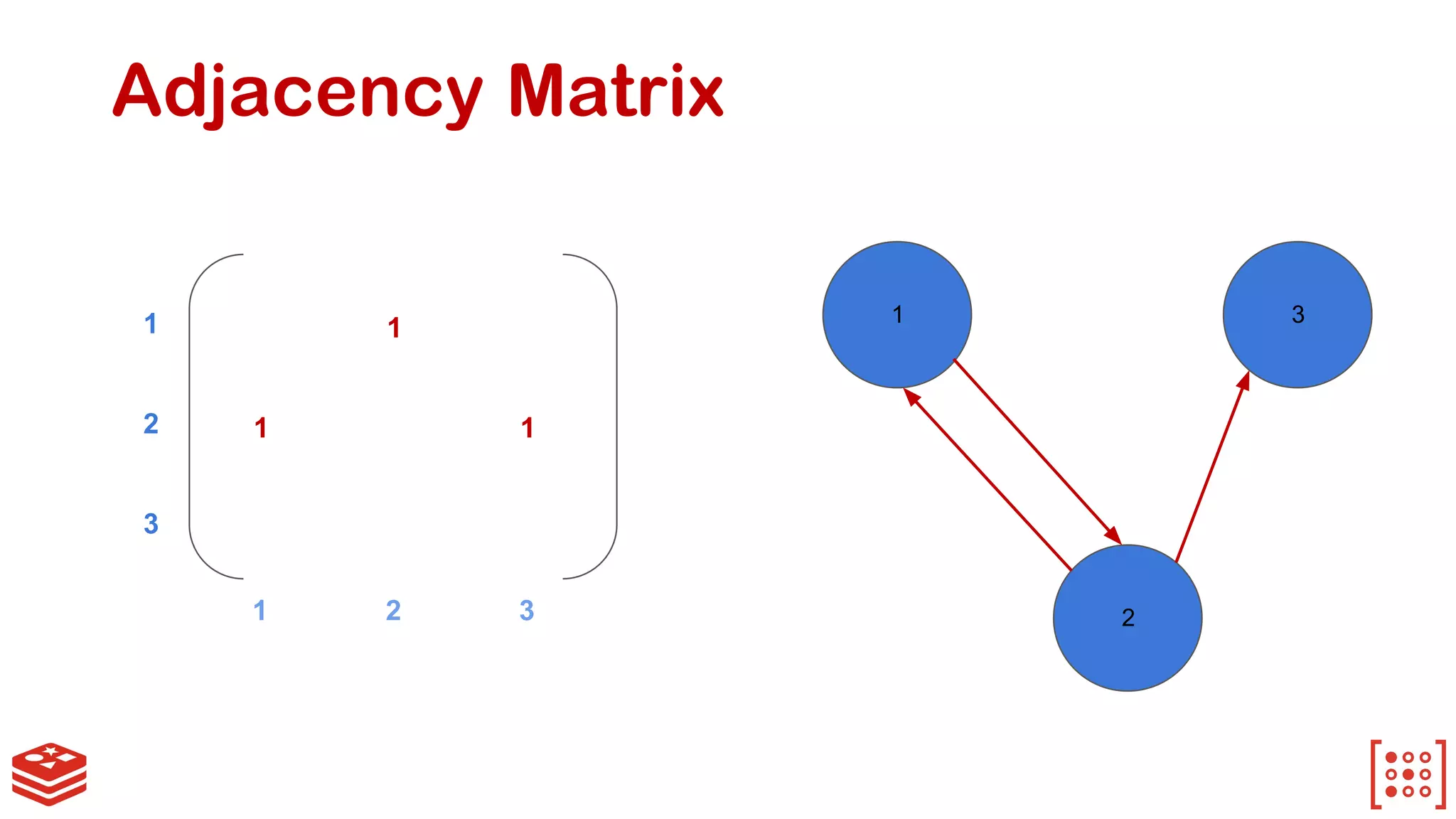

11. Adjacency Matrix
1
2
3
1 2 3
1
1 1
1
2
3

12. RedisGraph

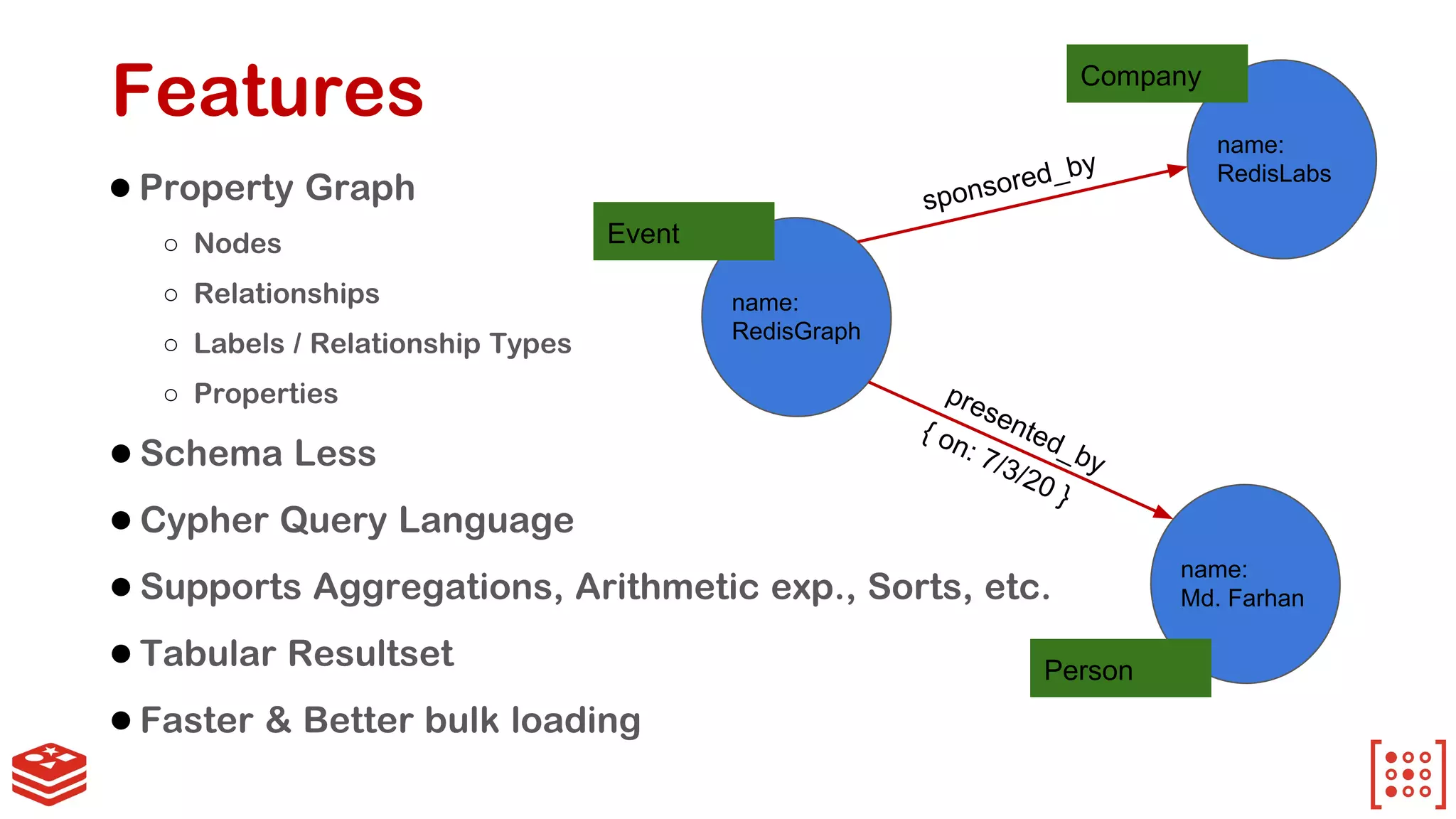

13. Features
●Property Graph
○ Nodes
○ Relationships
○ Labels / Relationship Types
○ Properties
name:
RedisGraph
name:
RedisLabs
name:
Md. Farhan
Event
Company
Person
sponsored_by
presented_by
{ on: 7/3/20 }
●Schema Less
●Cypher Query Language
●Supports Aggregations, Arithmetic exp., Sorts, etc.
●Tabular Resultset
●Faster & Better bulk loading

14. Installation

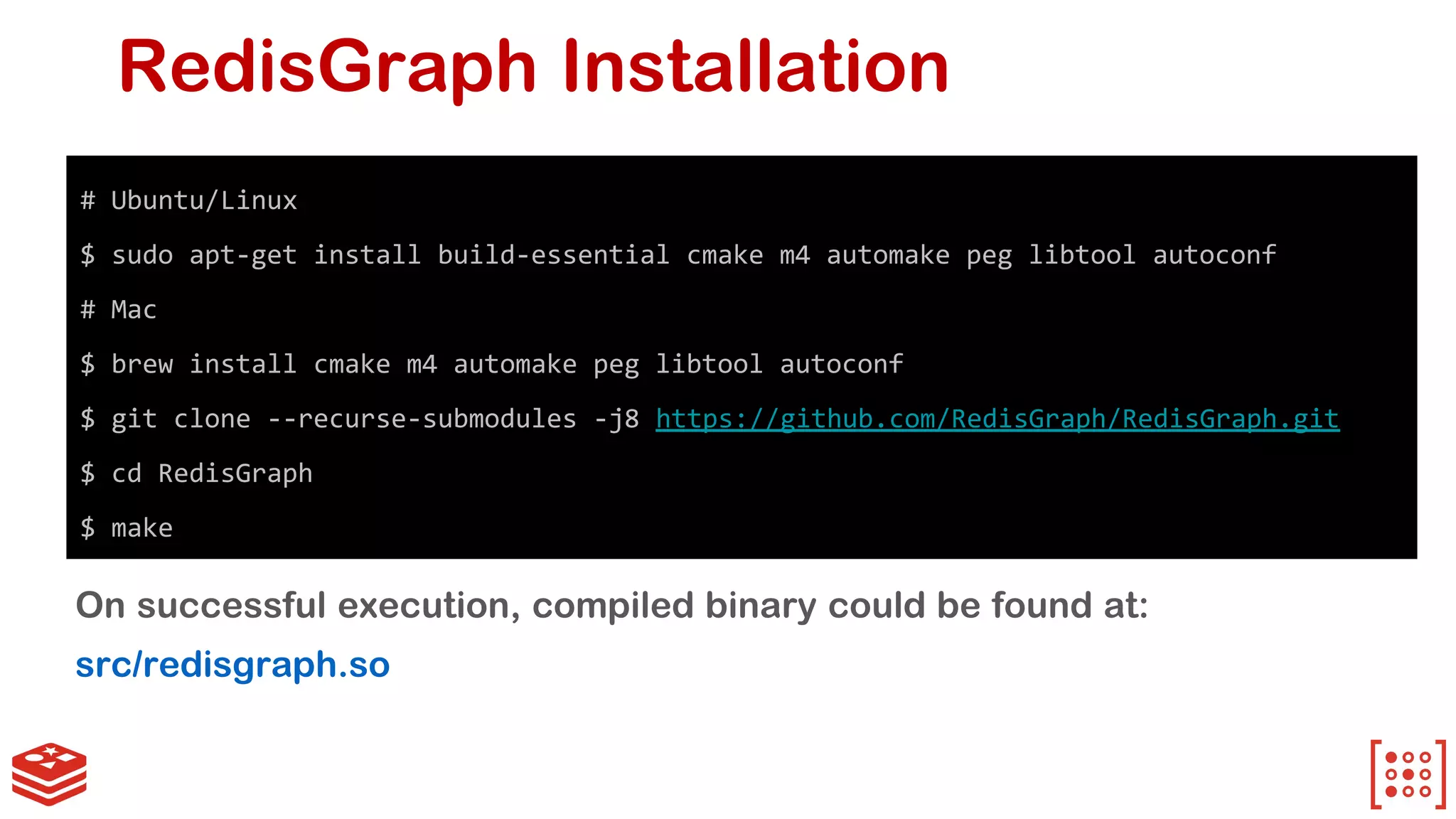

15. RedisGraph Installation
# Ubuntu/Linux
$ sudo apt-get install build-essential cmake m4 automake peg libtool autoconf
# Mac
$ brew install cmake m4 automake peg libtool autoconf
$ git clone --recurse-submodules -j8 https://github.com/RedisGraph/RedisGraph.git
$ cd RedisGraph
$ make
On successful execution, compiled binary could be found at:
src/redisgraph.so

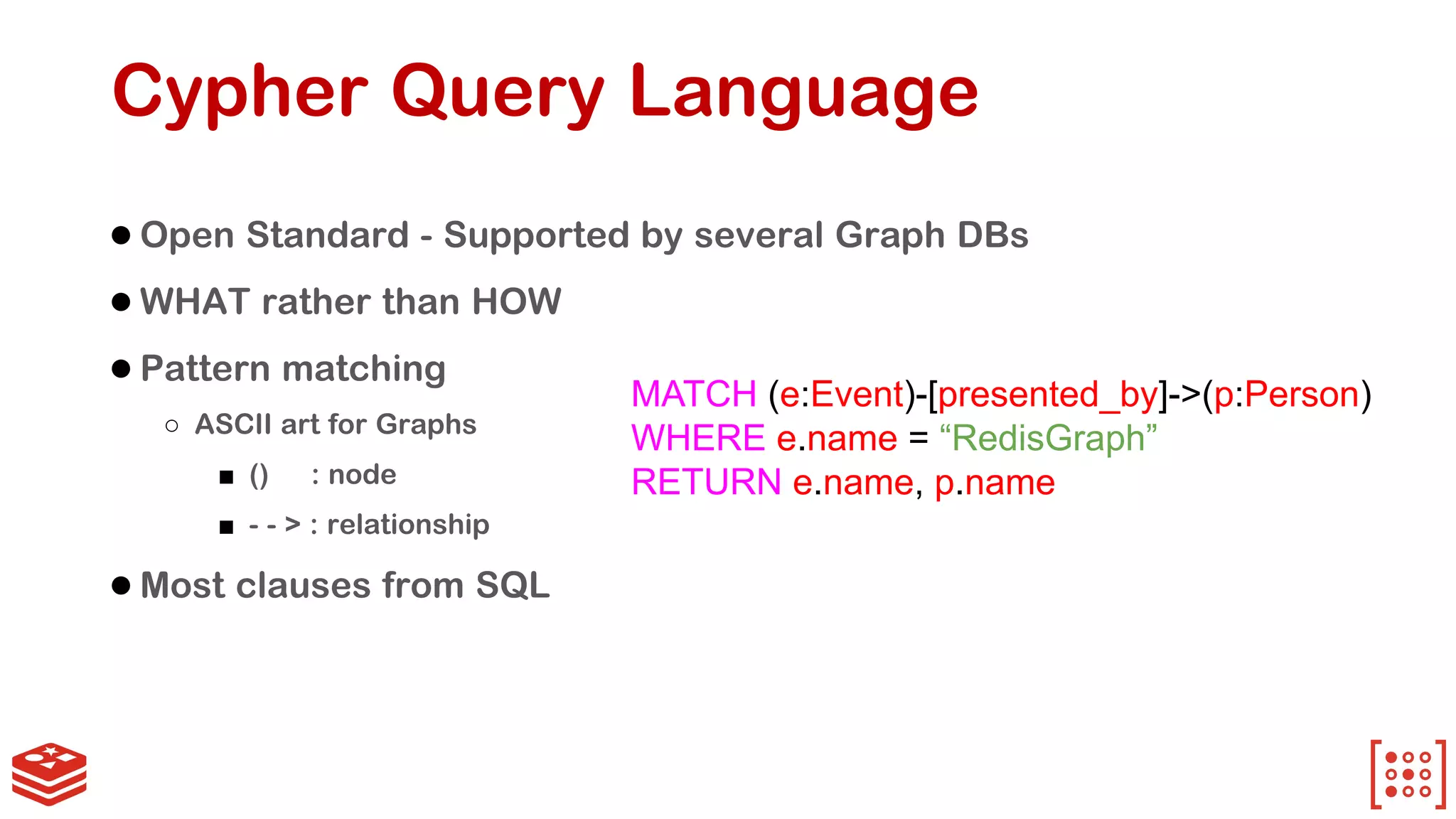

16. Cypher Query Language
●Open Standard - Supported by several Graph DBs
●WHAT rather than HOW
●Pattern matching
○ ASCII art for Graphs
■ () : node
■ - - > : relationship
●Most clauses from SQL
MATCH (e:Event)-[presented_by]->(p:Person)
WHERE e.name = “RedisGraph”
RETURN e.name, p.name

17. Commands

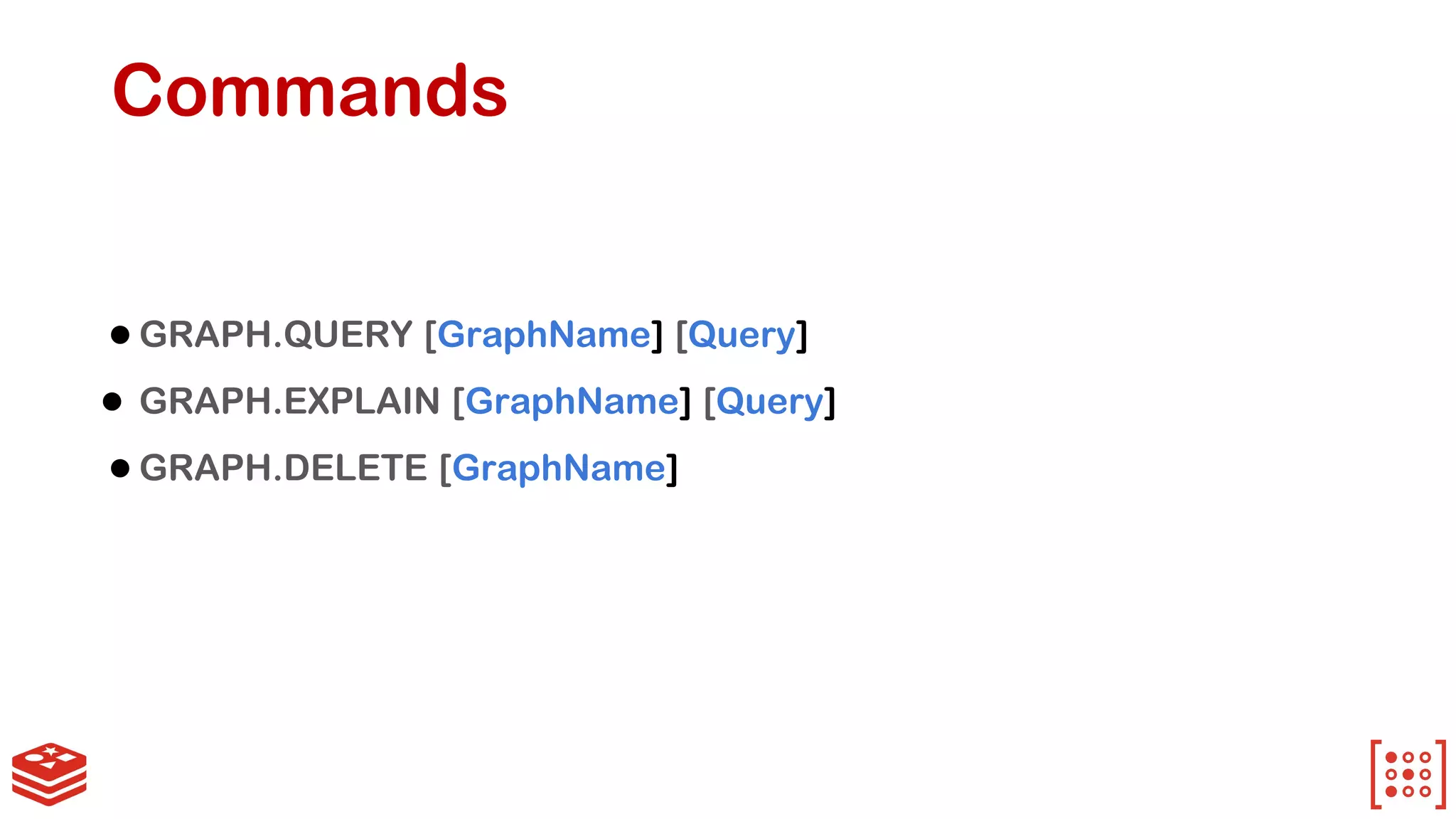

18. Commands
●GRAPH.QUERY [GraphName] [Query]
● GRAPH.EXPLAIN [GraphName] [Query]
●GRAPH.DELETE [GraphName]

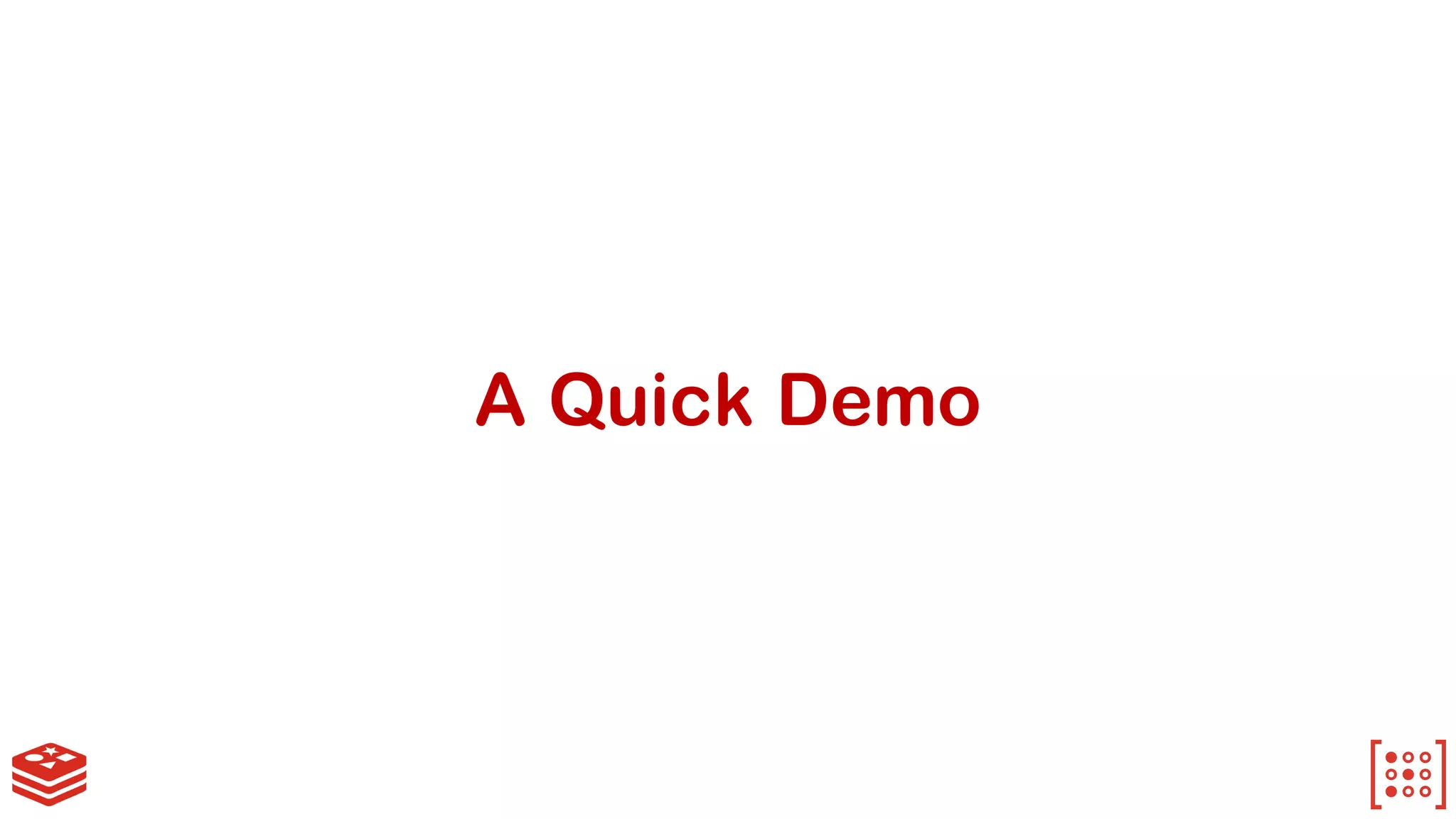

19. A Quick Demo

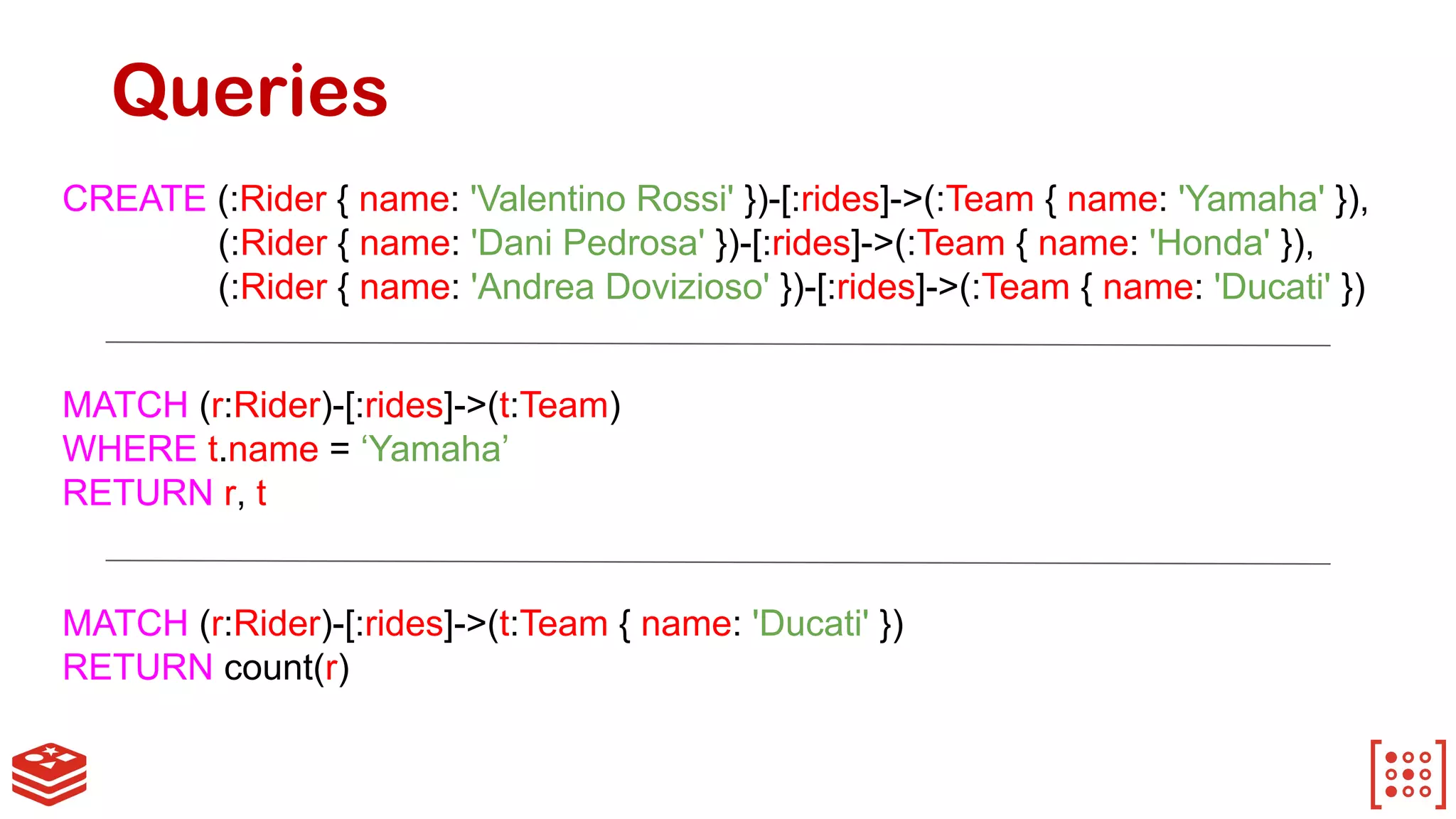

20. CREATE (:Rider { name: 'Valentino Rossi' })-[:rides]->(:Team { name: 'Yamaha' }),
(:Rider { name: 'Dani Pedrosa' })-[:rides]->(:Team { name: 'Honda' }),
(:Rider { name: 'Andrea Dovizioso' })-[:rides]->(:Team { name: 'Ducati' })
MATCH (r:Rider)-[:rides]->(t:Team)
WHERE t.name = ‘Yamaha’
RETURN r, t
MATCH (r:Rider)-[:rides]->(t:Team { name: 'Ducati' })
RETURN count(r)
Queries

21. Graph Visualisation

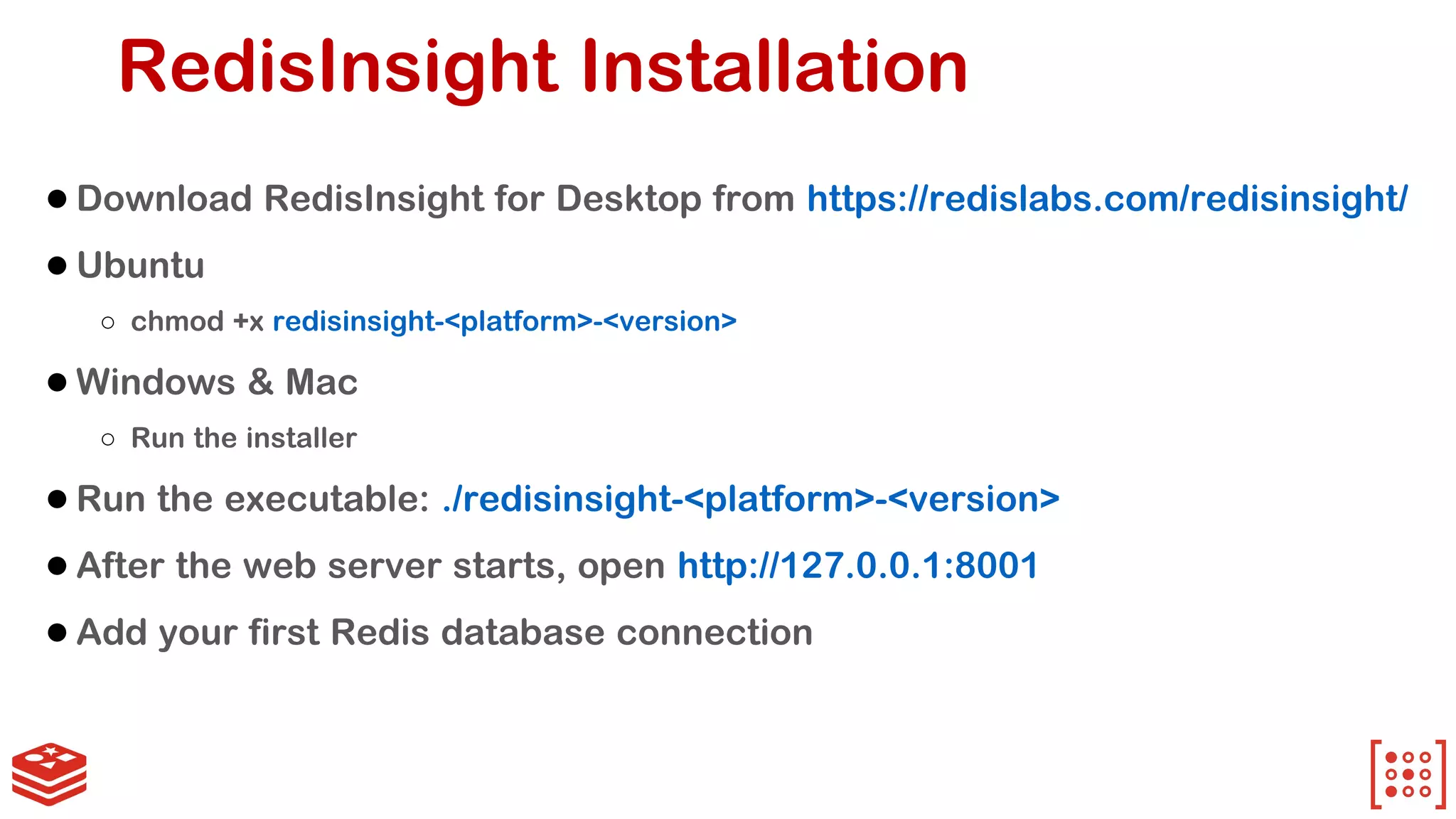

22. RedisInsight Installation
●Download RedisInsight for Desktop from https://redislabs.com/redisinsight/
●Ubuntu
○ chmod +x redisinsight-<platform>-<version>
●Windows & Mac
○ Run the installer
●Run the executable: ./redisinsight-<platform>-<version>
●After the web server starts, open http://127.0.0.1:8001
●Add your first Redis database connection

23. Game of Thrones
-
Visualising the Complex Game

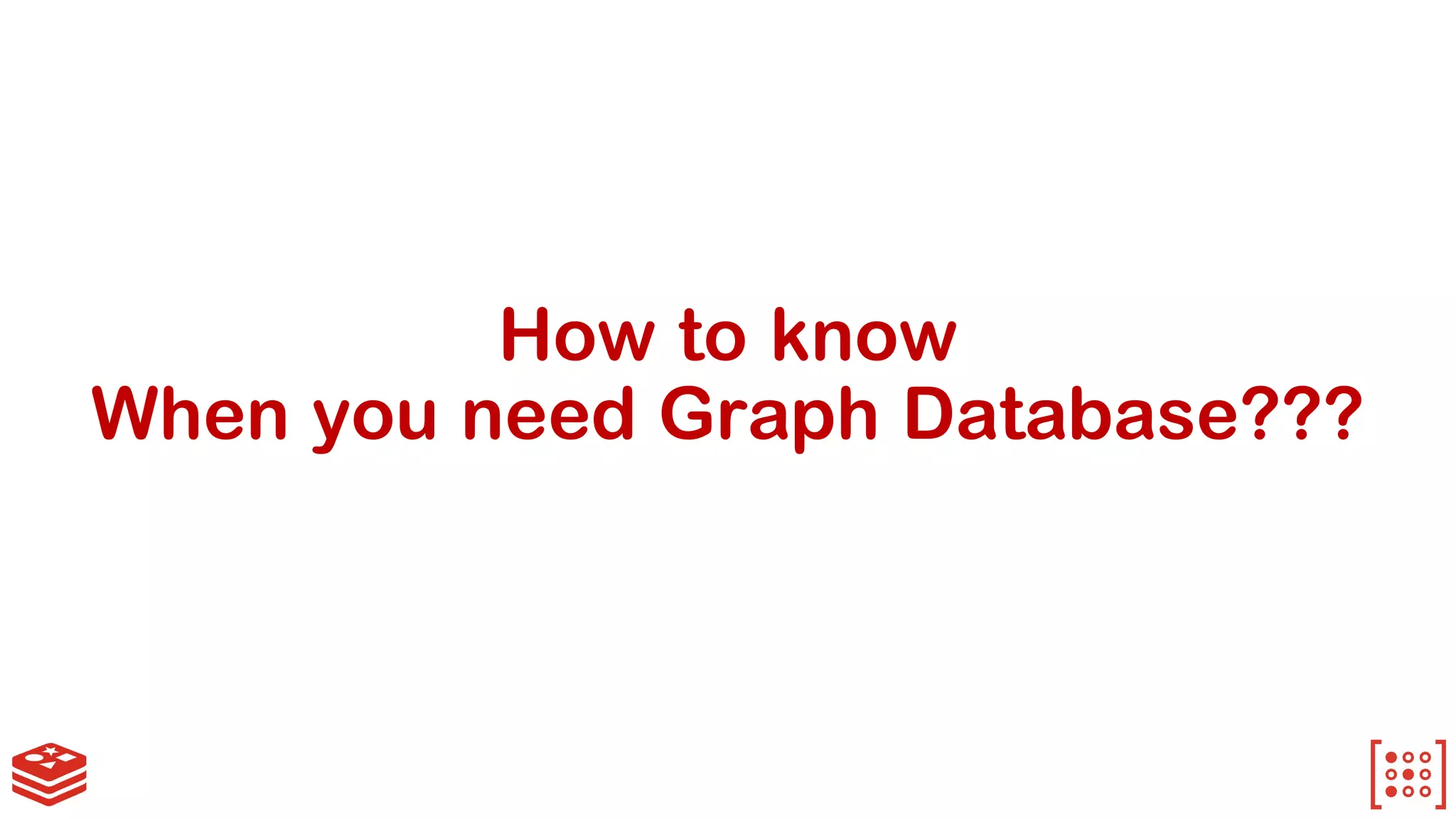

24. How to know
When you need Graph Database???

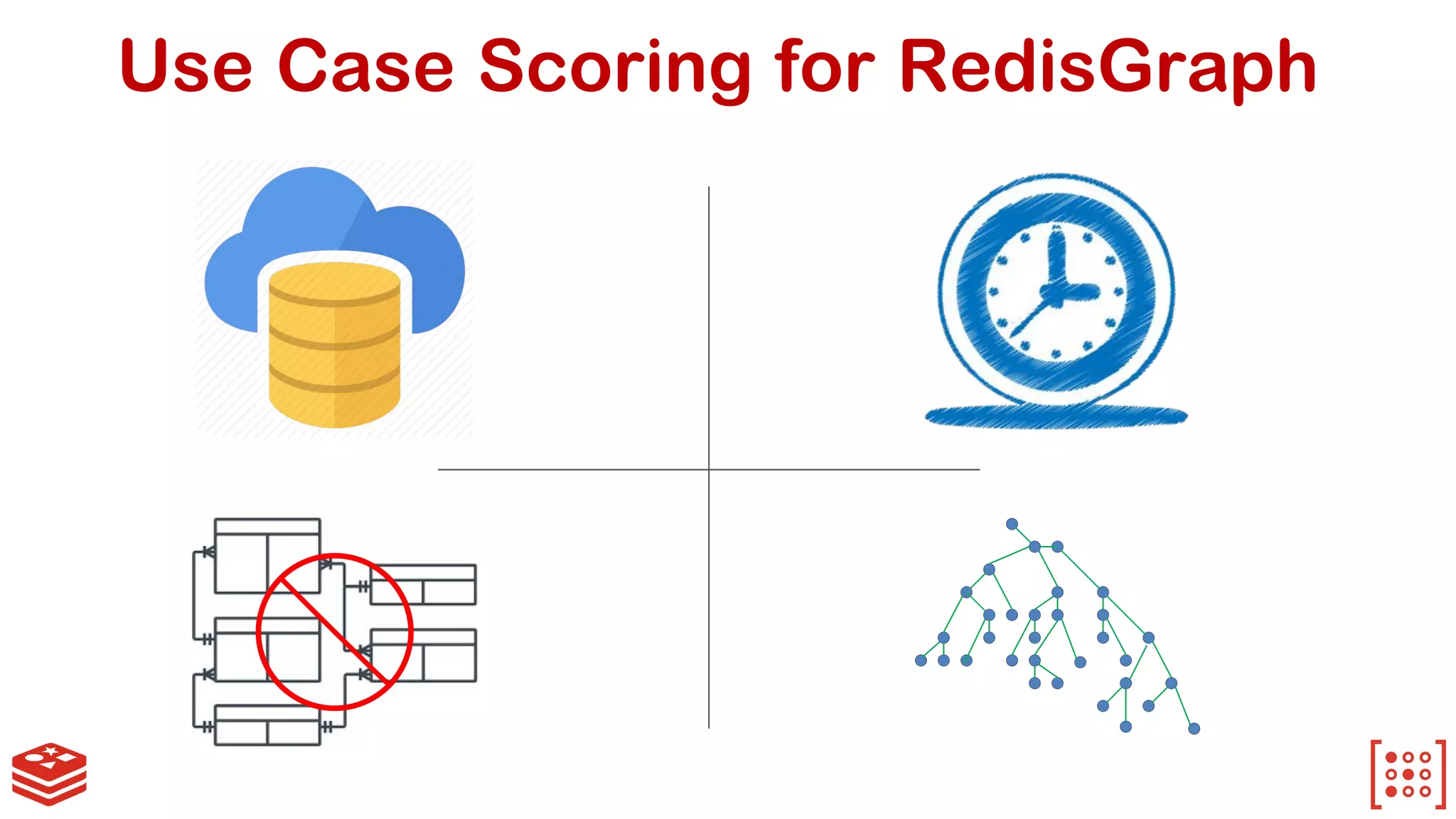

25. Use Case Scoring for RedisGraph

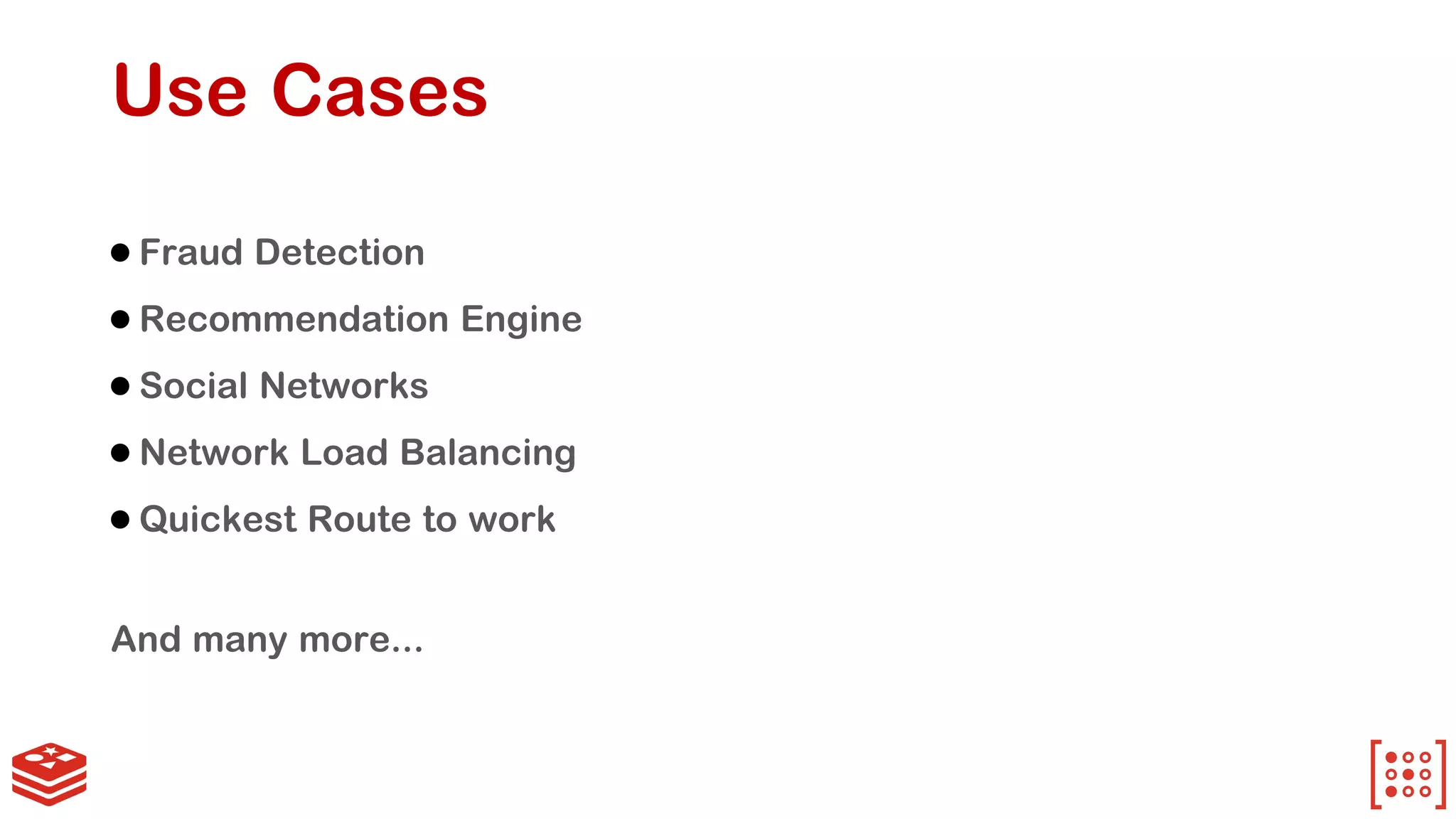

26. Use Cases
●Fraud Detection
●Recommendation Engine
●Social Networks
●Network Load Balancing
●Quickest Route to work
And many more...

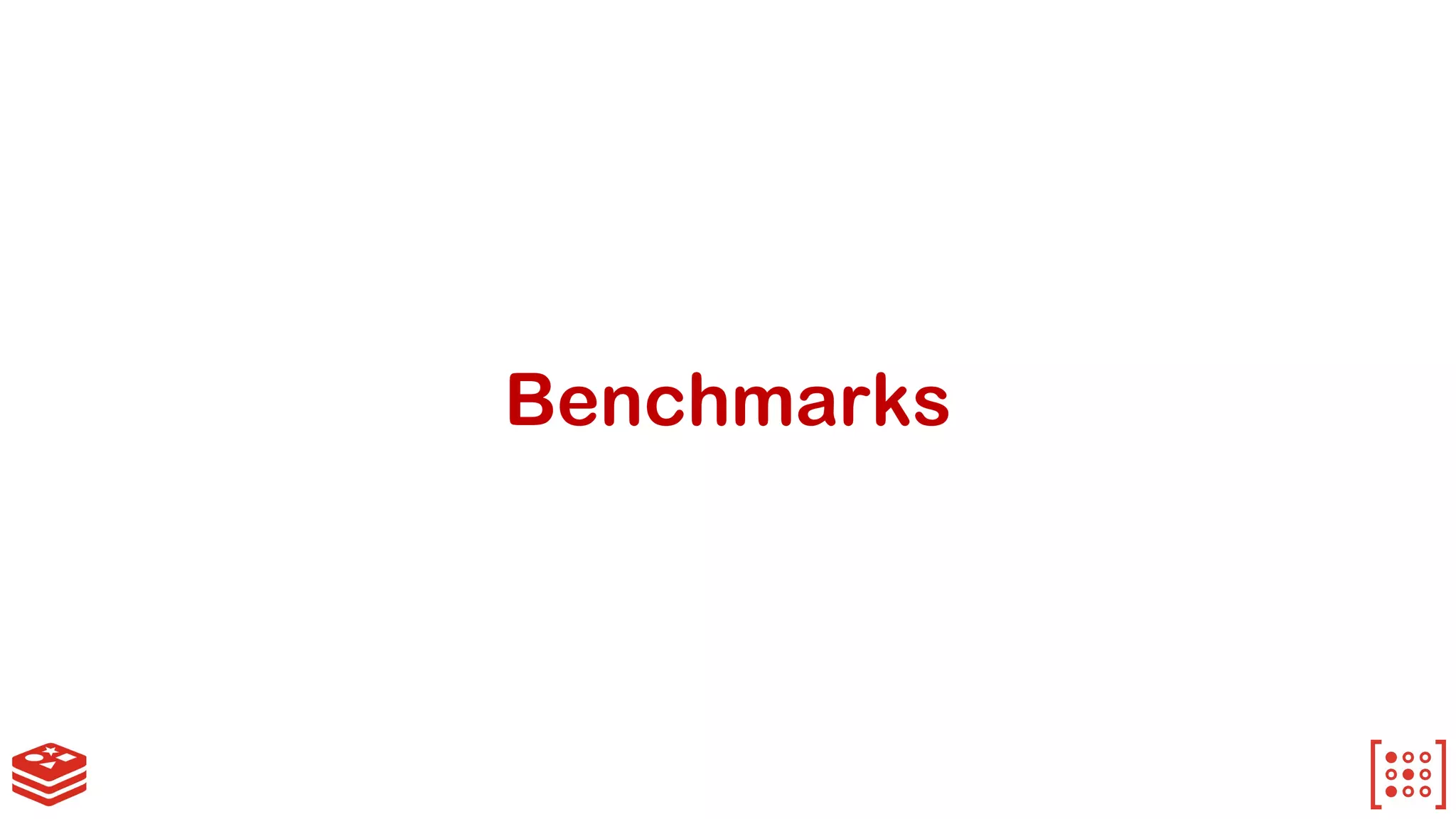

27. Benchmarks

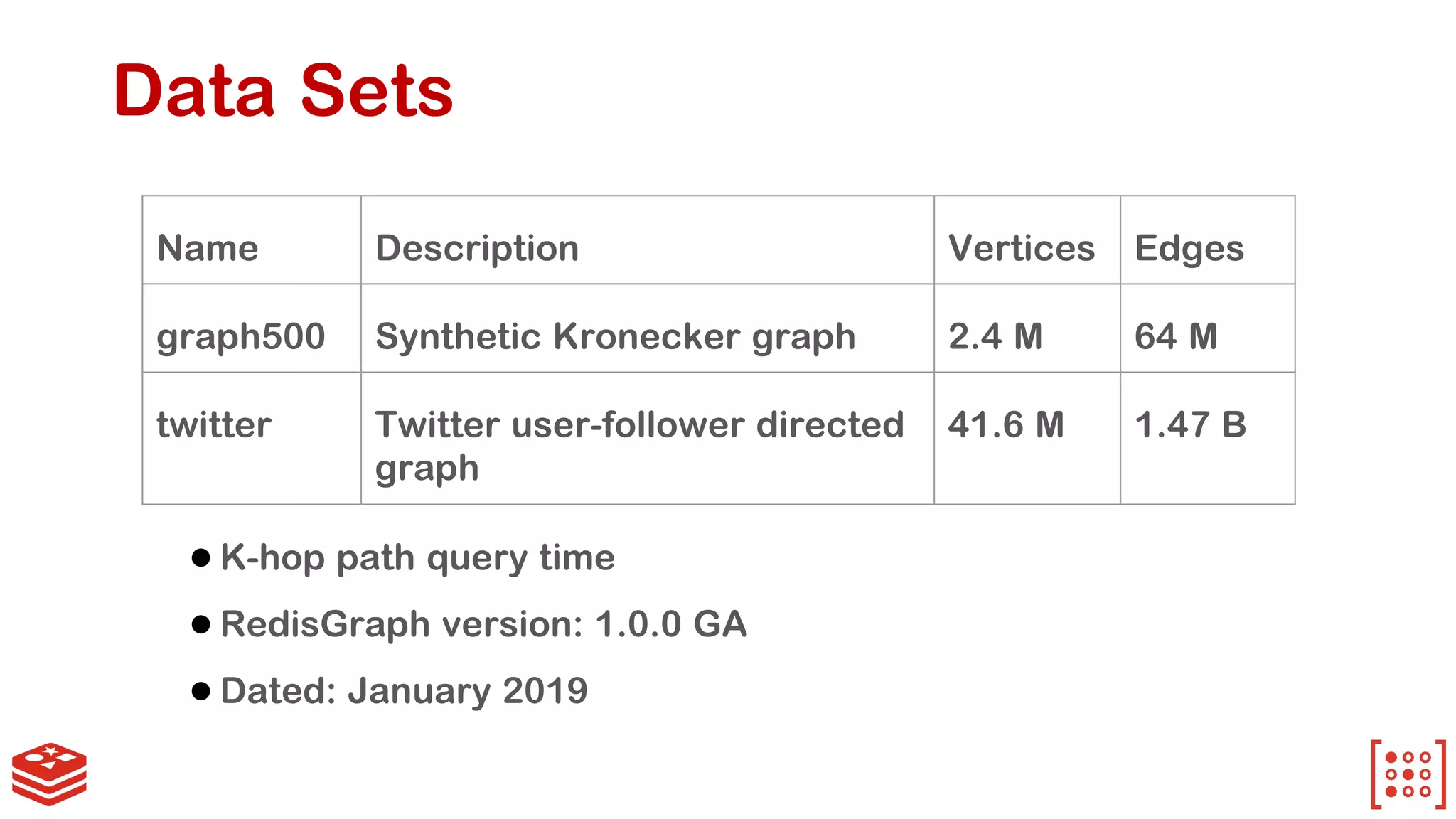

28. Data Sets
Name Description Vertices Edges
graph500 Synthetic Kronecker graph 2.4 M 64 M
twitter Twitter user-follower directed
graph
41.6 M 1.47 B
●K-hop path query time
●RedisGraph version: 1.0.0 GA
●Dated: January 2019

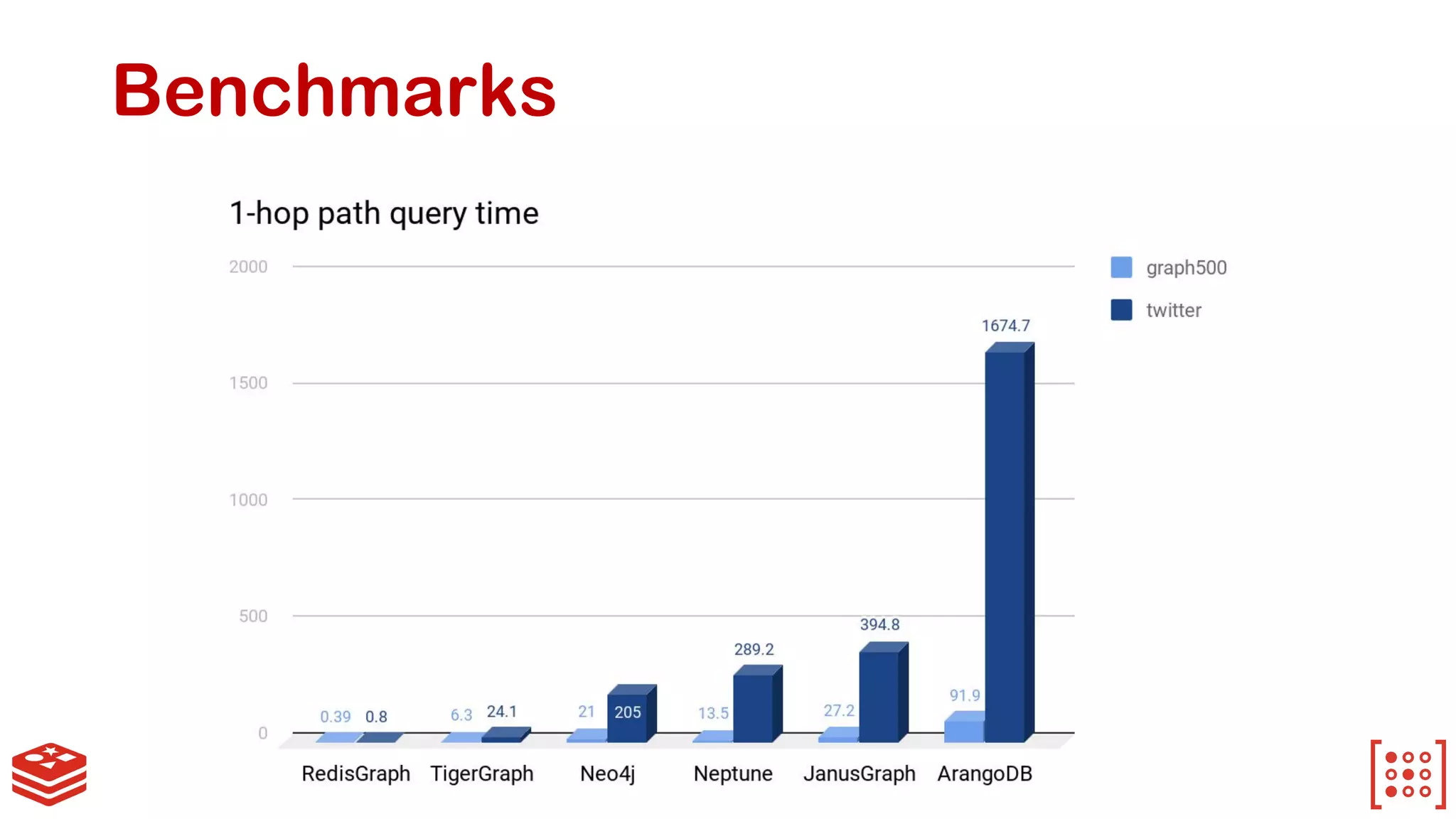

29. Benchmarks

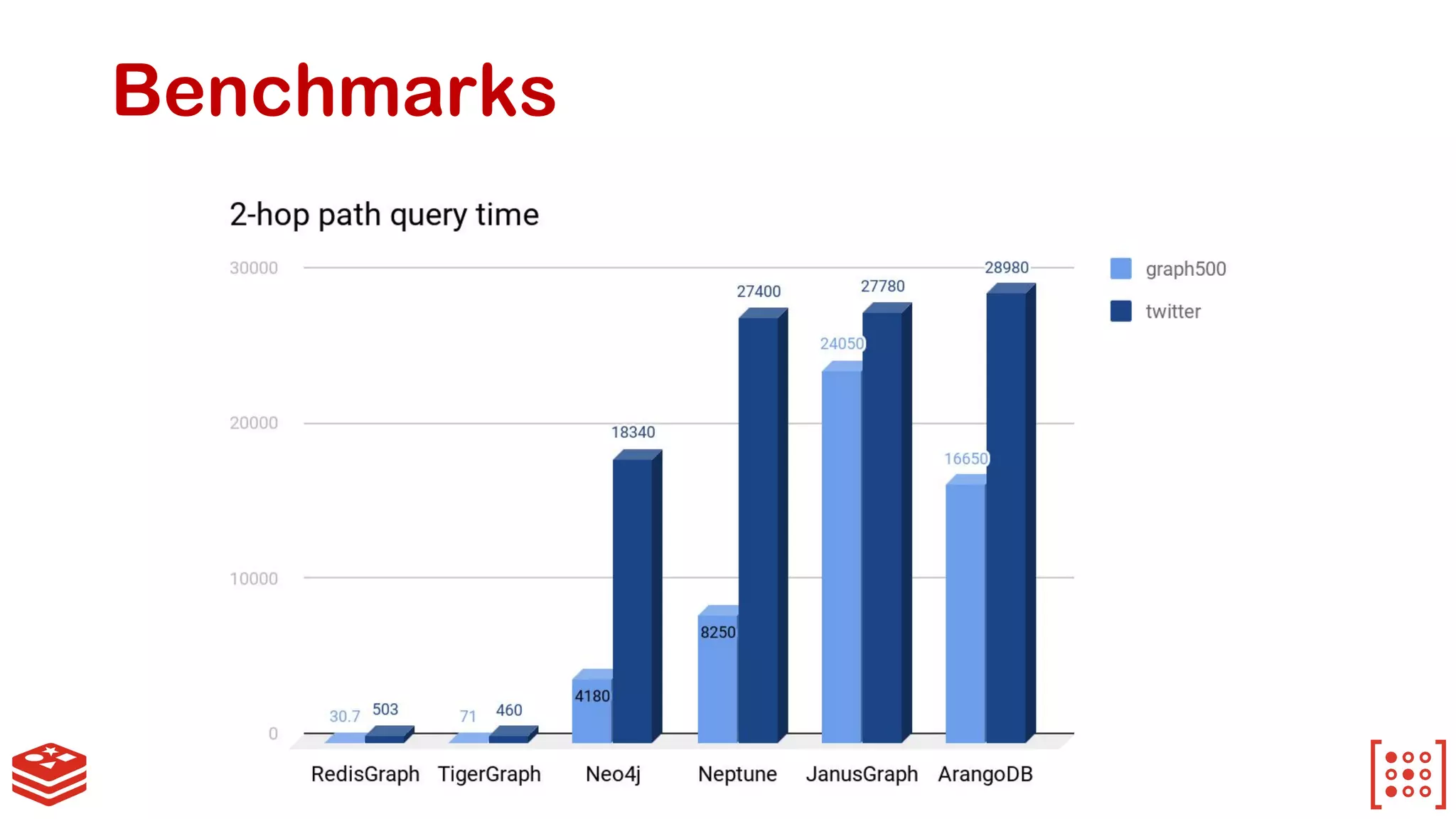

30. Benchmarks

31. Benchmarks

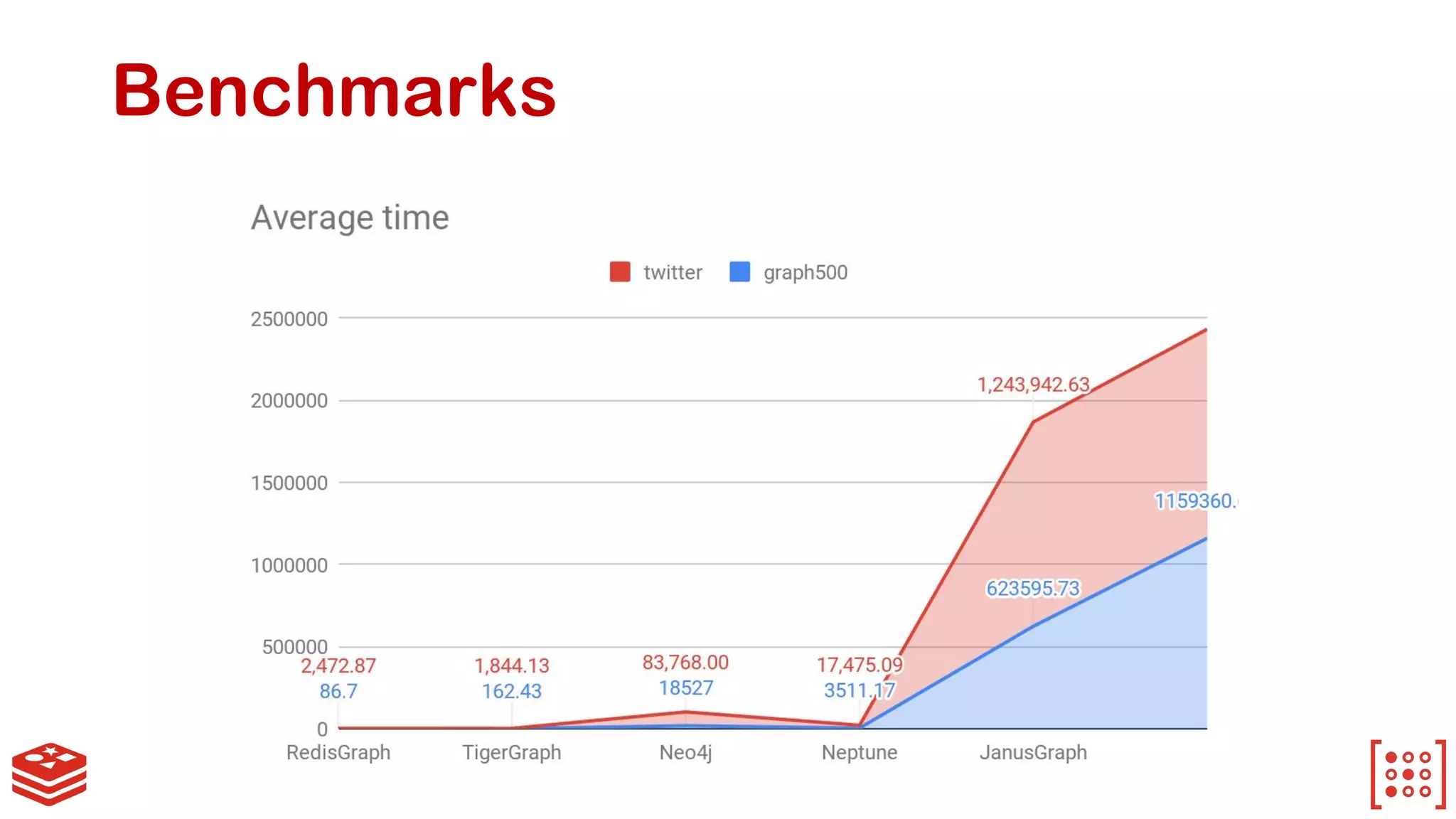

32. Benchmarks

33. Md. Farhan Memon
/mdfarhanmemon
#Redis #MumbaiRedisMeetup #RedisLabs #RedisGraph #BombayShirts
