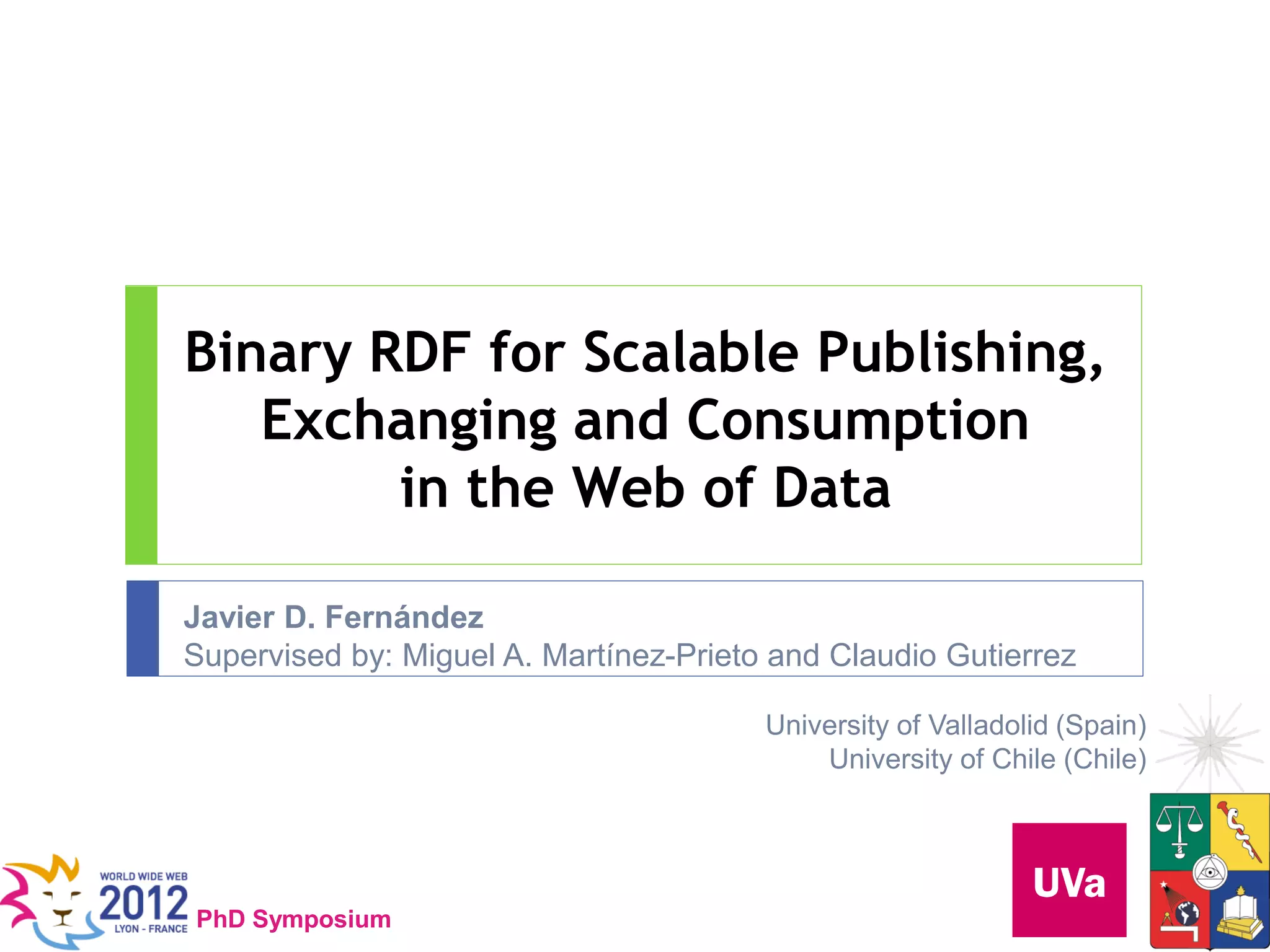

Binary RDF for Scalable Publishing,
   Exchanging and Consumption
        in the Web of Data

Javier D. Fernández
Supervised by: Miguel A. Martínez-Prieto and Claudio Gutierrez

                                        University of Valladolid (Spain)
                                            University of Chile (Chile)




PhD Symposium

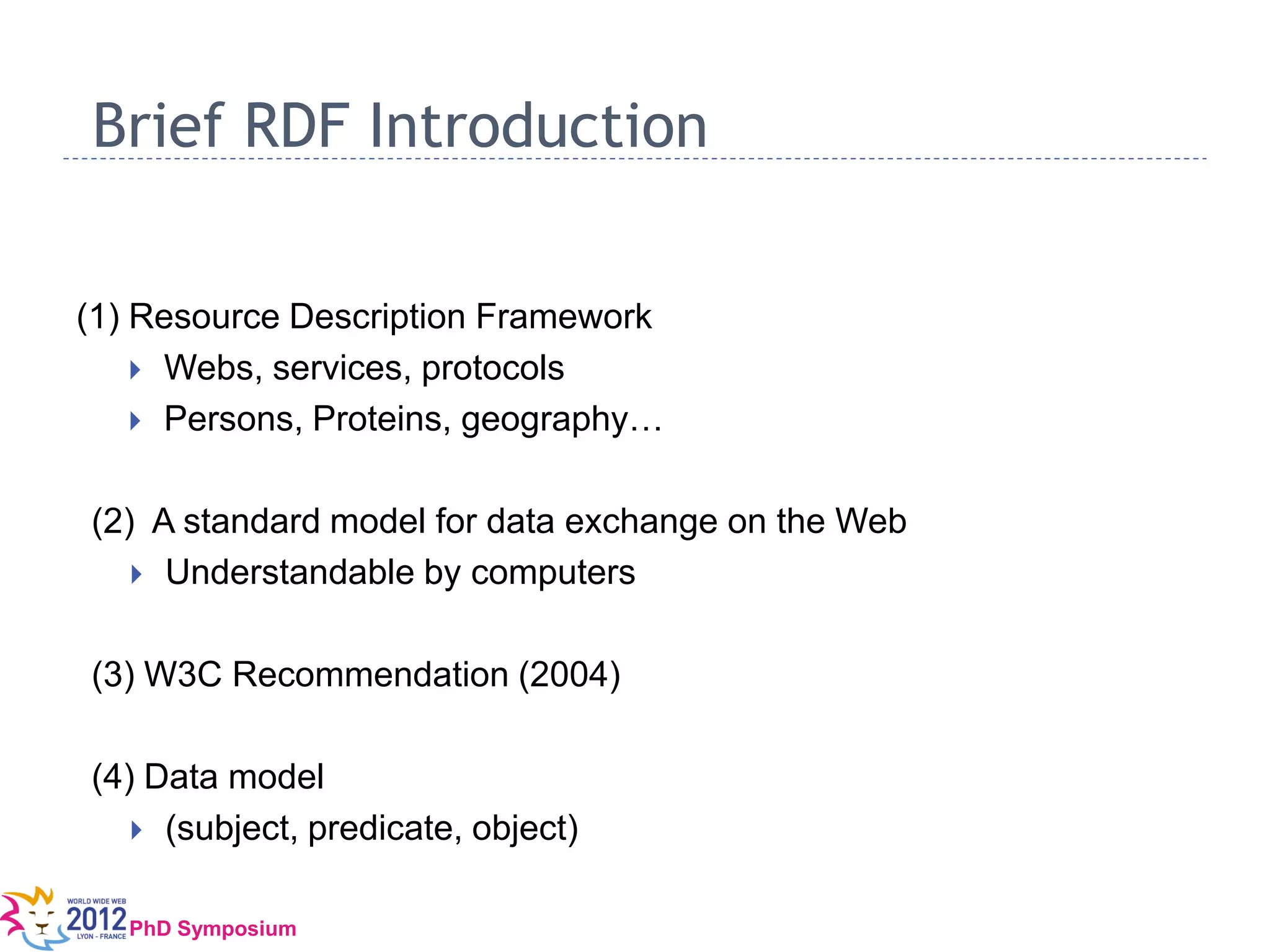

Brief RDF Introduction

(1) Resource Description Framework
     Webs, services, protocols
     Persons, Proteins, geography…


(2) A standard model for data exchange on the Web
    Understandable by computers


(3) W3C Recommendation (2004)

(4) Data model
    (subject, predicate, object)


   PhD Symposium
RDF Example
                                                                                           literal
Subject, Predicate, Object
(U,B) , U        , (U,B,L)
                                                                                   “Pablo Neruda”
                                                                URI
               URI                         URI



                                                                 <http://books/author33>

    <http://books/book21>

                                                                 “Spain in the Heart”




                 _collection                      <http://myblog/lectures>

                               lectures:to_read_list

       Blank

 PhD Symposium
1. Use URIs as names for things
2. Use HTTP URIs so that people can look up those names.
3. When someone looks up a URI, provide useful information, using the standards (RDF*, SPARQL)
4. Include links to other URIs, so that they can discover more things.




     Image:PhD Symposium
           Danilo Rizzuti / FreeDigitalPhotos.net
Image:PhD Symposium
      Danilo Rizzuti / FreeDigitalPhotos.net
Scalability problems



                    DBPedia (en)   233 M.triples   ~ 33 GB
                    Uniprot        845     “       ~ 230 GB



   Publish?
   Exchange?
   Process/Consume/Query?



    PhD Symposium
RDF Publication



                                                   dereferenceable URIs

                                     RDF dump
                  sensor
                                                SPARQL Endpoints/
                                                      APIs


 No Recommendations/methodology to publish at large scale
 Related Work: Some metadata for discovery, such as Void, Semantic
  Sitemaps.




  PhD Symposium
RDF Exchanging issues
 RDF/XML, N3, Turtle, JSON.
          Document-centric (verbose)  data-centric view (machine)
 No structure (chunks, universal compression)



 Related Work: Universal compression (gzip, bzip2) and the Efficient XML
  Interchange Format (EXI).




Image:PhD krishnan / FreeDigitalPhotos.net
      renjith Symposium
RDF Processing/Consumption (After Exchanging)
 Costly Post-processing
          Decompression
          Indexing (RDF Store)
          Finally… consume


 Related Work (indexing): Based on Relational Storage (Virtuoso) Multi-indexes
  (RDF3X), Distributed Systems (Map-Reduce) and others (Bit-Mat).




Image:PhD krishnan / FreeDigitalPhotos.net
      renjith Symposium
The scalability problems has
a main impact on Users

         Would you download hundreds of GB...


                                              … if you don’t know exactly what they contain,
                                             that need costly exchange and post-processing,
                                                and require a powerful store to query them ?




Image:PhD krishnan / FreeDigitalPhotos.net
      renjith Symposium
In the following...
1. Proposed approach for scalable publishing, exchanging and consumption
   of large RDF datasets
2. Preliminary results
3. Methodology
4. On-going work and conclusions




   Image:PhD Symposium
         jscreationzs / FreeDigitalPhotos.net
An integrated solution
We call for, and we study in this thesis, a Binary RDF Serialization format:
     Machine oriented (binary)
     Clean publication
               Metadata
               Modular
     Efficient exchange
               Compression
     Basic data operations
               Easy to parse and consume
               Primitive query resolution




    Image:PhD Symposium
          jscreationzs / FreeDigitalPhotos.net
HDT Overview




 PhD Symposium
Dictionary+Triples partition



   1   <http://books/author33>
   2   <http://books/book21>             6
   3   dc:author
   4   dc:title
   5   foaf:name                     1
                                 2
   6   “Pablo Neruda”
   7   “Spain in the Heart”          7




  PhD Symposium
Key concepts: The Dictionary

   Largest component (up to 74%)
     Long URIs, shared prefixes
     Lang, datatype tags in literals
   Efficient IDString operations



We plan to work on a specific organization which
  Optimizes space (regularities)
  Provides efficient performance in operations




         PhD Symposium
Preliminary results in Rich Functional Dictionaries

We propose to adapt techniques for string dictionaries;
  Front-Coding
     Making dictionary partitions




  [*] Compression of RDF Dictionaries. Miguel A. Martínez-Prieto, Javier D. Fernández,
     Rodrigo Cánovas. ACM Symposium on Applied Computing (SAC 2012).

       PhD Symposium
Key concepts: Triples

   Specific compression:
       More efficient compression than just gzip.
   Data indexing for consumption:
       Allows direct patterns resolution without decompression
           (s,p,o), (s,?p,?o) and (s,p,?o)


We plan to work on a specific technique which
  optimizes space
  provides efficient performance in primitive operations




          PhD Symposium
Preliminary results in Triples Encoding

We propose to use Bitmap indexes:




   [*] Compact Representation of Large RDF Data Sets for Publishing and
       Exchange. Javier D. Fernández, Miguel A. Martínez-Prieto, Claudio Gutierrez.
       International Semantic Web Conference(ISWC 2010).

       PhD Symposium
Methodology
 RDF structure in theory and practice.
 Binary RDF Specification.
 Succinct Dictionaries.
 Triples Indexes.
 Practical deployment.




Image:PhD Symposium
      jscreationzs / FreeDigitalPhotos.net
Some Results… HDT Acknowledged as W3C
member submission:
http://www.w3.org/Submission/2011/03/
                                        supported by:




   PhD Symposium
Some Results... HDT for exchanging




 PhD Symposium
Some Results... HDT for consumption
Direct Consumption, without decompression after exchanging
           Example of use: HDT-it (Thanks to Mario Arias, DERI)




Image:PhD Symposium
      jscreationzs / FreeDigitalPhotos.net
On-going promising work: HDT-FoQ




    [*] Exchange and Consumption of Huge RDF Data. Miguel A. Martínez-Prieto,
        Mario Arias, Javier D. Fernández. Extended Semantic Web Conference(ESWC
        2012). To appear
 PhD Symposium
In conclusion
Binary RDF aims to lightweight the Web of Data;
    Logical decomposition: Header, Dictionary, and Triples
    Clean publication
    Compressed RDF format for exchanging
    Machine-friendly, direct consumption
         Rich Functional Dictionary/Triples representations for querying




      PhD Symposium
Still much work on…
 Getting a global understanding of the real structure of RDF networks.
 Applying this knowledge in innovative dictionary and triples indexes.
     full SPARQL at consumption
 Supporting dynamic operations
     inserting, deleting, and updating binary RDF




       PhD Symposium
Thanks!



HDT:        http://www.rdfhdt.org/
Group: http://dataweb.infor.uva.es/
Slides: http://www.slideshare.net/javifer


                                   Javier D. Fernández (jfergar@infor.uva.es)
                   Supervised by: Miguel A. Martínez-Prieto, Claudio Gutierrez

                                                   University of Valladolid (Spain)
                                                       University of Chile (Chile)


  PhD Symposium
