Graduate Seminar_Keshab.pptx
- 1. GEOTECHNICAL ENGINEERING ASPECTOF THE 2015 GORKHA, NEPAL, EARTHQUAKE Keshab Sharma Graduate Student Department of Civil and Environmental Engineering University of Alberta March 02, 2016 Department of Civil & Environmental Engineering School of Mining & Petroleum Engineering University of Alberta

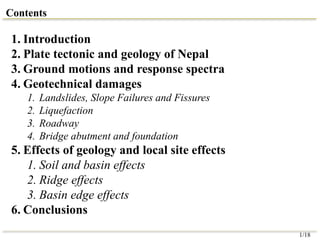

- 2. Contents 1. Introduction 2. Platetectonic and geology of Nepal 3. Ground motions and response spectra 4. Geotechnical damages 1. Landslides, Slope Failures and Fissures 2. Liquefaction 3. Roadway 4. Bridge abutment and foundation 5. Effects of geology and local site effects 1. Soil and basin effects 2. Ridge effects 3. Basin edge effects 6. Conclusions 1/18

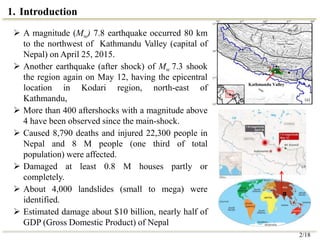

- 3. 1. Introduction Amagnitude (Mw) 7.8 earthquake occurred 80 km to the northwest of Kathmandu Valley (capital of Nepal) on April 25, 2015. Another earthquake (after shock) of Mw 7.3 shook the region again on May 12, having the epicentral location in Kodari region, north-east of Kathmandu, More than 400 aftershocks with a magnitude above 4 have been observed since the main-shock. Caused 8,790 deaths and injured 22,300 people in Nepal and 8 M people (one third of total population) were affected. Damaged at least 0.8 M houses partly or completely. About 4,000 landslides (small to mega) were identified. Estimated damage about $10 billion, nearly half of GDP (Gross Domestic Product) of Nepal Kathmandu Valley 2/18
- 4. 2. Plate tectonicand geology of Nepal Indo-Australian plate Eurasian plate Nepal is prone to earthquakes because it is at the junction of the Indo-Australian and Eurasian tectonic plates. The Himalayas were created when the plates collided millions of years ago, and the still moving Indo-Australian plate pushes the mountains a few millimeters higher every year. 3/18

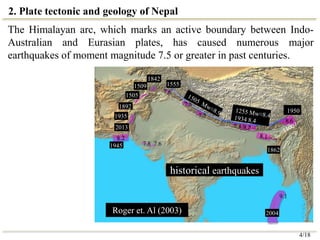

- 5. 8.6 1505 7.7 7.8 7.8 7.6 7.8 9.1 7.6 1509 1935 1945 1842 7.5 1950 2004 2013 1892 1555 1862 historical earthquakes Rogeret. Al (2003) 2. Plate tectonic and geology of Nepal The Himalayan arc, which marks an active boundary between Indo- Australian and Eurasian plates, has caused numerous major earthquakes of moment magnitude 7.5 or greater in past centuries. 4/18
- 6. 2. Plate tectonicand geology of Nepal The Himalayan Range is a young mountain system of world. Lesser Himalaya, where the main shock epicenter is located, contains primarily sedimentary and meta-sedimentary rocks , such as shale, limestone, and sandstone, aged from Cambrian to Eocene. X X Source: Raonline Cross-section at X-X 5/18

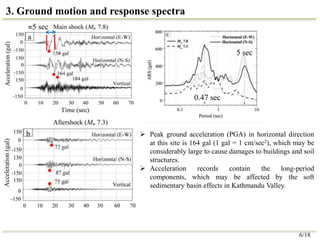

- 7. 3. Ground motionand response spectra Peak ground acceleration (PGA) in horizontal direction at this site is 164 gal (1 gal = 1 cm/sec2), which may be considerably large to cause damages to buildings and soil structures. Acceleration records contain the long-period components, which may be affected by the soft sedimentary basin effects in Kathmandu Valley. 6/18 0.47 sec 5 sec 5 sec

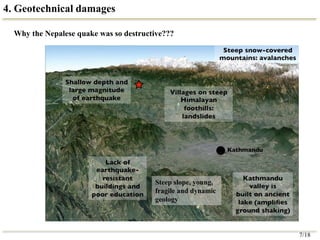

- 8. 4. Geotechnical damages Steepslope, young, fragile and dynamic geology Why the Nepalese quake was so destructive??? 7/18

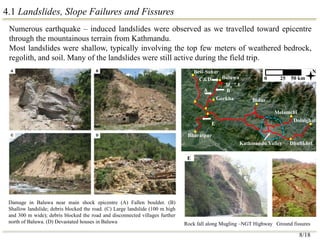

- 9. 4.1 Landslides, SlopeFailures and Fissures Damage in Baluwa near main shock epicentre (A) Fallen boulder. (B) Shallow landslide; debris blocked the road. (C) Large landslide (100 m high and 300 m wide); debris blocked the road and disconnected villages further north of Baluwa. (D) Devastated houses in Baluwa Numerous earthquake – induced landslides were observed as we travelled toward epicentre through the mountainous terrain from Kathmandu. Most landslides were shallow, typically involving the top few meters of weathered bedrock, regolith, and soil. Many of the landslides were still active during the field trip. E Melamchi Bidur Gorkha Besi-Sahar Baluwa Mw 7.8 Bharatpur Kathmandu Valley Dhulikhel Dolalghat 0 25 50 km C&D B A E N Rock fall along Mugling –NGT Highway Ground fissures 8/18

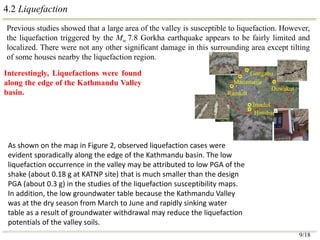

- 10. 4.2 Liquefaction Previous studiesshowed that a large area of the valley is susceptible to liquefaction. However, the liquefaction triggered by the Mw 7.8 Gorkha earthquake appears to be fairly limited and localized. There were not any other significant damage in this surrounding area except tilting of some houses nearby the liquefaction region. Interestingly, Liquefactions were found along the edge of the Kathmandu Valley basin. Imadol Hattiban Gongabu Manamaiju Ramkot Duwakot 9/18 As shown on the map in Figure 2, observed liquefaction cases were evident sporadically along the edge of the Kathmandu basin. The low liquefaction occurrence in the valley may be attributed to low PGA of the shake (about 0.18 g at KATNP site) that is much smaller than the design PGA (about 0.3 g) in the studies of the liquefaction susceptibility maps. In addition, the low groundwater table because the Kathmandu Valley was at the dry season from March to June and rapidly sinking water table as a result of groundwater withdrawal may reduce the liquefaction potentials of the valley soils.

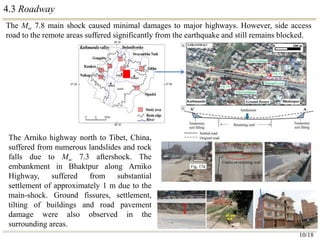

- 11. 4.3 Roadway The Mw7.8 main shock caused minimal damages to major highways. However, side access road to the remote areas suffered significantly from the earthquake and still remains blocked. 10/18 The Arniko highway north to Tibet, China, suffered from numerous landslides and rock falls due to Mw 7.3 aftershock. The embankment in Bhaktpur along Arniko Highway, suffered from substantial settlement of approximately 1 m due to the main-shock. Ground fissures, settlement, tilting of buildings and road pavement damage were also observed in the surrounding areas.
- 12. 4.3 Roadway Roadside damagesdue to lateral spreading were found at many locations in Kathmandu Valley. However, damages were nominal and localized. 11/18

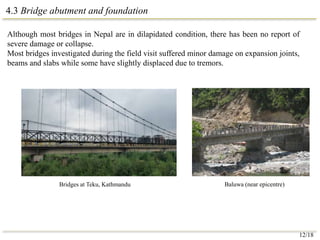

- 13. 4.3 Bridge abutmentand foundation Although most bridges in Nepal are in dilapidated condition, there has been no report of severe damage or collapse. Most bridges investigated during the field visit suffered minor damage on expansion joints, beams and slabs while some have slightly displaced due to tremors. Baluwa (near epicentre) Bridges at Teku, Kathmandu 12/18

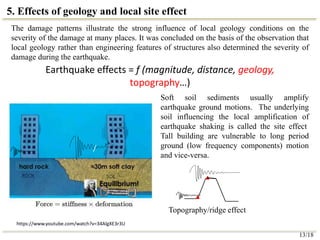

- 14. 5. Effects ofgeology and local site effect 13/18 The damage patterns illustrate the strong influence of local geology conditions on the severity of the damage at many places. It was concluded on the basis of the observation that local geology rather than engineering features of structures also determined the severity of damage during the earthquake. Earthquake effects = f (magnitude, distance, geology, topography…) / https://www.youtube.com/watch?v=34AlgXE3r3U Soft soil sediments usually amplify earthquake ground motions. The underlying soil influencing the local amplification of earthquake shaking is called the site effect Tall building are vulnerable to long period ground (low frequency components) motion and vice-versa. / Topography/ridge effect

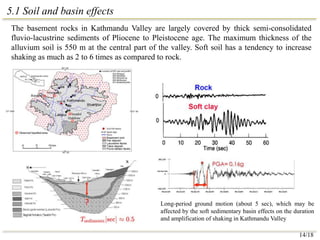

- 15. 5.1 Soil andbasin effects Long-period ground motion (about 5 sec), which may be affected by the soft sedimentary basin effects on the duration and amplification of shaking in Kathmandu Valley The basement rocks in Kathmandu Valley are largely covered by thick semi-consolidated fluvio-lacustrine sediments of Pliocene to Pleistocene age. The maximum thickness of the alluvium soil is 550 m at the central part of the valley. Soft soil has a tendency to increase shaking as much as 2 to 6 times as compared to rock. 14/18
- 16. 5.1 Soil andbasin effects Soft Holocene alluvium might have contributed to the greater amplification of ground motions and more severe damage to the buildings on the site. The destruction of the building on filled area can also be interpreted by the local site amplification because most of these structures were constructed on loosely compacted fill. Causes of the major damage in well-engineered high-rise buildings in Kathmandu may be attributed to the long-period ground motions caused by thick alluvial deposits in Kathmandu Valley. 15/18

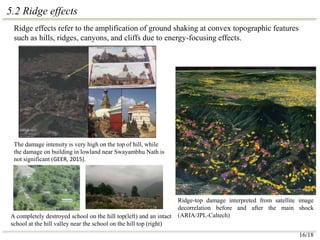

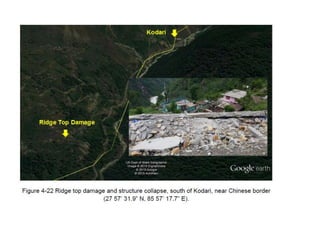

- 17. 5.2 Ridge effects Ridge-topdamage interpreted from satellite image decorrelation before and after the main shock (ARIA/JPL-Caltech) A completely destroyed school on the hill top(left) and an intact school at the hill valley near the school on the hill top (right) The damage intensity is very high on the top of hill, while the damage on building in lowland near Swayambhu Nath is not significant (GEER, 2015). Ridge effects refer to the amplification of ground shaking at convex topographic features such as hills, ridges, canyons, and cliffs due to energy-focusing effects. 16/18

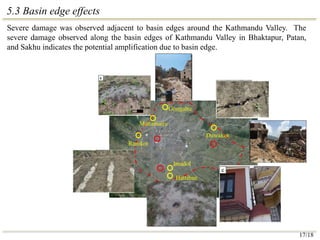

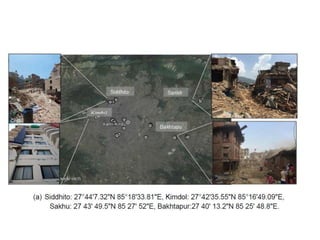

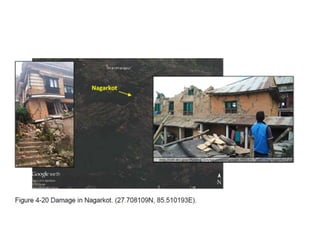

- 18. 5.3 Basin edgeeffects Severe damage was observed adjacent to basin edges around the Kathmandu Valley. The severe damage observed along the basin edges of Kathmandu Valley in Bhaktapur, Patan, and Sakhu indicates the potential amplification due to basin edge. Imadol Hattiban Gongabu Manamaiju Ramkot Duwakot 17/18

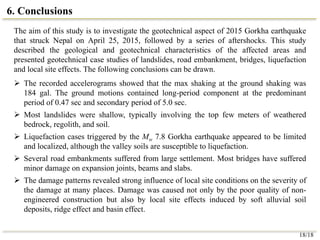

- 19. 6. Conclusions The aimof this study is to investigate the geotechnical aspect of 2015 Gorkha earthquake that struck Nepal on April 25, 2015, followed by a series of aftershocks. This study described the geological and geotechnical characteristics of the affected areas and presented geotechnical case studies of landslides, road embankment, bridges, liquefaction and local site effects. The following conclusions can be drawn. The recorded accelerograms showed that the max shaking at the ground shaking was 184 gal. The ground motions contained long-period component at the predominant period of 0.47 sec and secondary period of 5.0 sec. Most landslides were shallow, typically involving the top few meters of weathered bedrock, regolith, and soil. Liquefaction cases triggered by the Mw 7.8 Gorkha earthquake appeared to be limited and localized, although the valley soils are susceptible to liquefaction. Several road embankments suffered from large settlement. Most bridges have suffered minor damage on expansion joints, beams and slabs. The damage patterns revealed strong influence of local site conditions on the severity of the damage at many places. Damage was caused not only by the poor quality of non- engineered construction but also by local site effects induced by soft alluvial soil deposits, ridge effect and basin effect. 18/18

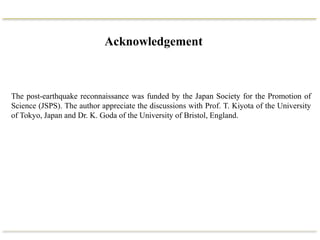

- 20. Acknowledgement The post-earthquake reconnaissancewas funded by the Japan Society for the Promotion of Science (JSPS). The author appreciate the discussions with Prof. T. Kiyota of the University of Tokyo, Japan and Dr. K. Goda of the University of Bristol, England.
- 21. Thank you foryour attention.

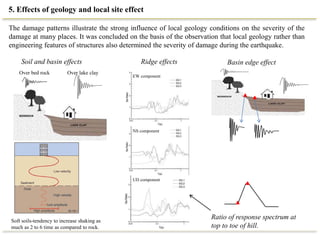

- 22. 5. Effects ofgeology and local site effect Soft soils-tendency to increase shaking as much as 2 to 6 time as compared to rock. Over bed rock Over lake clay EW component NS component UD component Soil and basin effects Ridge effects Basin edge effect The damage patterns illustrate the strong influence of local geology conditions on the severity of the damage at many places. It was concluded on the basis of the observation that local geology rather than engineering features of structures also determined the severity of damage during the earthquake. Ratio of response spectrum at top to toe of hill.
Editor's Notes
- #5 Nepal is located in the centre of the Himalayan concave chain. The Himalayan arc, which marks an active boundary between Indian and Eurasian plates, has caused numerous major earthquakes of moment magnitude 7.5 or greater in past centuries. The 2015 Gorkha earthquake were the result of thrust faulting between the subducting India plate and the Eurasia plate to the north (Fig. 1b), where the Indian plate converges with the Eurasian plate at a rate of approximately 45 mm/year towards the north-northeast, driving the uplift of the Himalayas and the Tibetan Plateau [14]
- #6 Nepal is located in the centre of the Himalayan concave chain. The Himalayan arc, which marks an active boundary between Indian and Eurasian plates, has caused numerous major earthquakes of moment magnitude 7.5 or greater in past centuries. The 2015 Gorkha earthquake were the result of thrust faulting between the subducting India plate and the Eurasia plate to the north (Fig. 1b), where the Indian plate converges with the Eurasian plate at a rate of approximately 45 mm/year towards the north-northeast, driving the uplift of the Himalayas and the Tibetan Plateau [14]
- #7 55 to 40 million-Eocene 570-500 million Cambrian
- #11 As shown on the map in Figure 2, observed liquefaction cases were evident sporadically along the edge of the Kathmandu basin. The low liquefaction occurrence in the valley may be attributed to low PGA of the shake (about 0.18 g at KATNP site) that is much smaller than the design PGA (about 0.3 g) in the studies of the liquefaction susceptibility maps. In addition, the low groundwater table because the Kathmandu Valley was at the dry season from March to June and rapidly sinking water table as a result of groundwater withdrawal may reduce the liquefaction potentials of the valley soils.
- #12 The ground fissures extend hundreds of meters diagonally across the highway (Figs. 12a and 13d), damaging and tilting a number of buildings and boundary walls. This in fact indicates that the whole ground along with the buildings on this side has subsided by more than one meter. At some places the ground cracks measured 40 cm wide (Fig. 13d). Fig. 13 shows that apart from the subsidence, the embankment did not suffer from major structural damage. Only minor damage such as cracks and fissures, slight tilting, and differential settlement (Fig. 13c) was observed in reinforced soil retaining wall. However, as shown in Fig. 13d, larger fissures and settlements were found in the surrounding area. Overall, the reinforced retaining walls and earth embankment demonstrated good performance against the earthquake.
- #16 Deep sedimentary basins can significantly amplify and lengthen the period of bedrock ground motions, such effect of deep sedimentary basin on the surface ground motion is known as basin effects.
- #17 There were about 11 high-rise apartments (≥ 15 stories) that suffered severe damage to the infill walls and were declared unsafe for habitation. The scatter of failed multi-storey buildings throughout the cities of Kathmandu, Bhaktpur, and Lalitpur implies that the damage may not be purely attributed to the poor quality construction materials, or the inadequate design since there was relatively lesser damage in similar types of buildings having fewer stories. It is inferred that soil amplification of long-period ground motion due to the soft deep valley sediment might have caused greater damage to high-rise buildings as compared to short ones, probably due to double resonance effects. High-rise buildings with longer predominant periods are expected to be vulnerable to such long-period ground motions, while shorter buildings with lower predominant periods are expected to have less damage.
- #18 Large numbers of school buildings were reported collapsed or severely damaged. In Nepal, school building is often constructed on hilltops. So, collapse of the school buildings on the hill may be attributed to the ground motion amplification by the hill
